BOC Hydrogen Capabilities and Potential Mark Griffin Hydrogen
BOC Hydrogen Capabilities and Potential Mark Griffin – Hydrogen Market Development Manager – Clean Fuels

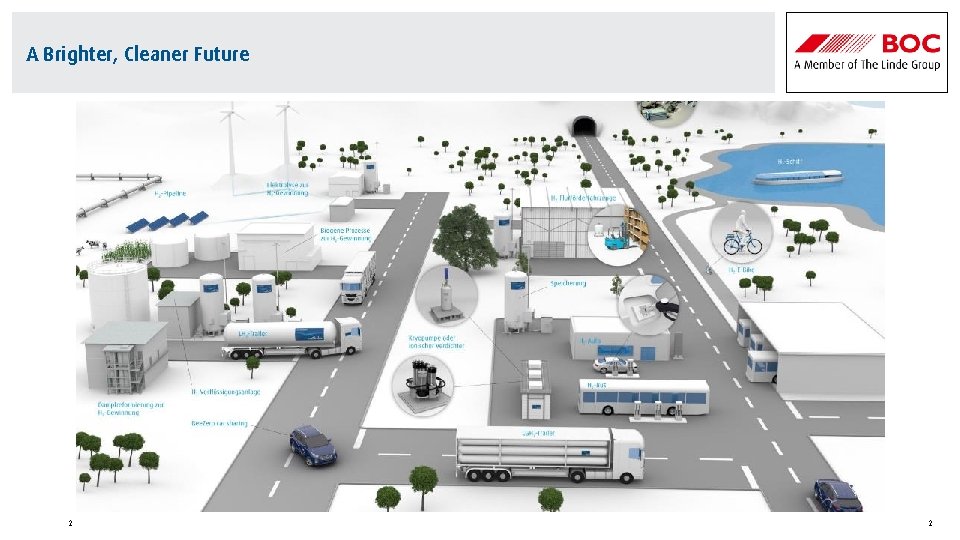

A Brighter, Cleaner Future 2 2
Introduction to Linde 10/03/2021 3
Linde Global HRS Activity 10/03/2021 Page 4 4
BOC UK capability Strong network and experience of refuelling activities Hydrogen production plants Hydrogen refuelling activity BOC H 2 plant ● Strong network of hydrogen plants ● Regional Operating Centre and Engineering team in Sheffield 10/03/2021 Page 5 5

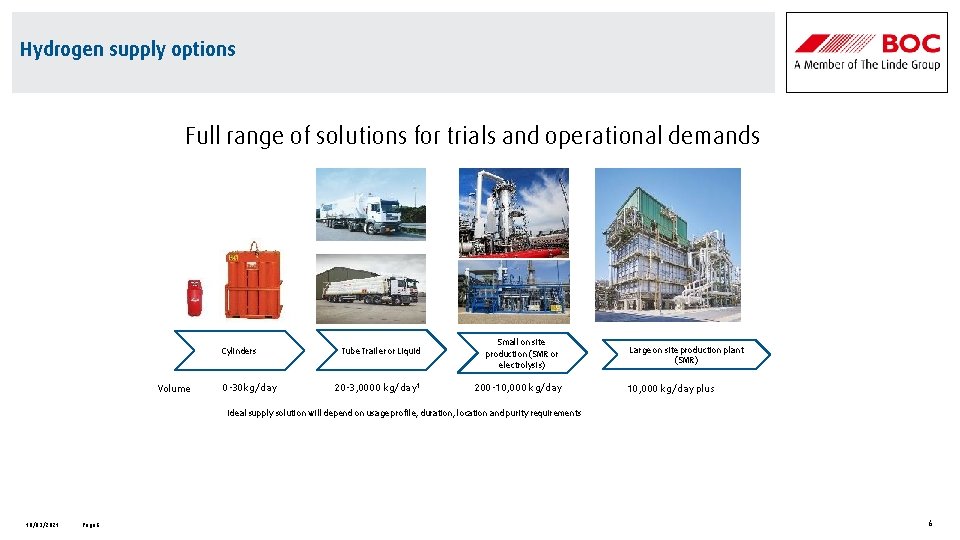

Hydrogen supply options Full range of solutions for trials and operational demands Cylinders Volume 0 -30 kg/day Tube Trailer or Liquid 20 -3, 0000 kg/day 1 Small on site production (SMR or electrolysis) 200 -10, 000 kg/day Large on site production plant (SMR) 10, 000 kg/day plus Ideal supply solution will depend on usage profile, duration, location and purity requirements 10/03/2021 Page 6 6

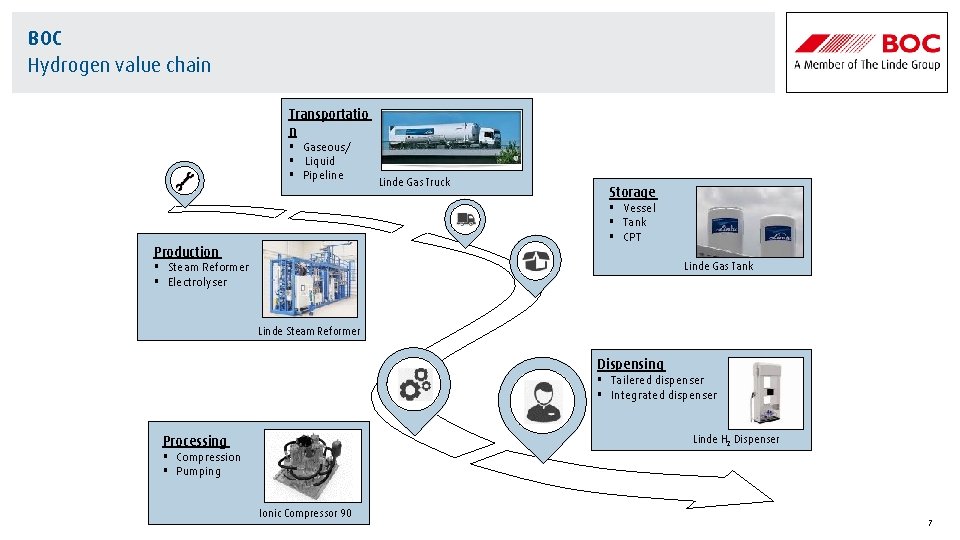

BOC Hydrogen value chain Transportatio n § Gaseous/ § Liquid § Pipeline Linde Gas Truck Storage § Vessel § Tank § CPT Production Linde Gas Tank § Steam Reformer § Electrolyser Linde Steam Reformer Dispensing § Tailered dispenser § Integrated dispenser Processing Linde H 2 Dispenser § Compression § Pumping Ionic Compressor 90 7
Storage Technology & Supply Gas supply through trailers, vessels or on-site production H 2 H 2 Low pressure bulk storage H 2 High pressure buffer storage ready-to-use Ionic compressor Supply Storage 700 bar car 350 bar bus High Pressure Refill Storage • Incoming supply through trailers, vessels or on-site production • Stored with high pressure ready to immediately fill the vehicle • Large amounts stored • Small amounts efficiently stored • Low - medium pressure • High pressure 8
Refuelling stations Functionality H 2 Supply Compressor Dispenser Cooling Unit Storage unit 9
Refuelling Station Concepts 10

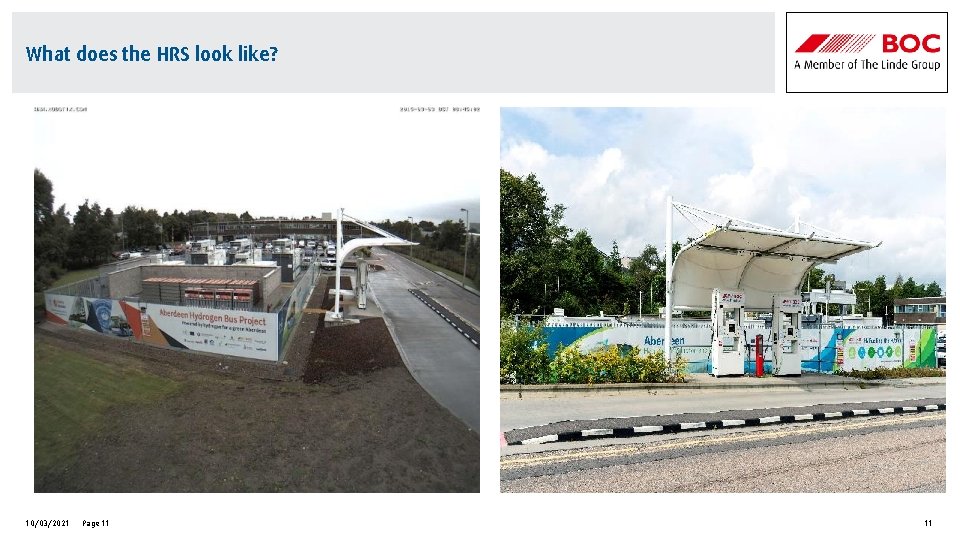

What does the HRS look like? 10/03/2021 Page 11 11

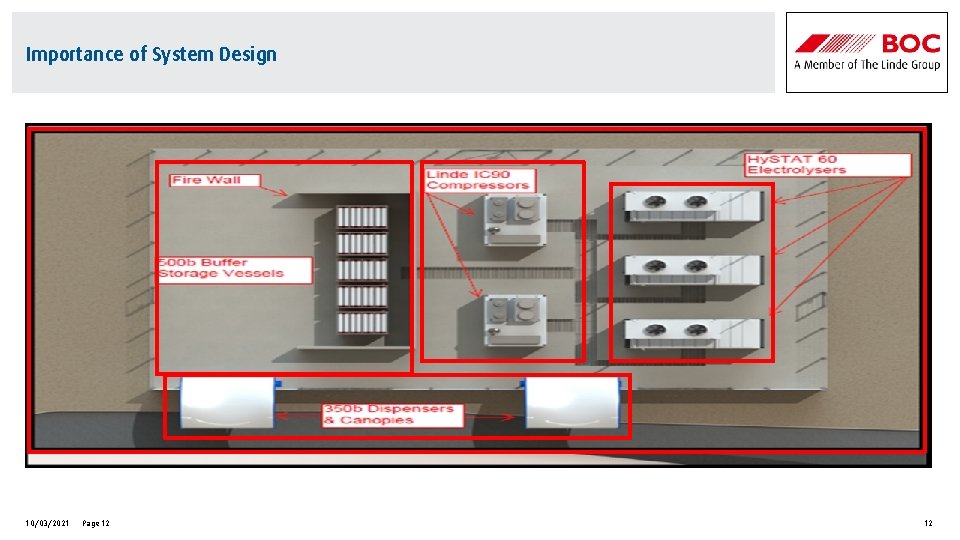

Importance of System Design 10/03/2021 Page 12 12

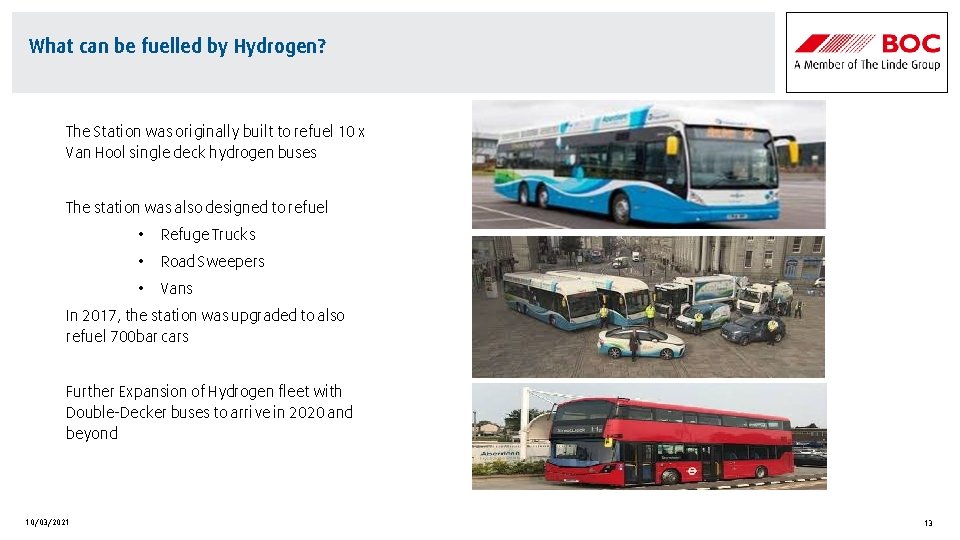

What can be fuelled by Hydrogen? The Station was originally built to refuel 10 x Van Hool single deck hydrogen buses The station was also designed to refuel • Refuge Trucks • Road Sweepers • Vans In 2017, the station was upgraded to also refuel 700 bar cars Further Expansion of Hydrogen fleet with Double-Decker buses to arrive in 2020 and beyond 10/03/2021 13
Other keys to Success Local operational and engineering support Linde H 2 Plant Monitoring – LH 2 PM HRS Planned Preventative Maintenance Clear Refuelling Guidelines at the dispenser to help remember process 10/03/2021 Page 14 14
Kittybrewster Station Performance 200 Tonnes 10/03/2021 Page 15 15

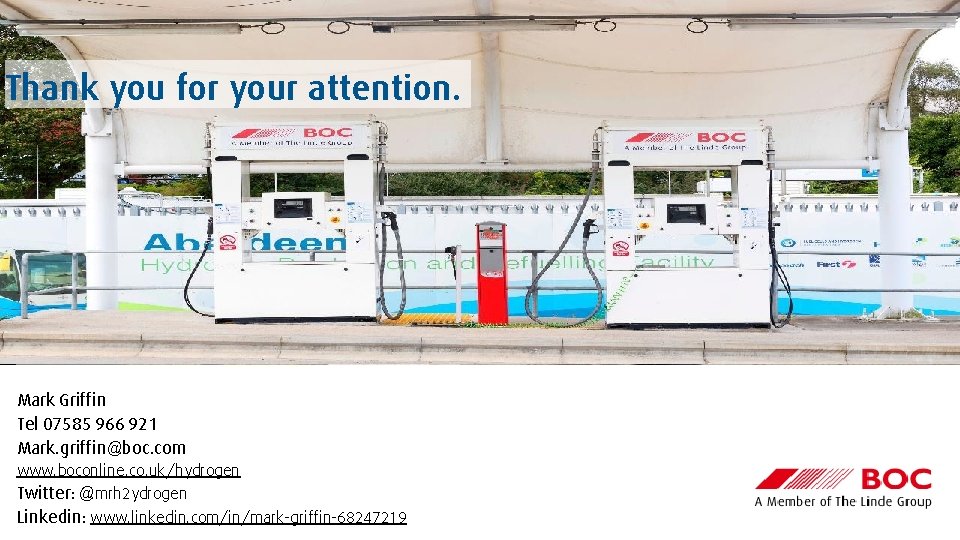

Thank you for your attention. Mark Griffin Tel 07585 966 921 Mark. griffin@boc. com www. boconline. co. uk/hydrogen Twitter: @mrh 2 ydrogen Linkedin: www. linkedin. com/in/mark-griffin-68247219
