Bobbin Mill Brook Water Quality in an Urban

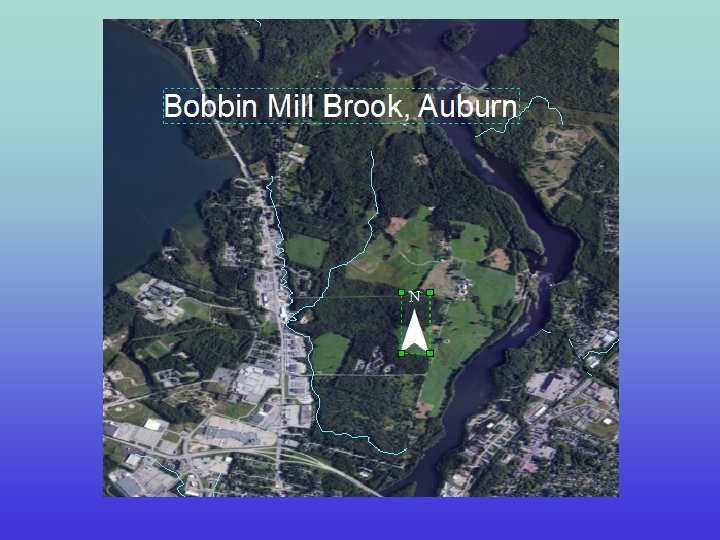

Bobbin Mill Brook - Water Quality in an Urban Watershed Anabel Schmelz, Megan Kearns, Anne Rockwell 10 December 2013

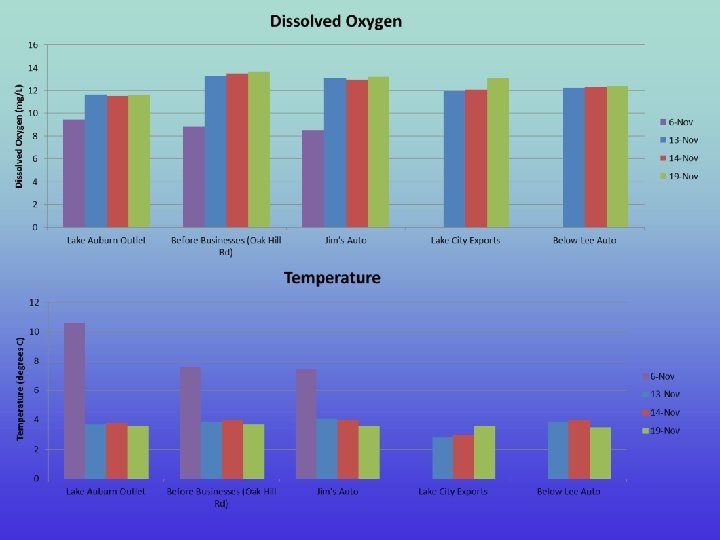

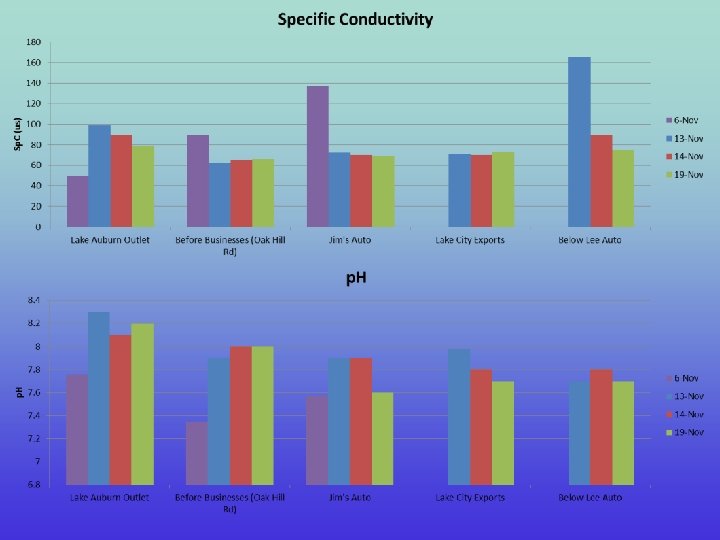

Our Goals Research impervious surface mitigation plans and storm water management Identify sources and entryways of pollution into the brook i. e. stormwater runoff channels Look at potential sites to implement BMPs GIS mapping Water quality testing Scholarly research
Why do we care about stormwater runoff? Increased development and population growth leads to urban stormwater runoff Impervious surface Definition: refers to all hard surfaces like paved roads, parking lots, roofs, and even highly compacted soil like sports fields Leads to faster flow rates and higher volumes in streams
Photo credit beachapedia. com
Businesses: Glamour Pool and Spa, A 1 Auto, Hertz, Center Street Auto, Lee Credit, Jim’s Auto, Toyota, Auto City, Berube’s, Chevy, WD Matthews, Lake City Exports, Central Maine Credit Union, J&M Homes, Laundry. Mate, Evergreen Subaru, US Cellular, Lee Auto, Auburn Plaza, Arby’s, Shaws Mall Complex, Fire Departmehnt, Quicklane, Kmart, Applebees, Book Burrow, and more.

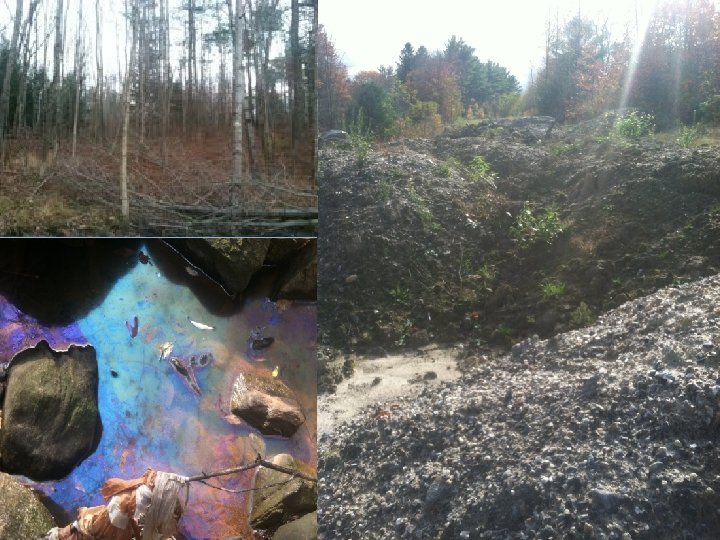

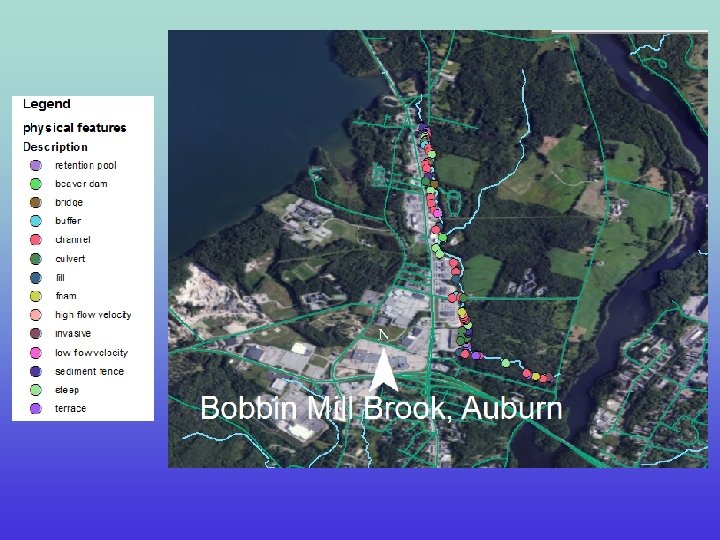

Stormwater Runoff Channels

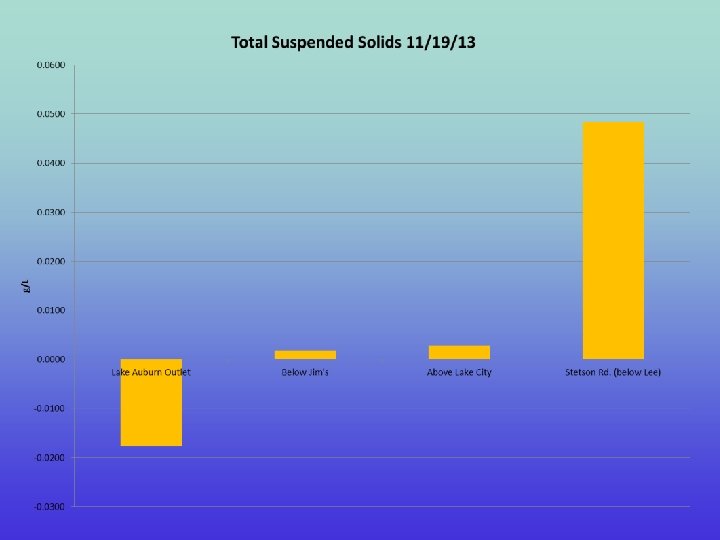

Stetson Rd. Channel
Lee Auto N
Changing Landscape N
Kmart Parking Lot N
Implications & Conclusions Runoff entering brook at many locations…no one point source (except Stetson Rd. Channel) Water quality consistent throughout Further research Understanding the main sources of surface runoff of Bobbin Mill Brook BMP or LID techniques specific to Bobbin Mill Brook
Questions? Comments? Thanks!
References Arnold, Chester L. , Jr. , and C. James Gibbons. 1996. Impervious surface coverage: Emergence of a key environmental factor. Journal of the American Planning Association 62, 2: 243 -58. Barrett, M. E. , Kearney, J. E. , Mc. Coy, T. G. , Malina, J. F. , and Charbeneau, R. J. 1996. An evaluation of the use and effectiveness of temporary sediment controls. Center for Transportation Reserch at the University of Texas at Austin. Report 1943 -2. Bastien, N. R. P. , Arthur, S. , Wallis, S. G. , and Scholz, M. 2011 Runoff infiltration, a desktop case study. Water Science and Technology 63, 10: 2300 -08. Booth, Derek B. , Jackson, C. Rhett. 1997 Urbanization of aquatic systems: degreadaion thresholds, stormwater detection, and the limits of mitigation. JAWRA 33, 5: 1077 -90. Brun , S. E. & Band, L. E. 2000. Simulating runoff behavior in an urbanizing watershed. Computers, Environment and Urban Systems 24: 5 -22. Davidson, Burton & Bradshaw, Robert W. 1967 Thermal pollution of water systems. Environmental science and technology 1, 8: 617 -30. EPA. Low Impact Development (LID). EPA, 2013. EPA. National Menu of Stormwater Best Management Practices. EPA, National Pollutant Discharge Elimintation System (NPDES), 2012. EPA. Stormwater Runoff: effective vs. total imperviousness. EPA, CADDIS, 2012. EPA. Urban Nonpoint Source Fact Sheet. EPA, 2003. (EPA 841 -F-03 -003) Espy et al. 2002 American Society of Civil Engineers Task Force Judd, Richard W. 1990. The coming of the Clean Water Acts in Maine: 1941 -1961. Environmental History Review 14, 3: 50 -73. Karr, James R. 1987. Biological monitoring and environmental assessment: A conceptual framework. Environmental Management 11, 2: 249 -56. Kondolf, G. Mathias. Micheli, Elisabeth R. Evaluating stream restoration projects. Environmental Management 19, 1: 1 -15. Lyons, Steve W. , Walter, Todd, Gerard-Marchant, Pierre, Steenhuis, Tammo S. 2004. Using a topographic index to distribute variable source area runoff predicted with the SCS curve-number equation. Hydrol. Process 18: 2757 -71. Mac. Namara, E. E. 1966. A primary rendition of an annotated bibiograophy on thermal alterations in the aquatic environment. State of New Jersey Department of Conservation and Economics. Dev. , Trenton, New Jersey. May, Christopher W. , Horner, Richard R. , Karr, James R. , Mar, Brian W. , Welch, Eugene B. 1997. Effects Of Urbanization On Small Streams. Watershed Protection Techniques 2, 4: 483 -94. Mitchell, M. K. & Stapp, W. B. 1997. Field Manual for Water Quality Monitoring. GREENE/Earth Forcem Alexandria, VA. Murphy, Sheila. 2007. General Information on Solids. USGS Water Quality Monitoring. Niehoff, Daniel, Fritsch, Uta, Bronstert, Axel. 2002. Land use impacts on storm-runoff generation: scenarios of land-use change and simulation of hydrological response in a meso-scale catchment in SW Germany. Journal of Hydrology 267: 80 -93. O’Connor D. J. 1967. The temporal and spatial distribution of dissolved oxygen in streams. Water Resources Research Journal 3, 1: 65 -79. Ogburn, O. , Pitt, R. , Clark, S. 2012 Pollutant releases from gutter and piping materials into urban stormwater runoff. World Environmental and Water Resources Congress 2012: Crossing Boundaries: 3674 -3685. Albuquerque, NM. Purcell, Alison H. Friedrich, Carla. And Resh, Vincent H. 2002. An assessment of a small urban stream restoration project in Northern California. Restoration Ecology 10, 4: 685 -94. Rafter, Dan. 2008. Controlling stormwater. Erosion Control 15, 5 L 36 -43. Richards, Carl, Lucinda B. Johnson, and George E. Host. 1996. Landscapescale influences on stream habitats and biota. Canadian Journal of Fisheries and Aquatic Science 53 (suppl. 1): 295 -311. Shaver, Earl, John Maxted, Gray Curtis, and David Carter. 1995. Watershed protection using an integrated approach. In Stormwater NPDES related monitoring needs: Proceedings of an Engineering Foundation Conference, Harry C. Torno, ed. New York: American Society of Civil Engineers. Smith, David C. 1966. Wood pulp paper comes to the Northeast: 1865 -1900. Forest History 10, 1: 12 -25. United Nations Population Fund. 2007. State of world population 2007: unleashing the potential of urban growth. New York, New York. U. S. Census Bureau. (2012). Maine Quickfacts: Retrieved December 8, 2013, from http: //quickfacts. census. gov. Wang, Lizhu, Lyons, John, Kanhel, Paul, Bannerman, Roger, Emmons, Edward. 2000. Watershed urbanization and changes in fish communities in southeastern Wisconsin streams. JAWRA 35, 5: 1173 -89. Welker, Andrea L. , Mandarano, L. Greising, Kathryn, and Mastrocola, Krista. 2013. Application of a monitoring plan for storm-water control measures in the Philadelphia region. Journal of Environmental Engineering 139: 1108 -18. Wetzel RG. 1983. Limnology. 2 nd ed. New York: Saunders College Publishing. f
