Bob Tavares RF Director Sudbury MA Partnership for
Bob Tavares RF Director Sudbury, MA Partnership for Excellence

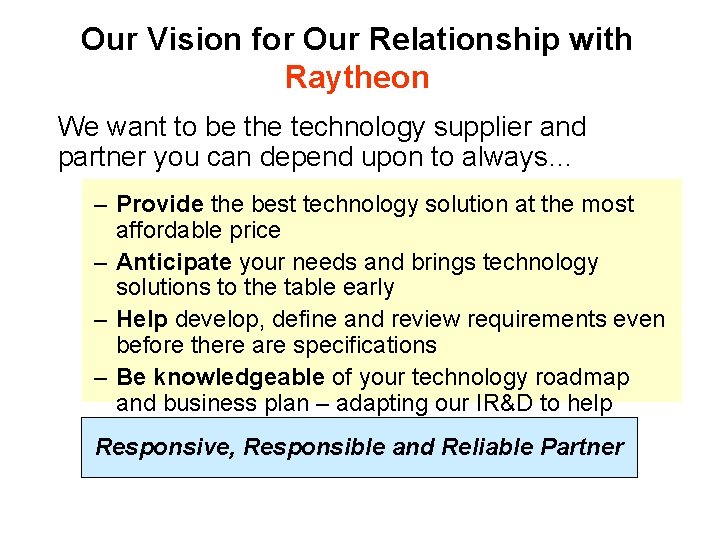

Our Vision for Our Relationship with Raytheon We want to be the technology supplier and partner you can depend upon to always… – Provide the best technology solution at the most affordable price – Anticipate your needs and brings technology solutions to the table early – Help develop, define and review requirements even before there are specifications – Be knowledgeable of your technology roadmap and business plan – adapting our IR&D to help Responsive, Responsible and Reliable Partner
A&D Market/Technology Roadmap Antennas & Cables Improved GPS Standardized cable assys Patch Arrays Smart A/J GPS Applications mm. W ESA Low Cost MMW PGM Ga. N Transmitter Sensors mm. W Seekers mm. W Fuze System on a Chip (SOC) Assemblies proc control Fast Synthesis T/R modules mm. W converters Reconfigurable Modules mm. W exciters Smart SRAs T/R & Digital Rcvr On a Chip Comm Systems RWR RF only RWR mm. W ext Receivers mm. W Extension RWR “to bits” Digital Receiver Smart T/R Modules Data Links Full Systems Generation after next chips HP Amp Digital PA A&D Chips 2002 Si. Ge Subsystems Missile Subsystems Advanced Telemetry Multifunction Chips Smart Antennas T/R Chipsets 2003 2004 mm. W Chips CPLD/ DSP FPGA HV MSAG 2005 p. HEMT m. HEMT Si. Ge ASIC Program X-Mitter Ga. N MMIC 2006 Hi Efficiency PA’s Building Block Development and Insertion Si. Ge/ CMOS 2007 2008 2009

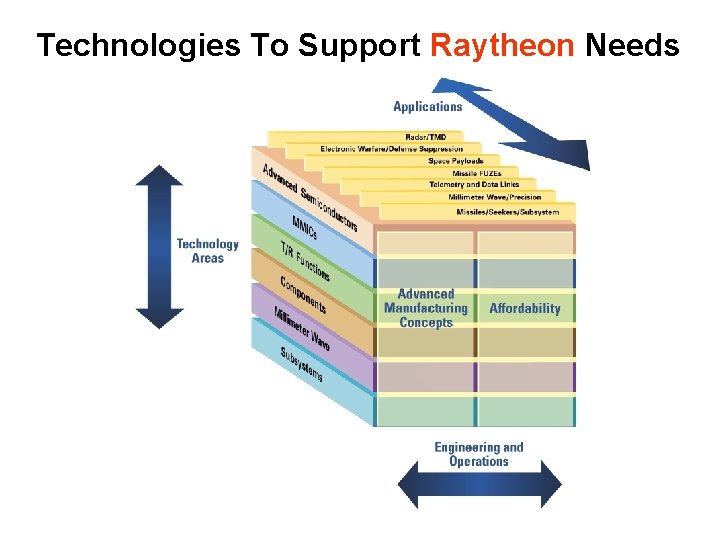

Technologies To Support Raytheon Needs
Technologies To Support Raytheon Needs
Advanced Semiconductor Technology Processes for the Future • E/D p. HEMT – Control Circuits with on Chip ESSM Mobile Sensors AMRAAM Drivers • Millimeter Wave Processes - 0. 18 µm TGate Military – LH 5 – Low Noise p. HEMT Land Based Radar • Fmin/Associated Gain – 10 GHz – 0. 6 d. B/11 d. B MMIC A Dual Use – 25 GHz – 1. 1 d. B/7 d. B Strategy Technology – PH 5 – Power p. HEMT • Pout – 750 m. W/mm (16 GHz) Commercial • PAE > 50% • Wide Bandgap Device Technology Automotive Sensors – High Power • Pout > 8 W/mm – Broad Spectrum • 1 – 25 GHz Mobile and Cordless Phones Wireless Data
Technologies To Support Raytheon Needs
Technologies To Support Raytheon Needs
T/R Functions – Low Cost Modules • Design Flexibility – Vertically Integrated Solutions – Tx, Rx, Phase, Atten, Full T/R Modules – From Custom Design to Build to Print • Wide Operating Range – UHF to W-Band – Power Modules – High Dynamic Range • Applications – Missiles/Seekers/PGMs – Airborne & Shipboard Radar – Gun Hardened Telemetry Modules – Data Links – SATCOM – SIGINT, COMINT Integrated T/R BGA’s Gun Hard Telemetry State of the Art Infrastructure High Power Land Grid Array
Technologies To Support Raytheon Needs
Technologies To Support Raytheon Needs
Defense Components Active & Control Products: • Phase shifters • Mixers • Limiters • Amplifiers • Limiter & LNA • Detectors • Receiver Protector • Attenuators (Digital/Variable) • Antenna Subsystems • Switches Signal Generation: • VCOs • Phase Locked Oscillator • Frequency Doublers Passive Products: • Couplers • Power Dividers/Combiners • Fixed Attenuators Future Products • Utilizing advanced semiconductors, innovative packaging (lead frame, plastic, BGA
Technologies To Support Raytheon Needs
Technologies To Support Raytheon Needs
Affordability Through Working Together… – Integrating our design engineering and manufacturing teams with yours – Sharing best practices and lessons learned – Develop products with shorter design and production build cycles Project Definition Measurement Analyze Improve Through Lean and Six Sigma Initiatives… – Organize our workplace with visual controls – Eliminate waste in process/reduce process variation – Continuous improvement – Improved materials flow with integrated SAP/MRP – Co-located product focuses teams Through A Clear Focus on the Goal… – One team dedicated with one vision – Providing the highest quality product – At the most affordable price Control Improvement Methodology Lean Operation 6 5 4 3 2 1 • Kanban • 6 -Sigma Material Flow: • Point of use • JIT Trays/Carts • Kanban Value Stream Mapping: • Future State • Current State Metrics: • Customer Requirements • Management Objectives • Cheetah • Teams System Perfection SAP Integration : • Backflushing • Production Shooting Supply Chain Visual Controls Error Proofing • Poka Yoke • TPM Visual Metrics: • White Boards Set-up Reduction Group Products: • Choose Team • Gap Analysis • Resource SPC Create Continuous Flow: • Co-located Cells • Balanced Line • Takt/Pitch • Reduced Batch Size Product Teams: • Team Mtg 5 S: • Sort • Simplify • Sweep • Standardize Sustain • Pull Systems Improve Quality Customer Feedback Improve Flow System Map and Streamlining Product Grouping and Lean Plan A Structured Approach To Lean Customer Improvement and Feedback
In Summary… Thank You for this opportunity to tell you about our technology and capability. You Can Count On Us to be a dependable partner in your supply chain now and in the future. M/A-COM…One VISION with Raytheon Partners For a New World
