Boardworks Ltd 2003 The physical states of matter
© Boardworks Ltd 2003

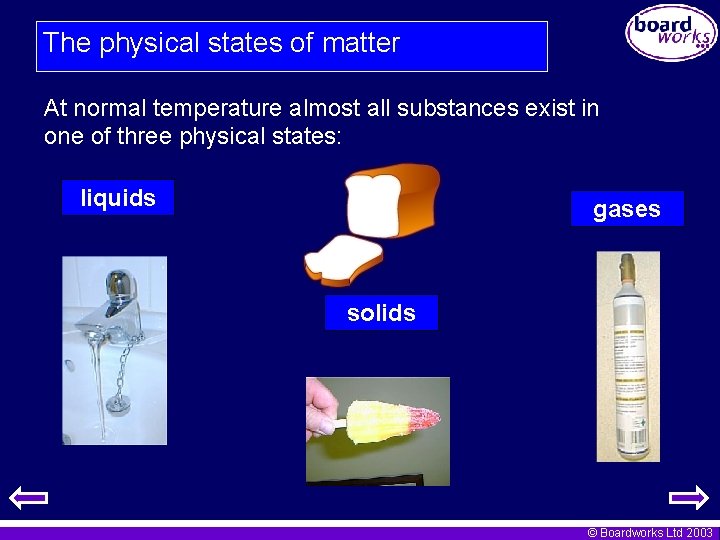

The physical states of matter At normal temperature almost all substances exist in one of three physical states: liquids gases solids © Boardworks Ltd 2003

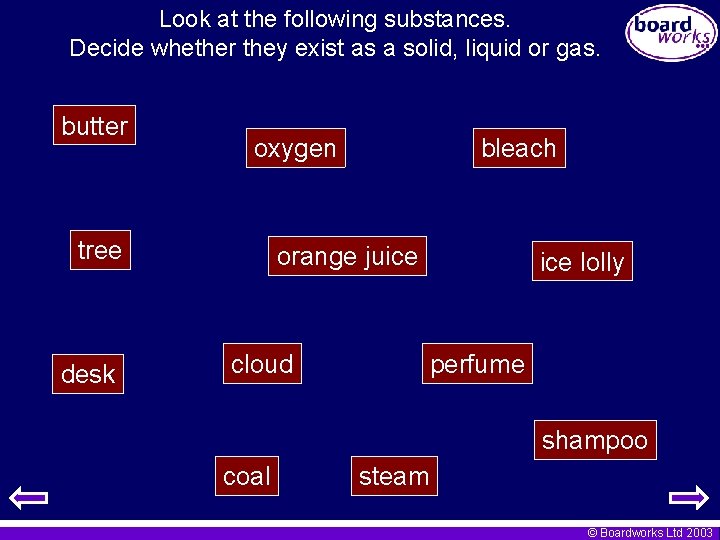

Look at the following substances. Decide whether they exist as a solid, liquid or gas. butter oxygen tree desk bleach orange juice cloud ice lolly perfume shampoo coal steam © Boardworks Ltd 2003
Match each substance to the correct column in the table. When you have got it all correct the first letter of each substance will spell a word that is important in this unit. Aluminium, argon, ethanol (alcohol), iron, lead, mercury, radium, tin Liquid Metal Mercury Solid used in aircraft Aluminium Solid used to coat steel cans Tin Intoxicating liquid Ethanol Radioactive solid Radium Solid that rusts Iron Un-reactive gas Argon Solid used by Ancient Roman plumbers Lead © Boardworks Ltd 2003
Kinetic Theory The existence of solids, liquids and gases is explained by the kinetic theory. This is based on the following ideas: 1. All substances are made up of particles (atoms, ions and molecules). 2. That these particles are attracted to each other, some strongly and others weakly. 3. That these particles move around (i. e. have kinetic energy). 4. That their kinetic energy increases with temperature. © Boardworks Ltd 2003
Particle arrangements: solids This animation shows a 2 -D view of the motion of the atoms in a 3 -D solid. © Boardworks Ltd 2003
Particle arrangements: liquids This animation shows a 2 -D view of the motion of the atoms in a liquid. There is no order. © Boardworks Ltd 2003
Particle arrangements: gases © Boardworks Ltd 2003
© Boardworks Ltd 2003
© Boardworks Ltd 2003
Diffusion 1 • Diffusion is the movement of one type of particle into and through another. For example, the smell of after-shave or perfume diffuses across a room. Can you explain these facts? • Diffusion occurs both in liquids and gases but hardly at all in solids. • It happens more quickly for gases than for liquids. • It happens more quickly at warm temperatures than at cooler temperatures. Insects communicate by smells that diffuse through the air. © Boardworks Ltd 2003
Diffusion 2 © Boardworks Ltd 2003

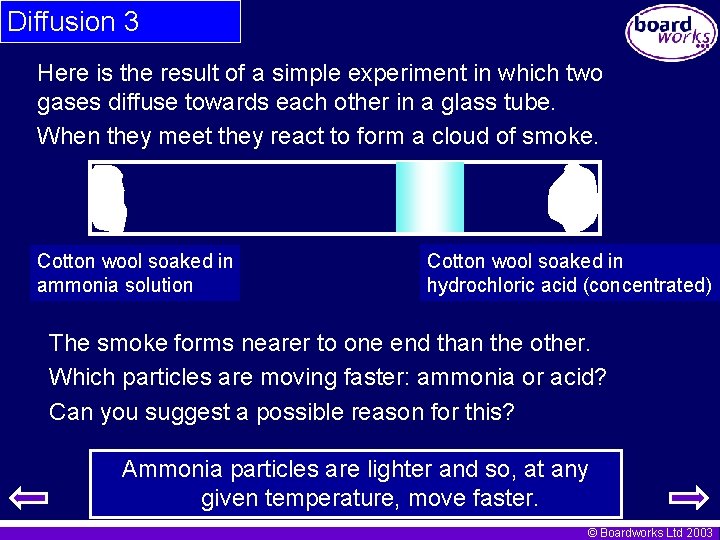

Diffusion 3 Here is the result of a simple experiment in which two gases diffuse towards each other in a glass tube. When they meet they react to form a cloud of smoke. Cotton wool soaked in ammonia solution Cotton wool soaked in hydrochloric acid (concentrated) The smoke forms nearer to one end than the other. Which particles are moving faster: ammonia or acid? Can you suggest a possible reason for this? Ammonia particles are lighter and so, at any given temperature, move faster. © Boardworks Ltd 2003
Crossword Across: 2 Change from liquid to solid 5 Force caused by collisions of particles 6 Arranged in a 3 dimensional pattern 9 Spacing of particles in solids and liquids 10 All substances are this state at very low temperatures 11 Only liquids and gases do this 1 2 3 4 5 6 7 8 9 10 11 Down: 1 "Heavy“ 3 Change from gas to liquid 4 Change from solid to liquid 6 State with particles close but disorganised 7 Particles widely spread out 8 Change from liquid to gas © Boardworks Ltd 2003
1. Which of the diagrams represents a liquid evaporating? A B C D © Boardworks Ltd 2003
2. Which of the following describes a liquid? A B C D compressible, fluid non-compressible, fluid compressible, no fixed shape non-compressible, very low density © Boardworks Ltd 2003
3. Which of these is only true for a gas? A can flow B exerts pressure on its container C will occupy the whole of the container it is placed in D has no shape of its own © Boardworks Ltd 2003
