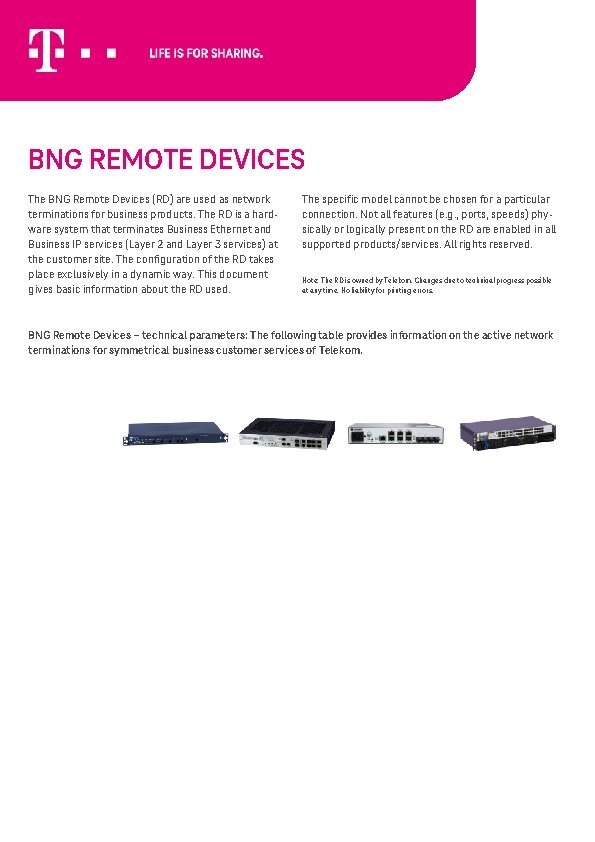

BNG REMOTE DEVICES The BNG Remote Devices (RD) are used as network terminations for business products. The RD is a hardware system that terminates Business Ethernet and Business IP services (Layer 2 and Layer 3 services) at the customer site. The configuration of the RD takes place exclusively in a dynamic way. This document gives basic information about the RD used. The specific model cannot be chosen for a particular connection. Not all features (e. g. , ports, speeds) physically or logically present on the RD are enabled in all supported products/services. All rights reserved. Note: The RD is owned by Telekom. Changes due to technical progress possible at any time. No liability for printing errors. BNG Remote Devices – technical parameters: The following table provides information on the active network terminations for symmetrical business customer services of Telekom.
PORTMAPPING FOR BNG-BASED BUSINESS ACCESS The following table describes the static mapping of logical port numbers (from the ordering/fulfillment process) to the physical connections on the used remote device. 1 G RD ADTRAN NV 4660 1 G RD ELCON BIG 2862 Logical port number 1 G RD HUAWEI ATN 910 I-D 10 G RD HUAWEI ATN 910 B-D phys. Port label 1 (1 G) GIG 0/2 LAN 1 FE/GE 2 FE/GE 0 2 (1 G) GIG 0/3 LAN 2 FE/GE 3 FE/GE 1 3 (1 G) GIG 0/4 LAN 3 FE/GE 4 FE/GE 2 4 (1 G) GIG 0/5 LAN 4 FE/GE 0 FE/GE 3 5 (1 G) (n. a. ) FE/GE 4 6 (1 G) (n. a. ) FE/GE 5 7 (1 G) (n. a. ) FE/GE 6 8 (1 G) (n. a. ) FE/GE 7 9 (1 G) (n. a. ) FE/GE 8 10 (1 G) (n. a. ) FE/GE 9 11 (1 G) (n. a. ) FE/GE 10 12 (1 G) (n. a. ) FE/GE 11 101 (10 G) (n. a. ) XGE 25 102 (10 G) (n. a. ) XGE 26 103 (10 G) (n. a. ) XGE 27 Published by: Telekom Deutschland Gmb. H, Landgrabenweg 151, 53227 Bonn | Dated 06/2020 | Subject to change and corrections | X REMOTE DEVICE (RD)
