BMC Remedy ITSM Performance Testing Case Study using

BMC Remedy ITSM Performance Testing Case Study using Vyom Performance Test Edge for Capgemini

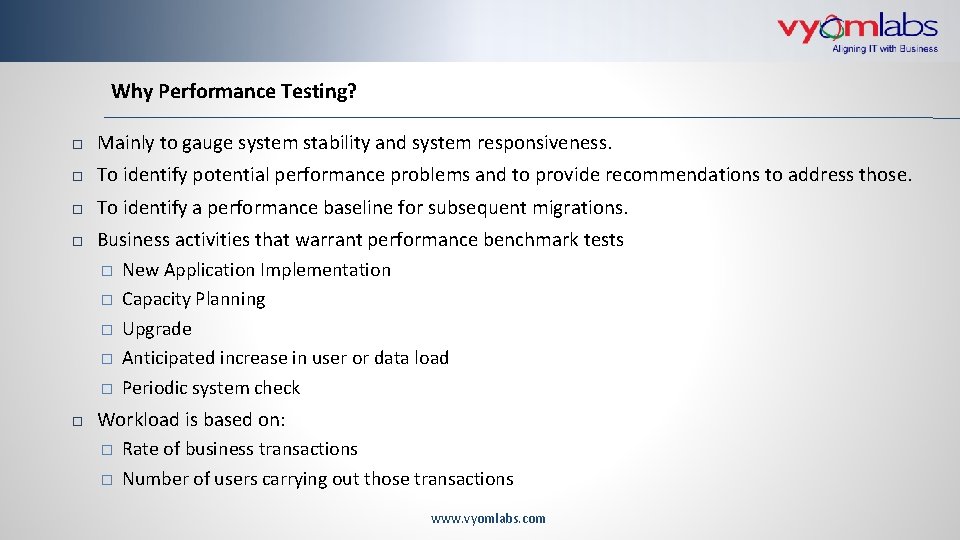

Why Performance Testing? Mainly to gauge system stability and system responsiveness. To identify potential performance problems and to provide recommendations to address those. To identify a performance baseline for subsequent migrations. Business activities that warrant performance benchmark tests � New Application Implementation � Capacity Planning � Upgrade � Anticipated increase in user or data load � Periodic system check Workload is based on: � Rate of business transactions � Number of users carrying out those transactions www. vyomlabs. com

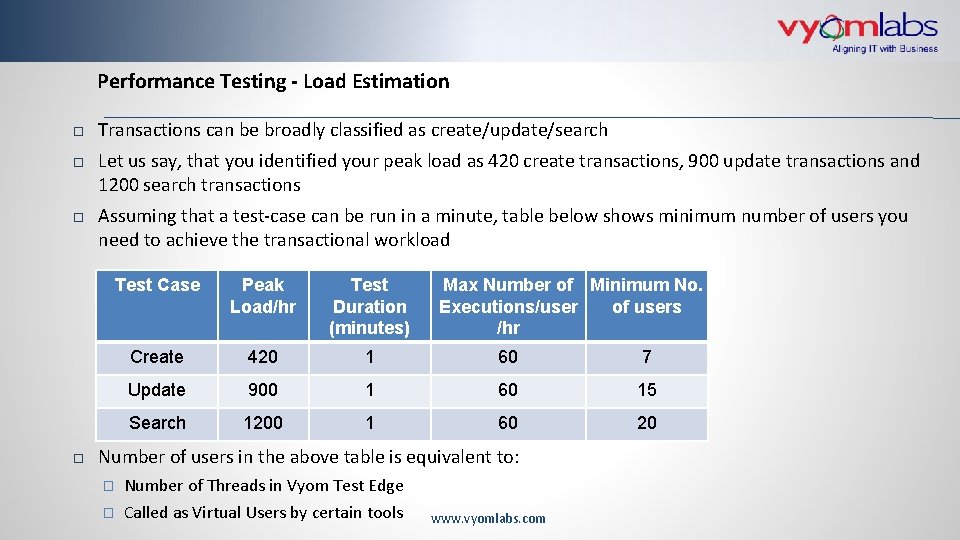

Performance Testing - Load Estimation Transactions can be broadly classified as create/update/search Let us say, that you identified your peak load as 420 create transactions, 900 update transactions and 1200 search transactions Assuming that a test-case can be run in a minute, table below shows minimum number of users you need to achieve the transactional workload Test Case Peak Load/hr Test Duration (minutes) Max Number of Minimum No. Executions/user of users /hr Create 420 1 60 7 Update 900 1 60 15 Search 1200 1 60 20 Number of users in the above table is equivalent to: � Number of Threads in Vyom Test Edge � Called as Virtual Users by certain tools www. vyomlabs. com

Performance Test Scenarios Test scenarios are hypothetical use cases on which scripts for performance benchmarking tests are based, while developing test scenarios following guidelines: � � � Choose typical business transactions and imitate real-life usage. Write a script for each scenario. Pre-populate transaction data. Parameterize user input. Include wait times. Test scripts thoroughly. www. vyomlabs. com

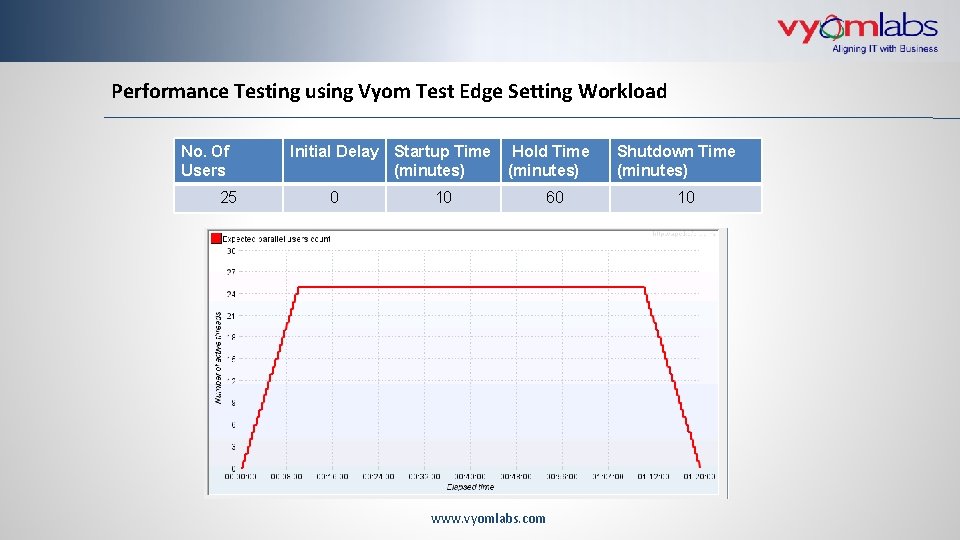

Performance Testing using Vyom Test Edge Setting Workload No. Of Users 25 Initial Delay Startup Time (minutes) 0 Hold Time (minutes) 10 www. vyomlabs. com 60 Shutdown Time (minutes) 10

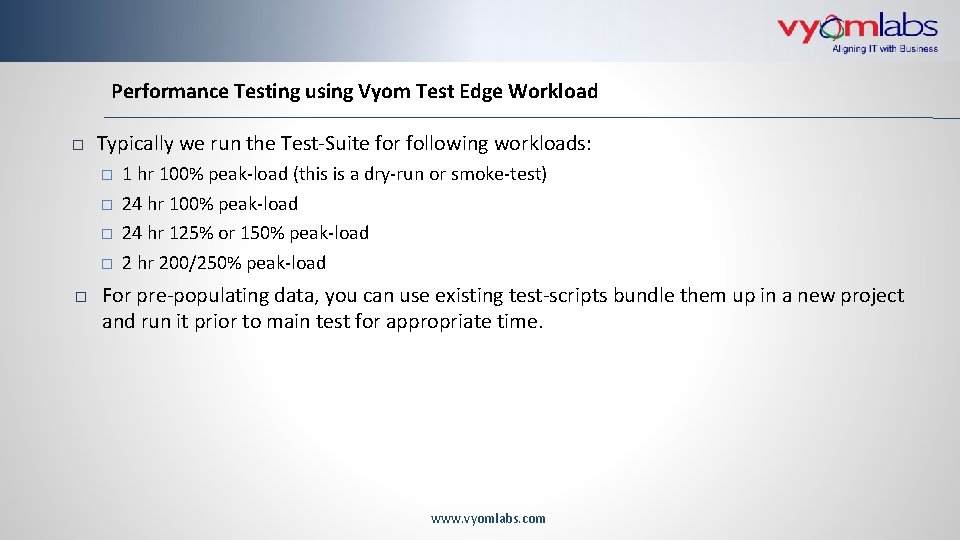

Performance Testing using Vyom Test Edge Workload Typically we run the Test-Suite for following workloads: � � 1 hr 100% peak-load (this is a dry-run or smoke-test) 24 hr 100% peak-load 24 hr 125% or 150% peak-load 2 hr 200/250% peak-load For pre-populating data, you can use existing test-scripts bundle them up in a new project and run it prior to main test for appropriate time. www. vyomlabs. com

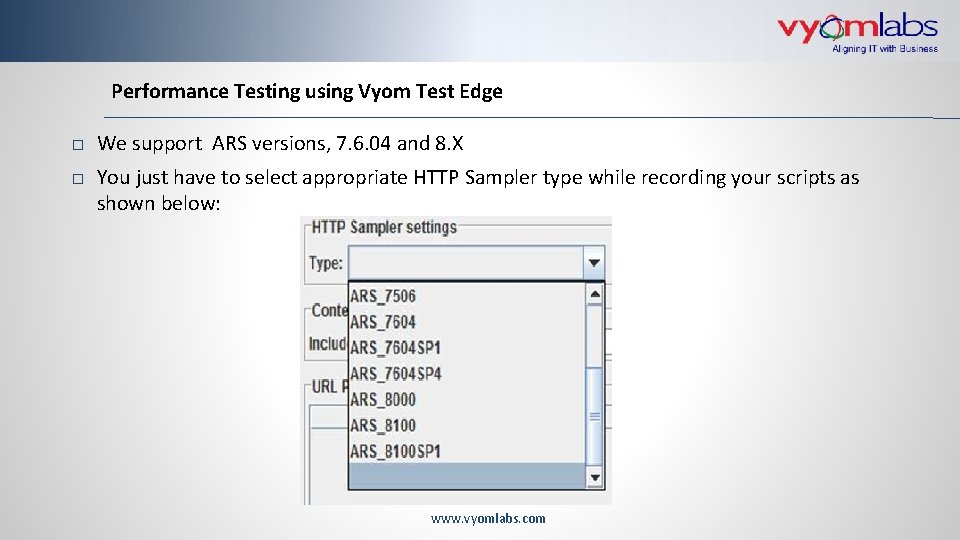

Performance Testing using Vyom Test Edge We support ARS versions, 7. 6. 04 and 8. X You just have to select appropriate HTTP Sampler type while recording your scripts as shown below: www. vyomlabs. com

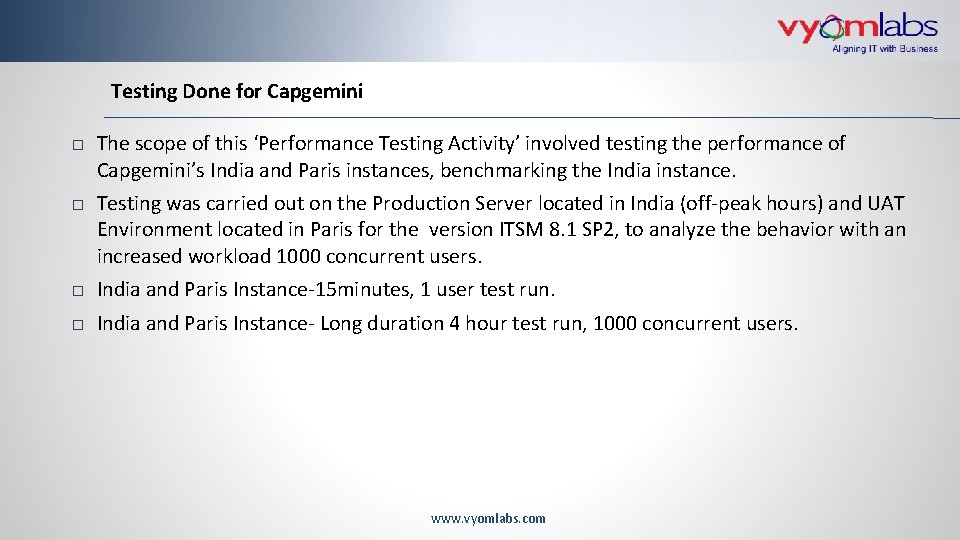

Testing Done for Capgemini The scope of this ‘Performance Testing Activity’ involved testing the performance of Capgemini’s India and Paris instances, benchmarking the India instance. Testing was carried out on the Production Server located in India (off-peak hours) and UAT Environment located in Paris for the version ITSM 8. 1 SP 2, to analyze the behavior with an increased workload 1000 concurrent users. India and Paris Instance-15 minutes, 1 user test run. India and Paris Instance- Long duration 4 hour test run, 1000 concurrent users. www. vyomlabs. com

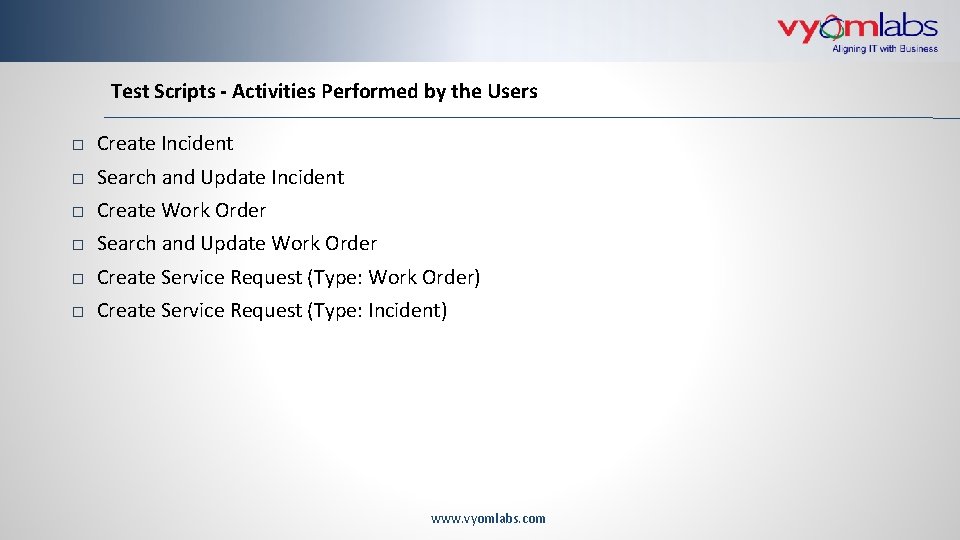

Test Scripts - Activities Performed by the Users Create Incident Search and Update Incident Create Work Order Search and Update Work Order Create Service Request (Type: Work Order) Create Service Request (Type: Incident) www. vyomlabs. com

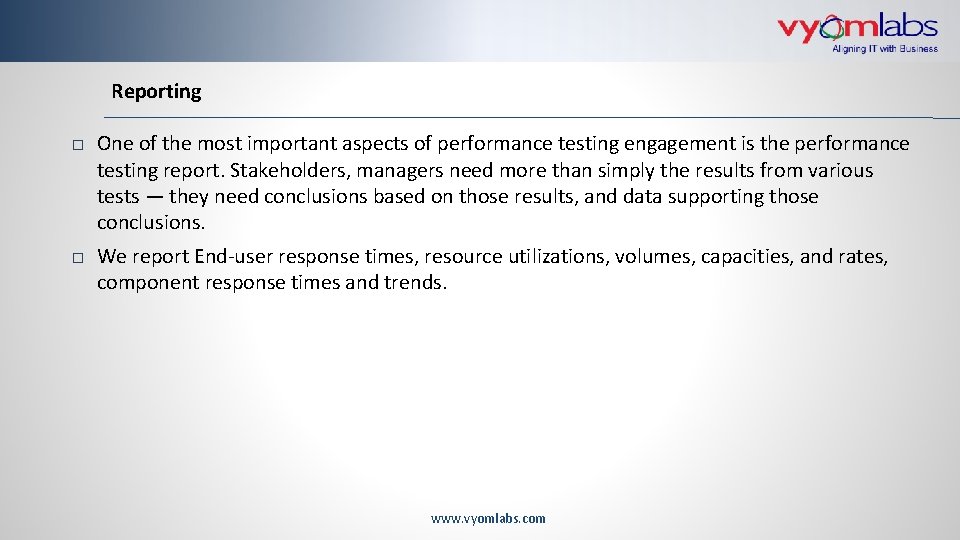

Reporting One of the most important aspects of performance testing engagement is the performance testing report. Stakeholders, managers need more than simply the results from various tests — they need conclusions based on those results, and data supporting those conclusions. We report End-user response times, resource utilizations, volumes, capacities, and rates, component response times and trends. www. vyomlabs. com

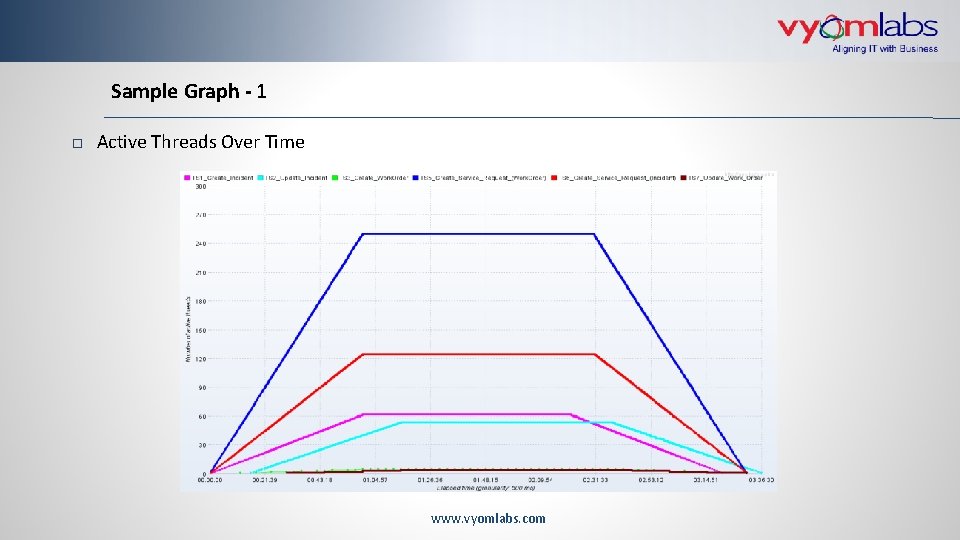

Sample Graph - 1 Active Threads Over Time www. vyomlabs. com

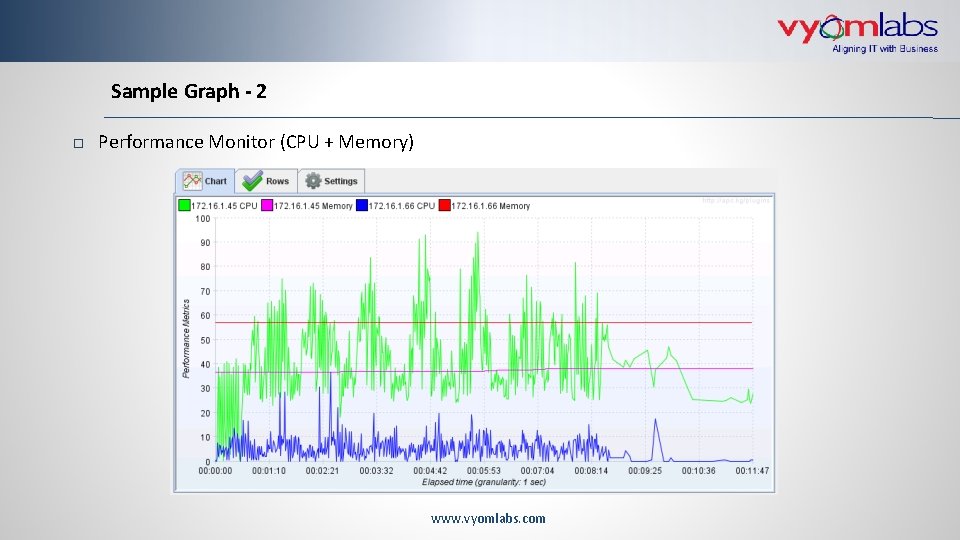

Sample Graph - 2 Performance Monitor (CPU + Memory) www. vyomlabs. com

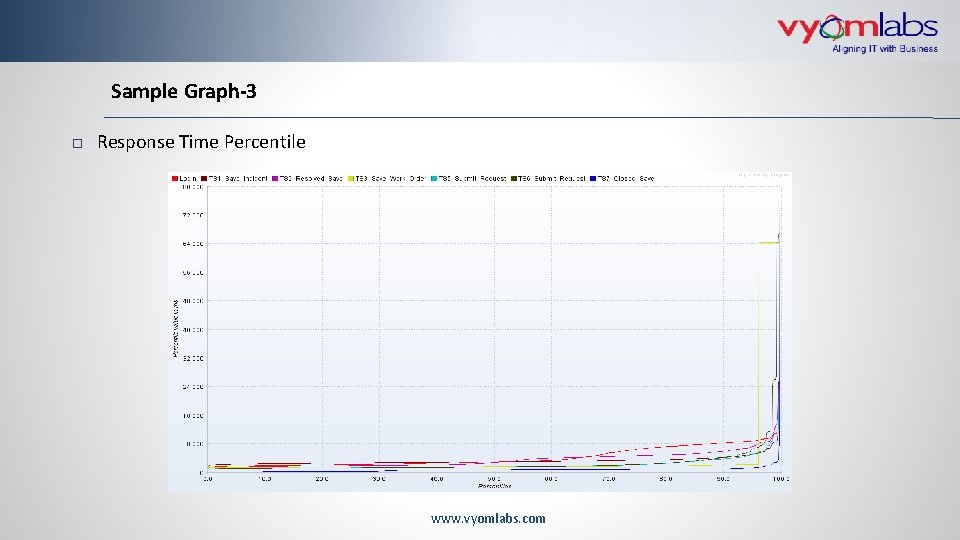

Sample Graph-3 Response Time Percentile www. vyomlabs. com

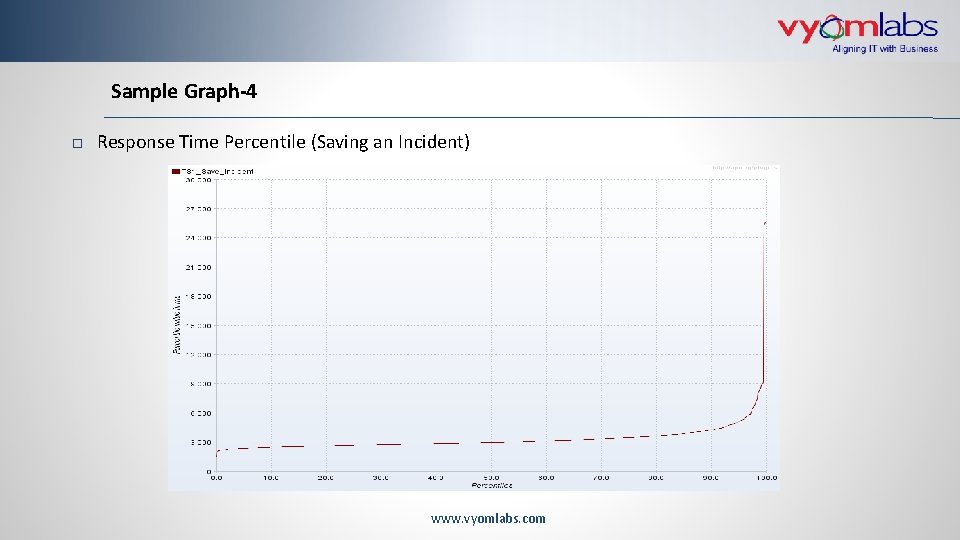

Sample Graph-4 Response Time Percentile (Saving an Incident) www. vyomlabs. com

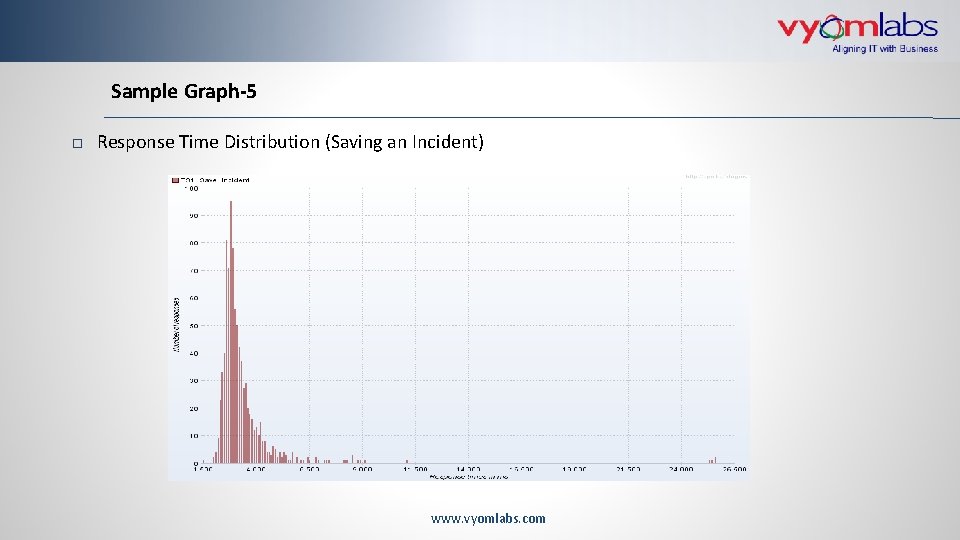

Sample Graph-5 Response Time Distribution (Saving an Incident) www. vyomlabs. com

Q&A www. vyomlabs. com

Thank You! Email : chaitali. patwa@vyomlabs. com Website : www. vyomlabs. com
