Bluetooth WPAN Bluetooth WPAN 1 Bluetooth 2 Bluetooth
Bluetooth 및 WPAN 기술 서비스
Bluetooth 및 WPAN 기술 서비스 목 차 1. Bluetooth 서비스 2. - Bluetooth 유래 및 역사 3. - Bluetooth 기술요약 4. - Bluetooth Protocol 5. - Bluetooth Profile 6. - Bluetooth 향후 전망 2. WPAN 기술 3. - IEEE 802. 15 4. - IEEE 802. 15. 2 5. - IEEE 802. 15. 3 6. - IEEE 802. 15. 3 a and IEEE 802. 15. 4 2

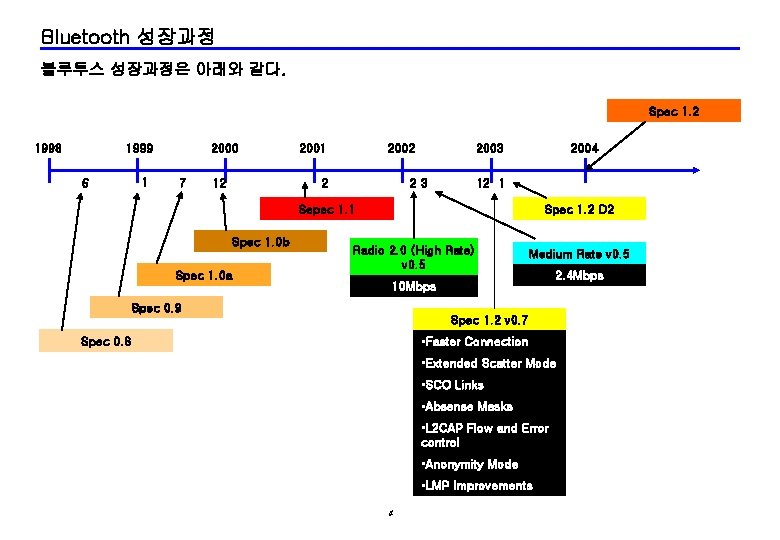

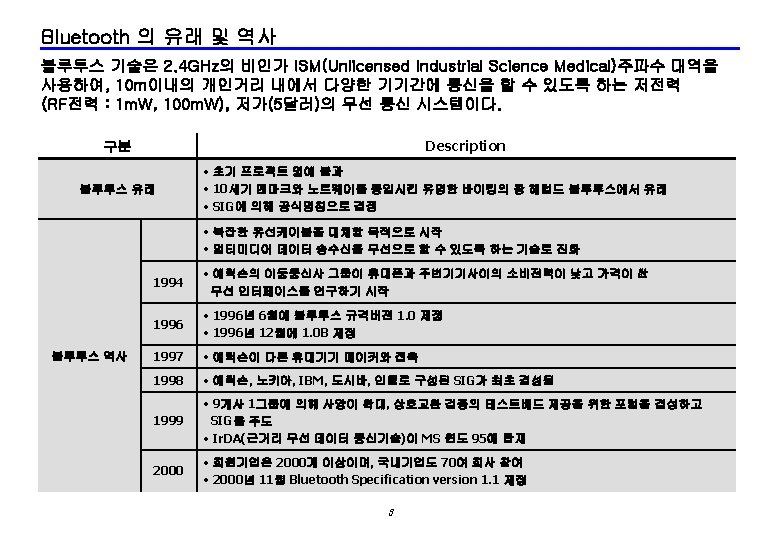

Bluetooth 성장과정 블루투스 성장과정은 아래와 같다. Spec 1. 2 1998 1999 6 1 2000 7 12 2001 2002 2 2003 23 2004 12 1 Sepec 1. 1 Spec 1. 0 b Spec 1. 0 a Spec 1. 2 D 2 Radio 2. 0 (High Rate) v 0. 5 Medium Rate v 0. 5 10 Mbps 2. 4 Mbps Spec 0. 9 Spec 1. 2 v 0. 7 • Faster Connection Spec 0. 8 • Extended Scatter Mode • SCO Links • Absense Masks • L 2 CAP Flow and Error control • Anonymity Mode • LMP Improvements 4

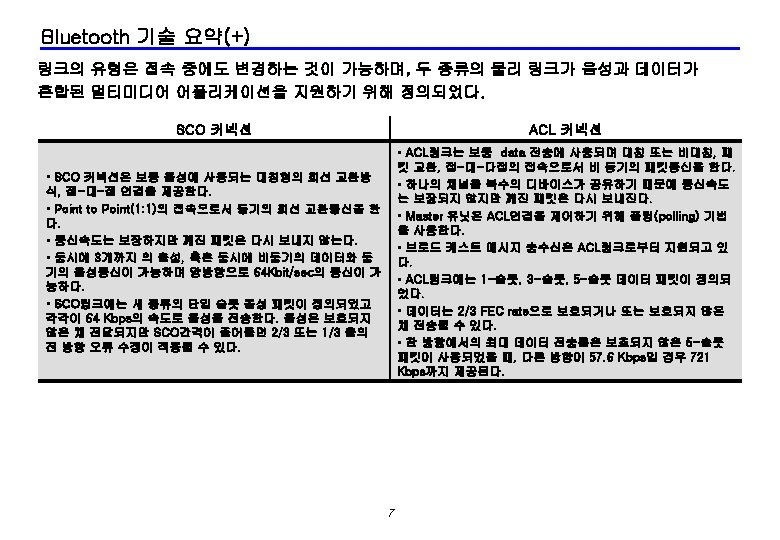

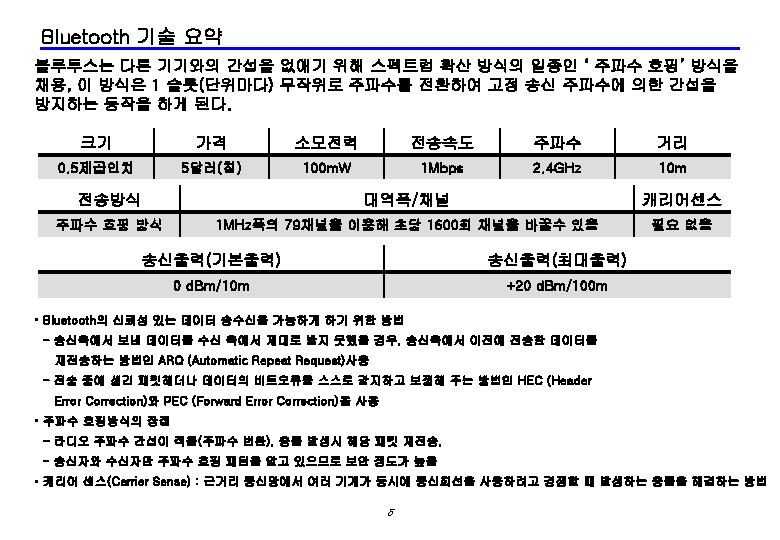

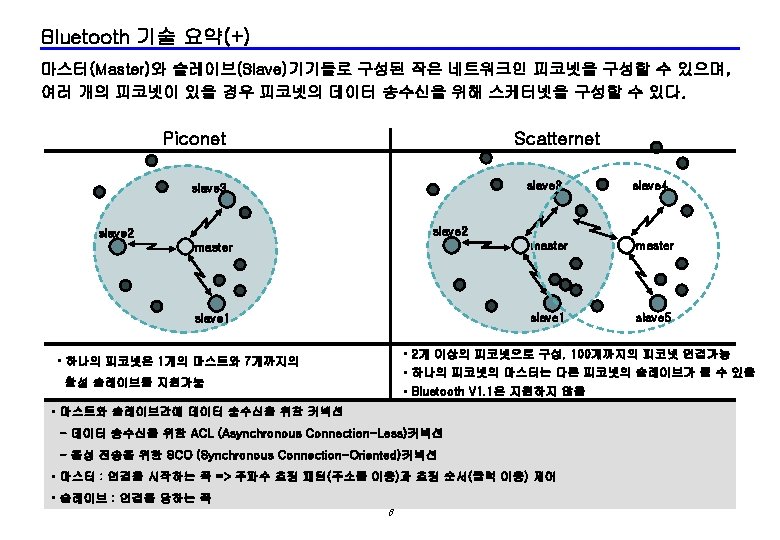

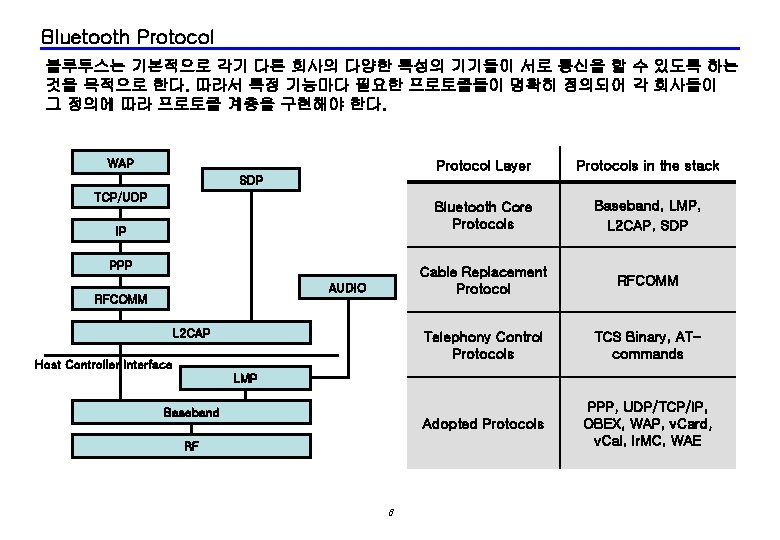

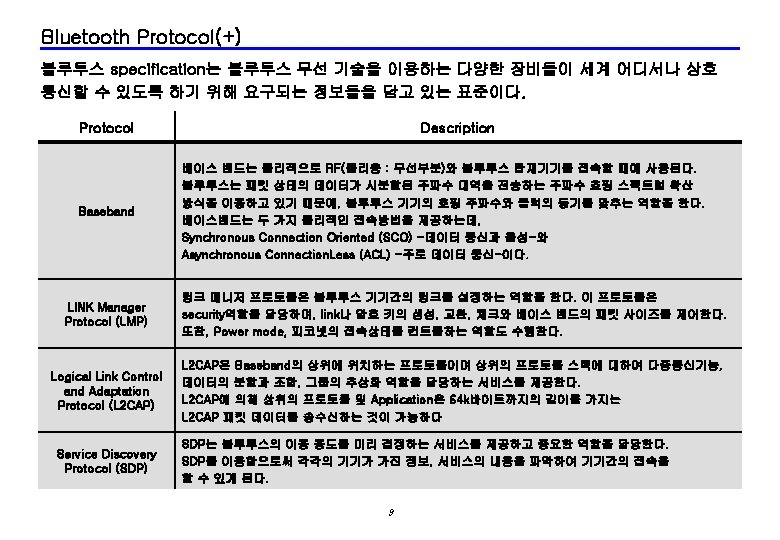

Bluetooth Protocol 블루투스는 기본적으로 각기 다른 회사의 다양한 특성의 기기들이 서로 통신을 할 수 있도록 하는 것을 목적으로 한다. 따라서 특정 기능마다 필요한 프로토콜들이 명확히 정의되어 각 회사들이 그 정의에 따라 프로토콜 계층을 구현해야 한다. WAP Protocol Layer Protocols in the stack Bluetooth Core Protocols Baseband, LMP, L 2 CAP, SDP Cable Replacement Protocol RFCOMM Telephony Control Protocols TCS Binary, ATcommands Adopted Protocols PPP, UDP/TCP/IP, OBEX, WAP, v. Card, v. Cal, Ir. MC, WAE SDP TCP/UDP IP PPP AUDIO RFCOMM L 2 CAP Host Controller Interface LMP Baseband RF 8
Bluetooth Profile은 블루투스를 최상위 Application에서 어떻게 사용할 지를 정의한 규격이다. Generic Access Profile Service Discovery Application Profile Generic Access Profile 기본 접속사양 Service Discovery Profile Application Profile 서비스 discovery 프로토콜을 사용한 기본 접속사양 (유효한 서비스 검출) Cordless Telephony Profile 무선전화기 Intercom Profile 무전기 Serial Port profile 시리얼포트를 사용한 기본 접 속사양 Headset Profile 헤드셋 Dial-up Networking Profile 모뎀 등 Fax Profile FAX Lan Access Profile 라우터 Object Push Profile Generic Object Exchange Profile 기본 오브젝트 교환 정의 Synchronization Profile Object Push Profile 명함교환 등 File Transfer Pro PC외의 파일 전송 Synchronization Profile PC외의 동기를 꾀함 TCS_BIN_baseed profiles Cordless. Phone Profile Intercom Profile Serial. Prot Profile Dial-up. Networking Generic Object Exchange Profile Fax Profile Headset Profile File Transfer Profile LAN Access Profile Car Profile 11 모든 Bluetooth대 응기기가 탑재 해 야 할 프로파일 전화의 기능을 실 현할 때 필요한 프 로파일 기존 시리얼포트 를 장착한 기기 접 속에 필요한 프로 파일 Ir. DA의 오브젝트 교환 프로토콜 (OBEX) 를 사용하 여 오브젝트 교환 이나 파일전송을 할 때에 필요한 프 로파일

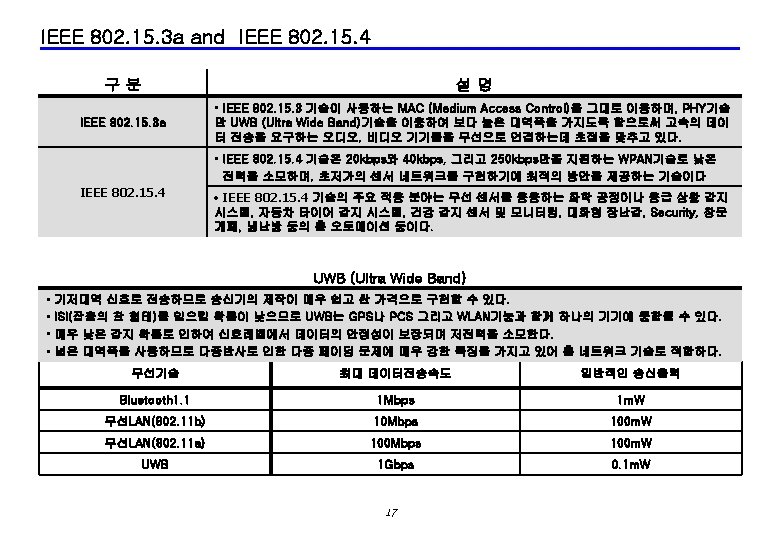

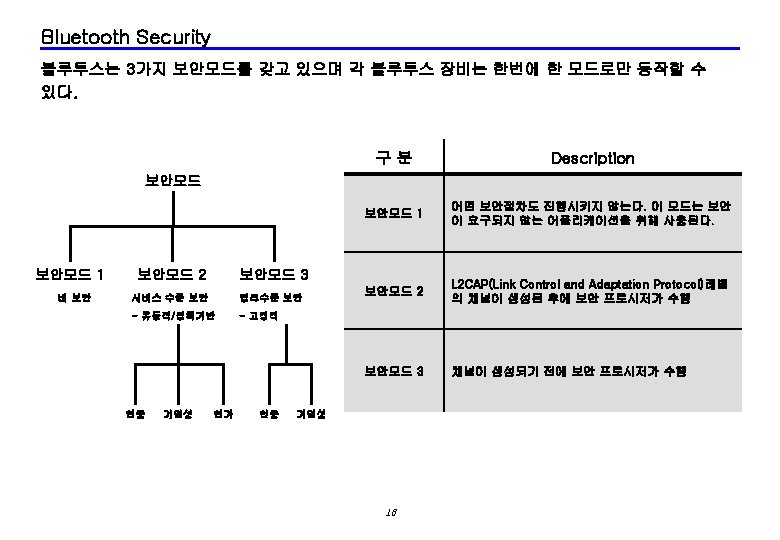

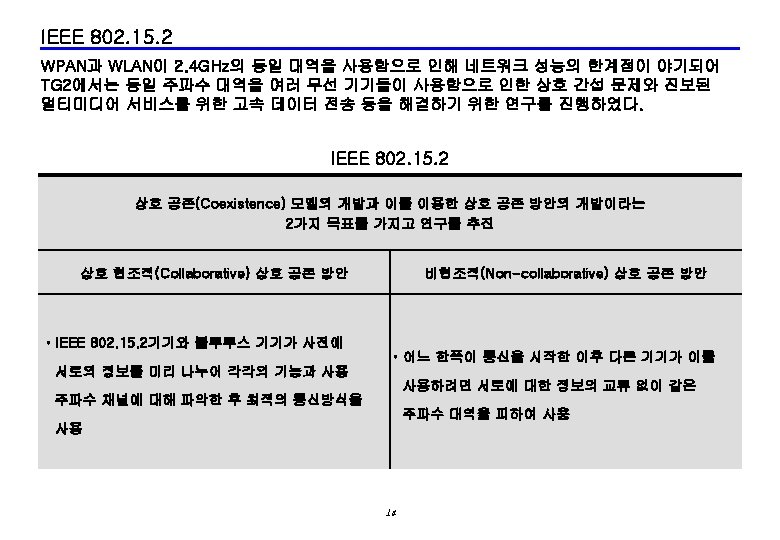

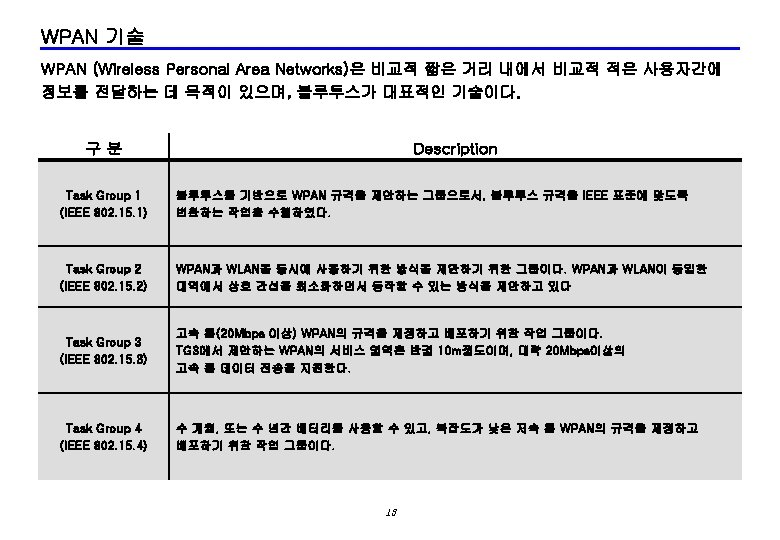

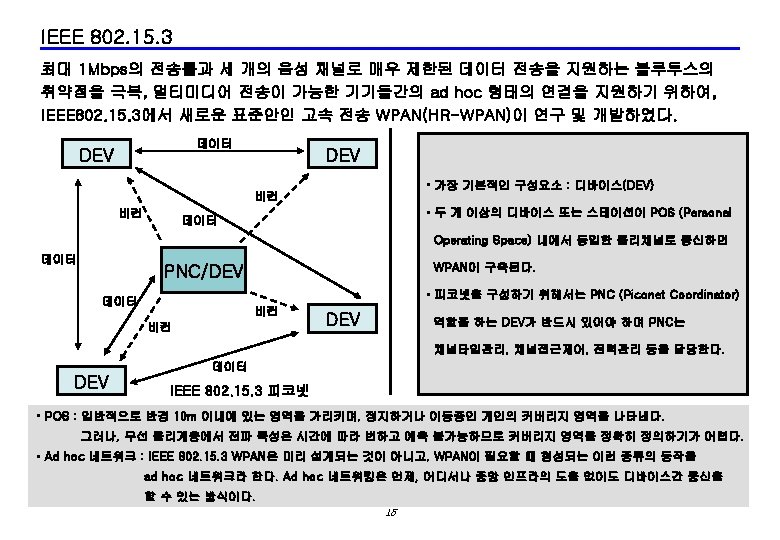

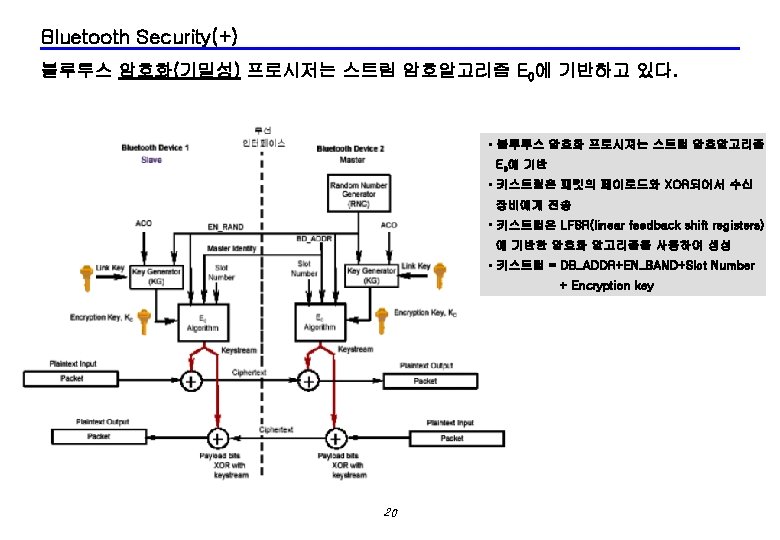

IEEE 802. 15. 3 피코넷에서 타이밍은 슈퍼프레임(Super. Frame)을 기반으로 한다. • WPAN은 coordinator 역할을 하는 디바이스가 superframe을 전송하면서 WPAN 형성 • Superframe은 비컨(beacon), CAP (Contention Access Period), CTAP (Channel Time Allocation Period)로 구성 • Coordinator의 주요 기능 중 하나는 WPAN에 관련된 정보와 타이밍을 실은 비컨을 전송하는 것이다. • CAP은 CSMA/CA 방식을 사용, CTAP는 TDMA 방식을 사용 슈퍼프레임 #m-1 CAP의 길이는 PNC가 결정 CTAP는 CTA, MCTA로 구성 비컨 #m Contention Access Period Channel Time Allocation Period MCTA 1 MCTA 2 CTA 1 ㅇㅇㅇ CTA n-1 CTA n CTA는 커맨드, 등시성 데이터, 비동기 데이터 전송 가능 Guard Time : 동기를 맞추기 위한 여유 MCTA는 DEV와 PNC간의 통신에 사용되는 CTA형태 • PNC : Piconet Coordinator • CAP : Contention Access Period • 각 슈퍼 프레임은 비컨을 시작하여 CAP, CTAP로 구성 • PNC는 슈퍼프레임 내의 원하는 위치에 원하는 번호의 MCTA, CTA를 • CTAP : Channel Time Allocation Period • CTA : Channel Time Allocation 위치시킬 수 있음 • MCTA : Management CTA • PNC는 CAP에게 제공되는 기능을 MCTA로 변경할 수 있다. 16
