Blueprint Reading Section IV Reading Lines and Lettering

Blueprint Reading Section IV – Reading Lines and Lettering

Disclaimer The AMMQC program is an Equal Opportunity program. Adaptive equipment is available upon request for individuals with disabilities. http: //creativecommons. org/licenses/by/3. 0 This work is licensed under a Creative Commons Attribution 3. 0 Unported License [http: //creativecommons. org/licenses/by/3. 0] This project is sponsored by a $15. 9 million grant from the U. S. Department of Labor, Employment and Training Administration. The AMMQC program is an Equal Opportunity program. Adaptive equipment is available upon request for individuals with disabilities. This workforce product was funded by a grant awarded by the U. S. Department of Labor’s Employment and Training Administration. The product was created by the grantee and does not necessarily reflect the official position of the U. S. Department of Labor. The U. S. Department of Labor makes no guarantees, warranties, or assurances of any kind, express or implied, with respect to such information, including any information on linked sites and including, but not limited to, accuracy of the information or its completeness, timeliness, usefulness, adequacy, continued availability, or ownership.

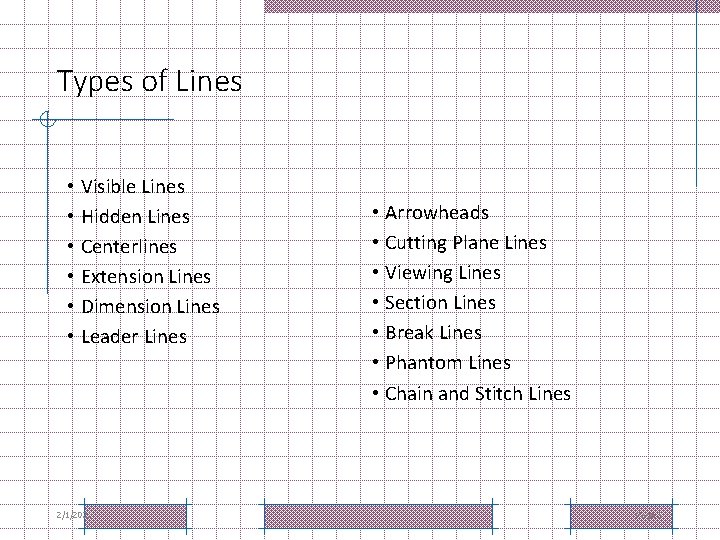

Types of Lines • Visible Lines • Hidden Lines • Centerlines • Extension Lines • Dimension Lines • Leader Lines 2/1/2022 • Arrowheads • Cutting Plane Lines • Viewing Lines • Section Lines • Break Lines • Phantom Lines • Chain and Stitch Lines Page 3

Types 2/1/2022 Page 4

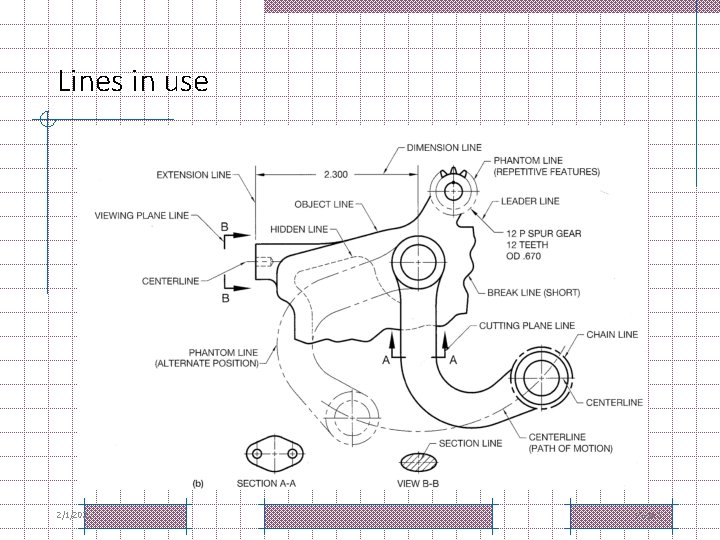

Lines in use 2/1/2022 Page 5

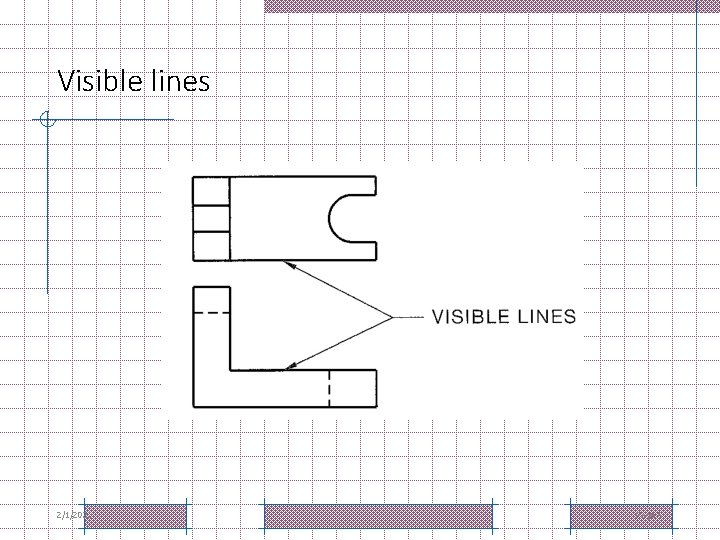

Visible lines 2/1/2022 Page 6

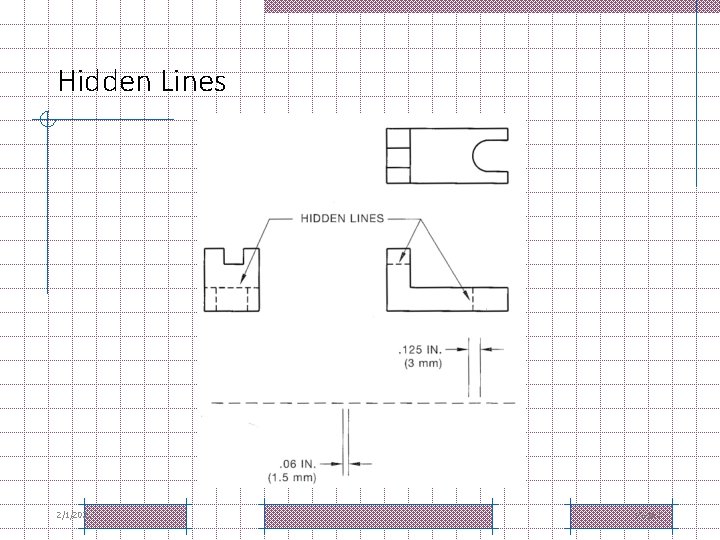

Hidden Lines 2/1/2022 Page 7

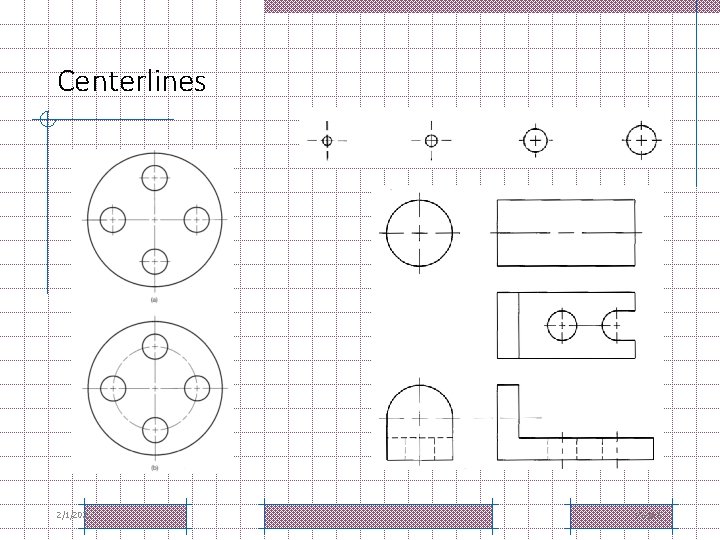

Centerlines 2/1/2022 Page 8

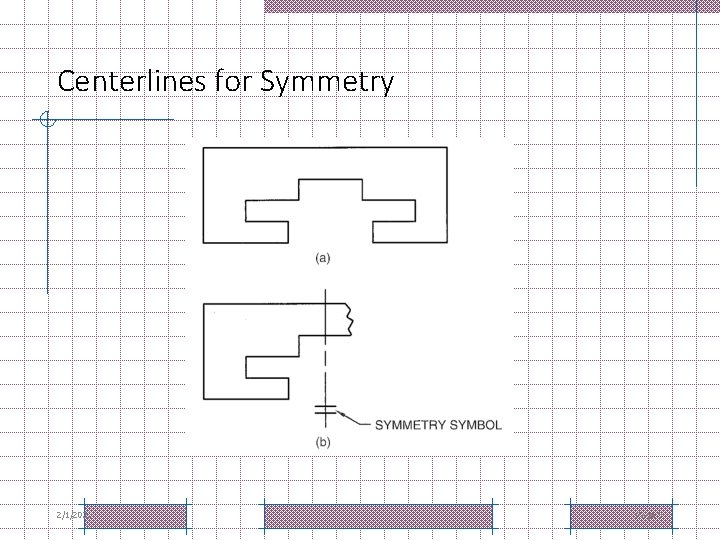

Centerlines for Symmetry 2/1/2022 Page 9

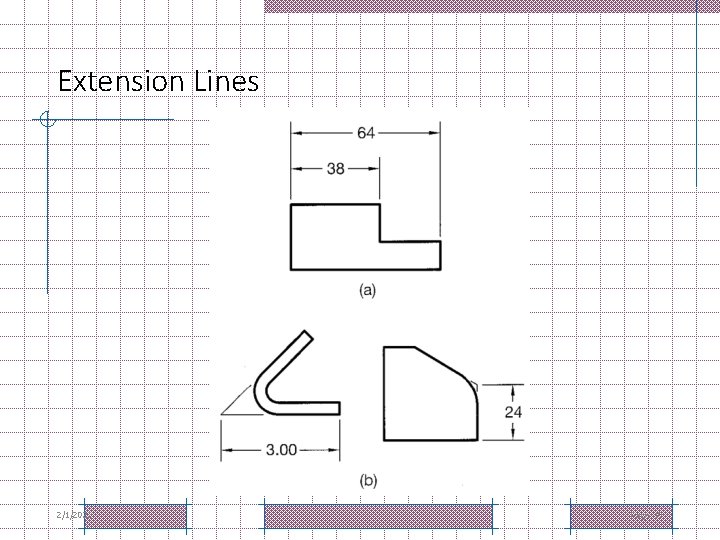

Extension Lines 2/1/2022 Page 10

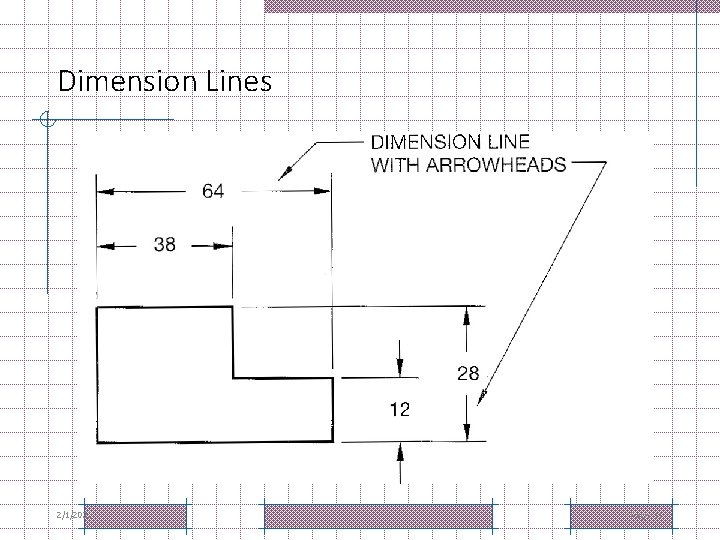

Dimension Lines 2/1/2022 Page 11

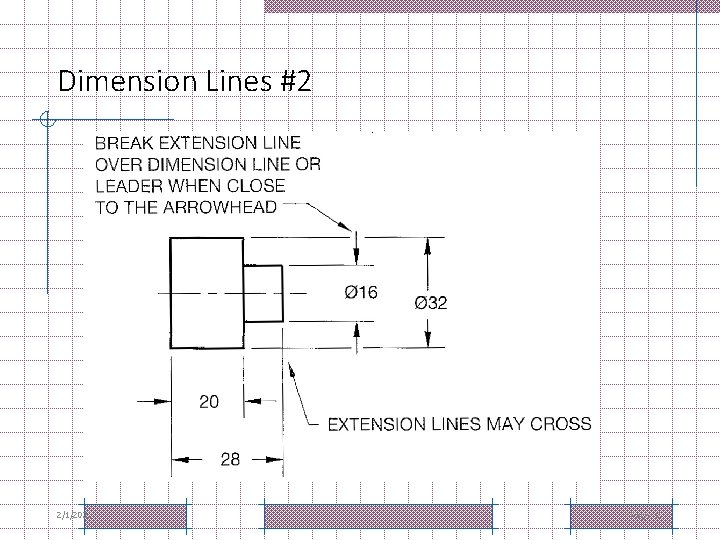

Dimension Lines #2 2/1/2022 Page 12

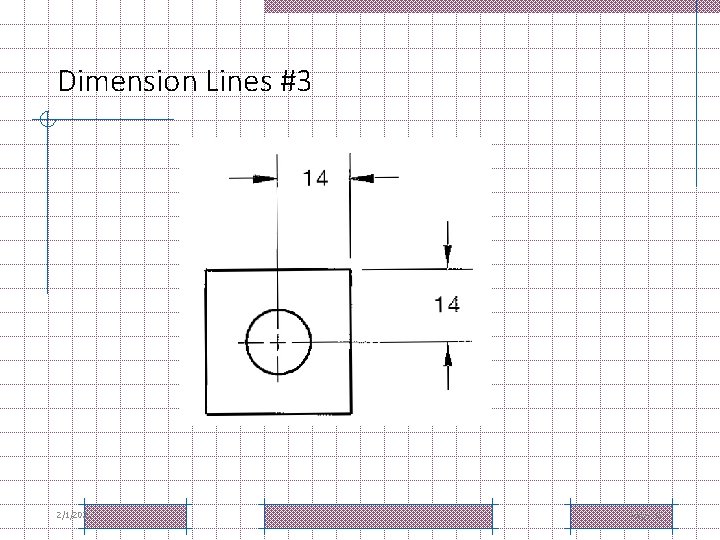

Dimension Lines #3 2/1/2022 Page 13

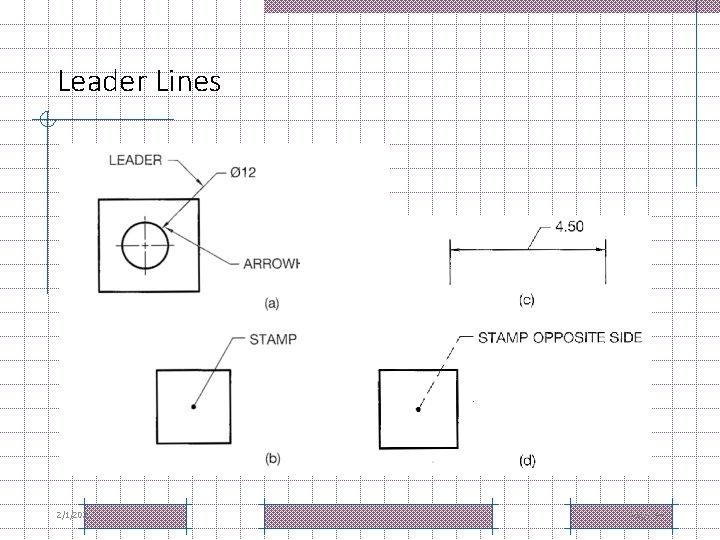

Leader Lines 2/1/2022 Page 14

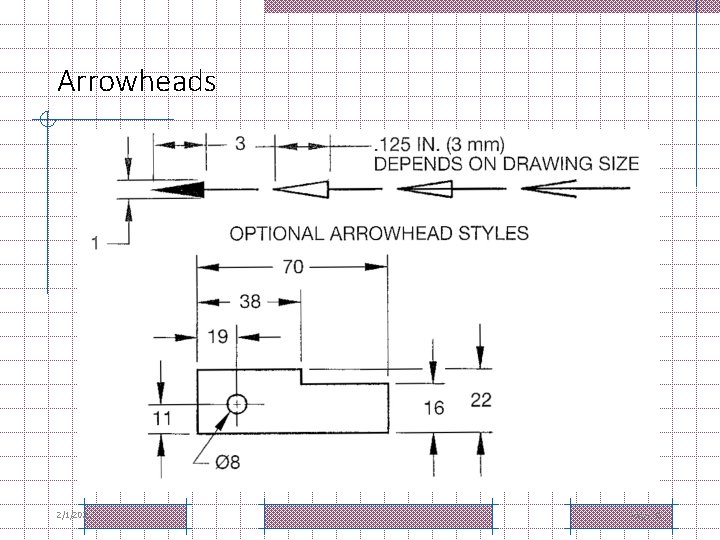

Arrowheads 2/1/2022 Page 15

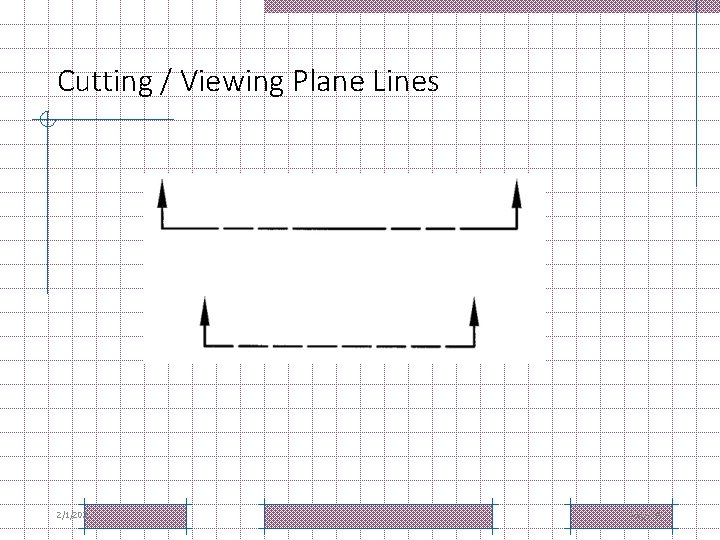

Cutting / Viewing Plane Lines 2/1/2022 Page 16

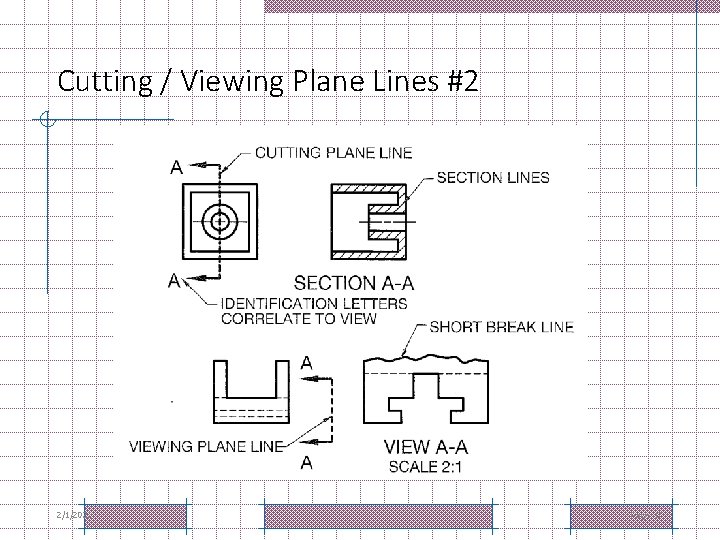

Cutting / Viewing Plane Lines #2 2/1/2022 Page 17

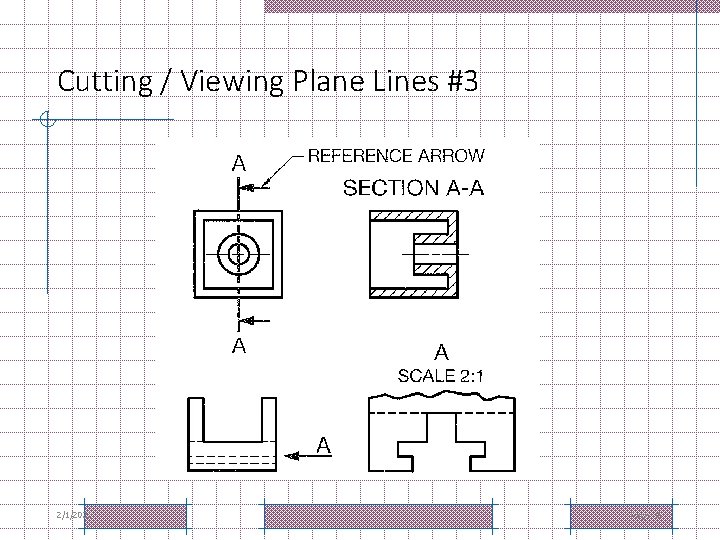

Cutting / Viewing Plane Lines #3 2/1/2022 Page 18

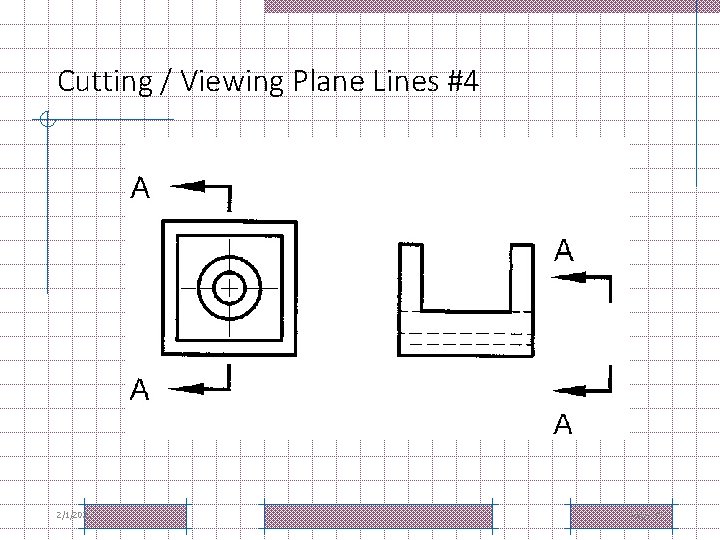

Cutting / Viewing Plane Lines #4 2/1/2022 Page 19

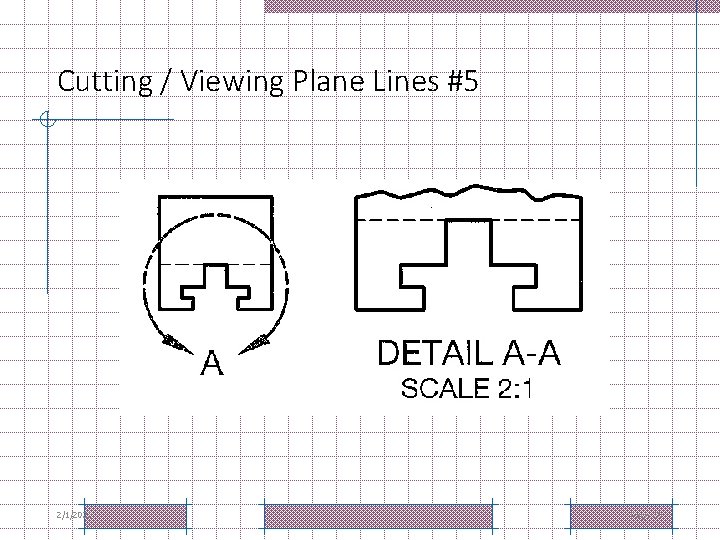

Cutting / Viewing Plane Lines #5 2/1/2022 Page 20

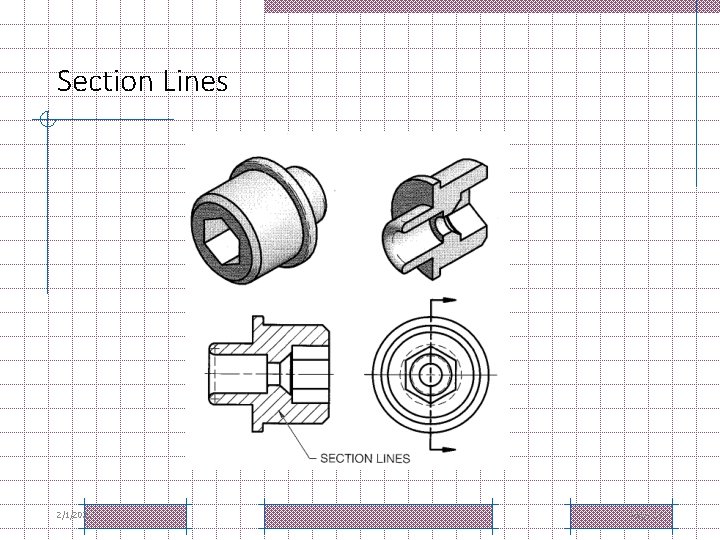

Section Lines 2/1/2022 Page 21

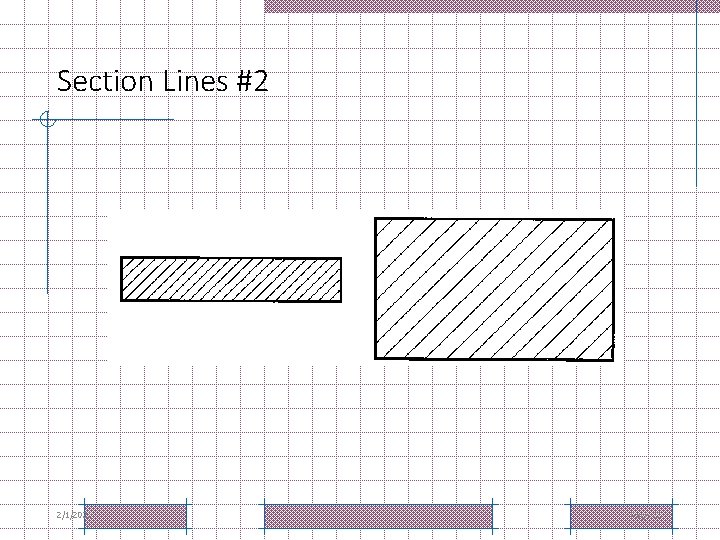

Section Lines #2 2/1/2022 Page 22

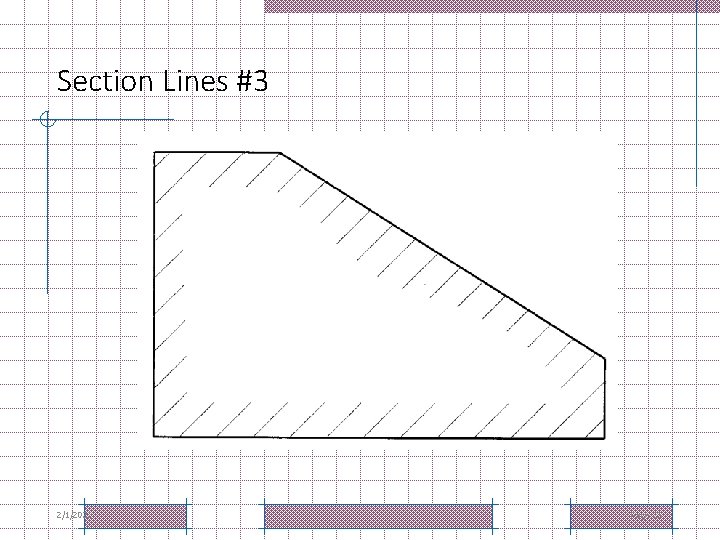

Section Lines #3 2/1/2022 Page 23

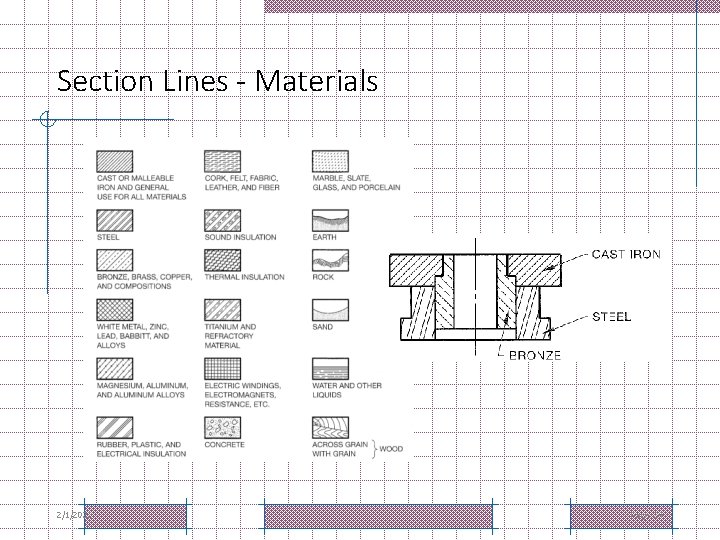

Section Lines - Materials 2/1/2022 Page 24

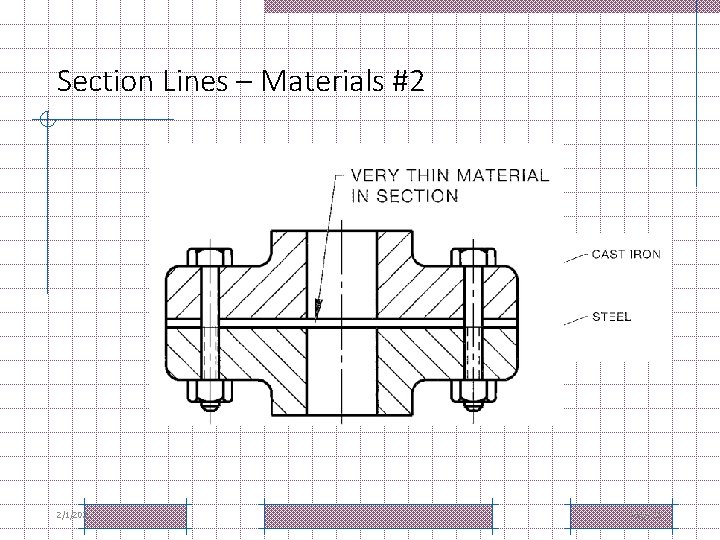

Section Lines – Materials #2 2/1/2022 Page 25

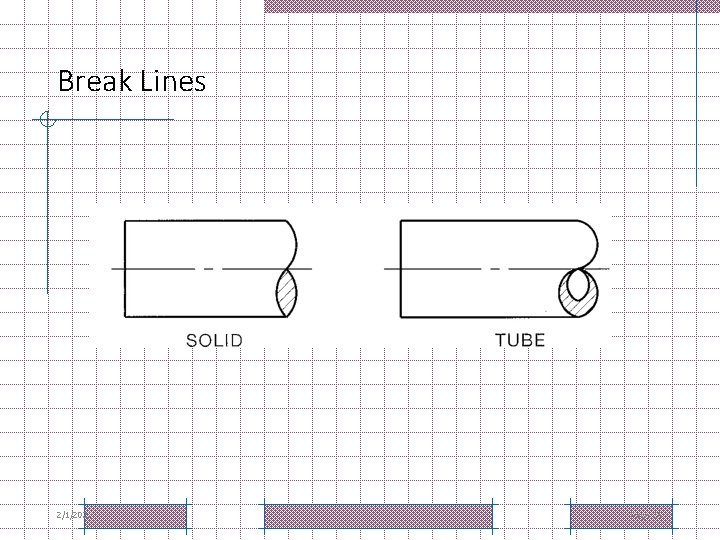

Break Lines 2/1/2022 Page 26

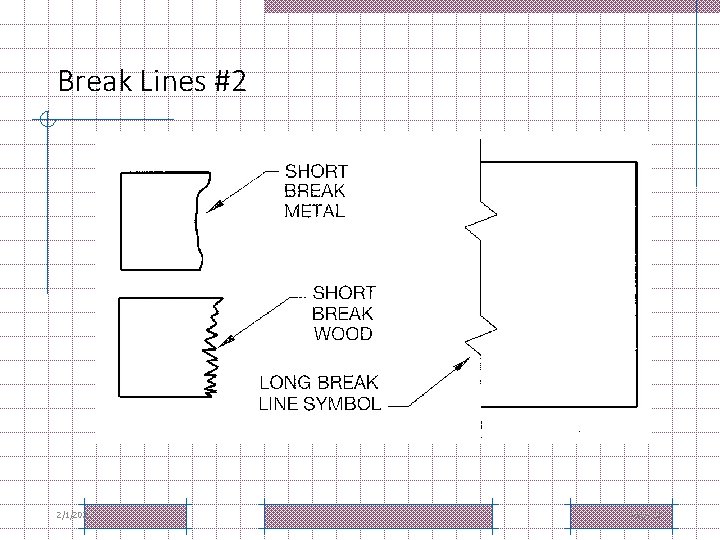

Break Lines #2 2/1/2022 Page 27

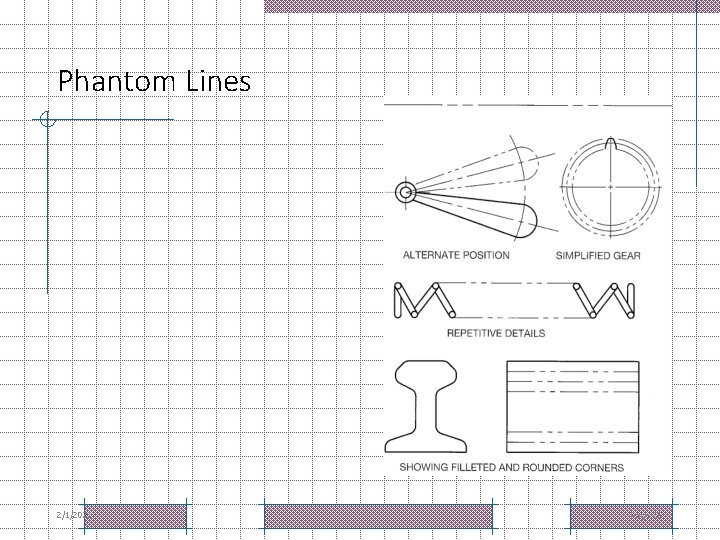

Phantom Lines 2/1/2022 Page 28

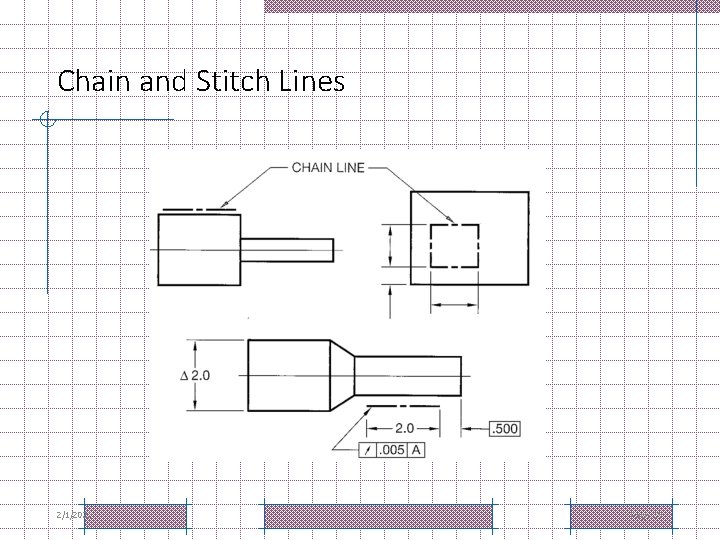

Chain and Stitch Lines 2/1/2022 Page 29

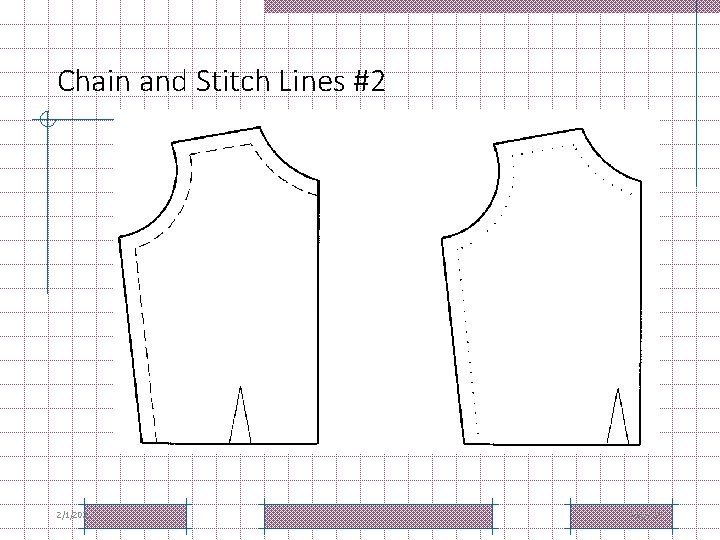

Chain and Stitch Lines #2 2/1/2022 Page 30

Numbers/Letters on Prints 2/1/2022 Page 31

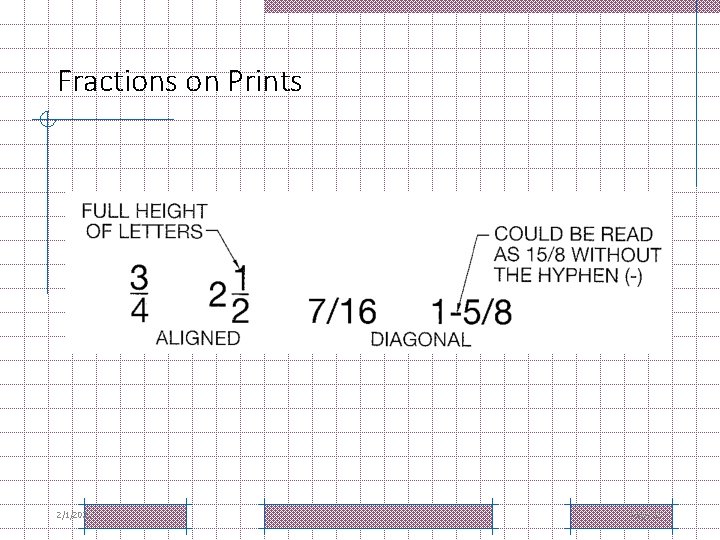

Fractions on Prints 2/1/2022 Page 32

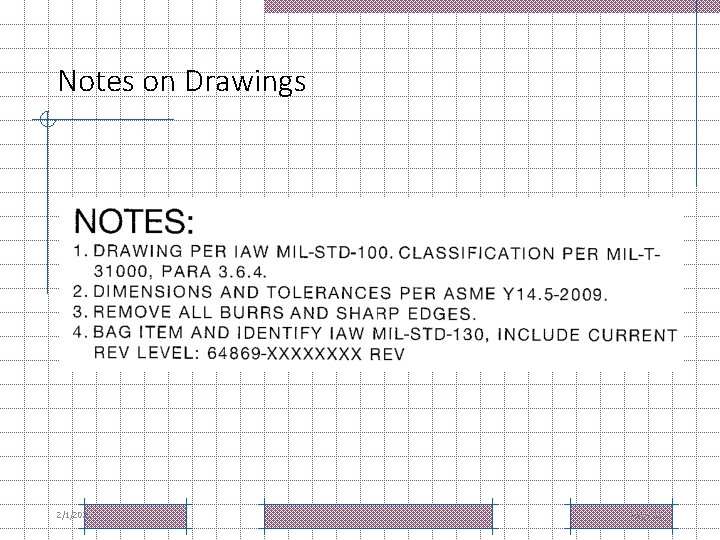

Notes on Drawings 2/1/2022 Page 33

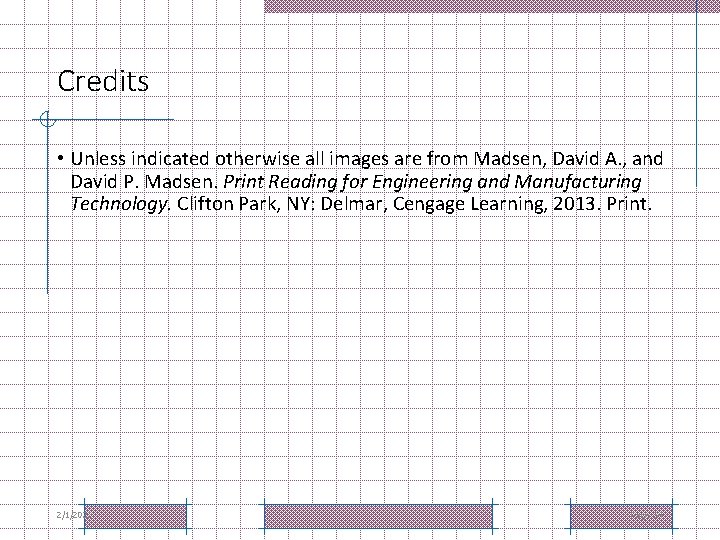

Credits • Unless indicated otherwise all images are from Madsen, David A. , and David P. Madsen. Print Reading for Engineering and Manufacturing Technology. Clifton Park, NY: Delmar, Cengage Learning, 2013. Print. 2/1/2022 Page 34
