BLRs Safety Training Presentations Electrical Safety 29 CFR

BLR’s Safety Training Presentations Electrical Safety 29 CFR 1910. 332 11006115 Copyright ã 1999 Business & Legal Reports, Inc.

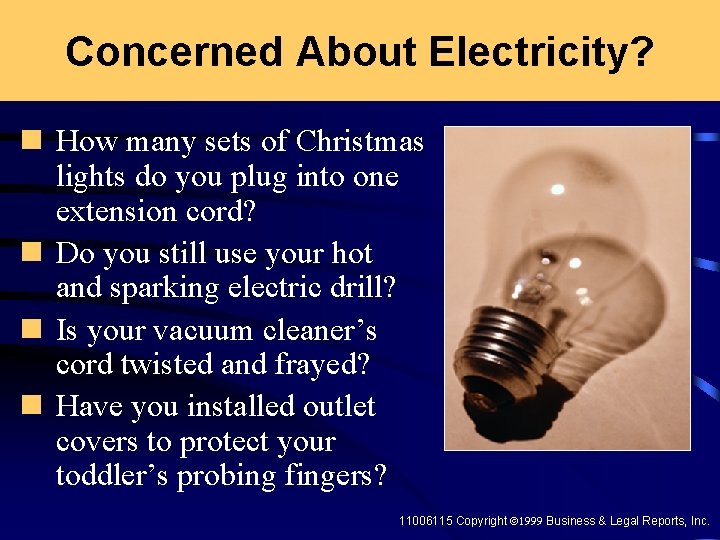

Concerned About Electricity? n How many sets of Christmas lights do you plug into one extension cord? n Do you still use your hot and sparking electric drill? n Is your vacuum cleaner’s cord twisted and frayed? n Have you installed outlet covers to protect your toddler’s probing fingers? 11006115 Copyright ã 1999 Business & Legal Reports, Inc.

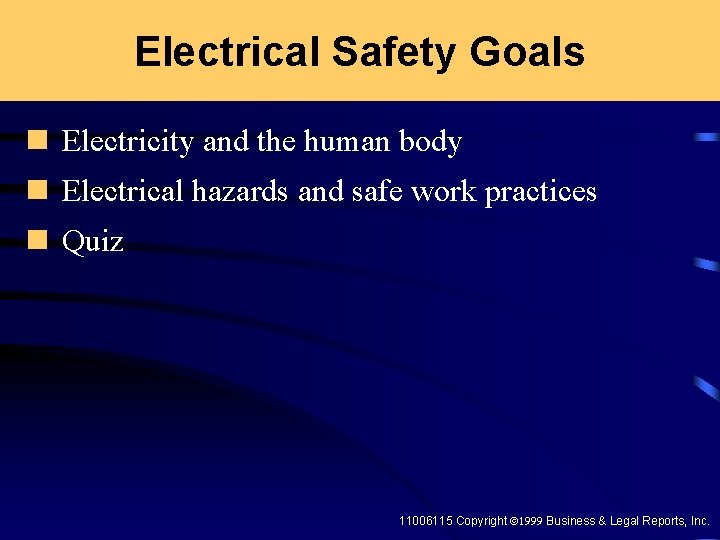

Electrical Safety Goals n Electricity and the human body n Electrical hazards and safe work practices n Quiz 11006115 Copyright ã 1999 Business & Legal Reports, Inc.

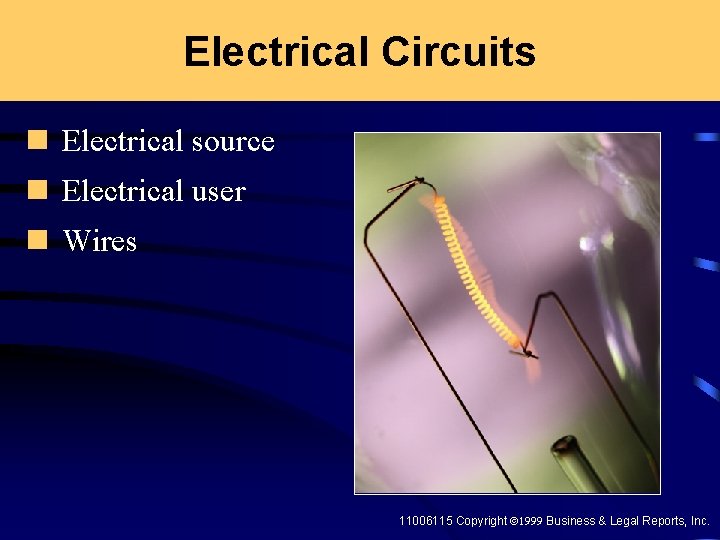

Electrical Circuits n Electrical source n Electrical user n Wires 11006115 Copyright ã 1999 Business & Legal Reports, Inc.

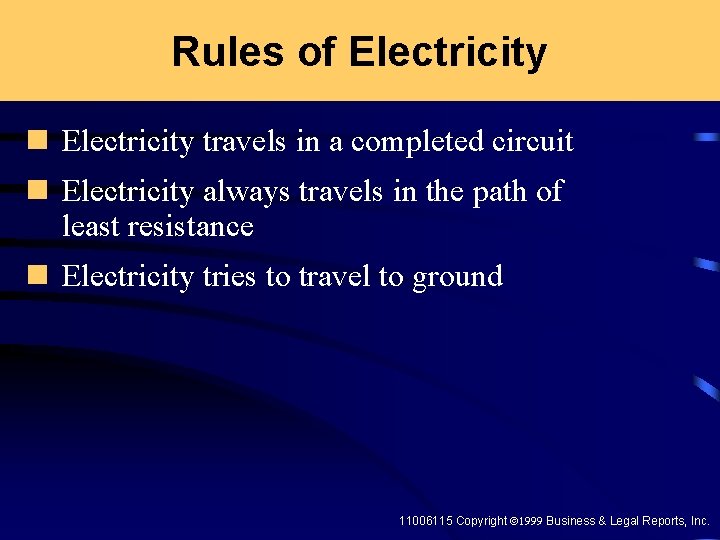

Rules of Electricity n Electricity travels in a completed circuit n Electricity always travels in the path of least resistance n Electricity tries to travel to ground 11006115 Copyright ã 1999 Business & Legal Reports, Inc.

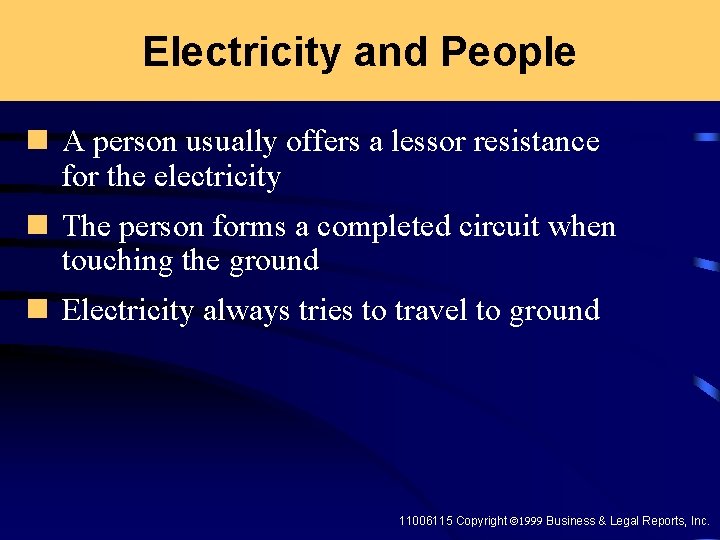

Electricity and People n A person usually offers a lessor resistance for the electricity n The person forms a completed circuit when touching the ground n Electricity always tries to travel to ground 11006115 Copyright ã 1999 Business & Legal Reports, Inc.

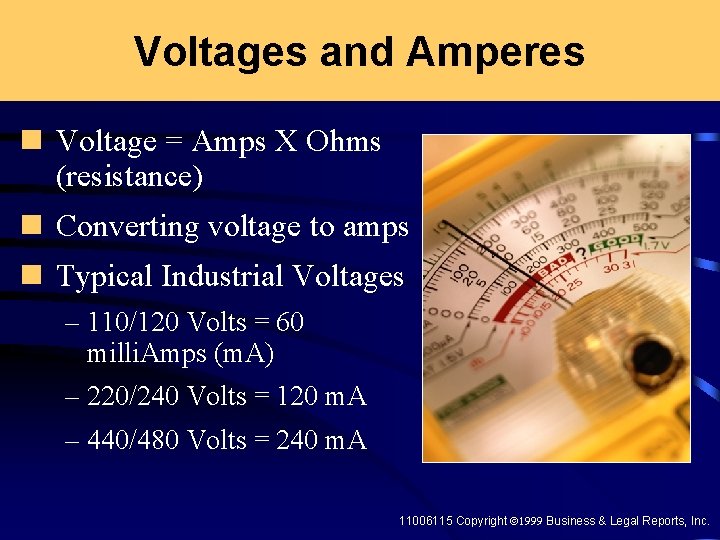

Voltages and Amperes n Voltage = Amps X Ohms (resistance) n Converting voltage to amps n Typical Industrial Voltages – 110/120 Volts = 60 milli. Amps (m. A) – 220/240 Volts = 120 m. A – 440/480 Volts = 240 m. A 11006115 Copyright ã 1999 Business & Legal Reports, Inc.

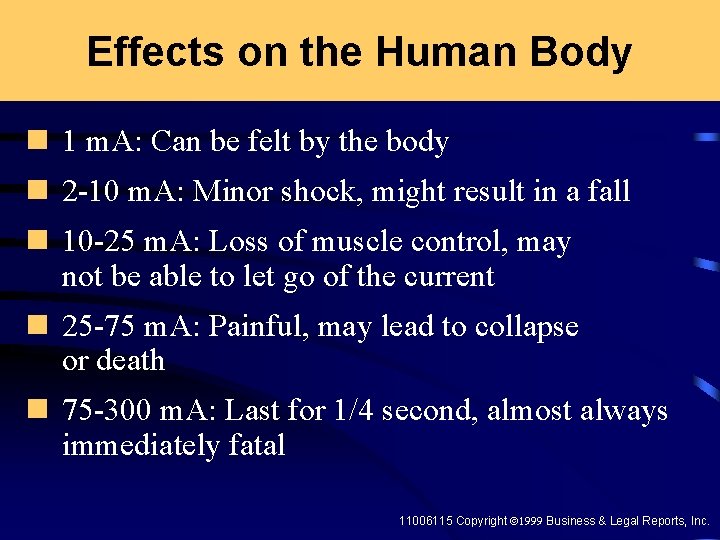

Effects on the Human Body n 1 m. A: Can be felt by the body n 2 -10 m. A: Minor shock, might result in a fall n 10 -25 m. A: Loss of muscle control, may not be able to let go of the current n 25 -75 m. A: Painful, may lead to collapse or death n 75 -300 m. A: Last for 1/4 second, almost always immediately fatal 11006115 Copyright ã 1999 Business & Legal Reports, Inc.

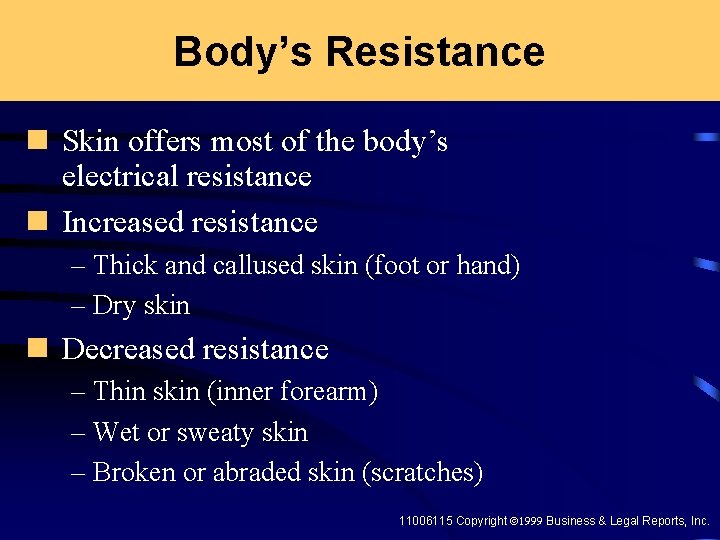

Body’s Resistance n Skin offers most of the body’s electrical resistance n Increased resistance – Thick and callused skin (foot or hand) – Dry skin n Decreased resistance – Thin skin (inner forearm) – Wet or sweaty skin – Broken or abraded skin (scratches) 11006115 Copyright ã 1999 Business & Legal Reports, Inc.

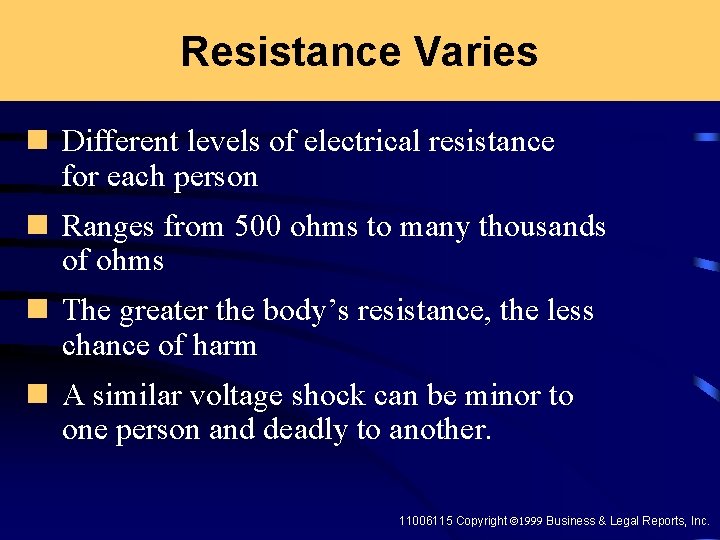

Resistance Varies n Different levels of electrical resistance for each person n Ranges from 500 ohms to many thousands of ohms n The greater the body’s resistance, the less chance of harm n A similar voltage shock can be minor to one person and deadly to another. 11006115 Copyright ã 1999 Business & Legal Reports, Inc.

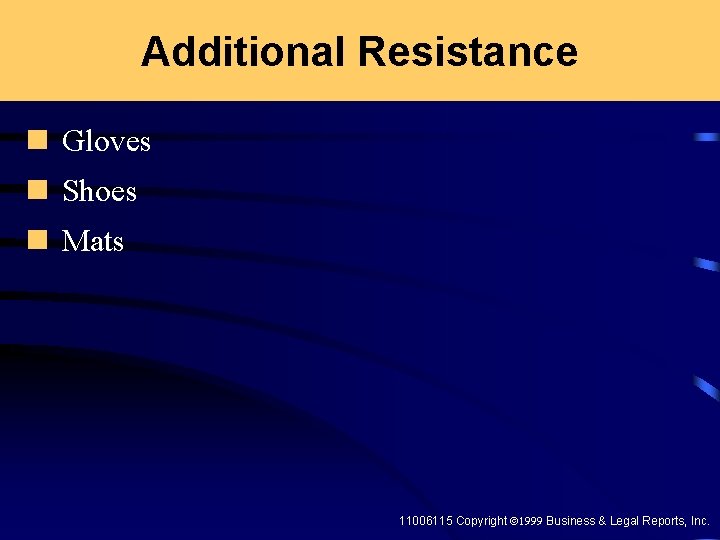

Additional Resistance n Gloves n Shoes n Mats 11006115 Copyright ã 1999 Business & Legal Reports, Inc.

Electrical Safety Goals n Electricity and the human body n Electrical hazards and safe work practices n Quiz 11006115 Copyright ã 1999 Business & Legal Reports, Inc.

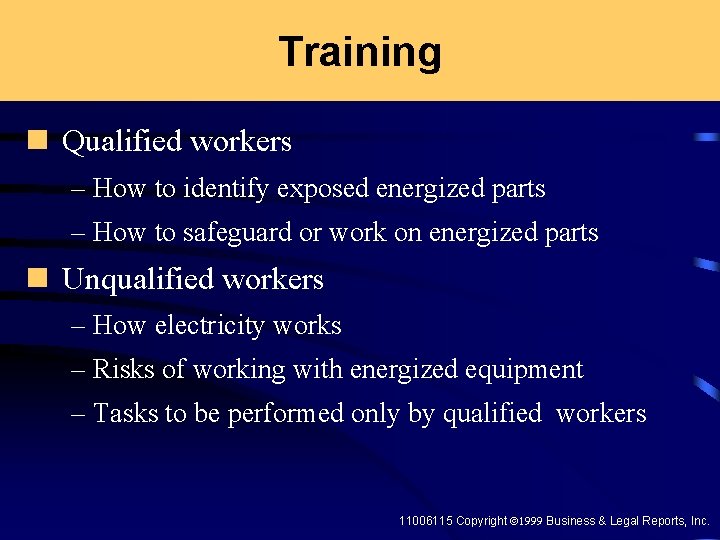

Training n Qualified workers – How to identify exposed energized parts – How to safeguard or work on energized parts n Unqualified workers – How electricity works – Risks of working with energized equipment – Tasks to be performed only by qualified workers 11006115 Copyright ã 1999 Business & Legal Reports, Inc.

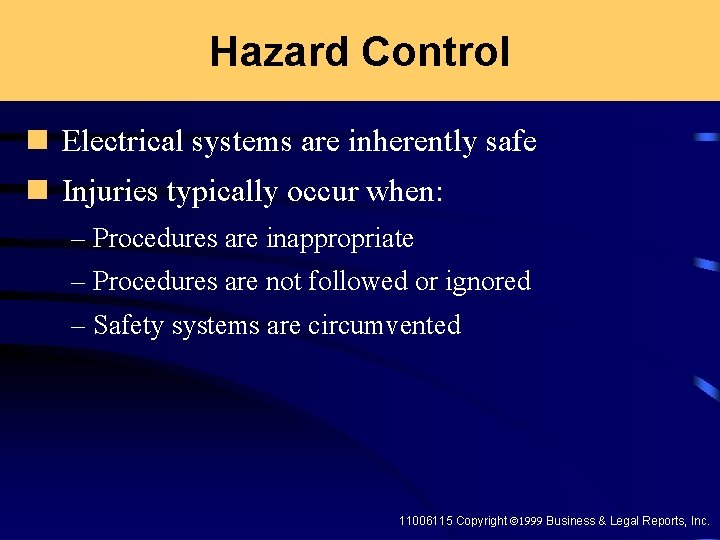

Hazard Control n Electrical systems are inherently safe n Injuries typically occur when: – Procedures are inappropriate – Procedures are not followed or ignored – Safety systems are circumvented 11006115 Copyright ã 1999 Business & Legal Reports, Inc.

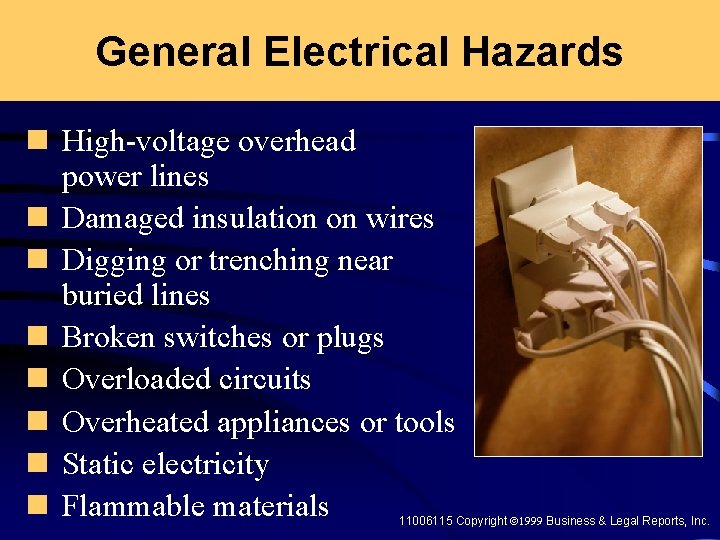

General Electrical Hazards n High-voltage overhead power lines n Damaged insulation on wires n Digging or trenching near buried lines n Broken switches or plugs n Overloaded circuits n Overheated appliances or tools n Static electricity n Flammable materials 11006115 Copyright ã 1999 Business & Legal Reports, Inc.

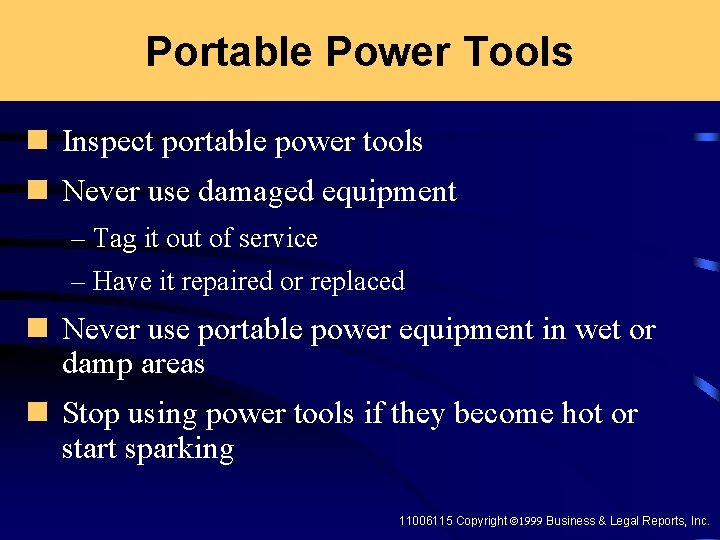

Portable Power Tools n Inspect portable power tools n Never use damaged equipment – Tag it out of service – Have it repaired or replaced n Never use portable power equipment in wet or damp areas n Stop using power tools if they become hot or start sparking 11006115 Copyright ã 1999 Business & Legal Reports, Inc.

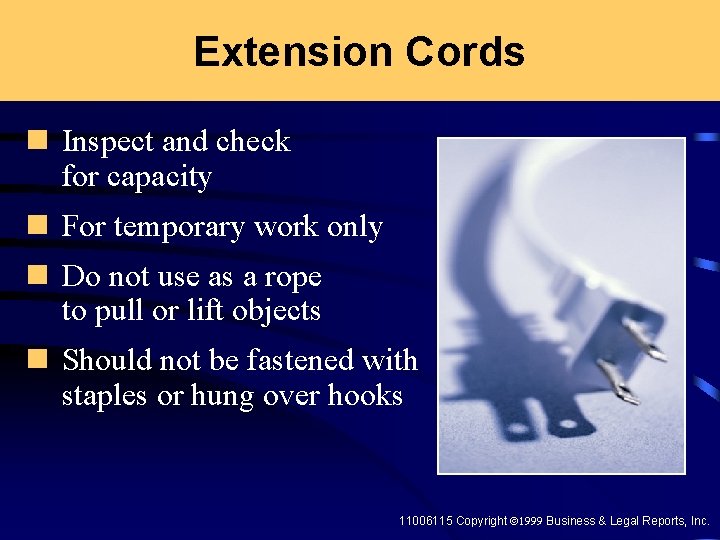

Extension Cords n Inspect and check for capacity n For temporary work only n Do not use as a rope to pull or lift objects n Should not be fastened with staples or hung over hooks 11006115 Copyright ã 1999 Business & Legal Reports, Inc.

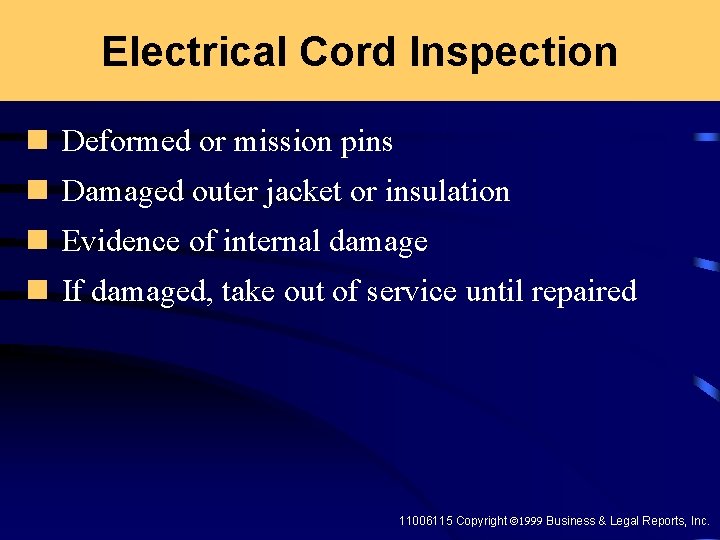

Electrical Cord Inspection n Deformed or mission pins n Damaged outer jacket or insulation n Evidence of internal damage n If damaged, take out of service until repaired 11006115 Copyright ã 1999 Business & Legal Reports, Inc.

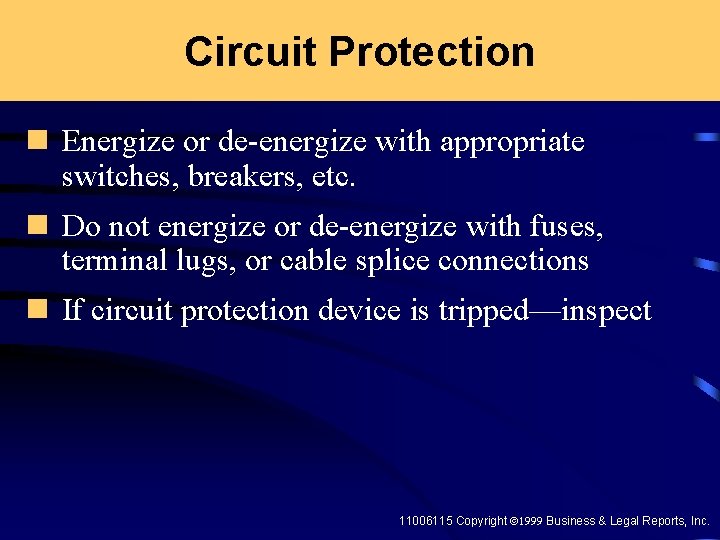

Circuit Protection n Energize or de-energize with appropriate switches, breakers, etc. n Do not energize or de-energize with fuses, terminal lugs, or cable splice connections n If circuit protection device is tripped—inspect 11006115 Copyright ã 1999 Business & Legal Reports, Inc.

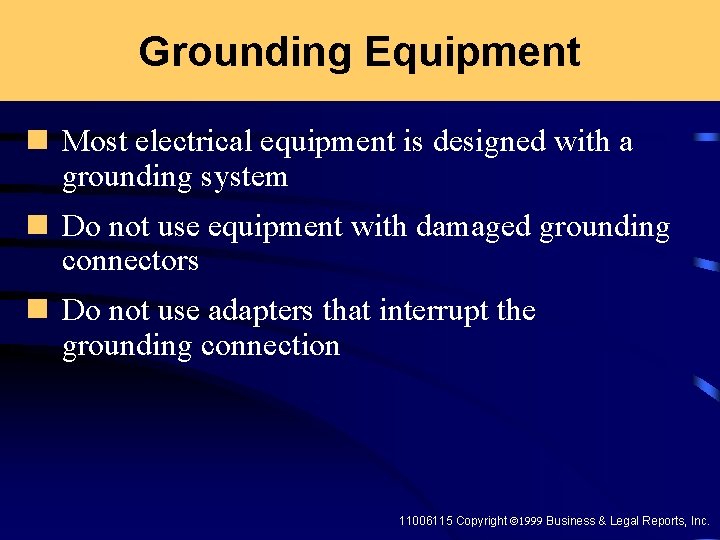

Grounding Equipment n Most electrical equipment is designed with a grounding system n Do not use equipment with damaged grounding connectors n Do not use adapters that interrupt the grounding connection 11006115 Copyright ã 1999 Business & Legal Reports, Inc.

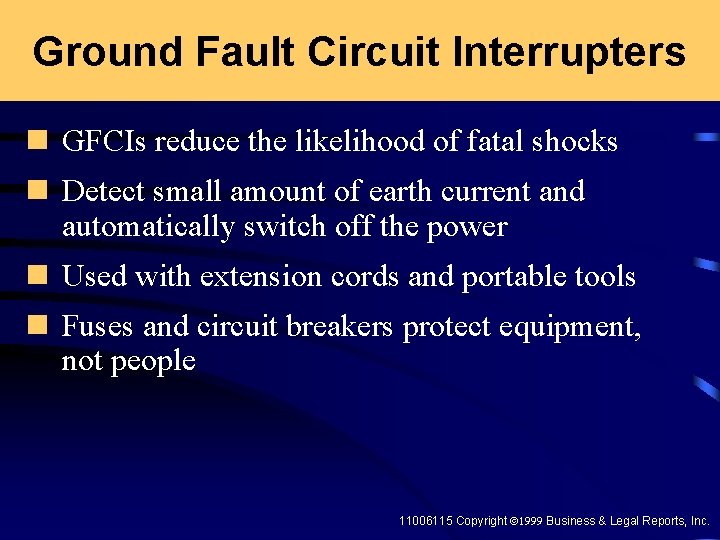

Ground Fault Circuit Interrupters n GFCIs reduce the likelihood of fatal shocks n Detect small amount of earth current and automatically switch off the power n Used with extension cords and portable tools n Fuses and circuit breakers protect equipment, not people 11006115 Copyright ã 1999 Business & Legal Reports, Inc.

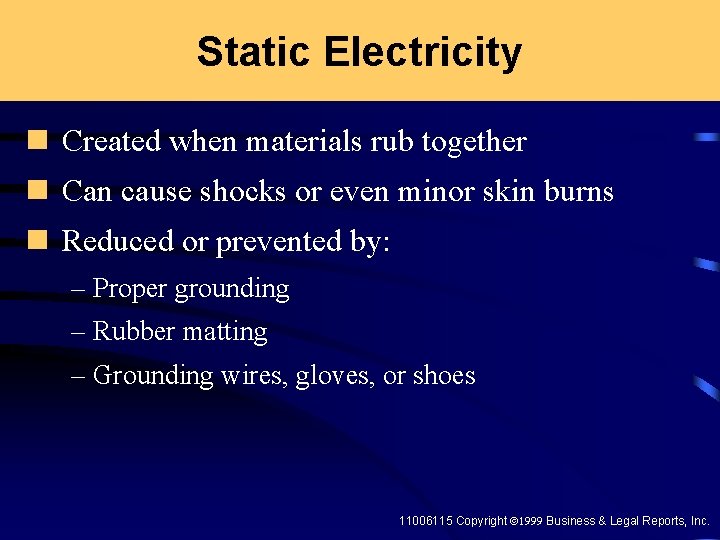

Static Electricity n Created when materials rub together n Can cause shocks or even minor skin burns n Reduced or prevented by: – Proper grounding – Rubber matting – Grounding wires, gloves, or shoes 11006115 Copyright ã 1999 Business & Legal Reports, Inc.

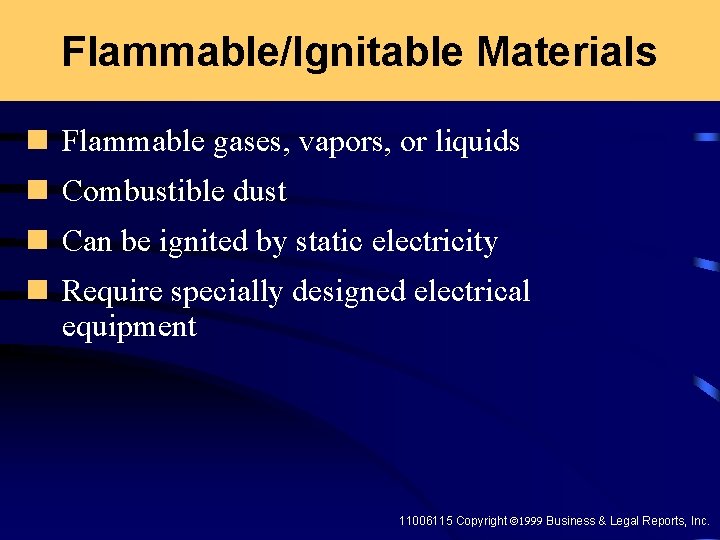

Flammable/Ignitable Materials n Flammable gases, vapors, or liquids n Combustible dust n Can be ignited by static electricity n Require specially designed electrical equipment 11006115 Copyright ã 1999 Business & Legal Reports, Inc.

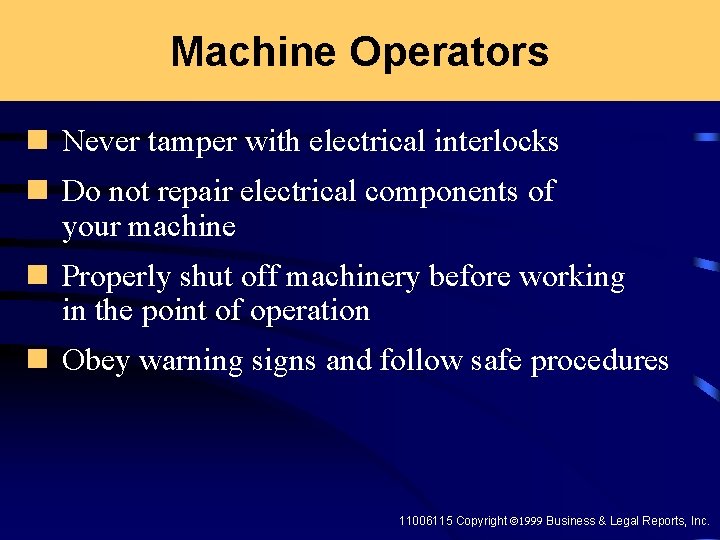

Machine Operators n Never tamper with electrical interlocks n Do not repair electrical components of your machine n Properly shut off machinery before working in the point of operation n Obey warning signs and follow safe procedures 11006115 Copyright ã 1999 Business & Legal Reports, Inc.

Electrical Safety Goals n Electricity and the human body n Electrical hazards and safe work practices n Quiz 11006115 Copyright ã 1999 Business & Legal Reports, Inc.

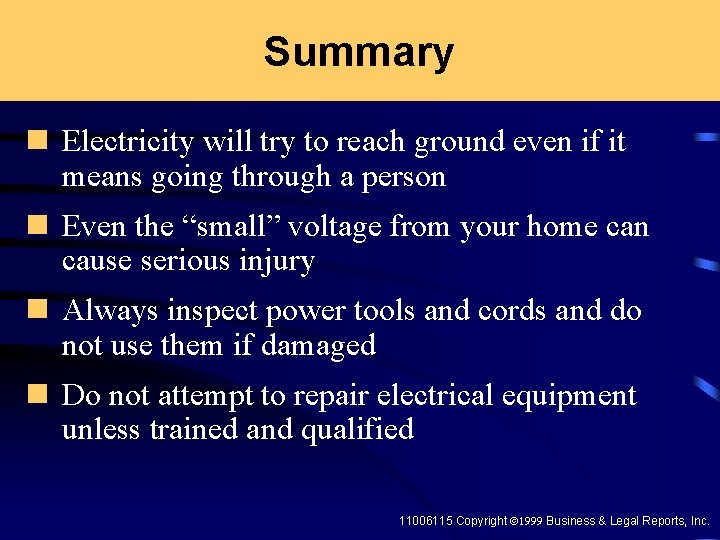

Summary n Electricity will try to reach ground even if it means going through a person n Even the “small” voltage from your home can cause serious injury n Always inspect power tools and cords and do not use them if damaged n Do not attempt to repair electrical equipment unless trained and qualified 11006115 Copyright ã 1999 Business & Legal Reports, Inc.

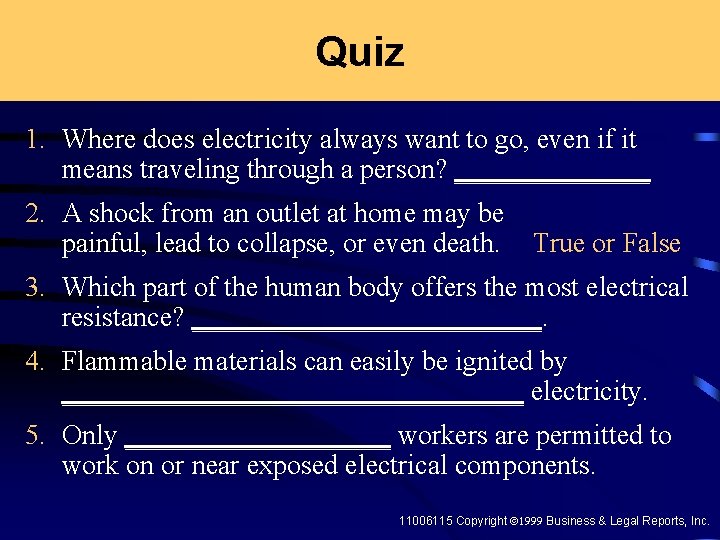

Quiz 1. Where does electricity always want to go, even if it means traveling through a person? _______ 2. A shock from an outlet at home may be painful, lead to collapse, or even death. True or False 3. Which part of the human body offers the most electrical resistance? _____________. 4. Flammable materials can easily be ignited by _________________ electricity. 5. Only __________ workers are permitted to work on or near exposed electrical components. 11006115 Copyright ã 1999 Business & Legal Reports, Inc.

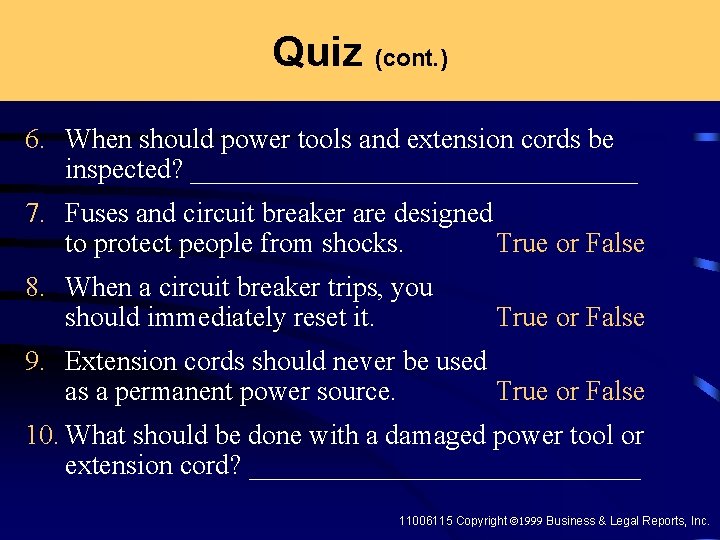

Quiz (cont. ) 6. When should power tools and extension cords be inspected? ________________ 7. Fuses and circuit breaker are designed to protect people from shocks. True or False 8. When a circuit breaker trips, you should immediately reset it. True or False 9. Extension cords should never be used as a permanent power source. True or False 10. What should be done with a damaged power tool or extension cord? ______________ 11006115 Copyright ã 1999 Business & Legal Reports, Inc.
