BLOWERS Dr A Saatci ROOT TYPE BAKLA TP
BLOWERS Dr. A. Saatci

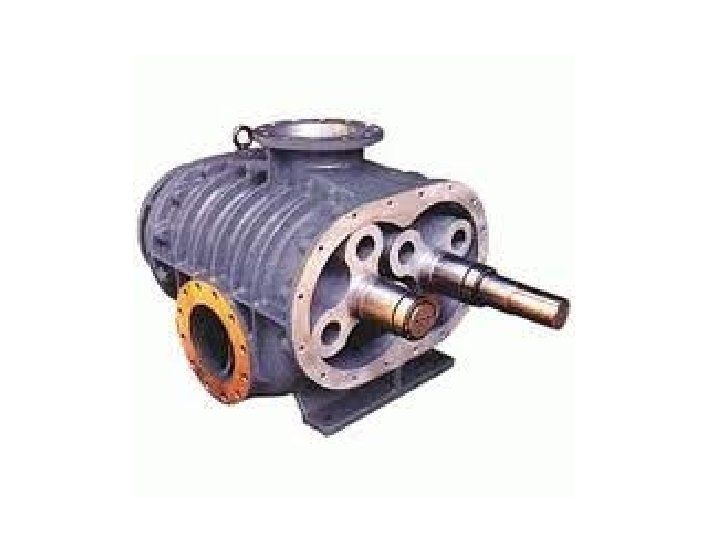

ROOT TYPE (BAKLA TİPİ) BLOVER ROTARY PISTON BLOWER

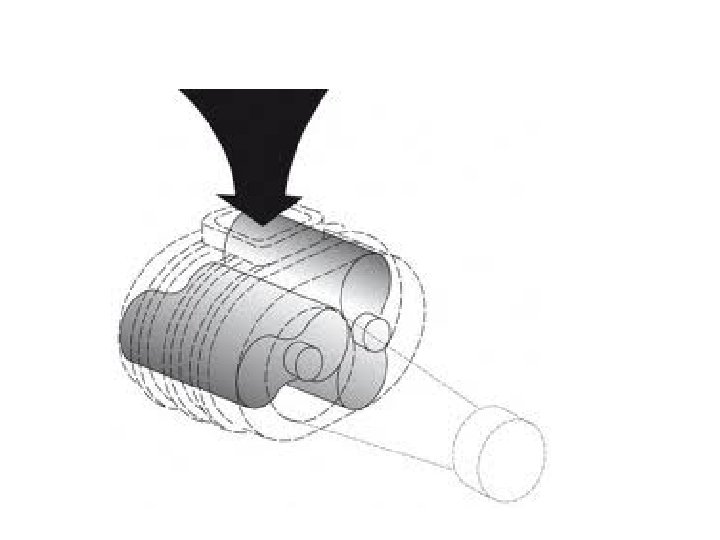

ROOT TYPE (BAKLA TİPİ) BLOVER
Turbo Blower
Tam Blover Sistemi
Centrifugal Blower
High Speed Turbo Blower

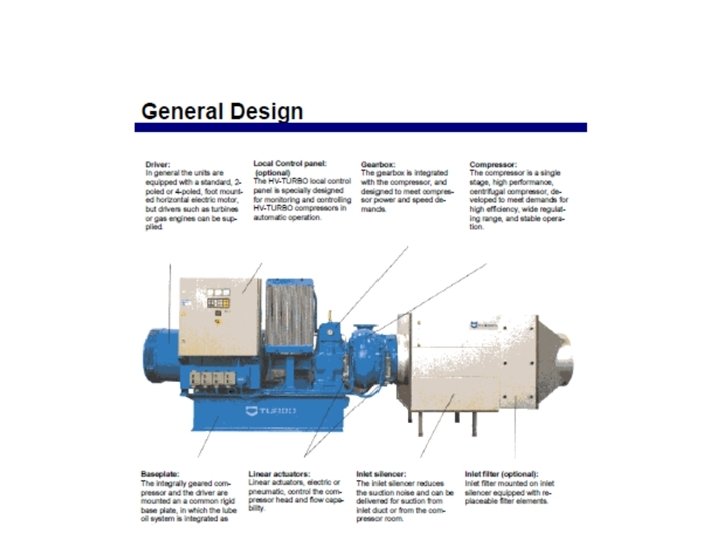

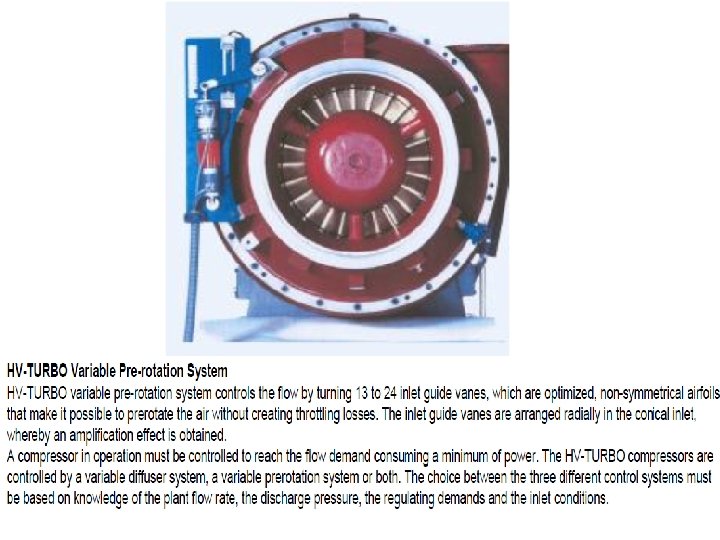

HV TURBO
HV TURBO INSTALLATION
• The efficiency of roots-blowers is lower than that of thoroughly designed turbocompressors and is approx. 70%. • The efficiency of thoroughly designed turboblowers comes up to 80%.
• • • Turbo Blower Advantages the efficiency of thoroughly designed turbo-blowers is higher than that of rootsblowers; on account of the characteristic curve, the velocity of the conveying air can be varied; in the partial-load range, the velocity of the conveying air remains rather constant, i. e. wear on the conveyor pipe and the conveying material is lower; the conveying air flow is continuous. The high-frequency noises can be dampened with little expenditure; the running wheel is resistant to foreign matter, i. e. complicated filter equipment can be avoided; the sensitivity to higher air temperature is low. Turbo Blower Disadvantages a turbo-blower starts more slowly than a roots-blower; the energy demand in the partial-load range is higher than that of the roots-blower.
• • • Roots-Blower Advantages a roots-blower quickly attains the full number of revolutions; the power demand in the partial-load range is lower. Roots-Blower Disadvantages in the range of partial load, the conveying speed is higher, i. e. wear on the conveyor pipe and breakage of the conveying material will be greater; a conveying speed once chosen can only be altered with considerable expenditure; due to the low-frequency noises (pulsating conveying air flow), expensive noise dampening equipment will be necessary; in order not to exceed the operating pressures, a control device must be installed; on account of the narrow piston clearance, the roots-blower is sensitive to foreign matter, i. e. , filter cleaning of the conveying air is required; after a longer period of use, the piston clearance becomes larger and leads to capacity losses.
