Blood splatter analysis the examination of the shapes

Blood splatter analysis the examination of the shapes, locations, and distribution patterns of bloodstains, in order to provide an interpretation of the physical events which gave rise to their origin

History of Blood Spatter n 1894 – Pitoroski wrote the earliest reference to blood spatter n 1939 – Balthazard first researcher to analyze the meaning of spattern n 1955 – blood spatter evidence used in the Sam Shepard case, helping to exonerate him n 1971 – Dr. Herbert Mc. Donnell used bloodspatter analysis as tool in forensic examination

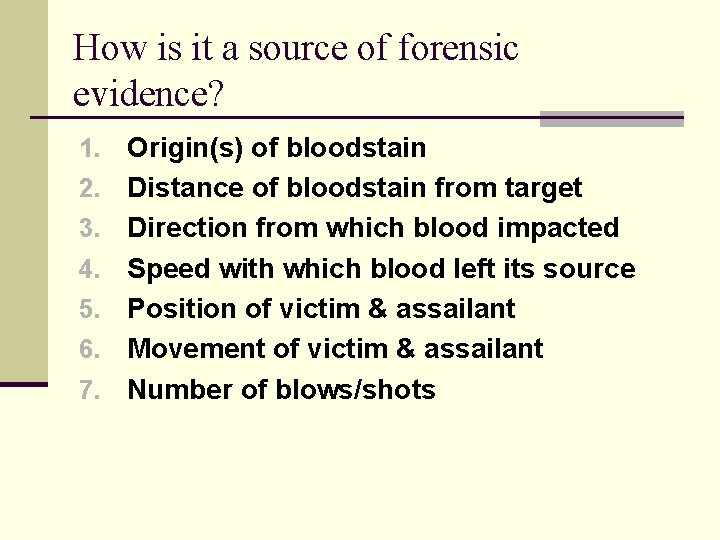

How is it a source of forensic evidence? 1. 2. 3. 4. 5. 6. 7. Origin(s) of bloodstain Distance of bloodstain from target Direction from which blood impacted Speed with which blood left its source Position of victim & assailant Movement of victim & assailant Number of blows/shots

Properties of Blood Volume n On average, blood accounts for 8 % of total body weight n 5 to 6 liters of blood for males 4 to 5 liters of blood for females n A 40 percent blood volume loss, internally or/and externally, is required to produce irreversible shock (death). n A blood loss of 1. 5 liters, internally or externally, is required to cause incapacitation.

Properties of Blood n Why does a drop of blood have a curved surface when it lands on a flat surface instead of spreading out flat? n Why doesn’t it separate in the air before it hits the ground? Gravity, cohesion, adhesion, surface tension

Properties of Blood n Gravity: pulls it to ground n Droplet becomes longer than wide n Cohesion: blood mixture is attracted to similar blood mixtures and sticks together, not separates, as it falls n Causes droplet to stay together n Adhesion: attractive forces of two different objects n starts as teardrop because of adhesion n Surface Tension: the elastic like property of the surface of the liquid that makes it tend to contract, caused by the forces of attraction between the molecules of the liquid. n Formation of a sphere

Blood Droplets n Flat surface – edge of blood drop appears smooth and circular n Glass, marble n Porous surface – edge of drop of blood may form small spikes (extensions) or satellites n n Spikes – attached to make droplet Satellites – not attached to main droplet

Six Patterns Blood can be classified: 1. Passive Fall - Blood falling directly to floor at 90 -degree angle will produce circular drops, with secondary satellites being more produced if surface hits is textured

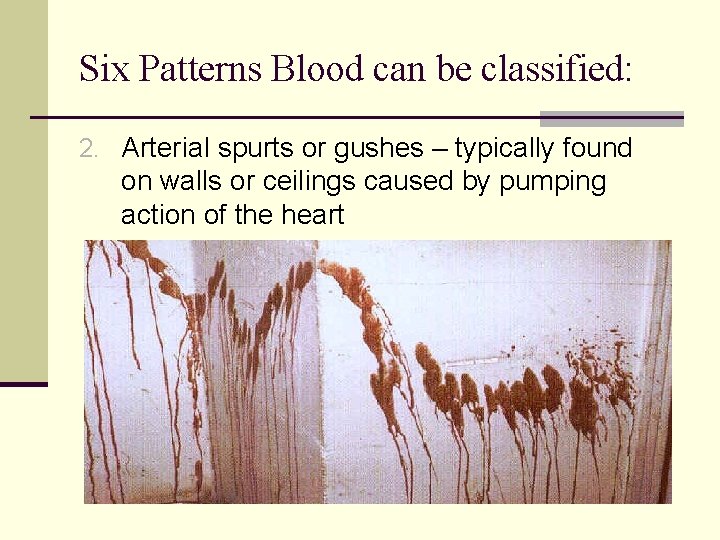

Six Patterns Blood can be classified: 2. Arterial spurts or gushes – typically found on walls or ceilings caused by pumping action of the heart

Six Patterns Blood can be classified: 3. Splashes – shaped like exclamation points. n Shape and position of spattern can help locate the position of the victim at the time of the attack

Six Patterns Blood can be classified: 4. Smears – left by bleeding victim depositing blood as he or she touches or brushes against a wall or furniture n transfers

Six Patterns Blood can be classified: 5. Trails – can be left by bleeding victim depositing blood as he or she moves from one location to another. n Can be round, smeared, appear as spurts

Six Patterns Blood can be classified: 6. Pools – form around victim who is bleeding heavily and remains in one place. n If victim is moved to another location, there may be droplets or smearing connecting the first location with a second

Spatter Patterns and Type of Wound n High Velocity Impact (100 ft/sec) – fine-mist spatter n Size of Droplets – less than 1 mm n Ex. Gunshot wound

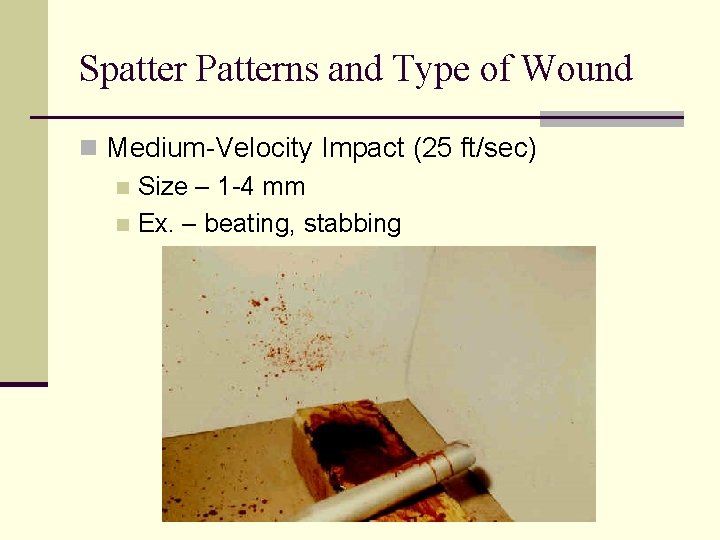

Spatter Patterns and Type of Wound n Medium-Velocity Impact (25 ft/sec) n Size – 1 -4 mm n Ex. – beating, stabbing

Spatter Patterns and Type of Wound n Low-Velocity Impact (5 ft/sec) n Size – 4 to 6 mm n Ex – blunt object impact (hammer, flashlight, etc)

Examination of Directionality of Blood n Shape provides clues to direction from which blood originated n n Circular drop (width = length) – fell straight down n Typical of dripping wound (passive) Elongated drop (width < length) – possible to determine direction blood was traveling n When blood comes into contact with another surface, it adheres or sticks to it n Point of impact may appear darker and wider than rest of drop of blood spatter

Examination of Directionality of Blood n Momentum – keeps blood moving in direction it was traveling n As droplet moves away from source, it elongates and may produce a thinner, tail-like appearance n n Tail points in direction of blood’s movement Satellites or secondary drops may appear in front of moving droplet of blood

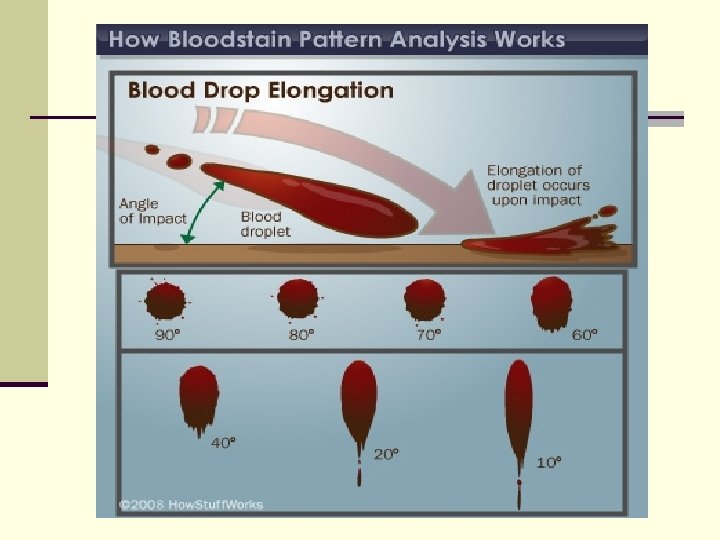

Blood Spatter and Angle of Impact ANGLE of IMPACT - the acute angle formed between the direction of the blood drop and the plane of the surface it strikes.

Angle of Impact Calculations • accurately measuring the length and width of a bloodstain, the impact angle can be calculated using the SIN formula below: AOI = SIN-1 W / L n W – Width of blood drop n L – Length of blood drop

Finding AOI LENGTH = 5. 9 cm WIDTH = 2. 6 cm

SOLUTION: AOI = SIN-1 W / L AOI = -1 SIN 2. 6/5. 9 AOI = SIN-1 (. 44) AOI = 26. 2°

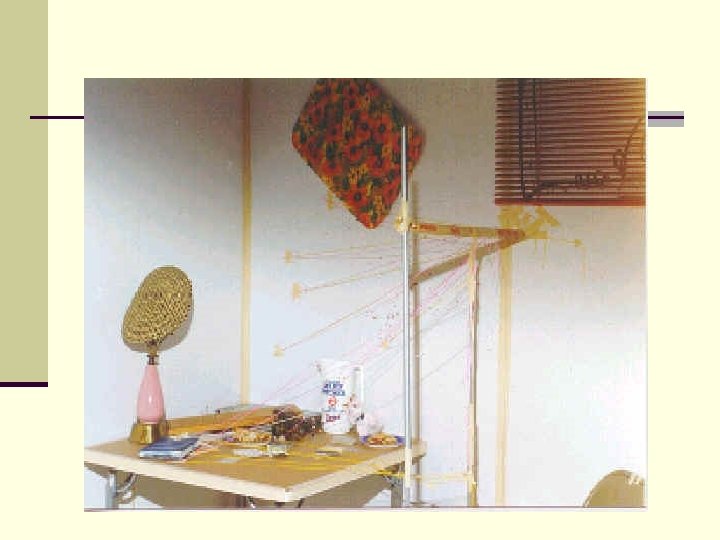

Point of Convergence n 2 D view of the location of the source n Location of source can be determined if there at least two drops of blood spatter. n Lines of Convergence – found by drawing straight lines down the long axis of blood spatter and noting where they intersect n Area or Point of Convergence (POC) – where lines meet or intersect

Point of Origin q lies at a point in space above the point of convergence. q Measurement of the impact angle allows for translation of the 2 -D image (convergence) into a 3 -D one (origin).

Point of Origin First measure the distance from each blood stain along its central axis to the POC (distance = y) 2. Then take the TAN of the degrees AOI. 3. Third, multiply the TAN of the AOI by the distance. 4. Measure that distance from the floor up the perpendicular axis and you will arrive at the Point of Origin (PO) 1. FORMULA: PO = TAN (AOI) x y

Finding PO GIVEN: DISTANCE FROM BLOODSTAIN (to POC): 90 cm AOI (calculated from AOI formula): 30° SOLUTION: PO = TAN (30°) x 90 cm PO =. 577 x 90 cm = 52 cm

Computer Programs Used
