Blood Spatter Analysis Familiarization Training for the Scene

Blood Spatter Analysis Familiarization Training for the Scene Investigator 20 February 2008 Advanced Skills Investigative Branch

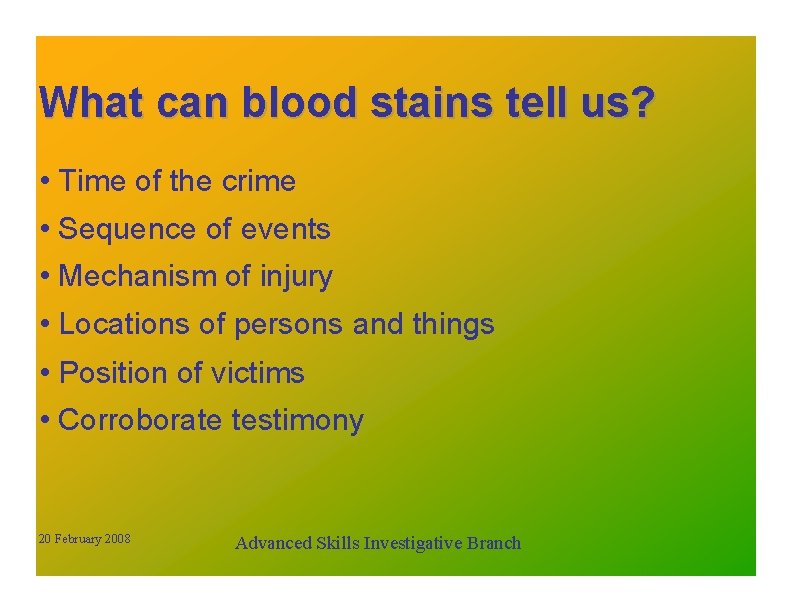

What can blood stains tell us? • Time of the crime • Sequence of events • Mechanism of injury • Locations of persons and things • Position of victims • Corroborate testimony 20 February 2008 Advanced Skills Investigative Branch

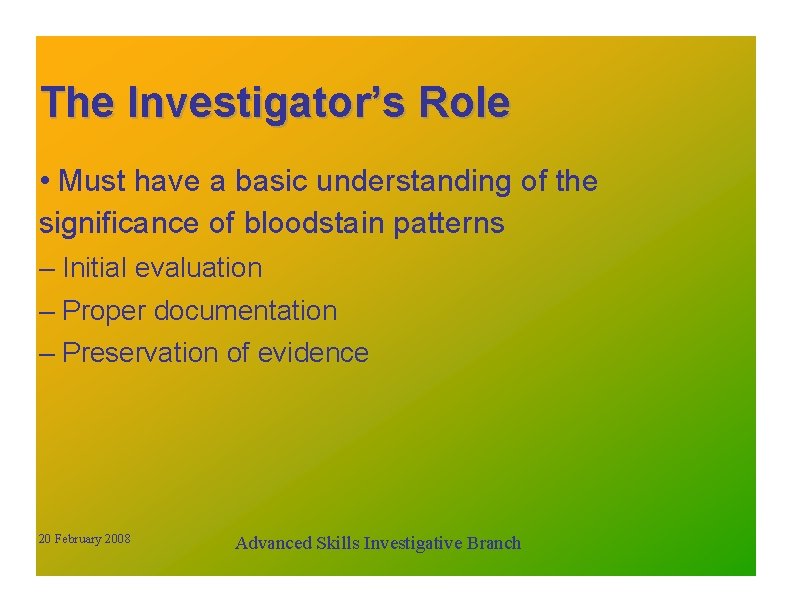

The Investigator’s Role • Must have a basic understanding of the significance of bloodstain patterns – Initial evaluation – Proper documentation – Preservation of evidence 20 February 2008 Advanced Skills Investigative Branch

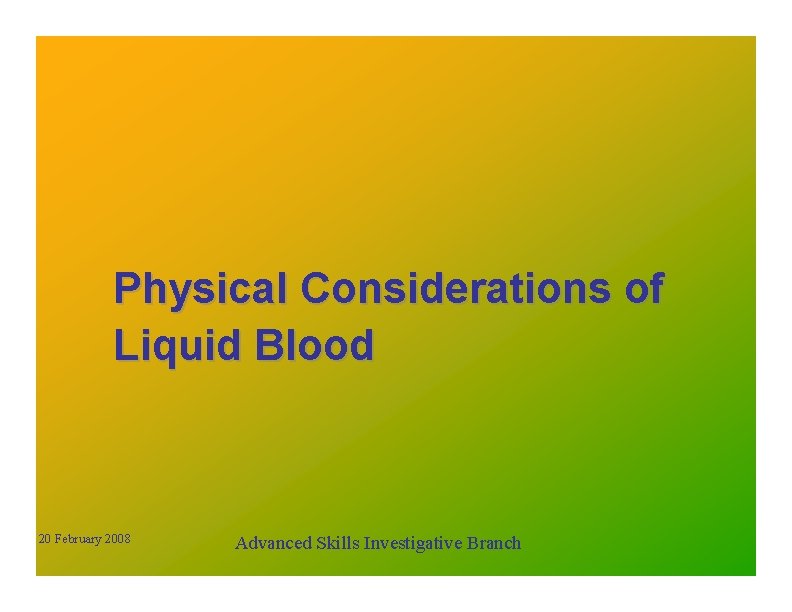

Physical Considerations of Liquid Blood 20 February 2008 Advanced Skills Investigative Branch

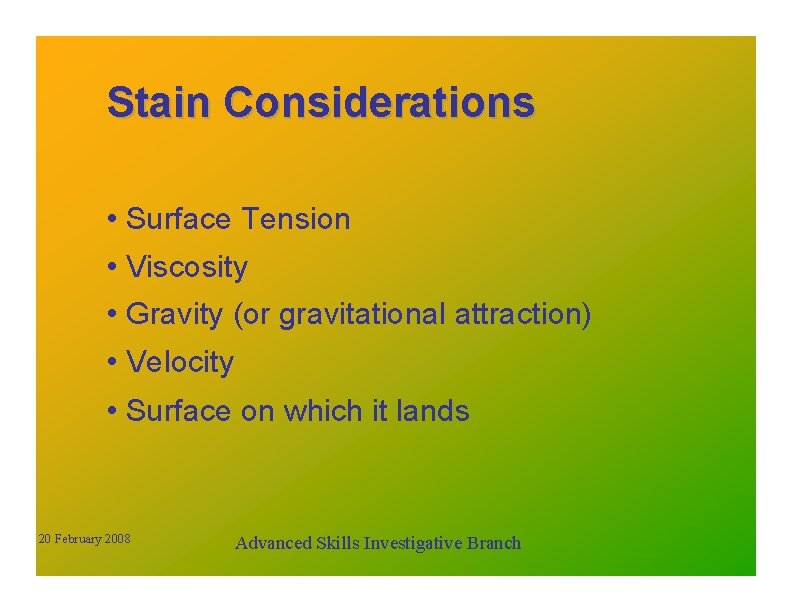

Stain Considerations • Surface Tension • Viscosity • Gravity (or gravitational attraction) • Velocity • Surface on which it lands 20 February 2008 Advanced Skills Investigative Branch

20 February 2008 Advanced Skills Investigative Branch

20 February 2008 Advanced Skills Investigative Branch

20 February 2008 Advanced Skills Investigative Branch

20 February 2008 Advanced Skills Investigative Branch

20 February 2008 Advanced Skills Investigative Branch

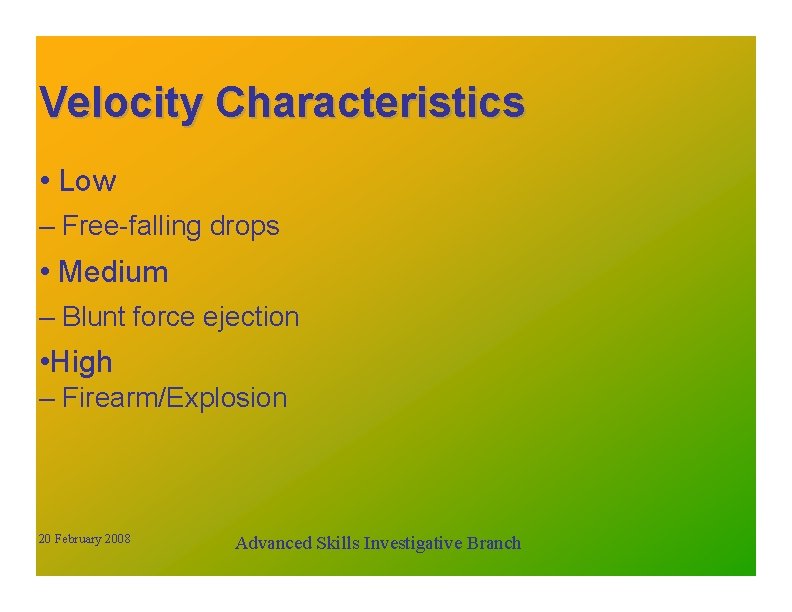

Velocity Characteristics • Low – Free-falling drops • Medium – Blunt force ejection • High – Firearm/Explosion 20 February 2008 Advanced Skills Investigative Branch

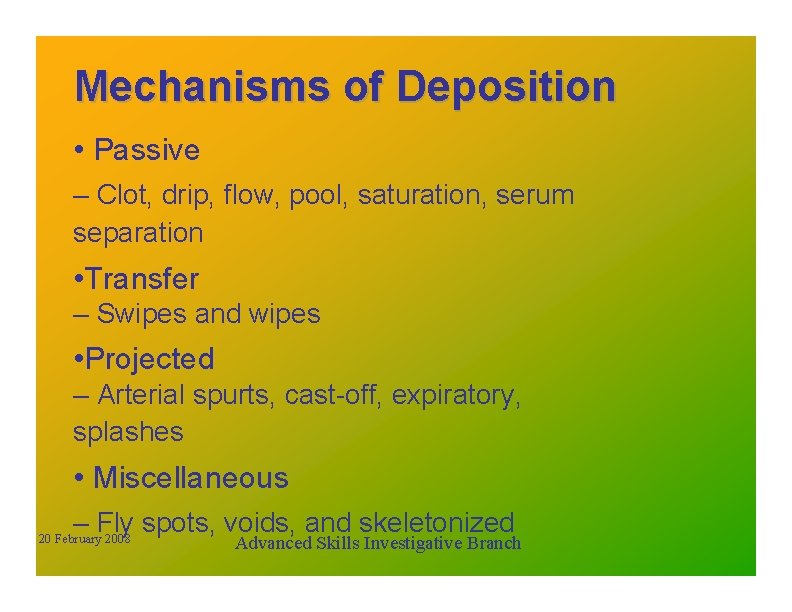

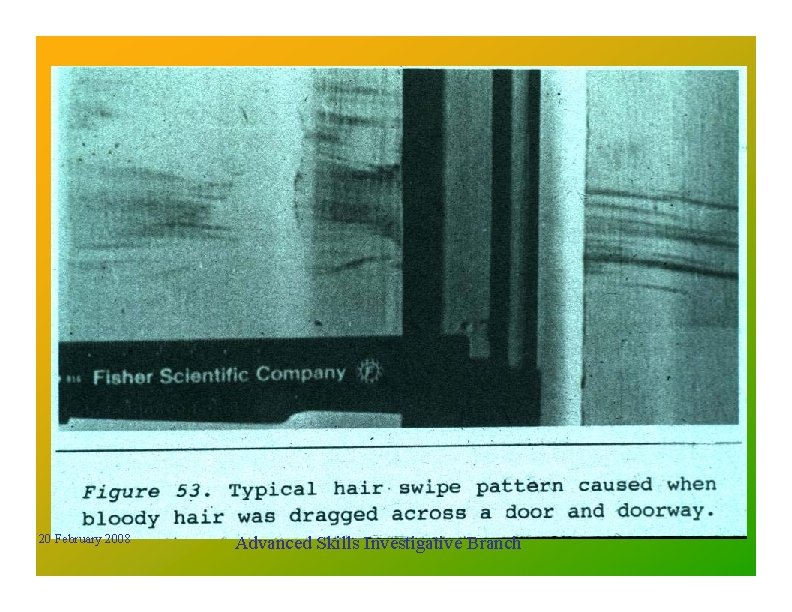

Mechanisms of Deposition • Passive – Clot, drip, flow, pool, saturation, serum separation • Transfer – Swipes and wipes • Projected – Arterial spurts, cast-off, expiratory, splashes • Miscellaneous – Fly spots, voids, and skeletonized 20 February 2008 Advanced Skills Investigative Branch

20 February 2008 Advanced Skills Investigative Branch

20 February 2008 Advanced Skills Investigative Branch

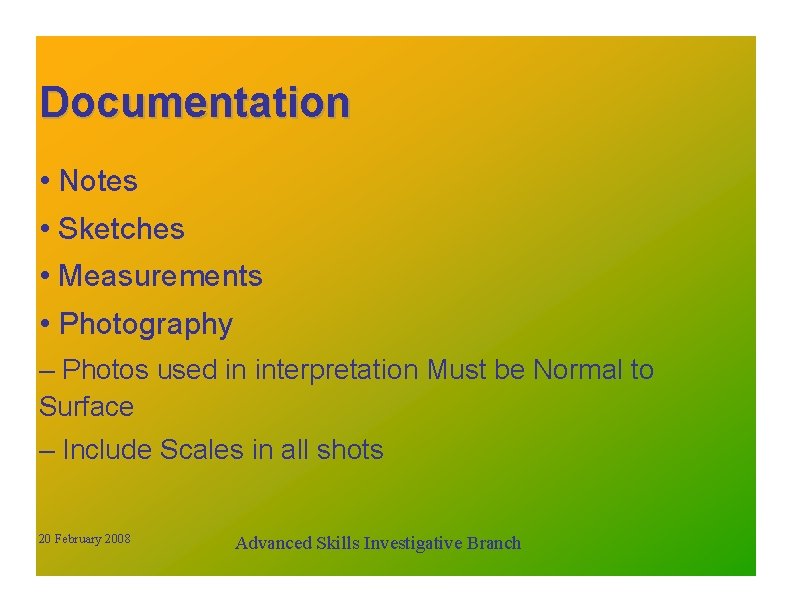

Documentation • Notes • Sketches • Measurements • Photography – Photos used in interpretation Must be Normal to Surface – Include Scales in all shots 20 February 2008 Advanced Skills Investigative Branch

20 February 2008 Advanced Skills Investigative Branch

20 February 2008 Advanced Skills Investigative Branch

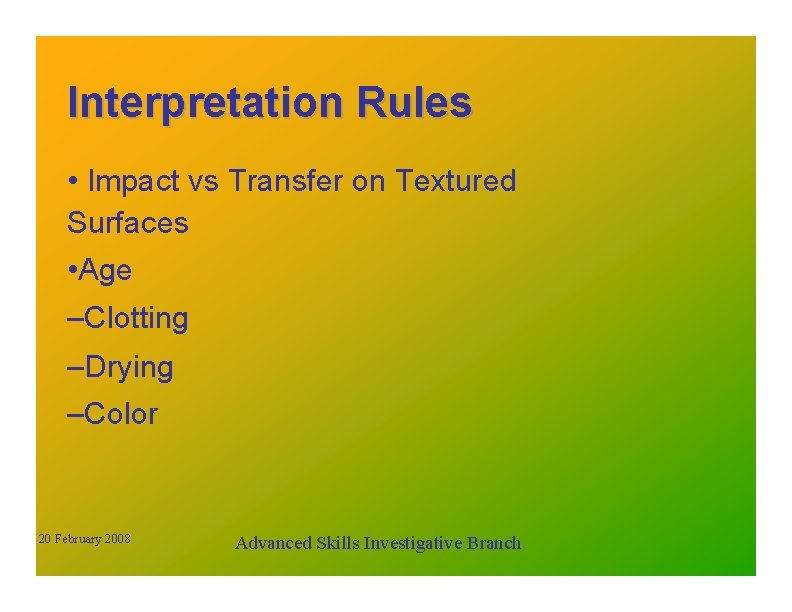

Interpretation Rules • Impact vs Transfer on Textured Surfaces • Age –Clotting –Drying –Color 20 February 2008 Advanced Skills Investigative Branch

20 February 2008 Advanced Skills Investigative Branch

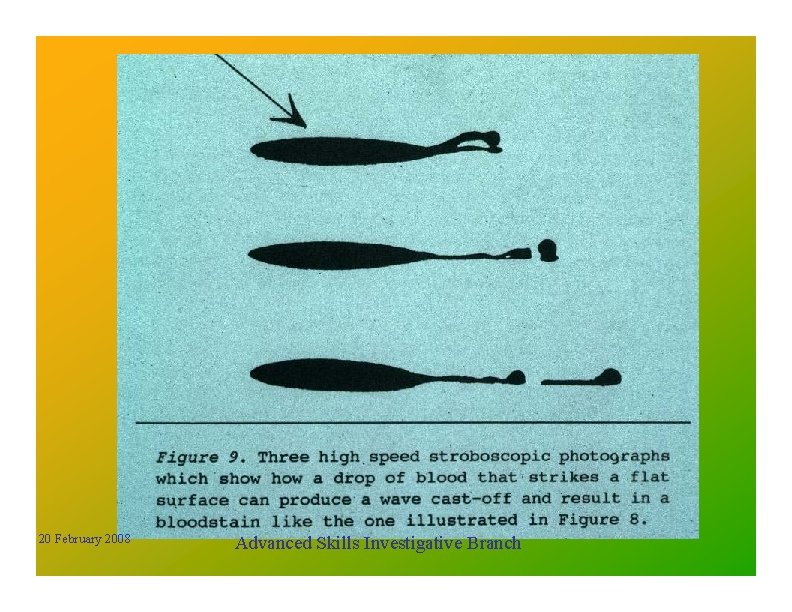

20 February 2008 Advanced Skills Investigative Branch

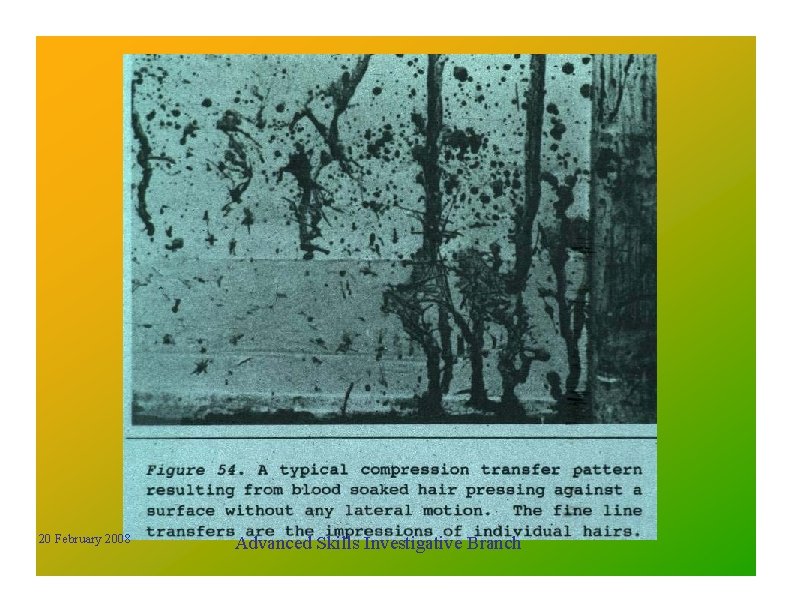

20 February 2008 Advanced Skills Investigative Branch

20 February 2008 Advanced Skills Investigative Branch

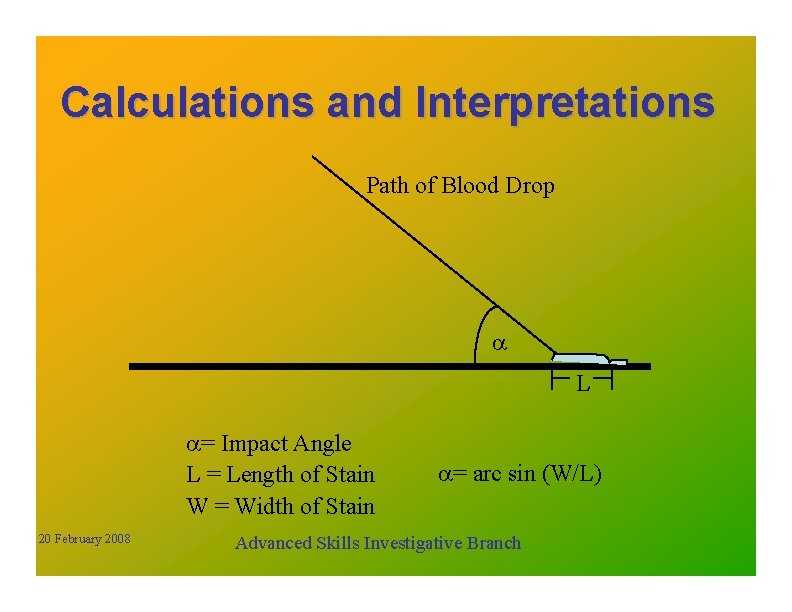

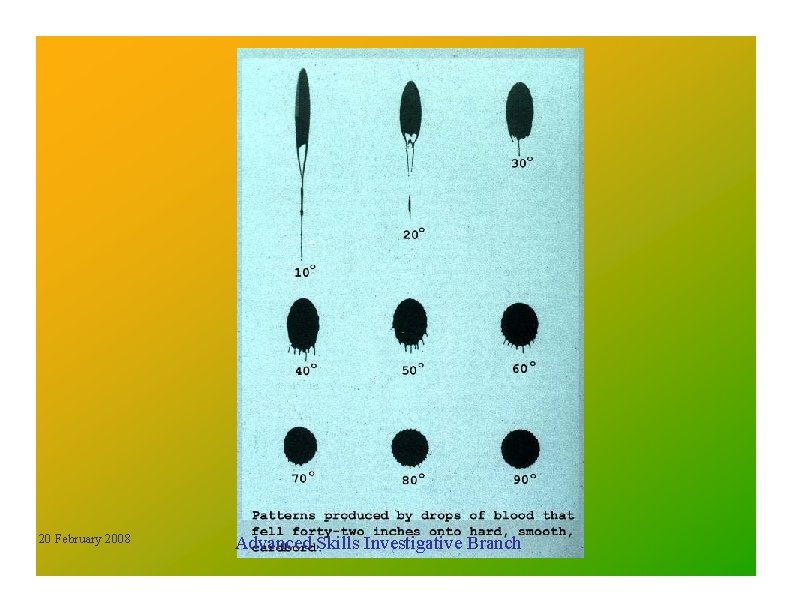

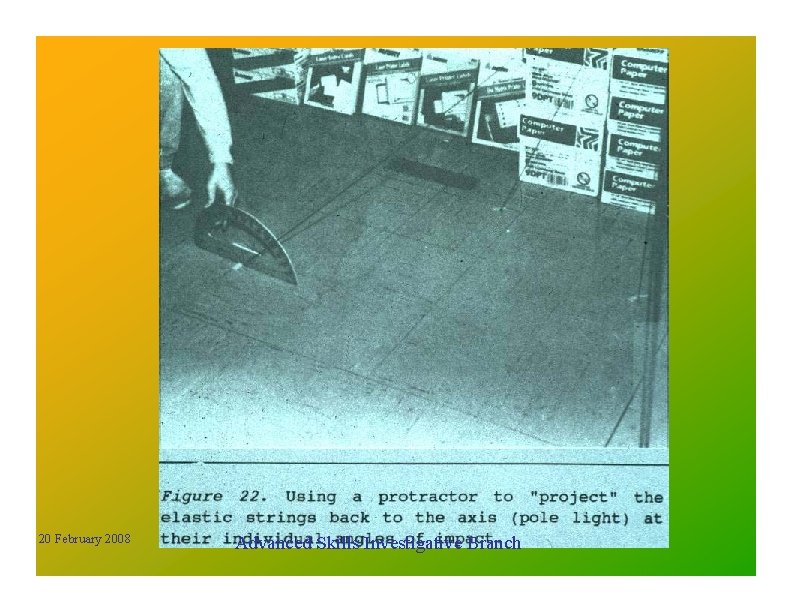

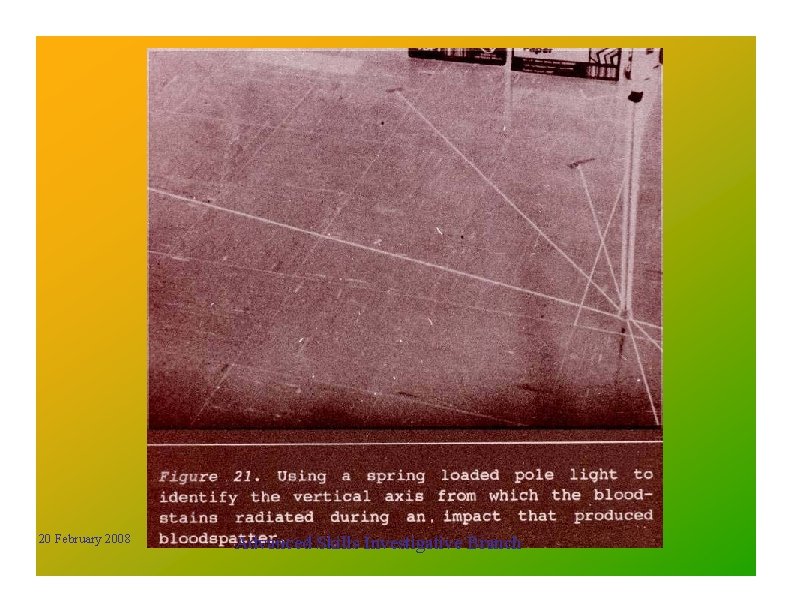

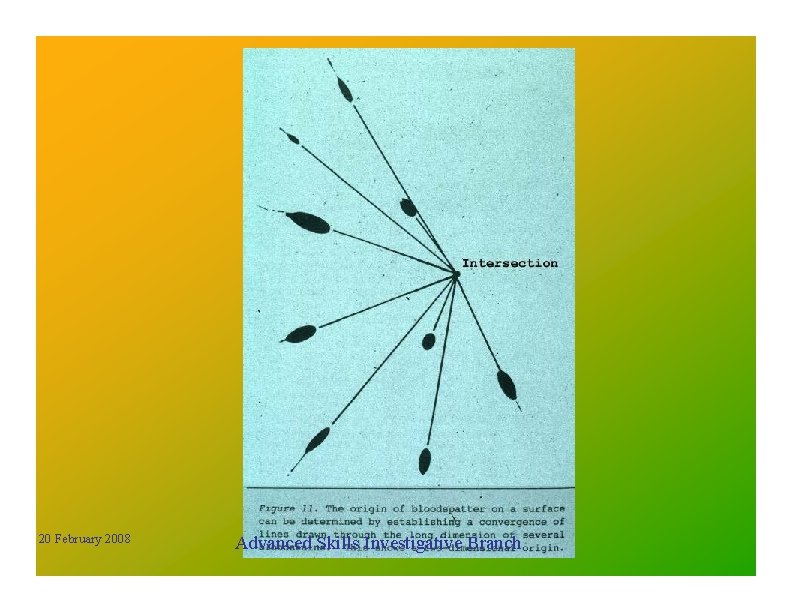

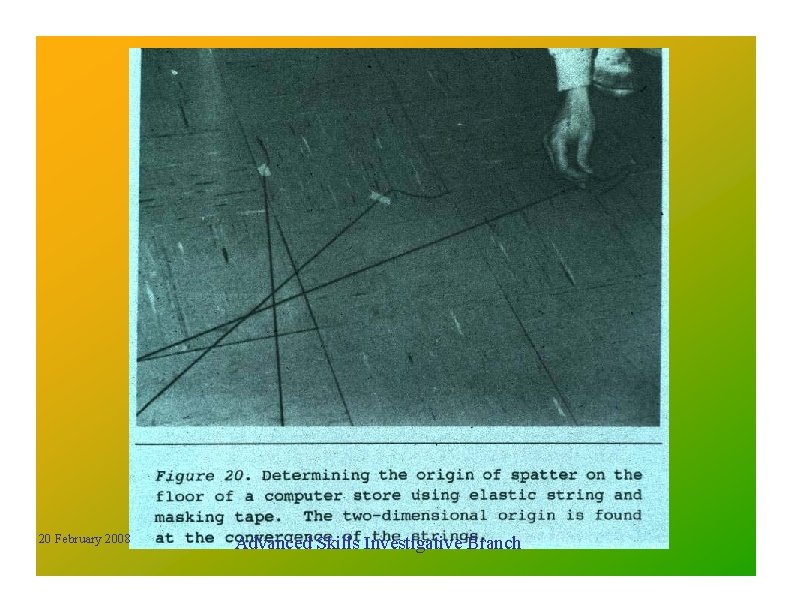

Calculations and Interpretations Path of Blood Drop a L a= Impact Angle L = Length of Stain W = Width of Stain 20 February 2008 a= arc sin (W/L) Advanced Skills Investigative Branch

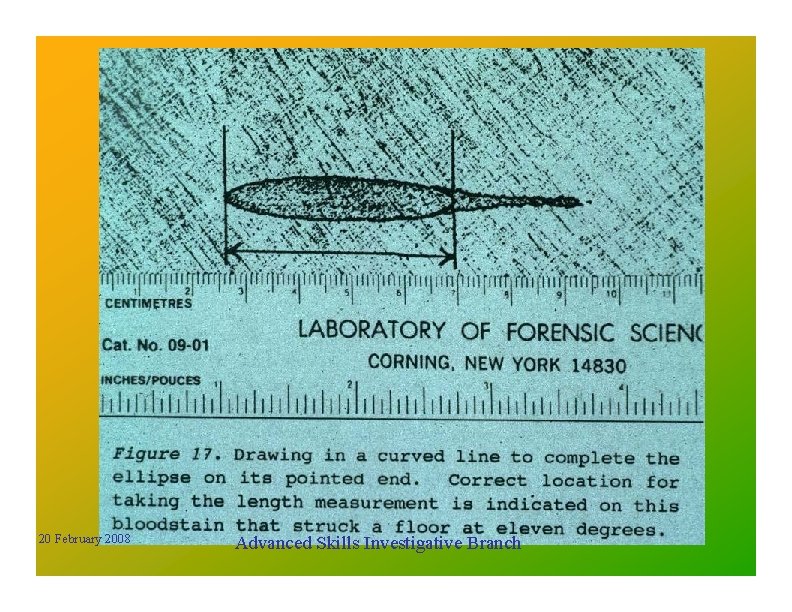

20 February 2008 Advanced Skills Investigative Branch

20 February 2008 Advanced Skills Investigative Branch

20 February 2008 Advanced Skills Investigative Branch

20 February 2008 Advanced Skills Investigative Branch

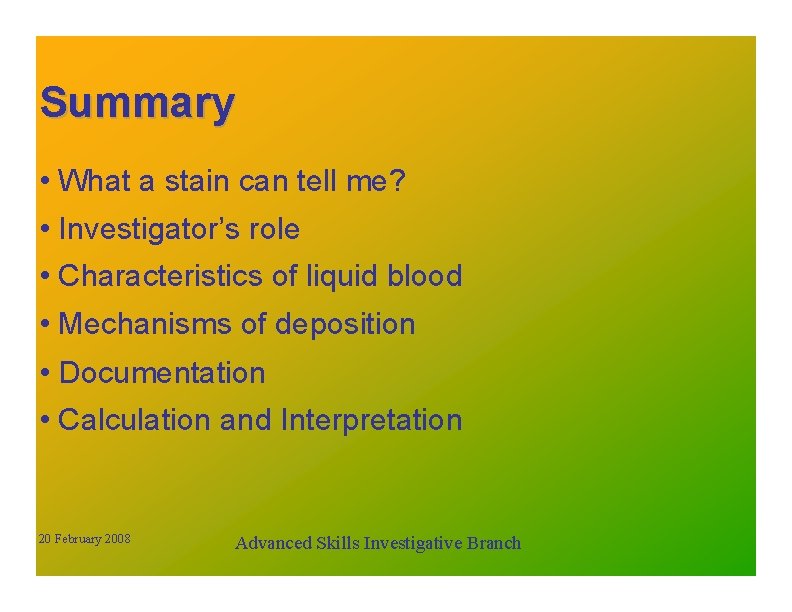

Summary • What a stain can tell me? • Investigator’s role • Characteristics of liquid blood • Mechanisms of deposition • Documentation • Calculation and Interpretation 20 February 2008 Advanced Skills Investigative Branch
