Blog: http: //blogs. technet. com/b/gladiatormsft/ Twitter: http: //twitter. com/madvirtualizer Linked. In: http: //www. linkedin. com/steveth Facebook: http: //www. facbook. com/madvirtualizer
Capacity Planning: http: //technet. microsoft. com/en-us/library/dn 595131. aspx App-V BPA: http: //www. microsoft. com/en-us/download/details. aspx? id=38844 Performance Guidance (SP 2 HF 4): http: //technet. microsoft. com/en-us/library/dn 659478. aspx App-V Supported Configurations : http: //technet. microsoft. com/en-us/library/jj 713426. aspx Planning for Server Deployment: http: //technet. microsoft. com/en-us/library/jj 713496. aspx
Virtual Desktop Local Desktop End Point
Role Segmentation and Separation SQL No Longer Single Point of Failure Protocols Flexible Shared Content Store Management
License Management by App-V Management Server Feature tied to legacy protocol Provider Policies Create another access layer that created many support incidents Application Permissions Use Applocker Policies Text Logging: Now Decentralized and ETW-based Canned Reports within Management Interface Use SSRS or your favorite report viewer instead
http: //support. microsoft. com/kb/2956985 - http: //support. microsoft. com/kb/2940354
Type Vapp Delivery Infrastructure Persistent RDSXen. App Servers CM Integration Non-Persistent Xen. AppRDS App-V Publishing* Type PersistentStatic VDIXD Vapp Delivery Infrastructure CM Integration Non-PersistentPooled VDIXD App-V Publishing
CLIENT ECOSYSTEM
SQL Server Content Server Management Server Publishing Server Reporting Server

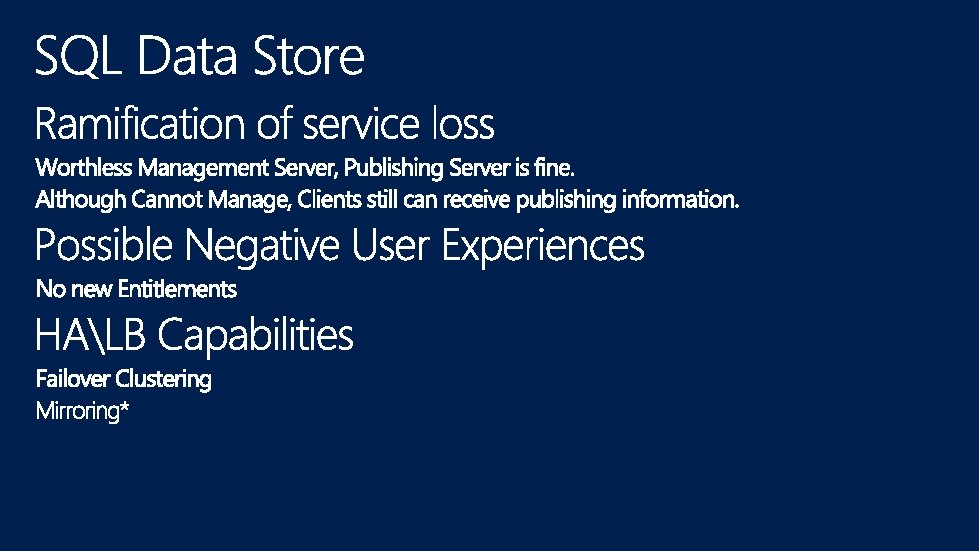

SQL Server
Content Server

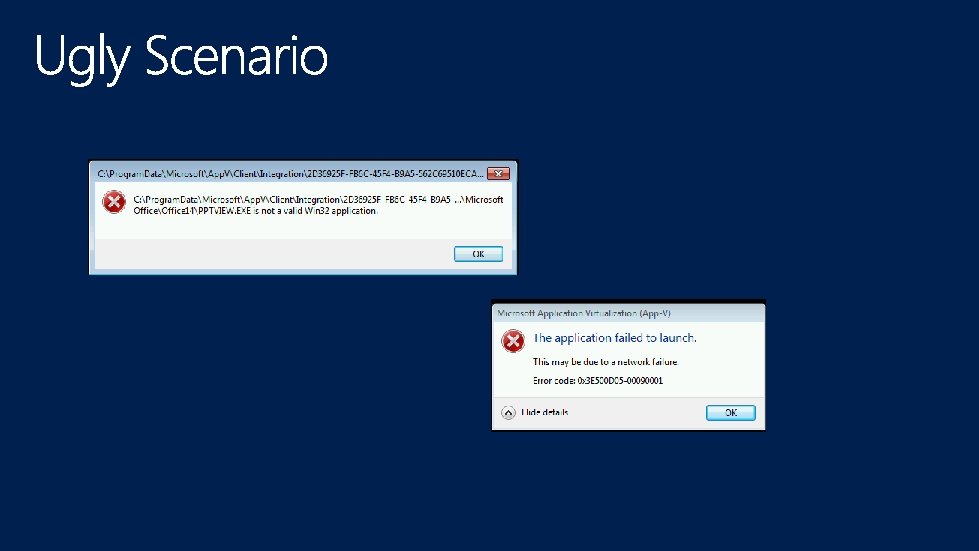

Prolonged stream fault Failed stream fault Loss of network connectivity indicator “Pre-Mount” (Pre-Load) Publishing feature block (FB 0) File streaming UNC streaming HTTP streaming FB 1 Streaming progress indicator Allow offline option

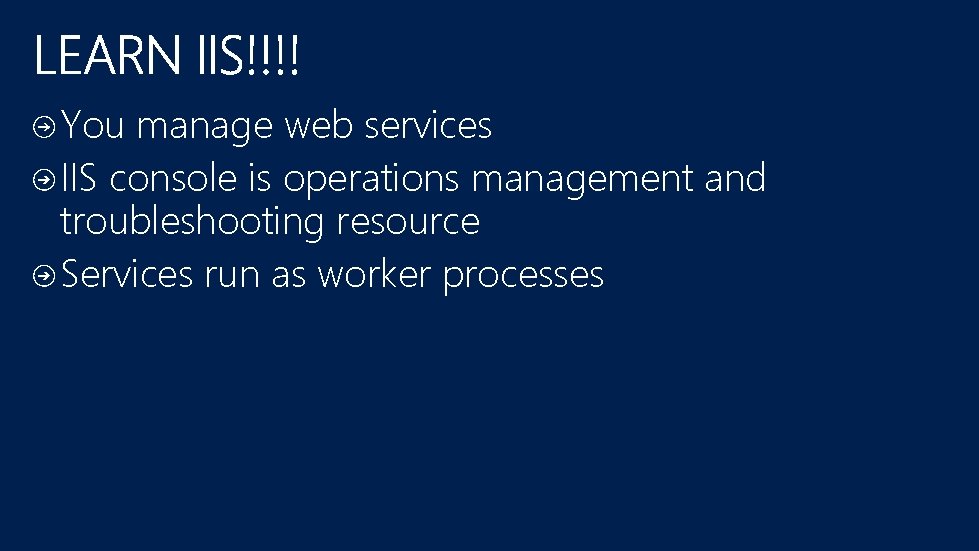

You manage web services IIS console is operations management and troubleshooting resource Services run as worker processes

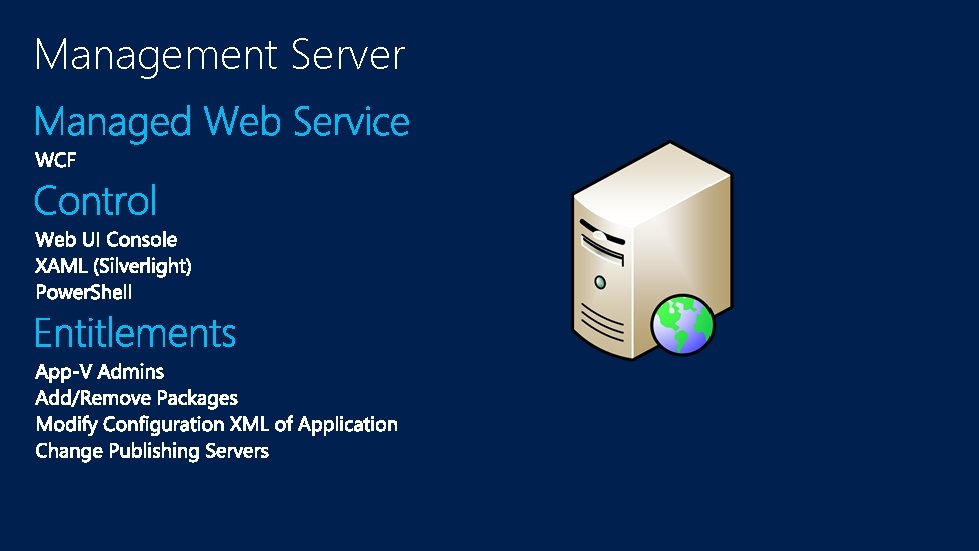

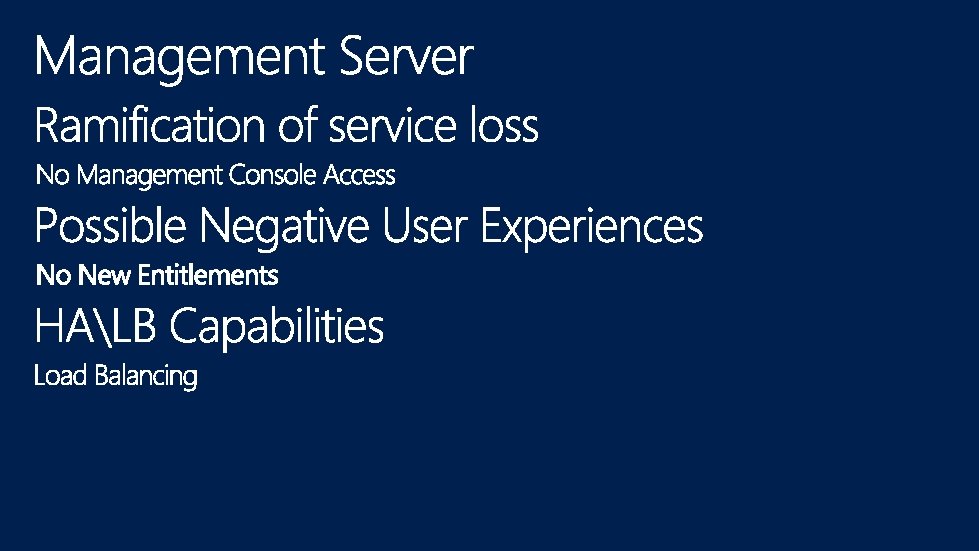

Management Server

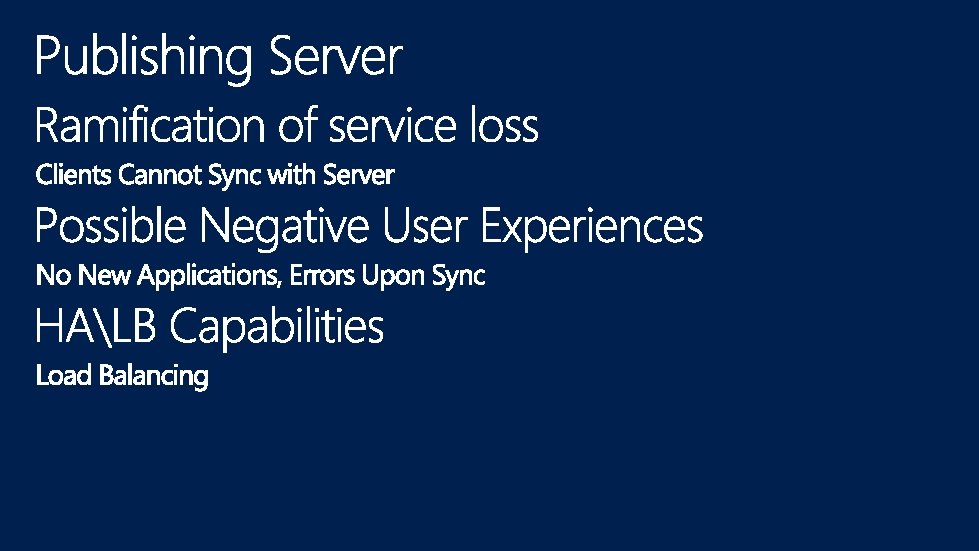

Publishing Server As a part of publishing refresh, clients speak with their associated publishing servers to get publishing metadata Administrators can use Group Policy or client Power. Shell command-lets to associate publishing servers with the client Publishing server is stateless Location
1. Publishing Services and Management Services run in separate IIS Worker Processes 2. Admin adds Package, Configuration, Connection Group(s) and assigns to AD Group. 3. DB and Publishing Sequence Number updated. 4. Publishing Server syncs with Management Server. 5. Clients sync with Publishing Server.
Reporting Server http: //www. microsoft. com/en-us/download/details. aspx? id=42630
http: //technet. microsoft. com/en-us/library/jj 713460. aspx http: //www. microsoft. com/en-us/download/details. aspx? id=41183 http: //technet. microsoft. com/en-us/library/jj 687745. aspx
http: //technet. microsoft. com/en-us/library/jj 684302. aspx http: //technet. microsoft. com/en-us/library/jj 713404. aspx http: //technet. microsoft. com/en-us/library/jj 684303. aspx
http: //technet. microsoft. com/en-us/library/jj 713416. aspx http: //technet. microsoft. com/en-us/library/jj 713469. aspx http: //blogs. technet. com/b/appv/archive/2013/05/06/how-to-install-the-app-v-5 -0 -database-andmanagement-server-using-sql-scripts-on-the-db. aspx
http: //technet. microsoft. com/en-us/library/dn 595131. aspx
20, 000 clients can target a single publishing server to obtain the package refreshes in an acceptable round trip time. (<3 seconds) A single management server can support up to 50 publishing servers for package metadata refreshes in an acceptable round trip time. (<5 seconds) A single reporting server can process 500 concurrent/active connections. A single reporting server can process a maximum 1500 concurrent connections.
Supporting 500, 000 client machines with: 5 publishing servers 2 reporting servers (caveat with 4 hours random delay) 2 management servers (for availability) 1 database
Scheduled Task - generates a random delay between 0 and Reporting. Random. Delay and will wait the specified duration before sending data. Random delay = 4 * number of clients / average requests per second. Example: For 500 clients, with 120 requests per second, the Random delay is, 4 * 500 / 120 = ~17 minutes.
Server Stretch 12, 000 packages Client Stretch 2, 500 packages on a single machine 500 packages published to single user
Size of DB = (X+Y+Z) accelerated by Change History Growth. X= Package Records + Aggregate of Manifests + Custom Configuration [(# of packages * 512 Bytes) + (# of packages * 1 Mb average manifest size) + (# of packages * 10 K for custom configuration)] Package Records = # of packages * 512 Bytes Aggregate of Manifests = # of packages * 1 Mb average manifest size Custom Configuration = # of packages * 10 K for custom configuration Custom Configuration based on estimation from ( ½K per policy element; 12 elements); 2 policies per packages; ) Y= Package Entitlements: 1 K per entitlement (group SID) Z = Connection Groups: 2 K per CG. Change History Estimation = 1 K per record which correlates to instance. If 100 changes a week are estimated, factor in 100 K growth.
http: //technet. microsoft. com/en-us/library/dn 659478. aspx
http: //www. microsoft. com/downloads/details. aspx? displaylang=en&Family. ID=c 3 f 5 f 040 -ab 7 b-4 ec 69 ed 3 -1698105510 ad http: //www. microsoft. com/en-us/download/details. aspx? id=17190
http: //technet. microsoft. com/en-us/library/dn 343758. aspx#BKMK_IISLoad. Bal Network Load Balancing Guide http: //technet. microsoft. com/en-us/library/cc 754833(v=ws. 10). aspx http: //technet. microsoft. com/library/hh 831698
Failover Clustering Guide http: //technet. microsoft. com/en-us/library/hh 831579. aspx Creating a Windows Server 2012 Failover Cluster http: //blogs. msdn. com/b/clustering/archive/2012/05/01/10299698. aspx
http: //blogs. msdn. com/b/clustering/archive/2012/05/01/10299698. aspx http: //blogs. technet. com/b/filecab/archive/2009/06/29/deploying-dfs-replication-on-a-windowsfailover-cluster-part-i. aspx http: //blogs. technet. com/b/filecab/archive/2013/04/05/safely-virtualizing-dfsr. aspx
Setting up SQL Mirroring http: //technet. microsoft. com/en-us/library/ms 189047. aspx http: //msdn. microsoft. com/en-us/library/ms 188712. aspx Connection String Clarification http: //blogs. msdn. com/b/spike/archive/2010/12/08/clarificationon-the-failover-partner-in-the-connectionstring-in-databasemirror-setup. aspx
SQL Failover Clustering http: //technet. microsoft. com/en-us/library/dn 343758. aspx#BKMK_SQLCluster SQL Mirroring http: //technet. microsoft. com/en-us/library/dn 343758. aspx#BKMK_SQLMirroring
http: //technet. microsoft. com/en-us/library/dn 343758. aspx#BKMK_Cluster. SCSMode

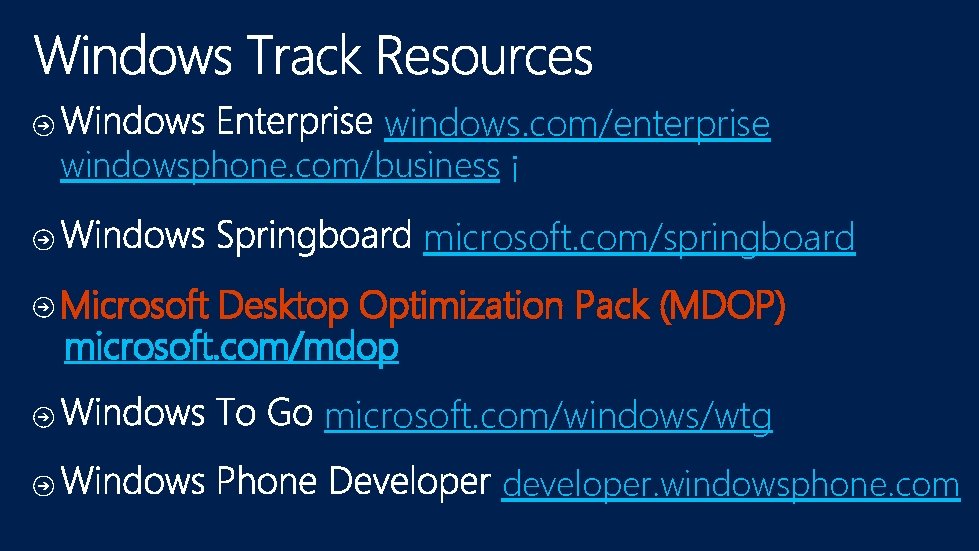

windows. com/enterprise windowsphone. com/business microsoft. com/springboard Microsoft Desktop Optimization Pack (MDOP) microsoft. com/mdop microsoft. com/windows/wtg developer. windowsphone. com
windows. com/enterprise windowsphone. com/business microsoft. com/springboard microsoft. com/mdop microsoft. com/windows/wtg developer. windowsphone. com

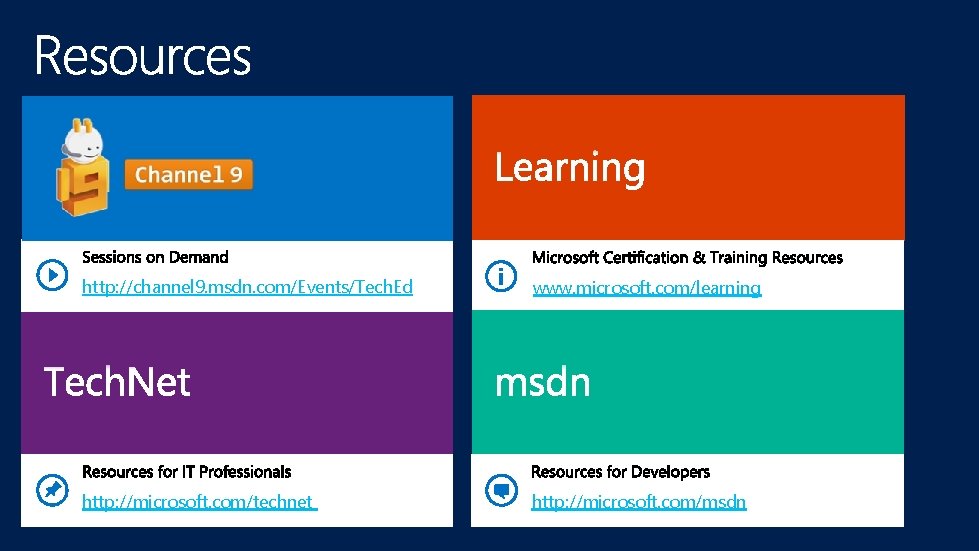

http: //channel 9. msdn. com/Events/Tech. Ed www. microsoft. com/learning http: //microsoft. com/technet http: //microsoft. com/msdn
