Block inspection Some visual checks Cylinder cracking Scuffing
Block inspection Some visual checks • Cylinder cracking • Scuffing & scoring • Damaged fasteners • Housing bores Copyright 2003 Gary Lewis – Dave Capitolo

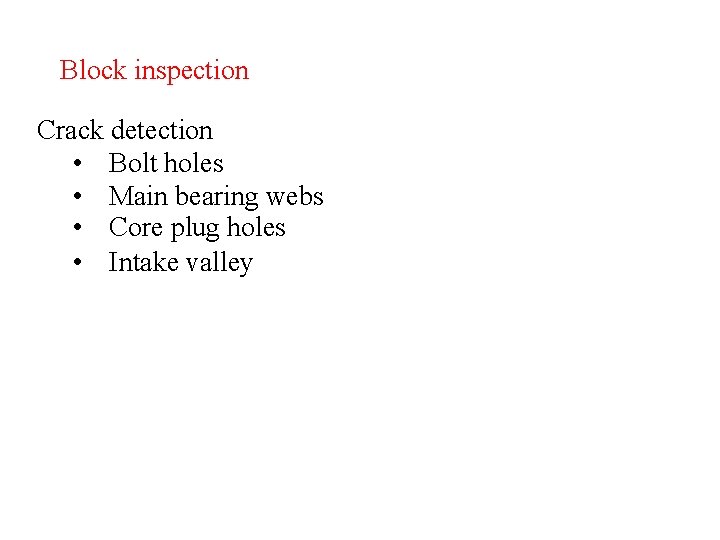

Block inspection Crack detection • Bolt holes • Main bearing webs • Core plug holes • Intake valley
Block inspection Cylinder wear • Maximum wear 90 across piston pin, at top of cyl • Head bolts & coolant circulation distort cylinder • Taper – difference between bottom and most worn • Actual wear exceeds measured • Taper limit -. 008”

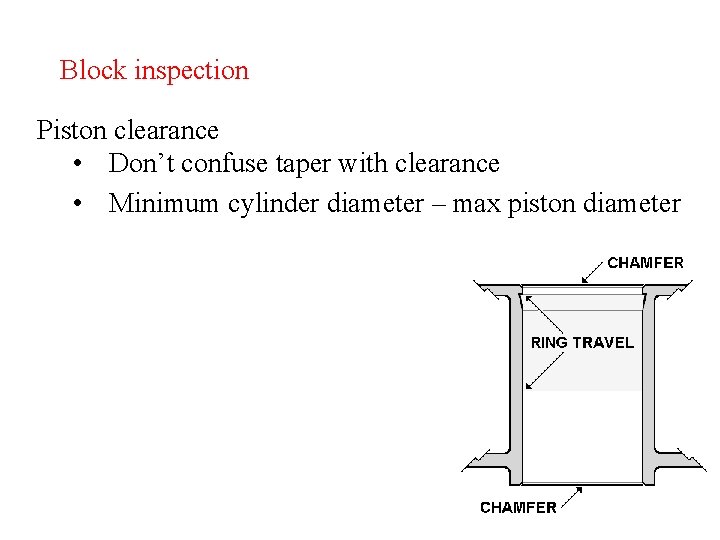

Block inspection Piston clearance • Don’t confuse taper with clearance • Minimum cylinder diameter – max piston diameter

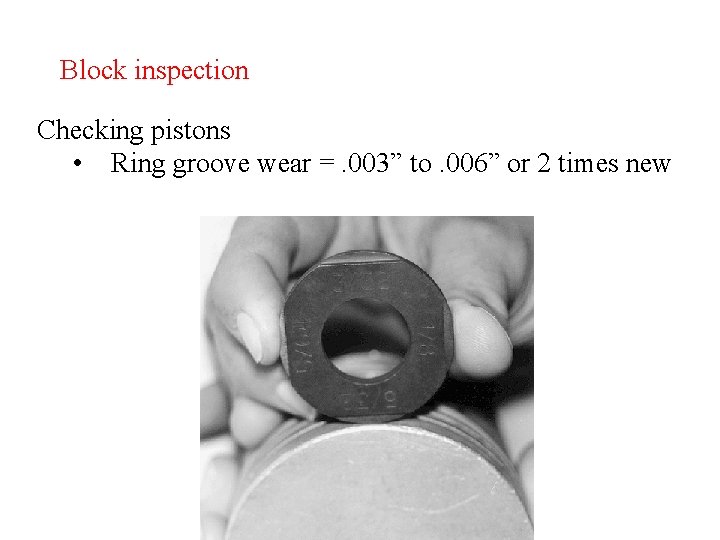

Block inspection Checking pistons • Ring groove wear =. 003” to. 006” or 2 times new

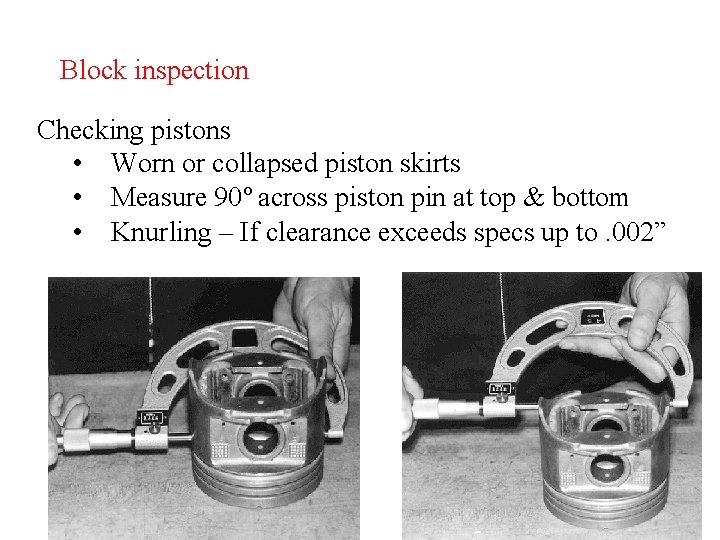

Block inspection Checking pistons • Worn or collapsed piston skirts • Measure 90º across piston pin at top & bottom • Knurling – If clearance exceeds specs up to. 002”
Block inspection Checking pistons • Collapsed piston – When piston loses cam shape • Measure 45º across piston pin • Leads to piston ‘slap’
Block inspection Checking piston pin clearance • Oscillating pins are checked by feel • Full floating pins can be disassembled & measured • . 0002” clearance in pistons • . 0004” clearance in rods

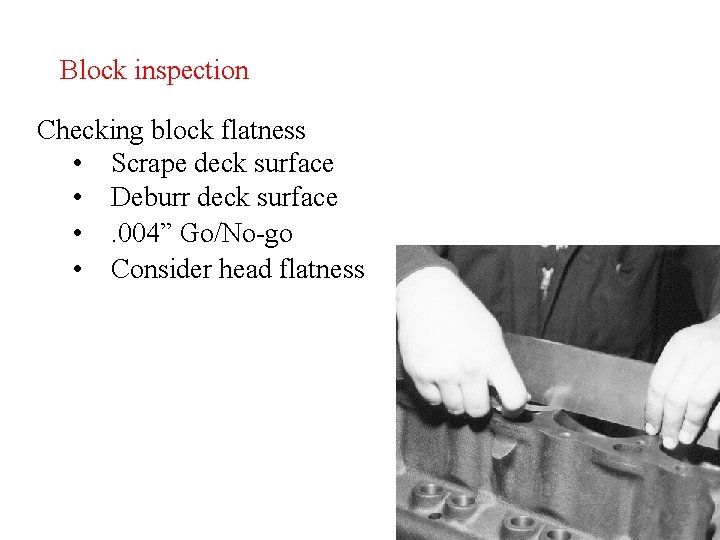

Block inspection Checking block flatness • Scrape deck surface • Deburr deck surface • . 004” Go/No-go • Consider head flatness

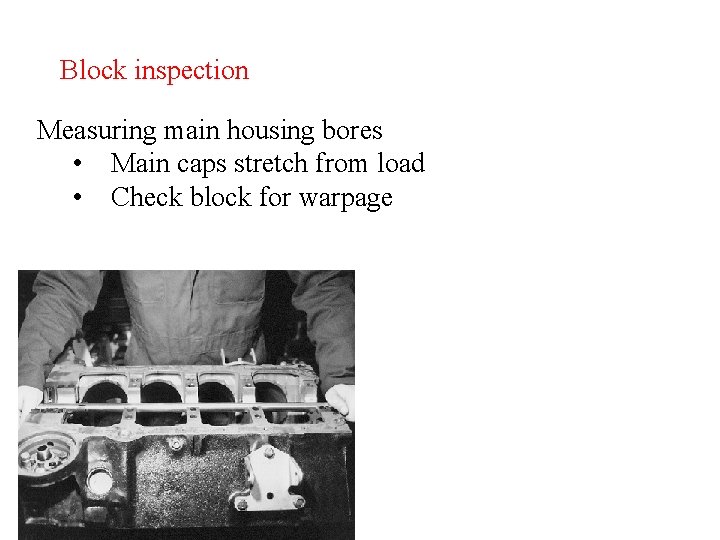

Block inspection Measuring main housing bores • Main caps stretch from load • Check block for warpage

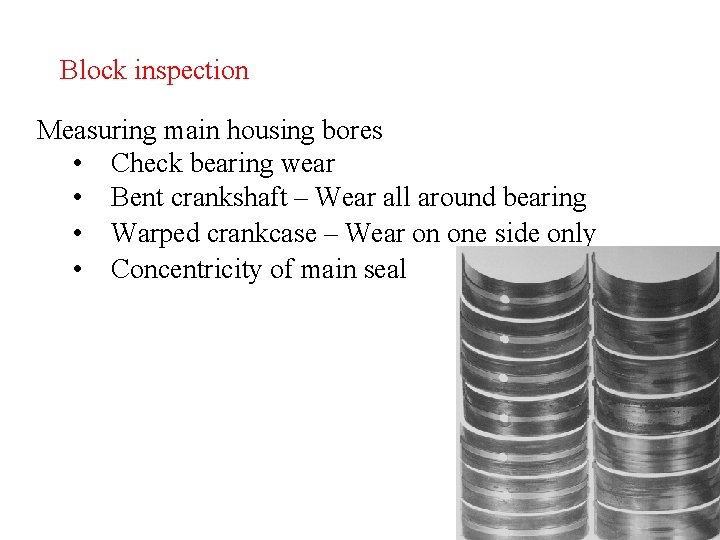

Block inspection Measuring main housing bores • Check bearing wear • Bent crankshaft – Wear all around bearing • Warped crankcase – Wear on one side only • Concentricity of main seal

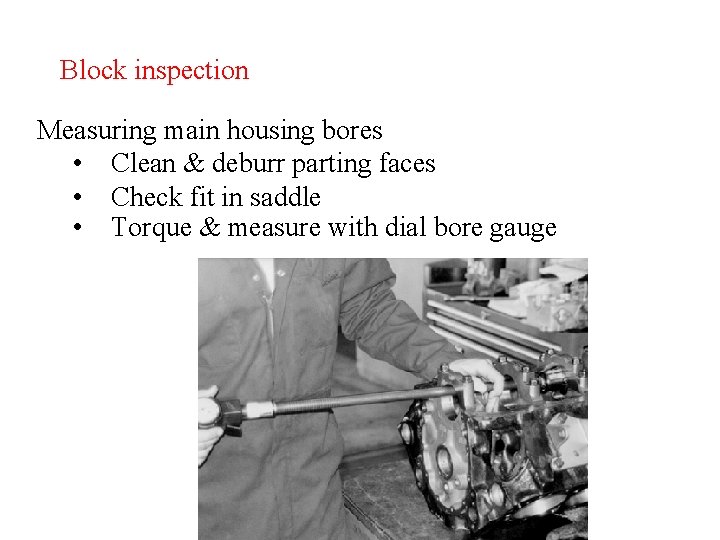

Block inspection Measuring main housing bores • Clean & deburr parting faces • Check fit in saddle • Torque & measure with dial bore gauge
Block inspection Checking the crankshaft • Scoring • Taper & out of round • Taper exceeding. 0005” may allow oil to escape

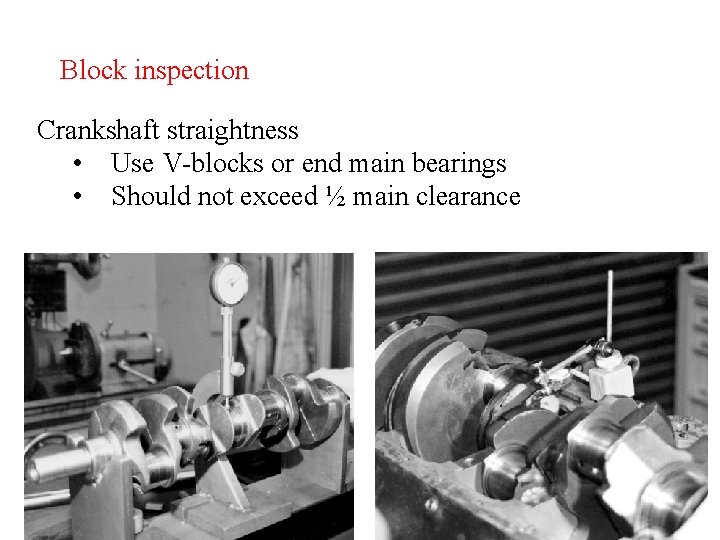

Block inspection Crankshaft straightness • Use V-blocks or end main bearings • Should not exceed ½ main clearance

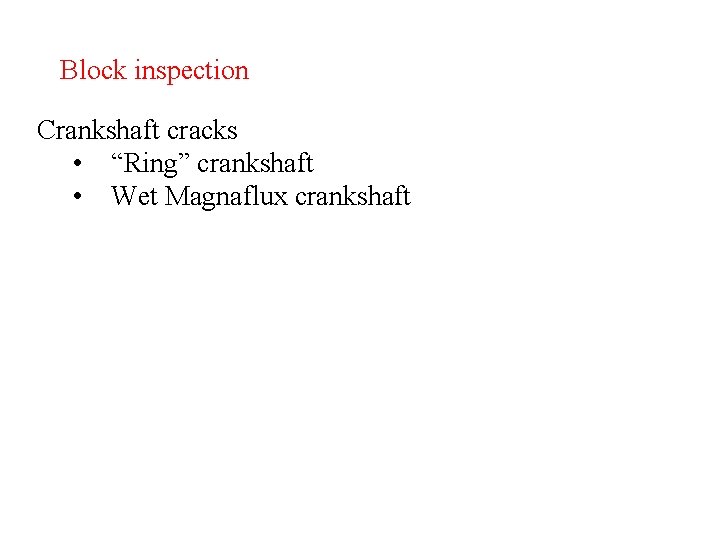

Block inspection Crankshaft cracks • “Ring” crankshaft • Wet Magnaflux crankshaft

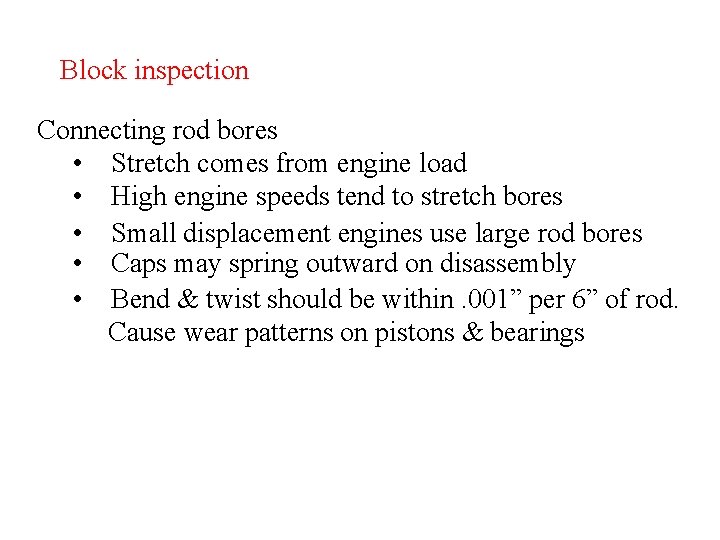

Block inspection Connecting rod bores • Stretch comes from engine load • High engine speeds tend to stretch bores • Small displacement engines use large rod bores • Caps may spring outward on disassembly • Bend & twist should be within. 001” per 6” of rod. Cause wear patterns on pistons & bearings

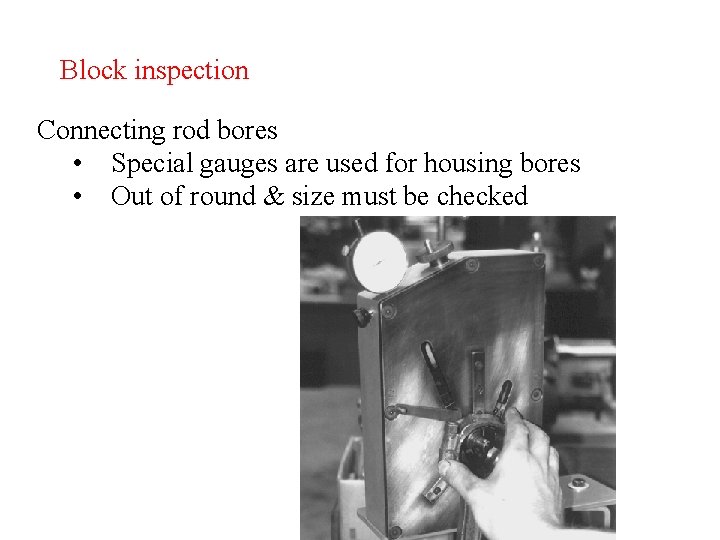

Block inspection Connecting rod bores • Special gauges are used for housing bores • Out of round & size must be checked
Block inspection Connecting rod failures • Begin with bearing failure • Bearing shell wedges under the other • Rod bolt breaks • Rod & cap break
