Blind Thrust Fault Earthquake Rupture Animation Northridge 1994

Blind Thrust Fault Earthquake Rupture Animation (Northridge, 1994) Brad Aagaard, USGS http: //pasadena. wr. usgs. gov/office/baagaard/research/animations. html The fault rupture will be visible in the animation. Displacements (magnified 3000 times) will be visible by the movement of the mesh from the model. The amplitude of motions and seismic waves is color coded according to ground velocity. http: //web. ics. purdue. edu/~braile/new/Aagaard. Blind. Thrust. Animation. ppt Exploring Planet Earth

http: //pasadena. wr. usgs. gov/office/baagaard/research/animations. html Exploring Planet Earth

http: //pasadena. wr. usgs. gov/office/baagaard/research/animations. html Animation from B. Aagaard (place in folder with PPT – may have to re-insert. gif file): http: //web. ics. purdue. edu/~braile/new/Blind. Thrust. Slice. gif

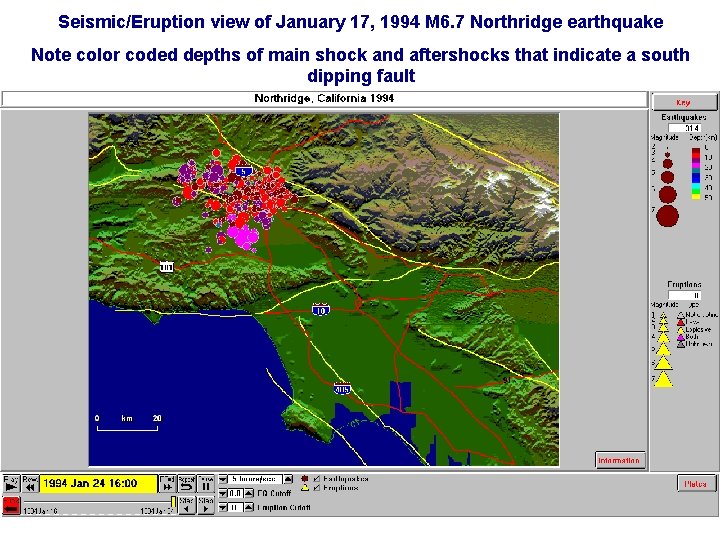

Seismic/Eruption view of January 17, 1994 M 6. 7 Northridge earthquake Note color coded depths of main shock and aftershocks that indicate a south dipping fault

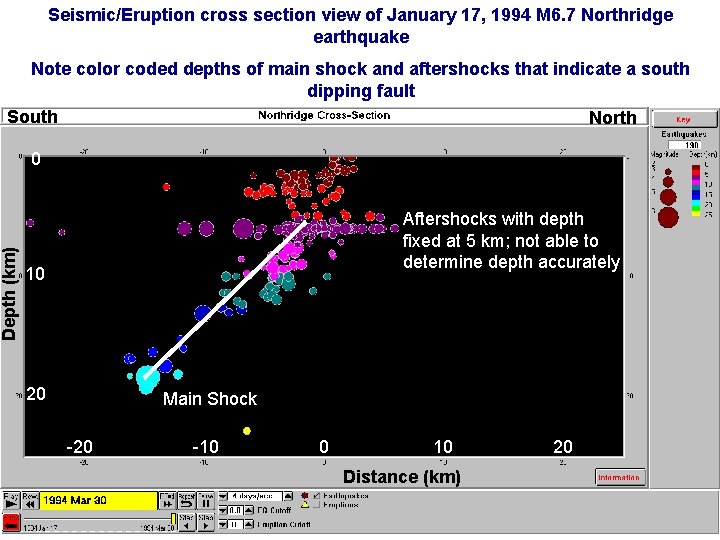

Seismic/Eruption cross section view of January 17, 1994 M 6. 7 Northridge earthquake Depth (km) Note color coded depths of main shock and aftershocks that indicate a south dipping fault South North 0 Aftershocks with depth fixed at 5 km; not able to determine depth accurately 10 20 Main Shock -20 -10 0 10 Distance (km) 20

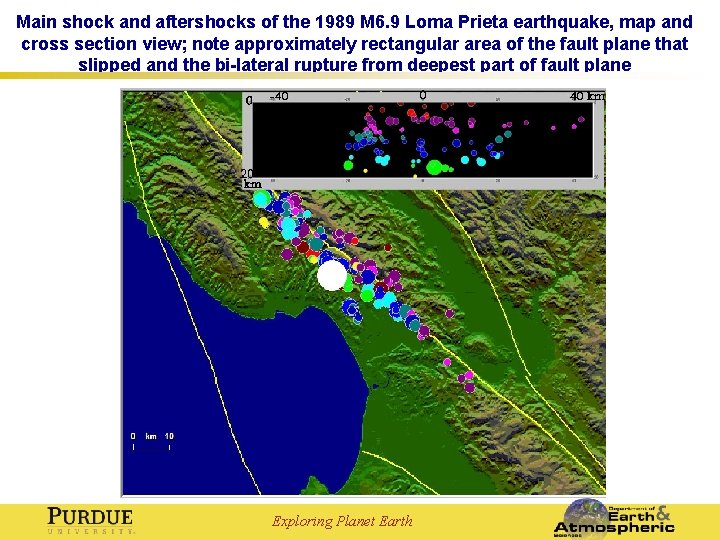

Main shock and aftershocks of the 1989 M 6. 9 Loma Prieta earthquake, map and cross section view; note approximately rectangular area of the fault plane that slipped and the bi-lateral rupture from deepest part of fault plane Exploring Planet Earth
