Blind Injection Studies in LVC National Astronomical Observatory
Blind Injection Studies in LVC 重力波の初検出に向けたトレーニング 端山和大 National Astronomical Observatory of Japan 1
H 1 L 1 V 1 2
Blind Injection S 5 blind injection Transient CBC Burst S 6 blind injection Transient Continuous 4
S 6 data analysis S 6ではフォローアップ観測のテストが重要視されていたので Low-latency on-line data analysis Off-line data analysis が行われた。 Flowchart of Low-latency on-line data analysis 5
2010年 9月16日 Human Check Burst pipeline (c. WB) L 1 H 1 ‘gold plated inspiral at first glance’ (Igor) tdog+8[m] tdog+42[m] 6
RIDGE detection statistics 8
RIDGE/c. WB Waveform estimation 9
Sound of the Big Dog H 1 L 1 生データ 再構成 12
Requested sky region for follow-up LUMIN pipeline 銀河カタログを参照して こちらの島が選ばれた 13
EM Partners 14
Follow-up observations After image analysis, all EM telescopes did not find any transient events in their images. 15
Significance of the event L 1 -H 1 -V 1 network SNR of L 1: 9. 2, H 1: 13. 8, V 1: 4. 9 network correlation: 7. 4, rho: 4. 1 IFAR: 3. 27 years ( < 8 years, our threshold) No detection from burst search 13. 1 years, 200 non-zero lags 24. 9 days, zero lag 4. 1 0. 74 16

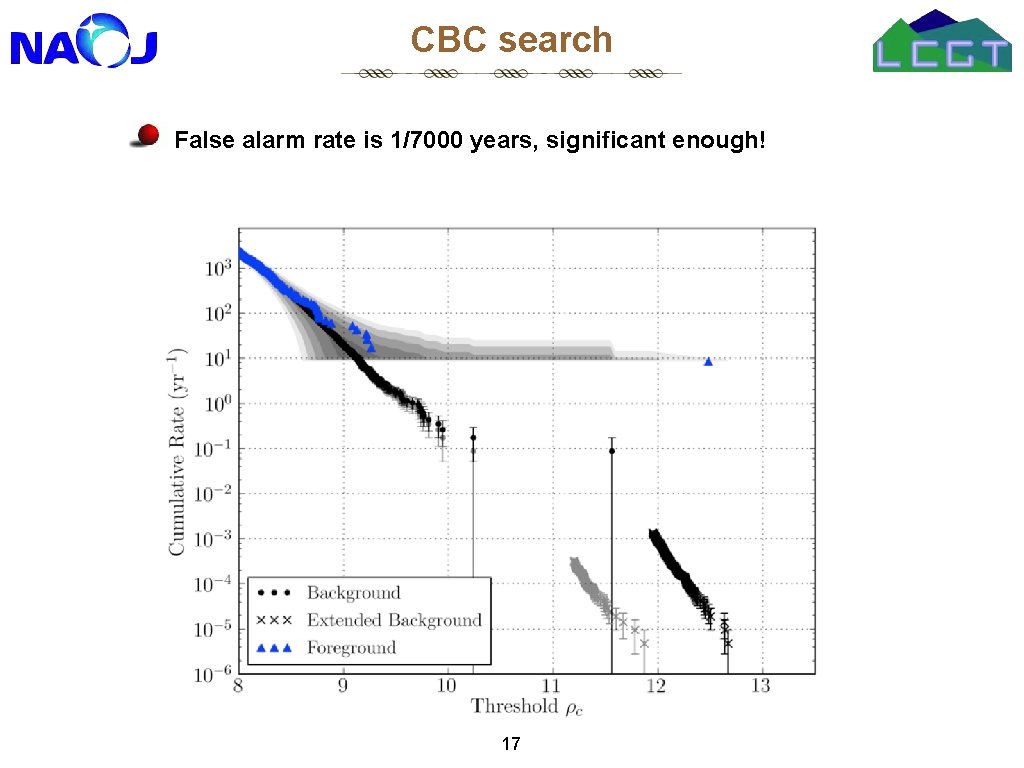

CBC search False alarm rate is 1/7000 years, significant enough! 17
Big Dog in the sensitivity curves SNR=15@LHO SNR=10@LLO 18
Parameter estimation 19
Sky location estimation 20
Sky location estimation 21
c. WB vs CBC 22
23
2. 5 PN vs 3. 5 PN 25
Sly location. . . 26
Re-analysis after sign-correction 27
Blind injection (pulsar type) S 6 dの解析が終わる前にオープンにされてしまった。 20日のようなshort-lived 信号はobservation intervalを変えずに現パ イプラインを走らせても検出できない。 Narrow band searchでfollow-upしたら検出できた。 Estimated SNRs are: H 1 47, L 1 39, V 1 17 28
29
- Slides: 29
