Blender Modelling Pertemuan 3 Animasi 3 D Univ

Blender Modelling Pertemuan 3 Animasi 3 D Univ. Darma Persada

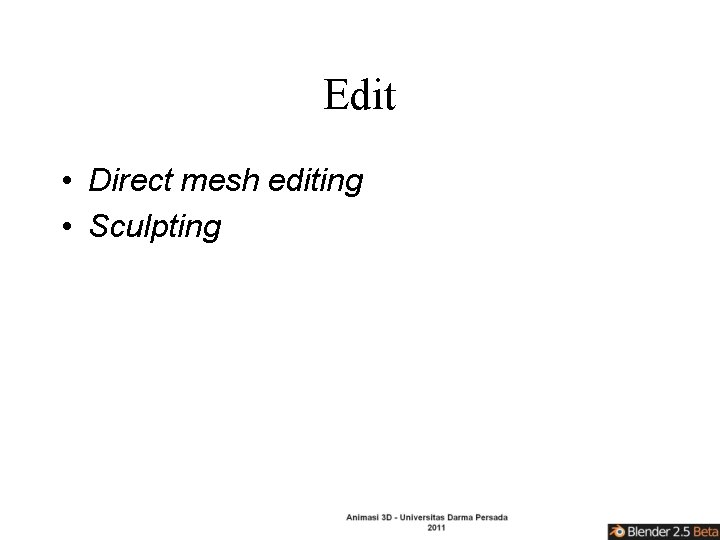

Edit • Direct mesh editing • Sculpting

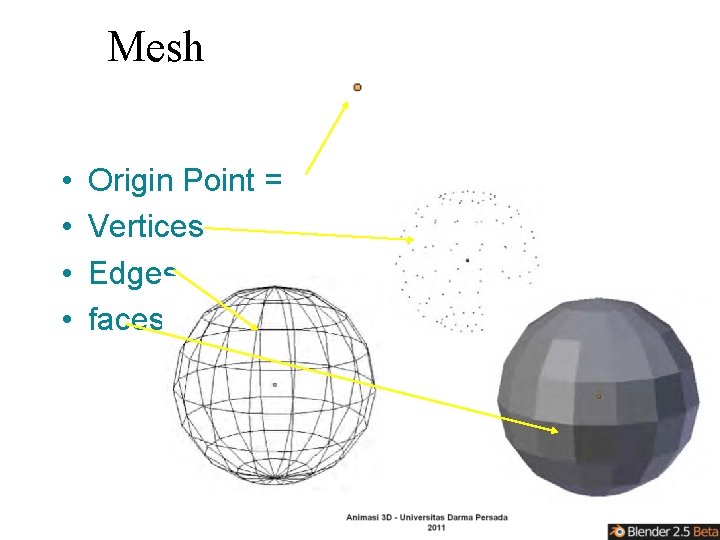

Mesh • • Origin Point = Vertices Edges faces

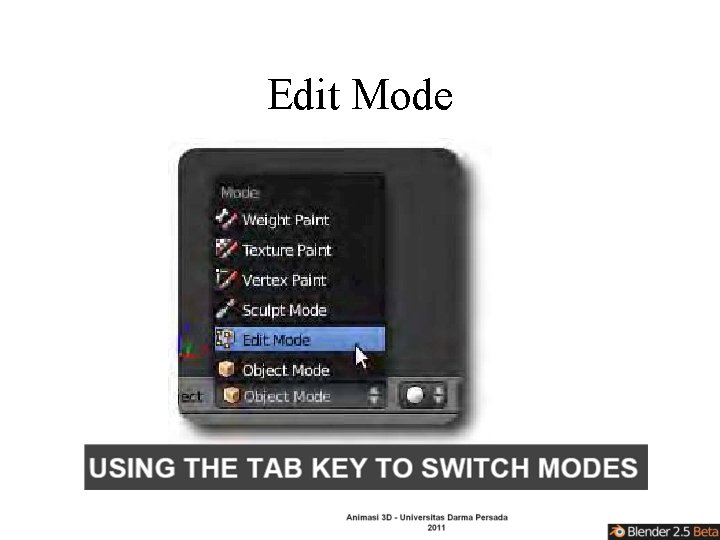

Edit Mode

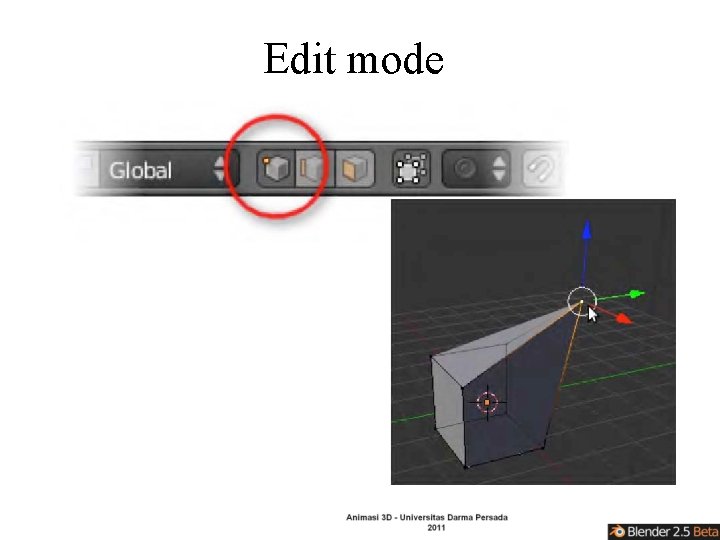

Edit mode

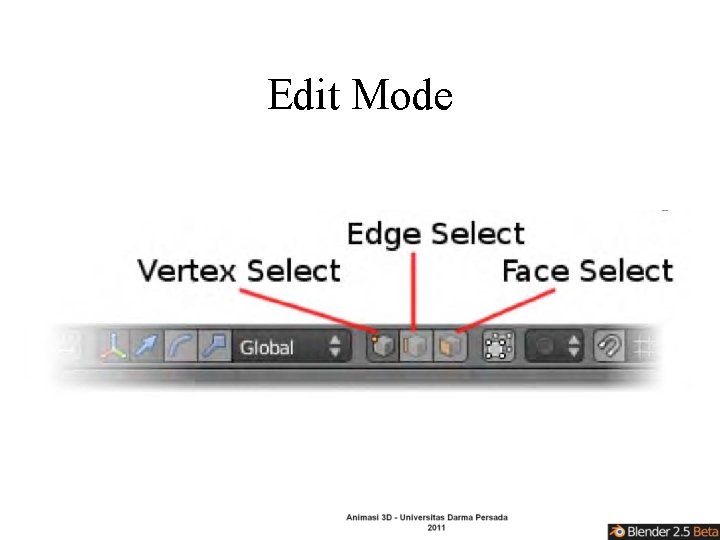

Edit Mode

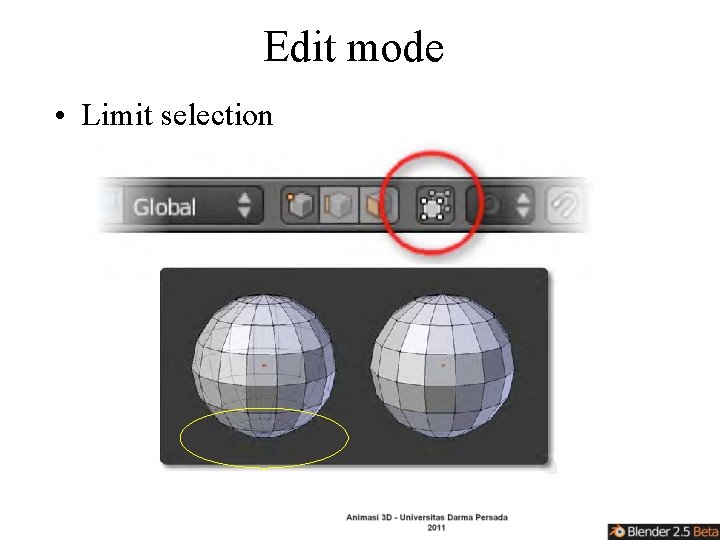

Edit mode • Limit selection

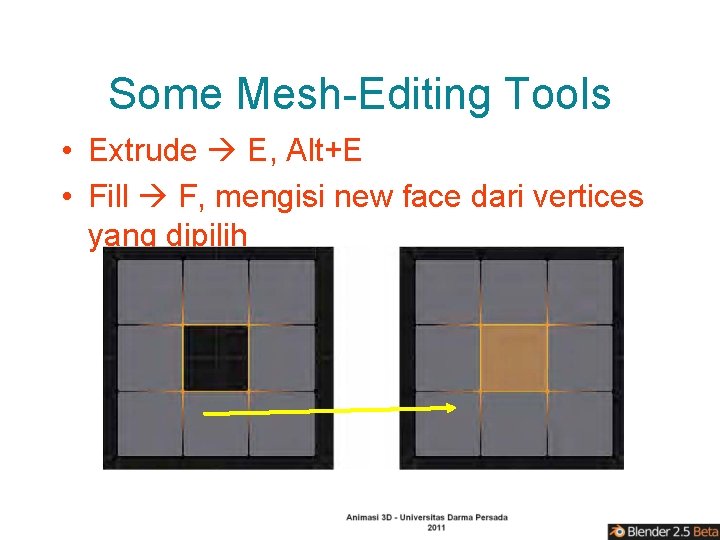

Some Mesh-Editing Tools • Extrude E, Alt+E • Fill F, mengisi new face dari vertices yang dipilih

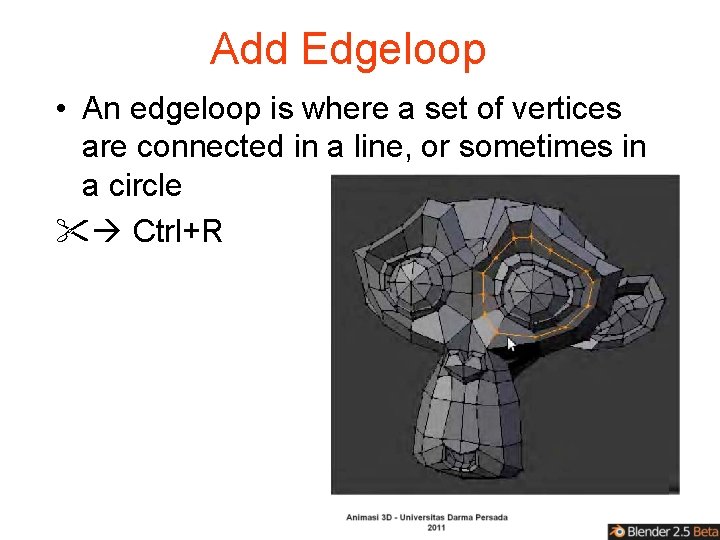

Add Edgeloop • An edgeloop is where a set of vertices are connected in a line, or sometimes in a circle Ctrl+R

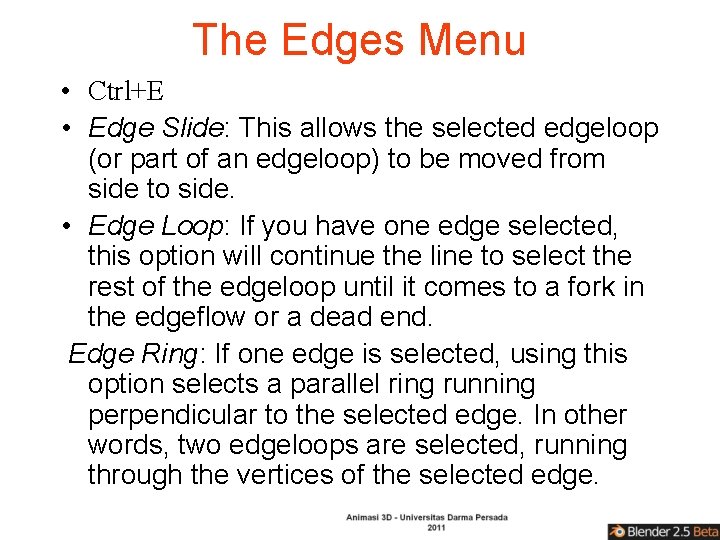

The Edges Menu • Ctrl+E • Edge Slide: This allows the selected edgeloop (or part of an edgeloop) to be moved from side to side. • Edge Loop: If you have one edge selected, this option will continue the line to select the rest of the edgeloop until it comes to a fork in the edgeflow or a dead end. Edge Ring: If one edge is selected, using this option selects a parallel ring running perpendicular to the selected edge. In other words, two edgeloops are selected, running through the vertices of the selected edge.

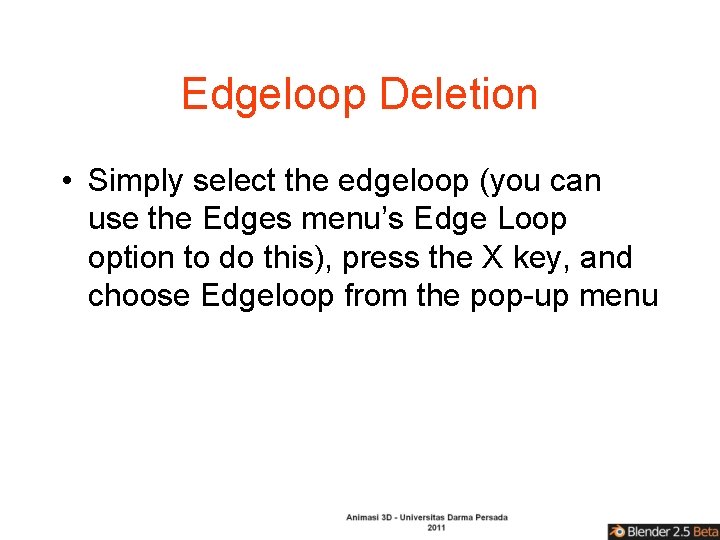

Edgeloop Deletion • Simply select the edgeloop (you can use the Edges menu’s Edge Loop option to do this), press the X key, and choose Edgeloop from the pop-up menu

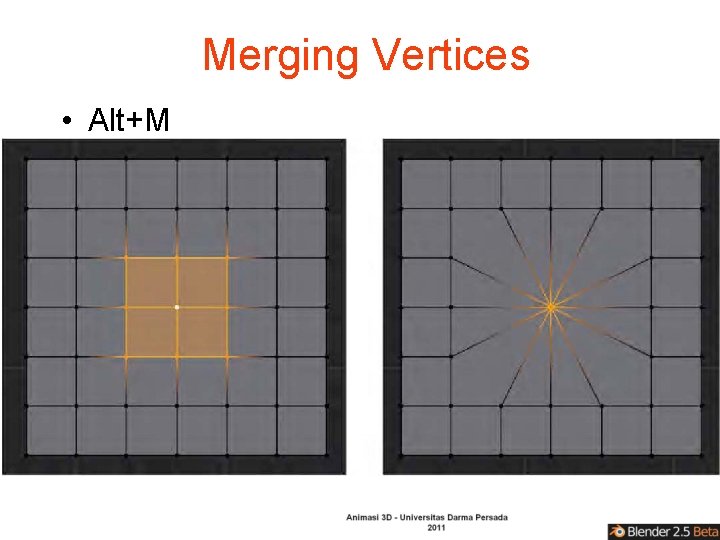

Merging Vertices • Alt+M

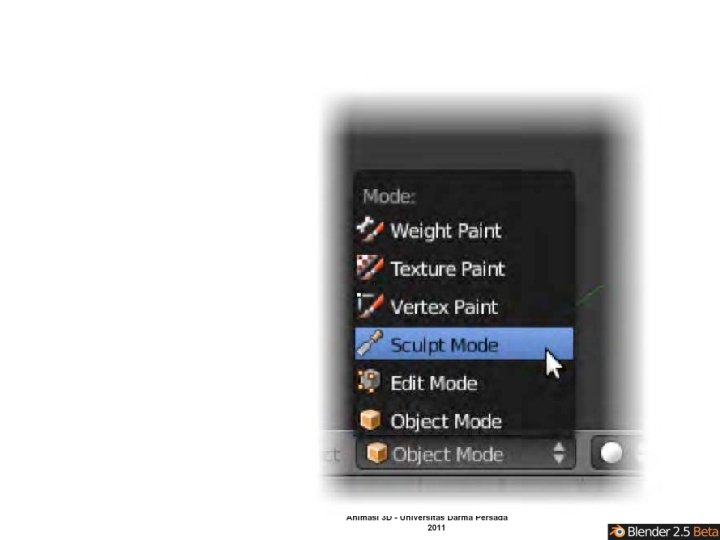

Sculpt Mode

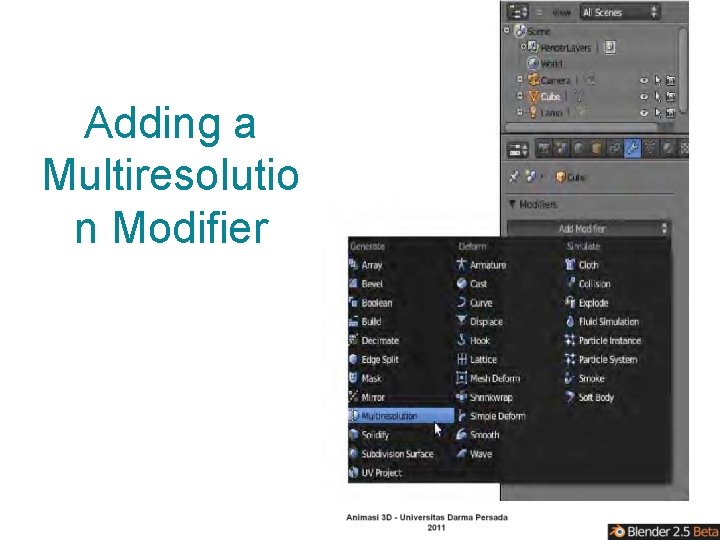

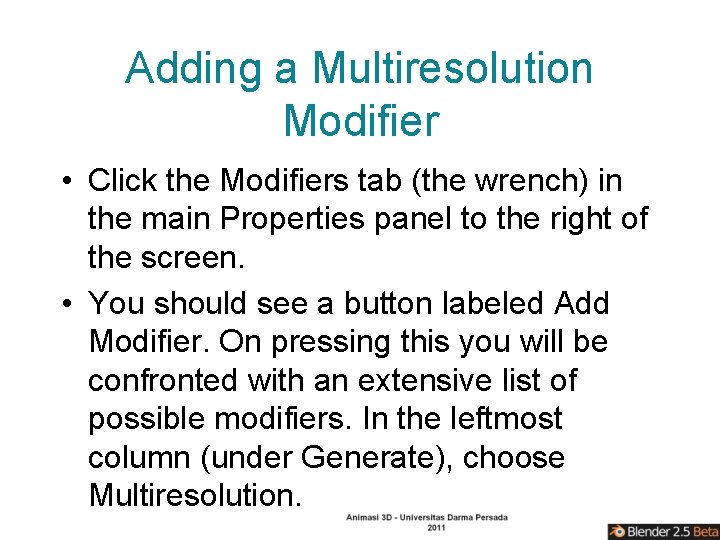

Adding a Multiresolution Modifier • Click the Modifiers tab (the wrench) in the main Properties panel to the right of the screen. • You should see a button labeled Add Modifier. On pressing this you will be confronted with an extensive list of possible modifiers. In the leftmost column (under Generate), choose Multiresolution.

Adding a Multiresolutio n Modifier

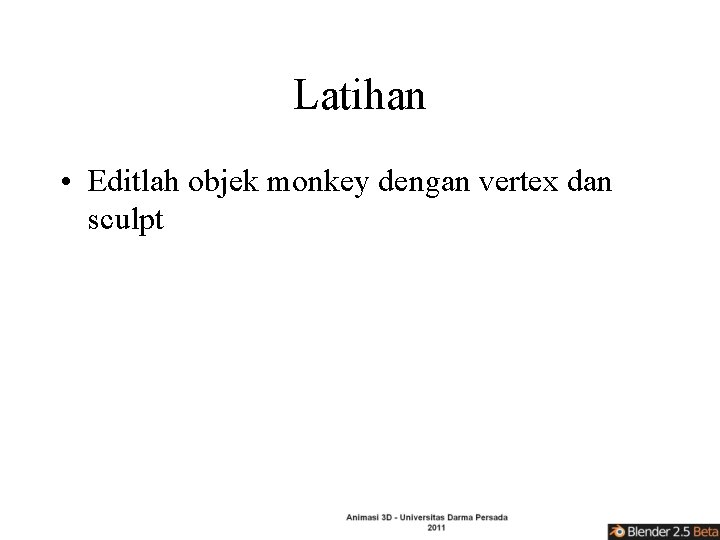

Latihan • Editlah objek monkey dengan vertex dan sculpt
