Blender 2 5 Interface The Blender Interface Penggunaan

Blender 2. 5 Interface

The Blender Interface

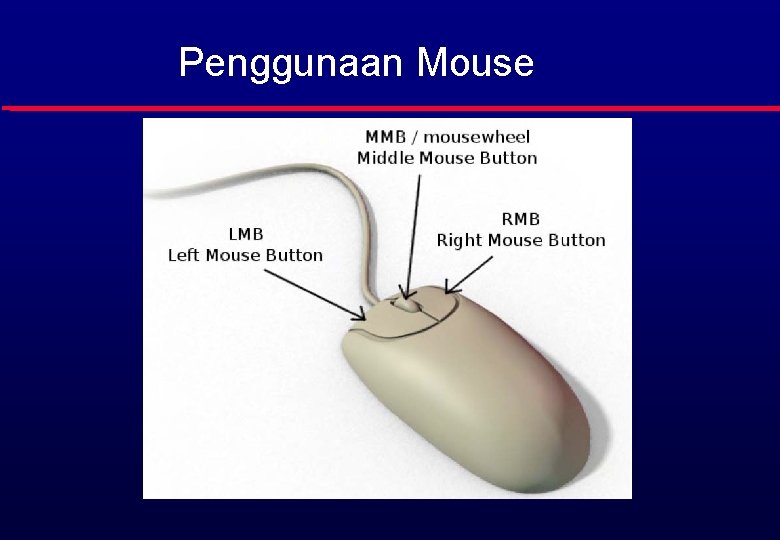

Penggunaan Mouse

Changing the View

The View menu, showing view shortcuts

REDUCING THE CLUTTER

Splitting the Screen l To split a screen, position your mouse over this corner (when the mouse pointer changes to a cross, you are in the right position), hold down the LMB, and drag toward the center of the window (e. g. , if you are using the topright corner, drag either left or down; if youare using the bottom-left corner, drag up or to the right).

Multiple-View Setup

Blender Window Conventions

Adding New Objects The Cursor

Basic Operation

Moving Objects

Moving Objects l l Moving the object is easy. Simply hold the LMB on one of the arrows and drag in the direction you wish the cube to move. Notice that you can only move the cube parallel to the arrow you are pulling. You can drag in all directions by LMB-dragging the circle where the manipulator arrows meet. The shortcut key G (for “grab”) can be used to drag a selected object

Rotating Objects Normal rotation (left) and trackball rotation (right) Now that you can move an object, follow these steps to rotate it: 1. Place your mouse near the edge of the object. 2. Press the R key once. 3. Move the mouse around the object in circles to watch it rotate. 4. LMB-click to release the object in place, or press Esc to cancel. 5. If you press R twice, however, the rotation changes to trackball mode.

Changing the Manipulator Arrows

The Difference Between Global and Local l l The difference is that with global coordinates, the x, y, and z directions are given in terms of world space. This means that z is always up, no matter which way an object is rotated. However, in local coordinates, z is up only in terms of the object itself.

Scaling Objects Select the cube (RMB-click it). 1. Place the mouse pointer near the edge of the cube. 2. Press S. 3. Draw the mouse pointer away from the cube (do not hold any mouse buttons) to enlarge it. 4. LMB-click to finalize the scale operation or press Esc to cancel. 5. Experiment with the same principles that you did with rotation. Look at what happens when you press the X key while scaling (it expands in global X direction).

Property Panel

Using Numbers

Layers To move an object to a different layer, RMBselect the object and then press the M key. The Move to Layer dialog will appear (see Figure 2– 25), allowing you to select the layer(s) on which you wish the selected object to appear. Again, you can use the Shift key to specify multiple layers. This is helpful when you want several objects to have their own layers, and also when you want to set up a final “view all” layer, where they are all present.

Undoing Things

Undoing Things l This is all very well, but what if you want to change an object’s rested position? For example, you might want the rested position to be 45 degrees diagonal, or the default shape to be taller. The solution is to make the change to the object, and then lock it in its new positioning by selecting Object ➤ Apply ➤ Location/Rotation/Scale (depending on which you want to preserve) from the bottom menu. From then on, your object will reset to the new position.

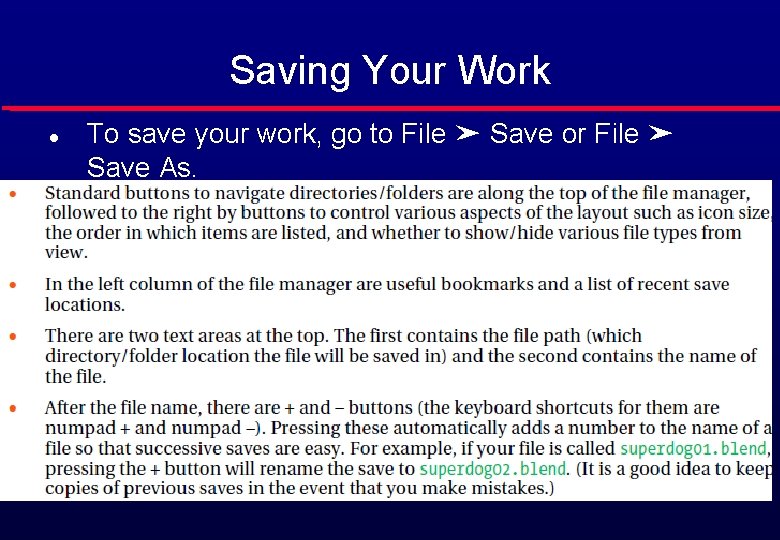

Saving Your Work l To save your work, go to File ➤ Save or File ➤ Save As.

Useful Keyboard Shortcuts

Exercises - The Ten-Cube Challenge
