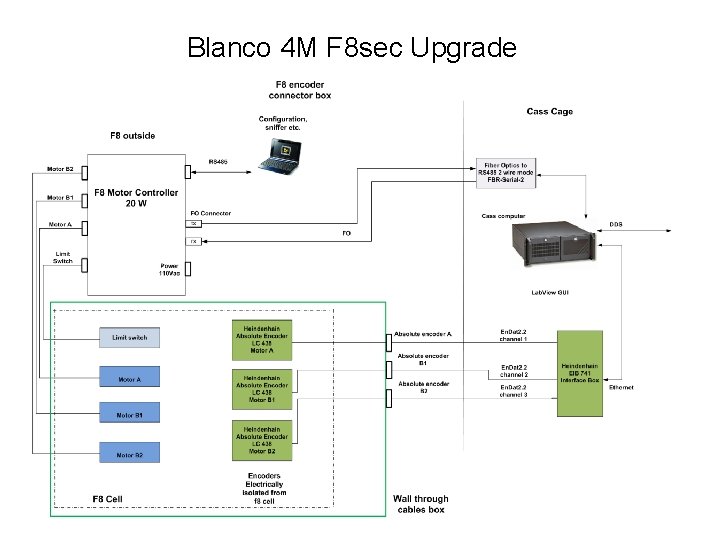

Blanco 4 M F 8 sec Upgrade Blanco

Blanco 4 M F 8 sec Upgrade

Blanco 4 M F 8 sec Upgrade Heidenhain™ Absolute encoder LC 438 Accuracy grade ± 3 um Resolution 0. 005 um Protocol En. Dat 2. 2, Max. Cable length <150 m Power Supply 3. 6 to 5. 25 V, < 300 m. A. Provide absolute position, Immediate upon power-up EIB 741 External Interface Box 4 Channel Standard Ehernet interface TC/IP Driver for Linux and Labview. Power supply for encoders Power aprox. 30 W

Blanco 4 M F 8 sec Upgrade Harmonic Drive™ Actuator Reduction ratio = 1: 100 Rotational speed = 30 RPM Voltage = 24 Vdc Current 1. 3 A. Rated Torque = 3. 9 Nm RH-11 D-3001 -E 100 AL

Blanco 4 M F 8 sec Upgrade F 8 Motor Controller

Blanco 4 M F 8 sec Upgrade Mounting options 1 F 8 Sec Motor Controller A B 1 Advantage: Ready to mount B 2 Disadvantage: No access for maintenance

Blanco 4 M F 8 sec Upgrade Mounting options 2 Advantage: Easy access for maintenance Disadvantage: Redesign box F 8 Sec Motor Controller

Blanco 4 M F 8 sec Upgrade Wall through cables box Redesign for new Abs. encoder connectors

Blanco 4 M F 8 sec Upgrade

Blanco 4 M F 8 sec Upgrade Status: Specify motors and encoders = Done Purchase motors and encoders = Waiting for mechanical and optical approval. Develop motor simulator = Done Electronic redesign = working in documentation Next step: integrate motor simulator to GUI
