Blackfin Timers Independent timers build into the processor

Blackfin Timers Independent timers build into the processor Watchdog Timer is a major part of Lab. 2 (Code provided to you to use)

Timers available on Blackfin Watchdog timer – Hardware Reference 15 -49 l Core timer – Hardware Reference 15 -45 l General purpose timers 15 -1 l l Pulse Width Modulation Pulse Width Count and Capture External Event Application of timers to provide code safety and improved version of Use. Fixed. Time. ASM( ) l Introduction to timer interrupts l 2/28/2021 Timer Control Copyright M. Smith, ECE, University of Calgary, Canada 2 / 31

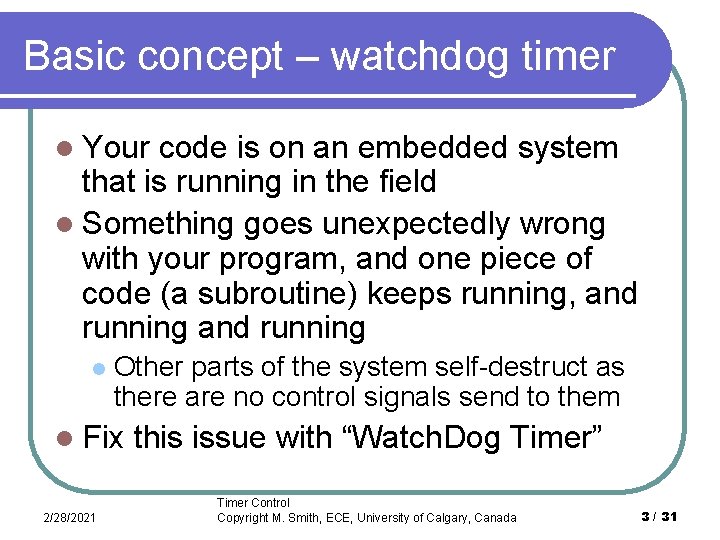

Basic concept – watchdog timer l Your code is on an embedded system that is running in the field l Something goes unexpectedly wrong with your program, and one piece of code (a subroutine) keeps running, and running l Other parts of the system self-destruct as there are no control signals send to them l Fix 2/28/2021 this issue with “Watch. Dog Timer” Timer Control Copyright M. Smith, ECE, University of Calgary, Canada 3 / 31

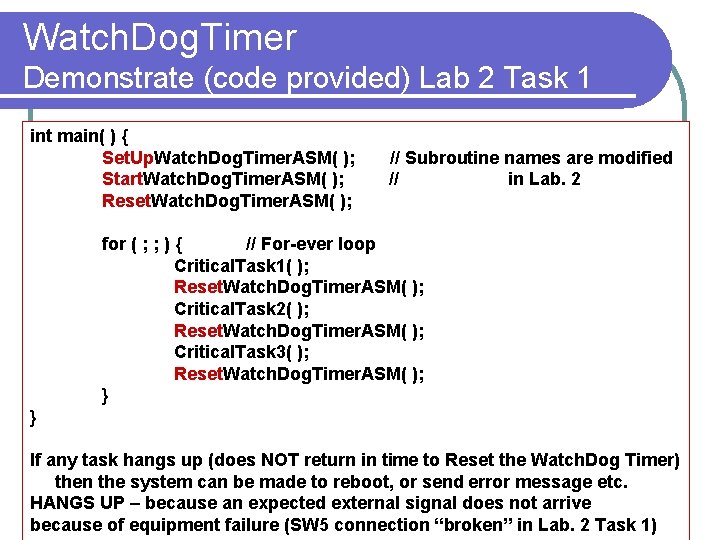

Watch. Dog. Timer Demonstrate (code provided) Lab 2 Task 1 int main( ) { Set. Up. Watch. Dog. Timer. ASM( ); Start. Watch. Dog. Timer. ASM( ); Reset. Watch. Dog. Timer. ASM( ); // Subroutine names are modified // in Lab. 2 for ( ; ; ) { // For-ever loop Critical. Task 1( ); Reset. Watch. Dog. Timer. ASM( ); Critical. Task 2( ); Reset. Watch. Dog. Timer. ASM( ); Critical. Task 3( ); Reset. Watch. Dog. Timer. ASM( ); } } If any task hangs up (does NOT return in time to Reset the Watch. Dog Timer) then the system can be made to reboot, or send error message etc. Control HANGS UP – because. Timer an expected external signal does not arrive 4 / 31 2/28/2021 Copyright M. Smith, ECE, University of Calgary, Canada because of equipment failure (SW 5 connection “broken” in Lab. 2 Task 1)

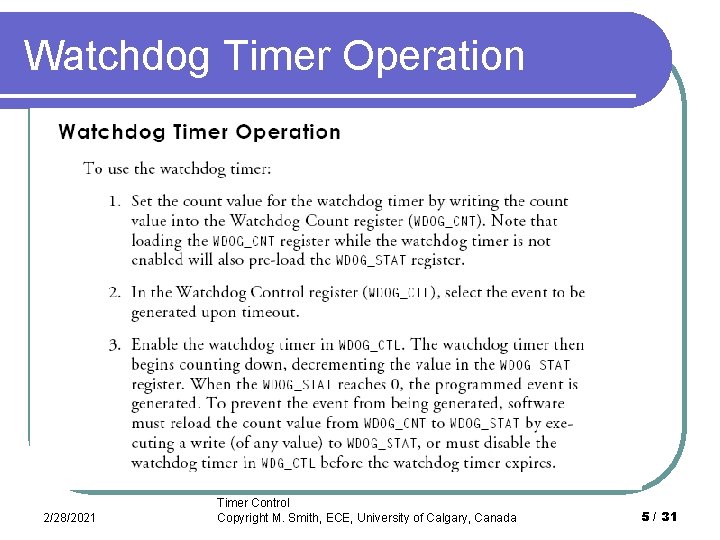

Watchdog Timer Operation 2/28/2021 Timer Control Copyright M. Smith, ECE, University of Calgary, Canada 5 / 31

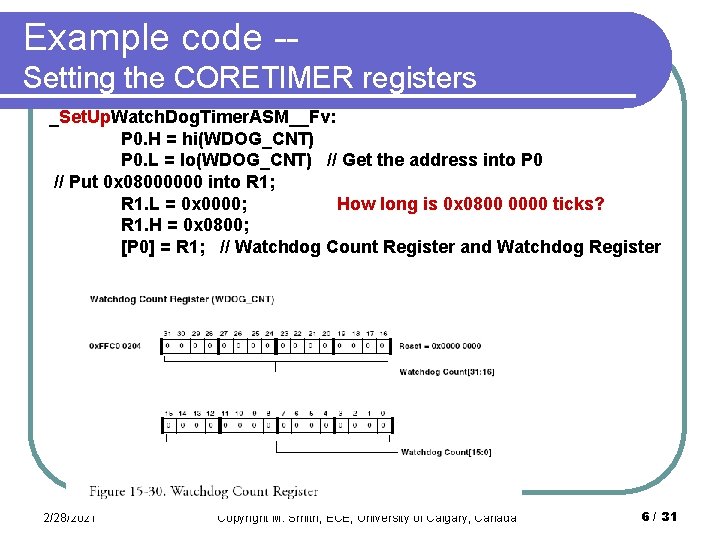

Example code -Setting the CORETIMER registers _Set. Up. Watch. Dog. Timer. ASM__Fv: P 0. H = hi(WDOG_CNT) P 0. L = lo(WDOG_CNT) // Get the address into P 0 // Put 0 x 08000000 into R 1; R 1. L = 0 x 0000; How long is 0 x 0800 0000 ticks? R 1. H = 0 x 0800; [P 0] = R 1; // Watchdog Count Register and Watchdog Register 2/28/2021 Timer Control Copyright M. Smith, ECE, University of Calgary, Canada 6 / 31

Better Code (other code did not work as we had not read the manual) _Set. Up. Watch. Dog. Timer. ASM__Fv: P 0. H = hi(WDOG_CTL) P 0. L = lo(WDOG_CTL) // Get the address into P 0 // Put 0 x 0 AD 0 into R 1. L; R 1. L = 0 x 0 AD 0; W[P 0] = R 1; // Watchdog control register – disable SSYNC; // System synchronize – Count read/write ops. P 0. H = hi(WDOG_CNT) P 0. L = lo(WDOG_CNT) // Get the address into P 0 // Put 0 x 08000000 into R 1; R 1. L = 0 x 0000; R 1. H = 0 x 0800; Timer Control [P 0] = R 1; // Watchdog Count Register and Watchdog Register 2/28/2021 Copyright M. Smith, ECE, University of Calgary, Canada 7 / 31

Watchdog Status Register WDOG_STAT 2/28/2021 Timer Control Copyright M. Smith, ECE, University of Calgary, Canada 8 / 31

My actual working code for L 2 Task 1 NOT 0 x 0 AD 6 but 0 x 8 AD 6 to clear bit 15 (W 1 C) NOTE: WDOG_CTL bit 15 is a W 1 C bit 2/28/2021 Write one to clear means Write one to make 0 Timer Control Copyright M. Smith, ECE, University of Calgary, Canada 9 / 31

Starting the watchdog timer _Start. Watch. Dog. Timer. ASM__Fv: P 0. H = hi(WDOG_CTL) P 0. L = lo(WDOG_CTL) // Get the address into P 0 // Put 0 x 0000 into R 1. L; Will force a “RESET EVENT” R 1. L = 0 x 0000; W[P 0] = R 1; // Watchdog control register – counter enabled ssync; 2/28/2021 Timer Control Copyright M. Smith, ECE, University of Calgary, Canada 10 / 31

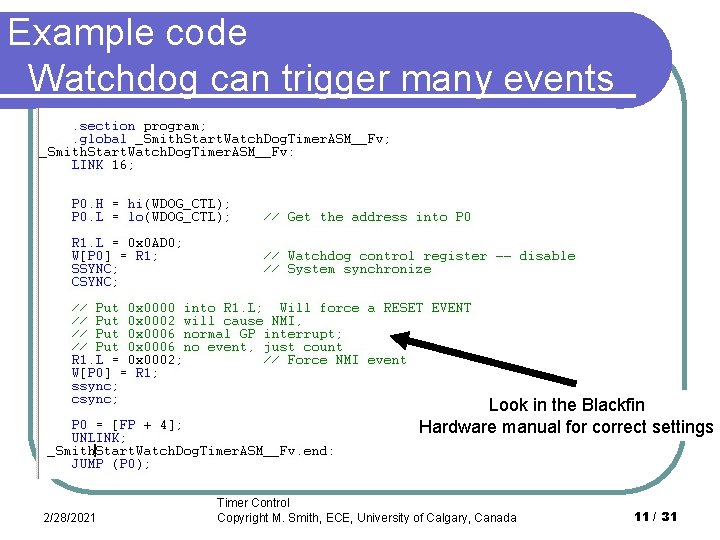

Example code Watchdog can trigger many events Look in the Blackfin Hardware manual for correct settings 2/28/2021 Timer Control Copyright M. Smith, ECE, University of Calgary, Canada 11 / 31

Lab. 2 “Flight control” using Watchdog based security Init. Flash. ASM( ); Init. Flash. Port. ASM( ); Write. Flash. LEDASM(0); // Set up the Flash memory – Lab. 1 // Set up Flash LED port – Lab. 1 // Clear LED panel – Lab. 1 Stop. Cycle. Counter. ASM( ); Reset. Cycle. Counter. ASM( ); // Stop and then reset cycle counter // -- Assignment 3 Watch. Dog. Timer. Howled = 0; Activate. Watch. Dog. Timer( ); while (Watch. Dog. Timer. Howled != 1) { Reset. Watch. Dog. Timer( ); Go. Control. The. Aero. Plane( ); Check. If. Crew. Are. Awake( ); } Stop. Watch. Dog. Timer( ); // Should never get here unless Watch Dog Timer 'Howled Write. Flash. LEDASM(0); – Lab. 1 Crew. Error. Occurred( ); 2/28/2021 Timer Control Copyright M. Smith, ECE, University of Calgary, Canada 12 / 31

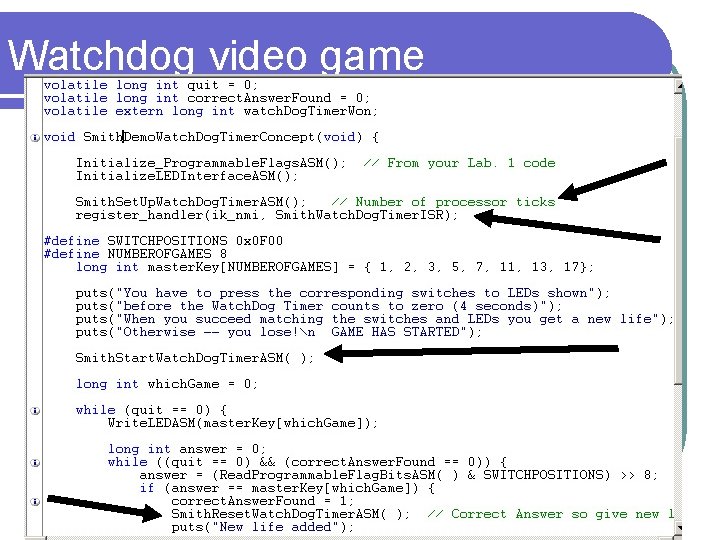

Watchdog video game 2/28/2021 Timer Control Copyright M. Smith, ECE, University of Calgary, Canada 13 / 31

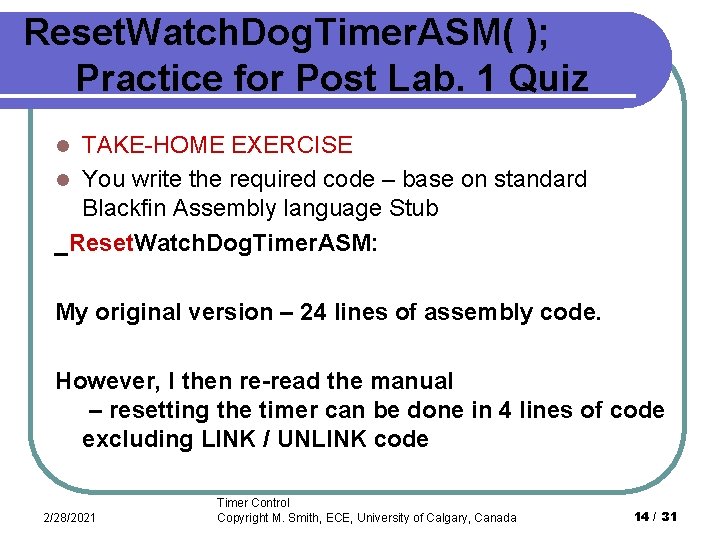

Reset. Watch. Dog. Timer. ASM( ); Practice for Post Lab. 1 Quiz TAKE-HOME EXERCISE l You write the required code – base on standard Blackfin Assembly language Stub _Reset. Watch. Dog. Timer. ASM: l My original version – 24 lines of assembly code. However, I then re-read the manual – resetting the timer can be done in 4 lines of code excluding LINK / UNLINK code 2/28/2021 Timer Control Copyright M. Smith, ECE, University of Calgary, Canada 14 / 31

Temperature Sensor -- Lab 3 Q – How can you time “High” time? +5 V GROUND SIGNAL TO BLACKFIN -- hook into PF 8. Check using the same “when switch SW 1 pressed, when released” code as in Lab. 1 HIGH 2/28/2021 ANALOG DEVICES TMP 03 Temperature Sensor LOW Timer Control Copyright M. Smith, ECE, University of Calgary, Canada 15 / 31

A C++ version of code (interval counter) l l l Develop a routine Use. Up. Fixed. Amount. Time. CPP( ) that uses up a fixed amount of time Use Read. LEDASM( ) to find when input signal goes high When input goes high, call this Interval Counter routine Keep calling the Interval counter until the input goes low Count how many times this routine must be called from main( ) while the temperature signal is HIGH Could be constructed using “for-loop” construct void Use. Up. Fixed. Amout. Time. CPP(unsigned long int time. To. Use) { unsigned short int counter = 0; for (int num = 0; num <= time. To. Use; num ++) { counter = counter; // Waste time } // Spin the wheels on the processor Post Lab. 1 Question – how would you use Read. LEDASM( ) to wait until the input Timer signal goes high – Do in Control either C++ or assembly code. 2/28/2021 Copyright M. Smith, ECE, University of Calgary, Canada 16 / 31

Counting amount of time thermal sensor signal is high while (1) { int count. High = 0; int count. Lo = 0; // Why must this be inside and not outside the loop 4 while loops needed – NOT 2 (key lab / exam concept) while (SW 1 is high) /* do nothing */; while (SW 1 is low) / * do nothing */; // Get to the START of the low-to-high transition while (SW 1 is high) { // Relative time high Use. Up. Time( ); count. High++; } while (SW 1 is low) {// Relative time high Use. Up. Time( ); count. Lo++; } Uses same ASM files For reading PF flags as in Lab. 1 int temperature = Calculate. Temperature(count. High, count. Low); Display. Temperature. On. LEDs(temperature); } Uses Write. LEDASM( ) 2/28/2021 Timer Control Copyright M. Smith, ECE, University of Calgary, Canada 17 / 31

Improved “more accurate” Timer to provide “more accurate” Temperatures void Use. Up. Fixed. Amount. Time(unsigned long int time. To. Use) { 1. Load the core timer counter register with parameter “time_to_use” 2. Start the core timer – which causes the core-timer register to count down to zero 3. While the core timer counter register ! = 0 continue counter 4. When the core timer count register equals 0 -- Return } Core timer changes at 500 MHz – so can get very accurate timing values Assignment 3 – Use the CYCLES counter that starts counting as soon as the processor starts – 64 bit register (unsigned long int) 2/28/2021 Timer Control Copyright M. Smith, ECE, University of Calgary, Canada 18 / 31

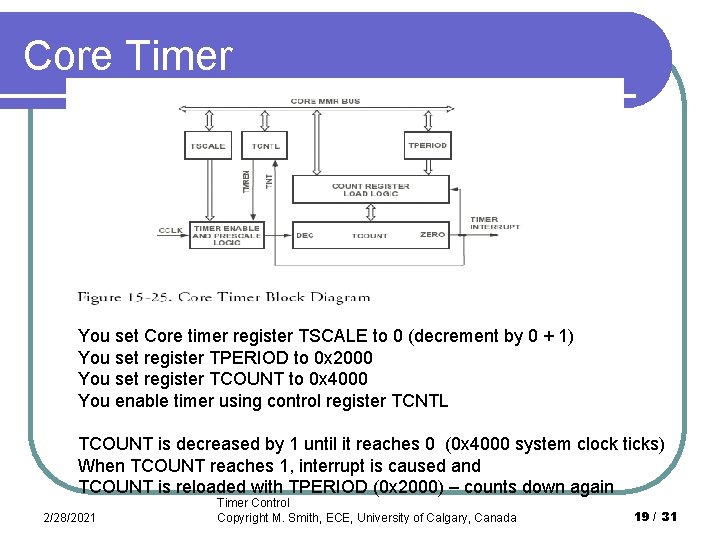

Core Timer You set Core timer register TSCALE to 0 (decrement by 0 + 1) You set register TPERIOD to 0 x 2000 You set register TCOUNT to 0 x 4000 You enable timer using control register TCNTL TCOUNT is decreased by 1 until it reaches 0 (0 x 4000 system clock ticks) When TCOUNT reaches 1, interrupt is caused and TCOUNT is reloaded with TPERIOD (0 x 2000) – counts down again 2/28/2021 Timer Control Copyright M. Smith, ECE, University of Calgary, Canada 19 / 31

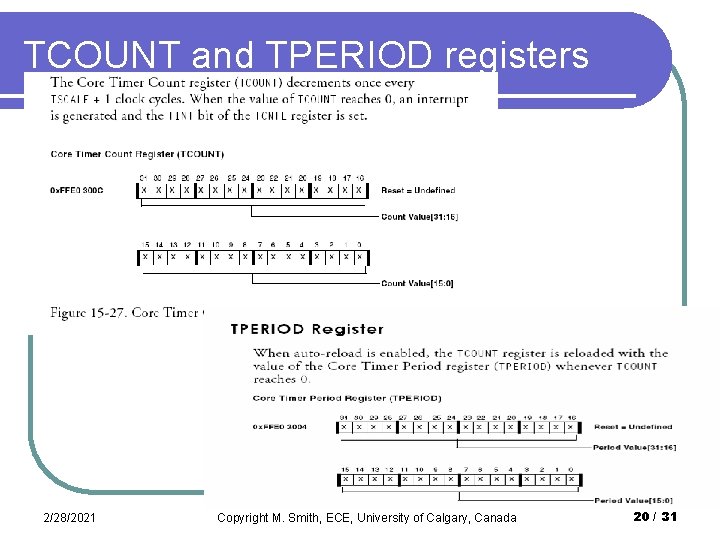

TCOUNT and TPERIOD registers 2/28/2021 Timer Control Copyright M. Smith, ECE, University of Calgary, Canada 20 / 31

TSCALE and TCNTL registers 2/28/2021 Timer Control Copyright M. Smith, ECE, University of Calgary, Canada 21 / 31

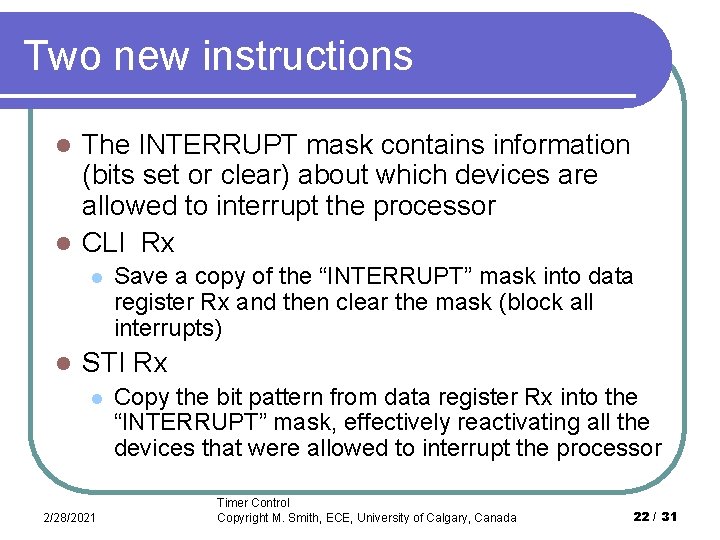

Two new instructions The INTERRUPT mask contains information (bits set or clear) about which devices are allowed to interrupt the processor l CLI Rx l l l Save a copy of the “INTERRUPT” mask into data register Rx and then clear the mask (block all interrupts) STI Rx l 2/28/2021 Copy the bit pattern from data register Rx into the “INTERRUPT” mask, effectively reactivating all the devices that were allowed to interrupt the processor Timer Control Copyright M. Smith, ECE, University of Calgary, Canada 22 / 31

void Use. Up. Fixed. Amout. Time. ASM (unsigned long int time. To. Use) - 1 Stop interrupts -- Why is this needed CLI R 2; // Clear interrupts -- re-enable interrupts STI R 2; Stop the timer by changing the bits in the timer control register P 0. H = hi(TCNTL) P 0. L = lo(TCNTL) // Get the address into P 0 R 1 = 0; [P 0] = R 1; SSYNC; Load the core timer counter register with parameter “time_to_use (R 0)” P 0. H = hi(TCOUNT) P 0. L = lo(TCOUNT) // Get the address into P 0 [P 0] = R 0; SSYNC; Start the core timer by changing the bits in the timer control register P 0. H = hi(TCNTL) P 0. L = lo(TCNTL) // Get the address into P 0 R 1 = 3; [P 0] = R 1; Timer Control SSYNC; 23 / 31 2/28/2021 Copyright M. Smith, ECE, University of Calgary, Canada

void Use. Up. Fixed. Amout. Time (unsigned long int time. To. Use) - 2 Stop interrupts Stop the timer Load the core timer counter register with parameter “time_to_use” Start the core timer P 0. H = hi(TCNTL) P 0. L = lo(TCNTL) // Get the address into P 0 R 1 = 3; // Bit pattern %0000 0011 [P 0] = R 1; SSYNC; While the core timer counter register ! = 0 continue P 0. H = hi(TCOUNT) P 0. L = lo(TCOUNT) // Get the address into P 0 SSYNC // Necessary or not? TIMER_LOOP: R 0 = [P 0]; // Keep reading the timer counter CC = R 0 == 0; // TIMER COUNTER IS VOLATILE IF !CC JUMP TIMER_LOOP DE-ACTIVATE TIMER REACTIVATE INTERRUPTS – Old values stored in R 2 Timer Control RETURN 2/28/2021 Copyright M. Smith, ECE, University of Calgary, Canada 24 / 31

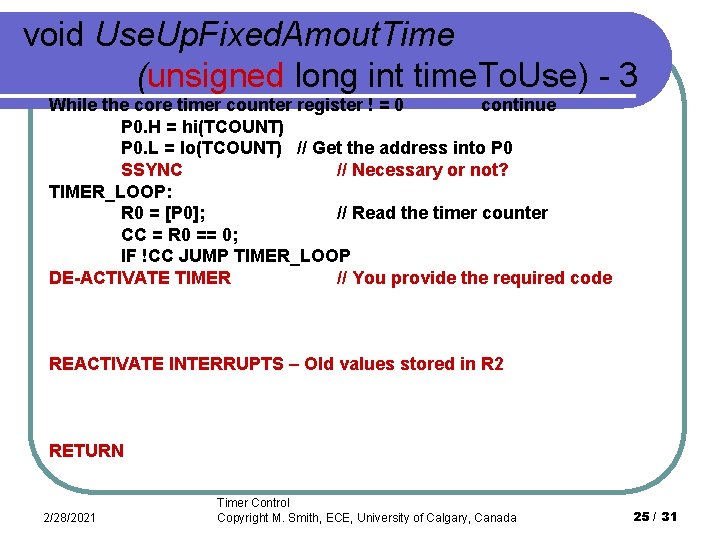

void Use. Up. Fixed. Amout. Time (unsigned long int time. To. Use) - 3 While the core timer counter register ! = 0 continue P 0. H = hi(TCOUNT) P 0. L = lo(TCOUNT) // Get the address into P 0 SSYNC // Necessary or not? TIMER_LOOP: R 0 = [P 0]; // Read the timer counter CC = R 0 == 0; IF !CC JUMP TIMER_LOOP DE-ACTIVATE TIMER // You provide the required code REACTIVATE INTERRUPTS – Old values stored in R 2 RETURN 2/28/2021 Timer Control Copyright M. Smith, ECE, University of Calgary, Canada 25 / 31

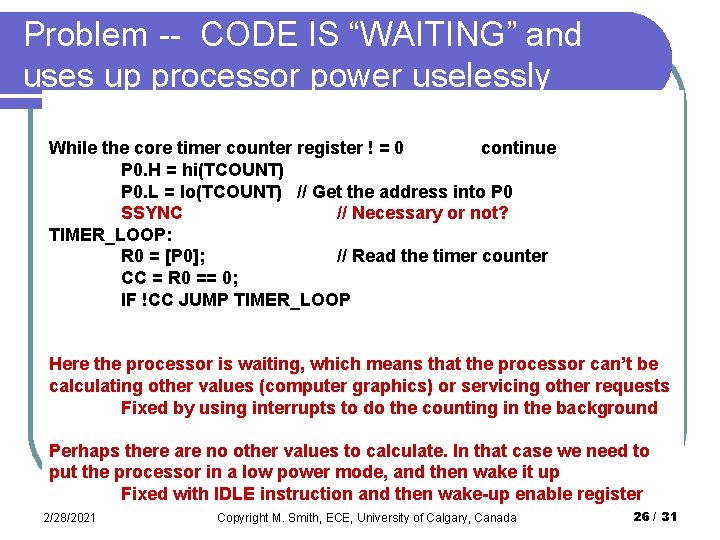

Problem -- CODE IS “WAITING” and uses up processor power uselessly While the core timer counter register ! = 0 continue P 0. H = hi(TCOUNT) P 0. L = lo(TCOUNT) // Get the address into P 0 SSYNC // Necessary or not? TIMER_LOOP: R 0 = [P 0]; // Read the timer counter CC = R 0 == 0; IF !CC JUMP TIMER_LOOP Here the processor is waiting, which means that the processor can’t be calculating other values (computer graphics) or servicing other requests Fixed by using interrupts to do the counting in the background Perhaps there are no other values to calculate. In that case we need to put the processor in a low power mode, and then wake it up Fixed with IDLE instruction and then wake-up enable register Timer Control 2/28/2021 Copyright M. Smith, ECE, University of Calgary, Canada 26 / 31

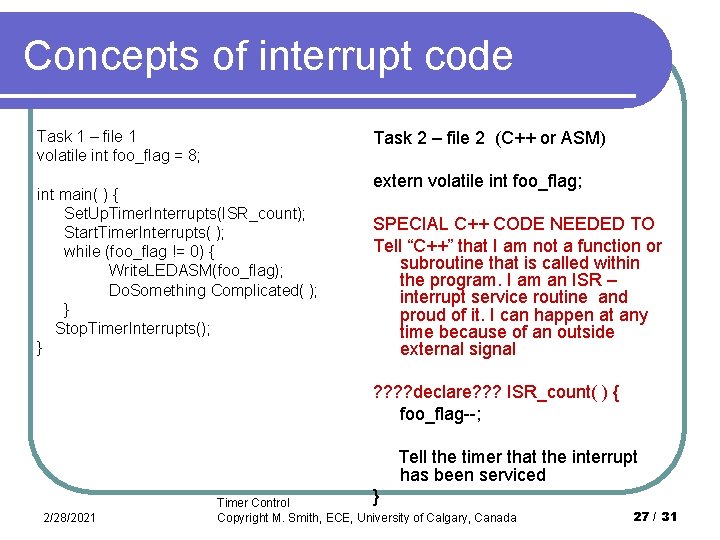

Concepts of interrupt code Task 2 – file 2 (C++ or ASM) Task 1 – file 1 volatile int foo_flag = 8; int main( ) { Set. Up. Timer. Interrupts(ISR_count); Start. Timer. Interrupts( ); while (foo_flag != 0) { Write. LEDASM(foo_flag); Do. Something Complicated( ); } Stop. Timer. Interrupts(); } extern volatile int foo_flag; SPECIAL C++ CODE NEEDED TO Tell “C++” that I am not a function or subroutine that is called within the program. I am an ISR – interrupt service routine and proud of it. I can happen at any time because of an outside external signal ? ? declare? ? ? ISR_count( ) { foo_flag--; Tell the timer that the interrupt has been serviced 2/28/2021 } Timer Control Copyright M. Smith, ECE, University of Calgary, Canada 27 / 31

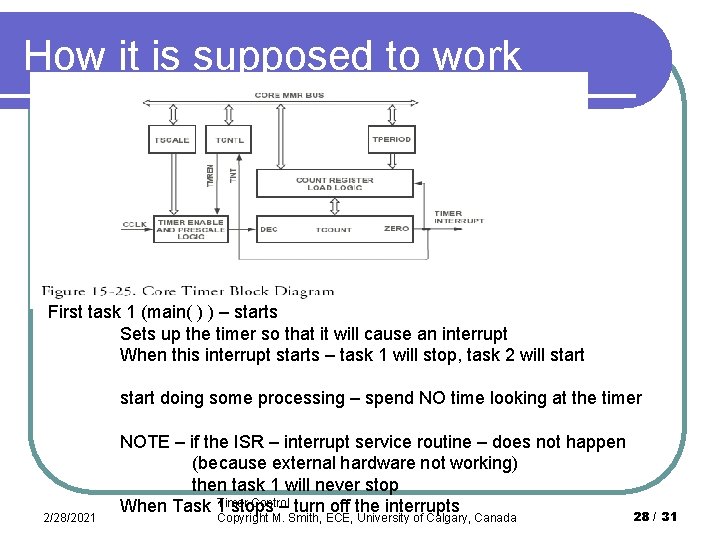

How it is supposed to work First task 1 (main( ) ) – starts Sets up the timer so that it will cause an interrupt When this interrupt starts – task 1 will stop, task 2 will start doing some processing – spend NO time looking at the timer 2/28/2021 NOTE – if the ISR – interrupt service routine – does not happen (because external hardware not working) then task 1 will never stop Control When Task 1 Timer stops – turn off the interrupts Copyright M. Smith, ECE, University of Calgary, Canada 28 / 31

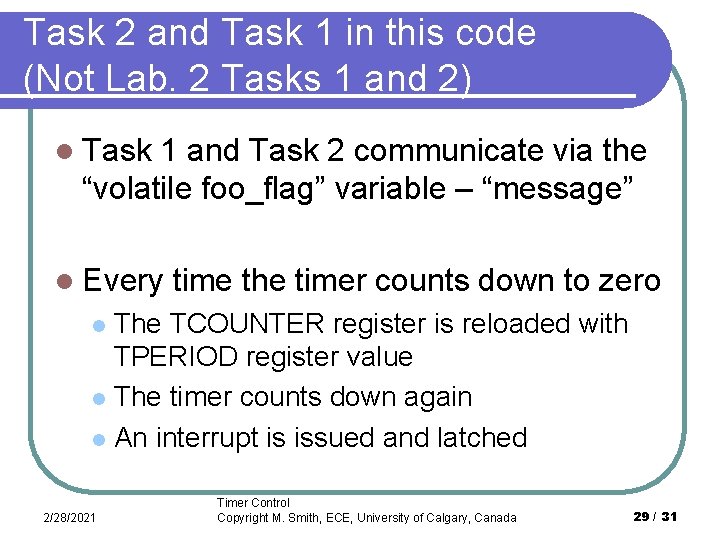

Task 2 and Task 1 in this code (Not Lab. 2 Tasks 1 and 2) l Task 1 and Task 2 communicate via the “volatile foo_flag” variable – “message” l Every time the timer counts down to zero The TCOUNTER register is reloaded with TPERIOD register value l The timer counts down again l An interrupt is issued and latched l 2/28/2021 Timer Control Copyright M. Smith, ECE, University of Calgary, Canada 29 / 31

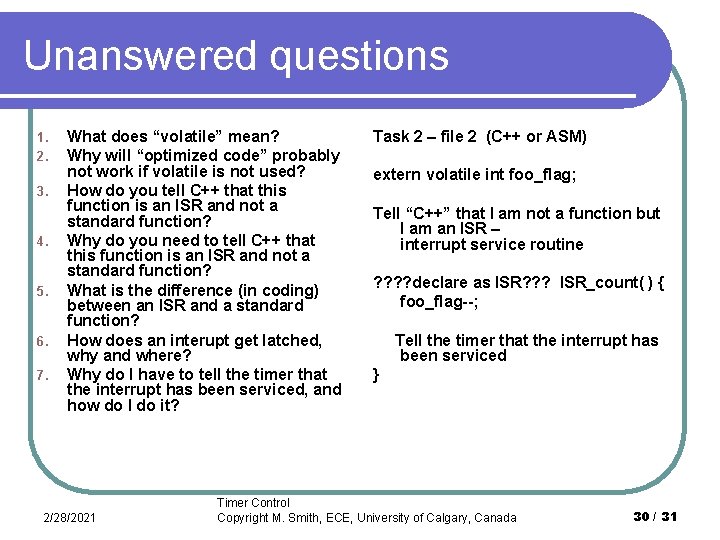

Unanswered questions 1. 2. 3. 4. 5. 6. 7. What does “volatile” mean? Why will “optimized code” probably not work if volatile is not used? How do you tell C++ that this function is an ISR and not a standard function? Why do you need to tell C++ that this function is an ISR and not a standard function? What is the difference (in coding) between an ISR and a standard function? How does an interupt get latched, why and where? Why do I have to tell the timer that the interrupt has been serviced, and how do I do it? 2/28/2021 Task 2 – file 2 (C++ or ASM) extern volatile int foo_flag; Tell “C++” that I am not a function but I am an ISR – interrupt service routine ? ? declare as ISR? ? ? ISR_count( ) { foo_flag--; Tell the timer that the interrupt has been serviced } Timer Control Copyright M. Smith, ECE, University of Calgary, Canada 30 / 31

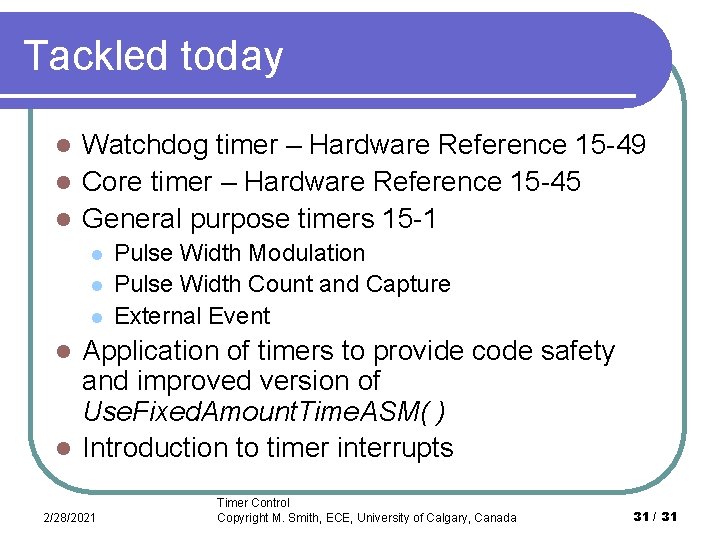

Tackled today Watchdog timer – Hardware Reference 15 -49 l Core timer – Hardware Reference 15 -45 l General purpose timers 15 -1 l l Pulse Width Modulation Pulse Width Count and Capture External Event Application of timers to provide code safety and improved version of Use. Fixed. Amount. Time. ASM( ) l Introduction to timer interrupts l 2/28/2021 Timer Control Copyright M. Smith, ECE, University of Calgary, Canada 31 / 31

l Information taken from Analog Devices On-line Manuals with permission http: //www. analog. com/processors/resources/technical. Library/manuals/ l Information furnished by Analog Devices is believed to be accurate and reliable. However, Analog Devices assumes no responsibility for its use or for any infringement of any patent other rights of any third party which may result from its use. No license is granted by implication or otherwise under any patent or patent right of Analog Devices. Copyright Analog Devices, Inc. All rights reserved. 2/28/2021 Timer Control Copyright M. Smith, ECE, University of Calgary, Canada 32 / 31

Watchdof concepts WHAT I WANTED TO DO WHAT I DID WHAT YOU WILL DO IN ASSEMBLY CODE (Task 2 is for Midterm Exam practice) 2/28/2021 Timer Control Copyright M. Smith, ECE, University of Calgary, Canada 33 / 31
