Bivariate Data Response Variable measures the outcome of

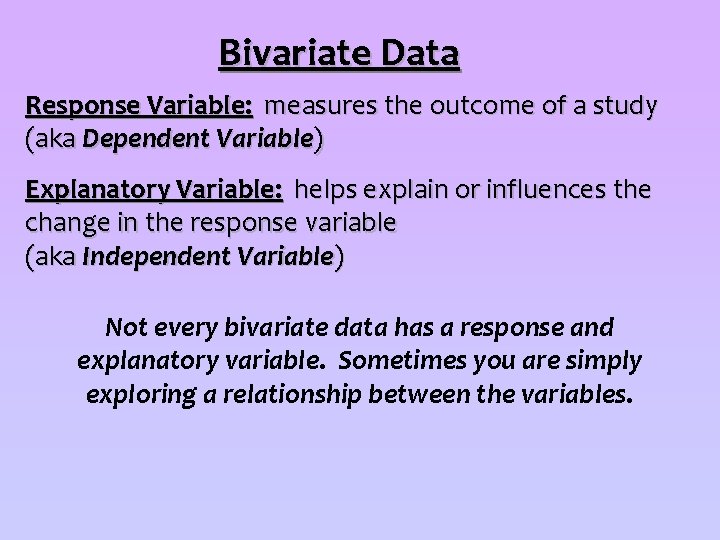

Bivariate Data Response Variable: measures the outcome of a study (aka Dependent Variable) Explanatory Variable: helps explain or influences the change in the response variable (aka Independent Variable) Not every bivariate data has a response and explanatory variable. Sometimes you are simply exploring a relationship between the variables.

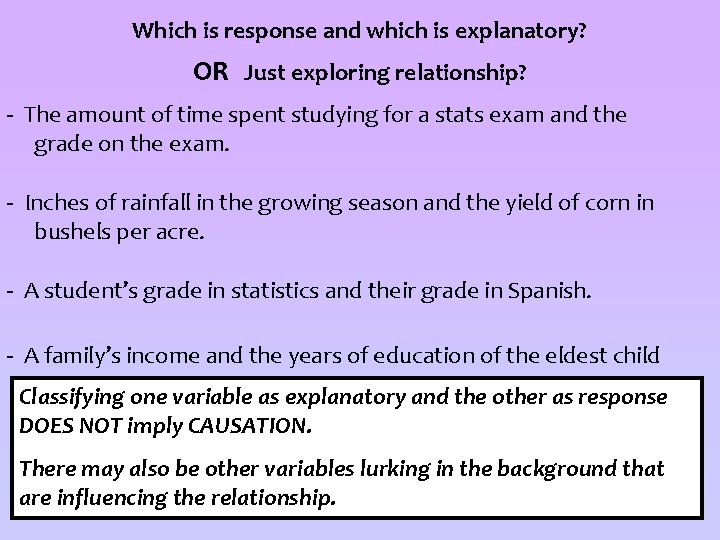

Which is response and which is explanatory? OR Just exploring relationship? - The amount of time spent studying for a stats exam and the grade on the exam. - Inches of rainfall in the growing season and the yield of corn in bushels per acre. - A student’s grade in statistics and their grade in Spanish. - A family’s income and the years of education of the eldest child Classifying one variable as explanatory and the other as response DOES NOT imply CAUSATION. There may also be other variables lurking in the background that are influencing the relationship.

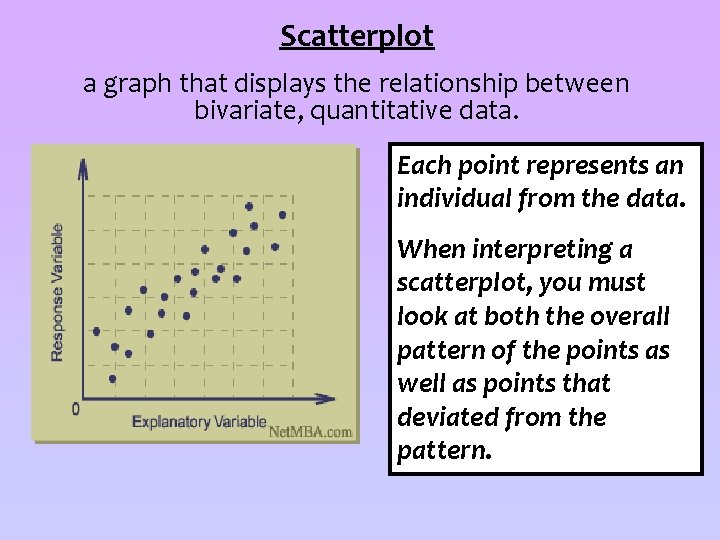

Scatterplot a graph that displays the relationship between bivariate, quantitative data. Each point represents an individual from the data. When interpreting a scatterplot, you must look at both the overall pattern of the points as well as points that deviated from the pattern.

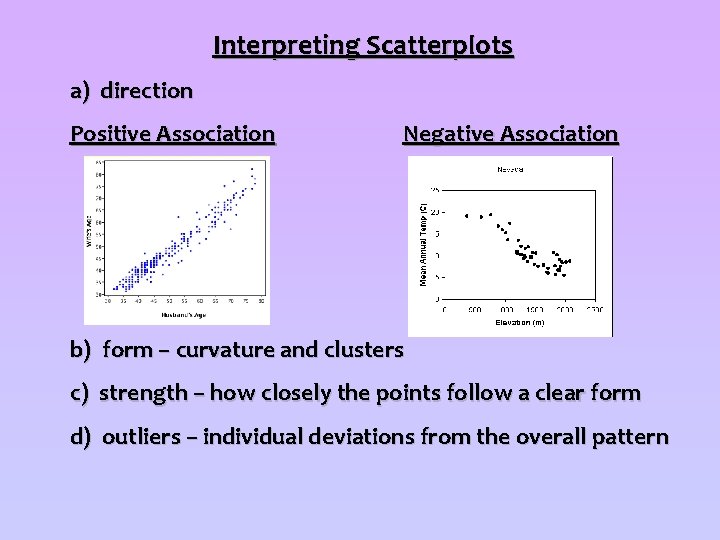

Interpreting Scatterplots a) direction Positive Association Negative Association b) form – curvature and clusters c) strength – how closely the points follow a clear form d) outliers – individual deviations from the overall pattern

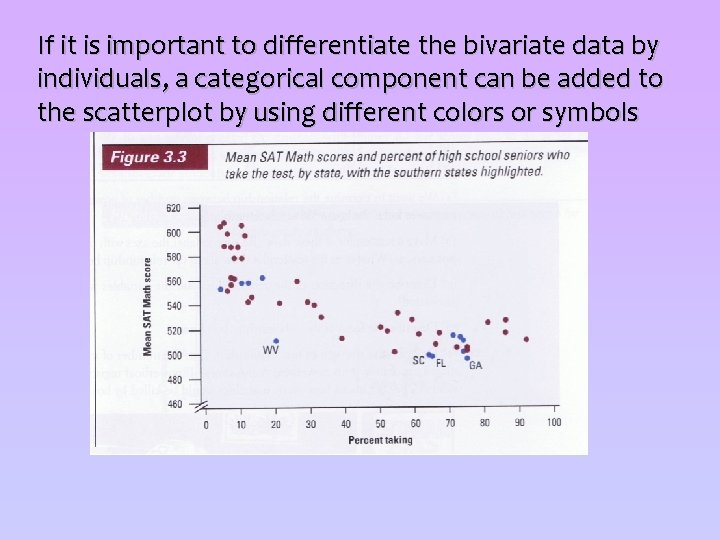

If it is important to differentiate the bivariate data by individuals, a categorical component can be added to the scatterplot by using different colors or symbols

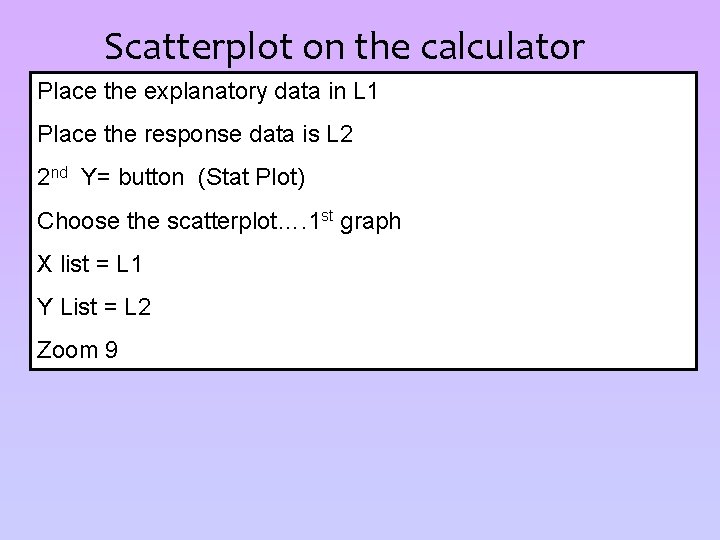

Scatterplot on the calculator Place the explanatory data in L 1 Place the response data is L 2 2 nd Y= button (Stat Plot) Choose the scatterplot…. 1 st graph X list = L 1 Y List = L 2 Zoom 9

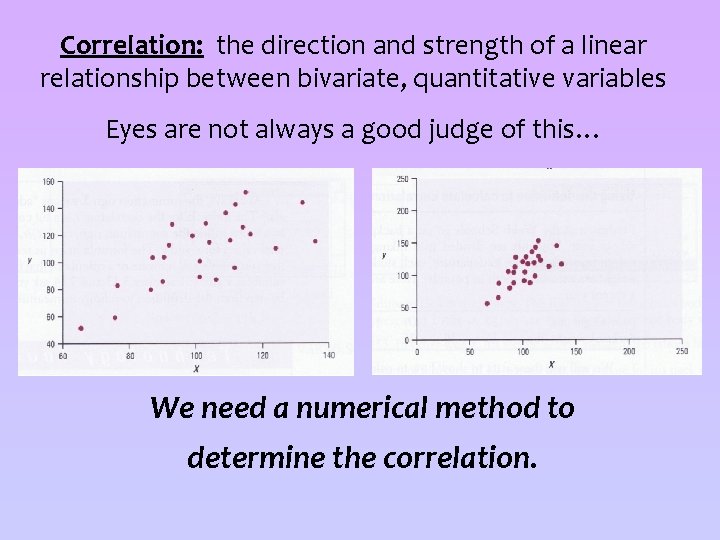

Correlation: the direction and strength of a linear relationship between bivariate, quantitative variables Eyes are not always a good judge of this… We need a numerical method to determine the correlation.

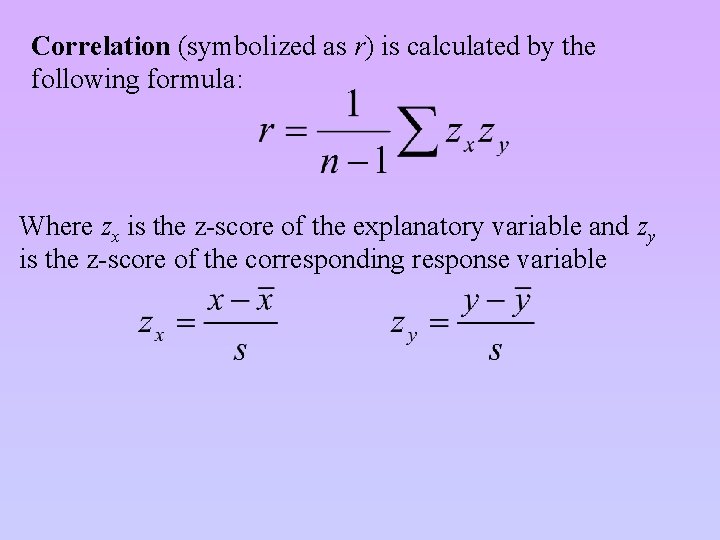

Correlation (symbolized as r) is calculated by the following formula: Where zx is the z-score of the explanatory variable and zy is the z-score of the corresponding response variable

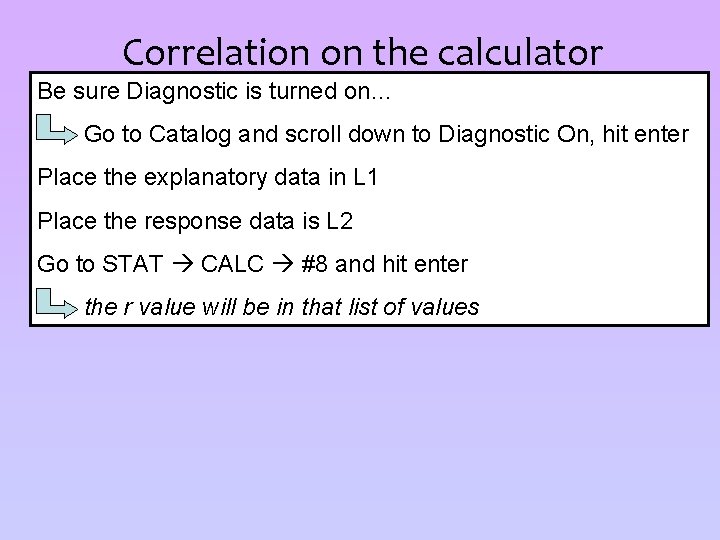

Correlation on the calculator Be sure Diagnostic is turned on… Go to Catalog and scroll down to Diagnostic On, hit enter Place the explanatory data in L 1 Place the response data is L 2 Go to STAT CALC #8 and hit enter the r value will be in that list of values

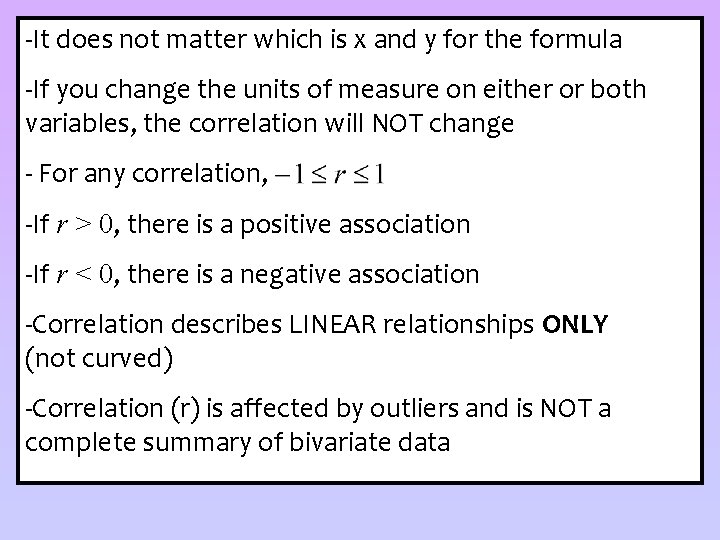

-It does not matter which is x and y for the formula -If you change the units of measure on either or both variables, the correlation will NOT change - For any correlation, -If r > 0, there is a positive association -If r < 0, there is a negative association -Correlation describes LINEAR relationships ONLY (not curved) -Correlation (r) is affected by outliers and is NOT a complete summary of bivariate data

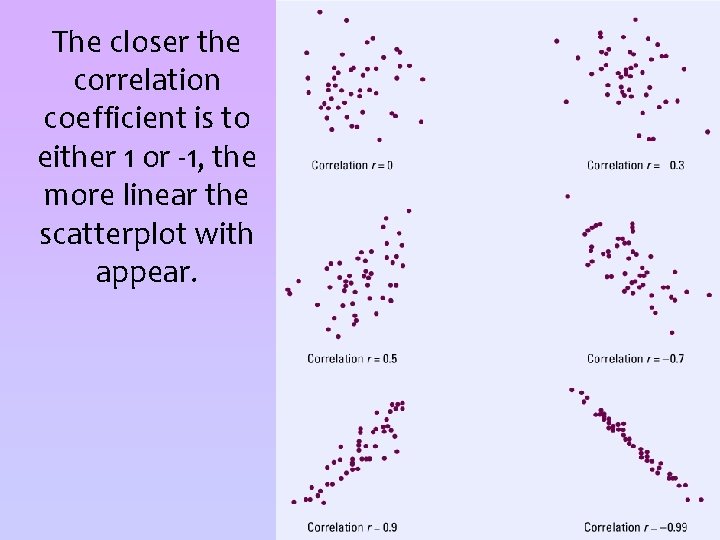

The closer the correlation coefficient is to either 1 or -1, the more linear the scatterplot with appear.
