Bit Cell Ratio Testing Thin Cell Advantages Smallest

Bit Cell Ratio Testing

Thin Cell Advantages: Smallest possible area of 6 T Bit Cell, Can be mirrored (saves area = can reduce distance between n-wells and p-wells)

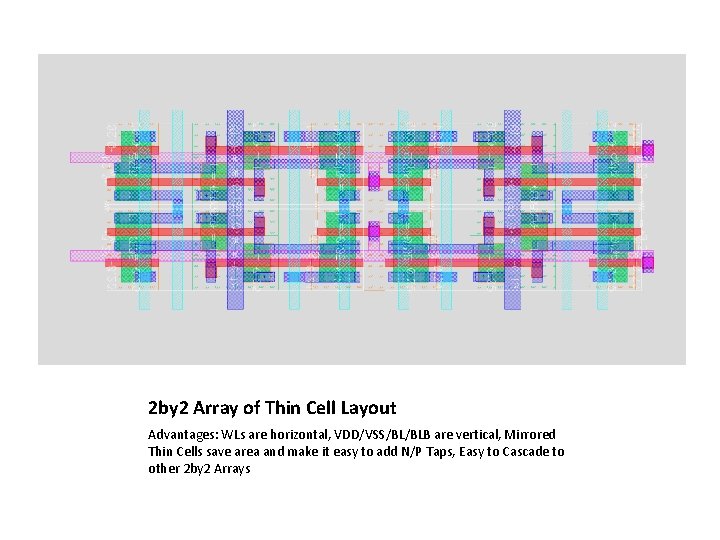

2 by 2 Array of Thin Cell Layout Advantages: WLs are horizontal, VDD/VSS/BL/BLB are vertical, Mirrored Thin Cells save area and make it easy to add N/P Taps, Easy to Cascade to other 2 by 2 Arrays

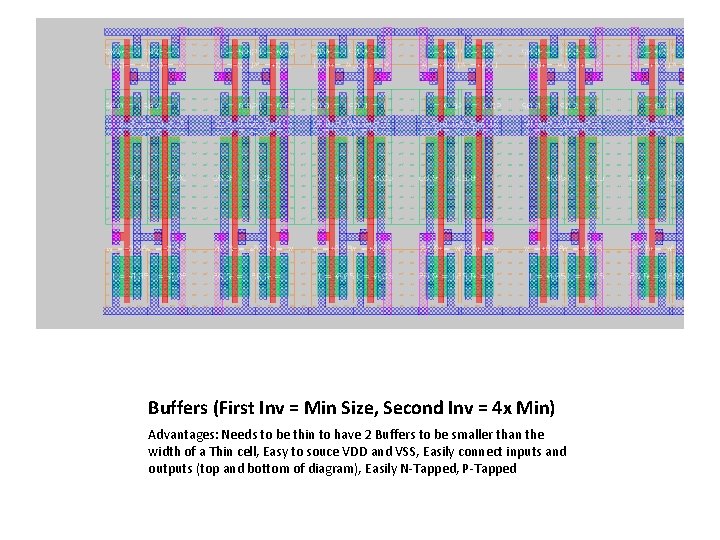

Buffers (First Inv = Min Size, Second Inv = 4 x Min) Advantages: Needs to be thin to have 2 Buffers to be smaller than the width of a Thin cell, Easy to souce VDD and VSS, Easily connect inputs and outputs (top and bottom of diagram), Easily N-Tapped, P-Tapped

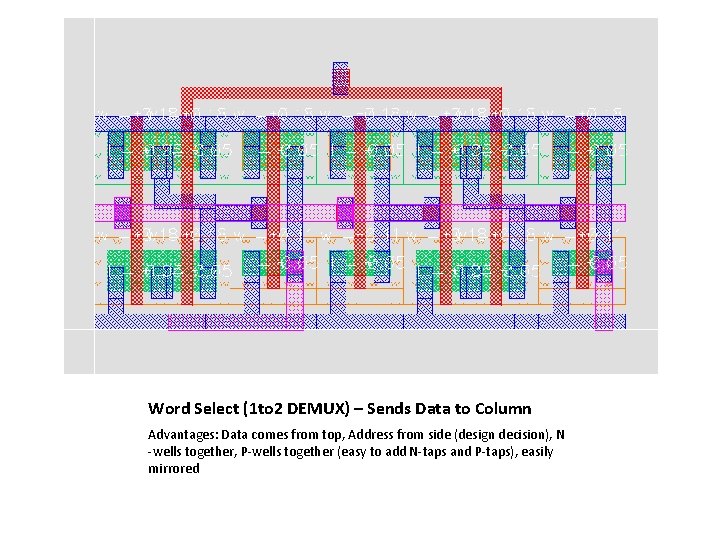

Word Select (1 to 2 DEMUX) – Sends Data to Column Advantages: Data comes from top, Address from side (design decision), N -wells together, P-wells together (easy to add N-taps and P-taps), easily mirrored

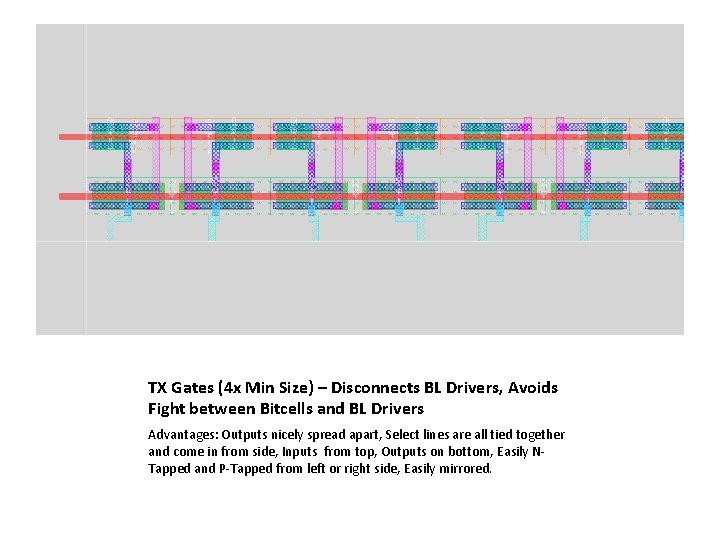

TX Gates (4 x Min Size) – Disconnects BL Drivers, Avoids Fight between Bitcells and BL Drivers Advantages: Outputs nicely spread apart, Select lines are all tied together and come in from side, Inputs from top, Outputs on bottom, Easily NTapped and P-Tapped from left or right side, Easily mirrored.

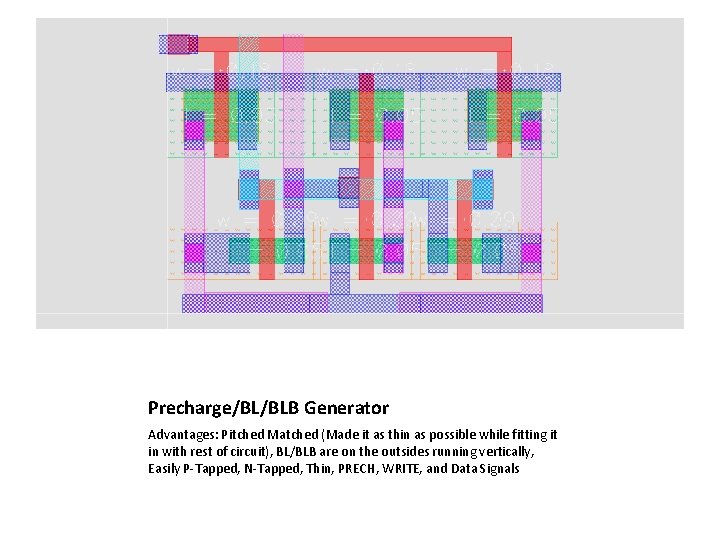

Precharge/BL/BLB Generator Advantages: Pitched Matched (Made it as thin as possible while fitting it in with rest of circuit), BL/BLB are on the outsides running vertically, Easily P-Tapped, N-Tapped, Thin, PRECH, WRITE, and Data Signals

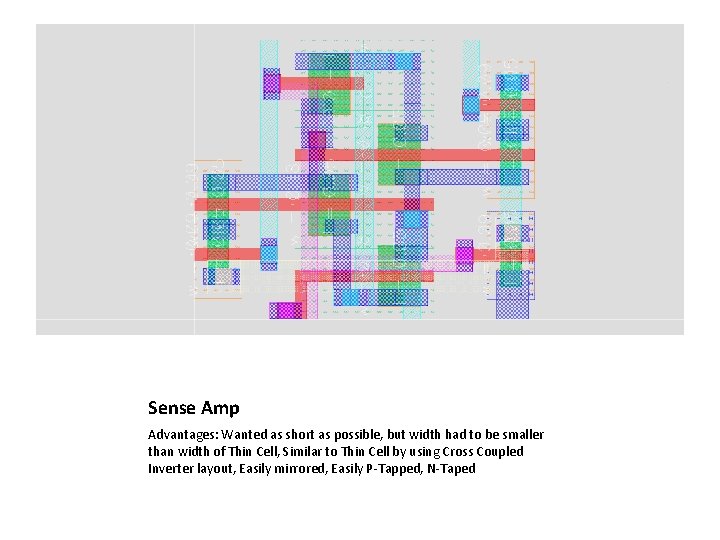

Sense Amp Advantages: Wanted as short as possible, but width had to be smaller than width of Thin Cell, Similar to Thin Cell by using Cross Coupled Inverter layout, Easily mirrored, Easily P-Tapped, N-Taped

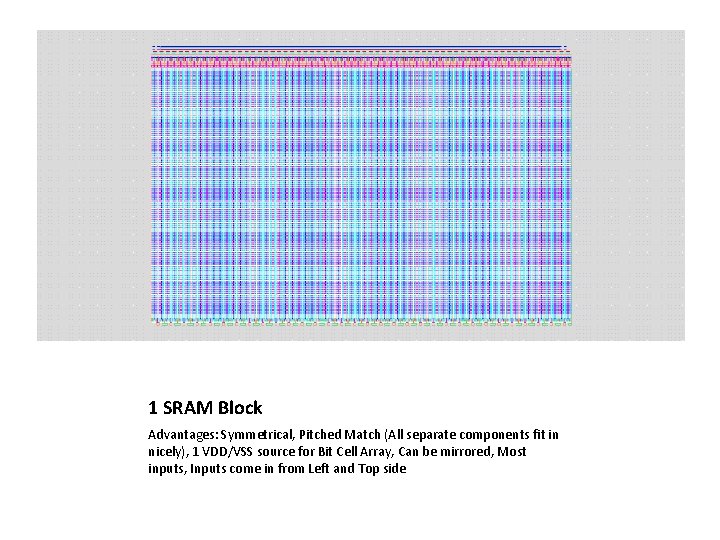

1 SRAM Block Advantages: Symmetrical, Pitched Match (All separate components fit in nicely), 1 VDD/VSS source for Bit Cell Array, Can be mirrored, Most inputs, Inputs come in from Left and Top side

Block Pair Merger Schematic

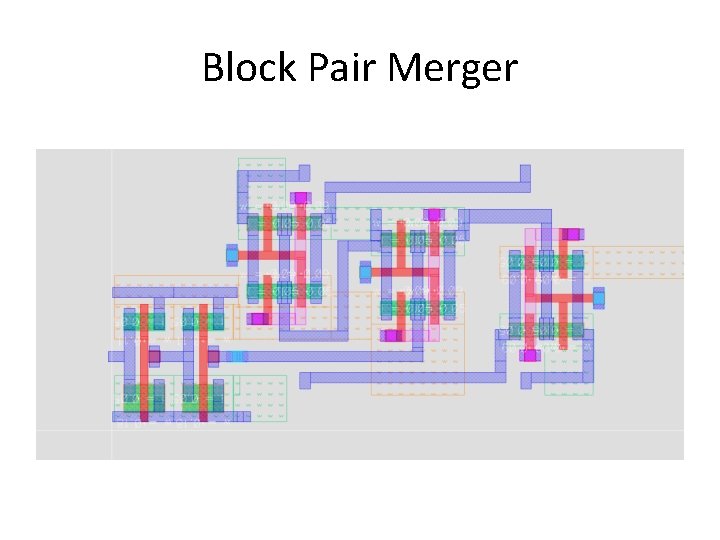

Block Pair Merger

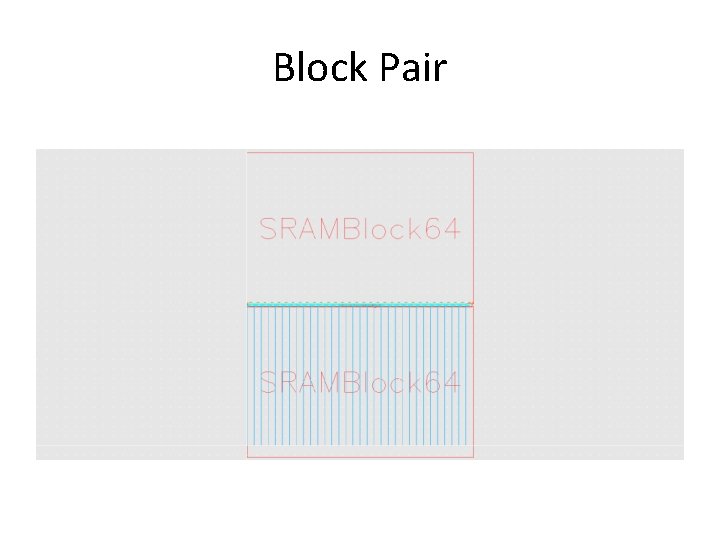

Block Pair

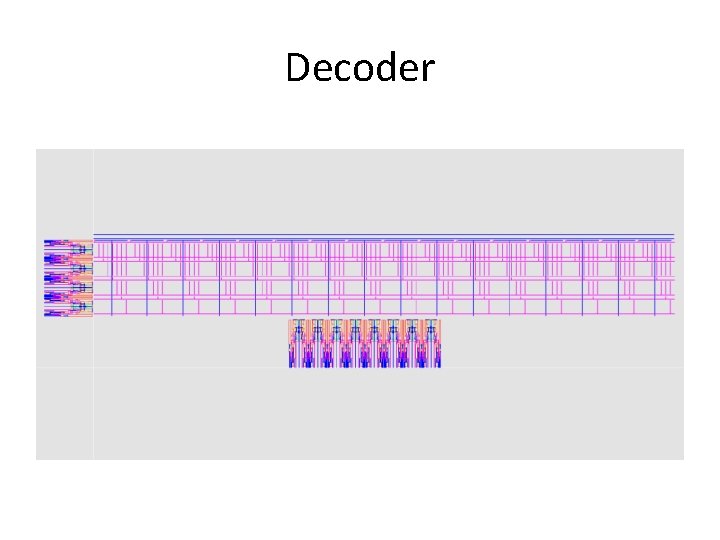

Decoder

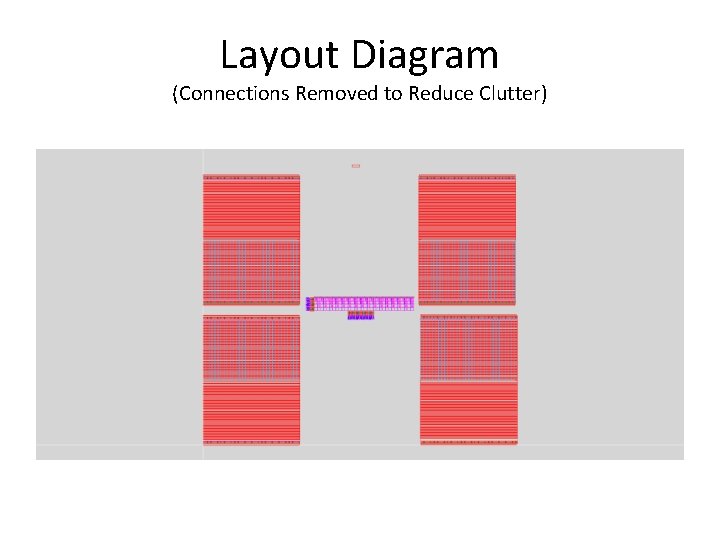

Layout Diagram (Connections Removed to Reduce Clutter)
