Bisectors – Line – Worksheet A IMPORTANT! This worksheet relies on accurate scales. See next slide for printing instructions.

IMPORTANT! This worksheet relies on accurate scales. When printing, ensure ‘Scale to Fit Paper’ is deselected. Click: ‘Full Page Slides’ > Deselect ‘Scale to Fit Paper’

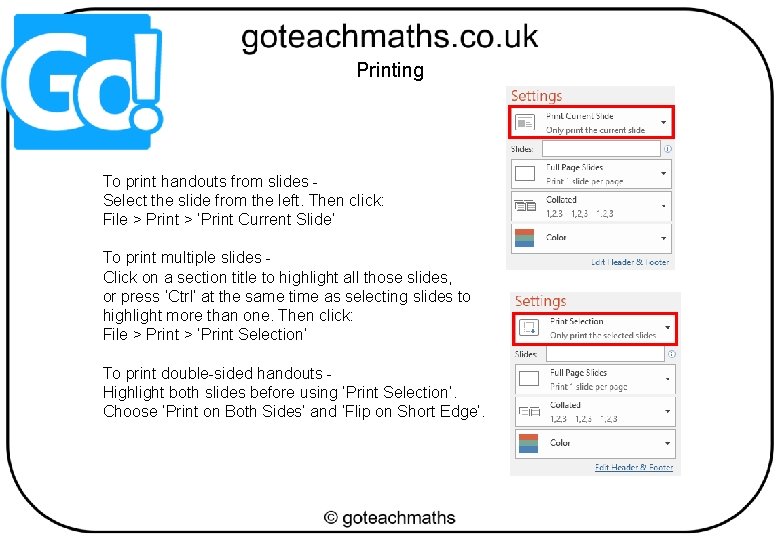

Printing To print handouts from slides Select the slide from the left. Then click: File > Print > ‘Print Current Slide’ To print multiple slides Click on a section title to highlight all those slides, or press ‘Ctrl’ at the same time as selecting slides to highlight more than one. Then click: File > Print > ‘Print Selection’ To print double-sided handouts Highlight both slides before using ‘Print Selection’. Choose ‘Print on Both Sides’ and ‘Flip on Short Edge’.

Turf War!

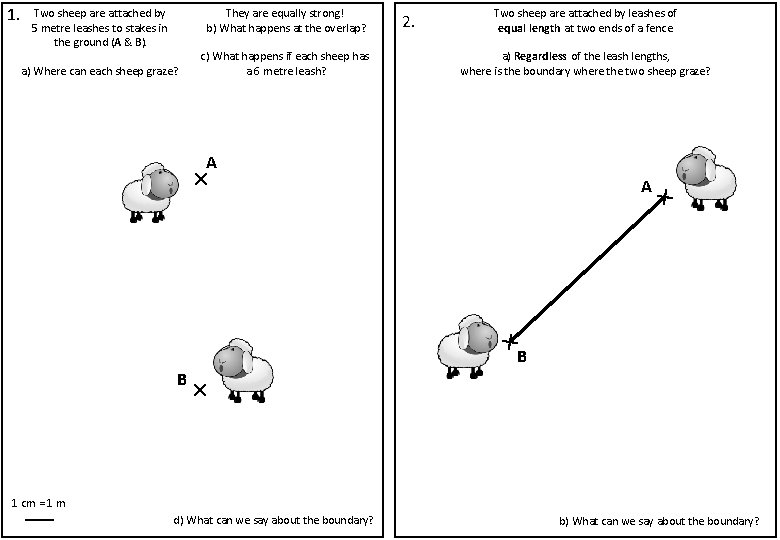

1. Two sheep are attached by 5 metre leashes to stakes in the ground (A & B). They are equally strong! b) What happens at the overlap? a) Where can each sheep graze? c) What happens if each sheep has a 6 metre leash? 2. Two sheep are attached by leashes of equal length at two ends of a fence. a) Regardless of the leash lengths, where is the boundary where the two sheep graze? A × ×B B × 1 cm = 1 m d) What can we say about the boundary? b) What can we say about the boundary?

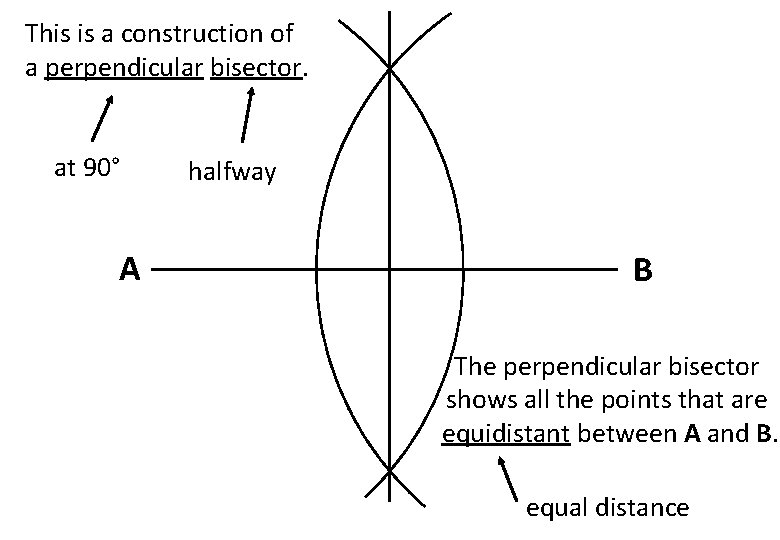

This is a construction of a perpendicular bisector. at 90° A halfway B The perpendicular bisector shows all the points that are equidistant between A and B. equal distance

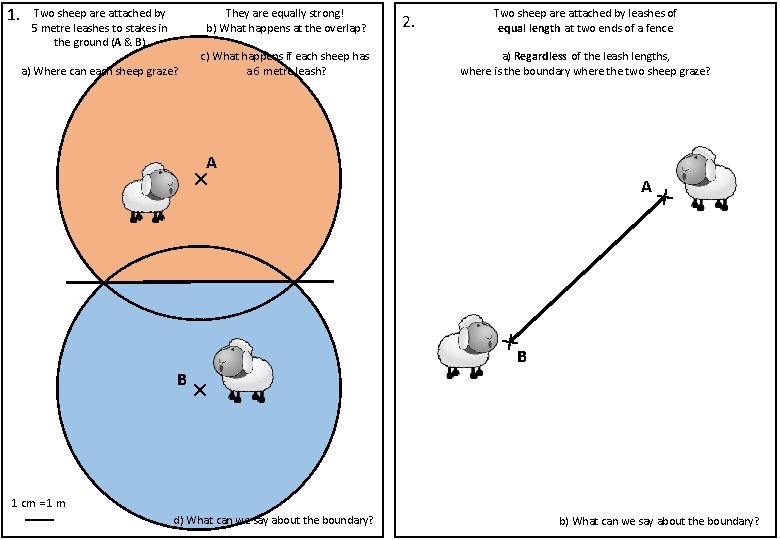

1. Two sheep are attached by 5 metre leashes to stakes in the ground (A & B). They are equally strong! b) What happens at the overlap? a) Where can each sheep graze? c) What happens if each sheep has a 6 metre leash? 2. Two sheep are attached by leashes of equal length at two ends of a fence. a) Regardless of the leash lengths, where is the boundary where the two sheep graze? A × ×B B × 1 cm = 1 m d) What can we say about the boundary? b) What can we say about the boundary?

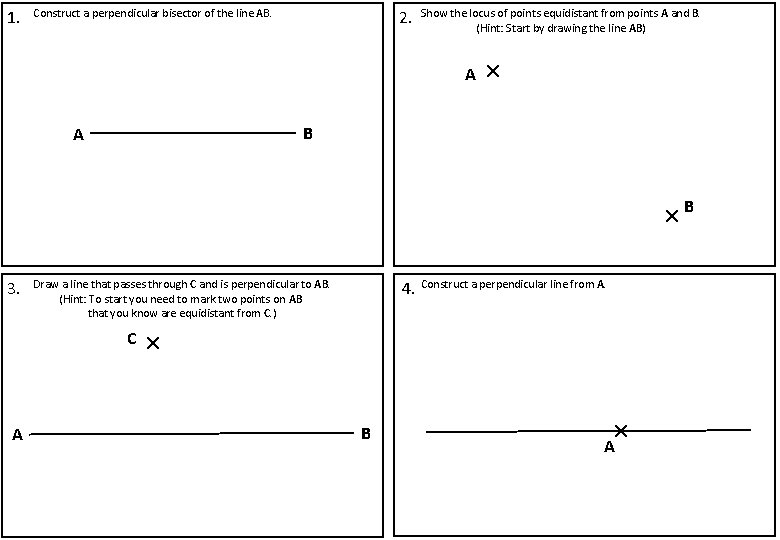

1. 2. Construct a perpendicular bisector of the line AB. Show the locus of points equidistant from points A and B. (Hint: Start by drawing the line AB) A × B A × 3. C A 4. Construct a perpendicular line from A. Draw a line that passes through C and is perpendicular to AB. (Hint: To start you need to mark two points on AB that you know are equidistant from C. ) × B Half Answers × A B

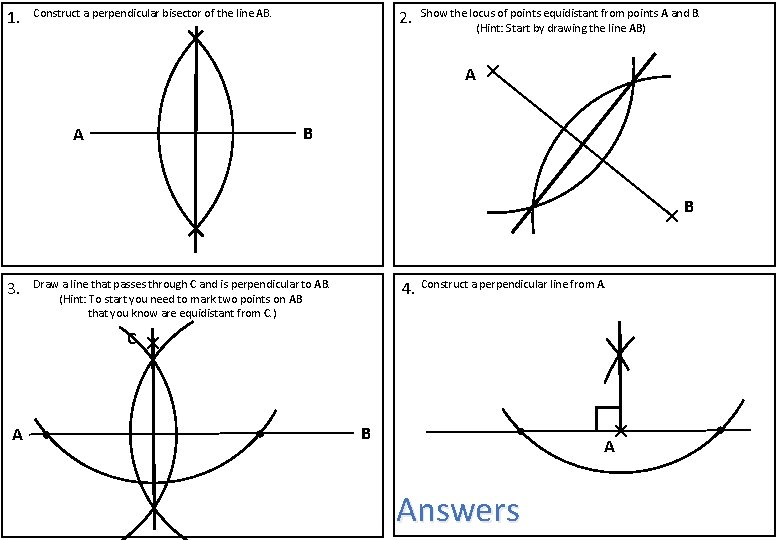

1. 2. Construct a perpendicular bisector of the line AB. Show the locus of points equidistant from points A and B. (Hint: Start by drawing the line AB) A × B A × 3. C A 4. Construct a perpendicular line from A. Draw a line that passes through C and is perpendicular to AB. (Hint: To start you need to mark two points on AB that you know are equidistant from C. ) × × B A Answers B

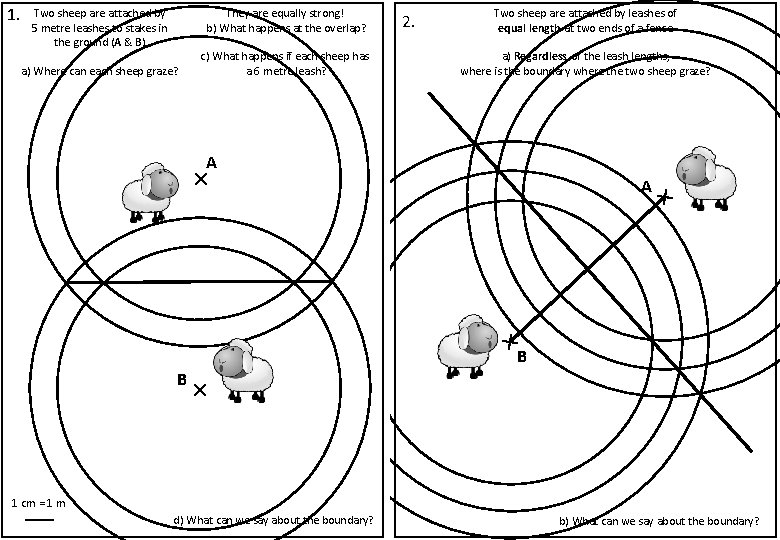

1. Two sheep are attached by 5 metre leashes to stakes in the ground (A & B). They are equally strong! b) What happens at the overlap? a) Where can each sheep graze? c) What happens if each sheep has a 6 metre leash? 2. Two sheep are attached by leashes of equal length at two ends of a fence. a) Regardless of the leash lengths, where is the boundary where the two sheep graze? A × ×B B × 1 cm = 1 m d) What can we say about the boundary? b) What can we say about the boundary?

1. 2. Construct a perpendicular bisector of the line AB. Show the locus of points equidistant from points A and B. (Hint: Start by drawing the line AB) A × B A × 3. C A 4. Construct a perpendicular line from A. Draw a line that passes through C and is perpendicular to AB. (Hint: To start you need to mark two points on AB that you know are equidistant from C. ) × B × A B
