Biotecnologie Vegetali per Diegnare la Pianta del Futuro
Biotecnologie Vegetali per Diegnare la Pianta del Futuro Antonio Michele Stanca U N A S A- AISSA-UNIMORE Orvieto 28 settembre 2013
Nazareno Strampelli Mendel Norman Borlaug
Model of the Breeding progress in the last 100 years
Neolitico 500 semi/m 2 1 -1. 5 q/ha Post-Mendel 8. 000 semi/m 2 25 q/ha Periodo Romano Rinasciment Pre-Mendel 2. 000 semi/m 2 4 -5 q/ha 3. 000 semi/m 2 6 -8 q/ha 1970 14. 000 semi/m 50 q/ha Oggi 2 20. 000 semi/m 2 90 -100 q/ha

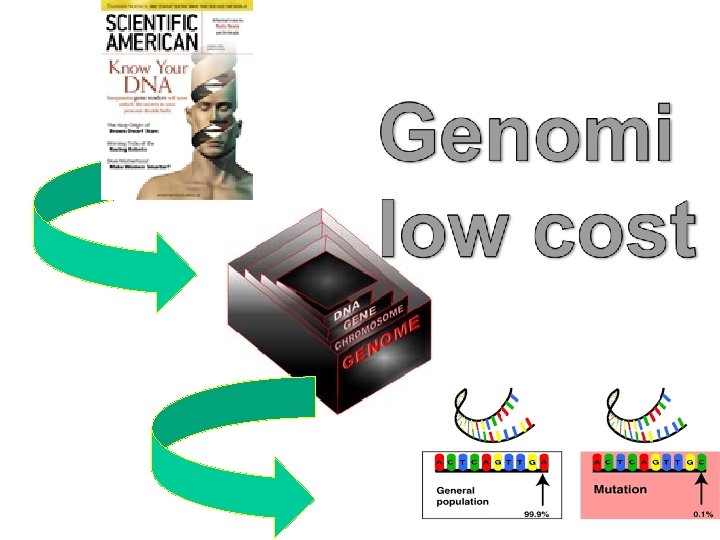

GENETICA GENOMICA studia il Genoma (l’intero contenuto di DNA di una Cellula)
• identify the POSITION of genes controlling useful traits and tag them with molecular markers; • ISOLATE the genes encoding for useful traits for further geneimprovement ACCGTTGGACCATGGATACTAATGG • The DNA based knowledge can lead to:
MAS=Molecular Assisted Selection 12/06/0828/11/07
Organismo geneticamente modificato (OGM) Un organismo il cui materiale genetico è stato modificato in modo diverso da quanto si verifica in natura mediante incrocio o con la ricombinazione genetica naturale
A) Malattie iperplastiche Agenti: A. tumefaciens e rhizogenes, P. syringae savastanoi e avellanea Transfer Il T-DNA è trasferito nel genoma della pianta Integration Expression 3'- LB- T-DNA -RB-5'

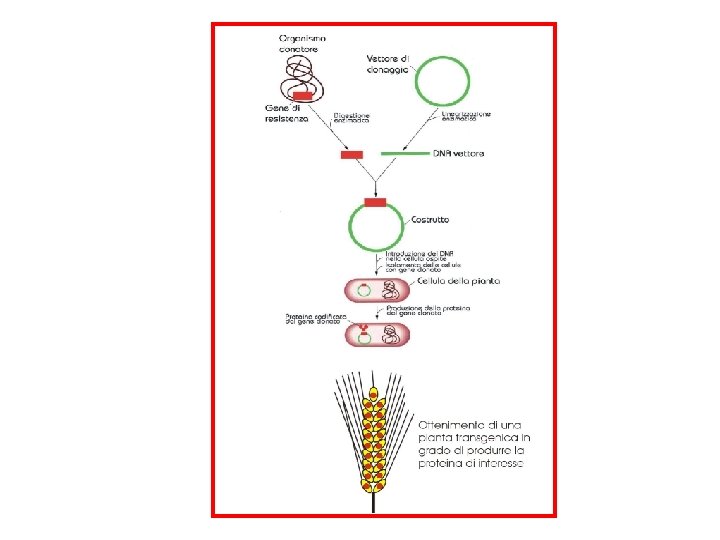

PLANT TRANSFORMATION
Bt or non Bt? 5 Stati 14 anni Riduzione della popolazione di piralide sino al 70% nei campi convenzionali NON Bt Hutchison et al. 2010 Science
1998 «tradizionale» COSTANZA «isogenico Bt» Lodi, azienda Bianchini-Elias (oggi Assessore all’Agricoltura in Lombardia) 5 ottobre (foto Maggiore)
FUSARIUM spp LARVA PIRALIDE
P 66 Landriano (PV) , Az. Menozzi, settembre 2005 (foto Maggiore) P 67 (Bt)
Ibridi Resa dt/ha U% Fori stocco n° Fori spiga Fori pedunc. 14% U n° ELGINA 141 23, 5 110 21, 3 159 26, 7 MEDIA 111 130, 25 21, 3 23, 2 cm/pianta spiga % na (ppb) 0, 15 0, 44 0 6, 31 6100 1, 66 19, 92 23 0, 75 60 0, 02 P 66 Fumosi- 48 1, 36 P 67 Fusarium 0, 8 0, 06 CECILIA n° Gallerie 0, 16 0, 7 0 9, 54 4, 35 6300 3, 26 4, 7 2, 58 1, 14 68, 53 22, 4 29 26 3127
P 66 P 67 Visione del campo al momento della raccolta dopo aver eliminato il bordo centrale
Oltre i Transgenici Nature Biotec (marzo 2012) • L’ingegneria genetica di “prima generazione” ha permesso di inserire tratti di DNA a random nel genoma • Cellule vegetali ingegnerizzate per produrre molecole utili-non OGM • Zinc Finger Nucleasi-ZFN- Inserimento del gene in modo mirato mediante riconoscimento di siti specifici nel genoma • Cisgenesi ( non OGM? ) e Intragenesi • GRAFTING • Modificazione Epigenetica ( metilazione-silenziamento)
2005 MORE EFFICIENT AGRICULTURE Herbicide tolerance Insect resistance 2015 2025 HEALTHIER NUTRITION and QUALITY Aminoacids, oil, starch PLANTS AS FACTORIES Vitamins, long-chained fatty acids, omega 3 fatty acids, enzymes, PEST PROTECTION biopolimers, Virus, nematode, fungi, insects Pigments, pharmaceuticals, fiber. STRESS PROTECTION Cold, drought, salinity

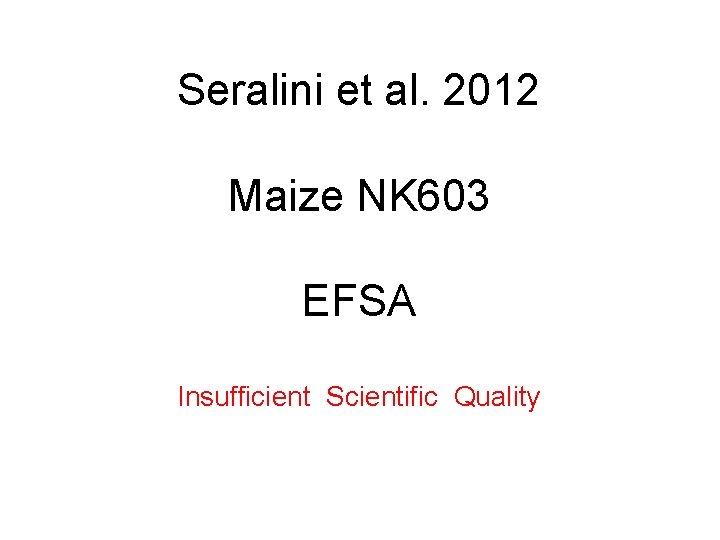

Seralini et al. 2012 Maize NK 603 EFSA Insufficient Scientific Quality
BREEDING by DESIGN Integration of • GENETICS • Molecular Genetics • Molecular Breeding • Physiology • Food Technology • Bioinformatics and Statistics • Agronomy SYSTEMS BIOLOGY
, GENOTYPING PHENOTYPING
GAS = Genomic Assisted Selection Centrodi Ricerca per la Genomica Selezione basata su migliaia/decine di migliaia di tratti di DNA
PLANT for the Future NUE e WUE MIRNA Potenzialità e Stabilità 25 -30000 semi/m 2 120 -130 q/ha METAGENOMIC PLANT-soil-microbeinteraction ROOTS
SYSTEMS BIOLOGY and Beyond • Vibrant and Competitive Research • More SCIENCE in AGRICULTURE • SCIENCE FOR FARMING Breeding is not Art
Filmato RNA

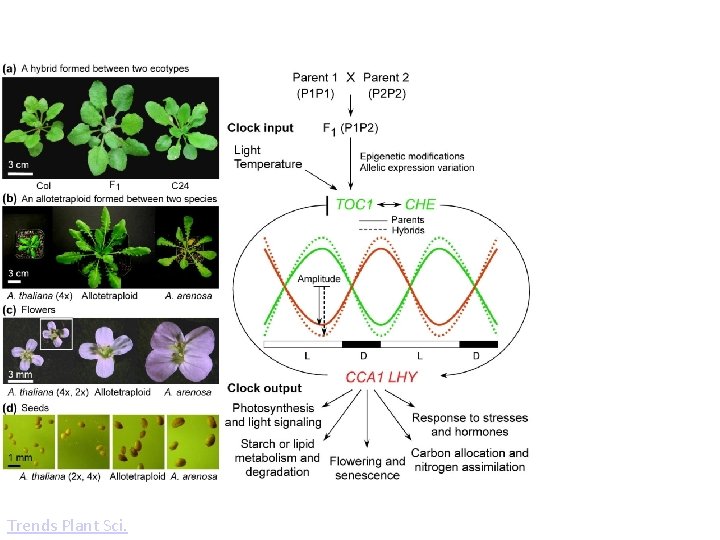

Molecular mechanisms of polyploidy and hybrid vigor. A molecular clock model explains the basis of heterosis. In the hybrids, the allelic interactions between parent 1 (P 1) and parent 2 (P 2) induce epigenetic repression of CCA 1 and LHY expression amplitudes (red dashed line) and upregulation of TOC 1 expression amplitudes (green dashed line) relative to the expression values in the parents (solid red and green lines, respectively), whereas the periodicity of the clock remains the same because maintaining clock periodicity and rhythm is important for plant growth and fitness Trends Plant Sci. 2010 Feb; 15(2): 57 -71.
FACE-Free-Air CO 2 Enrichment- is considered the most advanced technology to investigate experimentally the impact of rising atmospheric CO 2 on terrestrial ecosystems Effect of elevated CO 2 on oat yield and quality traits? A rings of the FACE facility installed in Fiorenzuola d’Arda with its control unit
SCIENZA e AGRICOLTURA Complementari………… 90. 2% Incompatibili…………………. 9. 8% Chi SONO?
Pontecorvo e la Scperta del Neutrino Giovani Studenti e Professori DOMANDA: Ma i neutrini cosa portano ai Kolkhoziani di RYAZAN? Risposta: Per ora il neutrino non dà nulla ai Kolkhoziani né a chiunque altro Modo per affermare che la ricerca spesso non dà un risultato immediato ai contadini e agli operai Modo elegante per affermare l’autonomia della ricerca
22 maggio 2009
