Bioremediation and Bionanotechnology Dr Russell Thomas Parsons Brinckerhoff

Bioremediation and Bionanotechnology Dr Russell Thomas, Parsons Brinckerhoff 19 th May 2010

What’s he talking about? • Purpose - An Industrial perspective on some of the different methods of bioremediation employed in the Contaminated Land Industry. • Through: • An explanation of contaminated land. • An explanation of the application of bioremediation. • A few examples of different types of bioremediation.

What is Contaminated Land? – Simple terms • People like this. • Carried out processes like this. • producing by-products like this. • Some of the by-products were lost through leakage and accidental spillages.

What is Contaminated Land? – complex terms • • • A. B. • The contaminated land regime is enshrined in Part 2 A of the Environmental Protection Act 1990. Section 78 A(2) of the Act defines Contaminated Land as: “any land which appears to the Local Authority in whose area it is situated to be in such a condition, by reason of substances in, on or under the land, that: Significant harm is being causes or there is significant possibility of such harm being caused; or pollution of controlled water is being, or is likely to be caused”. A pollutant linkage must exists between a “Contaminant Source and a Receptor by means of a Pathway”. All of these factors must be present for a site to be considered as “Contaminated Land”. Source (Contaminant, e. g. oil) Pathway – (migration into river) Receptor (Person/controlled waters)

Remediating contaminated Land • Where land is classified as “contaminated land” then it will need to be remediated. • Through the planning regime where polluted land is to redeveloped it must be made suitable for use through remediation. • Remediation is the use of a technique which will break the pollutant linkage, by: • Removal of the pollutant source; • Breaking of the pathway; or • Restricting access by the receptor.

Types of Sustainable Remediation Bioremediation options Disposal to landfill In-situ Landfarming/ Bioremediation Biopiles Cover systems Soil Washing Stabilisation Composting Remediation techniques Slurry Phase Bioreactors Thermal treatment Permeable Reactive barriers

Bioremediation • Bioremediation is defined by the American Academy of Microbiology as • 'the use of living organisms to reduce or eliminate environmental hazards resulting from accumulations of toxic chemicals or other hazardous wastes‘[i]. [i] Gibson, D. T and Sayler, G. S. , Scientific Foundations of Bioremediation: Current Status and Future Needs. Washington, D. C. : AAM & ASM; 24, 1992.

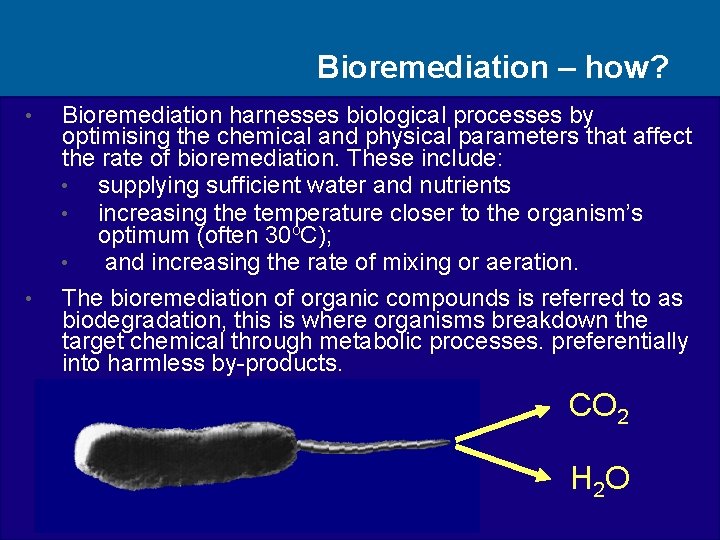

Bioremediation – how? • • Bioremediation harnesses biological processes by optimising the chemical and physical parameters that affect the rate of bioremediation. These include: • supplying sufficient water and nutrients • increasing the temperature closer to the organism’s optimum (often 30 o. C); • and increasing the rate of mixing or aeration. The bioremediation of organic compounds is referred to as biodegradation, this is where organisms breakdown the target chemical through metabolic processes. preferentially into harmless by-products. H H H H C C C H H H CO 2 H C HH 2 O H

Napthalene Biodegradation Pathway Continued biodegradation Phenol Degradation

Landfarming/Biopiling • Landfarming and Biopiles are similar methods, soil is excavated, conditioned, so oversize material is removed and formed into piles. • For Landfarming the soil is formed in long piles called windrows, the soil is turned over regularly. • For Biopiles, the soil is formed in piles and air (can be heated) is blown into or sucked through pile through perforated pipes. • In both cases nutrients are supplied along with regular watering and tilling. • Microorganisms utilise the organic contaminant for growth.

Landfarming • The process is relatively cheap, suitable for simple hydrocarbons and proven in the UK. • It is not generally suitable for some soil types (e. g. clay) or some complex organics (5 ring PAH) and the rate of degradation is relatively slow.

Landfarming – Treatment of Coal Tar Rapid degradation of the total PAH Some limited degradation of 5 ring PAH 2 - ring PAH are not generally present in significant quantities in weathered tar

Composting • Composting is very similar to Landfarming and Biopiles, but requires additional of 10 -15% manure, is carried out at circa 70°C, and the microbiology is predominantly Fungal. • Composting is generally a faster process and would be used in the same situations as landfarming, though it is used preferentially where shorter timescales are required.

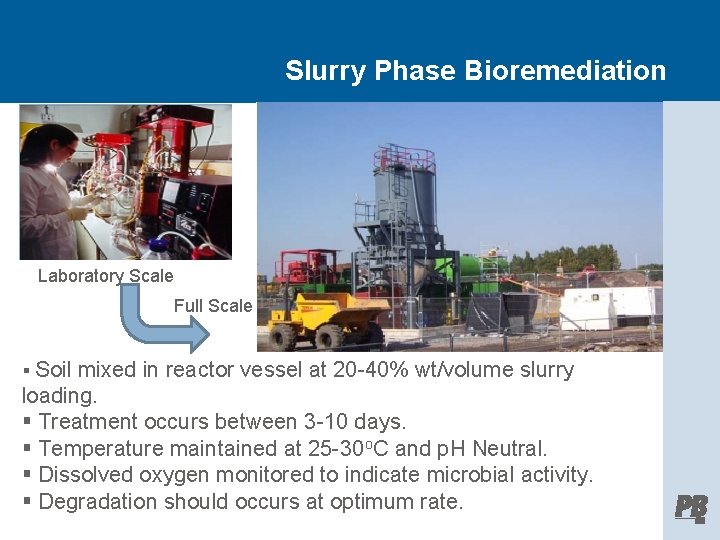

Slurry Phase Bioremediation Laboratory Scale Full Scale § Soil mixed in reactor vessel at 20 -40% wt/volume slurry loading. § Treatment occurs between 3 -10 days. § Temperature maintained at 25 -30 o. C and p. H Neutral. § Dissolved oxygen monitored to indicate microbial activity. § Degradation should occurs at optimum rate.

Slurry Phase Biodegradation Soil is mixed and aerated intensively in a water phase, suspending soil particles. Bacteria form biofilm on slurry particle. Slurry particle coated in organic contaminant Diffusion of contaminants (PAH) into the aqueous phase and absorption by bacteria, Contaminants then degraded. Bacteria (planktonic) within the water phase will also degrade dissolved contaminants.

Bioslurry Reactor – Example Performance Data Contaminant Total Polycyclic Aromatic Hydrocarbons Fraction Solids fines overall Starting material 422 5910 Treated Material 245 % biodegraded 42 Total Petroleum Hydrocarbons, Benzo(a)Pyrene Solids fines overall solids fines overall 1412 43 606 145 6314 88393 21116 882 361 19 115 36 6313 13375 7590 85 75 56 81 75 0 85 64 § Bioslurry reactors are, energy intensive, technically complex and fraught with engineering problems. § Best suited for the treatment of fines from soil washing or fine grained sands or clays which are contaminated with compounds which are not easily biodegraded.
