Magnetotactic • Magnetosome – Crystalline particles of iron oxide or sulfide – Magnetite Fe 3 O 4 – Greigite Fe 3 S 4 • All are either obligate microaerophiles or strict anaerobes • Motile, aquatic bacteria • Direction of motility is affected by the Earth’s geomagnetic field • Strains are either north- or south-seeking depending upon oxic conditions – North-seekers predominate in the northern hemisphere – South-seekers predominate the southern hemisphere – Exist in equal numbers at the equator • Current hypothesis states that these bacteria use the geomagnetic field to locate lower O 2 or anaerobic habitats 2

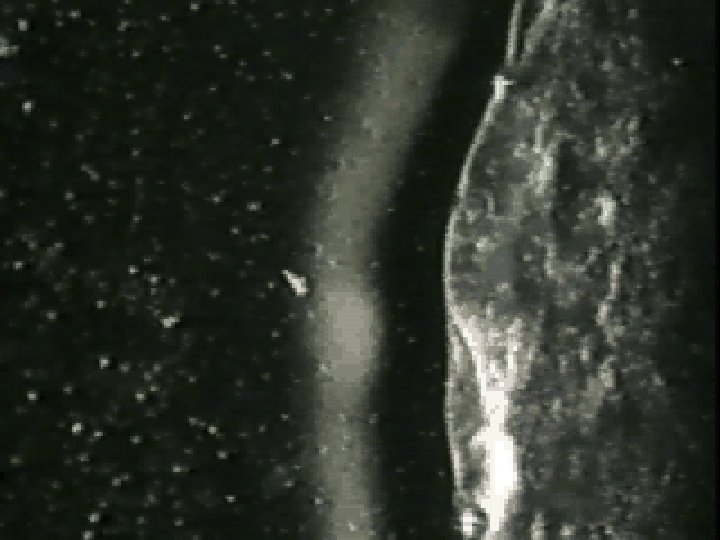

Types of magnetotaxis
Types of magneto-aerotaxis
There are Two Types of Magnetoaerotaxis. . . Axial Magnetoaerotaxis e. g. , Magnetospirillum magnetotacticum Polar Magnetoaerotaxis e. g. , strain MC-1, a magnetotactic coccus 5
Magnetite Crystals Produced by Magnetotactic Bacteria The MS-1 Genome From http: //www. soton. ac. uk/~serg/biotech/mtb-main. htm Bertani, Weko, Phillips, Gray & Kirschvink, Physical and genetic characterization of the Genome of Magnetosprillum Magnetotacticum, Strain MS-1, Gene 264: 257 -263, 2001
Global Swimming Preferences of Magnetotactic The equator has Bacteria North-Seeking in the Northern Hemisphere (Blakemore, 1975) N Pelau Equator S small numbers of both N- and S-seekers (Frankel et al. , 1981; Chang & Kirschvink, 1989) South-Seeking in the Southern Hemisphere (Kirschvink, 1980) These bugs use the geomagnetic field as an up/down indicator at redox gradients. Other bugs use tumblerun random walks.
The Kalmijn-Blakemore (‘ 78) Pulseremagnetization Experiment Start with Northseeking bacteria In a weak biasing Field (~50 u. T) Hit with a sharp, antiparallel pulse exceeding Hc North South 100 m. T magnetic pulse! + = The remagnetized bacteria roll over and start swimming to the South … North South

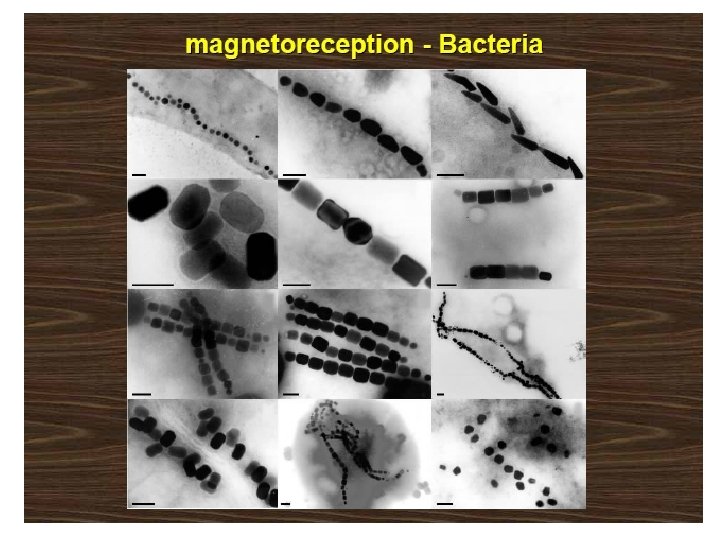

Typical Bacterial Magnetosomes (Courtesy of H. Vali)
3 D Imaging of Bacterial Magnetosomes Buseck et al. , PNAS 98, 13490 -13495, 2001
Higher Animals Also Have Magnetosomes Salmon Magnetosome Chains Human Brain Magnetite (Mann, Sparks, Walker & Kirschvink, 1988) (Kirschvink, Kobayashi & Woodford, 1992)
MV-1 and Magnetofossils
Biologically Important Features of Magnetosomes: (Darwinian Selection for Magnetic Properties!!!) • • Size & Shapes with the Single-Domain field Elongation of the ultrafine crystals Orienting [111] axis along length Truncation of ends. Exclusion of Trace Metal Impurities Perfect Crystal Lattice Alignment in chains of similarly-sized particles
Al l SD Insi St de t Fie abi he ld lity Particle Elongation [111] Alignment ally mic Che ure P Part i Cha cle ins Truncated Xtl Ends Seven Criteria for Identifying Magnetofossils* l ta s ry C ct tice a t In Lat *All 7 of these act to maximize the magnetic moment at the cellular level; however, not all magnetofossils will plot in the center
Magnetosomes show the effect of Natural Selection for their magnetic properties. They are just the right size to be perfect biological bar magnets. Any bacterium that makes crystals outside the SD field will die!
Magnetosome Elongation by the Magnetotactic Bacteria Octahedral to Centrosymmetric Hexagonal Prisms (vibroid and coccoid cells) _ _ (111) _ (111) __ _ (111) (011) (111) _ (111) _ _ _ (111) _ (011) _ __ (111) Cubo-Octahedral to Elongated Cubo-Octahedral (1 (1 11 (0 ) 00 10 (1 ) ) 11 ) (1 (1 11 (0 ) 00 ) (1 11 ) (1 00 ) 10 ) (11 1) (0 10 ) (1 11 )

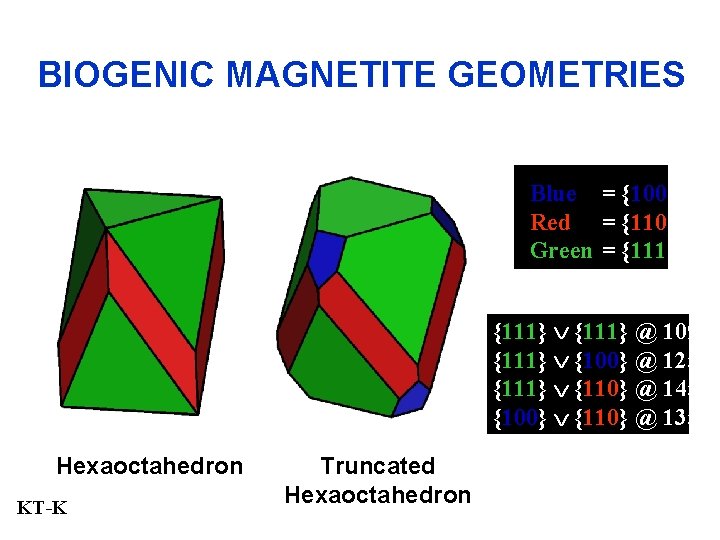

BIOGENIC MAGNETITE GEOMETRIES Blue = {100} Red = {110} Green = {111} @ 109° {111} {100} @ 125° {111} {110} @ 145° {100} {110} @ 135° Hexaoctahedron KT-K Truncated Hexaoctahedron
Why should the bacteria truncate the ends of their magnetosomes? Because sharp edges produce magnetic ‘Flower Structures’, which warp the internal magnetization directions. Putting those iron atoms in the next crystal increases the magnetic moment of the cells! See Fabian et al. , GJI 124: 89 -104, 1996; Newell & Merrill JGR 105: 19377 -19391)
A PDF file for this model is available on the Magnetofossil home page At Caltech www. gps. caltech. edu/users/jkirschvink/ magnetofossil. html 111 100 110
Iron Uptake & Purification in the Magnetotactic Bacteria
Biomineralisation of Fe

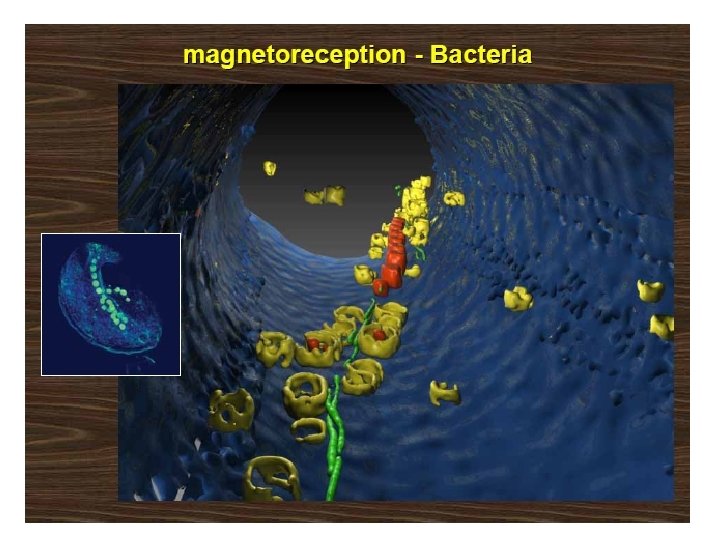

Magnetotactic Bacteria • Electron cryotomography of Magnetospirillum magneticum sp. AMB-1 reveals that magnetosomes are invaginations of the inner membrane. (A) General features of AMB-1 cells highlighted in a 12 -nm-thick section of an ECT reconstruction. Outer membrane, OM; inner membrane, IM; peptidoglycan layer, PG; ribosomes, R; outer membrane bleb, B; chemoreceptor bundle, CR; poly-ß-hydroxybutyrate granule, PHB; gold fiduciary marker, G; magnetosome chain, MG. Scale bar, 500 nm. (B to E) Representative magnetosomes containing no magnetite (B), small (C), mediumsized (D), and fully-grown (E) crystals are invaginations of the inner membrane. Scale bar, 50 nm.
• Magnetosome chains are flanked by long cytoskeletal filaments. (A) Larger view of the magnetosome chain in Fig. 1 A. (B) Similar view of a magnetosome chain grown in the absence of iron, which prevents the formation of magnetite crystals. Arrows point to the long filaments. (C) Three-dimensional organization of magnetosomes (yellow) and their associated filaments (green) shown in (B) with respect to the whole cell (blue). Scale bars, 100 nm.
Bakterielle Magnetosomer TEM image of two Itaipu-1 cocci. Each bacterium has two chains of magnetosomes (arrows) and two phosphorus-rich globules (P). Scale bar, 1 μm.
High-resolution TEM images of Itaipu-1 magnetosomes with indexed bars parallel to lattice planes. Obvious symmetries between even the very small facets on opposite sides of the crystal diagonals can be seen. Comparison with other crystals of the chain in Fig. 2 also indicates that this symmetry regularly alternates between crystals.
(A) Electrostatic contribution to the holographic phase shift from the Itaipu magnetosomes shown in Fig. 2, oriented to a [110] projection. The contours represent the projected thickness and show a flat-topped morphology and steep sides. (B) Projected thickness contours for the same crystals after tilting by 30° about the chain axis to a [211] orientation. The contours show that the crystal is much thicker along its center than along its edges, having a central ridge formed by intersecting faces. (C) Line profiles (solid line for panel A and dashed line for panel B) across the magnetosomes from the indicated positions (arrows), converted to values of onehalf their thickness, reveal a 120° angle between the facets for the [211] projection, which is consistent with the intersection of [110] faces. Scale bar, 150 nm (panels A and B).
• TEM images of Itaipu-1 and Itaipu-3 magnetosomes. (A) Chain of large magnetosomes from magnetotactic bacterial strain Itaipu-1 surrounded by smaller, elongated magnetosomes from strain Itaipu-3. The inset is a [211] diffraction pattern from the second large Itaipu-1 crystal (arrow). (B) Same chain as in panel A tilted 30 o about the [111] axis. The inset [110] diffraction pattern from the second large Itaipu-1 crystal shows (111) fringes from the magnetically easy axis. Corner faces {111} and {200} are mirrored about the vertical (or horizontal) axis for alternating crystals (double arrows); see detailed image in Fig. 3. Scale bar, 200 nm.
Tomographic reconstruction of a magnetite nanocrystal from an undescribed coccus collected from Sweet Springs Nature Reserve, Morro Bay, CA, reconstructed from a tilt series of STEM HAADF images obtained at 300 k. V on a Philips CM 300 FEG TEM over a range of ± 56°. The tableau shows the three-dimensional morphology of the crystal viewed from a range of directions.
Magnetosome Element Analysis
Cu-Fe Analysis

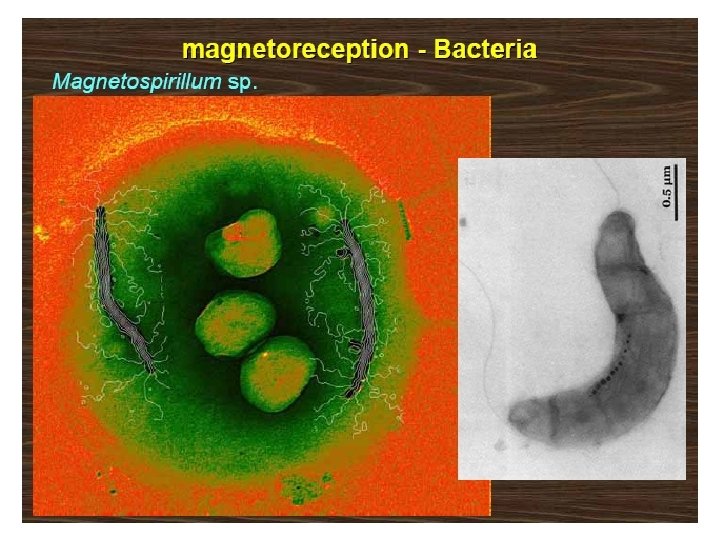

Magnetosomes
Magnetosome crystal morphology
• Mam. K, a homolog of the bacterial actin-like protein Mre. B, forms filaments in vivo. (A) Phylogenetic relationship between Mam. K and other bacterial actin-like proteins demonstrated by an unrooted tree. These proteins separate into three distinct groups: Mam. K (green), Par. M/Stb. A (red) and Mre. B (blue). (B) Mam. K fused to GFP (green) appears to form filaments in vivo localized to the inner curvature of the cell (cell membrane stained red with FM 4 -64).
• Mam. K is required for the proper organization of the magnetosome chain. (A) Three-dimensional reconstruction of a wild-type AMB-1 cell. The cell membrane (gray), magnetosome membrane (yellow), magnetite (orange), and magnetosome-associated filaments (green) are rendered. (B) mam. K mutant, where magnetosomes appear disordered and no filaments are found in their vicinity. (C) mam. K cell expressing mam. K-GFP on a plasmid showing full reversal of the mutant phenotype.
Magnetosome membrane proteins
Comparative genome analysis
Magnetotaxis genes
Mam gene regulation in Cells
Magnetosome membrane
Magnetosome membrane protein
Biotechnological applications • • • Delivery systems Separation systems DNA arrays RNA arrays Thermo treatment Sensor systems
Applications of Magnetosome particles
