BIOMECHANICS OF WORK The Musculoskeletal System Bones muscle

BIOMECHANICS OF WORK

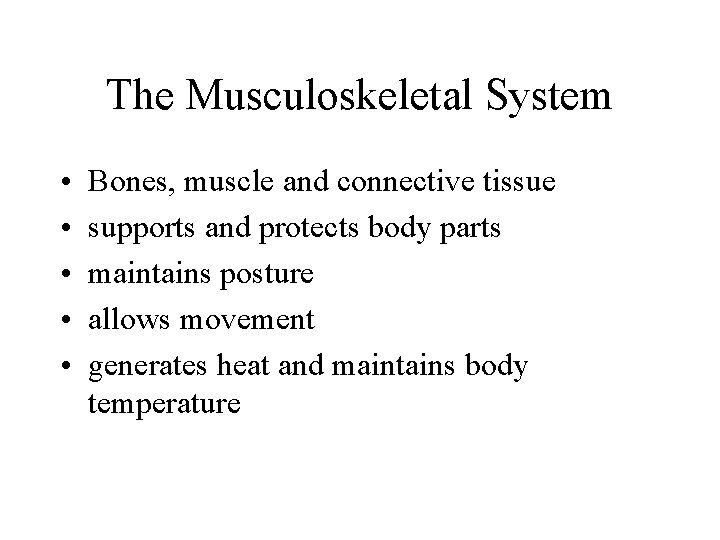

The Musculoskeletal System • • • Bones, muscle and connective tissue supports and protects body parts maintains posture allows movement generates heat and maintains body temperature

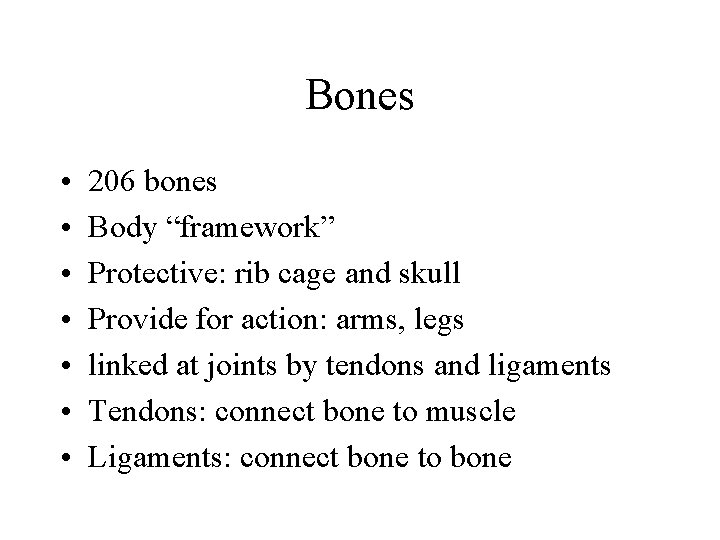

Bones • • 206 bones Body “framework” Protective: rib cage and skull Provide for action: arms, legs linked at joints by tendons and ligaments Tendons: connect bone to muscle Ligaments: connect bone to bone

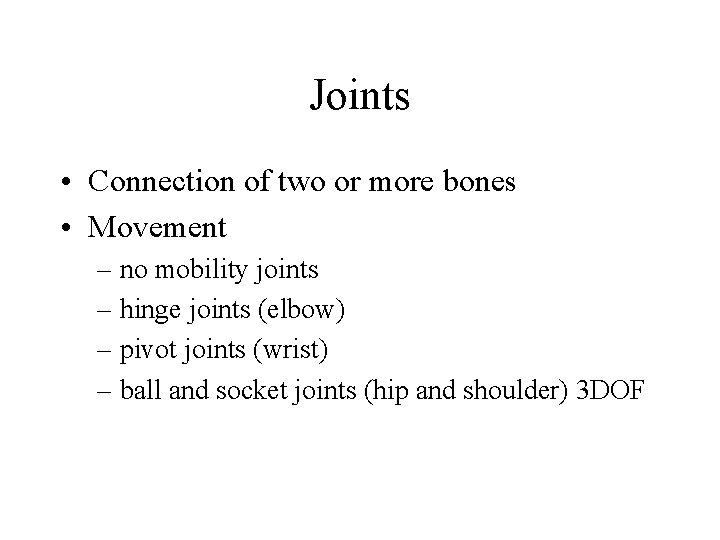

Joints • Connection of two or more bones • Movement – no mobility joints – hinge joints (elbow) – pivot joints (wrist) – ball and socket joints (hip and shoulder) 3 DOF

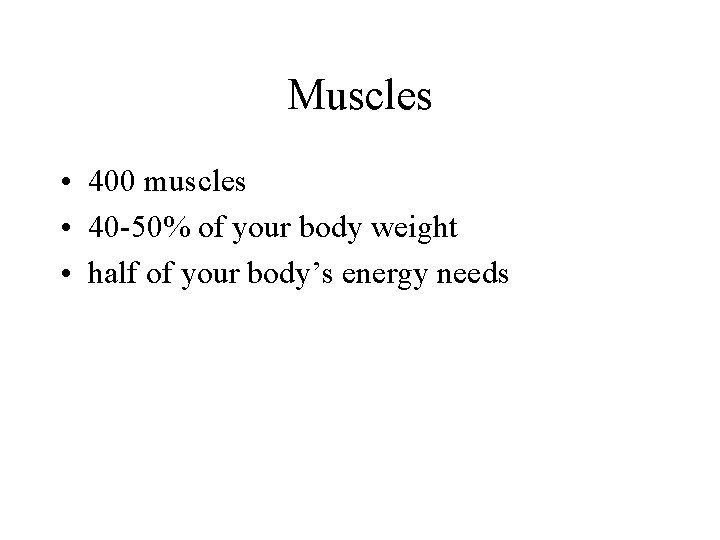

Muscles • 400 muscles • 40 -50% of your body weight • half of your body’s energy needs

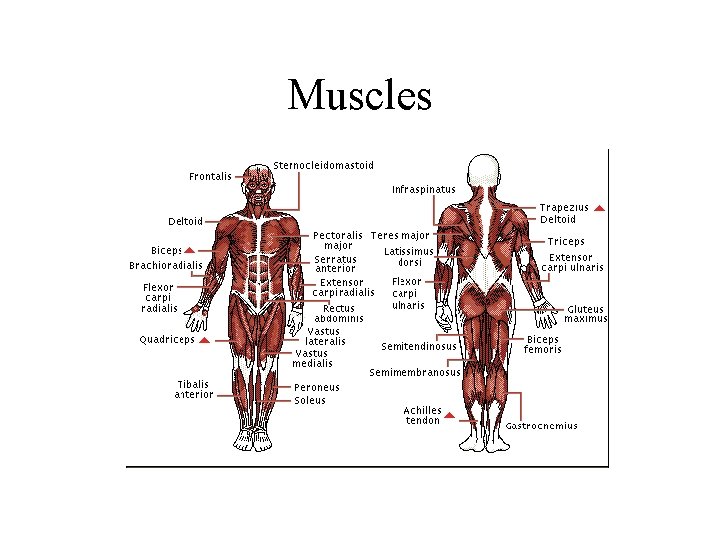

Muscles

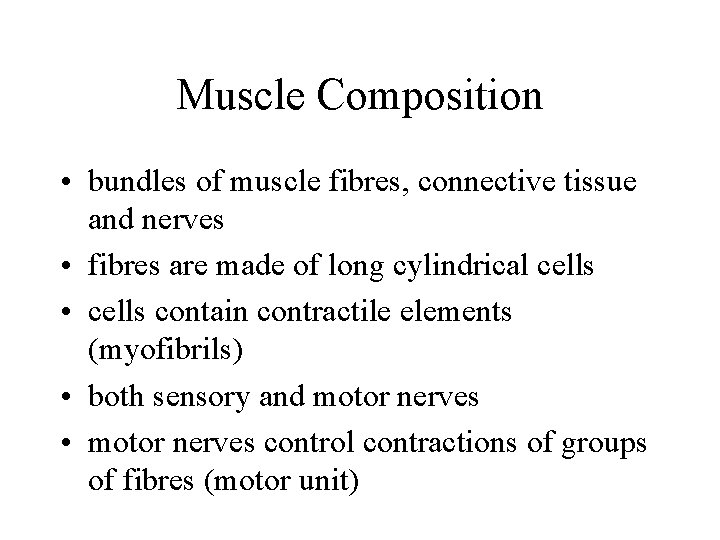

Muscle Composition • bundles of muscle fibres, connective tissue and nerves • fibres are made of long cylindrical cells • cells contain contractile elements (myofibrils) • both sensory and motor nerves • motor nerves control contractions of groups of fibres (motor unit)

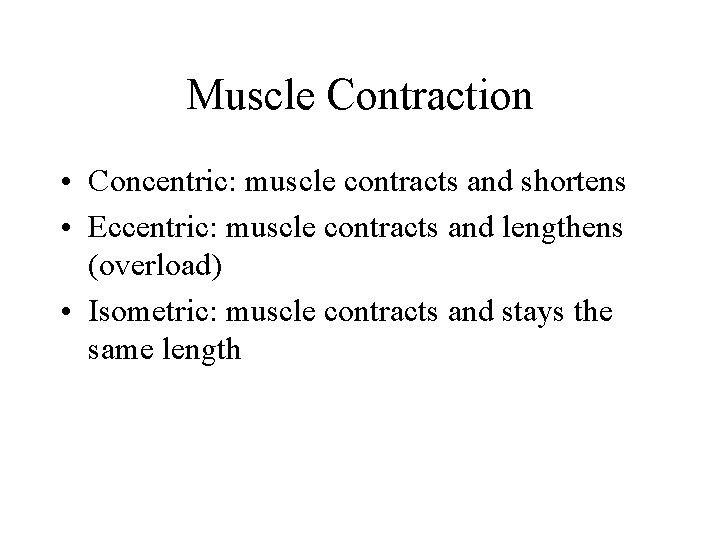

Muscle Contraction • Concentric: muscle contracts and shortens • Eccentric: muscle contracts and lengthens (overload) • Isometric: muscle contracts and stays the same length

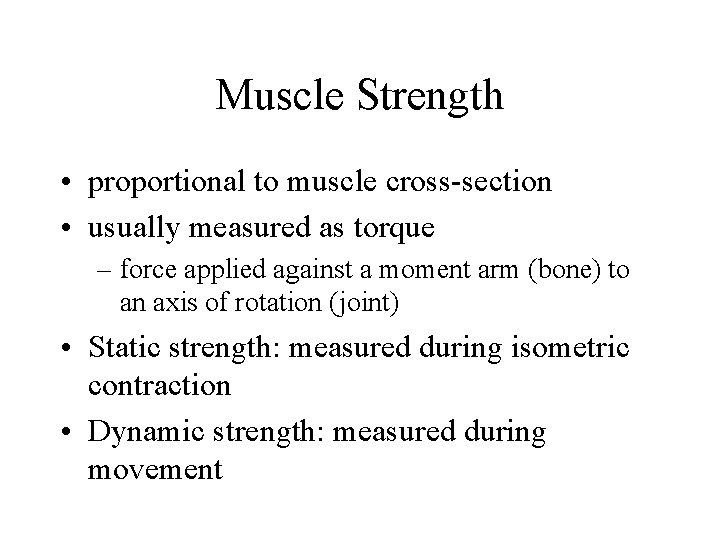

Muscle Strength • proportional to muscle cross-section • usually measured as torque – force applied against a moment arm (bone) to an axis of rotation (joint) • Static strength: measured during isometric contraction • Dynamic strength: measured during movement

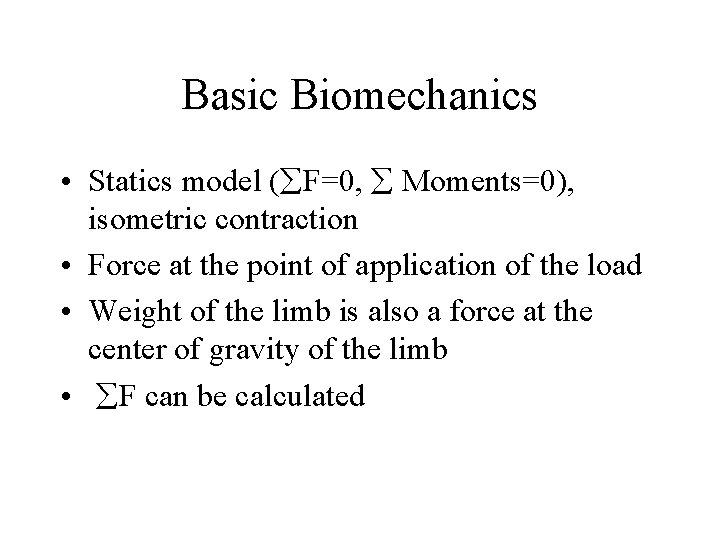

Basic Biomechanics • Statics model (åF=0, å Moments=0), isometric contraction • Force at the point of application of the load • Weight of the limb is also a force at the center of gravity of the limb • åF can be calculated

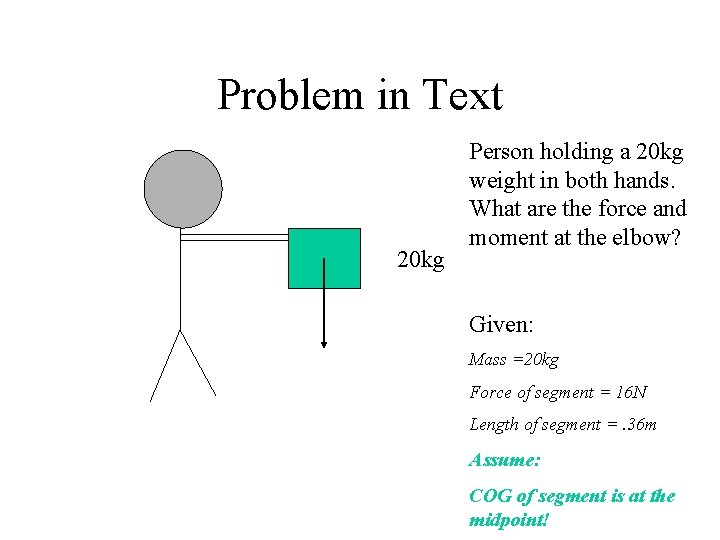

Problem in Text 20 kg Person holding a 20 kg weight in both hands. What are the force and moment at the elbow? Given: Mass =20 kg Force of segment = 16 N Length of segment =. 36 m Assume: COG of segment is at the midpoint!

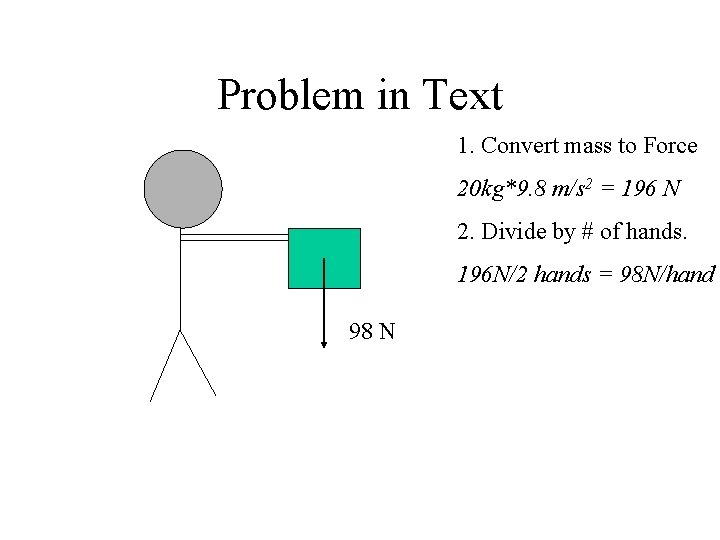

Problem in Text 1. Convert mass to Force 20 kg*9. 8 m/s 2 = 196 N 2. Divide by # of hands. 196 N/2 hands = 98 N/hand 98 N

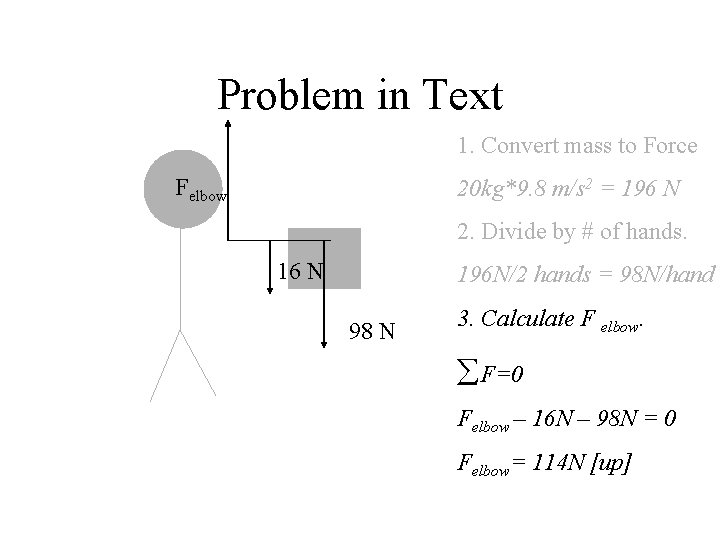

Problem in Text 1. Convert mass to Force Felbow 20 kg*9. 8 m/s 2 = 196 N 2. Divide by # of hands. 16 N 196 N/2 hands = 98 N/hand 98 N 3. Calculate F elbow. åF=0 Felbow – 16 N – 98 N = 0 Felbow= 114 N [up]

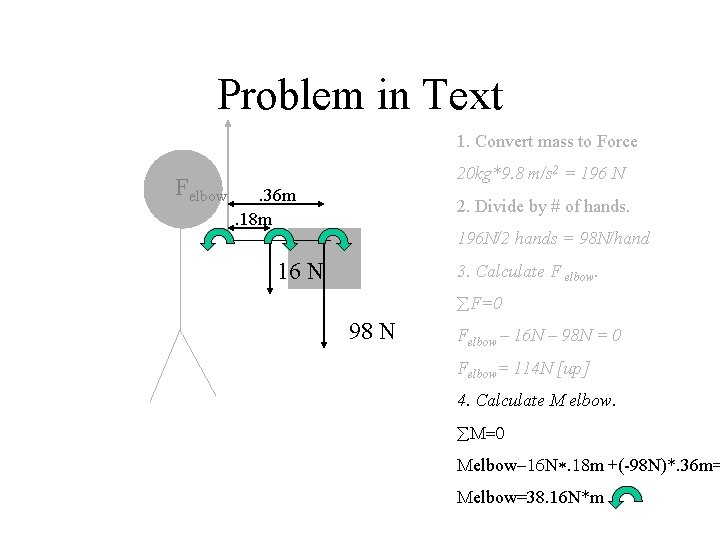

Problem in Text 1. Convert mass to Force Felbow 20 kg*9. 8 m/s 2 = 196 N. 36 m. 18 m 2. Divide by # of hands. 196 N/2 hands = 98 N/hand 16 N 3. Calculate F elbow. åF=0 98 N Felbow – 16 N – 98 N = 0 Felbow= 114 N [up] 4. Calculate M elbow. åM=0 Melbow-16 N*. 18 m +(-98 N)*. 36 m= Melbow=38. 16 N*m

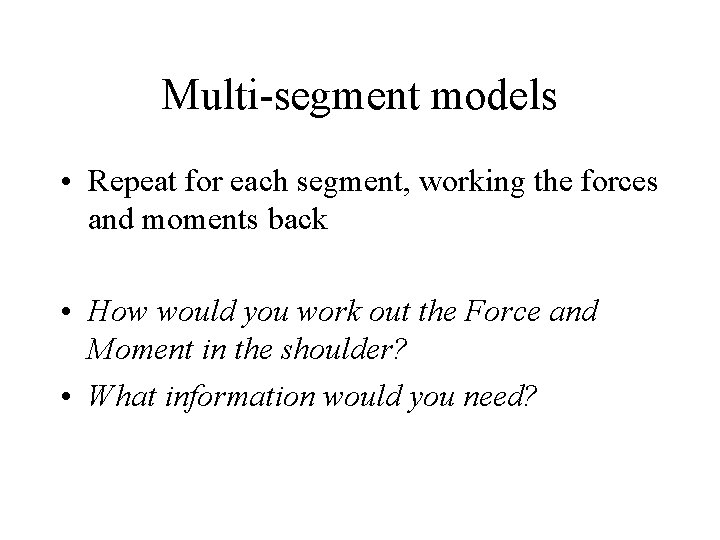

Multi-segment models • Repeat for each segment, working the forces and moments back • How would you work out the Force and Moment in the shoulder? • What information would you need?

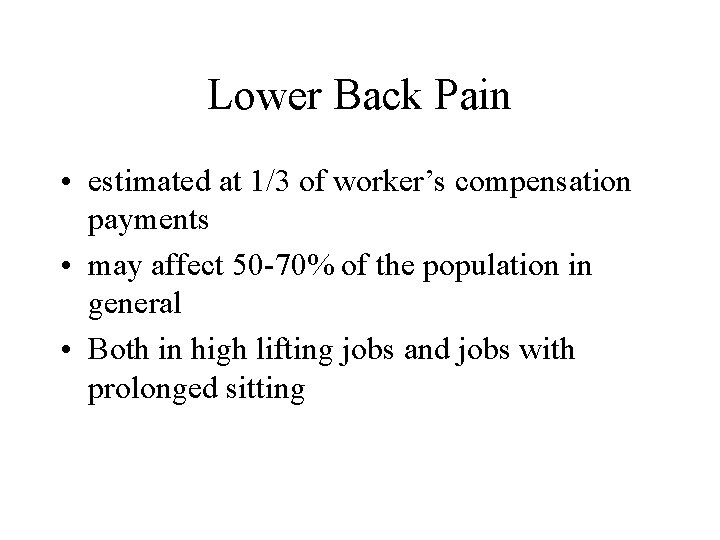

Lower Back Pain • estimated at 1/3 of worker’s compensation payments • may affect 50 -70% of the population in general • Both in high lifting jobs and jobs with prolonged sitting

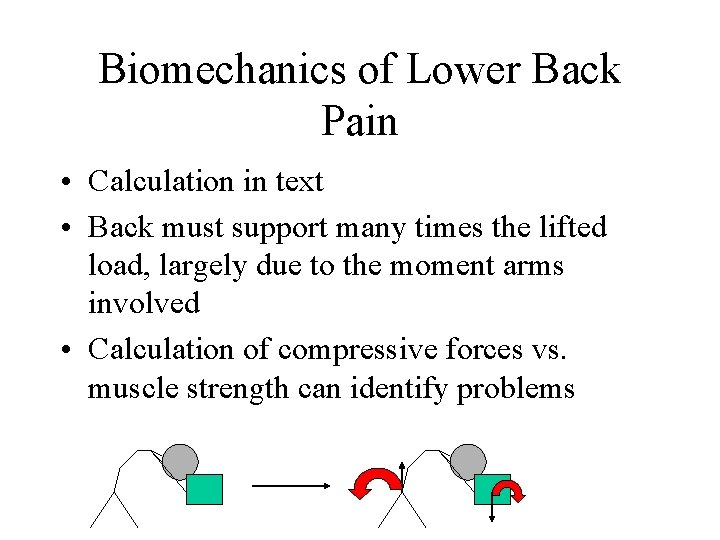

Biomechanics of Lower Back Pain • Calculation in text • Back must support many times the lifted load, largely due to the moment arms involved • Calculation of compressive forces vs. muscle strength can identify problems

NIOSH Lifting Guide • Sets numbers that are associated with risk of back injury • Two limits (single lifts) – Action limit (AL): small proportion of the population may experience increased risk of injury – Maximum permissible limit (MPL): Most people would experience a high risk of injury. 3 x. AL

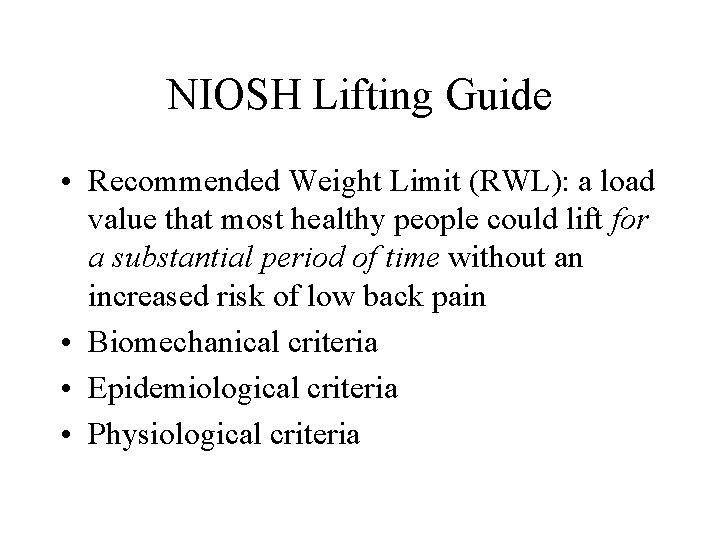

NIOSH Lifting Guide • Recommended Weight Limit (RWL): a load value that most healthy people could lift for a substantial period of time without an increased risk of low back pain • Biomechanical criteria • Epidemiological criteria • Physiological criteria

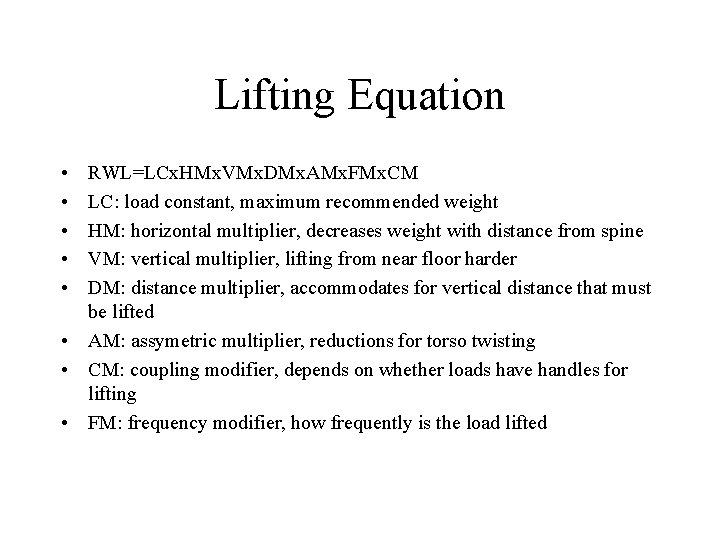

Lifting Equation • • • RWL=LCx. HMx. VMx. DMx. AMx. FMx. CM LC: load constant, maximum recommended weight HM: horizontal multiplier, decreases weight with distance from spine VM: vertical multiplier, lifting from near floor harder DM: distance multiplier, accommodates for vertical distance that must be lifted • AM: assymetric multiplier, reductions for torso twisting • CM: coupling modifier, depends on whether loads have handles for lifting • FM: frequency modifier, how frequently is the load lifted

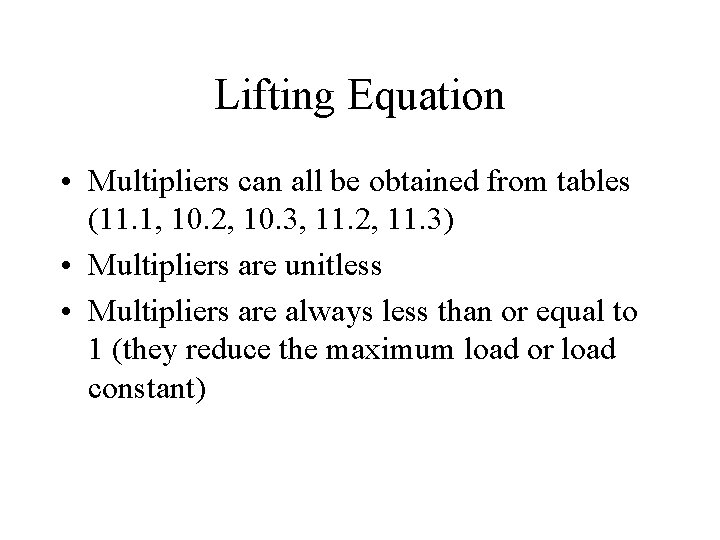

Lifting Equation • Multipliers can all be obtained from tables (11. 1, 10. 2, 10. 3, 11. 2, 11. 3) • Multipliers are unitless • Multipliers are always less than or equal to 1 (they reduce the maximum load or load constant)

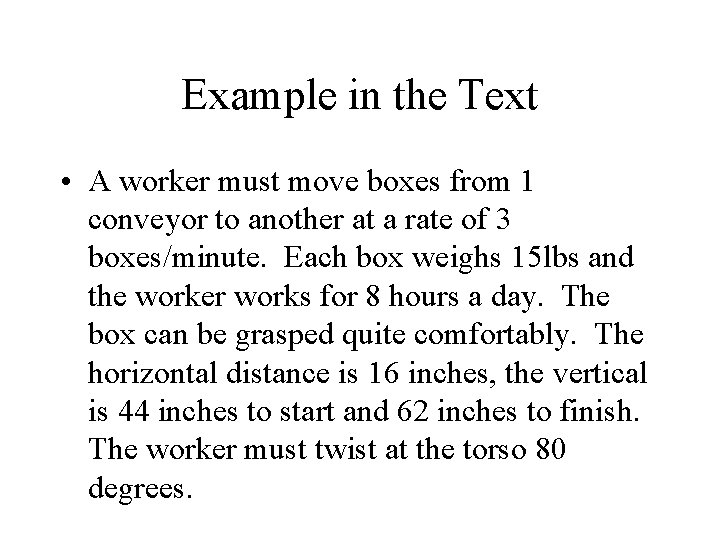

Example in the Text • A worker must move boxes from 1 conveyor to another at a rate of 3 boxes/minute. Each box weighs 15 lbs and the worker works for 8 hours a day. The box can be grasped quite comfortably. The horizontal distance is 16 inches, the vertical is 44 inches to start and 62 inches to finish. The worker must twist at the torso 80 degrees.

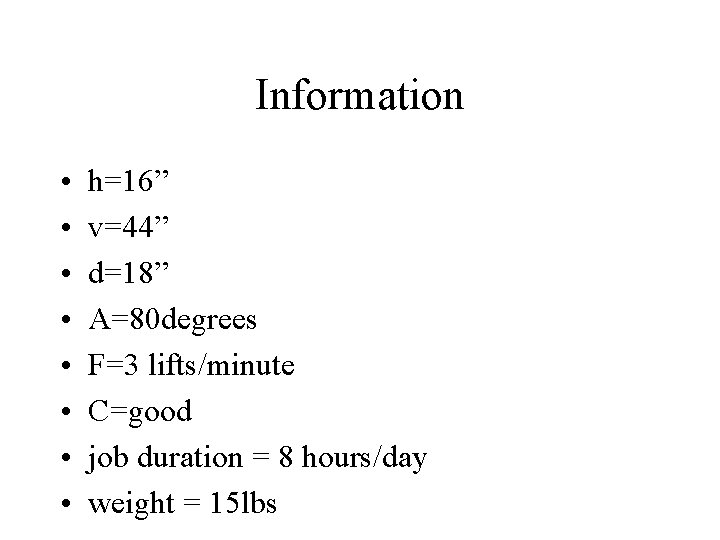

Information • • h=16” v=44” d=18” A=80 degrees F=3 lifts/minute C=good job duration = 8 hours/day weight = 15 lbs

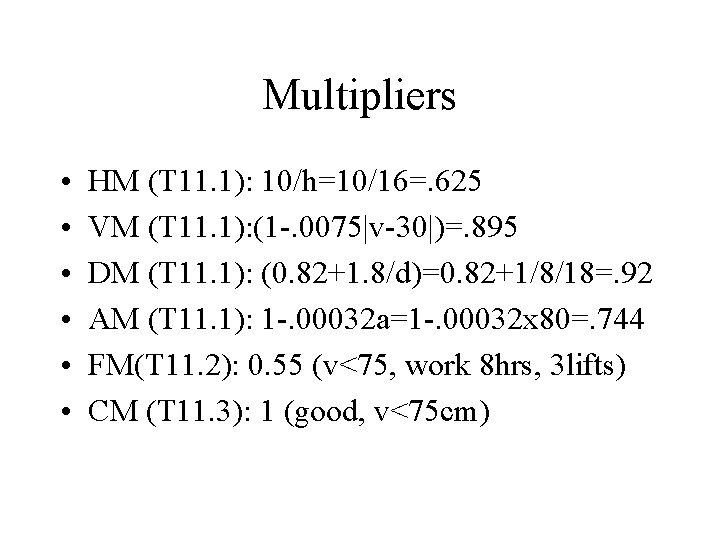

Multipliers • • • HM (T 11. 1): 10/h=10/16=. 625 VM (T 11. 1): (1 -. 0075|v-30|)=. 895 DM (T 11. 1): (0. 82+1. 8/d)=0. 82+1/8/18=. 92 AM (T 11. 1): 1 -. 00032 a=1 -. 00032 x 80=. 744 FM(T 11. 2): 0. 55 (v<75, work 8 hrs, 3 lifts) CM (T 11. 3): 1 (good, v<75 cm)

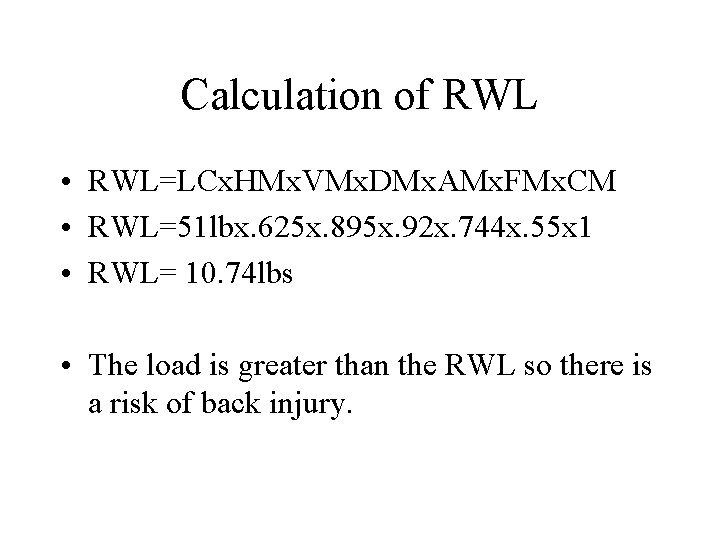

Calculation of RWL • RWL=LCx. HMx. VMx. DMx. AMx. FMx. CM • RWL=51 lbx. 625 x. 895 x. 92 x. 744 x. 55 x 1 • RWL= 10. 74 lbs • The load is greater than the RWL so there is a risk of back injury.

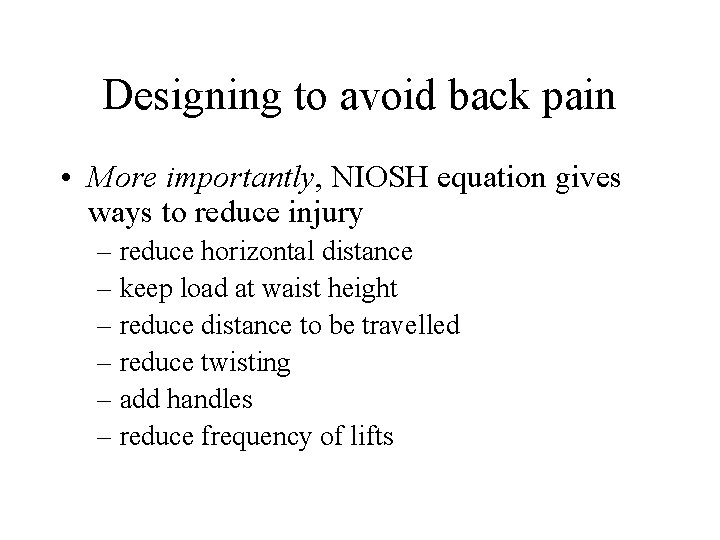

Designing to avoid back pain • More importantly, NIOSH equation gives ways to reduce injury – reduce horizontal distance – keep load at waist height – reduce distance to be travelled – reduce twisting – add handles – reduce frequency of lifts
