BIOLOGY CONCEPTS CONNECTIONS Fourth Edition Neil A Campbell

BIOLOGY CONCEPTS & CONNECTIONS Fourth Edition Neil A. Campbell • Jane B. Reece • Lawrence G. Mitchell • Martha R. Taylor CHAPTER 9 Patterns of Inheritance Modules 9. 11 – 9. 23 From Power. Point® Lectures for Biology: Concepts & Connections Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

VARIATIONS ON MENDEL’S PRINCIPLES The relationship of genotype to phenotype is rarely simple • Mendel’s principles are valid for all sexually reproducing species – However, often the genotype does not dictate the phenotype in the simple way his principles describe Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

1. Incomplete dominance results in intermediate phenotypes • When an offspring’s phenotype—such as flower color— is in between the phenotypes of its parents, it exhibits incomplete dominance P GENERATION White rr Red RR Gametes R r Pink Rr F 1 GENERATION 1/ 1/ Eggs 1/ F 2 GENERATION 2 2 2 R 1/ 2 r R 1/ Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings R Red RR r Pink Rr Sperm 1/ Pink r. R White rr Figure 9. 12 A 2 2 r

• Incomplete dominance in human hypercholesterolemia GENOTYPES: HH Homozygous for ability to make LDL receptors Hh Heterozygous hh Homozygous for inability to make LDL receptors PHENOTYPES: LDL receptor Cell Normal Mild disease Figure 9. 12 B Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings Severe disease

2. Many genes have more than two alleles in the population • In a population, multiple alleles often exist for a characteristic – The three alleles for ABO blood type in humans is an example Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

– 3. Codominance--The alleles for A and B blood types are codominant, and both are expressed in the phenotype Blood Group (Phenotype) Genotypes O ii Anti-A Anti-B A IA IA or IA i Anti-B B IB IB or IB i Anti-A AB IA IB Antibodies Present in Blood Figure 9. 13 Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings Reaction When Blood from Groups Below Is Mixed with Antibodies from Groups at Left O A B AB

There at least 29 different blood groups including the ABO blood group. Copyright ©

The Calico Cat-codominance Calico coloring is a mix of phaeomelanin based colors (red) and eumelanin based color (black, chocolate and cinnamon). Cats of this coloration are believed to bring good luck in the folklore of many cultures. [1] The spotting gene causes white patches to cover the colored fur Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

Co-Dominance ---Both Alleles express themselves Copyright © 2003 Pearson Education, Inc. publishing as Benjamin

4. A single gene may affect many phenotypic characteristics • A single gene may affect phenotype in many ways – This is called pleiotropy – The allele for sickle-cell disease is an example Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

Individual homozygous for sickle-cell allele Sickle-cell (abnormal) hemoglobin Abnormal hemoglobin crystallizes, causing red blood cells to become sickle-shaped Sickle cells Clumping of cells and clogging of small blood vessels Breakdown of red blood cells Physical weakness Impaired mental function Anemia Heart failure Paralysis Pain and fever Brain damage Pneumonia and other infections Accumulation of sickled cells in spleen Damage to other organs Rheumatism Spleen damage Kidney failure Figure 9. 14 Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

5. A single characteristic may be influenced by many genes • This situation creates a continuum of phenotypes – Example: skin color Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

P GENERATION aabbcc AABBCC (very light) (very dark) F 1 GENERATION Eggs Sperm Fraction of population Aa. Bb. Cc Skin pigmentation F 2 GENERATION Figure 9. 16 Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

9. 15 Connection: Genetic testing can detect disease -causing alleles • Genetic testing can be of value to those at risk of developing a genetic disorder or of passing it on to offspring Figure 9. 15 B • Dr. David Satcher, former U. S. surgeon general, pioneered screening for sickle-cell disease • Thallasemia, Cystic Fibrosis, Tay Sachs, Figure 9. 15 A Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

Canavan Disease -- This condition is most common in people of Ashkenazi Jewish ancestry, with a carrier incidence of 1 in 40. Canavan disease is a central nervous system disease that is usually fatal in childhood, with a few people surviving to adulthood. This disease is the result of a substance that destroys the central nervous system over time. There is presently no effective treatment for Canavan disease. Fragile X Syndrome -- The Fragile X syndrome is not specific to a certain ethnic background. It is an inherited condition that can cause a range of intellectual and behavioral problems, from learning disabilities to mental retardation to autism. While Fragile X syndrome tends to be more severe in boys, it occurs in both males or females. It can be passed on to family members by individuals who have no signs of the syndrome. Review of your family history with a genetic counselor may help determine if Fragile X carrier testing is indicated. Sickle Cell Disease -- This condition is most common in persons of African-American, African, Mediterranean, Hispanic and South American ancestry, with the carrier risk ranging from 1/10 to 1/40, depending on your ethnic background. Sickle cell disease is caused by a variant hemoglobin that changes the shape of the red blood cells. This causes anemia, severe pain, a tendency toward infection, and other serious health problems. Frequent blood transfusions and infection preventing antibiotics are available treatment. Tay Sachs Disease -- People of both Ashkenazi Jewish and French Canadian ancestry have the greatest chance of being carriers of Tay Sachs disease, about 1/30 versus 1/250 in the general population. The disease results from a build up of certain substances in the brain, and is fatal in early childhood. There is presently no effective treatment for Tay Sachs disease. Thalassemia -- Individuals of Mediterranean, Southeast Asian and African ancestry have the greatest chance - 1 in 3 and 1 in 30, respectively -- of being carriers for thalassemia. In general, this group of blood disorders affects a person's ability to produce hemoglobins, the protein in our blood that carries oxygen and nutrients to all parts of the body. In severe cases, children with thalassemia may not survive. Others have anemia, bone growth problems and liver and spleen involvement. Blood transfusions may be needed for treatment. Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

Ethnic disorders continued • Cystic fibrosis (CF) is a progressive disorder that causes the body to produce an abnormally thick, sticky mucus which is present in the lungs and digestive system. There a variety of symptoms including frequent respiratory infections, poor weight gain, and progressive lung damage. Treatment of CF depends upon the stage of the disease and the organs involved. The condition is life shortening. The average of death is in the early 30's. Although CF is no more common among Ashkenazi Jews than it is among other caucasians, it is one of the most common genetic disorders among Jews and non-Jews alike. • Disease frequency: One in every 3, 200 live Caucasian births. Carrier frequency: Approximately 1 in 25 in Caucasians and similar frequency in those of Jewish ancestry. Diagnosis: By measuring amount of salt in sweat ("sweat test") or by testing the CF gene. Inheritance: Autosomal Recessive Carrier testing: Available by testing the CF gene. Prenatal diagnosis: Available by testing the CF gene Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

Prenatal diagnosis for couples testing positive after genetic testing • Chorionic villus sampling at 8 weeks of gestation. • Amniocentesis at 12 -18 weeks of gestation. • Pre-implantation genetic testing and In vitro fertilization Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

THE CHROMOSOMAL BASIS OF INHERITANCE 9. 17 Chromosome behavior accounts for Mendel’s principles • Genes are located on chromosomes – Their behavior during meiosis accounts for inheritance patterns Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

• The chromosomal basis of Mendel’s principles Figure 9. 17 Copyright © 2003

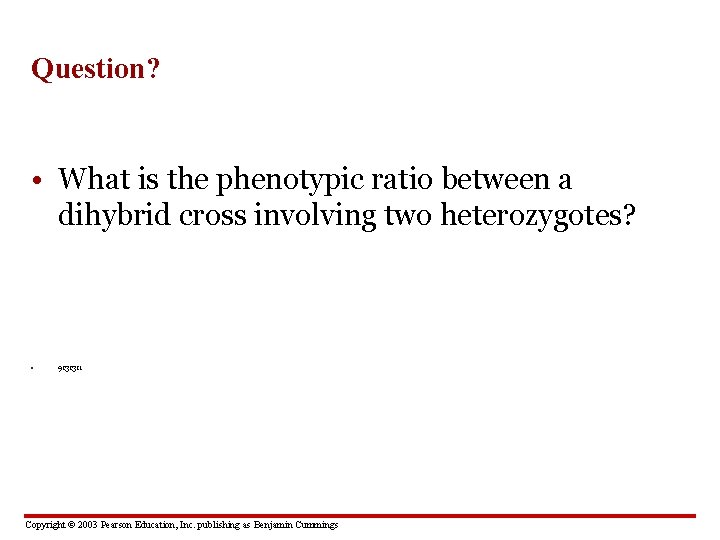

Question? • What is the phenotypic ratio between a dihybrid cross involving two heterozygotes?

9. 18 Genes on the same chromosome tend to be inherited together • Certain genes are linked – They tend to be inherited together because they reside close together on the same chromosome When would they not be inherited together? Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

If you cross Pp. Ll x Pp. Ll, what Phenotypic ratio do you expect? When the organism was selved or self pollinated, most of the progeny looked like the parent but the 9: 3: 3: 1 ratio was not realized!! Linked genes were then suspected. Figure 9. 18 Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

9. 19 Crossing over produces new combinations of alleles • This produces gametes with recombinant chromosomes • The fruit fly Drosophila melanogaster was used in the first experiments to demonstrate the effects of crossing over Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

When you cross a di-hybrid heterozygote with a homozygous recessive, you expect a ¼ distribution of each potential phenotype. Gg. Ll X ggll When this particular cross was performed, this was not the case. Most of the organisms resembled the parents. A few had the independently assorted phenotypes. What had occurred is that genes for body color and wing type were on the same chromosome (linked) and in some gametes, crossing over did occur, but in most gamestes, G and L were linked as were g and l. Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings Figure 9. 19 C

Crossing Over and Linkage Is crossing over more likely to occur between genes that are close together or farther apart? Does crossing over comply with Mendel’s Law of Independent Assortment? Law of Segregation? Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

9. 20 Geneticists use crossover data to map genes • Crossing over is more likely to occur between genes that are farther apart – Recombination frequencies can be used to map the relative positions of genes on chromosomes. – Determine the location of g and c and l on the chromosome. Recombination frequency between g and c is 9%, between c and l is 9. 5%, and between g and l is 17%. Chromosome g c l 17% 9% Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings 9. 5% Figure 9. 20 B

answer • Answer: 3. 6% recombination • 3. 6 map units • 3. 6

• In corn C (colored) is dominant to c (colorless) and for the endosperm (part of seed where food is stored for embryo) Full (F) is dominant to shrunken (f). When an Cc. Ff was test crossed, the results were as follows: • Colored, full 4032 • colored, shrunken 149 • Colorless, full 152 • Colorless, shrunken 4035 • What do you expect if the genes are not linked? Cc. Ff x ccff? 1: 1: 1: 1 • We got 27: 1: 1: 27 Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

• The Chinese primrose-slate color (s) is recessive to blue (S), red stigma(r) is recessive to green stigma (R), and long style (l) is recessive to short style (L). All three genes are on the same chromosome. The F 1 of a cross of true breeding strains, was test crossed and gave the following: • Slate, green, short 27 • Slate, red, short 85 • Blue, red short 402 • Slate, red, long 977 • Slate, green, long 427 • Blue, green, long 95 • Blue, green, short 960 • Blue, red , long 27 • Total 3000 Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

Answer the following questions: • What were the genotypes of the parents in the cross of the two true-breeding strains? • Make a map of the genes, showing gene order and distance between them. • Answer: hum? ? ? ? ? Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

• slate (s) red (r) long (l) • Blue (S) Green (R) short (L) • Ss. Rr. Ll x ssrrll Expect 1: 1: 1: 1 If not expect crossing over. • To determine placement of genes on chromosomes: – Inspect for highest frequencies for parental phenotypes. (NO crossing over) – Inspect for other phenotypes to show single and double crossing over. (Lowest # is double crossing over) – Determine position of genes on chromosome. The gene that has changed position relative to the other two is the central (observe double cross overs only). – Designate regions I and II and calculate crossing over in those regions. Add all combinations in each region (both single cross over and double) to determine cross over frequency in that region. Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

• Blue, Green, Short and slate, red, long are parental phenotypes • Blue, red, long and slate, Green, Sort are the double crossovers. • Flower color (Blue vs slate)has changed position relative to stigma and style. “S: is in the middle. Rsl and RSL • Region I ---Rsl and r. SL + Rs. L and r. Sl = 427 + 402 + 27 = 883/3000 = 29. 43% • Region II ---RSl and rs. L + Rs. L and r. Sl = 95 + 85 + 27 = 234/3000 = 7. 8% • Thus, R--------S-----L • Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

answer • Between r and s the distance is 29. 4 map units •

• Alfred H. Sturtevant, seen here at a party with T. H. Morgan and his students, used recombination data from Morgan’s fruit fly crosses to map genes Figure 9. 20 A Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

• A partial genetic map of a fruit fly chromosome Mutant phenotypes Short aristae Black body (g) Long aristae (appendages on head) Gray body (G) Cinnabar eyes (c) Red eyes (C) Vestigial wings (l) Brown eyes Normal wings (L) Red eyes Wild-type phenotypes Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings Figure 9. 20 C

SEX CHROMOSOMES AND SEX-LINKED GENES 9. 21 Chromosomes determine sex in many species • A human male has one X chromosome and one Y chromosome • A human female has two X chromosomes • Whether a sperm cell has an X or Y chromosome determines the sex of the offspring Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

(male) (female) Parents’ diploid cells X Y Male Sperm Egg Offspring (diploid) Figure 9.

• Other systems of sex determination exist in other animals and plants – The X-O system – The Z-W system – Chromosome number Figure 9. 21 B-D Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

9. 22 Sex-linked genes exhibit a unique pattern of inheritance • All genes on the sex chromosomes are said to be sex-linked – In many organisms, the X chromosome carries many genes unrelated to sex – Fruit fly eye color is a sex-linked characteristic Figure 9. 22 A Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

– Their inheritance pattern reflects the fact that males have one X chromosome and females have two – These figures illustrate inheritance patterns for white eye color (r) in the fruit fly, an X-linked recessive trait Female X RX R Male Xr. Y XR Female X RX r Xr X RX r Male X RY Xr X RX R Xr. XR X RY Xr Y R = red-eye allele r = white-eye allele Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings Male X RX r Xr. Y XR XR Y Female XR Y Xr Xr X RX r Xr. Xr Y X RY Xr Y Figure 9. 22 B-D

9. 23 Connection: Sex-linked disorders affect mostly males • Most sex-linked human disorders are due to recessive alleles – Examples: hemophilia, red-green color blindness – These are mostly seen in males Figure 9. 23 A – A male receives a single X-linked allele from his mother, and will have the disorder, while a female has to receive the allele from both parents to be affected Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

• A high incidence of hemophilia has plagued the royal families of Europe Albert Queen Victoria Alice Louis Alexandra Czar Nicholas II of Russia Alexis Figure 9. 23 B Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings
