BIOLOGY CONCEPTS CONNECTIONS Fourth Edition Neil A Campbell

BIOLOGY CONCEPTS & CONNECTIONS Fourth Edition Neil A. Campbell • Jane B. Reece • Lawrence G. Mitchell • Martha R. Taylor CHAPTER 15 Tracing Evolutionary History Modules 15. 1 – 15. 5 From Power. Point® Lectures for Biology: Concepts & Connections Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

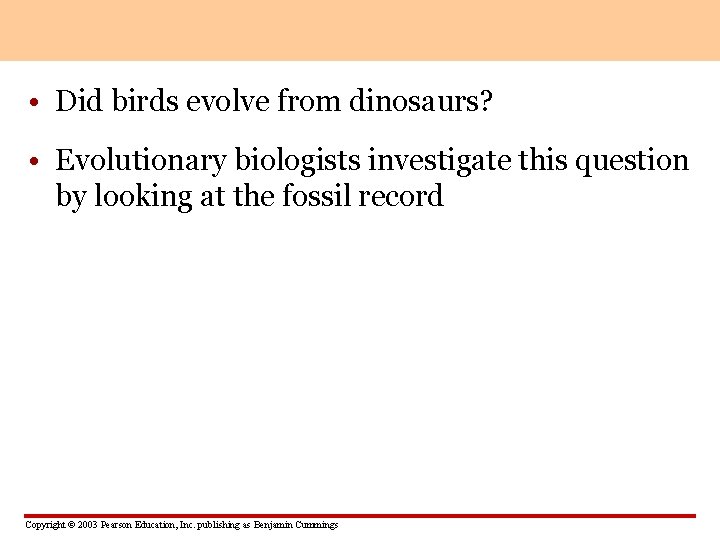

Are Birds Really Dinosaurs with Feathers? • Did birds evolve from dinosaurs? • Evolutionary biologists investigate this question by looking at the fossil record Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

• The fossil of the earliest known bird, Archeaopteryx, was discovered in 1861 • Fossils of dinosaurs with feathers may support the birddinosaur theory Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

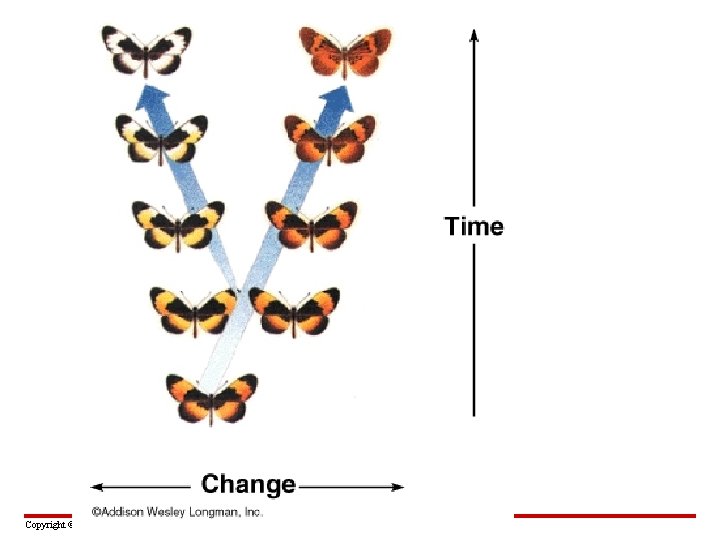

Divergent Evolution Similar species develop different adaptations to different environments Copyright © 2003 Pearson

Coevolution • Two or more species adapting to each other Copyright © 2003 Pearson

Rate of Evolution Slow and Steady or in Spurts? Gradualism – the idea that small changes build Gradualism up slowly over time to produce large changes. Expectations – many intermediate “missing many link” fossils Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

Punctuated Equilibrium The idea that populations go through periods of stability followed by short periods of rapid change. Expectations – fewer intermediate fossils Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

EARTH HISTORY AND MACROEVOLUTION 15. 1 The fossil record chronicles macroevolution • Macroevolution consists of the major changes in the history of life – The fossil record chronicles these changes, which have helped to devise the geologic time scale Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

Figure 15. 1 Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

15. 2 The actual ages of rocks and fossils mark geologic time • The sequence of fossils in rock strata indicates the relative ages of different species • Radiometric dating can gauge the actual ages of fossils Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

Dating How do scientists determine the relative age of a fossil? Stratification Radiometric dating

Stratification The deeper strata (layers) were deposited first. Fossils found in lower layers are

Radiometric Dating Isotopes – atoms with a different mass than usual Half life – the time required for half of the isotopes to decay. Carbon 14 – half life 5730 yrs Potassium 40 – half life 1. 25 billion years Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

C-14 isotope levels. Expect 100 g of C-14 in a fresh sample, A. Remains have 50 g. ½ of amount = one half-life 5, 730 years old B. Remains have only 25 g ¼ of amount or ½ of ½ = 2 half-lives 11, 460 years old C-14 Limited to about 50, 000 years Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

15. 3 Continental drift has played a major role in macroevolution • Continental drift is the slow, incessant movement of Earth’s crustal plates on the hot mantle Eurasian Plate North American Plate African Plate Pacific Plate Nazca Plate South American Plate Split developing Antarctic Plate Indo-Australian Plate Edge of one plate being pushed over edge of neighboring plate (zones of violent geologic events) Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings Figure 15. 3 A

Continental Drift Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings Africa India South America ali tr us a A Antarctica Laurasia MESOZOIC PALEOZOIC – Separation of continents caused the isolation and diversification of organisms a eric Eurasia m th A Nor Millions of years ago – Continental mergers triggered extinctions CENOZOIC • This movement has influenced the distribution of organisms and greatly affected the history of life Go nd w an a ea ga n a P Figure 15. 3 B

Lung. Fish • http: //www. google. com/#hl=en&sugexp=les% 3 B&gs_rn=4&gs_ri=psyab&gs_mss=archeaopteryx&pq=archaeopteryx &cp=5&gs_id=9 x&xhr=t&q=lungfish&es_nrs= true&pf=p&sclient=psyab&oq=lungf&gs_l=&pbx=1&bav=on. 2, or. r_gc. r_pw. r_qf. &bvm=bv. 42965579, d. b 2 I&fp=dcb 7 caf 6882243 e 1&biw=1351&bih=652 Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

• Continental drift explains the distribution of lungfishes – Lungfishes evolved when Pangaea

NORTH AMERICA ASIA EUROPE AFRICA SOUTH AMERICA AUSTRALIA = Living lungfishes = Fossilized lungfishes

15. 4 Connection: Tectonic trauma imperils local life • Plate tectonics, the movements of Earth’s crustal plates, are also associated with volcanoes and earthquakes – California’s San Andreas fault is a boundary between two crustal plates San Andreas fault San Francisco Santa Cruz Los Angeles Figure 15. 4 A Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

• By forming new islands, volcanoes can create opportunities for organisms – Example: Galápagos • But volcanic activity can also destroy life – Example: Krakatau, Mount Vesuvius – Pompeii, Roman Empire (now Italy) – 79 Figure 15. 4 B, C Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

15. 5 Mass extinctions were followed by diversification of life-forms • At the end of the Cretaceous period, many lifeforms disappeared, including the dinosaurs – These mass extinctions may have been a result of an asteroid impact or volcanic activity Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

? Cretaceous extinctions 90 million years ago 80 70 65 60 Figure 15. 5

• Every mass extinction reduced the diversity of life – But each was followed by a rebound in diversity – Mammals filled the void left by the dinosaurs Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

15. 6 Key adaptations may enable species to proliferate after mass extinctions • Adaptations that have evolved in one environmental context may be able to perform new functions when conditions change – Example: Plant species with catch basins, an adaptation to dry environments Figure 15. 6 Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

15. 7 “Evo-devo: ” Genes that control development play a major role in evolution • “Evo-devo” is a field that combines evolutionary and developmental biology • Major adaptations may arise rapidly if mutations occur in genes that control an organism’s early development Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

• Paedomorphosis, the retention of juvenile characteristics in the adult, seems to have played a role in human evolution Figure 15. 7 A, B Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings Chimpanzee fetus Chimpanzee adult Human fetus Human adult

• Stephen Jay Gould argued that there was a connection between our juvenile physical traits and our long period of dependency – The youthful features of Mickey Mouse elicit affectionate, parental responses Figure 15. 7 C Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

15. 8 Evolutionary trends do not mean that evolution is directed toward a goal • Evolutionary trends may reflect unequal speciation or survival of species on a branching evolutionary tree Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

Figure 15. 8 Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

15. 9 Phylogenetic trees strive to represent evolutionary history • Phylogeny is the evolutionary history of a group of organisms Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

Cactus ground finch Medium ground finch Large ground finch Small Large cactus ground finch Small tree finch Vegetarian finch Medium tree finch Large tree finch Woodpecker finch Mangrove finch Green Gray warbler finch Sharp-beaked ground finch Seed eaters Cactus flower eaters Bud eaters Ground finches Insect eaters Tree finches Warbler finches Common ancestor from South America mainland Figure 15. 9 Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

Molecular Clocks • A molecular clock compares the similarity in a certain gene to

Over view • 4 Types of evidence for macroevolution – Fossil Records – Anatomy / structure – Development / Embryology – Molecular Evidence Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

SYSTEMATICS AND PHYLOGENETIC BIOLOGY 15. 10 Systematists classify organisms by phylogeny • Reconstructing phylogeny is part of systematics – the study of biological diversity and classification • Taxonomists assign a two-part name to each species – The first name, the genus, covers a group of related species – The second name refers to a species within a genus Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

Taxonomy • Taxonomy – the classification of living things Copyright © 2003 Pearson Education,

Classification of Living Things Carol Linnaeus – (1707 -1778) Genus species Binomial nomenclature Bi – 2 nom – name nomenclature – naming Canis lupus – gray wolf Latin – universal language of scholars Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

Hierarchy of Classification Kingdom Phylum Class Order Family Genus Species Copyright © 2003 Pearson

Remembering the order Kingdom King Phylum Phillip Class Came Order Over Family From Genus

Taxonomy of the Grizzly Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

Taxa Human (Domain) Eukarya Kingdom Animalia Phylum Chordata (vertebrates) Class Mammalia Order Primate Family Pongidae --- pun ga dee Genus Homo species Homo sapiens Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

• Genera are grouped into progressively larger categories Table 15. 10 Copyright ©

• Taxonomists often debate the particular placement of organisms in categories as they strive to make their categories reflect evolutionary relationships Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

Felis catus (domestic cat) Mephitis mephitis (striped skunk) Lutra lutra (European otter) GENUS Felis Mephitis Lutra FAMILY Felidae SPECIES ORDER Mustelidae Canis familiaris (domestic dog) Canis lupus (wolf) Canis Canidae Carnivora Figure 15. 10 Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

15. 11 Homology indicates common ancestry, but analogy does not • Homologous structures are evidence that organisms have evolved from a common ancestor Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

15. 11 Homology indicates common ancestry, but analogy does not • In contrast, analogous similarities are evidence that organisms from different evolutionary lineages have undergone convergent evolution – Their resemblances have resulted from living in similar environments Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

Convergent Evolution Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

• California ocotillo and allauidia of Madagascar Figure 15. 11 Copyright © 2003

15. 12 Molecular biology is a powerful tool in systematics • Systematists increasingly use molecular techniques to – classify organisms Human Chimpanzee Gorilla Orangutan – develop phylogenetic hypotheses Figure 15. 12 B Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

• A phylogenetic tree based on molecular data Brown bear Polar bear Asiatic black bear American black bear Sun bear Sloth bear Spectacled Giant panda bear Lesser Raccoon panda Miocene Pleistocene Pliocene Oligocene Ursidae Procyonidae Common ancestral carnivorans Figure 15. 12 A Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

15. 13 Systematists attempt to make classification consistent with phylogeny • Homologous features are used to compare organisms • Cladistic analysis attempts to define monophyletic taxa Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

Cladogram • A diagram that shows the relationships among members of a group hair Preorbital fenestra Amniotic egg 4 limbs Bony skeleton Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings vertebrae

Derived Character • A trait that appears in the newer members of a group,

TAXA Outgroup (Reptiles) Eastern box turtle Ingoup (Mammals) Duck-billed platypus Red kangaroo North American beaver CHARACTERS Long gestation Gestation Hair, mammary glands Vertebral column Long gestation 3 Gestation 2 Hair, mammary glands 1 Vertebral column Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings Figure 15. 13 A

• Cladistic analysis is often a search for the simplest hypotheses about phylogeny – Phylogenetic tree according to cladistic analysis – Phylogenetic tree according to classical systematics Lizards Snakes Crocodiles Birds Figure 15. 13 B, C Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings

THE DOMAINS OF LIFE 15. 14 Arranging life into kingdoms is a work in progress • For several decades, systematists have classified life into five kingdoms MONERA PROTISTA PLANTAE Earliest organisms Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings FUNGI ANIMALIA Figure 15. 14 A

• A newer system recognizes two basically distinctive groups of prokaryotes – The domain Bacteria – The domain Archaea • A third domain, the Eukarya, includes all kingdoms of eukaryotes BACTERIA Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings ARCHAEA EUKARYA Earliest organisms Figure 15. 14 B

Domain Bacteria Achaea Eukarya Kingdom Eubacteria Archae bacteria Protista Fungi Plantae Animalia Nucleus No No Yes Yes Multicellular / Specialized cells No No Yes Yes Cell wall composition Peptide Pseudomurein ----- Chitin Cellulose None Auto Hetero troph Both Copyright © 2003 Pearson Education, Inc. publishing as Benjamin Cummings Both Hetero Auto Hetero
