Biology 201 Dr. Edwin De. Mont Humans: Walking and Running St. Francis Xavier University

Terrestrial movement A variety of energy saving mechanisms have evolved. Legged (2 or 4) terrestrial locomotion is metabolically expensive. (Why? ) Mechanisms are very different, depending on the gait of locomotion. Human walking and running gaits are very different, and thus save energy in different ways. St. Francis Xavier University

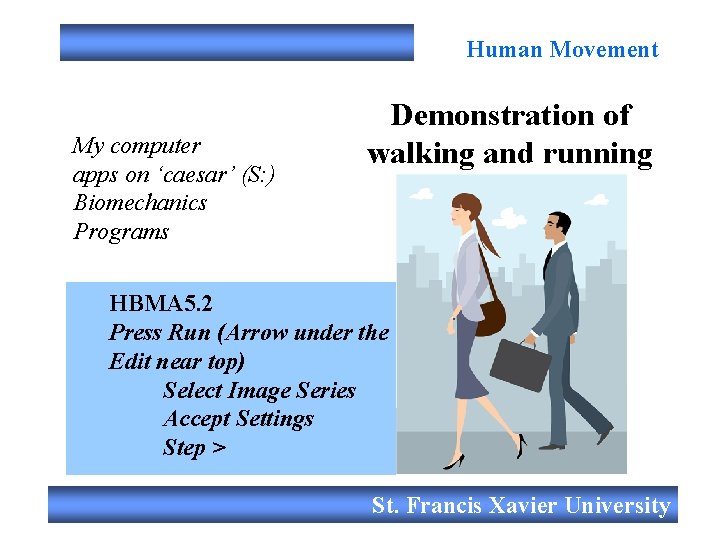

Human Movement My computer apps on ‘caesar’ (S: ) Biomechanics Programs Demonstration of walking and running HBMA 5. 2 Press Run (Arrow under the Edit near top) Select Image Series Accept Settings Step > St. Francis Xavier University

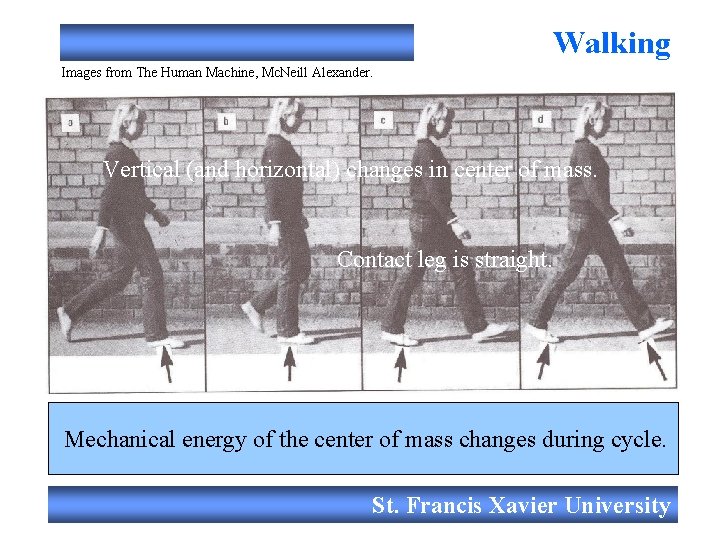

Walking Images from The Human Machine, Mc. Neill Alexander. Filmed live Vertical (and horizontal) changes in center of mass. Contact leg is straight. Mechanical energy of the center of mass changes during cycle. St. Francis Xavier University

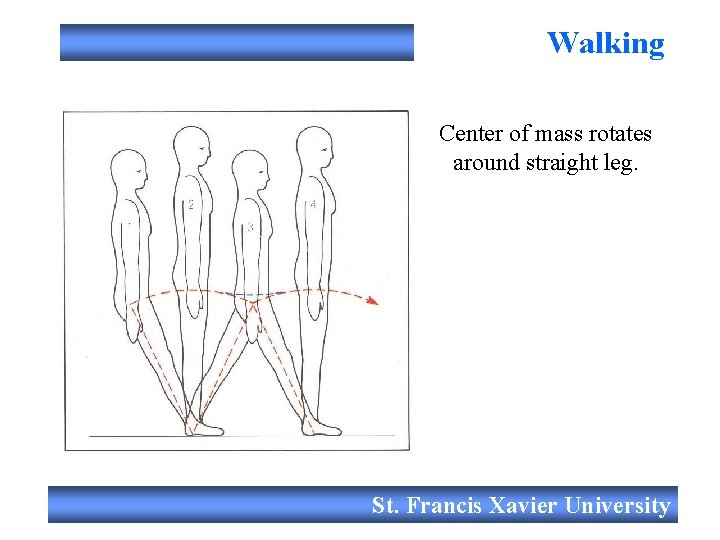

Walking Filmed live Center of mass rotates around straight leg. St. Francis Xavier University

Walking Center of mass and support leg look like an innervated pendulum. Mechanical energy changes in a pendulum similar to a human walking. St. Francis Xavier University

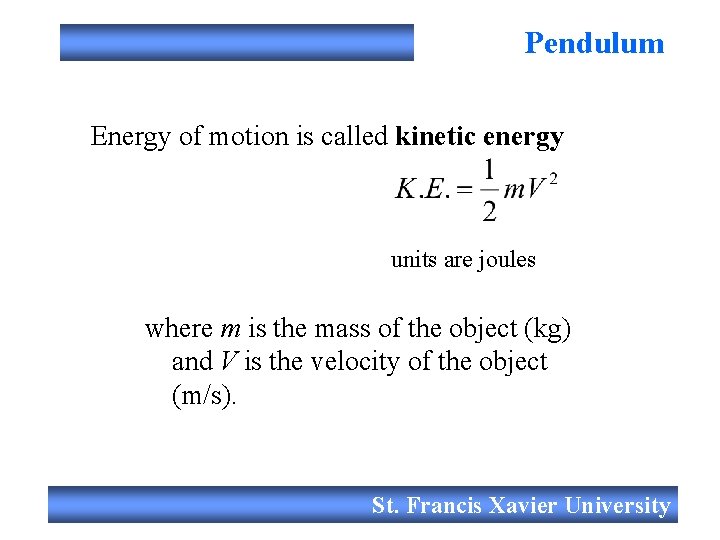

Pendulum Energy of motion is called kinetic energy units are joules where m is the mass of the object (kg) and V is the velocity of the object (m/s). St. Francis Xavier University

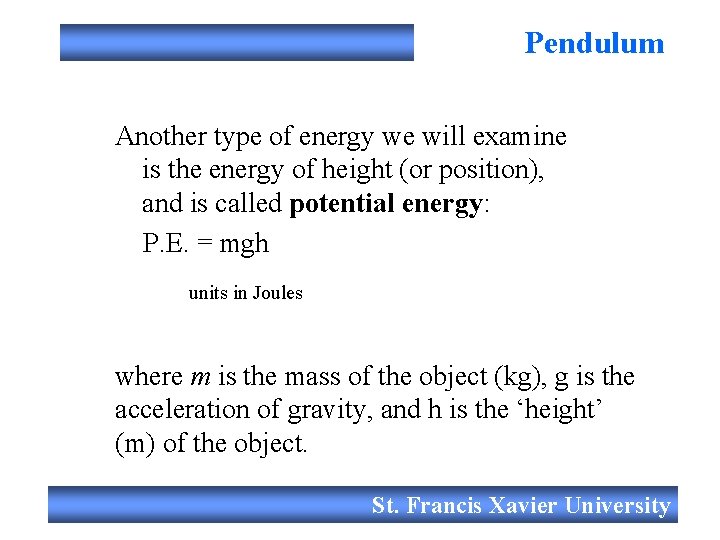

Pendulum Another type of energy we will examine is the energy of height (or position), and is called potential energy: P. E. = mgh units in Joules where m is the mass of the object (kg), g is the acceleration of gravity, and h is the ‘height’ (m) of the object. St. Francis Xavier University

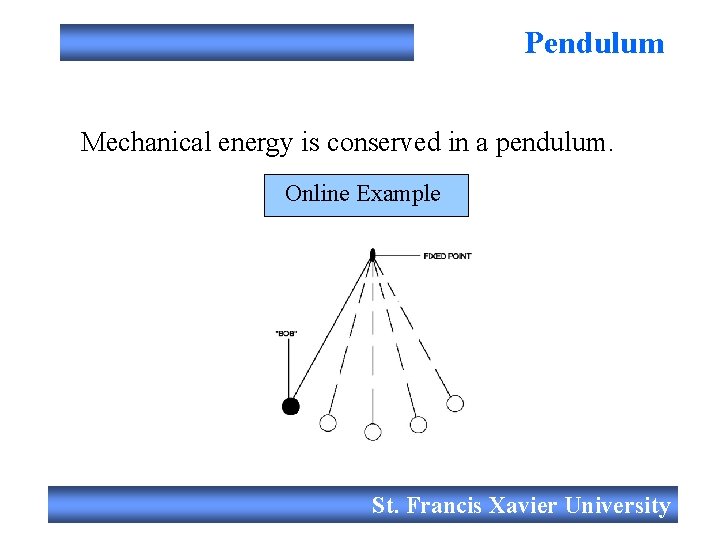

Pendulum Mechanical energy is conserved in a pendulum. Online Example St. Francis Xavier University

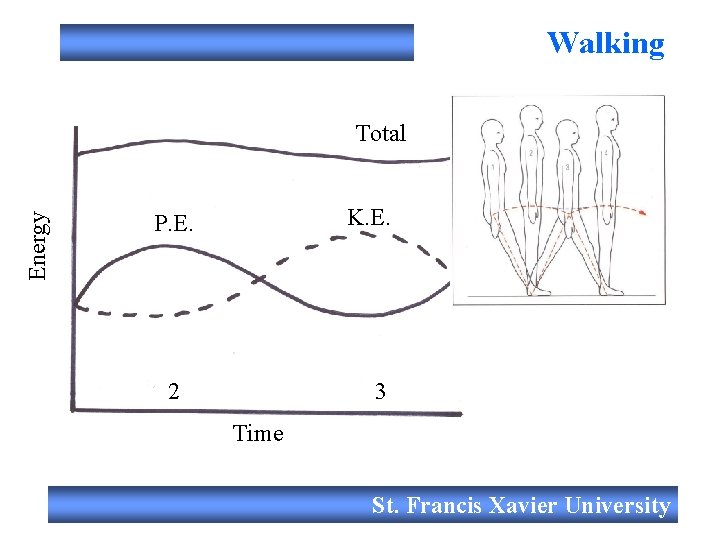

Walking Energy Total K. E. P. E. 2 3 Time St. Francis Xavier University

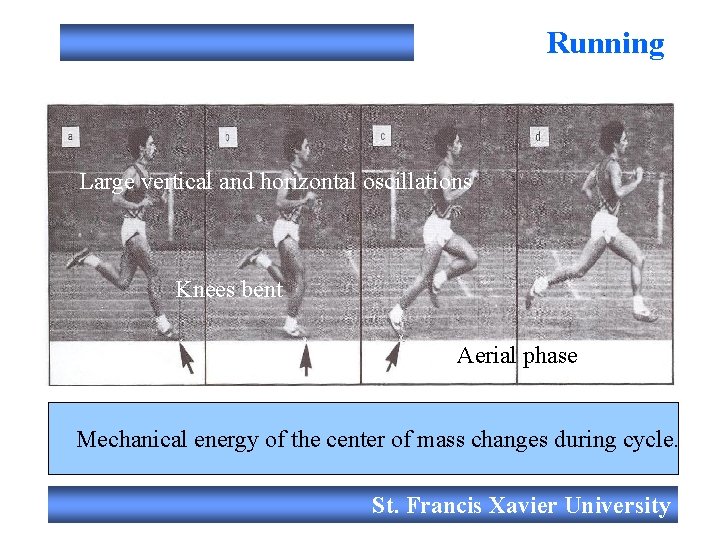

Running Filmed live Large vertical and horizontal oscillations Knees bent Aerial phase Mechanical energy of the center of mass changes during cycle. St. Francis Xavier University

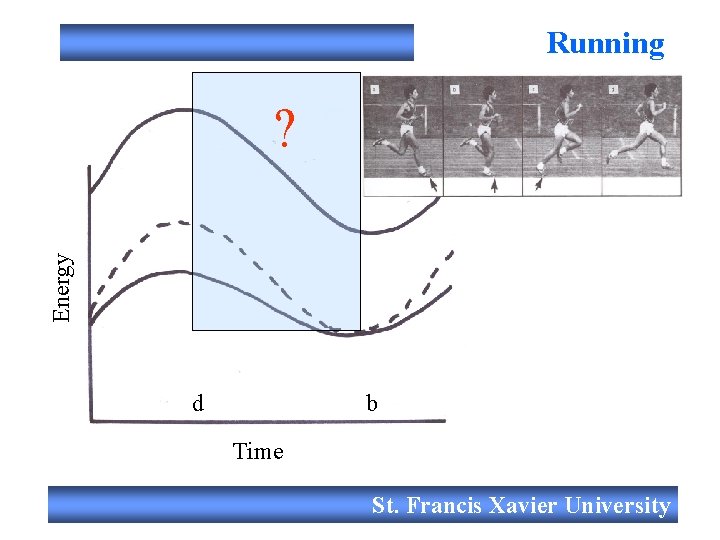

Running Energy ? d b Time St. Francis Xavier University

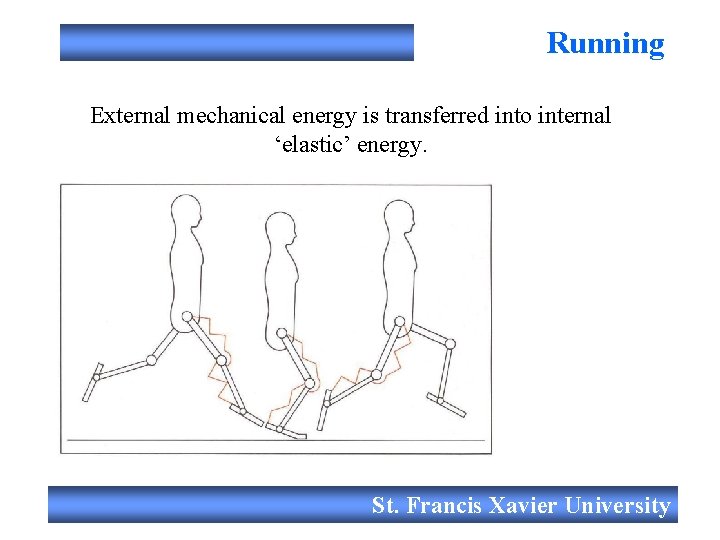

Running External mechanical energy is transferred into internal ‘elastic’ energy. St. Francis Xavier University

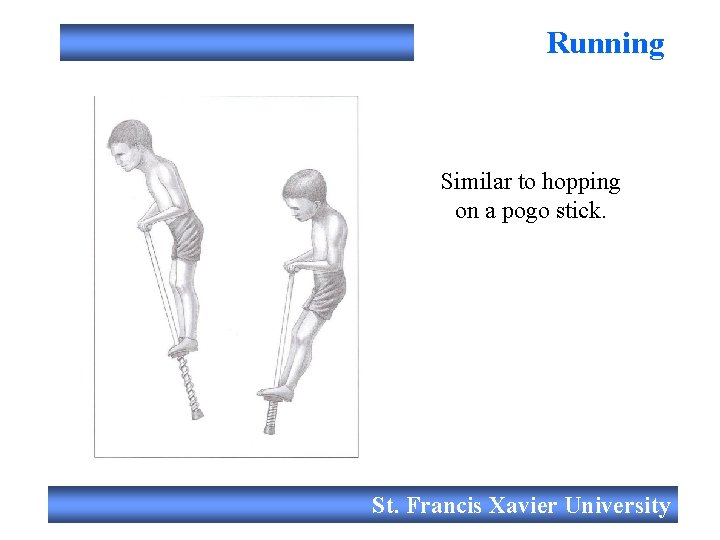

Running Similar to hopping on a pogo stick. St. Francis Xavier University

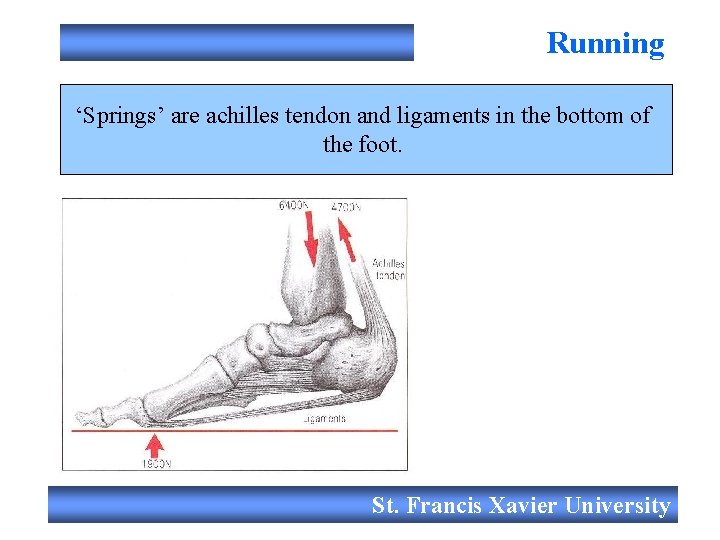

Running ‘Springs’ are achilles tendon and ligaments in the bottom of the foot. St. Francis Xavier University

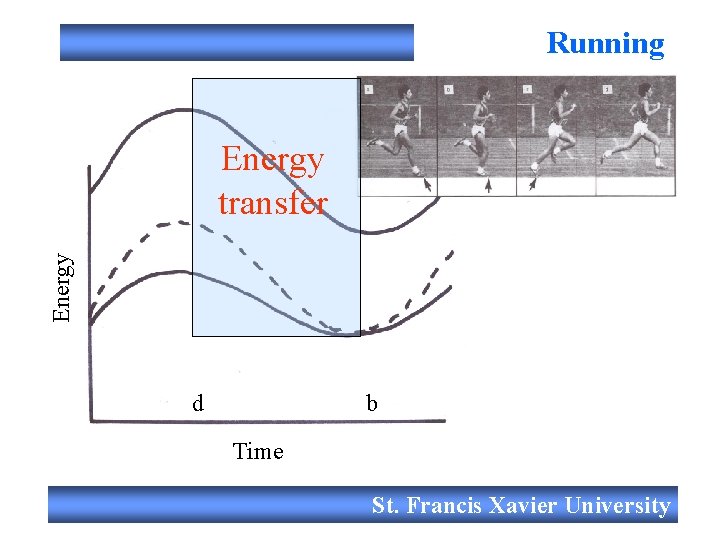

Running Energy transfer d b Time St. Francis Xavier University
