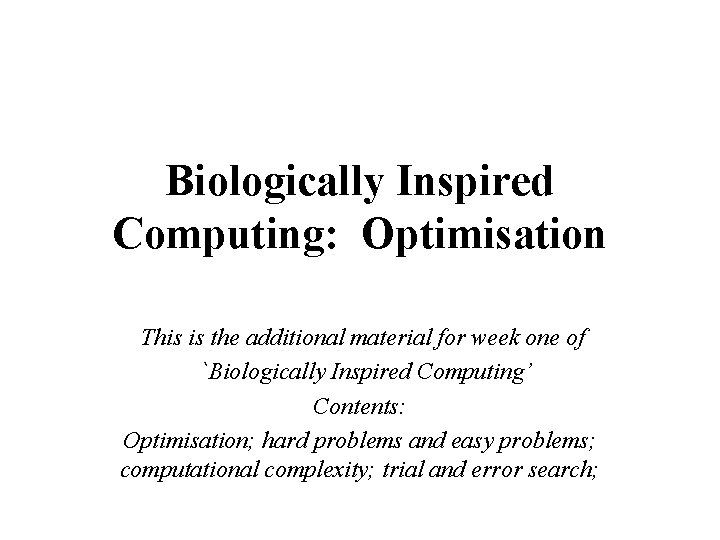

Biologically Inspired Computing: Optimisation This is the additional material for week one of `Biologically Inspired Computing’ Contents: Optimisation; hard problems and easy problems; computational complexity; trial and error search;

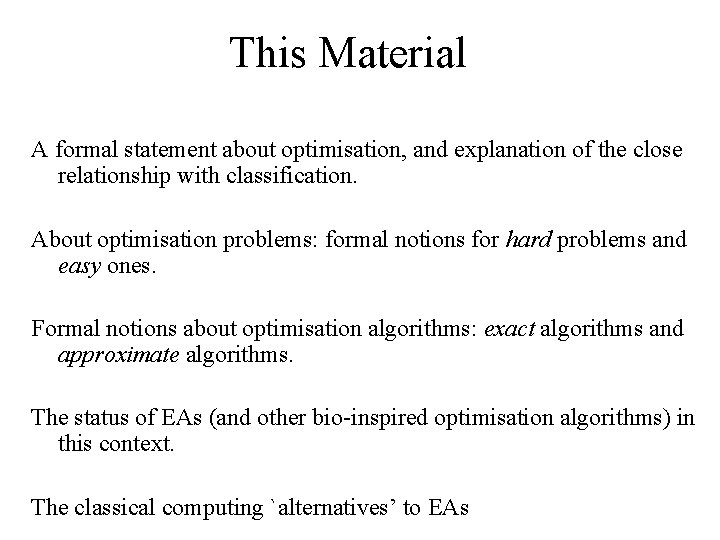

This Material A formal statement about optimisation, and explanation of the close relationship with classification. About optimisation problems: formal notions for hard problems and easy ones. Formal notions about optimisation algorithms: exact algorithms and approximate algorithms. The status of EAs (and other bio-inspired optimisation algorithms) in this context. The classical computing `alternatives’ to EAs

What to take from this material: A clear understanding of what an optimisation problem is, and an appreciation of how classification problems are also optimisation problems What it means, technically, for an optimisation problem to be hard or easy What it means, technically, for an optimisation algorithm to be exact or approximate What kinds of algorithms, technically speaking, EAs are. An appreciation of non-EA techniques for optimisation A basic understanding of when an EA might be applicable to a problem, and when it might not.

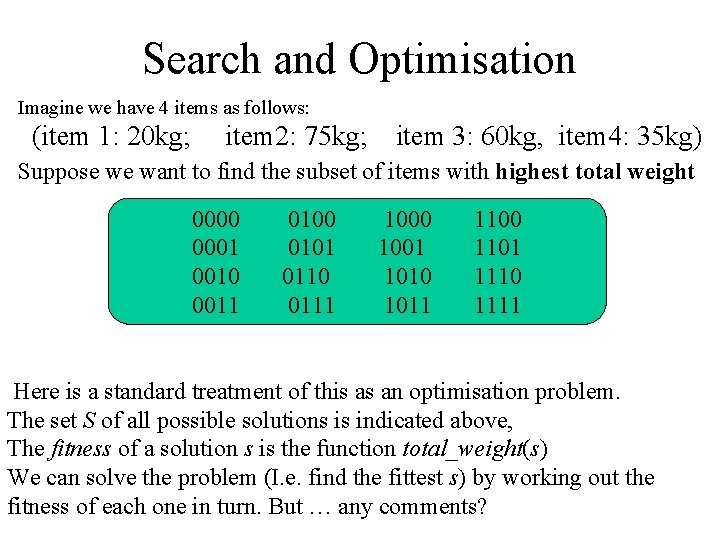

Search and Optimisation Imagine we have 4 items as follows: (item 1: 20 kg; item 2: 75 kg; item 3: 60 kg, item 4: 35 kg) Suppose we want to find the subset of items with highest total weight 0000 0001 0010 0011 0100 0101 0110 0111 1000 1001 1010 1011 1100 1101 1110 1111 Here is a standard treatment of this as an optimisation problem. The set S of all possible solutions is indicated above, The fitness of a solution s is the function total_weight(s) We can solve the problem (I. e. find the fittest s) by working out the fitness of each one in turn. But … any comments?

• Of course, this problem is much easier to solve than that. We already know that 1111 has to be the best solution. • We can prove, mathematically, that any problem of the form “find heaviest subset of a set of k things”, is solved by the “all of them” subset, as long as each thing has positive weight. • In general, some problems are easy in this sense, in that there is a proven way to construct an optimal solution. Sometimes it is less obvious than in this case though.

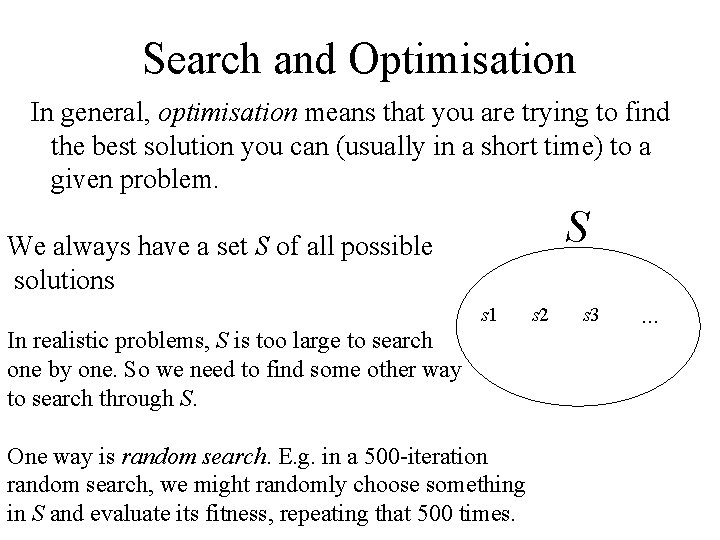

Search and Optimisation In general, optimisation means that you are trying to find the best solution you can (usually in a short time) to a given problem. S We always have a set S of all possible solutions s 1 In realistic problems, S is too large to search one by one. So we need to find some other way to search through S. One way is random search. E. g. in a 500 -iteration random search, we might randomly choose something in S and evaluate its fitness, repeating that 500 times. s 2 s 3 …

The Fitness function Every candidate solution s in S can be given a score, or a “fitness”, by a so-called fitness function. We usually write f(s) to indicate the fitness of solution s. Obviously, we want to find the s in S which has the best score. Examples timetabling: f could be no. of clashes. wing design: f could be aerodynamic drag delivery schedule f will be total distance travelled

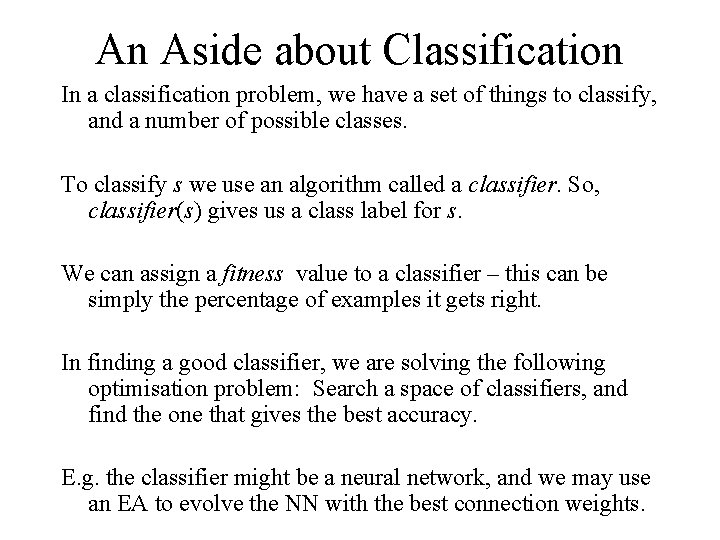

An Aside about Classification In a classification problem, we have a set of things to classify, and a number of possible classes. To classify s we use an algorithm called a classifier. So, classifier(s) gives us a class label for s. We can assign a fitness value to a classifier – this can be simply the percentage of examples it gets right. In finding a good classifier, we are solving the following optimisation problem: Search a space of classifiers, and find the one that gives the best accuracy. E. g. the classifier might be a neural network, and we may use an EA to evolve the NN with the best connection weights.

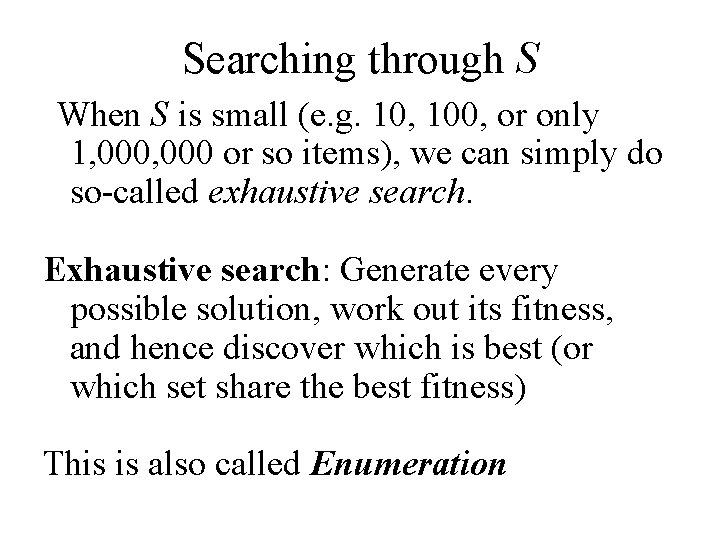

Searching through S When S is small (e. g. 10, 100, or only 1, 000 or so items), we can simply do so-called exhaustive search. Exhaustive search: Generate every possible solution, work out its fitness, and hence discover which is best (or which set share the best fitness) This is also called Enumeration

However … In all interesting/important cases, S is much too large for exhaustive search (ever). There are two kinds of `too-big’ problem: • easy (or `tractable’, or `in P) • hard (or `intractable’, or `not known to be in P’) There are rigorous mathematical definitions of the two types. Important (for you) is that almost all important problems are technically hard.

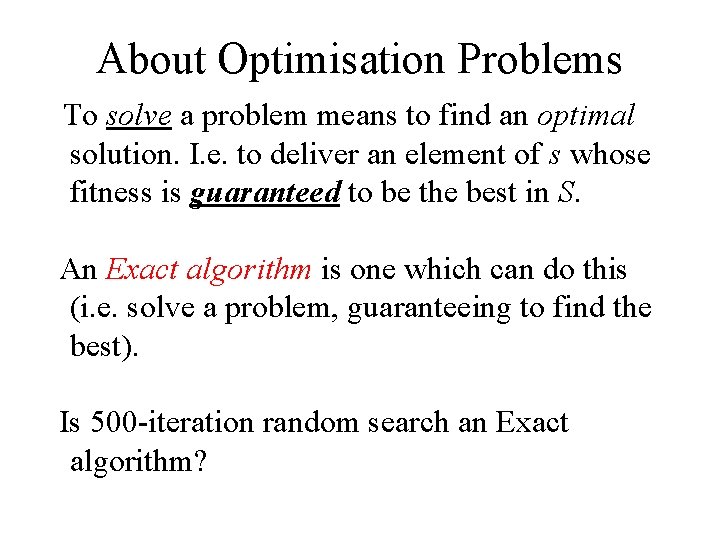

About Optimisation Problems To solve a problem means to find an optimal solution. I. e. to deliver an element of s whose fitness is guaranteed to be the best in S. An Exact algorithm is one which can do this (i. e. solve a problem, guaranteeing to find the best). Is 500 -iteration random search an Exact algorithm?

Problem complexity This is all about characterising how hard it is to solve a given problem. Statements are made in terms of functions of n, which is meant to be some indication of the size of the problem. E. g. : Correctly sort a set of n numbers • Can be done in around n log n steps Find the closest pair out of n vectors • Can be done in O(n 2) steps Find best design for an n-structural-element bridge. • Can be done in O(10 n) steps …

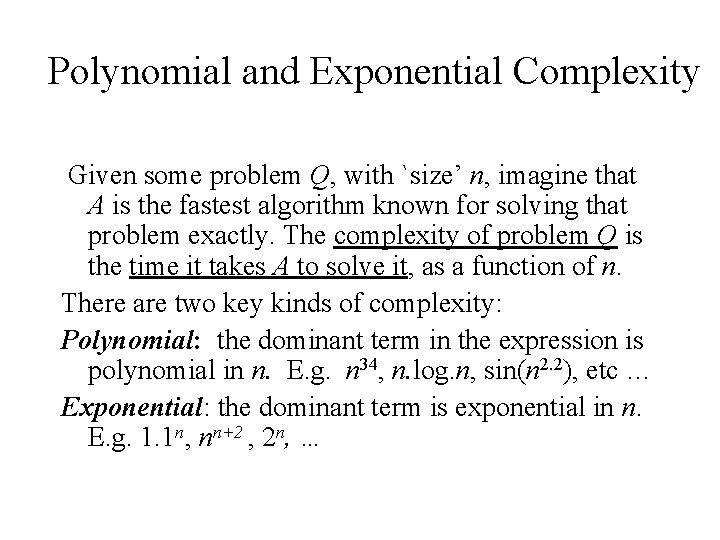

Polynomial and Exponential Complexity Given some problem Q, with `size’ n, imagine that A is the fastest algorithm known for solving that problem exactly. The complexity of problem Q is the time it takes A to solve it, as a function of n. There are two key kinds of complexity: Polynomial: the dominant term in the expression is polynomial in n. E. g. n 34, n. log. n, sin(n 2. 2), etc … Exponential: the dominant term is exponential in n. E. g. 1. 1 n, nn+2 , 2 n, …

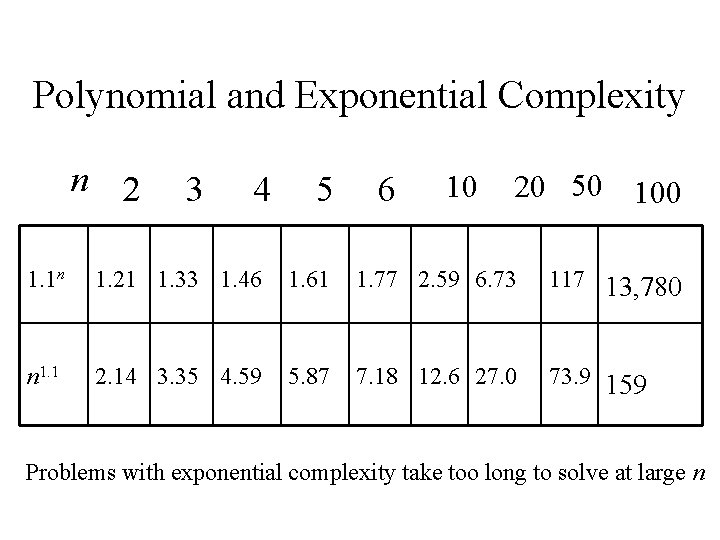

Polynomial and Exponential Complexity n 2 3 4 5 6 10 20 50 100 1. 1 n 1. 21 1. 33 1. 46 1. 61 1. 77 2. 59 6. 73 117 13, 780 n 1. 1 2. 14 3. 35 4. 59 5. 87 7. 18 12. 6 27. 0 73. 9 159 Problems with exponential complexity take too long to solve at large n

Hard and Easy Problems Polynomial Complexity: these are called tractable, and easy problems. Fast algorithms are known which provide the best solution. Pairwise alignment is one such problem. Sorting is another. Exponential Complexity: these are called intractable, and hard problems. The fastest known algorithm which exactly solves it is usually not significantly faster than exhaustive search.

exponential An exponential curve always takes over a polynomial one. E. g. time needed on fastest computers to search all protein structures with 500 amino acids: trillions of times longer than the current age of the universe. polynomial Increasing n

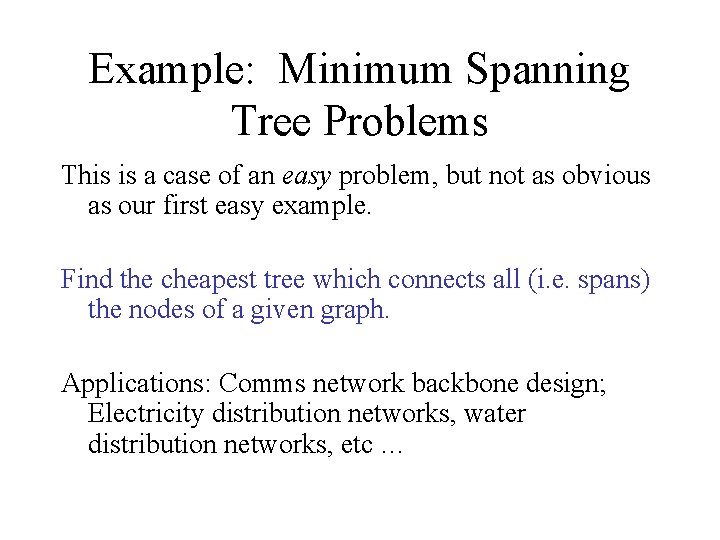

Example: Minimum Spanning Tree Problems This is a case of an easy problem, but not as obvious as our first easy example. Find the cheapest tree which connects all (i. e. spans) the nodes of a given graph. Applications: Comms network backbone design; Electricity distribution networks, water distribution networks, etc …

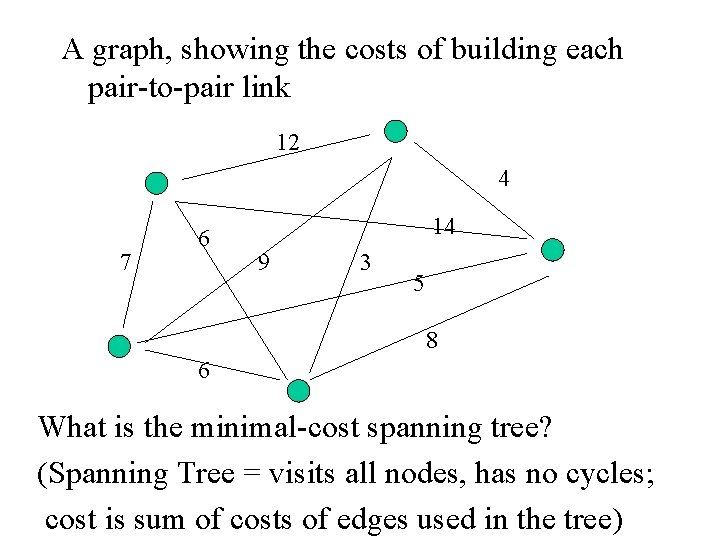

A graph, showing the costs of building each pair-to-pair link 12 4 7 6 14 9 3 5 8 6 What is the minimal-cost spanning tree? (Spanning Tree = visits all nodes, has no cycles; cost is sum of costs of edges used in the tree)

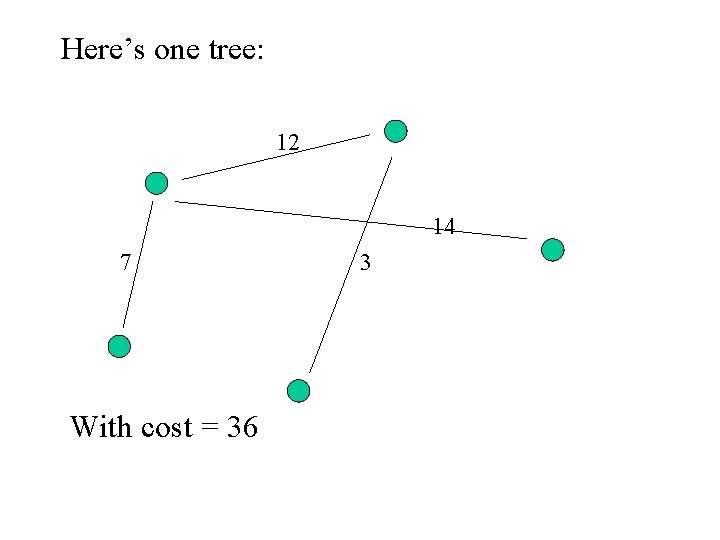

Here’s one tree: 12 14 7 With cost = 36 3

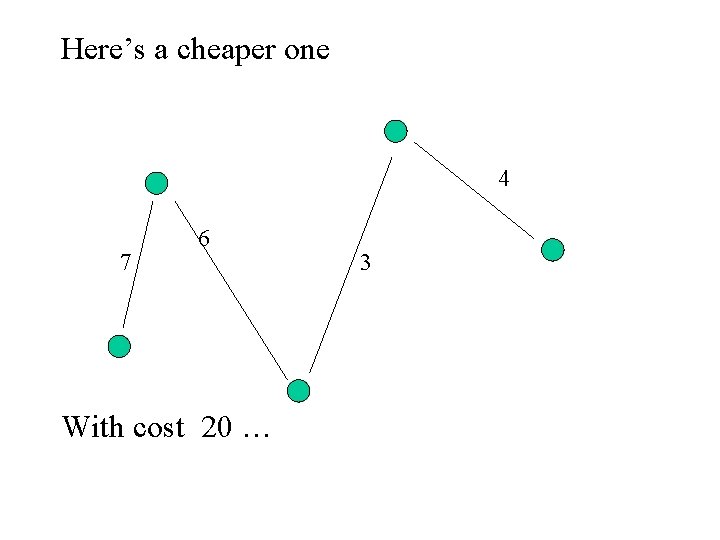

Here’s a cheaper one 4 7 6 With cost 20 … 3

The problem find the minimal cost spanning tree (aka the `MST’) is easy in the technical sense. 12 4 7 6 14 9 3 5 8 6 Several fast algorithms are known which solve this in polynomial time; Here is the classic one: Prim’s algorithm: Start with empty tree (no edges) Repeat: choose cheapest edge which feasibly extends the tree Until: n — 1 edges have been chosen.

Prim’s step 1: 12 4 7 6 14 9 3 5 8 6

Prim’s step 2: 12 4 7 6 14 9 3 5 8 6

Prim’s step 3: 12 4 7 6 14 9 3 5 8 6

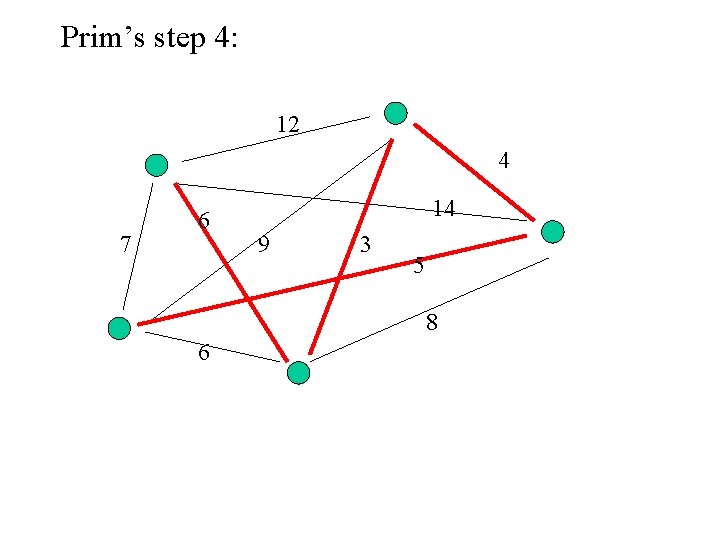

Prim’s step 4: 12 4 7 6 14 9 3 5 8 6

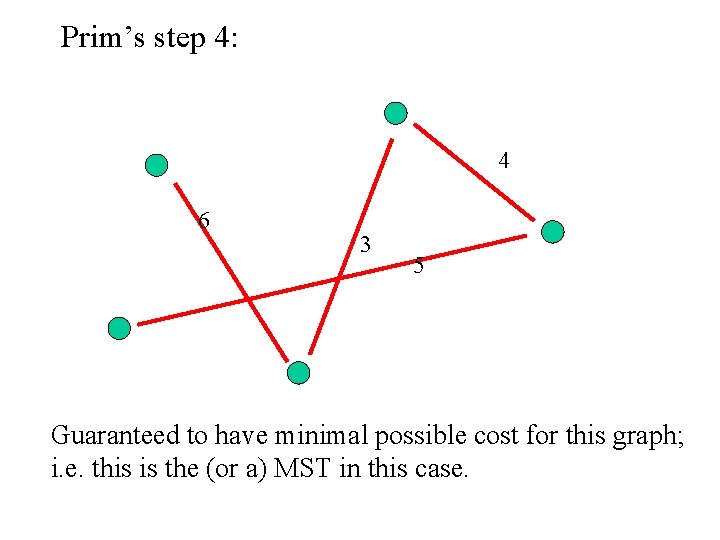

Prim’s step 4: 4 6 3 5 Guaranteed to have minimal possible cost for this graph; i. e. this is the (or a) MST in this case.

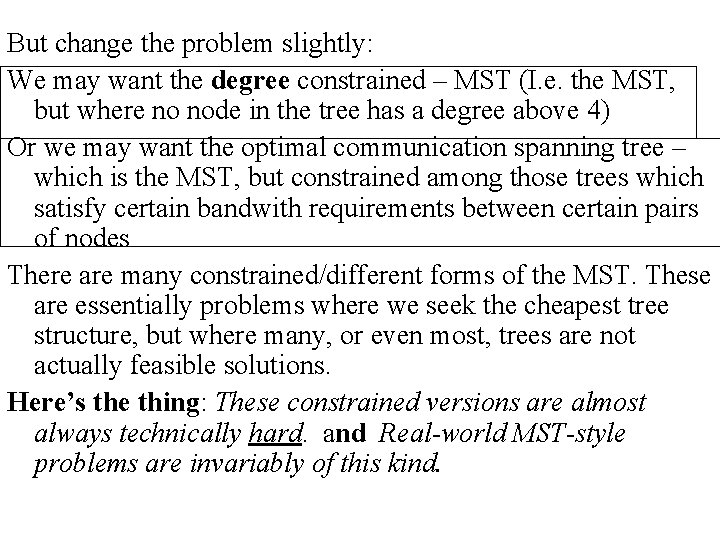

But change the problem slightly: We may want the degree constrained – MST (I. e. the MST, but where no node in the tree has a degree above 4) Or we may want the optimal communication spanning tree – which is the MST, but constrained among those trees which satisfy certain bandwith requirements between certain pairs of nodes There are many constrained/different forms of the MST. These are essentially problems where we seek the cheapest tree structure, but where many, or even most, trees are not actually feasible solutions. Here’s the thing: These constrained versions are almost always technically hard. and Real-world MST-style problems are invariably of this kind.

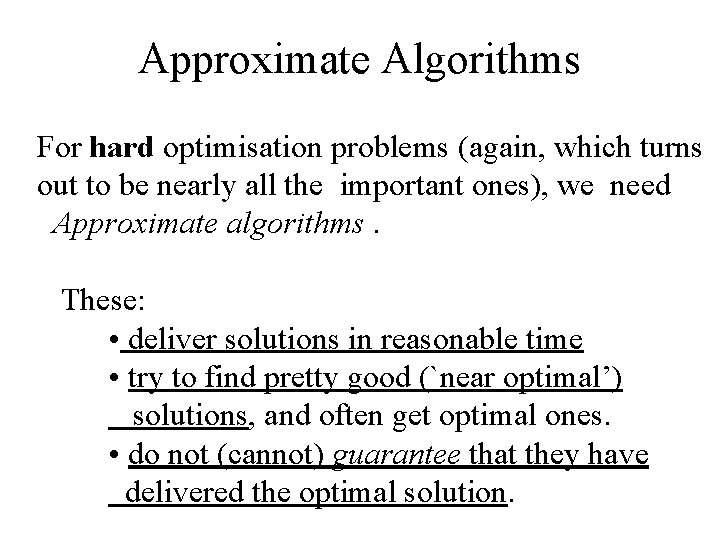

Approximate Algorithms For hard optimisation problems (again, which turns out to be nearly all the important ones), we need Approximate algorithms. These: • deliver solutions in reasonable time • try to find pretty good (`near optimal’) solutions, and often get optimal ones. • do not (cannot) guarantee that they have delivered the optimal solution.

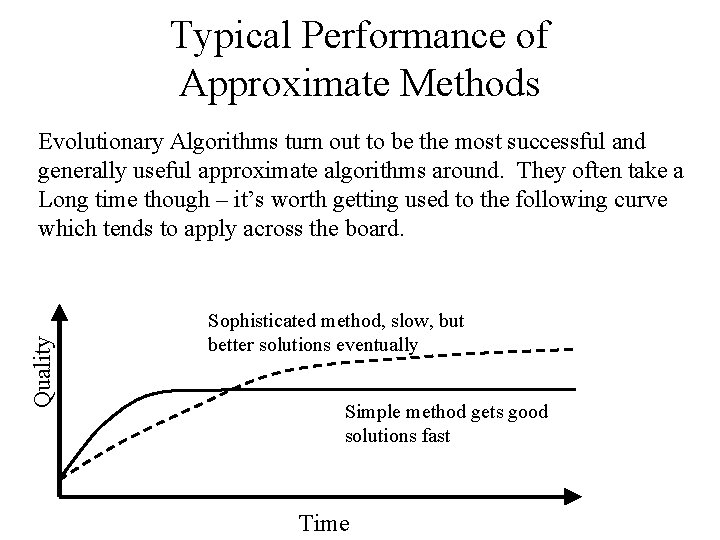

Typical Performance of Approximate Methods Quality Evolutionary Algorithms turn out to be the most successful and generally useful approximate algorithms around. They often take a Long time though – it’s worth getting used to the following curve which tends to apply across the board. Sophisticated method, slow, but better solutions eventually Simple method gets good solutions fast Time

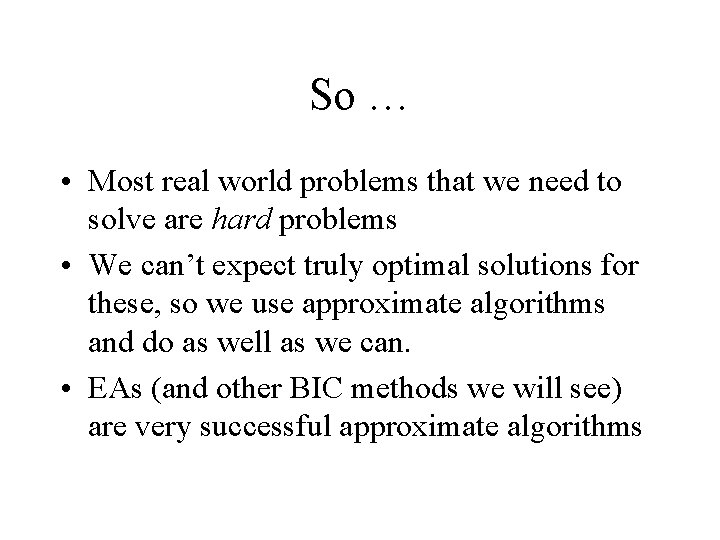

So … • Most real world problems that we need to solve are hard problems • We can’t expect truly optimal solutions for these, so we use approximate algorithms and do as well as we can. • EAs (and other BIC methods we will see) are very successful approximate algorithms

Next Time • A general introduction to Evolutionary Algorithms

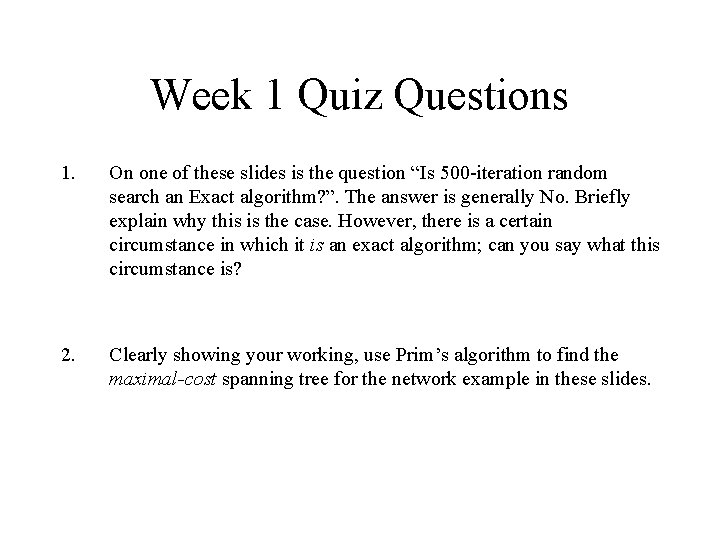

Week 1 Quiz Questions 1. On one of these slides is the question “Is 500 -iteration random search an Exact algorithm? ”. The answer is generally No. Briefly explain why this is the case. However, there is a certain circumstance in which it is an exact algorithm; can you say what this circumstance is? 2. Clearly showing your working, use Prim’s algorithm to find the maximal-cost spanning tree for the network example in these slides.
