Biologically Inspired Computing Evolutionary Algorithms Hillclimbing Landscapes Neighbourhoods

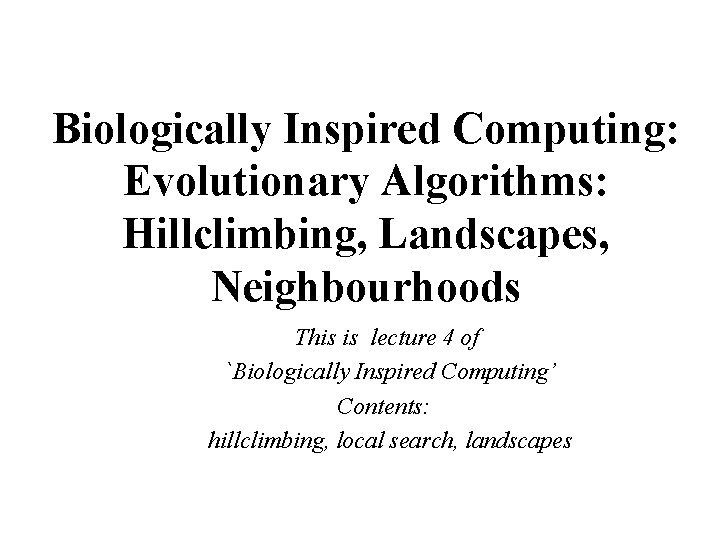

Biologically Inspired Computing: Evolutionary Algorithms: Hillclimbing, Landscapes, Neighbourhoods This is lecture 4 of `Biologically Inspired Computing’ Contents: hillclimbing, local search, landscapes

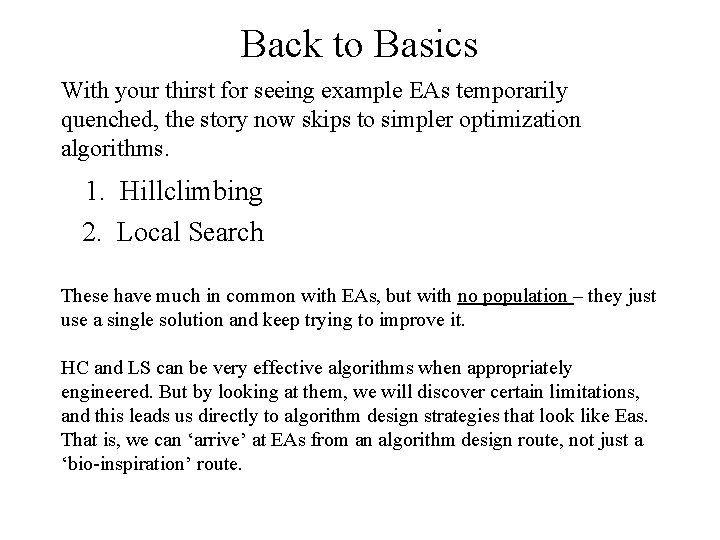

Back to Basics With your thirst for seeing example EAs temporarily quenched, the story now skips to simpler optimization algorithms. 1. Hillclimbing 2. Local Search These have much in common with EAs, but with no population – they just use a single solution and keep trying to improve it. HC and LS can be very effective algorithms when appropriately engineered. But by looking at them, we will discover certain limitations, and this leads us directly to algorithm design strategies that look like Eas. That is, we can ‘arrive’ at EAs from an algorithm design route, not just a ‘bio-inspiration’ route.

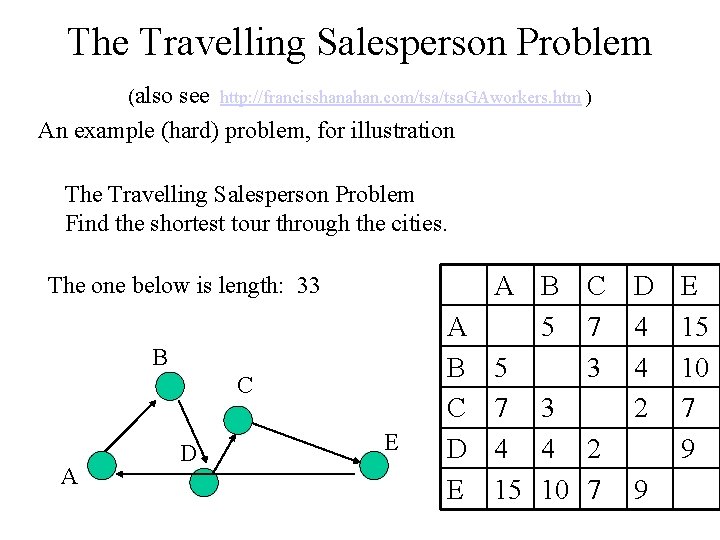

The Travelling Salesperson Problem (also see http: //francisshanahan. com/tsa. GAworkers. htm ) An example (hard) problem, for illustration The Travelling Salesperson Problem Find the shortest tour through the cities. The one below is length: 33 B C A D E A B C D E A B 5 5 7 3 4 4 15 10 C D E 7 4 15 3 4 10 2 7 2 9 7 9

Simplest possible EA: Hillclimbing 0. Initialise: Generate a random solution c; evaluate its fitness, f(c). Call c the current solution. 1. Mutate a copy of the current solution – call the mutant m Evaluate fitness of m, f(m). 2. If f(m) is no worse than f(c), then replace c with m, otherwise do nothing (effectively discarding m). 3. If a termination condition has been reached, stop. Otherwise, go to 1. Note. No population (well, population of 1). This is a very simple version of an EA, although it has been around for much longer.

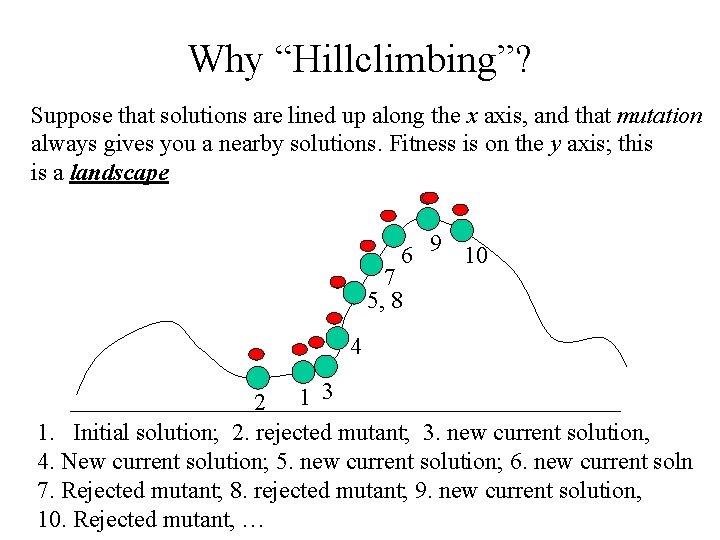

Why “Hillclimbing”? Suppose that solutions are lined up along the x axis, and that mutation always gives you a nearby solutions. Fitness is on the y axis; this is a landscape 6 9 10 7 5, 8 4 2 1 3 1. Initial solution; 2. rejected mutant; 3. new current solution, 4. New current solution; 5. new current solution; 6. new current soln 7. Rejected mutant; 8. rejected mutant; 9. new current solution, 10. Rejected mutant, …

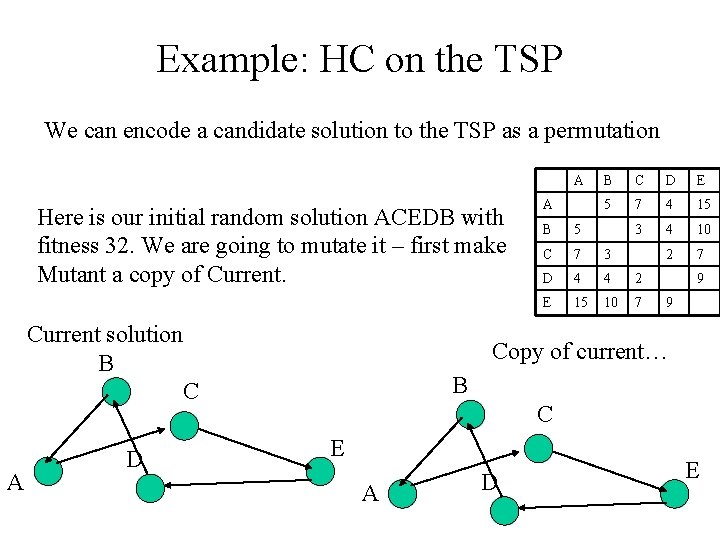

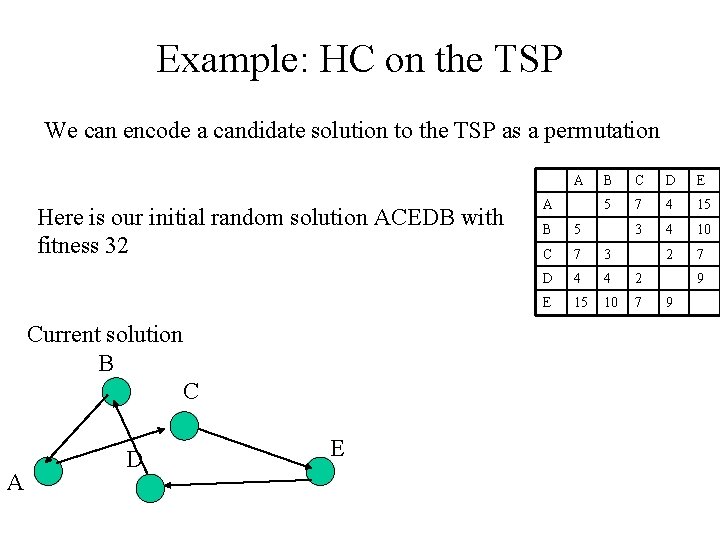

Example: HC on the TSP We can encode a candidate solution to the TSP as a permutation A Here is our initial random solution ACEDB with fitness 32 Current solution B C A D E A B C D E 5 7 4 15 3 4 10 2 7 B 5 C 7 3 D 4 4 2 E 15 10 7 9 9

Example: HC on the TSP We can encode a candidate solution to the TSP as a permutation A Here is our initial random solution ACEDB with fitness 32. We are going to mutate it – first make Mutant a copy of Current solution B C A D A B C D E 5 7 4 15 3 4 10 2 7 B 5 C 7 3 D 4 4 2 E 15 10 7 9 9 Copy of current… B C E A D E

HC on the TSP A A We randomly mutate it (swap randomly chosen B adjacent nodes) from ACEDB to ACDEB C which has fitness 33 -- so current stays the same D E Because we reject this mutant. Current solution Mutant B B C C E D A B C D E 5 7 4 15 3 4 10 2 7 5 7 3 4 4 2 15 10 7 9 9 E

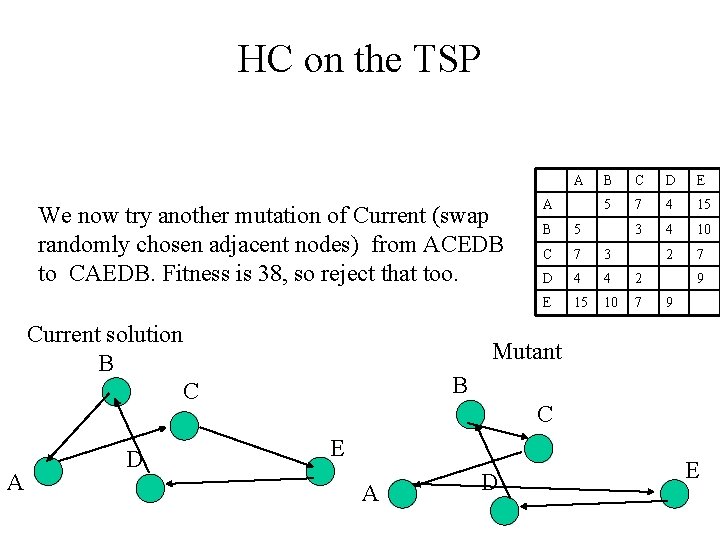

HC on the TSP A We now try another mutation of Current (swap randomly chosen adjacent nodes) from ACEDB to CAEDB. Fitness is 38, so reject that too. Current solution B C A D A B C D E 5 7 4 15 3 4 10 2 7 B 5 C 7 3 D 4 4 2 E 15 10 7 9 9 Mutant B C E A D E

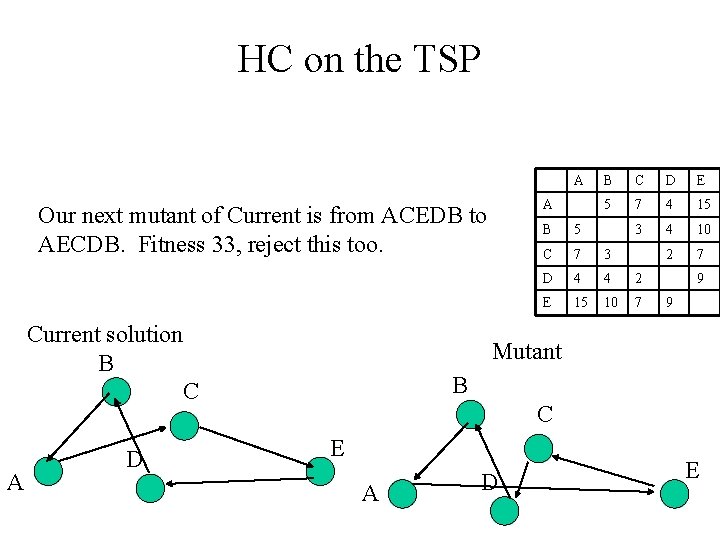

HC on the TSP A A Our next mutant of Current is from ACEDB to AECDB. Fitness 33, reject this too. Current solution B C A D B C D E 5 7 4 15 3 4 10 2 7 B 5 C 7 3 D 4 4 2 E 15 10 7 9 9 Mutant B C E A D E

HC on the TSP A A Our next mutant of Current is from ACEDB to ACDEB. Fitness 33, reject this too. Current solution B C A D B C D E 5 7 4 15 3 4 10 2 7 B 5 C 7 3 D 4 4 2 E 15 10 7 9 9 Mutant B C E A D E

HC on the TSP A A Our next mutant of Current is from ACEDB to ACEBD. Fitness is 32. Equal to Current, so this becomes the new Current solution B C A D B C D E 5 7 4 15 3 4 10 2 7 B 5 C 7 3 D 4 4 2 E 15 10 7 9 9 Mutant B C E A D E

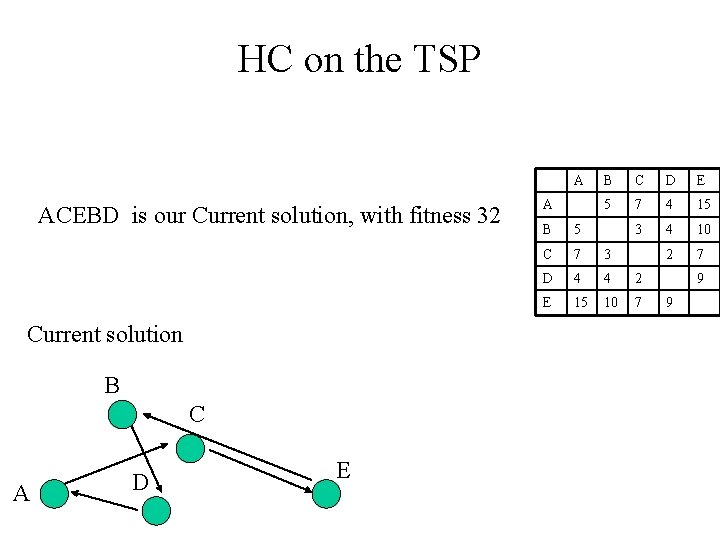

HC on the TSP A ACEBD is our Current solution, with fitness 32 Current solution B C A D E A B C D E 5 7 4 15 3 4 10 2 7 B 5 C 7 3 D 4 4 2 E 15 10 7 9 9

HC on the TSP A ACEBD is our Current solution, with fitness 32. We mutate it to DCEBA (note that first and last are adjacent nodes); fitness is 28. So this becomes our new current solution. Current solution Mutant B A C D E 5 7 4 15 3 4 10 2 7 B 5 C 7 3 D 4 4 2 E 15 10 7 9 9 B C D A B C E A D E

HC on the TSP A Our new Current, DCEBA, with fitness 28 Current solution B C A D E A B C D E 5 7 4 15 3 4 10 2 7 B 5 C 7 3 D 4 4 2 E 15 10 7 9 9

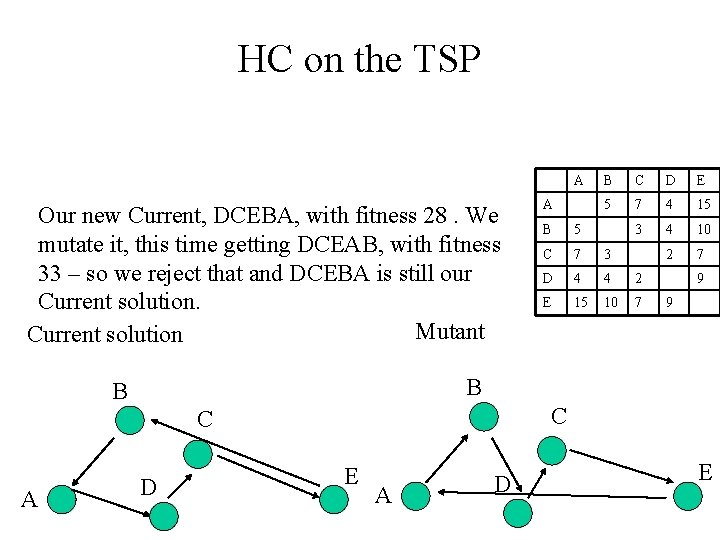

HC on the TSP A Our new Current, DCEBA, with fitness 28. We mutate it, this time getting DCEAB, with fitness 33 – so we reject that and DCEBA is still our Current solution. Mutant Current solution C D E 5 7 4 15 3 4 10 2 7 B 5 C 7 3 D 4 4 2 E 15 10 7 9 9 B B C C A A B D E A D E

And so on …

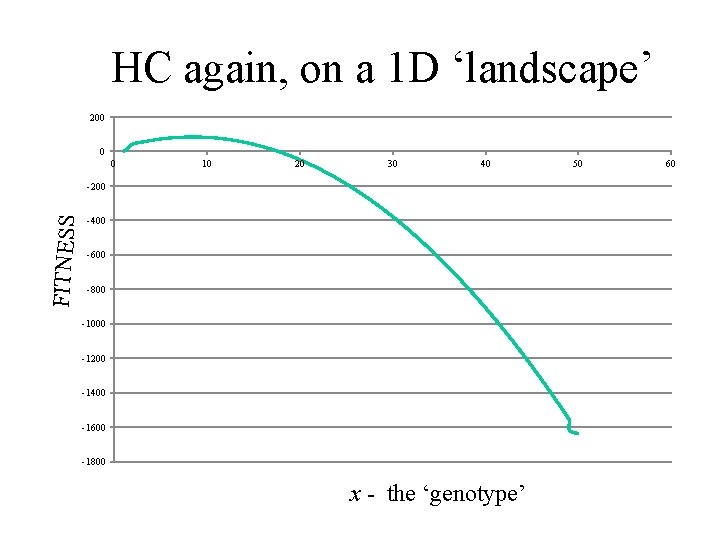

HC again, on a 1 D ‘landscape’ 200 0 0 10 20 30 40 FITNESS -200 -400 -600 -800 -1000 -1200 -1400 -1600 -1800 x - the ‘genotype’ 50 60

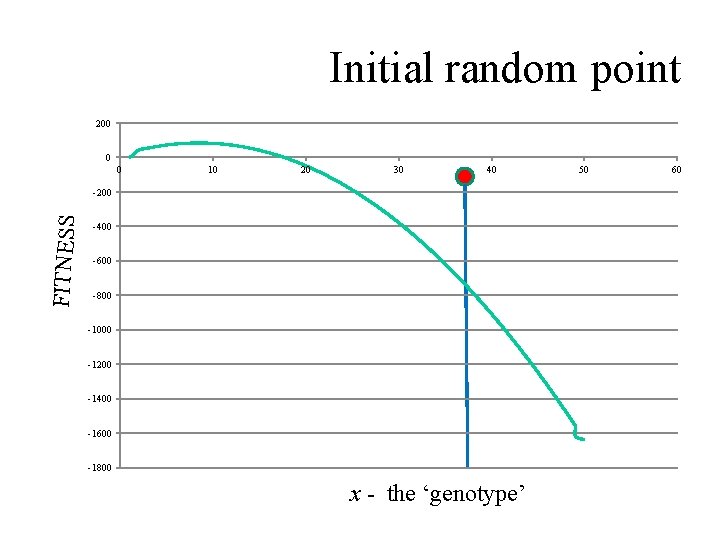

Initial random point 200 0 0 10 20 30 40 FITNESS -200 -400 -600 -800 -1000 -1200 -1400 -1600 -1800 x - the ‘genotype’ 50 60

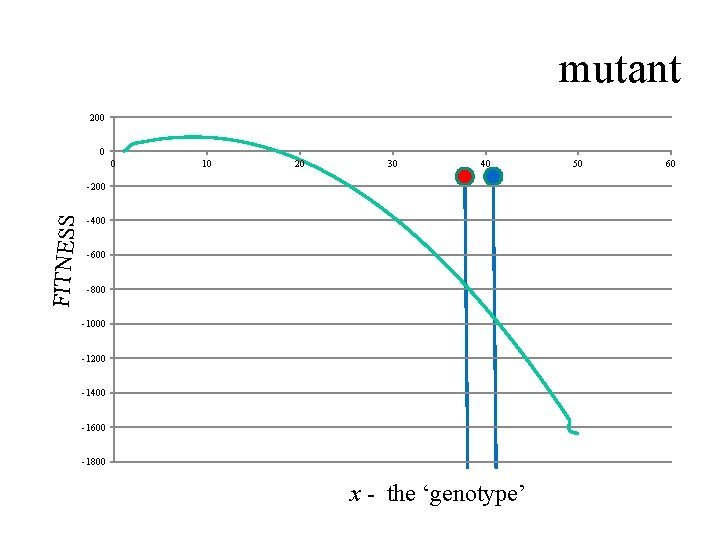

mutant 200 0 0 10 20 30 40 FITNESS -200 -400 -600 -800 -1000 -1200 -1400 -1600 -1800 x - the ‘genotype’ 50 60

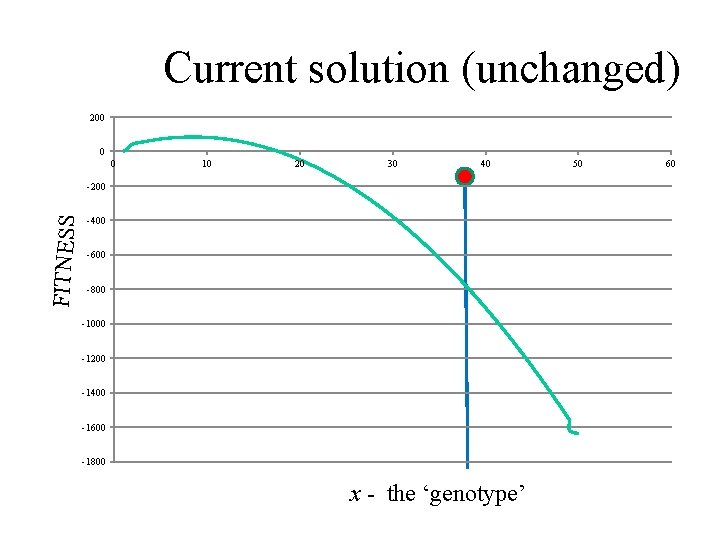

Current solution (unchanged) 200 0 0 10 20 30 40 FITNESS -200 -400 -600 -800 -1000 -1200 -1400 -1600 -1800 x - the ‘genotype’ 50 60

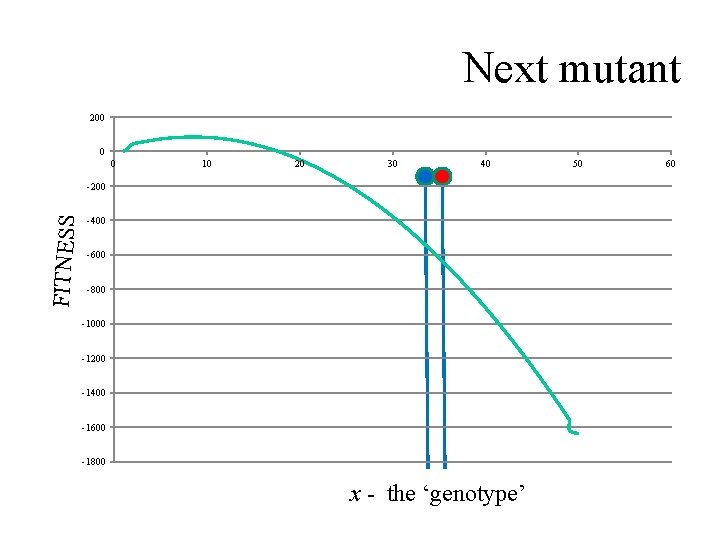

Next mutant 200 0 0 10 20 30 40 FITNESS -200 -400 -600 -800 -1000 -1200 -1400 -1600 -1800 x - the ‘genotype’ 50 60

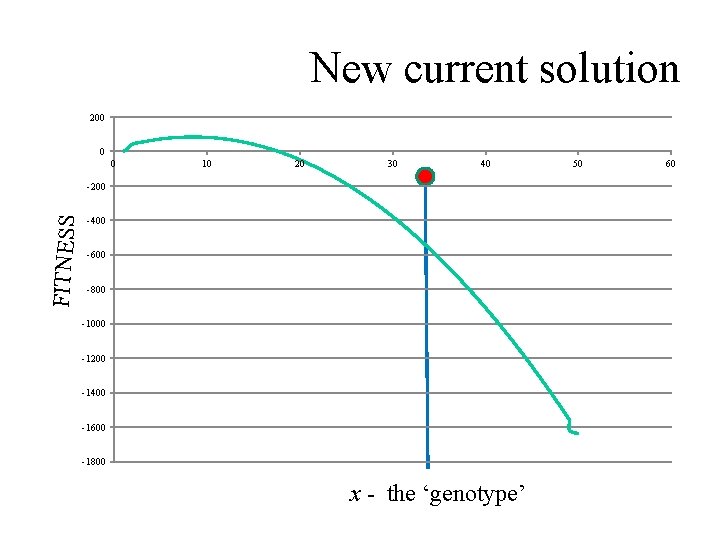

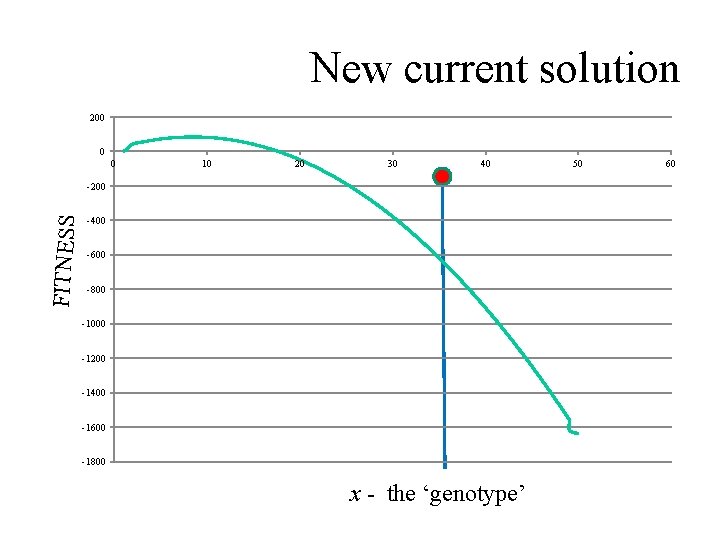

New current solution 200 0 0 10 20 30 40 FITNESS -200 -400 -600 -800 -1000 -1200 -1400 -1600 -1800 x - the ‘genotype’ 50 60

Next mutant 200 0 0 10 20 30 40 FITNESS -200 -400 -600 -800 -1000 -1200 -1400 -1600 -1800 x - the ‘genotype’ 50 60

New current solution 200 0 0 10 20 30 40 FITNESS -200 -400 -600 -800 -1000 -1200 -1400 -1600 -1800 x - the ‘genotype’ 50 60

ETC …………… 200 0 0 10 20 30 40 FITNESS -200 -400 -600 -800 -1000 -1200 -1400 -1600 -1800 x - the ‘genotype’ 50 60

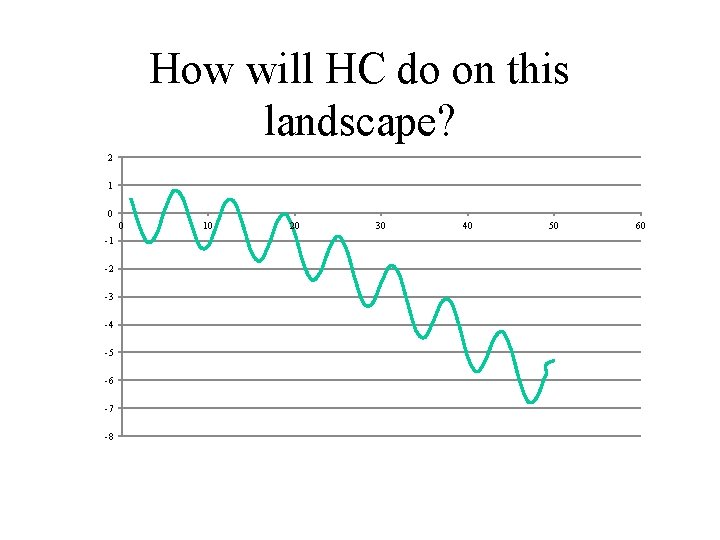

How will HC do on this landscape? 2 1 0 0 -1 -2 -3 -4 -5 -6 -7 -8 10 20 30 40 50 60

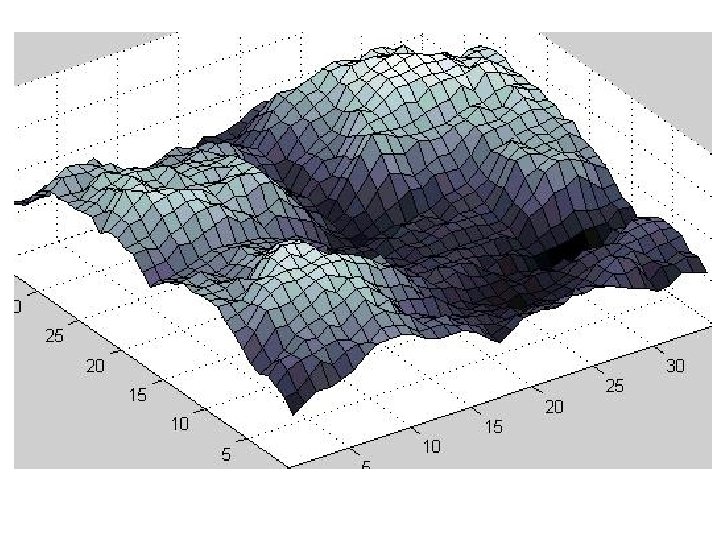

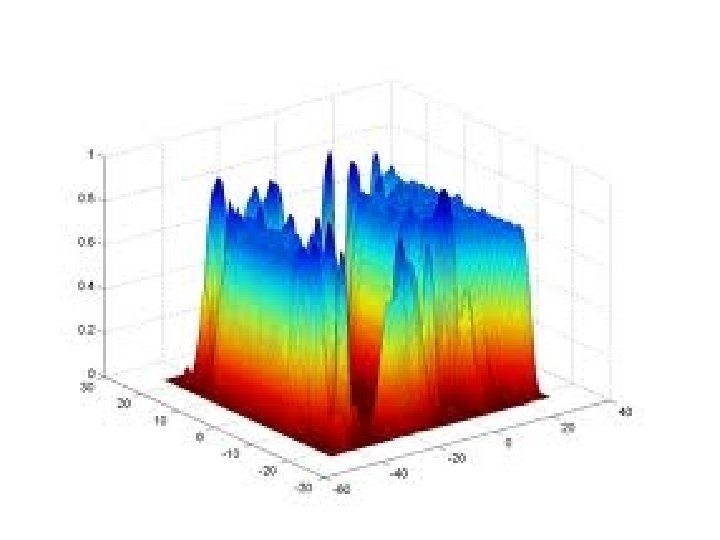

Some other landscapes

Landscapes Recall S, the search space, and f(s), the fitness of a candidate in S f(s) members of S lined up along here The structure we get by imposing f(s) on S is called a landscape

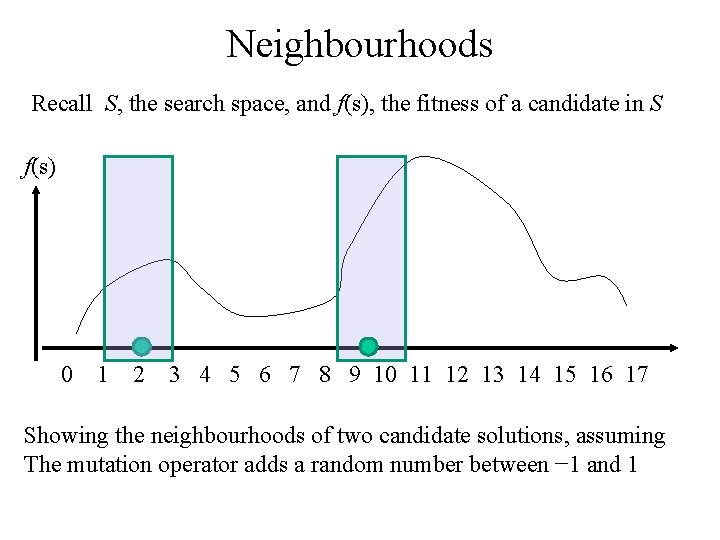

Neighbourhoods Recall S, the search space, and f(s), the fitness of a candidate in S f(s) 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 Showing the neighbourhoods of two candidate solutions, assuming The mutation operator adds a random number between − 1 and 1

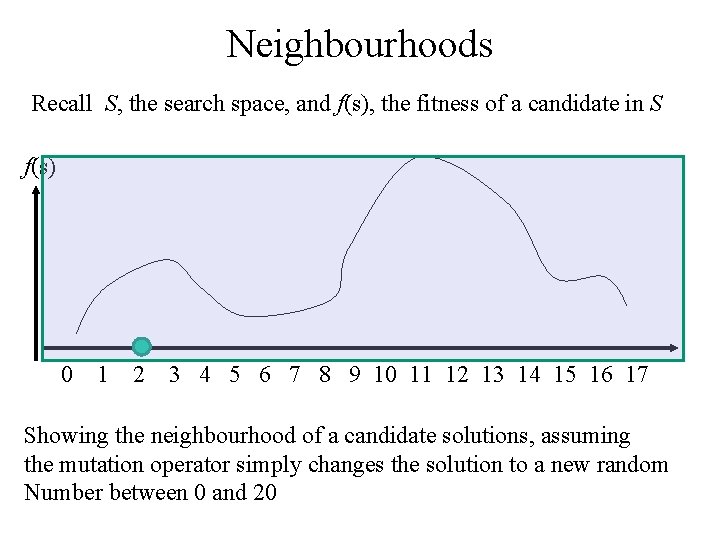

Neighbourhoods Recall S, the search space, and f(s), the fitness of a candidate in S f(s) 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 Showing the neighbourhood of a candidate solutions, assuming The mutation operator adds a random integer between − 2 and 2

Neighbourhoods Recall S, the search space, and f(s), the fitness of a candidate in S f(s) 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 Showing the neighbourhood of a candidate solutions, assuming the mutation operator simply changes the solution to a new random Number between 0 and 20

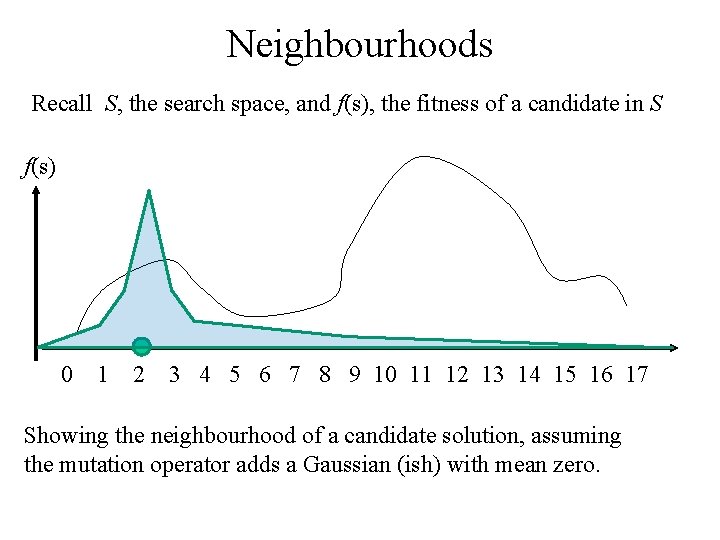

Neighbourhoods Recall S, the search space, and f(s), the fitness of a candidate in S f(s) 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 Showing the neighbourhood of a candidate solution, assuming the mutation operator adds a Gaussian (ish) with mean zero.

Neighbourhoods Let s be an individual in S, f(s) is our fitness function, and M is our mutation operator, so that M(s 1) s 2, where s 2 is a mutant of s 1. Given M, we can usually work out the neighbourhood of an individual point s – the neighbourhood of s is the set of all possible mutants of s E. g. Encoding: permutations of k objects (e. g. for k-city TSP) Mutation: swap any adjacent pair of objects. Neighbourhood: Each individual has k neighbours. E. g. neighbours of EABDC are: {AEBDC, EBADC, EADBC, EABCD, CABDE} Encoding: binary strings of length L (e. g. L-item 2 -bin-packing) Mutation: choose a bit randomly and flip it. Neighbourhood: Each individual has L neighbours. E. g. neighbours of 00110 are: {10110, 01110, 00010, 00100, 00111}

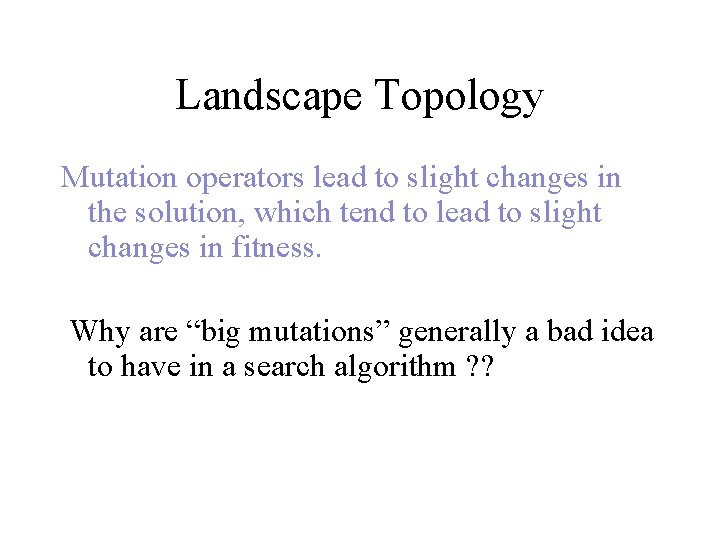

Landscape Topology Mutation operators lead to slight changes in the solution, which tend to lead to slight changes in fitness. Why are “big mutations” generally a bad idea to have in a search algorithm ? ?

Typical Landscapes f(s) members of S lined up along here Typically, with large (realistic) problems, the huge majority of the landscape has very poor fitness – there are tiny areas where the decent solutions lurk. So, big random changes are very likely to take us outside the nice areas.

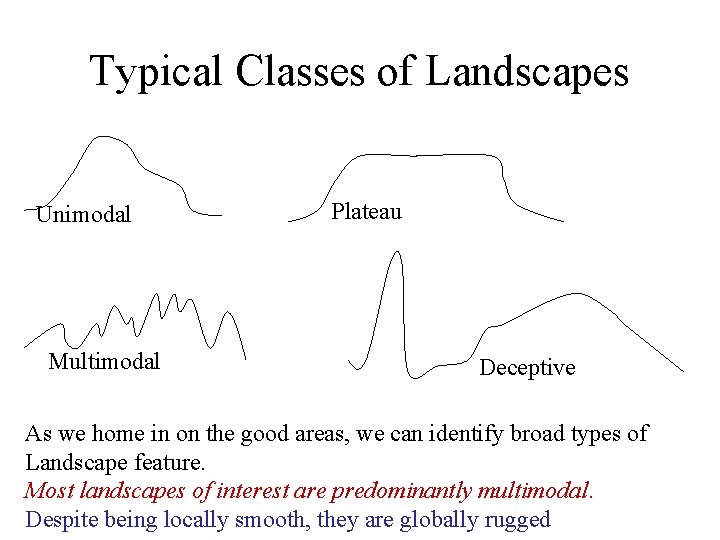

Typical Classes of Landscapes Unimodal Multimodal Plateau Deceptive As we home in on the good areas, we can identify broad types of Landscape feature. Most landscapes of interest are predominantly multimodal. Despite being locally smooth, they are globally rugged

Beyond Hillclimbing HC clearly has problems with typical landscapes: There are two broad ways to improve HC, from the algorithm viewpoint: 1. Allow downhill moves – a family of methods called Local Search does this in various ways. 2. Have a population – so that different regions can be explored inherently in parallel – I. e. we keep `poor’ solutions around and give them a chance to `develop’.

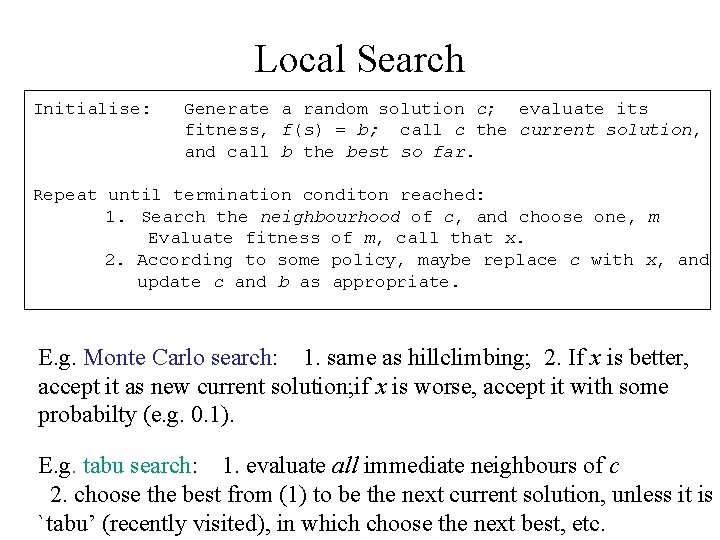

Local Search Initialise: Generate a random solution c; evaluate its fitness, f(s) = b; call c the current solution, and call b the best so far. Repeat until termination conditon reached: 1. Search the neighbourhood of c, and choose one, m Evaluate fitness of m, call that x. 2. According to some policy, maybe replace c with x, and update c and b as appropriate. E. g. Monte Carlo search: 1. same as hillclimbing; 2. If x is better, accept it as new current solution; if x is worse, accept it with some probabilty (e. g. 0. 1). E. g. tabu search: 1. evaluate all immediate neighbours of c 2. choose the best from (1) to be the next current solution, unless it is `tabu’ (recently visited), in which choose the next best, etc.

Population-Based Search • Local search is fine, but tends to get stuck in local optima, less so than HC, but it still gets stuck. • In PBS, we no longer have a single `current solution’, we now have a population of them. This leads directly to the two main algorithmic differences between PBS and LS – Which of the set of current solutions do we mutate? We need a selection method – With more than one solution available, we needn’t just mutate, we can [recombine, crossover, etc …] two or more current solutions. • So this is an alternative route towards motivating our nature-inspired EAs – and also starts to explain why they turn out to be so good.

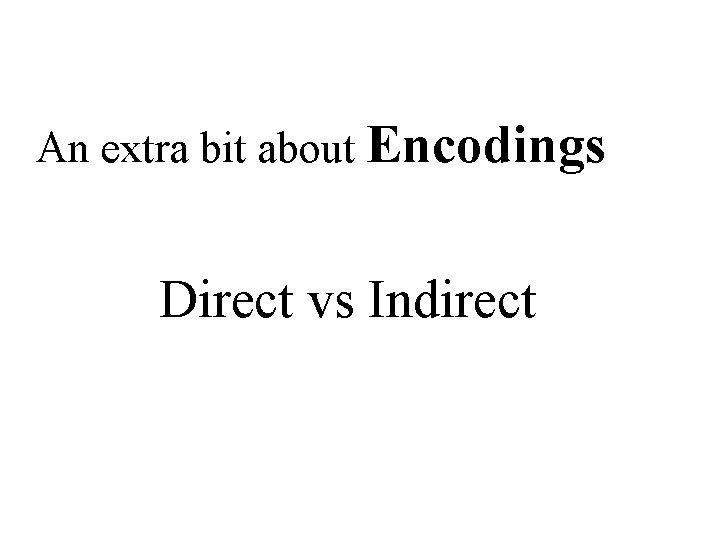

An extra bit about Encodings Direct vs Indirect

Encoding / Representation Maybe the main issue in (applying) EC Note that: • Given an optimisation problem to solve, we need to find a way of encoding candidate solutions • There can be many very different encodings for the same problem • Each way affects the shape of the landscape and the choice of best strategy for climbing that landscape.

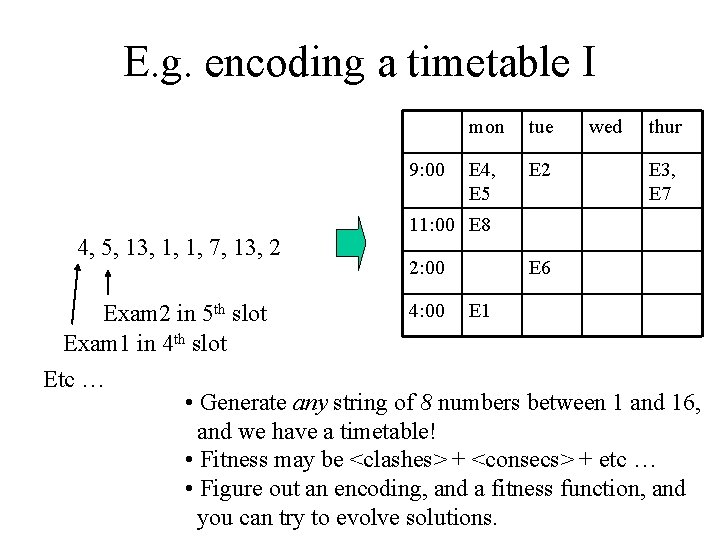

E. g. encoding a timetable I 9: 00 4, 5, 13, 1, 1, 7, 13, 2 mon tue E 4, E 5 E 2 wed thur E 3, E 7 11: 00 E 8 2: 00 E 6 4: 00 E 1 Exam 2 in 5 th slot Exam 1 in 4 th slot Etc … • Generate any string of 8 numbers between 1 and 16, and we have a timetable! • Fitness may be <clashes> + <consecs> + etc … • Figure out an encoding, and a fitness function, and you can try to evolve solutions.

Mutating a Timetable with Encoding 1 9: 00 4, 5, 13, 1, 1, 7, 13, 2 mon tue E 4, E 5 E 2 11: 00 E 8 2: 00 4: 00 E 6 E 1 Using straightforward single-gene mutation Choose a random gene wed thur E 3, E 7

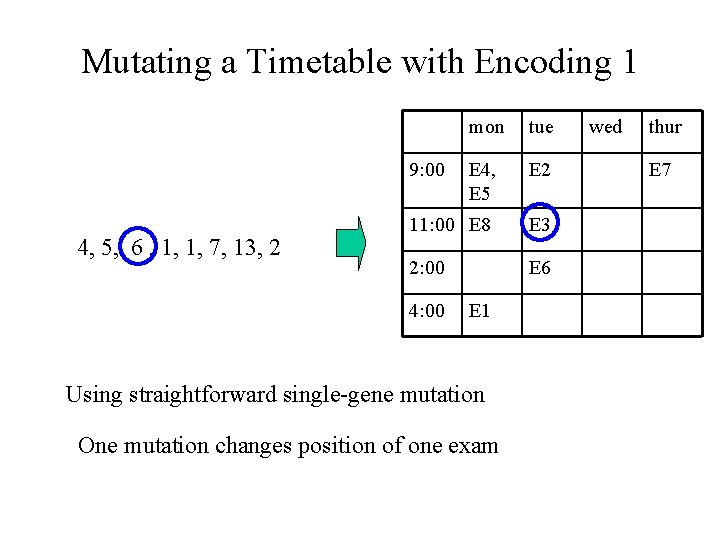

Mutating a Timetable with Encoding 1 mon tue E 4, E 5 E 2 11: 00 E 8 E 3 2: 00 E 6 9: 00 4, 5, 6 , 1, 1, 7, 13, 2 4: 00 E 1 Using straightforward single-gene mutation One mutation changes position of one exam wed thur E 7

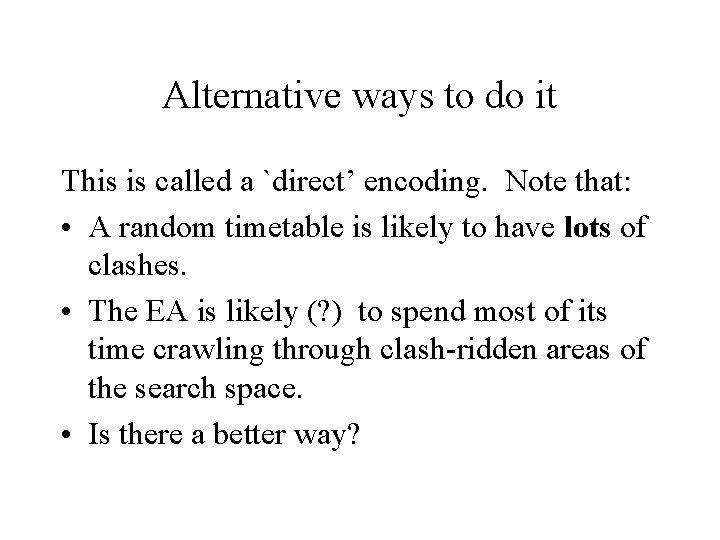

Alternative ways to do it This is called a `direct’ encoding. Note that: • A random timetable is likely to have lots of clashes. • The EA is likely (? ) to spend most of its time crawling through clash-ridden areas of the search space. • Is there a better way?

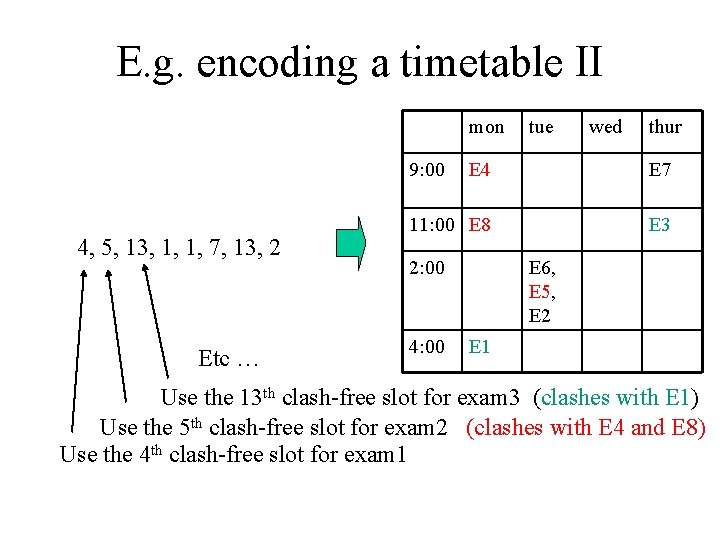

E. g. encoding a timetable II mon 9: 00 4, 5, 13, 1, 1, 7, 13, 2 Etc … tue wed thur E 4 E 7 11: 00 E 8 E 3 2: 00 4: 00 E 6, E 5, E 2 E 1 Use the 13 th clash-free slot for exam 3 (clashes with E 1) Use the 5 th clash-free slot for exam 2 (clashes with E 4 and E 8) Use the 4 th clash-free slot for exam 1

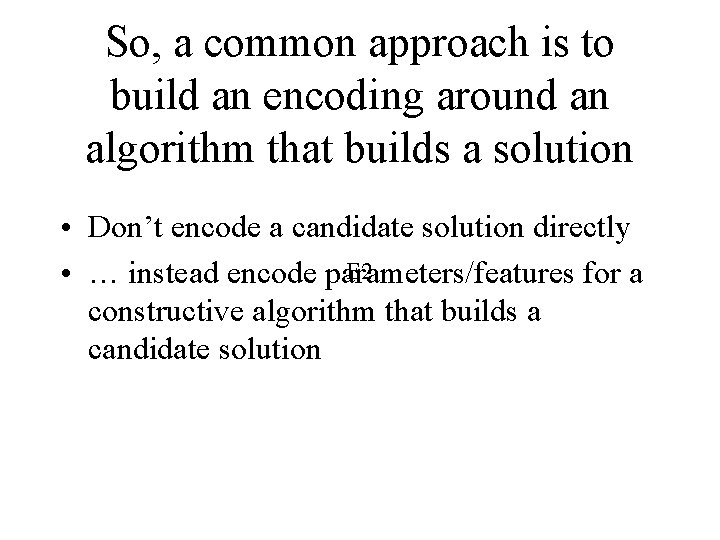

So, a common approach is to build an encoding around an algorithm that builds a solution • Don’t encode a candidate solution directly E 2 • … instead encode parameters/features for a constructive algorithm that builds a candidate solution

An aside. , for study in your own time …

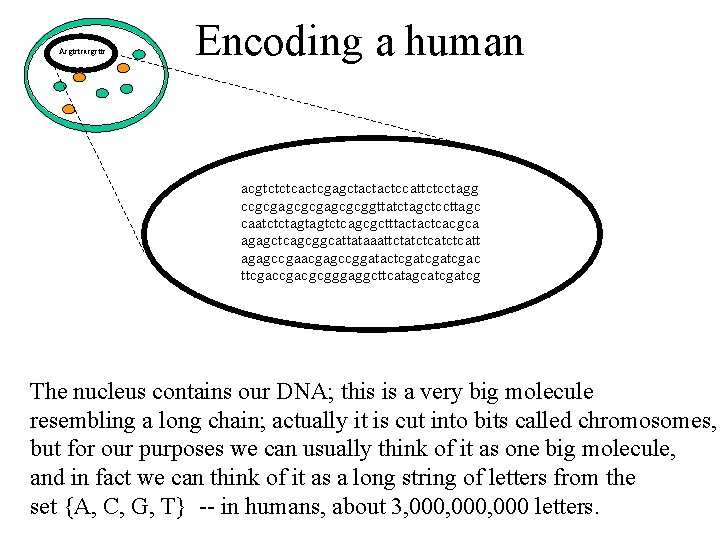

Acgtctcacgcttc Encoding a human acgtctctcactcgagctactactccattctcctagg ccgcgagcgcggttatctagctccttagc caatctctagtagtctcagcgctttactactcacgca agagctcagcggcattataaattctatctcatt agagccgaacgagccggatactcgatcgac ttcgacgcgggaggcttcatagcatcg The nucleus contains our DNA; this is a very big molecule resembling a long chain; actually it is cut into bits called chromosomes, but for our purposes we can usually think of it as one big molecule, and in fact we can think of it as a long string of letters from the set {A, C, G, T} -- in humans, about 3, 000, 000 letters.

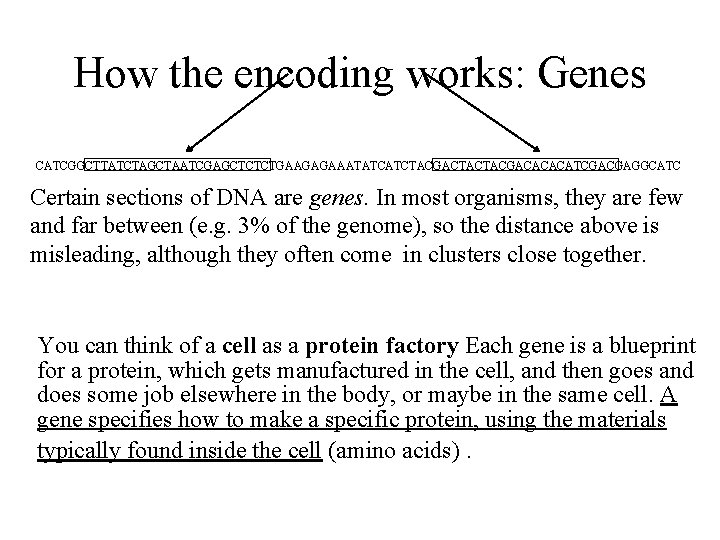

How the encoding works: Genes CATCGGCTTATCTAGCTAATCGAGCTCTCTGAAGAGAAATATCATCTACGACTACTACGACACACATCGACGAGGCATC Certain sections of DNA are genes. In most organisms, they are few and far between (e. g. 3% of the genome), so the distance above is misleading, although they often come in clusters close together. You can think of a cell as a protein factory Each gene is a blueprint for a protein, which gets manufactured in the cell, and then goes and does some job elsewhere in the body, or maybe in the same cell. A gene specifies how to make a specific protein, using the materials typically found inside the cell (amino acids).

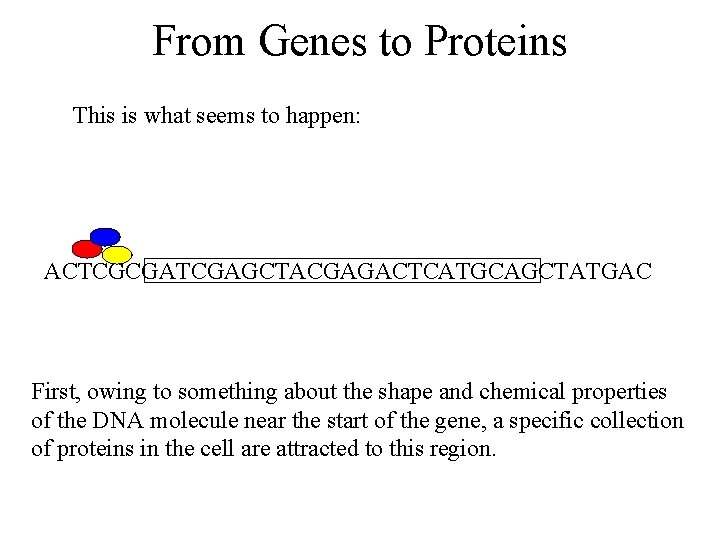

From Genes to Proteins This is what seems to happen: ACTCGCGATCGAGCTACGAGACTCATGCAGCTATGAC First, owing to something about the shape and chemical properties of the DNA molecule near the start of the gene, a specific collection of proteins in the cell are attracted to this region.

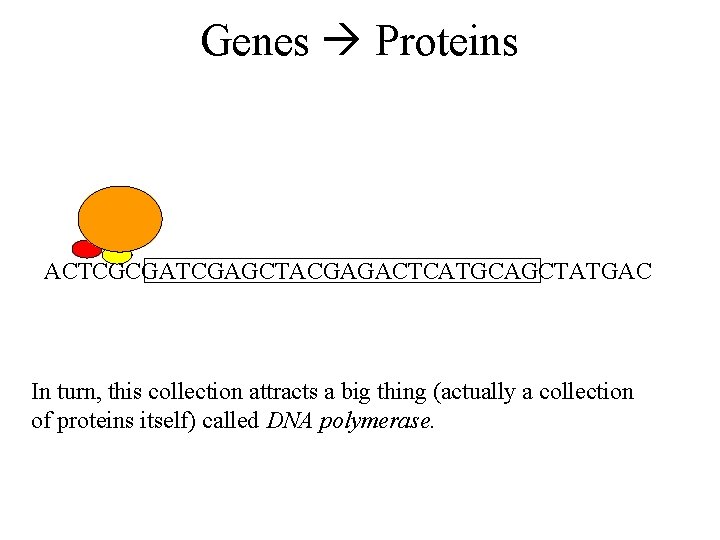

Genes Proteins ACTCGCGATCGAGCTACGAGACTCATGCAGCTATGAC In turn, this collection attracts a big thing (actually a collection of proteins itself) called DNA polymerase.

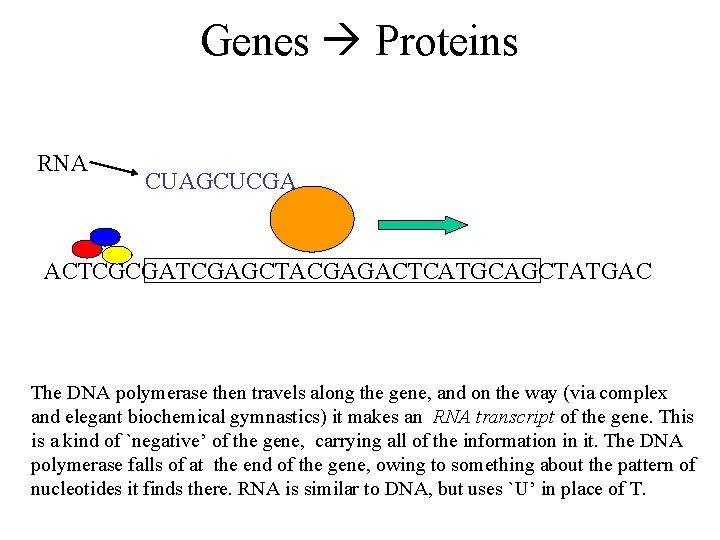

Genes Proteins RNA CUAGCUCGA ACTCGCGATCGAGCTACGAGACTCATGCAGCTATGAC The DNA polymerase then travels along the gene, and on the way (via complex and elegant biochemical gymnastics) it makes an RNA transcript of the gene. This is a kind of `negative’ of the gene, carrying all of the information in it. The DNA polymerase falls of at the end of the gene, owing to something about the pattern of nucleotides it finds there. RNA is similar to DNA, but uses `U’ in place of T.

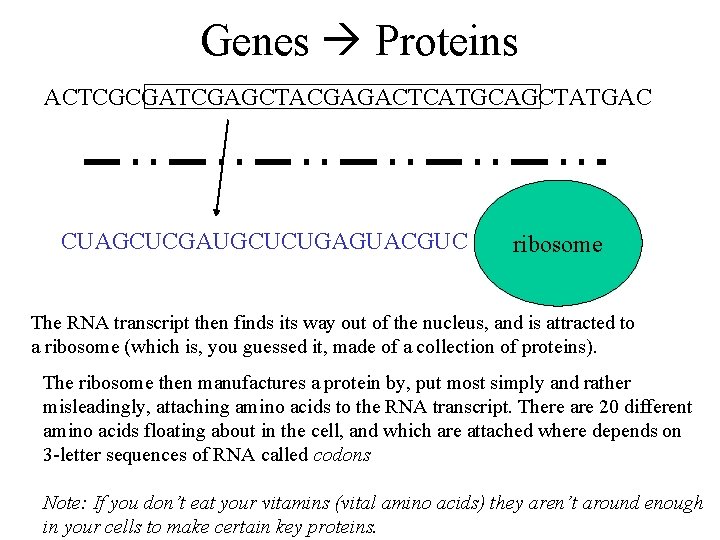

Genes Proteins ACTCGCGATCGAGCTACGAGACTCATGCAGCTATGAC CUAGCUCGAUGCUCUGAGUACGUC ribosome The RNA transcript then finds its way out of the nucleus, and is attracted to a ribosome (which is, you guessed it, made of a collection of proteins). The ribosome then manufactures a protein by, put most simply and rather misleadingly, attaching amino acids to the RNA transcript. There are 20 different amino acids floating about in the cell, and which are attached where depends on 3 -letter sequences of RNA called codons Note: If you don’t eat your vitamins (vital amino acids) they aren’t around enough in your cells to make certain key proteins.

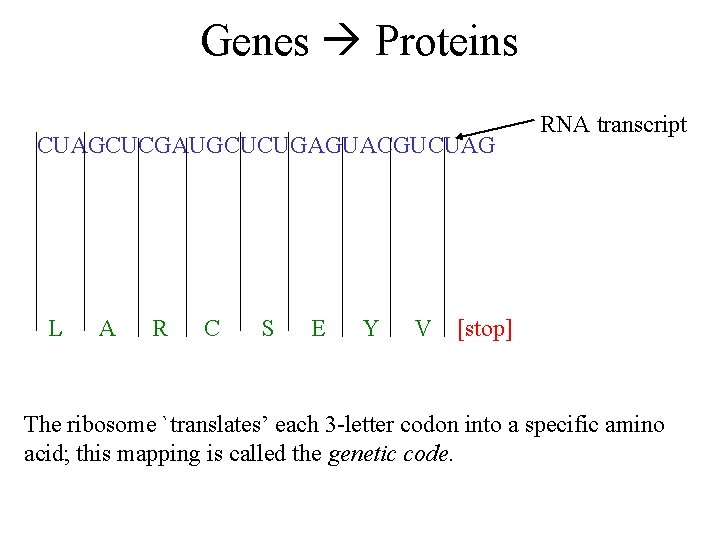

Genes Proteins CUAGCUCGAUGCUCUGAGUACGUCUAG L A R C S E Y V RNA transcript [stop] The ribosome `translates’ each 3 -letter codon into a specific amino acid; this mapping is called the genetic code.

Protein Structure L H C L A R C S E O A H C C N N H H C O Y H C R V C O C N H C H A protein has a backbone of Carbon and Nitrogen atoms, with an amino acid `residue’ attached to every second carbon along it. The sequence of amino acids determines the structure of the protein

Backbone Protein Structure II etc… Sequence of amino acid residues This long chain (e. g. around 300 -2000 atoms), with amino acids strung along it like beads, instantaneously folds into a 3 D structure, governed by the chemical and electrostatic environment. The resulting structure is a protein. Notice how the information contained in the gene is now reflected in the sequence of amino acids, which in turn determines the 3 D structure and properties of the protein.

These proteins, and a few other things, then interact in complex ways, and build you.

That was an example of an indirect encoding Some common terminology is: genotype – the data structure (e. g. a vector of real numbers), and phenotype – the solution interpreted from the genotype (e. g. a design for a two-phase jet nozzle). The genotype phenotype mapping is an important part of the encoding. Sometimes it is direct (i. e. simple), sometimes it is indirect (involving many complex steps).
