Biological Databases Pharmamatrix Workshop 2010 Philip Winter Ishwar

Biological Databases Pharmamatrix Workshop 2010 - Philip Winter - Ishwar V. Hosamani

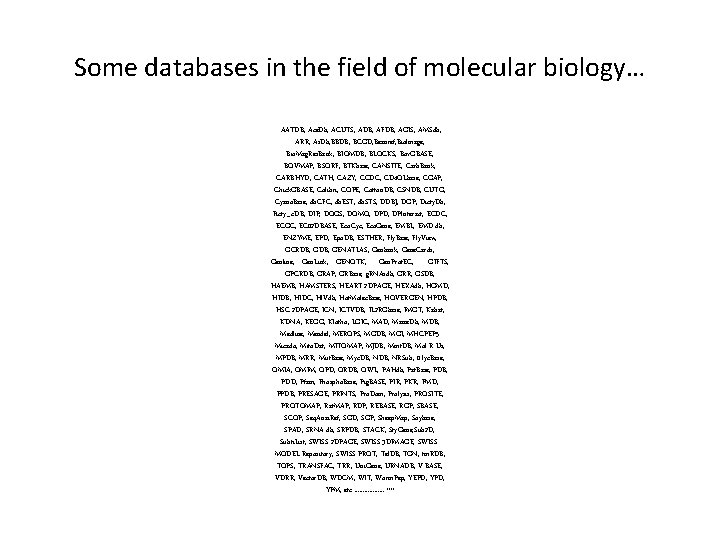

Some databases in the field of molecular biology… AATDB, Ace. Db, ACUTS, ADB, AFDB, AGIS, AMSdb, ARR, As. Db, BBDB, BCGD, Beanref, Biolmage, Bio. Mag. Res. Bank, BIOMDB, BLOCKS, Bov. GBASE, BOVMAP, BSORF, BTKbase, CANSITE, Carb. Bank, CARBHYD, CATH, CAZY, CCDC, CD 4 OLbase, CGAP, Chick. GBASE, Colibri, COPE, Cotton. DB, CSNDB, CUTG, Cyano. Base, db. CFC, db. EST, db. STS, DDBJ, DGP, Dicty. Db, Picty_c. DB, DIP, DOGS, DOMO, DPD, DPlnteract, ECDC, ECGC, EC 02 DBASE, Eco. Cyc, Eco. Gene, EMBL, EMD db, ENZYME, EPD, Epo. DB, ESTHER, Fly. Base, Fly. View, GCRDB, GENATLAS, Genbank, Gene. Cards, Genline, Gen. Link, GENOTK, Gen. Prot. EC, GIFTS, GPCRDB, GRAP, GRBase, g. RNAsdb, GRR, GSDB, HAEMB, HAMSTERS, HEART-2 DPAGE, HEXAdb, HGMD, HIDB, HIDC, Hl. Vdb, Hot. Molec. Base, HOVERGEN, HPDB, HSC-2 DPAGE, ICN, ICTVDB, IL 2 RGbase, IMGT, Kabat, KDNA, KEGG, Klotho, LGIC, MAD, Maize. Db, MDB, Medline, Mendel, MEROPS, MGDB, MGI, MHCPEP 5 Micado, Mito. Dat, MITOMAP, MJDB, Mmt. DB, Mol-R-Us, MPDB, MRR, Mut. Base, Myc. DB, NRSub, 0 -lyc. Base, OMIA, OMIM, OPD, ORDB, OWL, PAHdb, Pat. Base, PDB, PDD, Pfam, Phospho. Base, Pig. BASE, PIR, PKR, PMD, PPDB, PRESAGE, PRINTS, Pro. Dom, Prolysis, PROSITE, PROTOMAP, Rat. MAP, RDP, REBASE, RGP, SBASE, SCOP, Seq. Anai. Ref, SGD, SGP, Sheep. Map, Soybase, SPAD, SRNA db, SRPDB, STACK, Sty. Gene, Sub 2 D, Subti. List, SWISS-2 DPAGE, SWISS-3 DIMAGE, SWISSMODEL Repository, SWISS-PROT, Tel. DB, TGN, tm. RDB, TOPS, TRANSFAC, TRR, Uni. Gene, URNADB, V BASE, VDRR, Vector. DB, WDCM, WIT, Worm. Pep, YEPD, YPM, etc. . . . !!!!

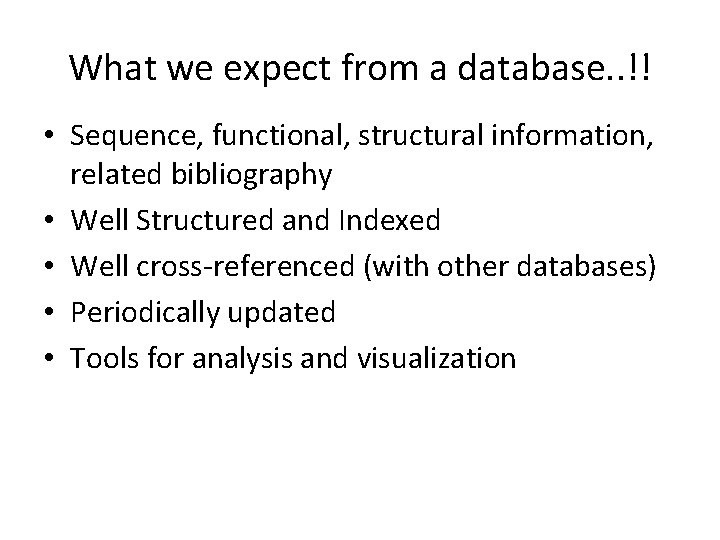

What we expect from a database. . !! • Sequence, functional, structural information, related bibliography • Well Structured and Indexed • Well cross-referenced (with other databases) • Periodically updated • Tools for analysis and visualization

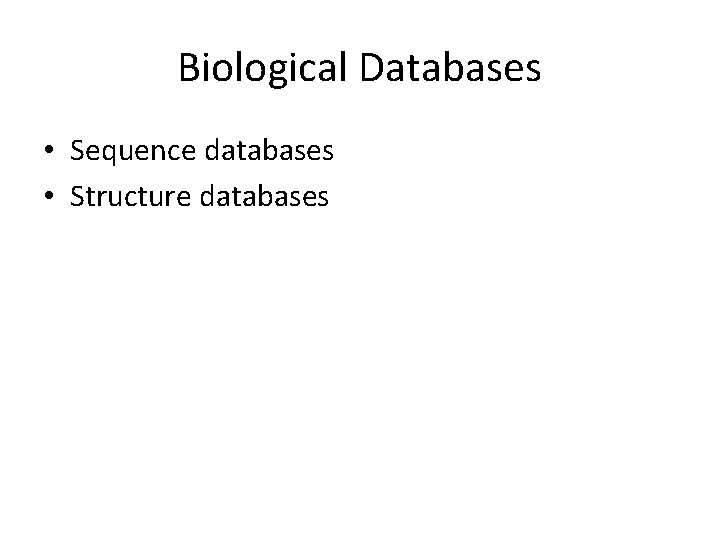

Biological Databases • Sequence databases • Structure databases

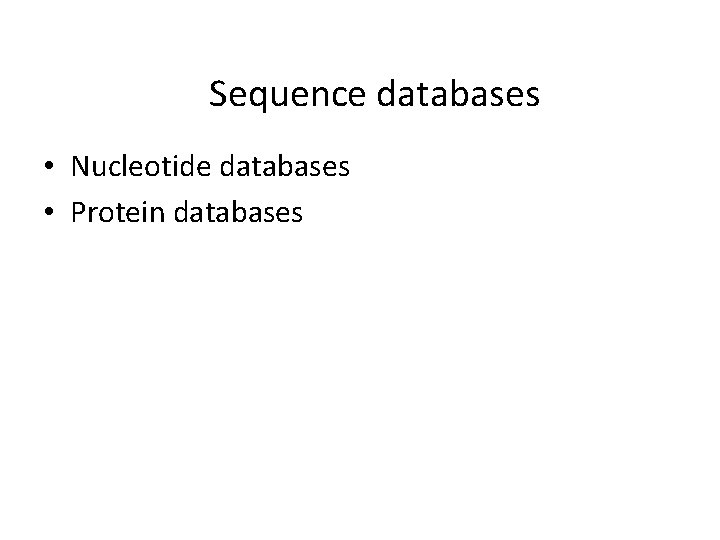

Sequence databases • Nucleotide databases • Protein databases

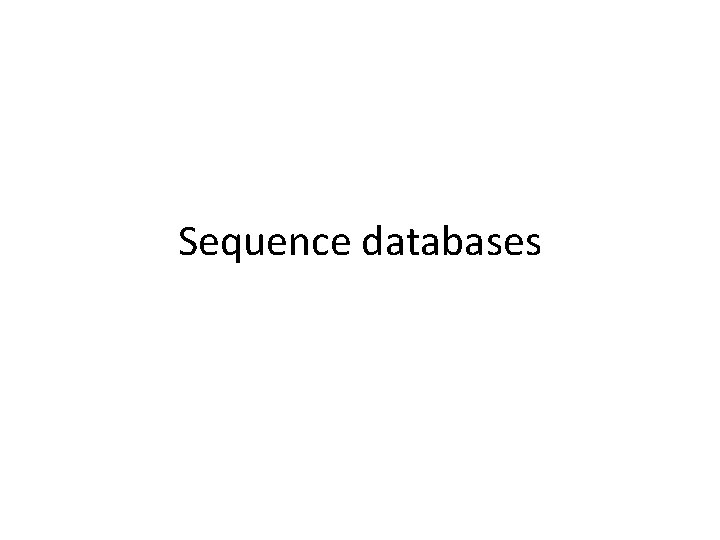

Sequence databases

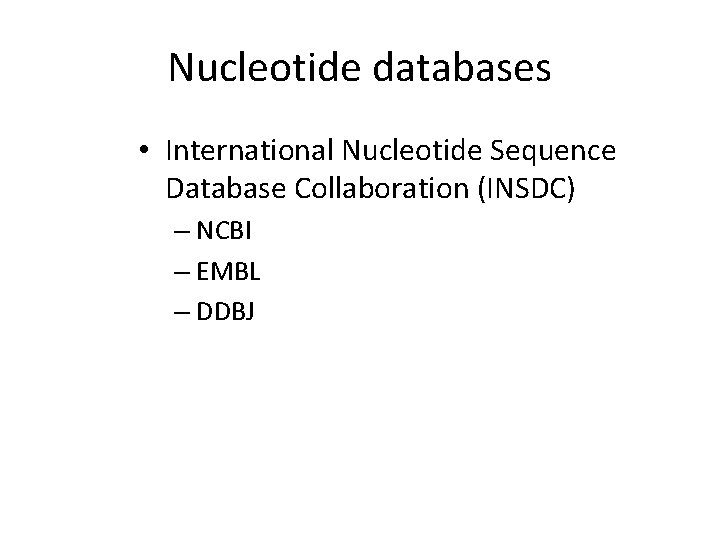

Nucleotide databases • International Nucleotide Sequence Database Collaboration (INSDC) – NCBI – EMBL – DDBJ

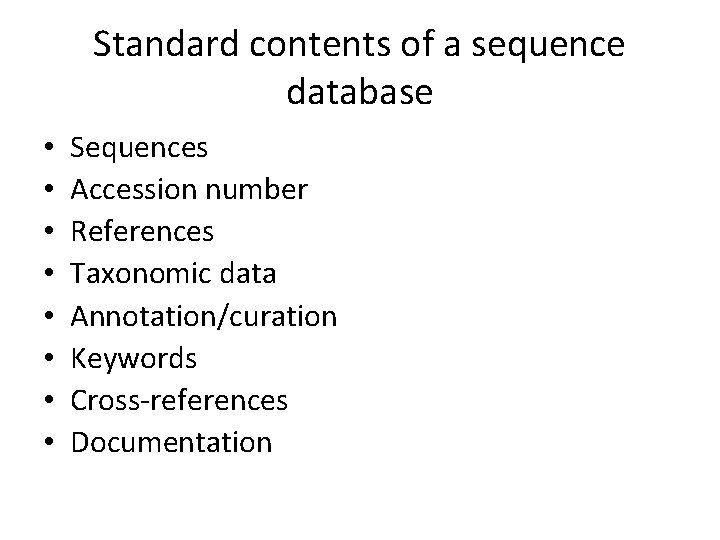

Standard contents of a sequence database • • Sequences Accession number References Taxonomic data Annotation/curation Keywords Cross-references Documentation

NCBI • • Very comprehensive biological database GENBANK: The nucleotide sequence database Provides 42 different resource Provides a simple and easy to use web interface http: //www. ncbi. nlm. nih. gov/

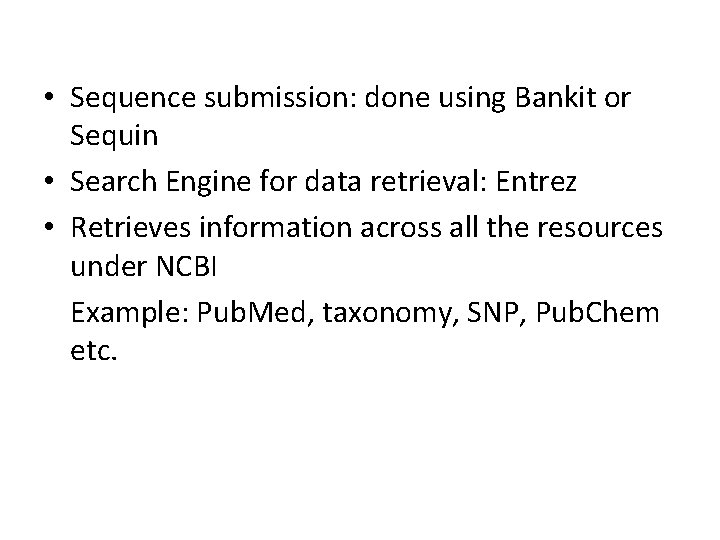

• Sequence submission: done using Bankit or Sequin • Search Engine for data retrieval: Entrez • Retrieves information across all the resources under NCBI Example: Pub. Med, taxonomy, SNP, Pub. Chem etc.

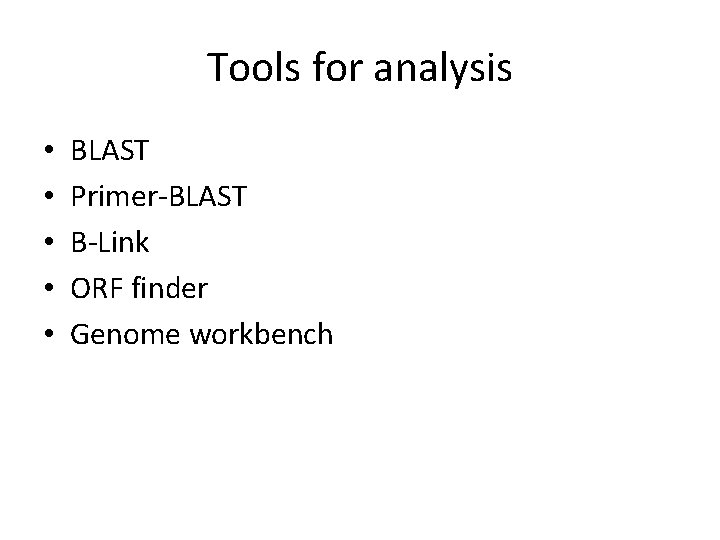

Tools for analysis • • • BLAST Primer-BLAST B-Link ORF finder Genome workbench

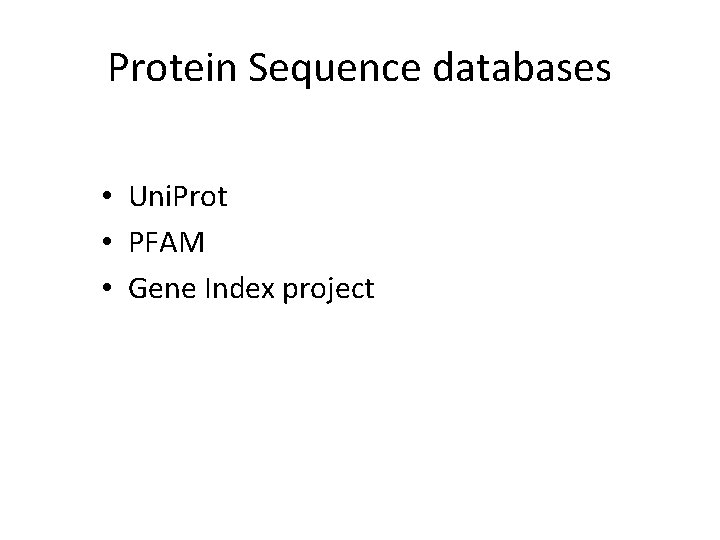

Protein Sequence databases • Uni. Prot • PFAM • Gene Index project

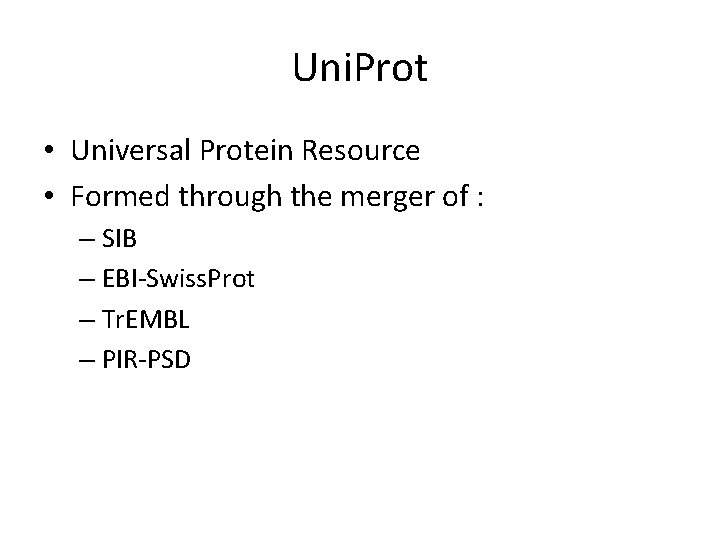

Uni. Prot • Universal Protein Resource • Formed through the merger of : – SIB – EBI-Swiss. Prot – Tr. EMBL – PIR-PSD

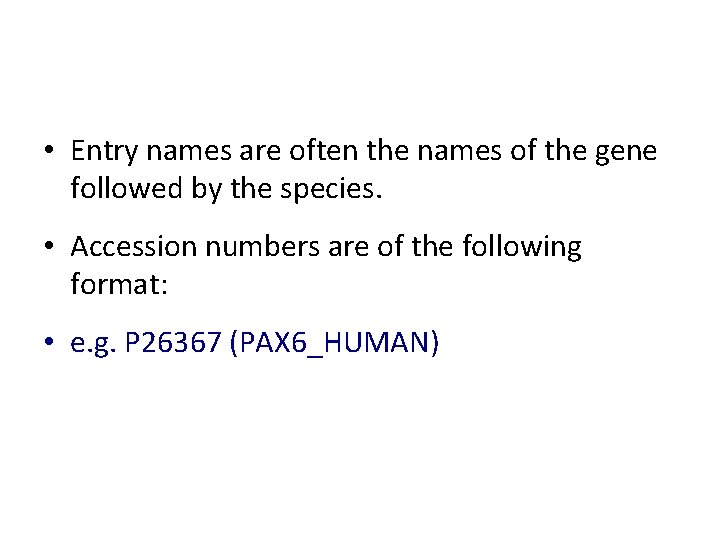

• Entry names are often the names of the gene followed by the species. • Accession numbers are of the following format: • e. g. P 26367 (PAX 6_HUMAN)

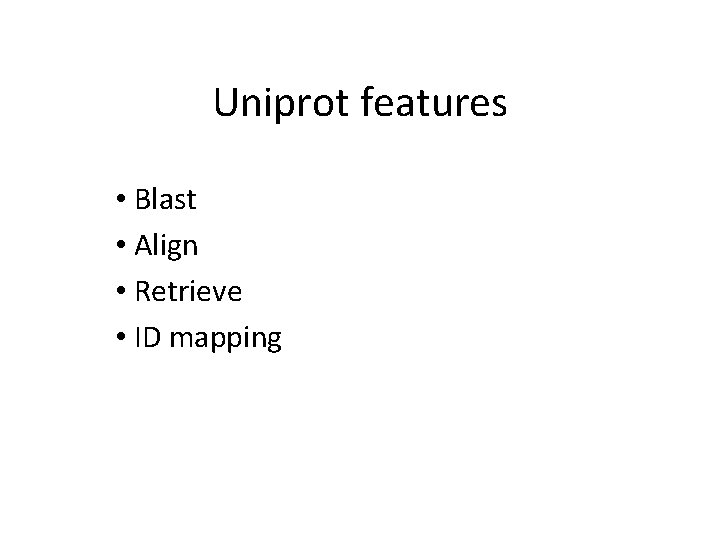

Uniprot features • Blast • Align • Retrieve • ID mapping

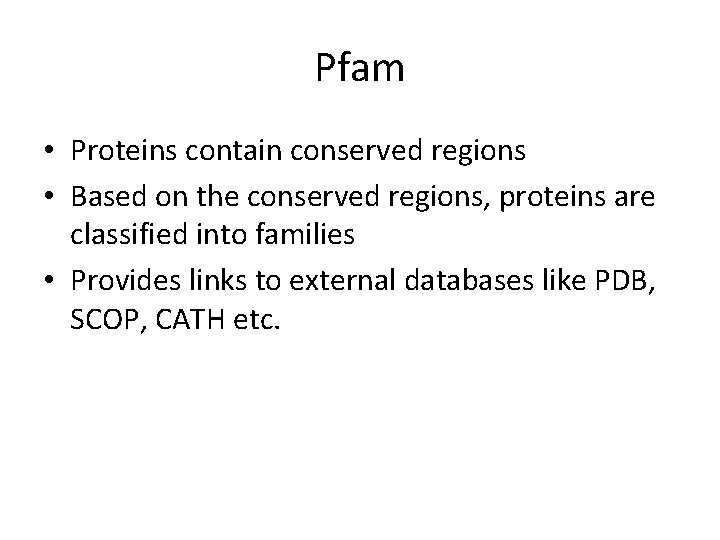

Pfam • Proteins contain conserved regions • Based on the conserved regions, proteins are classified into families • Provides links to external databases like PDB, SCOP, CATH etc.

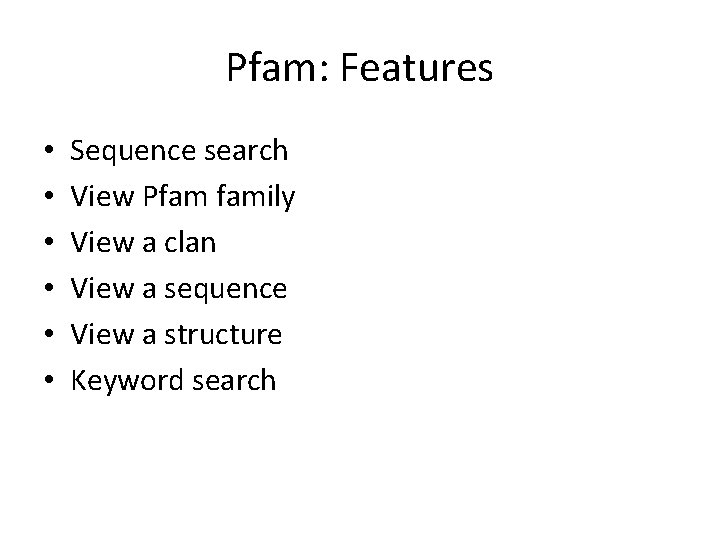

Pfam: Features • • • Sequence search View Pfam family View a clan View a sequence View a structure Keyword search

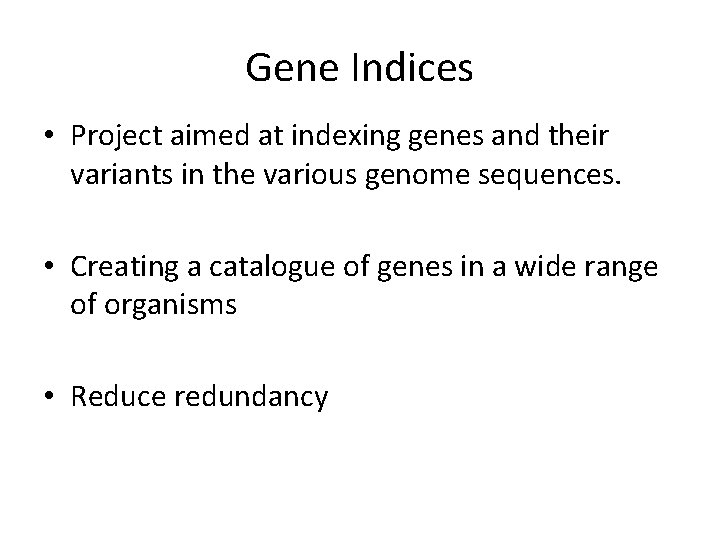

Gene Indices • Project aimed at indexing genes and their variants in the various genome sequences. • Creating a catalogue of genes in a wide range of organisms • Reduce redundancy

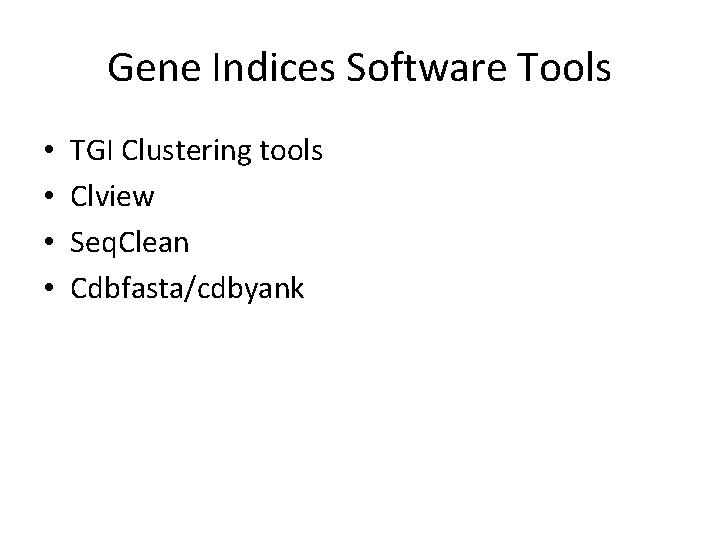

Gene Indices Software Tools • • TGI Clustering tools Clview Seq. Clean Cdbfasta/cdbyank

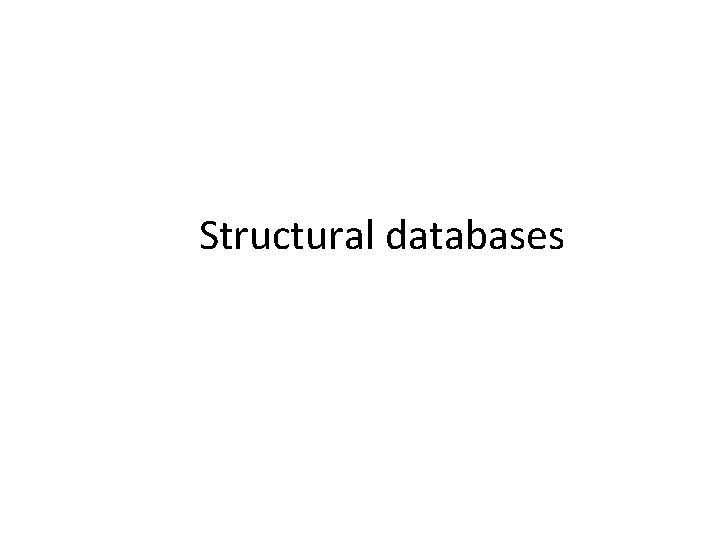

Structural databases

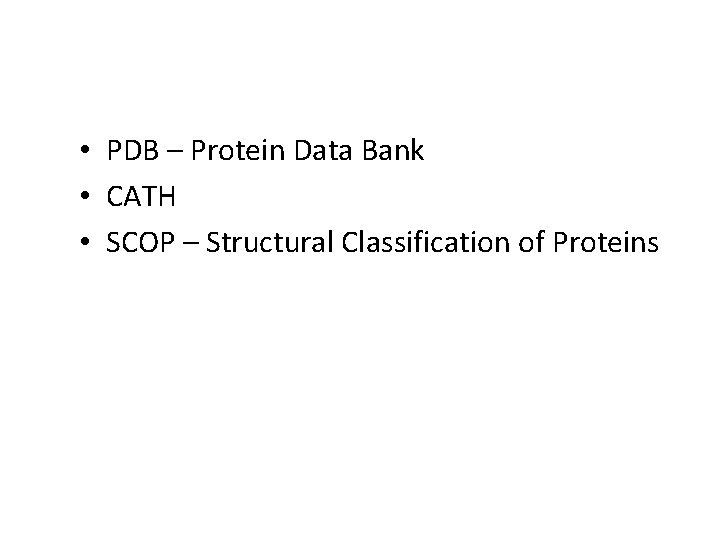

• PDB – Protein Data Bank • CATH • SCOP – Structural Classification of Proteins

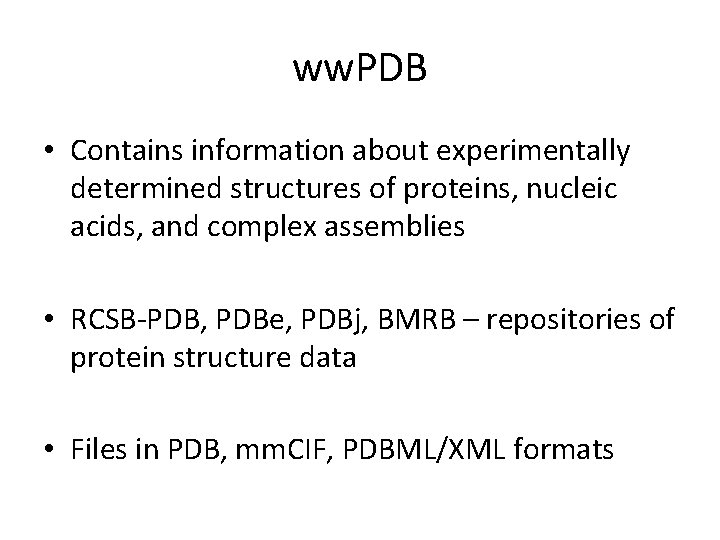

ww. PDB • Contains information about experimentally determined structures of proteins, nucleic acids, and complex assemblies • RCSB-PDB, PDBe, PDBj, BMRB – repositories of protein structure data • Files in PDB, mm. CIF, PDBML/XML formats

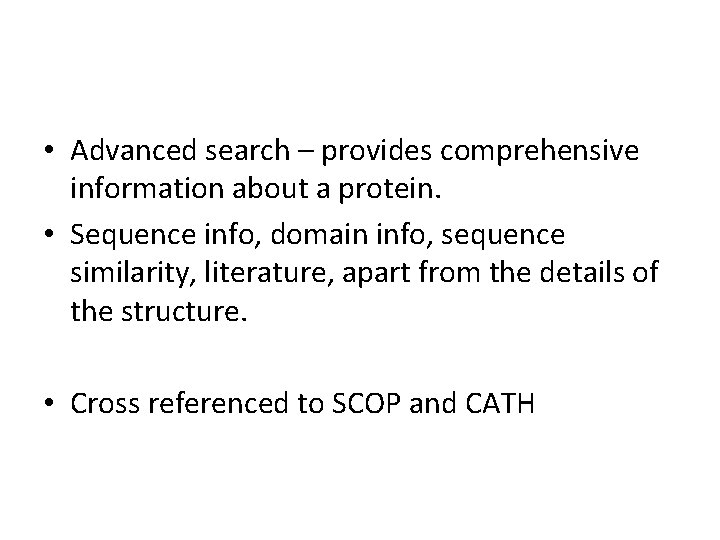

• Advanced search – provides comprehensive information about a protein. • Sequence info, domain info, sequence similarity, literature, apart from the details of the structure. • Cross referenced to SCOP and CATH

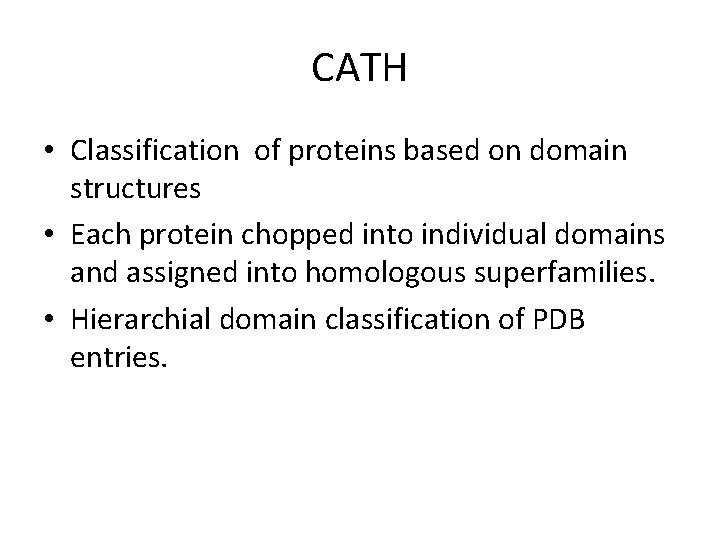

CATH • Classification of proteins based on domain structures • Each protein chopped into individual domains and assigned into homologous superfamilies. • Hierarchial domain classification of PDB entries.

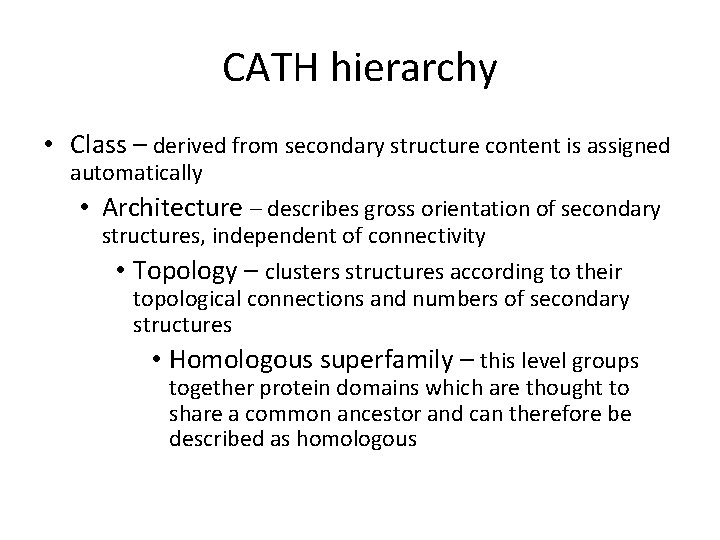

CATH hierarchy • Class – derived from secondary structure content is assigned automatically • Architecture – describes gross orientation of secondary structures, independent of connectivity • Topology – clusters structures according to their topological connections and numbers of secondary structures • Homologous superfamily – this level groups together protein domains which are thought to share a common ancestor and can therefore be described as homologous

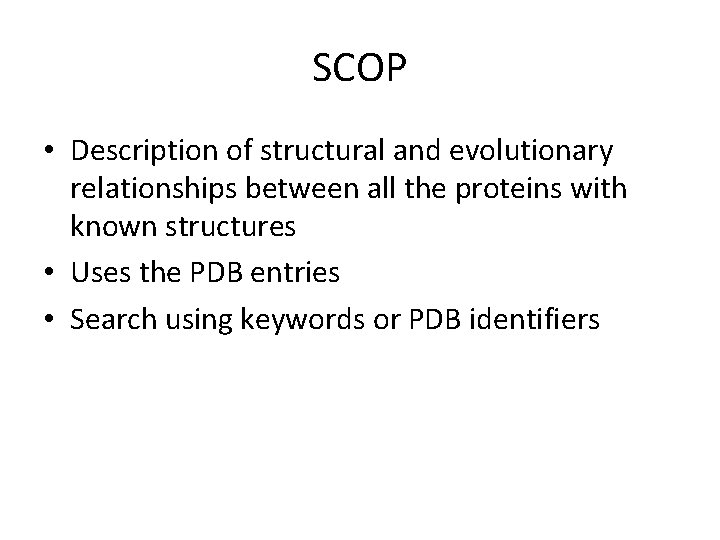

SCOP • Description of structural and evolutionary relationships between all the proteins with known structures • Uses the PDB entries • Search using keywords or PDB identifiers

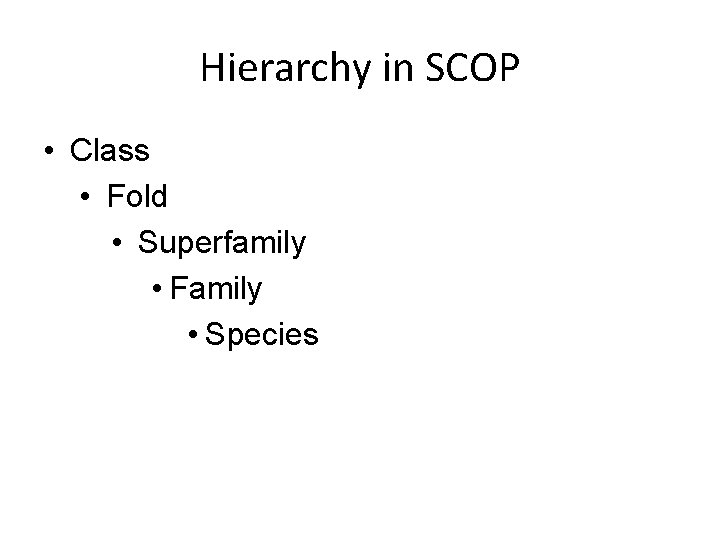

Hierarchy in SCOP • Class • Fold • Superfamily • Family • Species

Thank you
