BIOL 204 Lab For Week 4 Cat Dissection

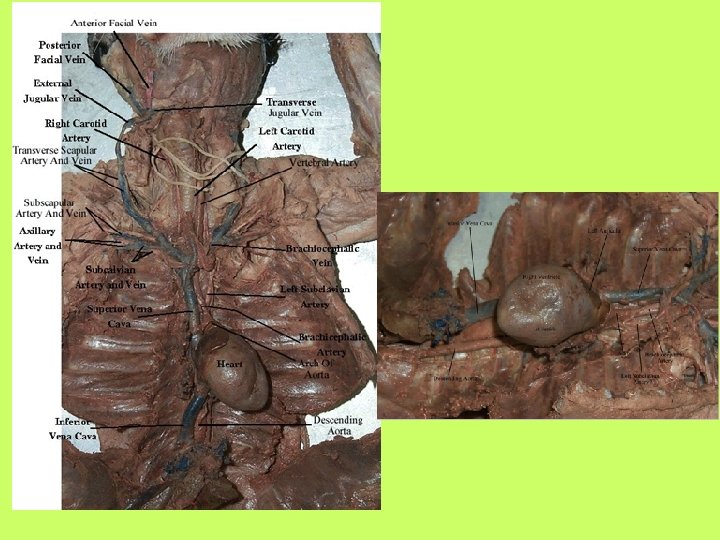

BIOL 204 Lab For Week 4 Cat Dissection: Arteries and Veins Slide 3 -14 retrieved from https: //homes. bio. psu. edu/faculty/strauss/anatomy/biology 29. htm

Objective 1 Cat Dissection Sorry – this is the only picture that I could find to show the cutting lines !!!!!!!!!!!!!

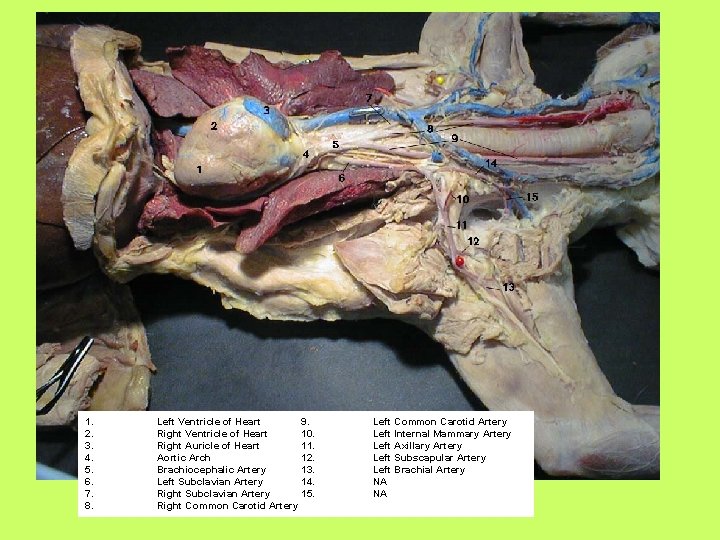

1. 2. 3. 4. 5. 6. 7. 8. Left Ventricle of Heart 9. Right Ventricle of Heart 10. Right Auricle of Heart 11. Aortic Arch 12. Brachiocephalic Artery 13. Left Subclavian Artery 14. Right Subclavian Artery 15. Right Common Carotid Artery Left Internal Mammary Artery Left Axillary Artery Left Subscapular Artery Left Brachial Artery NA NA

1. 2. 3. 4. 5. 6. 7. 8. NA NA NA Right External Jugular Vein Right Internal Jugular Vein NA Right Subclavian Vein Right Axillary Vein 9. Right Subscapular Vein 10. 11. 12. 13. 14. 15. 16. 17. Right Brachial Vein Brachiocephalic Veins Superior Vena Cava Azygous Vein Right Auricle of Heart Right Ventricle of Heart Pericardial Sac Inferior Vena Cava with Phrenic Nerve

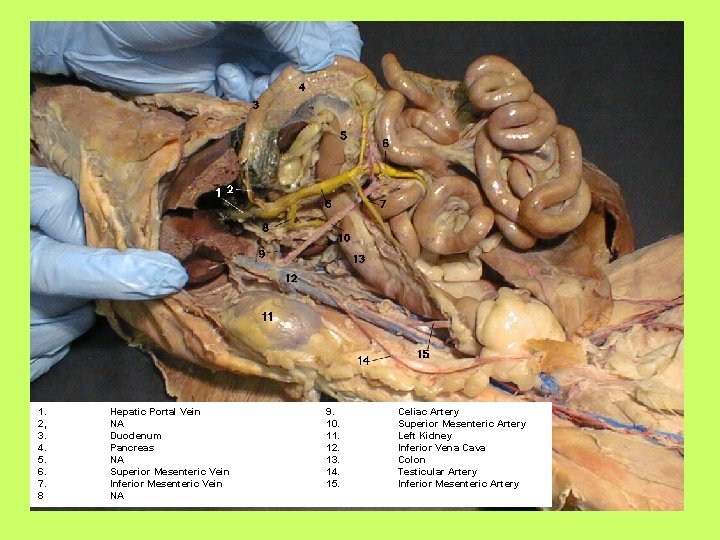

1. 2, 3. 4. 5. 6. 7. 8 Hepatic Portal Vein NA Duodenum Pancreas NA Superior Mesenteric Vein Inferior Mesenteric Vein NA 9. 10. 11. 12. 13. 14. 15. Celiac Artery Superior Mesenteric Artery Left Kidney Inferior Vena Cava Colon Testicular Artery Inferior Mesenteric Artery

1. 2. 3. 4. 5. 6. 7. Hepatic Portal Vein NA Spleen Left Kidney Renal Vein Testicular Vein Ureter 8. 9. 10. 11. 12. 13. Abdominal Aorta Inferior Mesenteric Artery Inferior Vena Cava Inferior Mesenteric Vein Superior Mesenteric Artery Superior Mesenteric Vein

A. Superior Mesenteric Artery B. Celiac Trunk

1. 2. 3. 4. 5. 6. 7. NA Spleen NA Superior Mesenteric Vein Inferior Mesenteric Vein Splenic, Hepatic, & Gastric Artery Celiac Artery 8. 9. 10. 11. 12. 13. 14. Superior Mesenteric Artery Adrenolumbar Vein Renal Vein Internal Spermatic Vein Abdominal Aorta Inferior Mesenteric Artery Inferior Vena Cava

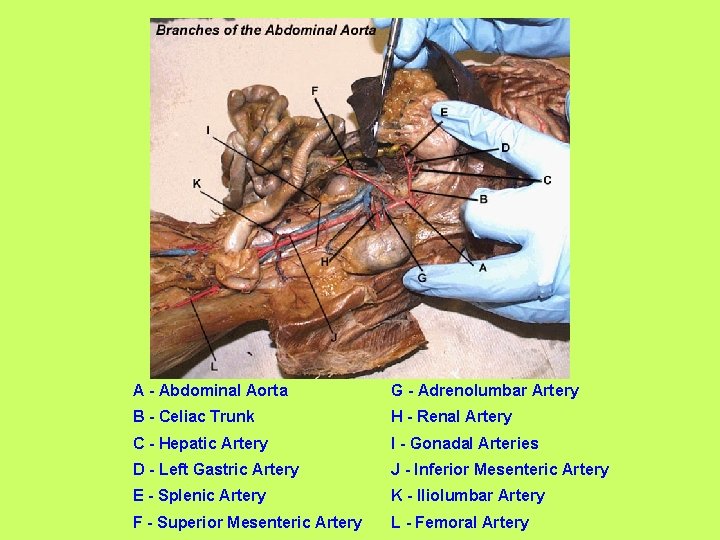

A - Abdominal Aorta G - Adrenolumbar Artery B - Celiac Trunk H - Renal Artery C - Hepatic Artery I - Gonadal Arteries D - Left Gastric Artery J - Inferior Mesenteric Artery E - Splenic Artery K - Iliolumbar Artery F - Superior Mesenteric Artery L - Femoral Artery

1. 2. 3. 4. 5. Abdominal Aorta Inferior Vena Cava Right Iliolumbar Artery & Vein Right Common Iliac Vein Right External Iliac Artery 7. 8. 9. 10. 11. 6. Right Internal Iliac Artery 12. Right Internal Iliac Vein Right External Iliac Vein NA Right Femoral Artery & Vein Right Saphenous Artery & Vein Right Popliteal Artery & Vein

Cats do note have a common iliac artery – They do have internal and external iliac arteries

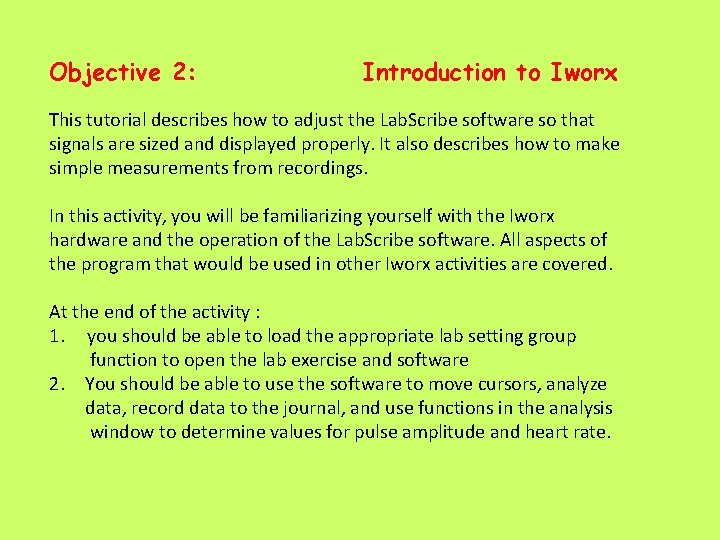

Objective 2: Introduction to Iworx This tutorial describes how to adjust the Lab. Scribe software so that signals are sized and displayed properly. It also describes how to make simple measurements from recordings. In this activity, you will be familiarizing yourself with the Iworx hardware and the operation of the Lab. Scribe software. All aspects of the program that would be used in other Iworx activities are covered. At the end of the activity : 1. you should be able to load the appropriate lab setting group function to open the lab exercise and software 2. You should be able to use the software to move cursors, analyze data, record data to the journal, and use functions in the analysis window to determine values for pulse amplitude and heart rate.

Front Panel of IWorx 214 Rear Panel of IWorx 214

Equipment Required PC Computer IWX/214 data acquisition unit USB cable IWX/214 power supply PT-104 pulse plethysmograph

Sample of how a recording would look like:

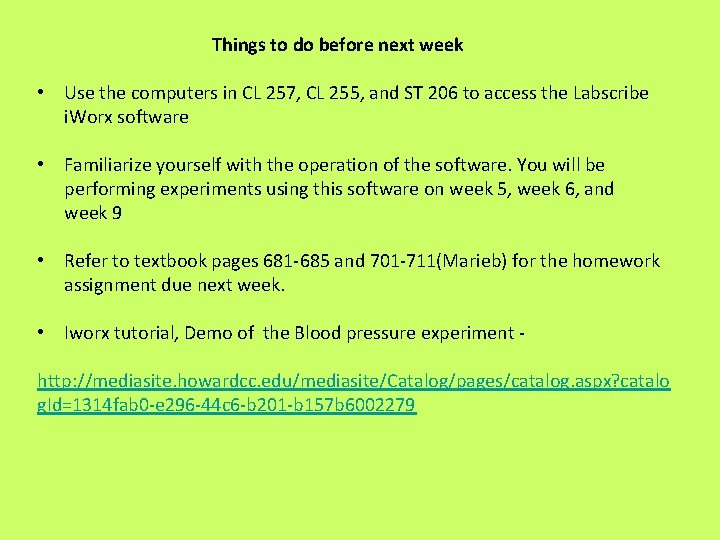

Things to do before next week • Use the computers in CL 257, CL 255, and ST 206 to access the Labscribe i. Worx software • Familiarize yourself with the operation of the software. You will be performing experiments using this software on week 5, week 6, and week 9 • Refer to textbook pages 681 -685 and 701 -711(Marieb) for the homework assignment due next week. • Iworx tutorial, Demo of the Blood pressure experiment http: //mediasite. howardcc. edu/mediasite/Catalog/pages/catalog. aspx? catalo g. Id=1314 fab 0 -e 296 -44 c 6 -b 201 -b 157 b 6002279
