Bioinformatics 2 lecture 17 Molecular surfaces Electrostatic maps

Bioinformatics 2 -- lecture 17 Molecular surfaces Electrostatic maps The Hydrophobic Effect

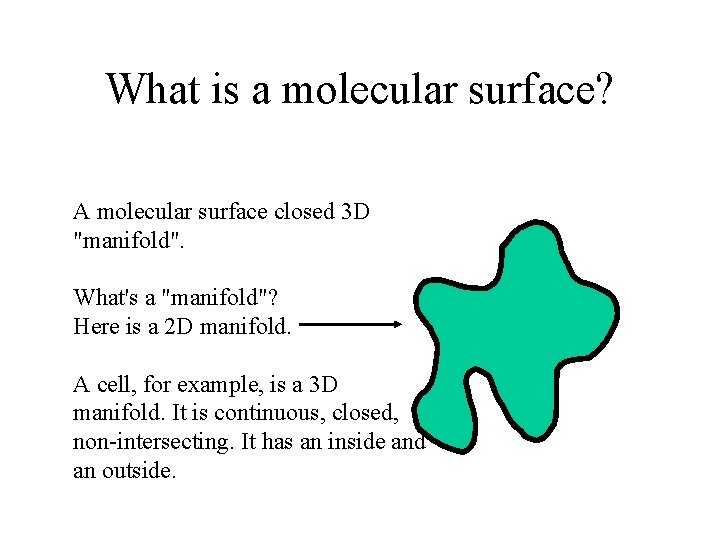

What is a molecular surface? A molecular surface closed 3 D "manifold". What's a "manifold"? Here is a 2 D manifold. A cell, for example, is a 3 D manifold. It is continuous, closed, non-intersecting. It has an inside and an outside.

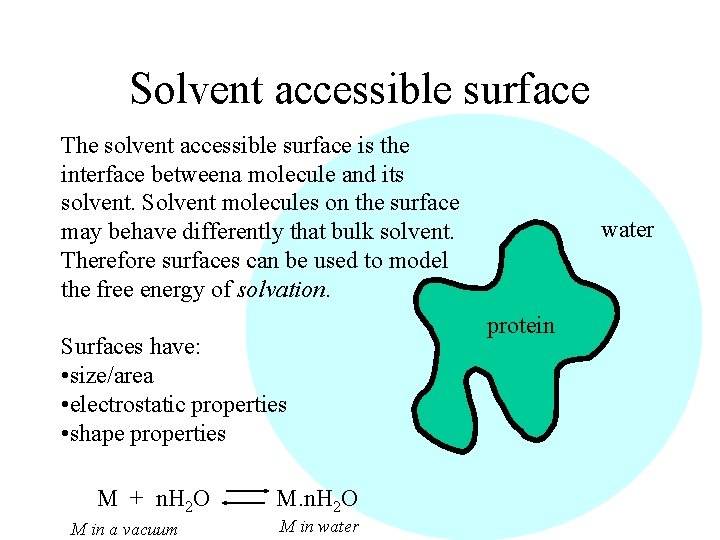

Solvent accessible surface The solvent accessible surface is the interface betweena molecule and its solvent. Solvent molecules on the surface may behave differently that bulk solvent. Therefore surfaces can be used to model the free energy of solvation. Surfaces have: • size/area • electrostatic properties • shape properties M + n. H 2 O M in a vacuum M. n. H 2 O M in water protein

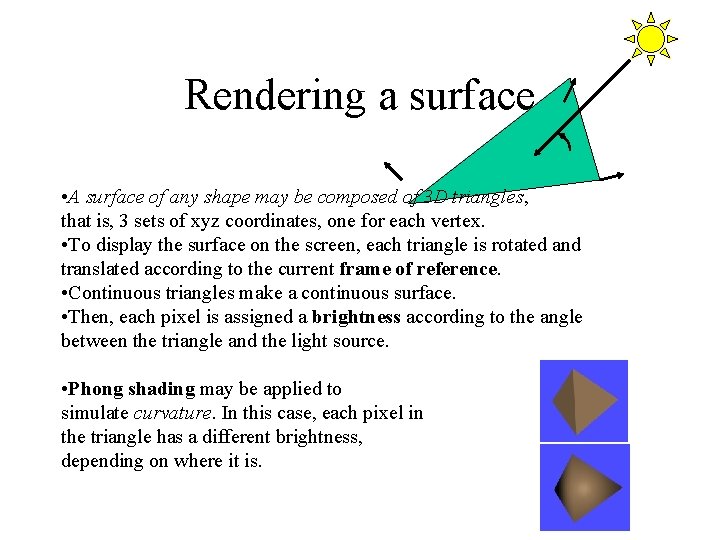

Rendering a surface • A surface of any shape may be composed of 3 D triangles, that is, 3 sets of xyz coordinates, one for each vertex. • To display the surface on the screen, each triangle is rotated and translated according to the current frame of reference. • Continuous triangles make a continuous surface. • Then, each pixel is assigned a brightness according to the angle between the triangle and the light source. • Phong shading may be applied to simulate curvature. In this case, each pixel in the triangle has a different brightness, depending on where it is.

Surfaces maybe described as a set of connected triangles A cow-shaped manifold made of triangles. Phong-shaded cow. Shading give the illusion of higher resolution.

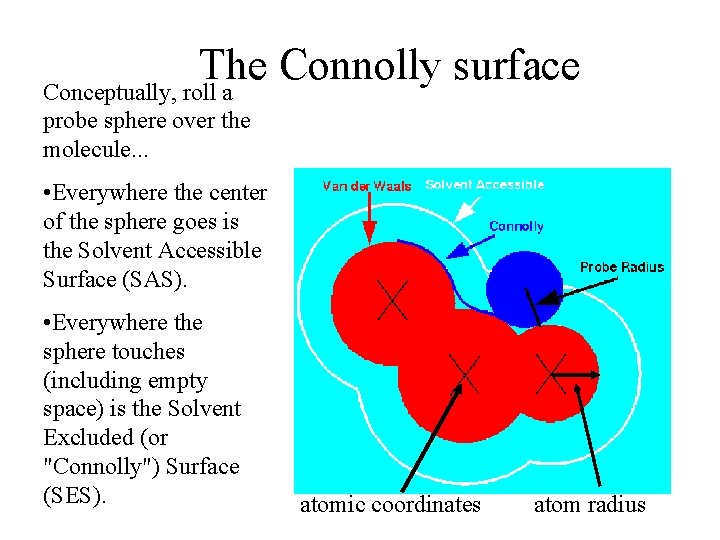

The Connolly surface Conceptually, roll a probe sphere over the molecule. . . • Everywhere the center of the sphere goes is the Solvent Accessible Surface (SAS). • Everywhere the sphere touches (including empty space) is the Solvent Excluded (or "Connolly") Surface (SES). atomic coordinates atom radius

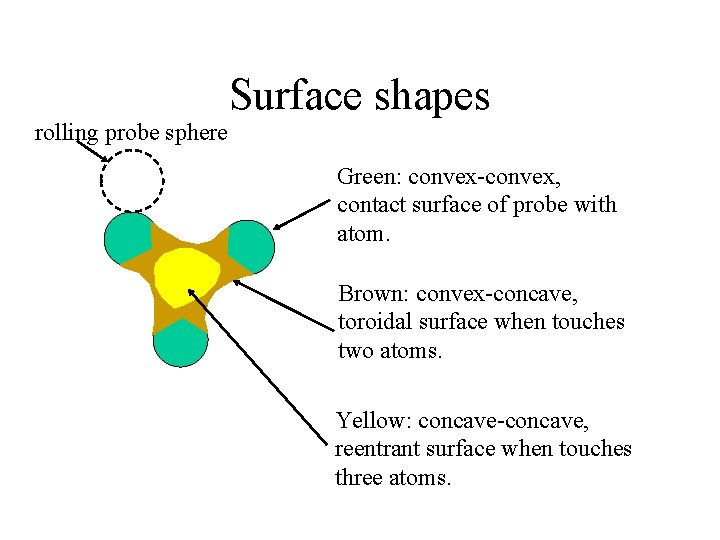

rolling probe sphere Surface shapes Green: convex-convex, contact surface of probe with atom. Brown: convex-concave, toroidal surface when touches two atoms. Yellow: concave-concave, reentrant surface when touches three atoms.

Coloring by atom, by shape Surfaces maybe shaded by partial charge. or by shape. Yellow parts are ‘reentrant’.

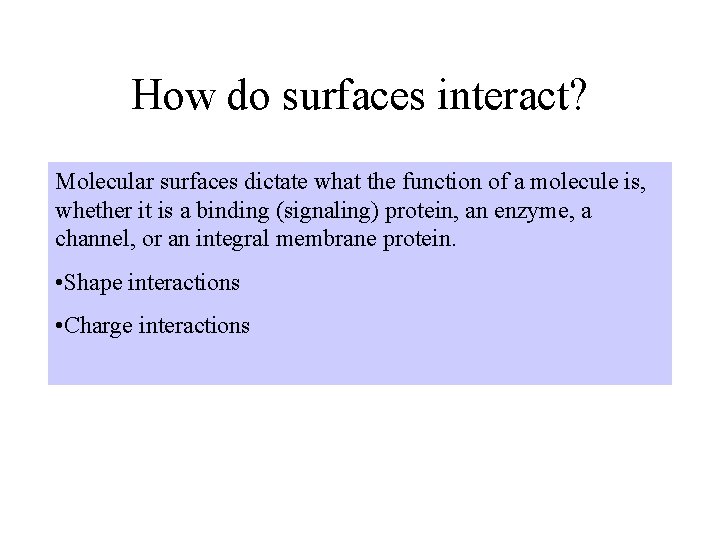

How do surfaces interact? Molecular surfaces dictate what the function of a molecule is, whether it is a binding (signaling) protein, an enzyme, a channel, or an integral membrane protein. • Shape interactions • Charge interactions

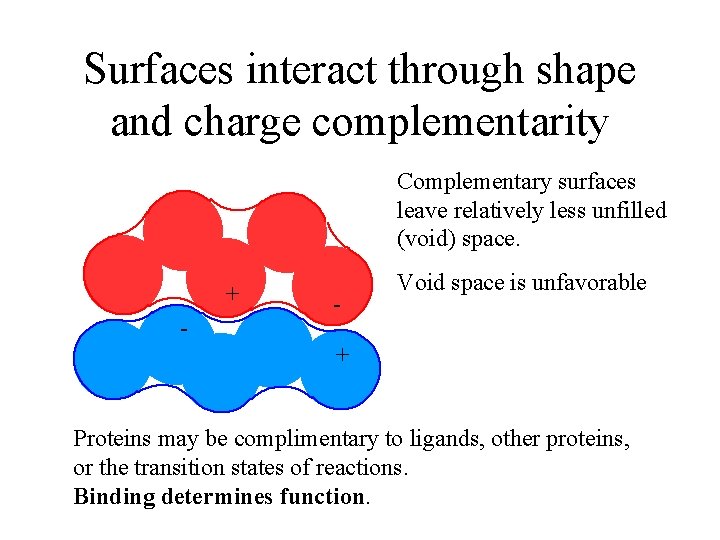

Surfaces interact through shape and charge complementarity Complementary surfaces leave relatively less unfilled (void) space. + - - Void space is unfavorable + Proteins may be complimentary to ligands, other proteins, or the transition states of reactions. Binding determines function.

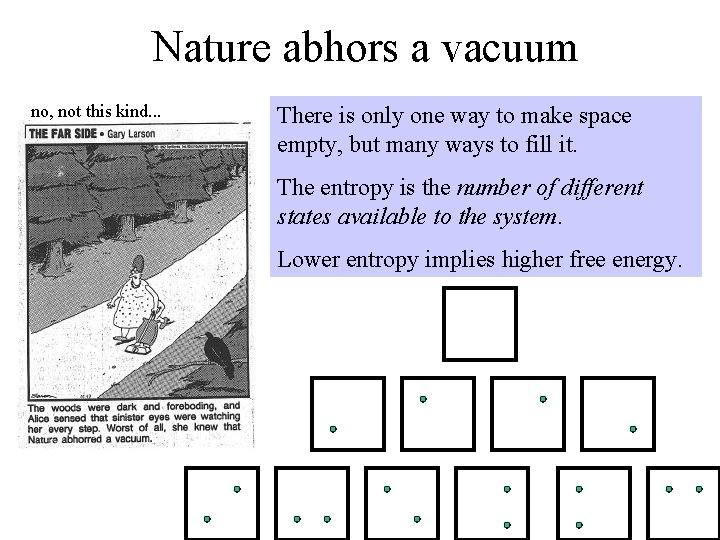

Nature abhors a vacuum no, not this kind. . . There is only one way to make space empty, but many ways to fill it. The entropy is the number of different states available to the system. Lower entropy implies higher free energy.

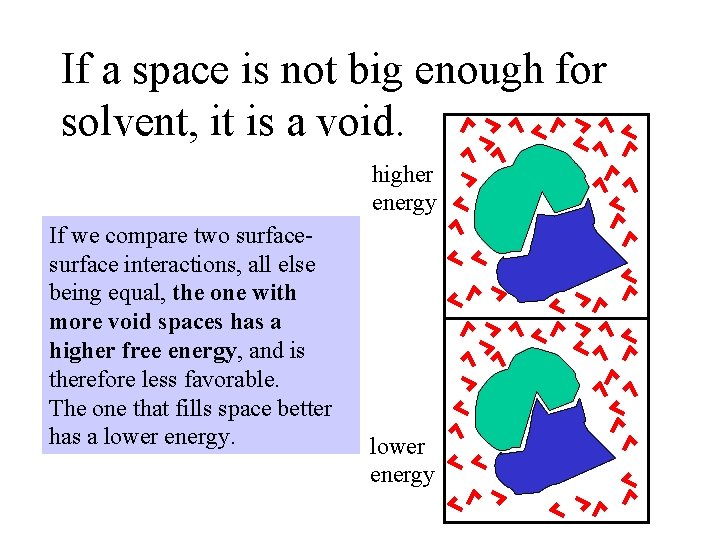

If a space is not big enough for solvent, it is a void. higher energy If we compare two surface interactions, all else being equal, the one with more void spaces has a higher free energy, and is therefore less favorable. The one that fills space better has a lower energy

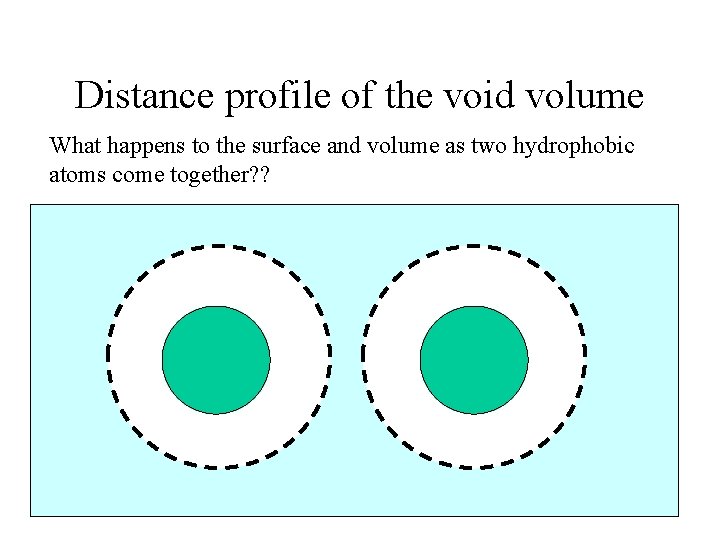

Distance profile of the void volume What happens to the surface and volume as two hydrophobic atoms come together? ?

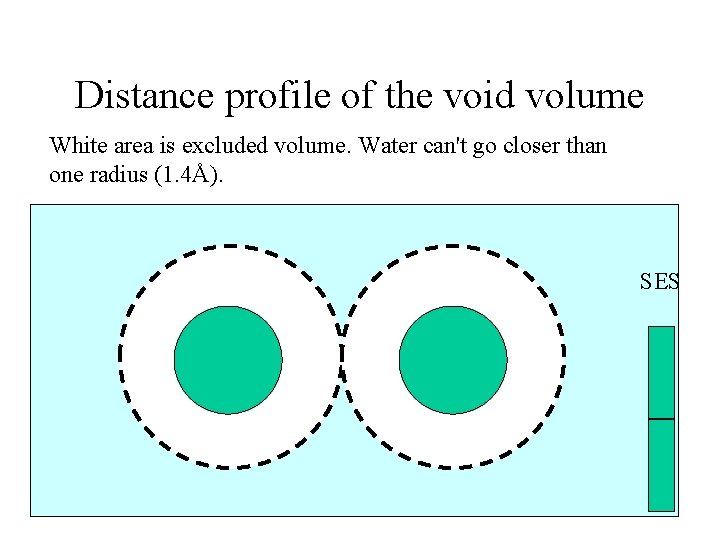

Distance profile of the void volume White area is excluded volume. Water can't go closer than one radius (1. 4Å). SES

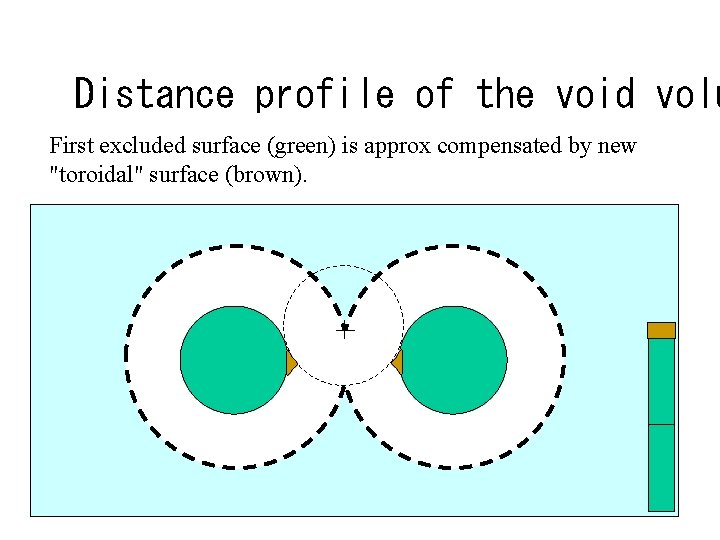

Distance profile of the void volu First excluded surface (green) is approx compensated by new "toroidal" surface (brown).

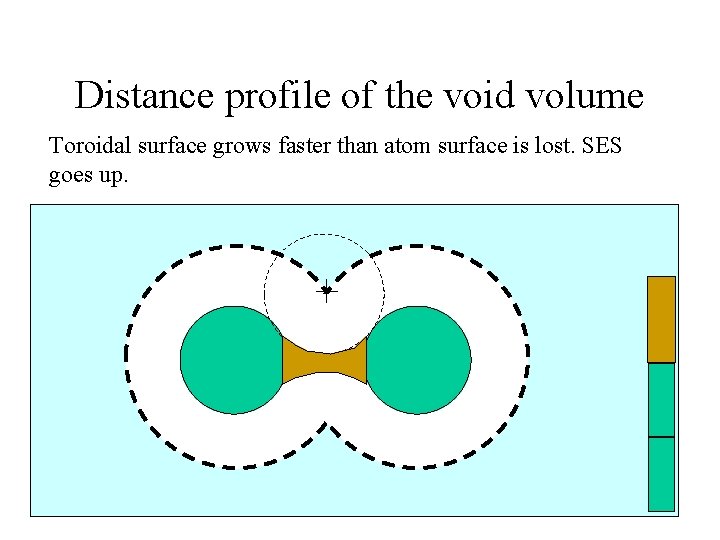

Distance profile of the void volume Toroidal surface grows faster than atom surface is lost. SES goes up.

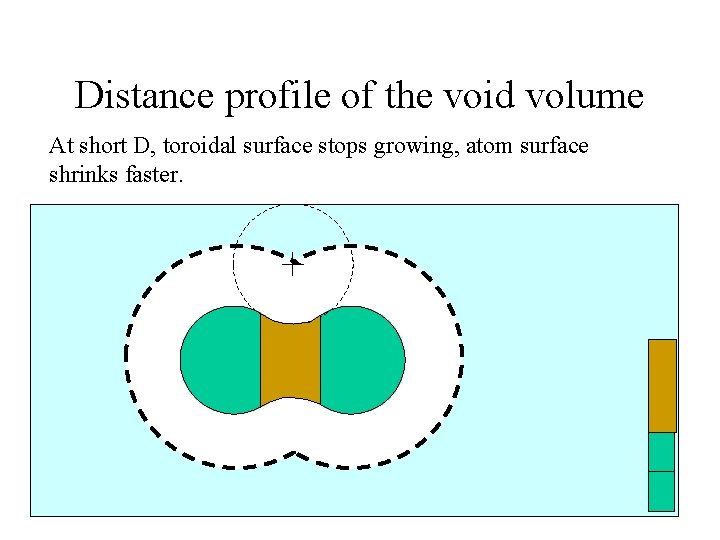

Distance profile of the void volume At short D, toroidal surface stops growing, atom surface shrinks faster.

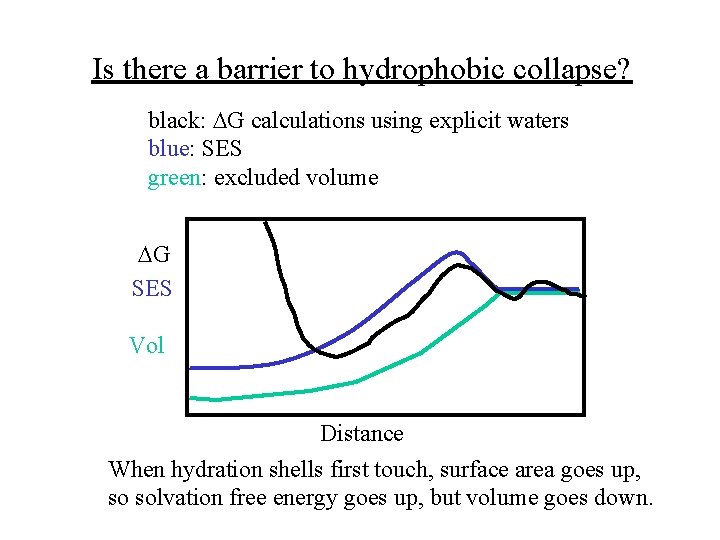

Is there a barrier to hydrophobic collapse? black: G calculations using explicit waters blue: SES green: excluded volume G SES Vol Distance When hydration shells first touch, surface area goes up, so solvation free energy goes up, but volume goes down.

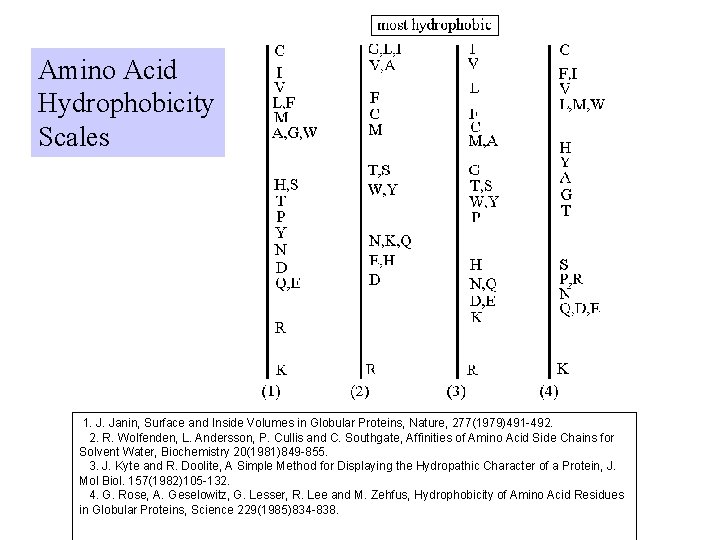

Amino Acid Hydrophobicity Scales 1. J. Janin, Surface and Inside Volumes in Globular Proteins, Nature, 277(1979)491 -492. 2. R. Wolfenden, L. Andersson, P. Cullis and C. Southgate, Affinities of Amino Acid Side Chains for Solvent Water, Biochemistry 20(1981)849 -855. 3. J. Kyte and R. Doolite, A Simple Method for Displaying the Hydropathic Character of a Protein, J. Mol Biol. 157(1982)105 -132. 4. G. Rose, A. Geselowitz, G. Lesser, R. Lee and M. Zehfus, Hydrophobicity of Amino Acid Residues in Globular Proteins, Science 229(1985)834 -838.

Low entropy waters fill reentrant holes on the surface.

Electrostatic potential maps/surfaces

Coulomb's Law Where qi is the charge on particle i, qj is the charge on particle j, rij is the distance between them, and is the dielectric. This is the energy required to bring two charges from infinite distance to the distance rij in a medium with dielectric .

Die Electric! "Dielectric" is the degree to which the medium disperses charge. Charge dispersion can happen by rotating dipoles (like water) or by induced polarization. In a higher dielectric, the charges feel less force. The energy to pull two like charges together is less, and the energy to push two opposite charges apart is less. + + (must be ≥ 1. 000)

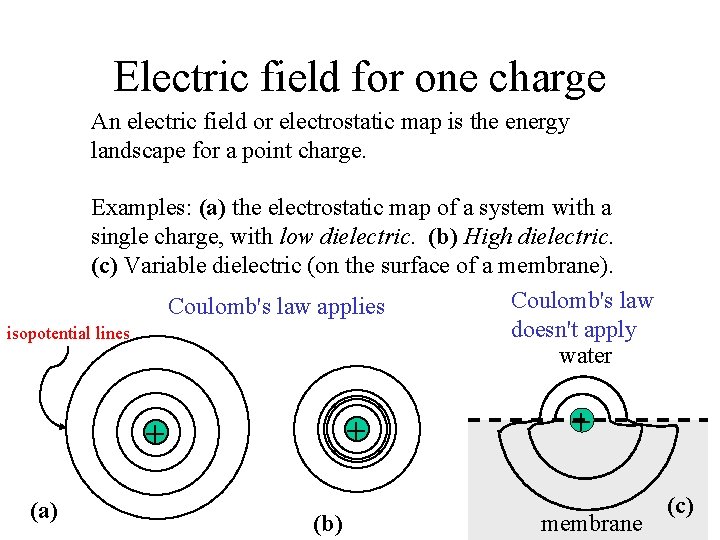

Electric field for one charge An electric field or electrostatic map is the energy landscape for a point charge. Examples: (a) the electrostatic map of a system with a single charge, with low dielectric. (b) High dielectric. (c) Variable dielectric (on the surface of a membrane). Coulomb's law applies doesn't apply isopotential lines water + + (a) (b) + membrane (c)

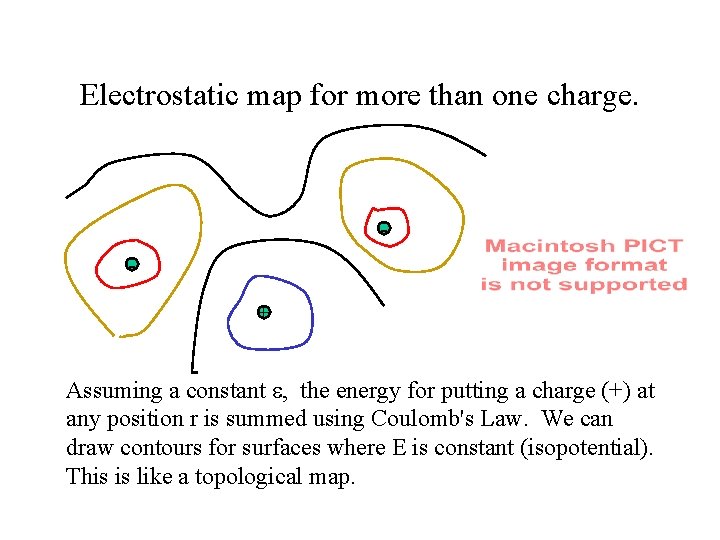

Electrostatic map for more than one charge. + Assuming a constant , the energy for putting a charge (+) at any position r is summed using Coulomb's Law. We can draw contours for surfaces where E is constant (isopotential). This is like a topological map.

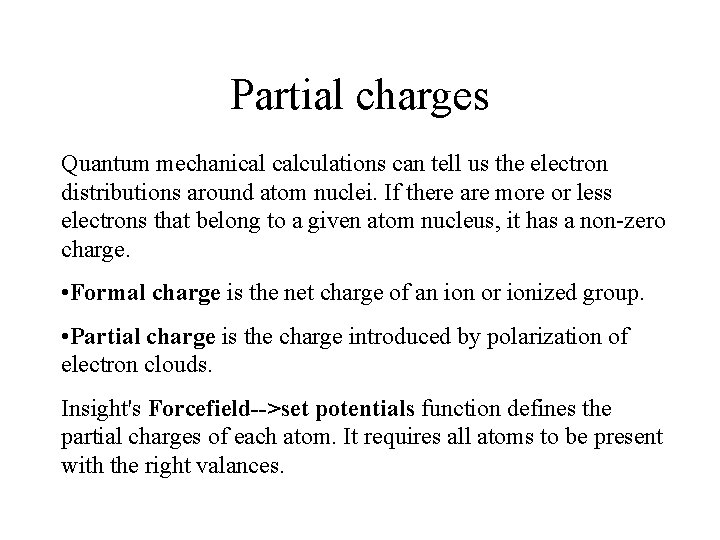

Partial charges Quantum mechanical calculations can tell us the electron distributions around atom nuclei. If there are more or less electrons that belong to a given atom nucleus, it has a non-zero charge. • Formal charge is the net charge of an ion or ionized group. • Partial charge is the charge introduced by polarization of electron clouds. Insight's Forcefield-->set potentials function defines the partial charges of each atom. It requires all atoms to be present with the right valances.

Poisson's equation If every point has a charge density (r), and the sum over all points is zero (no net charge), and the energy is related to the charge inverse-linearly, then we can state the following relationship between the charge density and the curvature of the electrostatic potential, Poisson's equation. the charge density map the 3 D 2 nd deriv. (curvature) of. . . the units the electrostatic potential at r the constant dielectric

. . continued This equation allows us to express the electrostatic potential as a function of any distribution of charges. "del" means (d/dx)+(d/dy)+(d/dz) "phi" is the electrostatic potential. Del. Phi is a program that calculates the electrostatic potential map. So. . if we know , we can get .

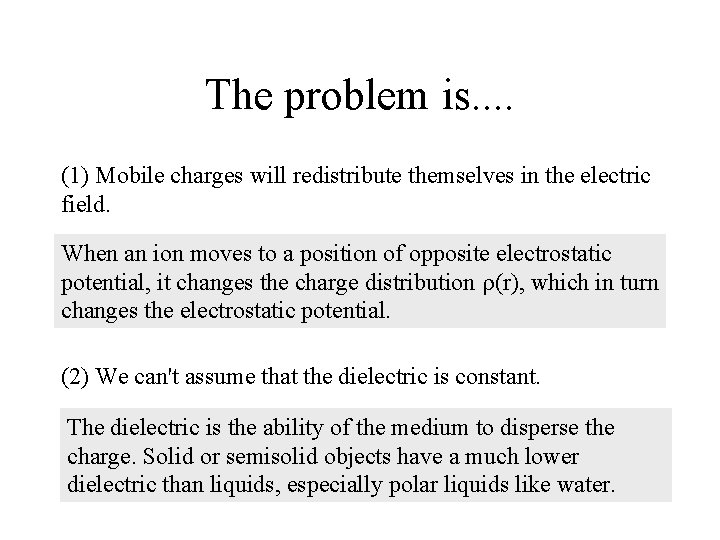

The problem is. . (1) Mobile charges will redistribute themselves in the electric field. When an ion moves to a position of opposite electrostatic potential, it changes the charge distribution (r), which in turn changes the electrostatic potential. (2) We can't assume that the dielectric is constant. The dielectric is the ability of the medium to disperse the charge. Solid or semisolid objects have a much lower dielectric than liquids, especially polar liquids like water.

Boltzmann distribution Boltzmann states that the number density of ions in an electric field or map is related to the electrostatic potential as follows: energy to bring a charge to point r number density of ions (charges) from infinity a constant, depending on the units bulk number density ≈ ionic strength So. . if we know , we can get . NOTE: The Boltzmann distribution is a generalization of the equation for equilibrium using Gibbs Free Energy: G = -RTlog(Keq)

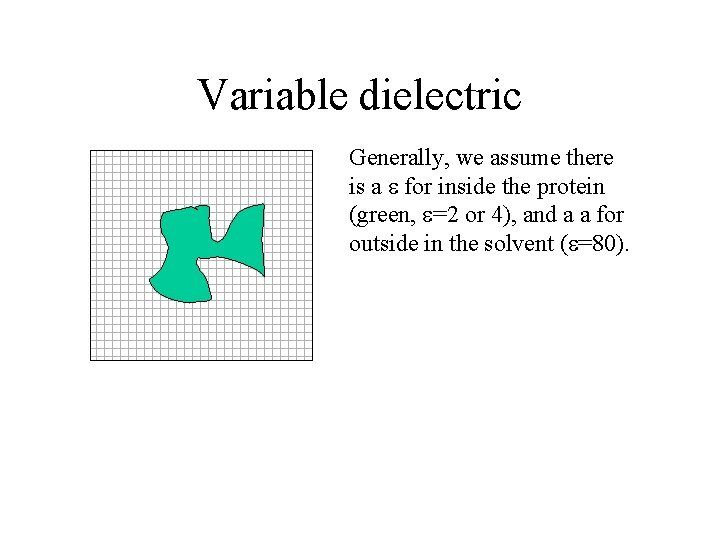

Variable dielectric Generally, we assume there is a for inside the protein (green, =2 or 4), and a a for outside in the solvent ( =80).

Poisson-Boltzmann equation What's this? • It has position specific dielectric ( (r)). • It depends on the position specific charge density (r). • It has a -dependent correction for Boltzmann distribution, (r) • It expresses the relationship between the electrostatics and the charge distribution. • This equality must hold for any two functions (the charge distribution) and (the electrostatic potential) at all points r. • The P-B equation has to be solved numerically.

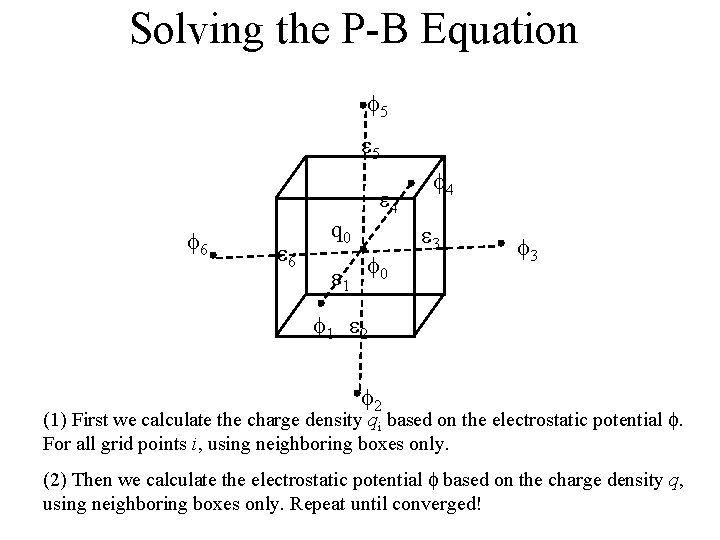

Solving the P-B Equation 5 5 6 6 4 q 0 1 0 4 3 3 1 2 2 (1) First we calculate the charge density qi based on the electrostatic potential . For all grid points i, using neighboring boxes only. (2) Then we calculate the electrostatic potential based on the charge density q, using neighboring boxes only. Repeat until converged!

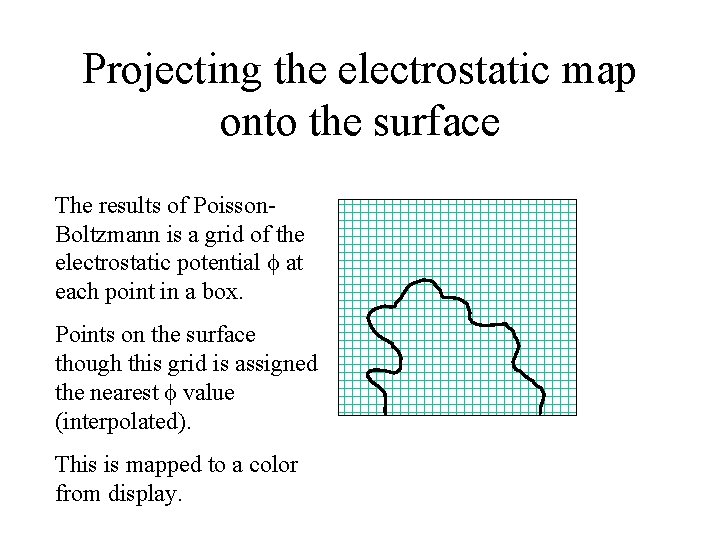

Projecting the electrostatic map onto the surface The results of Poisson. Boltzmann is a grid of the electrostatic potential at each point in a box. Points on the surface though this grid is assigned the nearest value (interpolated). This is mapped to a color from display.

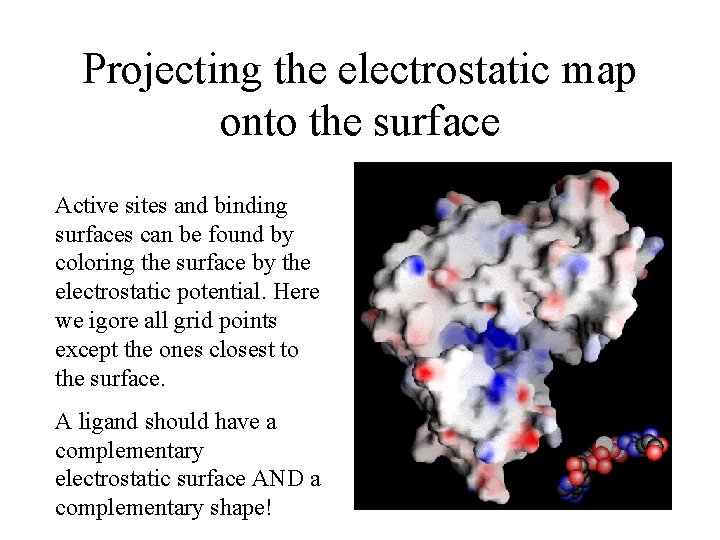

Projecting the electrostatic map onto the surface Active sites and binding surfaces can be found by coloring the surface by the electrostatic potential. Here we igore all grid points except the ones closest to the surface. A ligand should have a complementary electrostatic surface AND a complementary shape!

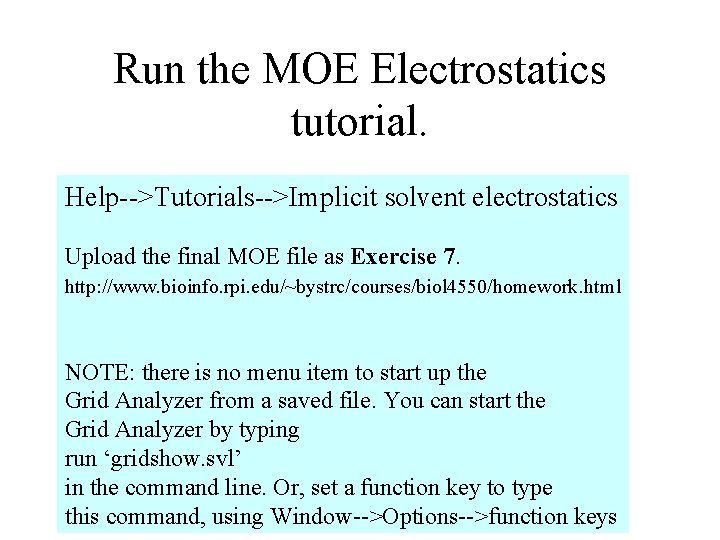

Run the MOE Electrostatics tutorial. Help-->Tutorials-->Implicit solvent electrostatics Upload the final MOE file as Exercise 7. http: //www. bioinfo. rpi. edu/~bystrc/courses/biol 4550/homework. html NOTE: there is no menu item to start up the Grid Analyzer from a saved file. You can start the Grid Analyzer by typing run ‘gridshow. svl’ in the command line. Or, set a function key to type this command, using Window-->Options-->function keys
