Biogas Preliminary Design Study Yukon Biomass Forum March 16 th, 2016 Funded by Yukon Energy and Cold Climate Innovation and City of Whitehorse 1

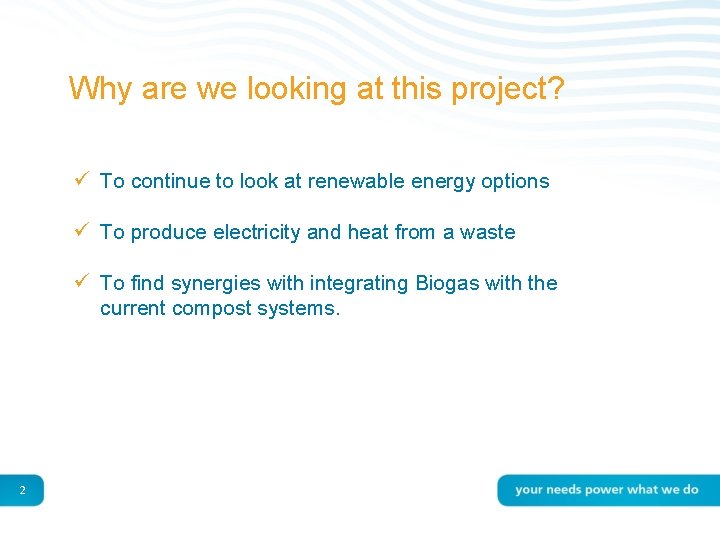

Why are we looking at this project? ü To continue to look at renewable energy options ü To produce electricity and heat from a waste ü To find synergies with integrating Biogas with the current compost systems. 2

Biogas: What is it? • Biogas is ~ 60% methane, ~ 40% CO 2. • Anaerobic digestion of organic waste • Food waste, paper waste, cooking oils, slaughterhouse wastes, sewage sludge • Two applications: Boiler (heat) or CHP (heat and electricity) 3

Tonnes Incoming Organic Feedstock 4 SSO - Source Sorted Organics ICI - Industrial, Commercial, Institutional DGW – Dry Garden Waste FGW - Fresh Garden Waste

Technology Selection: Dry digestion, horizontal batch ü Technology chosen by feedstock and on-site conditions. ü Simple to operate, does not need water, can handle contaminants, ü less energy needs, more stable process 5

Tonnes Estimated biogas production for 2016 6 SSO - Source Sorted Organics ICI - Industrial, Commercial, Institutional DGW – Dead Garden Waste FGW – Fresh Garden Waste

Biogas System 7

1. 16 GWhe CHP: Annual electrical production 1. 20 Second 100 k. W unit 1. 00 0. 80 GWhe 0. 60 First 100 k. W unit 0. 40 0. 20 2016 8 2020 2024 2028 2032 2036

Biogas plant configuration with Boiler ü One 500 hp boiler • Heat loop to local buildings (compost and KBL Building) or theoretical greenhouse. • Greenhouse is designed at 486 m 2, which would be approximately 2% of Whitehorse’s demand for vegetables. 9

10

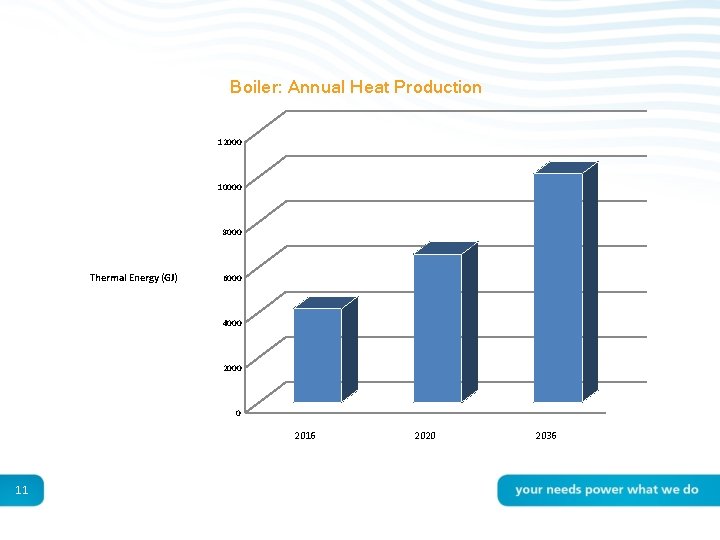

Boiler: Annual Heat Production 12000 10000 8000 Thermal Energy (GJ) 6000 4000 2000 0 2016 11 2020 2036

Economics: CHP ü Capital Expenditures: $7. 1 M ü Operational Expenditures: $250, 000 Lifecycle Cost of Energy (LCOE) Sensitivity Analysis 12 Gate Fees $/Tonne Capital Subsidy LCOE ($/k. Whe) 38 36 45 45 50 50 0% 70% 0% 50% 0% 40% $0. 64 $0. 21 $0. 58 $0. 26 $0. 53 $0. 28

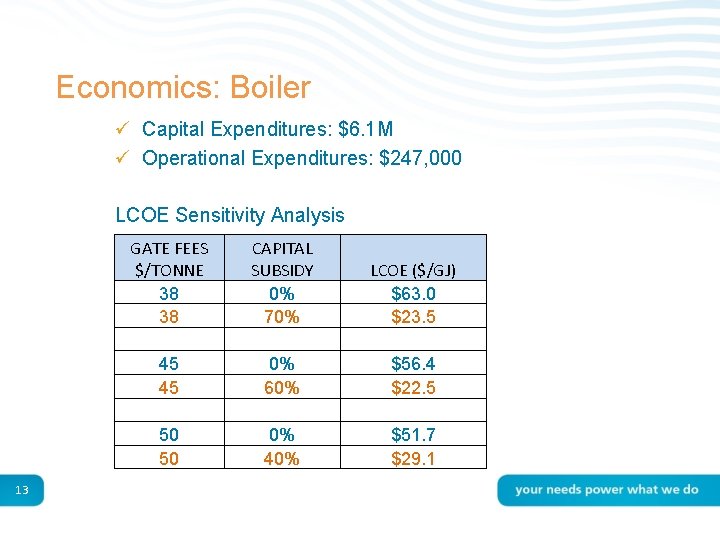

Economics: Boiler ü Capital Expenditures: $6. 1 M ü Operational Expenditures: $247, 000 LCOE Sensitivity Analysis GATE FEES $/TONNE 38 38 45 45 50 50 13 CAPITAL SUBSIDY 0% 70% 0% 60% 0% 40% LCOE ($/GJ) $63. 0 $23. 5 $56. 4 $22. 5 $51. 7 $29. 1

Heating Greenhouse ü CAPEX: $167, 625 ü OPEX per year: $79, 485 Greenhouse CHP Boiler Peak heat Heat required generation Dec - Feb 167 k. Wth 14 41 k. Wth 118 k. Wth

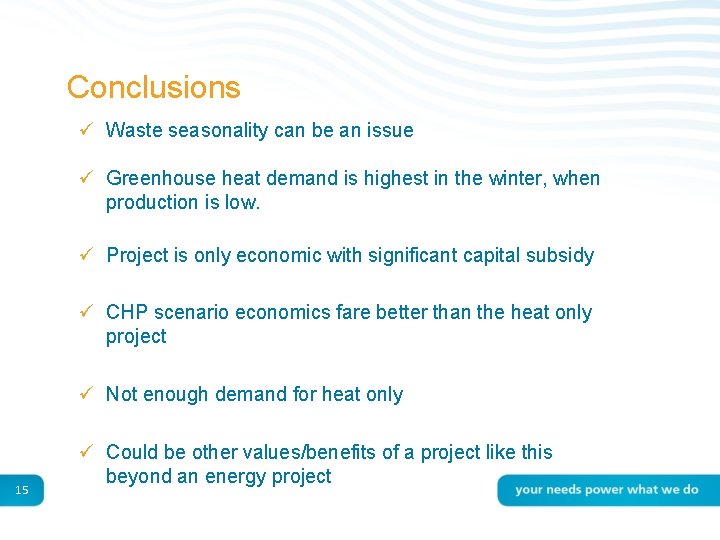

Conclusions ü Waste seasonality can be an issue ü Greenhouse heat demand is highest in the winter, when production is low. ü Project is only economic with significant capital subsidy ü CHP scenario economics fare better than the heat only project ü Not enough demand for heat only 15 ü Could be other values/benefits of a project like this beyond an energy project

Next steps ü Could look into landfill gas capture to boost energy production ü Look at project economics of an Integrated Composting and Biogas facility • Reduction in composting time after Biogas could save operational costs 16

Thanks ü City of Whitehorse: Miles Hume, Clayton Peacock, Dan Jordan, Shannon Clohosey, David Albisser, Jackie Taylor, Wayne Tuck ü Cold Climate Innovation: Stephen Mooney, Ziad Sahid, Aaron Roberge ü Garret Gillespie 17
