Biofuel fuel noun plural noun fuels 1 material
Biofuel
• fu·el [noun] • plural noun: fuels 1. material such as coal, gas, or oil that is burned to produce heat or power. • synonyms: gas, gasoline, diesel, petroleum, propane; power source; petrol

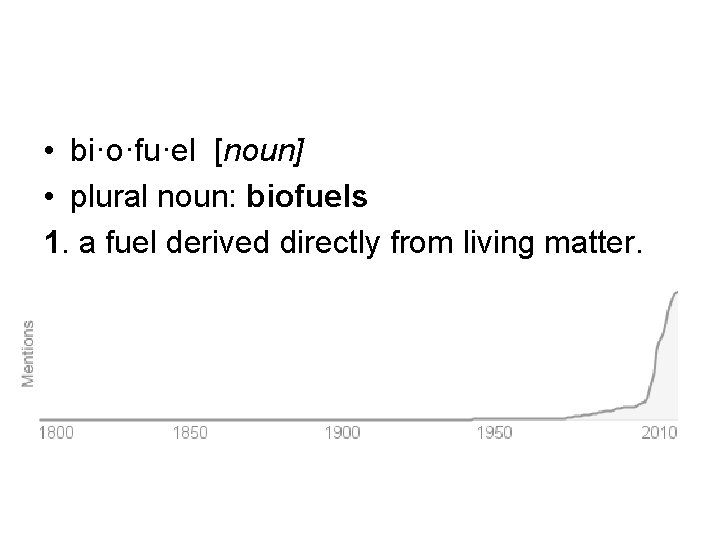

• bi·o·fu·el [noun] • plural noun: biofuels 1. a fuel derived directly from living matter.
• bi·o·eth·a·nol [noun] • noun: bioethanol; noun: bio-ethanol • 1. ethanol produced from plants such as sugar cane or corn, used as an alternative to gasoline. bioethanol
• bi·o·die·sel [noun] noun: biodiesel; noun: bio-diesel 1. a biofuel intended as a substitute for diesel. gas·o·line [noun]: gasoline; noun: gasolene 1. refined petroleum used as fuel for internal combustion engines.
Feedstock CO 2
Biomass • Biomass – Plants – Animals (by way of plants) • Plants – Use solar energy to convert water and CO 2 to sugars through the process of photosynthesis – Harvested portions of live plants or remains are sources of biomass • Animals – Consume plants (or consumers of plants) – Elimination products or remains are sources of biomass • Virtually all of our current energy supply is derived from biomass (fossil fuels are just “well-aged”)
Multiple Feedstocks • • • municipal solid waste trees • sewage sludge grass agricultural residues • animal manure energy crops
U. S. Biodegradable Wastes Amount Alcohol Potential Waste (million tonne/year) (billion gal/year) Municipal Solid Waste 78 10 1. 4 Sewage Sludge 10. 9 Industrial Biosludge 3 0. 4 4. 3 Recycled Paper Fines 0. 5 400 Agricultural Residues 52 330 Forestry Residues 43 220 28 Manure 135 1, 046 Total U. S. Gasoline Consumption = 130 billion gal/year U. S. Diesel Consumption = 40 billion gal/year
How to Get Liquid Transportation Fuels from Biomass • Convert sugars and starches to ethanol – fermentation • Convert plant oils to biodiesel – transesterification • Convert anything to liquid – pyrolysis • Convert anything to gas (gasification) with subsequent conversion to liquid – aka biomass to liquids (BTL)
forest waste The Challenge Lignocellulose Fisher-Tropsch Gasification to “syngas” (CO + H 2) methanol corn stover Pyrolysis, fast or slow switchgrass Jet Fuel gases Diesel bio-oil Dissolution Liquid Phase Processing Sugar/starch corn grain starch Gasoline Saccharification lignin burn sugarcane Enzymatic Fermentation sugar Ethanol Can we achieve sufficiently high yields of targeted chemical compounds from solubilized biomass fractions to justify the cost of biomass pretreatment?
Biofuels, in Order of Maturity, p 1 of 2 FUEL SOURCE BENEFITS STATUS Grain/Sugar Corn, sorghum, Ethanol sugarcane High-octane Widely available sources Commercially proven Biodiesel Vegetable and seed oils; fats and greases Increased fuel lubricity Widely available sources Commercially proven Gasoline and diesel blends Ethanol or biodiesel blended with petroleum fuels Relatively straightforward for refineries to process Decreased sulfur emissions over standard fuels Commercial trials in progress Cellulosic Ethanol Grasses, wood chips, and agricultural residues High-octane Less demand on agricultural lands than grain ethanol DOE program targeting 2012 demonstration Butanol Corn, sorghum, wheat, sugarcane Low-volatility High energy-density Water tolerant BP and Du. Pont in progress Adopted from NREL (2006) http: //www. nrel. gov/biomass/pdfs/39436. pdf
Biofuels, in Order of Maturity, p 2 of 2 FUEL SOURCE BENEFITS STATUS Pyrolysis Liquids Lignocellulosic Can utilize waste products biomass Potential source of aromatics and phenols Several commercial facilities produce energy and chemicals Syngas Liquids Various biomasses Can utilize waste products Can be integrated with fossil fuel sources (e. g. , coal) High quality fuel Commercially demonstrated a large scale using fossil fuels; biomass projects underway High yield per acre Could be integrated with CO 2 capture and reuse Demonstrated at pilot scale in 1990 s. Many start-ups currently underway Biodiesel or jet Microalgae fuel Hydrocarbons (designer fuels) Biomass Generate synthetic copies carbohydrates of current petroleum derived feedstocks Laboratory-scale research Adopted from NREL (2006) http: //www. nrel. gov/biomass/pdfs/39436. pdf
Ethanol (Et. OH) • Chemical Composition – CH 3 CH 2 OH or (C 2 H 6 O) – Ethanol is ethanol – source independent OH • Also known as ethyl alcohol or grain alcohol • 2 types: – Biologic: conversion of starches to sugar followed by fermentation of sugar with yeast – Synthetic: acid catalyzed hydration of ethylene • Blending – Currently used as a additive (10% max) to improve performance (octane) of gasoline – Internal combustion engines must be designed to accommodate ethanol content >10%
Ethanol Sources • Most common sources are plants with high sugar or starch content (e. g. , corn, beets, cane, potatoes) • Sources with more complex cellular structures (e. g. , wood, grass, stalks) require more effort to extract available sugars (cellulosic ethanol)
Biodiesel or FAME (Fatty Acid Methyl Ester) • Chemical composition – Similar to petroleum diesel fuel in structure (straight chain) and number of carbon atoms (10 to 20) – Differs in that it is oxygenated and has a small number of double bonds – Fuel characteristics will vary slightly depending upon source • Blending – Completely miscible with diesel fuel – Used as an additive (5% max) to increase cetane and improve performance of diesel – Internal combustion engines must be designed to accommodate fuels with FAME content >5%
Biodiesel Sources • Plant oils – – – Soybean Palm Rice Cottonseed Rapeseed (canola) • Waste oils (plant and animal) • Algae – recent interest because – High amounts of oil – Minimal competition with food crops and crop land – Can be grown on land with low potential for CO 2 sequestration (e. g. deserts) – Does not necessarily require fresh water
BIODIESEL – Final Product Biodiesel 100% Glycerin
Biomass to Liquids (BTL) via Gasification • Solid or solid/liquid biomass is converted to gas at high temperatures in the presence of small amounts of oxygen • Main objective is to transfer the maximum amount of chemical energy within the feedstock to the gaseous fraction by producing a high yield of low molecular weight products (high H: C) • The resulting gas is “conditioned” to produce synthesis gas (syngas) • Syngas is then converted to liquid fuel via the Fischer-Tropsch process
30 Dry tons/(acre·yr) Productivity High-Productivity Feedstocks 20 3. 4 Corn grain Sweet sorghum Energy cane
Sweet Sorghum Grows in ~35 US states
Energy Cane
Energy Cane
High Agricultural Income $/(acre·yr) Gross Income 1090 730 340 Corn grain ($2. 40/bu) Sweet sorghum ($40/tonne) Energy cane ($40/tonne)
