Biochemistry Lets break this word down Bio Life

Biochemistry Let’s break this word down Bio = Life Chemistry = Chemicals Biochemistry = the chemicals of living things

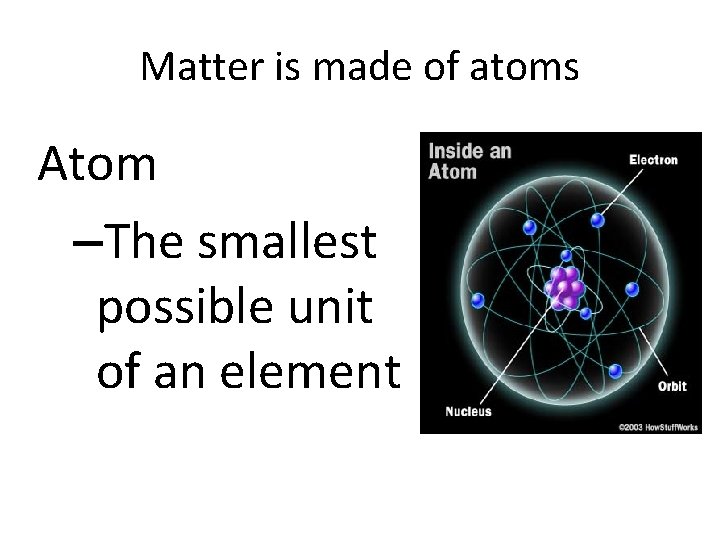

Matter is made of atoms Atom –The smallest possible unit of an element

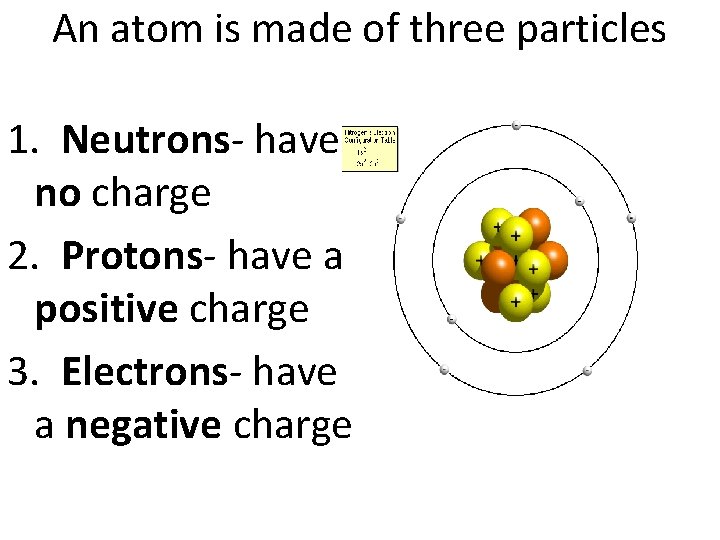

An atom is made of three particles 1. Neutrons- have no charge 2. Protons- have a positive charge 3. Electrons- have a negative charge

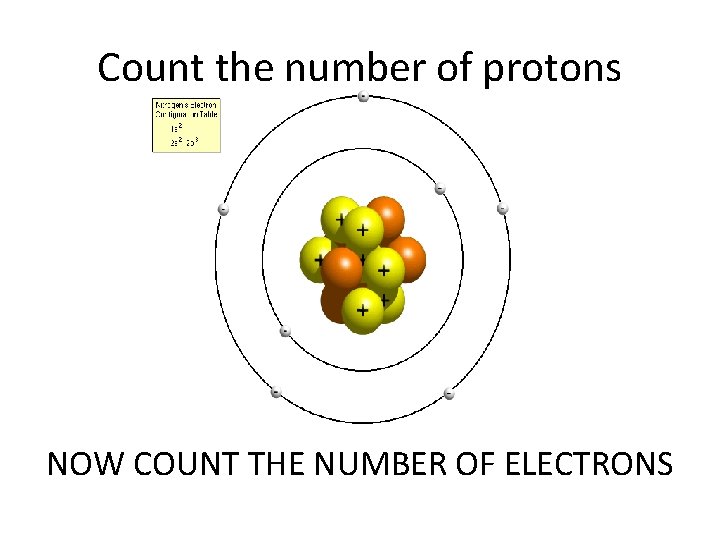

Count the number of protons NOW COUNT THE NUMBER OF ELECTRONS

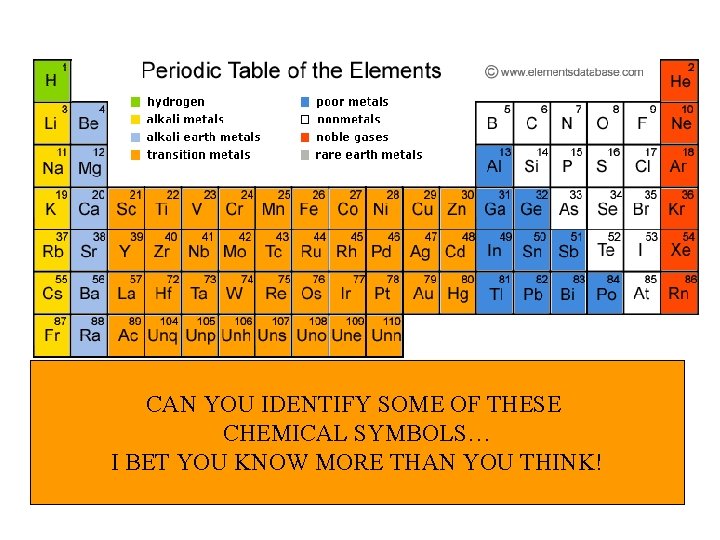

CAN YOU IDENTIFY SOME OF THESE CHEMICAL SYMBOLS… I BET YOU KNOW MORE THAN YOU THINK!

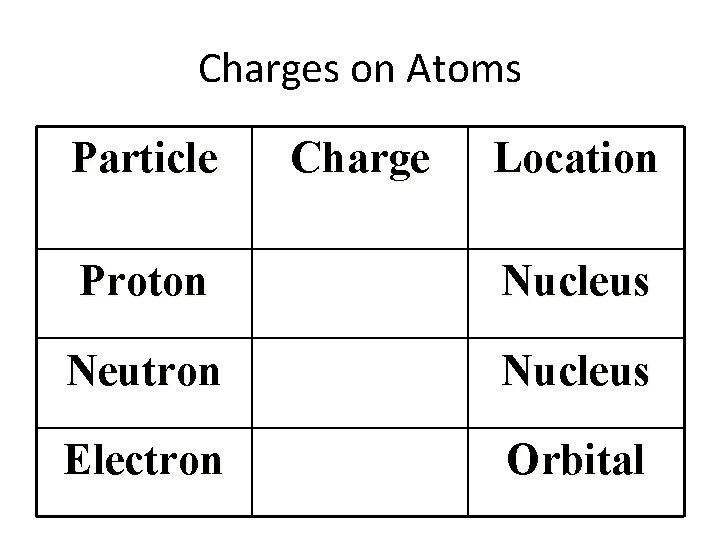

Charges on Atoms Particle Charge Location Proton Nucleus Neutron Nucleus Electron Orbital

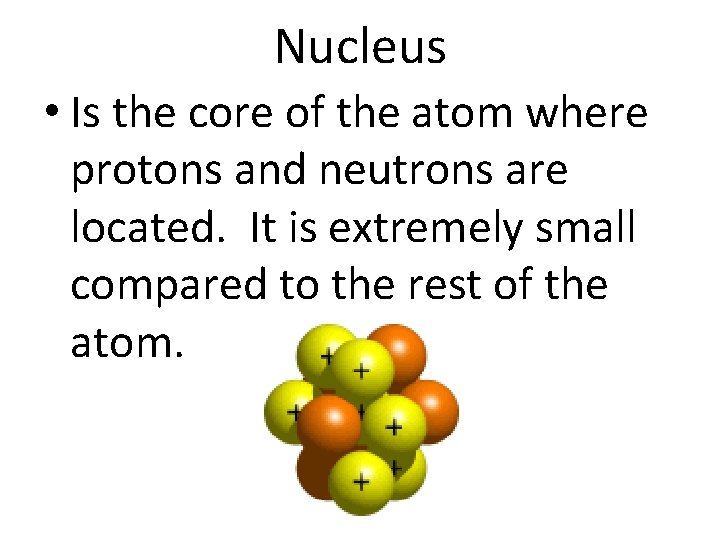

Nucleus • Is the core of the atom where protons and neutrons are located. It is extremely small compared to the rest of the atom.

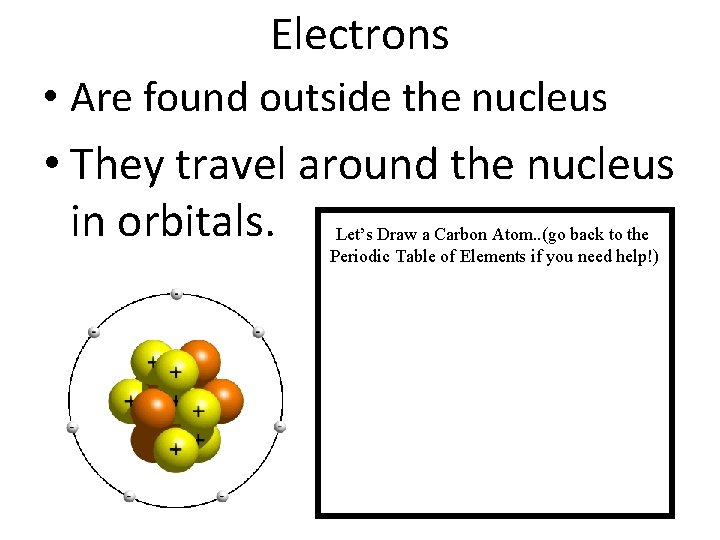

Electrons • Are found outside the nucleus • They travel around the nucleus in orbitals. Let’s Draw a Carbon Atom. . (go back to the Periodic Table of Elements if you need help!)

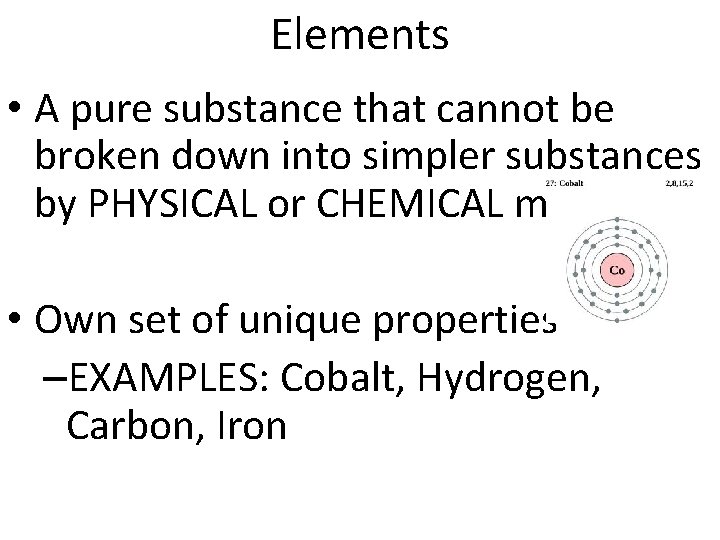

Elements • A pure substance that cannot be broken down into simpler substances by PHYSICAL or CHEMICAL means • Own set of unique properties –EXAMPLES: Cobalt, Hydrogen, Carbon, Iron

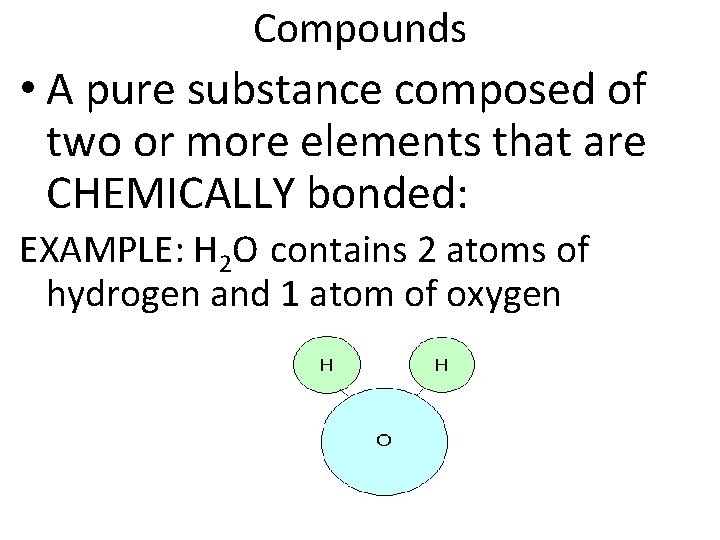

Compounds • A pure substance composed of two or more elements that are CHEMICALLY bonded: EXAMPLE: H 2 O contains 2 atoms of hydrogen and 1 atom of oxygen

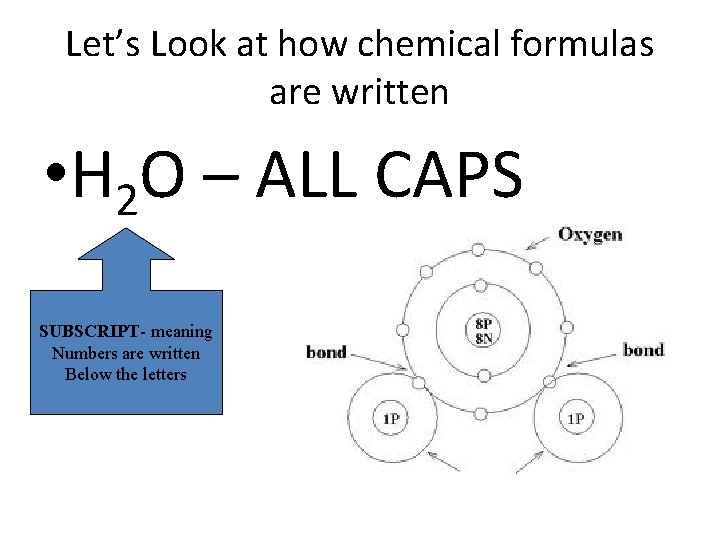

Let’s Look at how chemical formulas are written • H 2 O – ALL CAPS SUBSCRIPT- meaning Numbers are written Below the letters

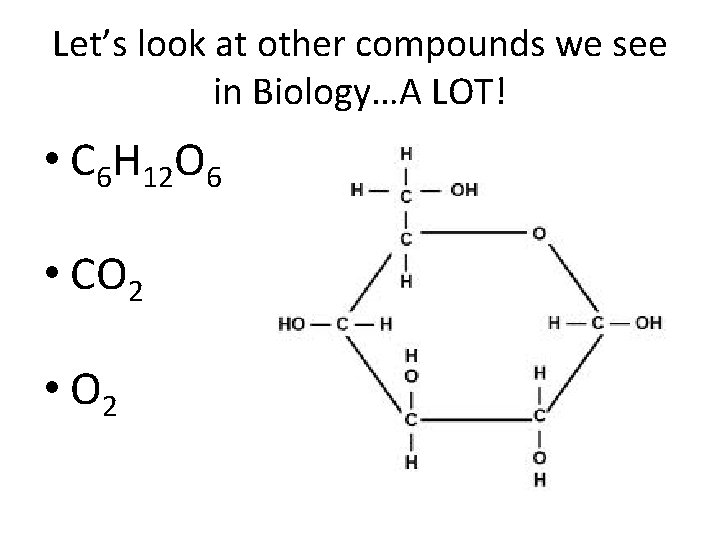

Let’s look at other compounds we see in Biology…A LOT! • C 6 H 12 O 6 • CO 2 • O 2

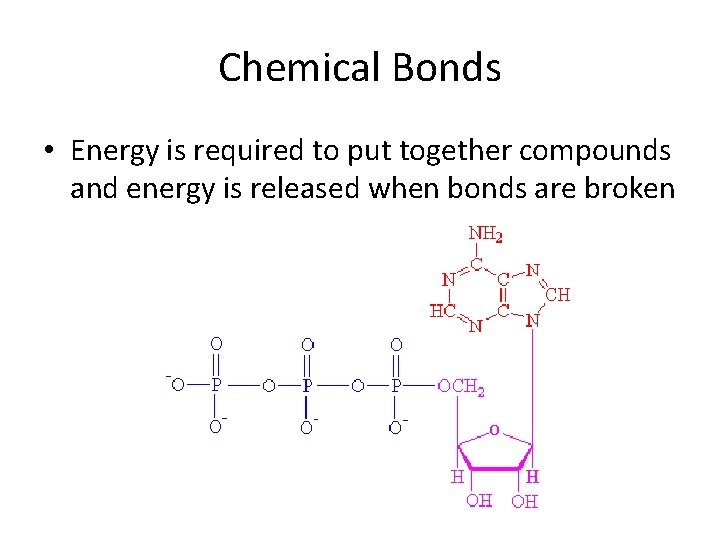

Chemical Bonds • Energy is required to put together compounds and energy is released when bonds are broken

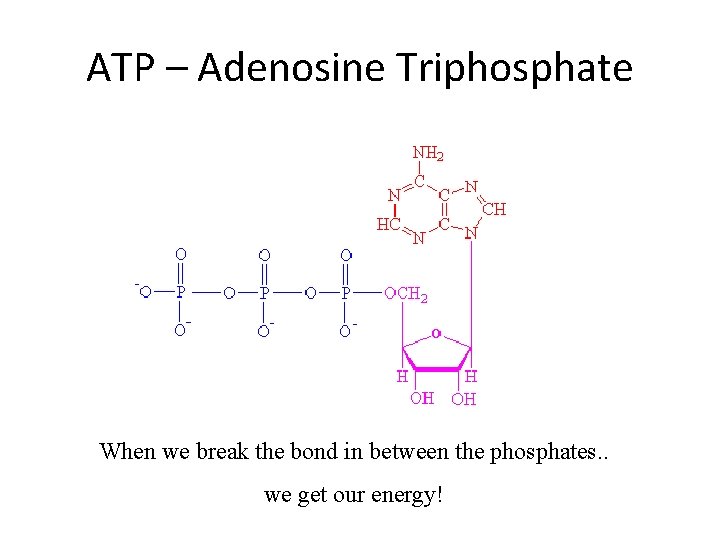

ATP – Adenosine Triphosphate When we break the bond in between the phosphates. . we get our energy!

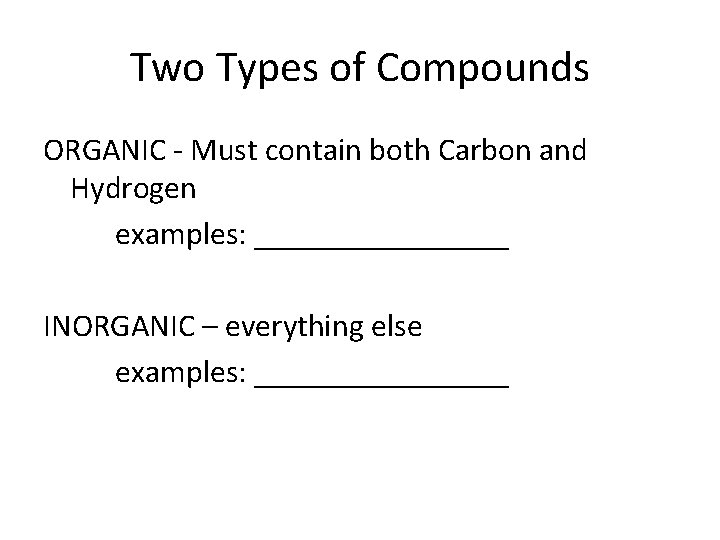

Two Types of Compounds ORGANIC - Must contain both Carbon and Hydrogen examples: ________ INORGANIC – everything else examples: ________

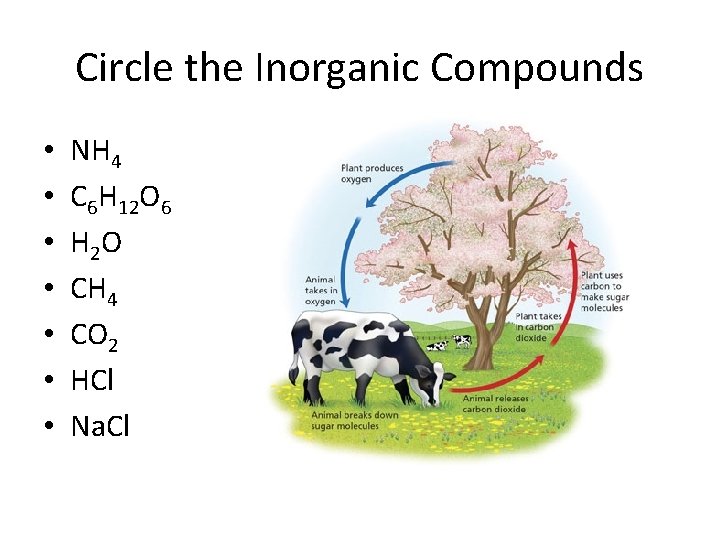

Circle the Inorganic Compounds • • NH 4 C 6 H 12 O 6 H 2 O CH 4 CO 2 HCl Na. Cl

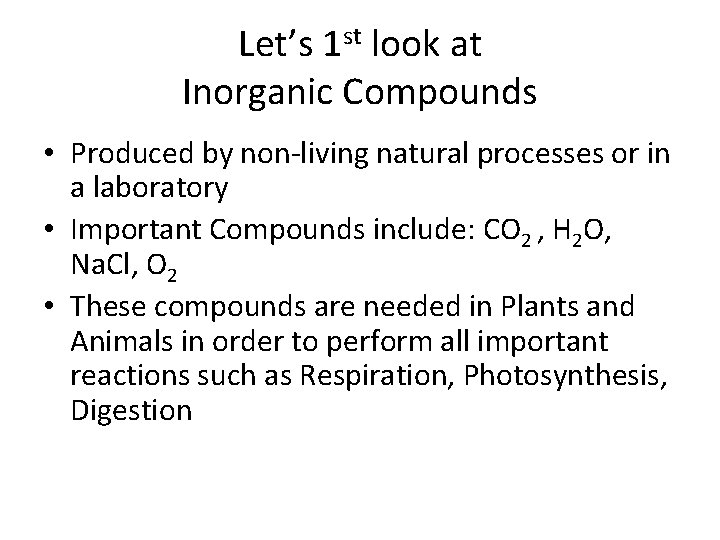

Let’s 1 st look at Inorganic Compounds • Produced by non-living natural processes or in a laboratory • Important Compounds include: CO 2 , H 2 O, Na. Cl, O 2 • These compounds are needed in Plants and Animals in order to perform all important reactions such as Respiration, Photosynthesis, Digestion

Why is Water so important? • Water covers 3/4 ths of the Earth’s surface

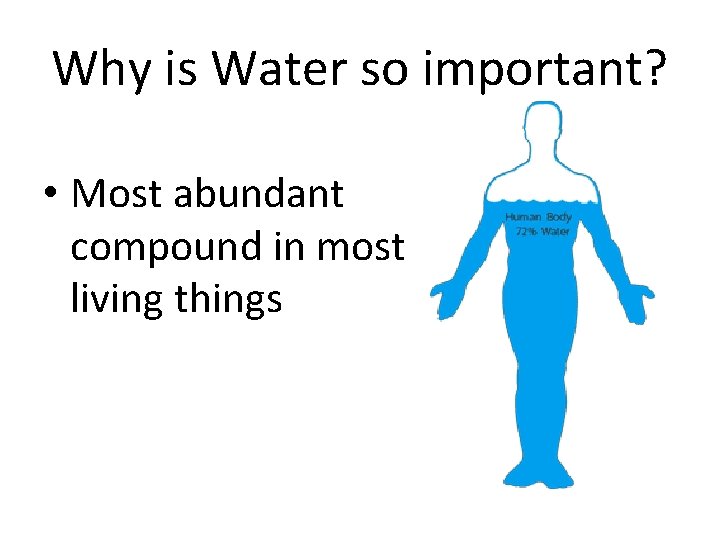

Why is Water so important? • Most abundant compound in most living things

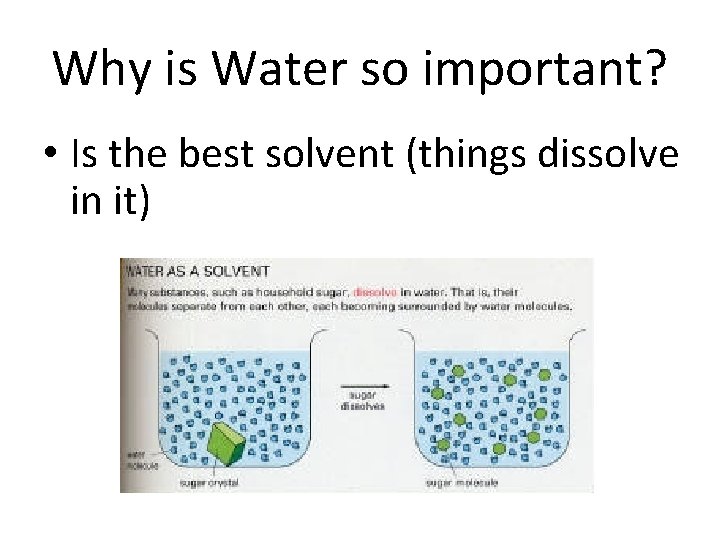

Why is Water so important? • Is the best solvent (things dissolve in it)

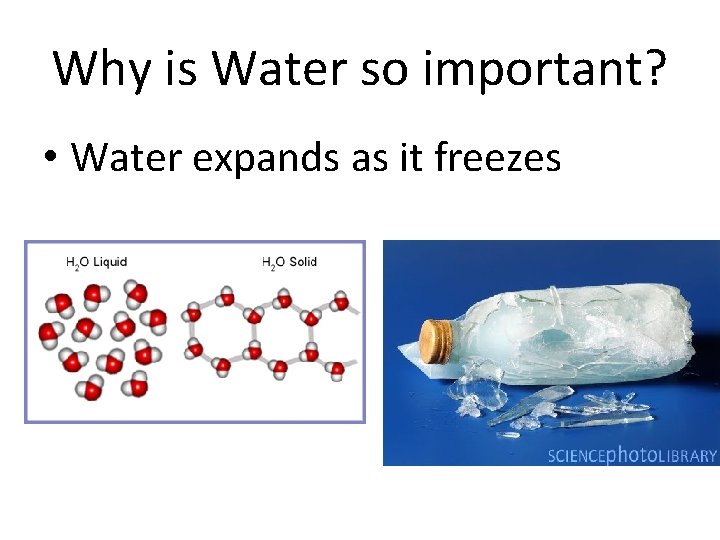

Why is Water so important? • Water expands as it freezes

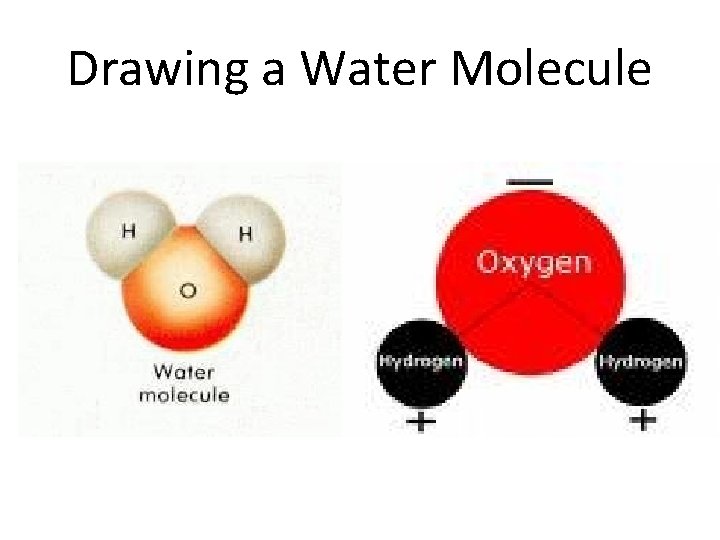

Drawing a Water Molecule

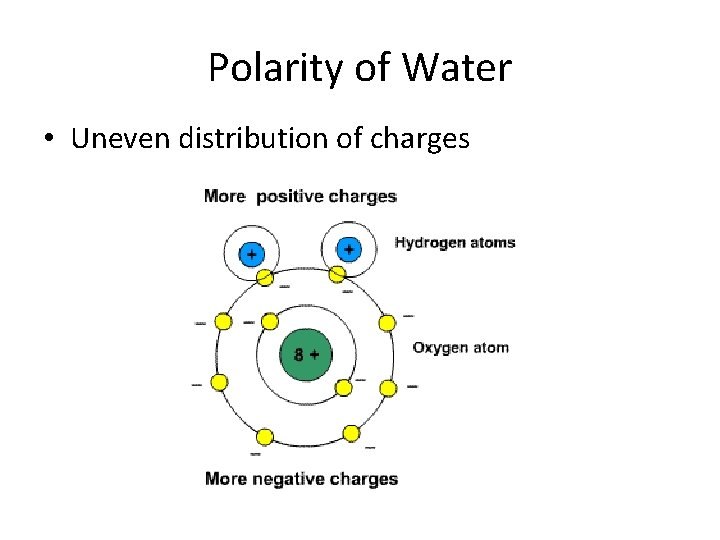

Polarity of Water • Uneven distribution of charges

Cohesion • H 2 O sticks to H 2 O

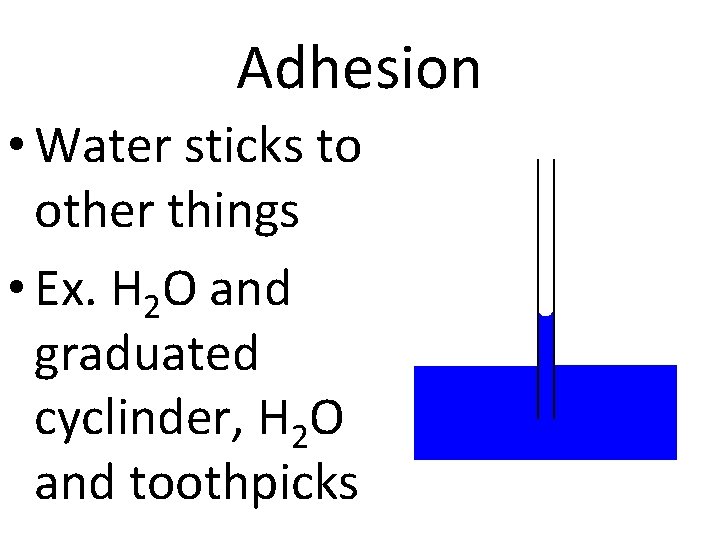

Adhesion • Water sticks to other things • Ex. H 2 O and graduated cyclinder, H 2 O and toothpicks

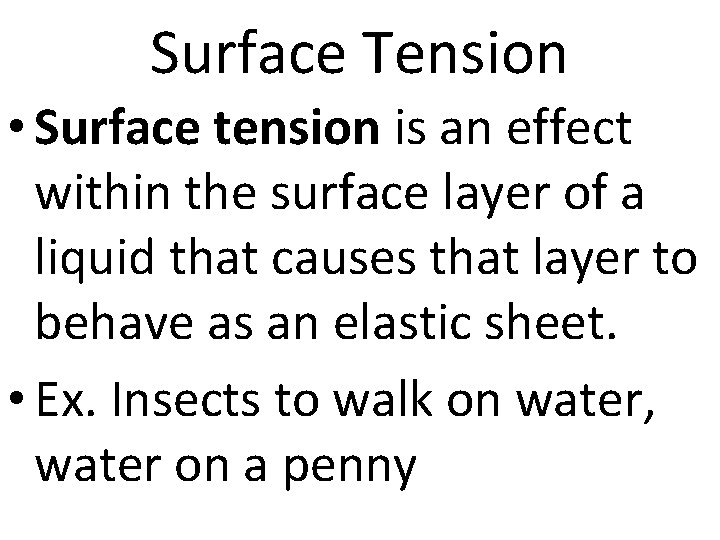

Surface Tension • Surface tension is an effect within the surface layer of a liquid that causes that layer to behave as an elastic sheet. • Ex. Insects to walk on water, water on a penny

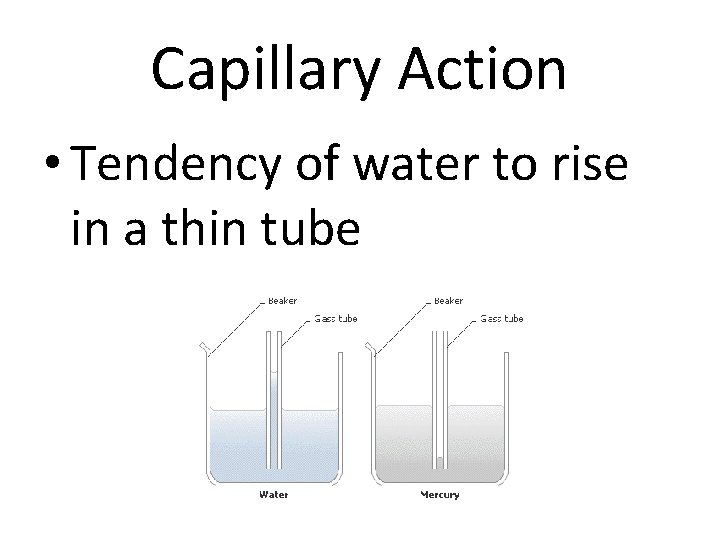

Capillary Action • Tendency of water to rise in a thin tube

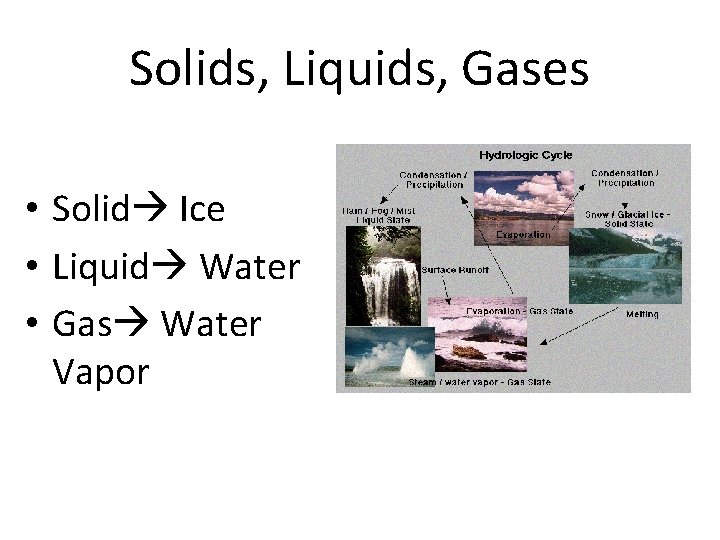

Solids, Liquids, Gases • Solid Ice • Liquid Water • Gas Water Vapor

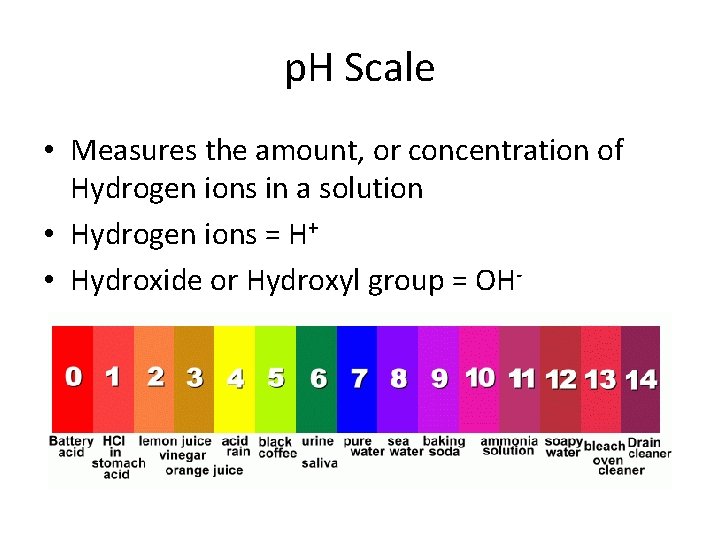

p. H Scale • Measures the amount, or concentration of Hydrogen ions in a solution • Hydrogen ions = H+ • Hydroxide or Hydroxyl group = OH-

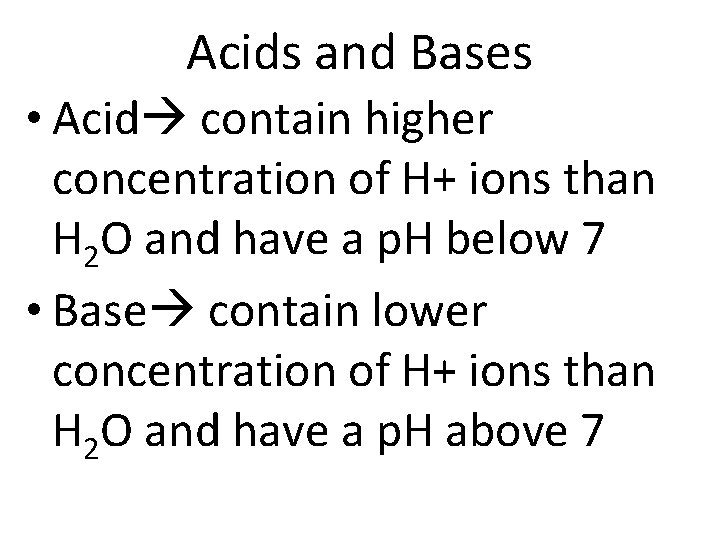

Acids and Bases • Acid contain higher concentration of H+ ions than H 2 O and have a p. H below 7 • Base contain lower concentration of H+ ions than H 2 O and have a p. H above 7

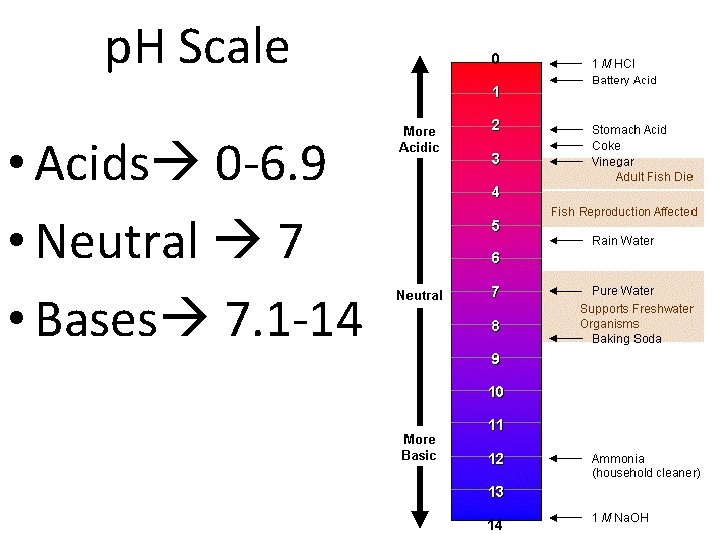

p. H Scale • Acids 0 -6. 9 • Neutral 7 • Bases 7. 1 -14

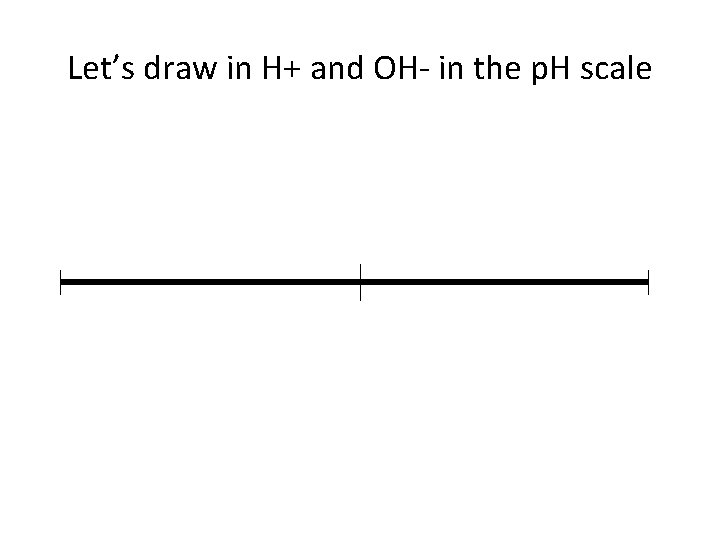

Let’s draw in H+ and OH- in the p. H scale

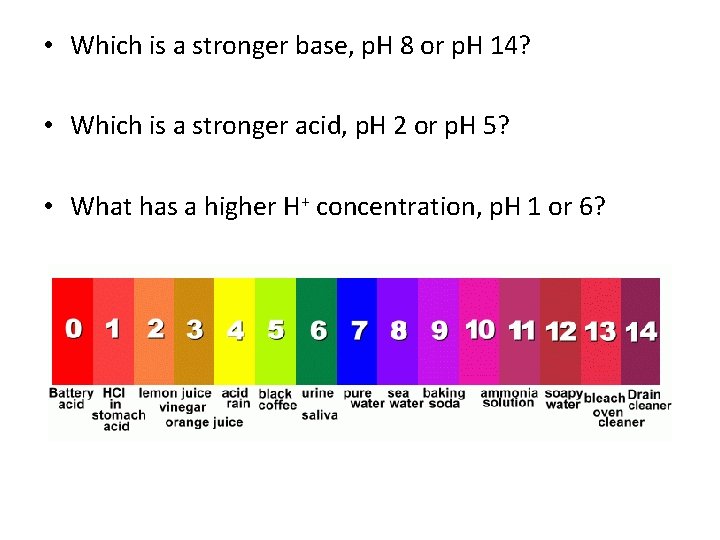

• Which is a stronger base, p. H 8 or p. H 14? • Which is a stronger acid, p. H 2 or p. H 5? • What has a higher H+ concentration, p. H 1 or 6?

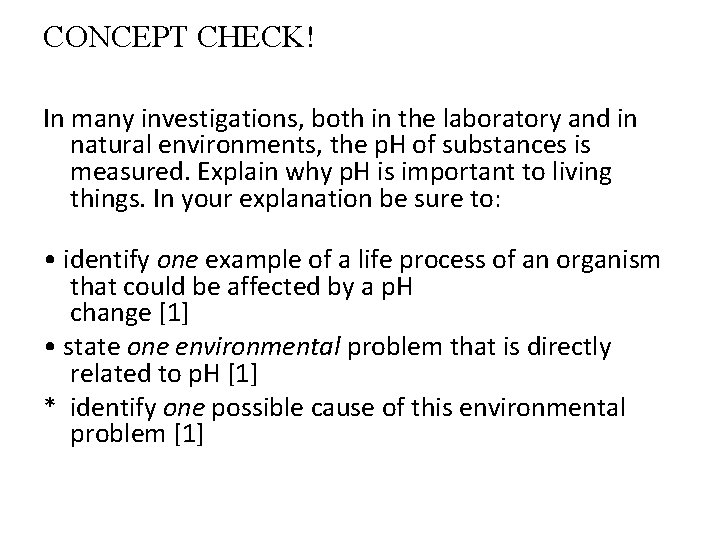

CONCEPT CHECK! In many investigations, both in the laboratory and in natural environments, the p. H of substances is measured. Explain why p. H is important to living things. In your explanation be sure to: • identify one example of a life process of an organism that could be affected by a p. H change [1] • state one environmental problem that is directly related to p. H [1] * identify one possible cause of this environmental problem [1]

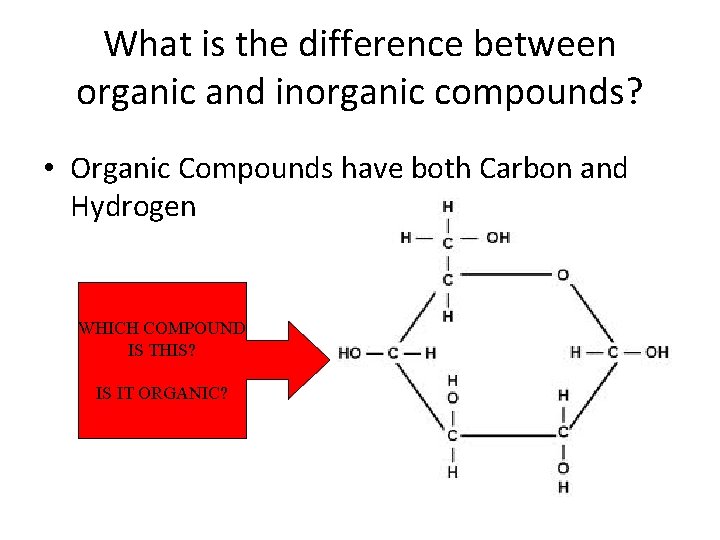

What is the difference between organic and inorganic compounds? • Organic Compounds have both Carbon and Hydrogen WHICH COMPOUND IS THIS? IS IT ORGANIC?

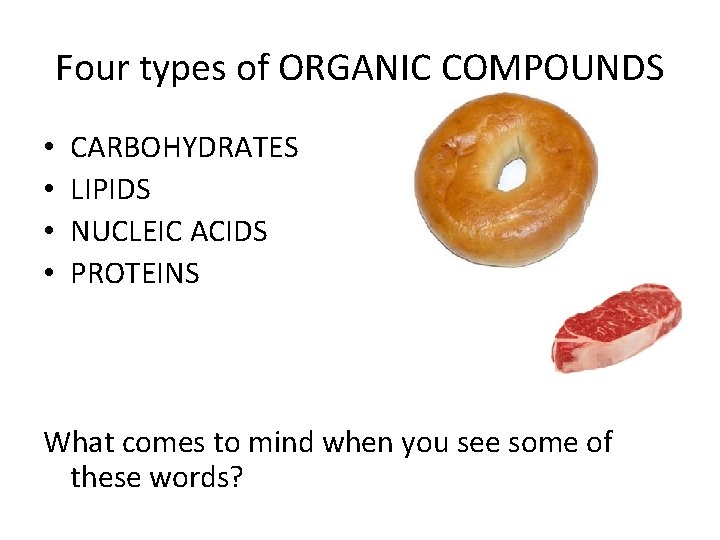

Four types of ORGANIC COMPOUNDS • • CARBOHYDRATES LIPIDS NUCLEIC ACIDS PROTEINS What comes to mind when you see some of these words?

Carbohydrates • Sugars that provide organisms with immediate energy • Glucose is used in cells to make ATP during cellular respiration

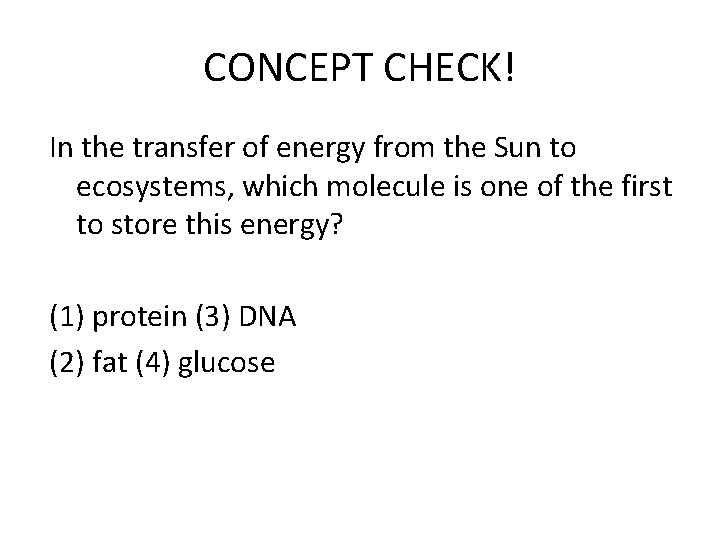

CONCEPT CHECK! In the transfer of energy from the Sun to ecosystems, which molecule is one of the first to store this energy? (1) protein (3) DNA (2) fat (4) glucose

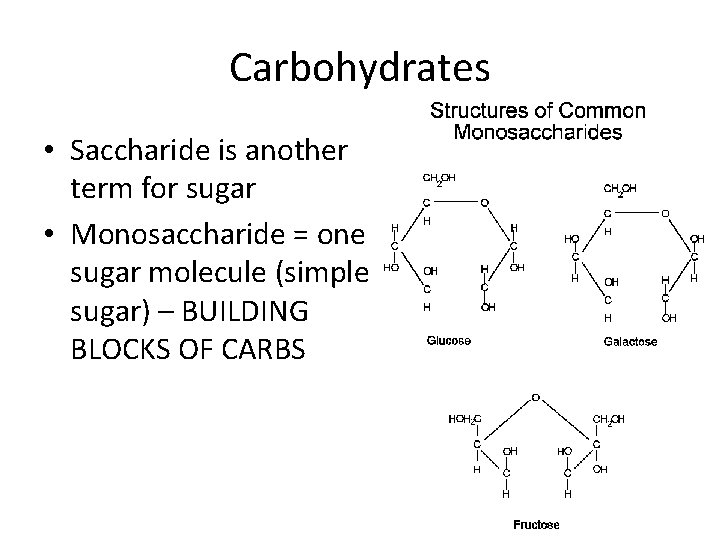

Carbohydrates • Saccharide is another term for sugar • Monosaccharide = one sugar molecule (simple sugar) – BUILDING BLOCKS OF CARBS

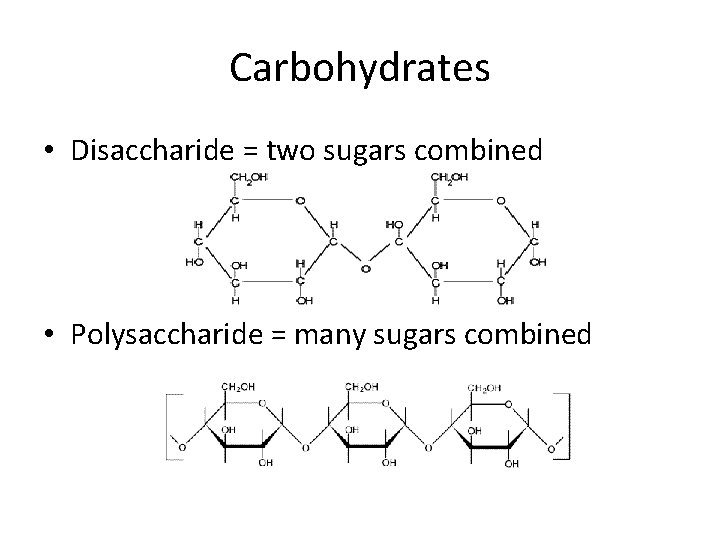

Carbohydrates • Disaccharide = two sugars combined • Polysaccharide = many sugars combined

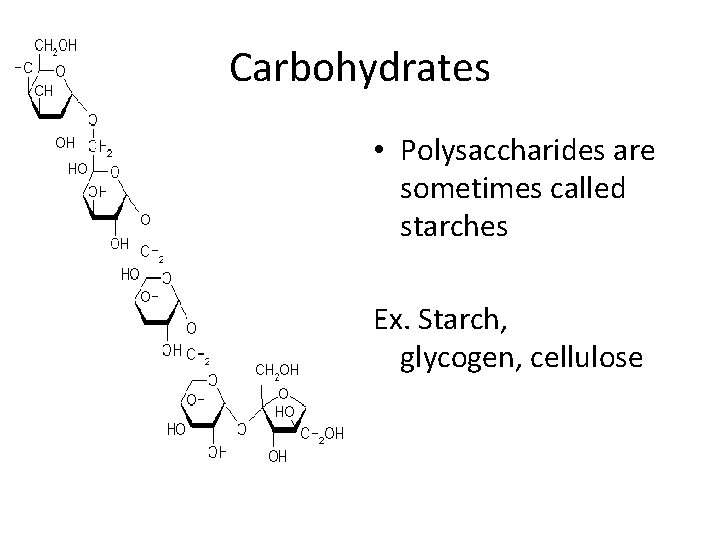

Carbohydrates • Polysaccharides are sometimes called starches Ex. Starch, glycogen, cellulose

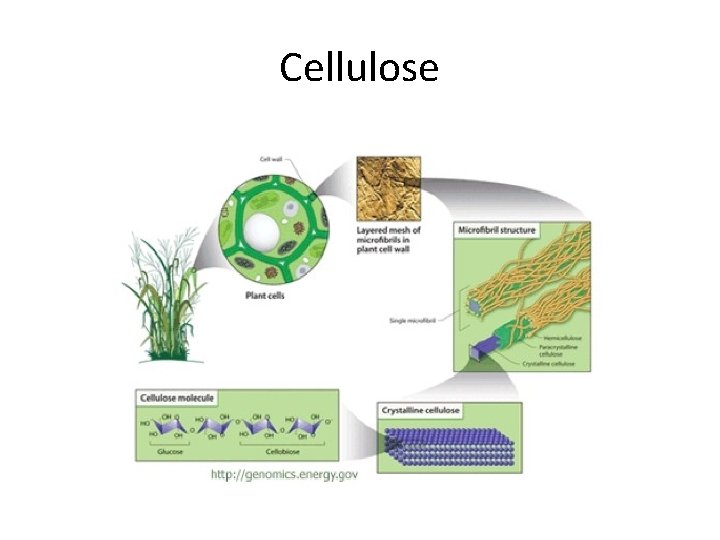

Cellulose

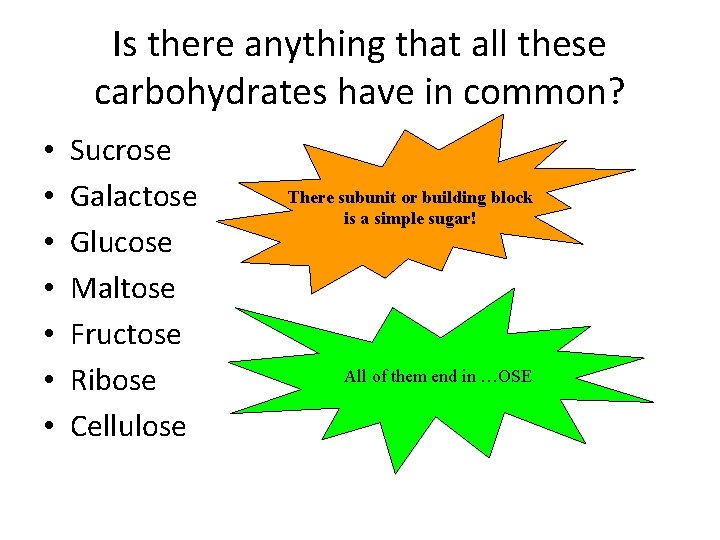

Is there anything that all these carbohydrates have in common? • • Sucrose Galactose Glucose Maltose Fructose Ribose Cellulose There subunit or building block is a simple sugar! All of them end in …OSE

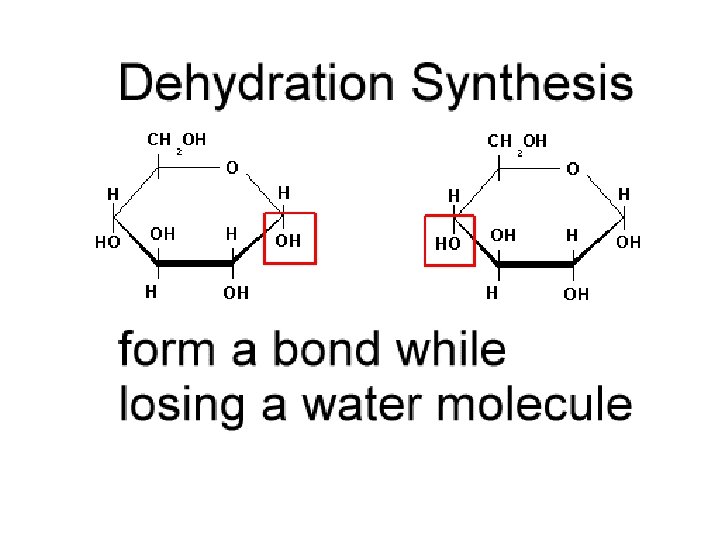

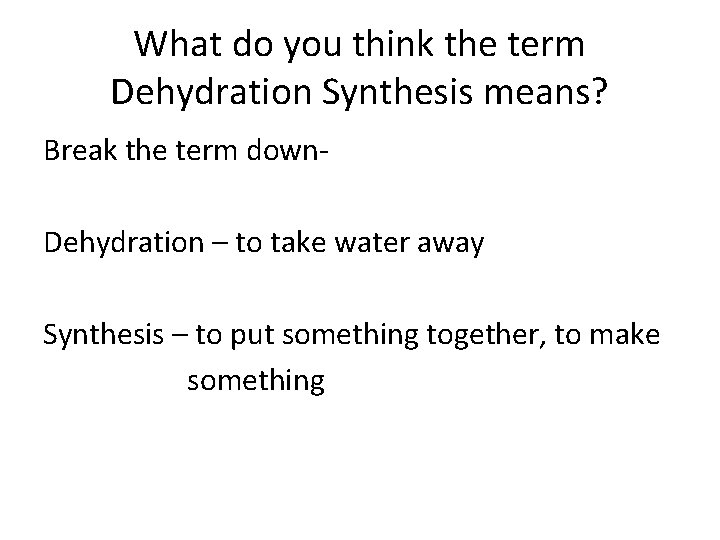

What do you think the term Dehydration Synthesis means? Break the term down. Dehydration – to take water away Synthesis – to put something together, to make something

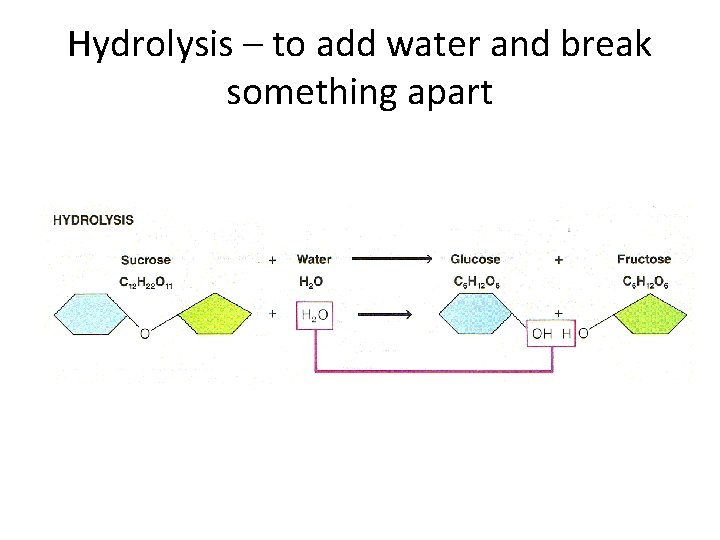

Hydrolysis – to add water and break something apart

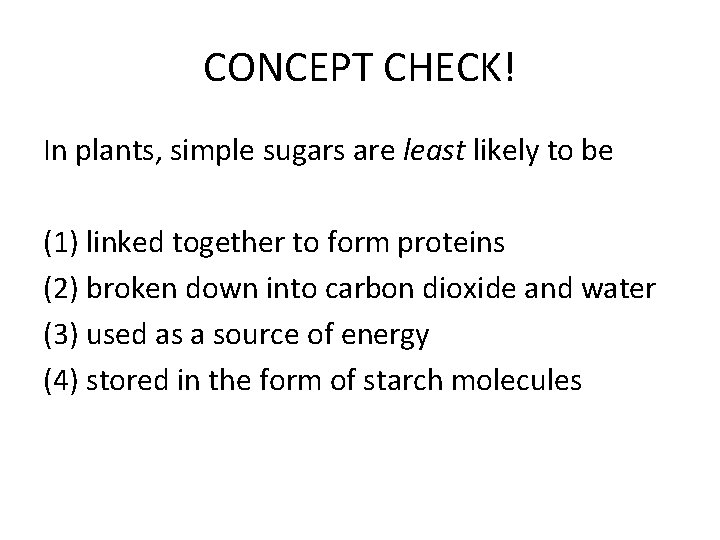

CONCEPT CHECK! In plants, simple sugars are least likely to be (1) linked together to form proteins (2) broken down into carbon dioxide and water (3) used as a source of energy (4) stored in the form of starch molecules

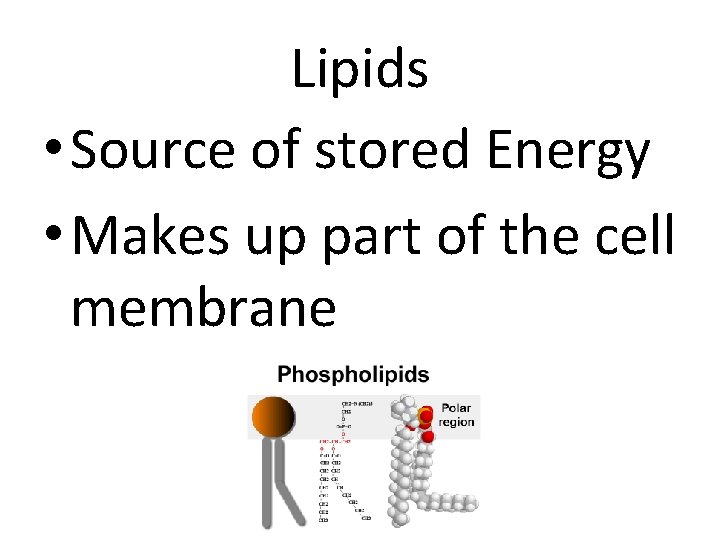

Lipids • Source of stored Energy • Makes up part of the cell membrane

Lipids = Fats and Oils • Food sources of lipids

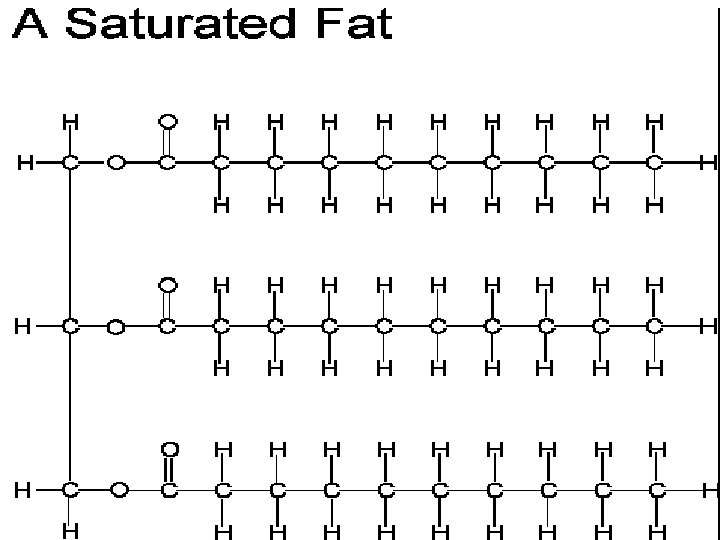

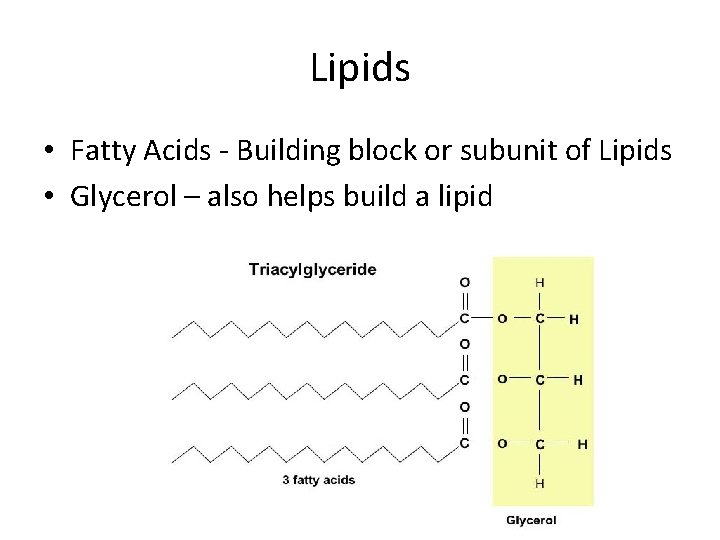

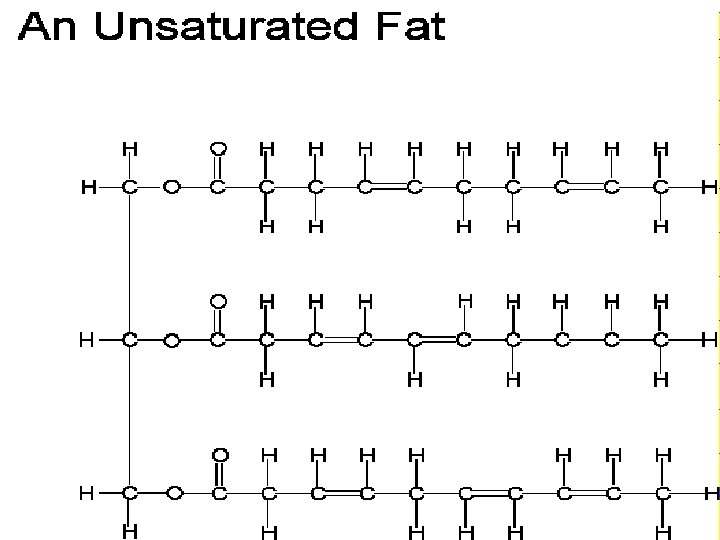

Lipids • Fatty Acids - Building block or subunit of Lipids • Glycerol – also helps build a lipid

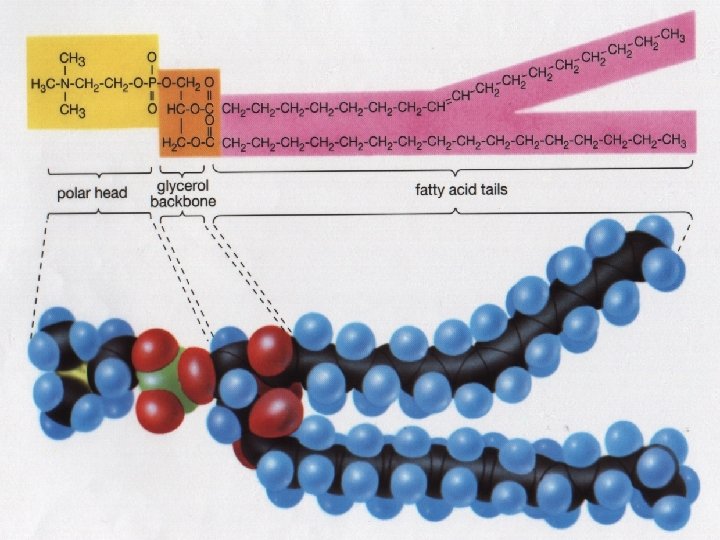

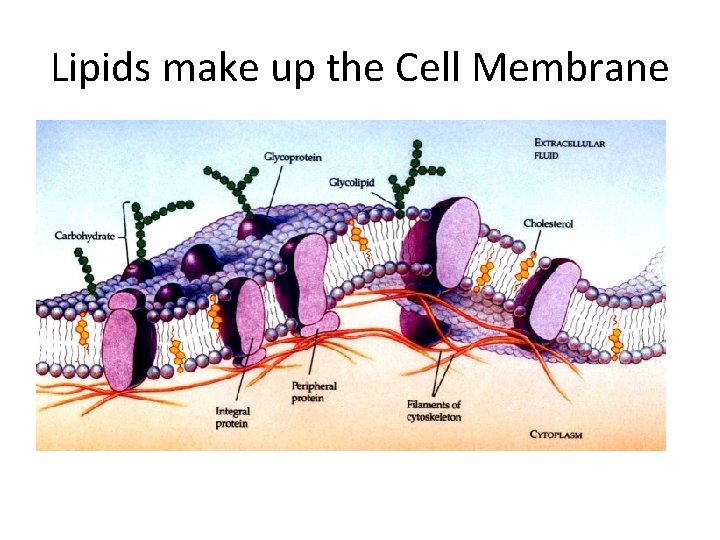

Lipids make up the Cell Membrane

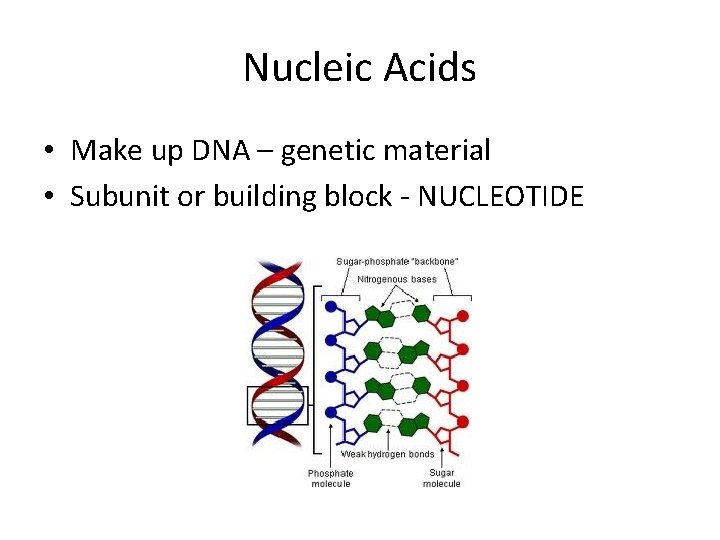

Nucleic Acids • Make up DNA – genetic material • Subunit or building block - NUCLEOTIDE

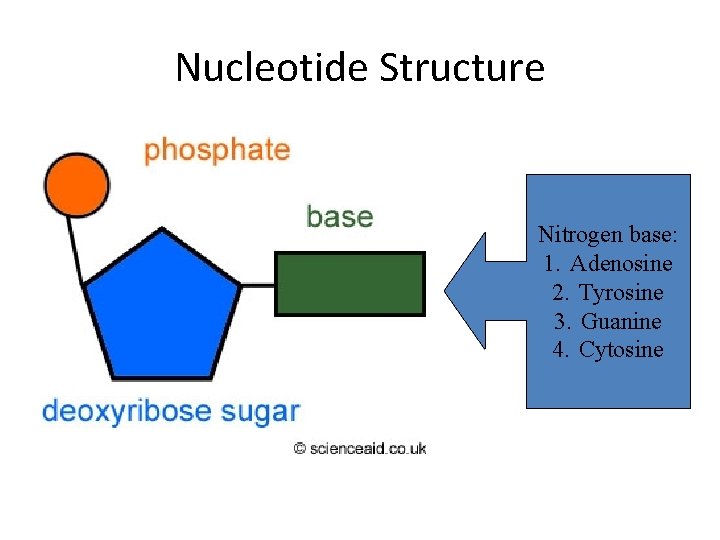

Nucleotide Structure Nitrogen base: 1. Adenosine 2. Tyrosine 3. Guanine 4. Cytosine

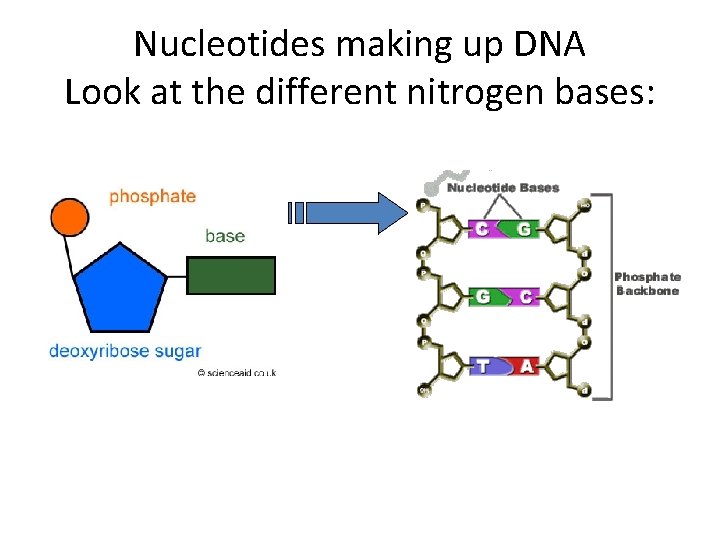

Nucleotides making up DNA Look at the different nitrogen bases:

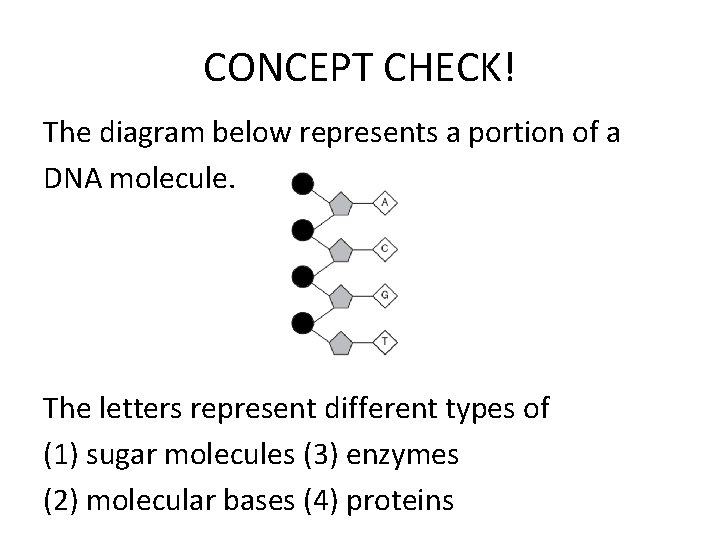

CONCEPT CHECK! The diagram below represents a portion of a DNA molecule. The letters represent different types of (1) sugar molecules (3) enzymes (2) molecular bases (4) proteins

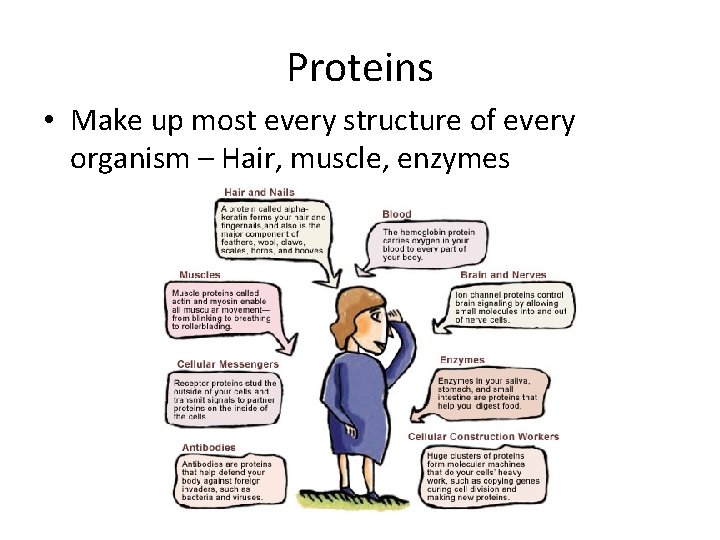

Proteins • Make up most every structure of every organism – Hair, muscle, enzymes

Protein Structure • Proteins building blocks, or subunits are called AMINO ACIDS

Food Sources of Protein • • Meat Lentils Tofu Beans

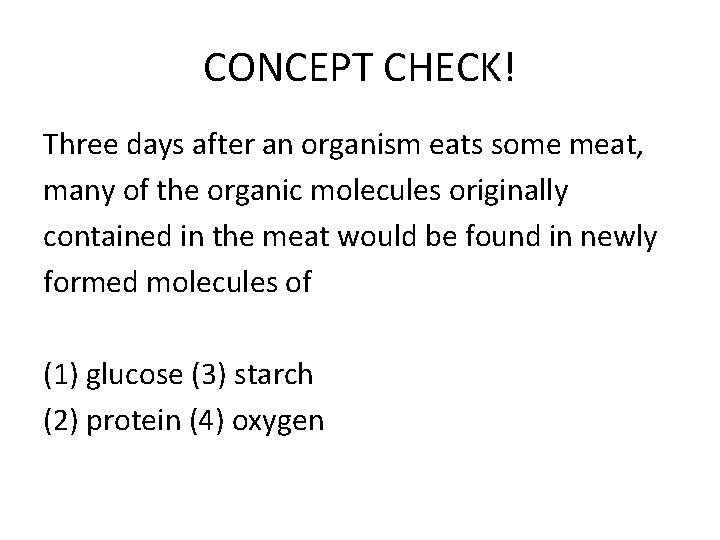

CONCEPT CHECK! Three days after an organism eats some meat, many of the organic molecules originally contained in the meat would be found in newly formed molecules of (1) glucose (3) starch (2) protein (4) oxygen

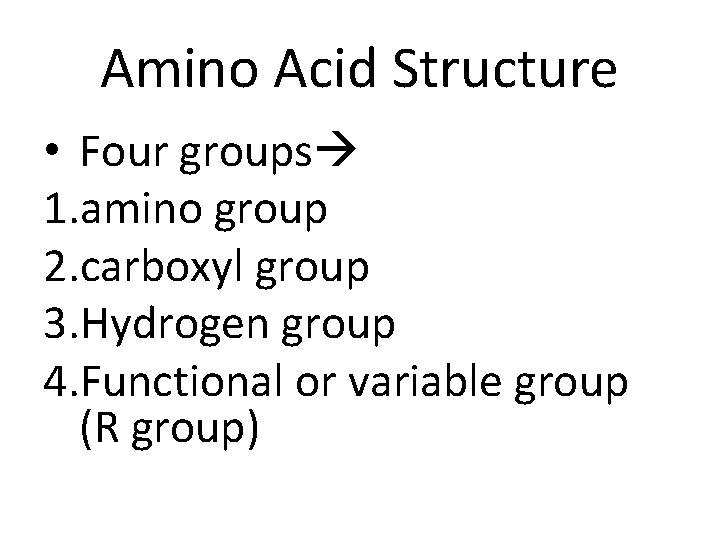

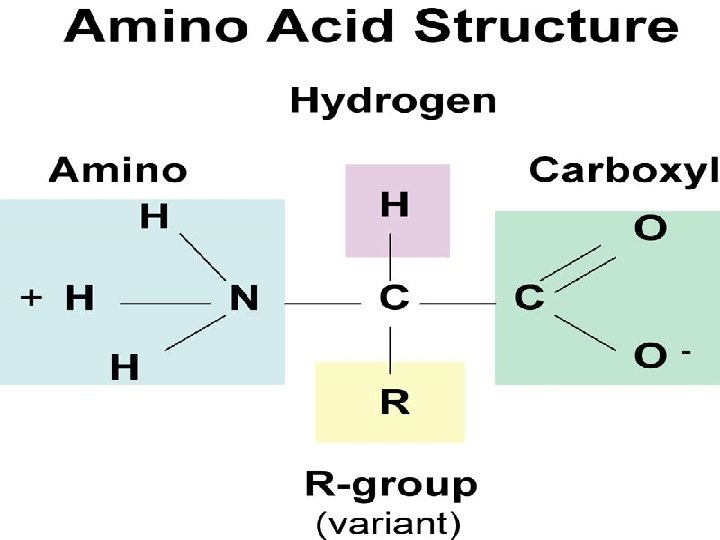

Amino Acid Structure • Four groups 1. amino group 2. carboxyl group 3. Hydrogen group 4. Functional or variable group (R group)

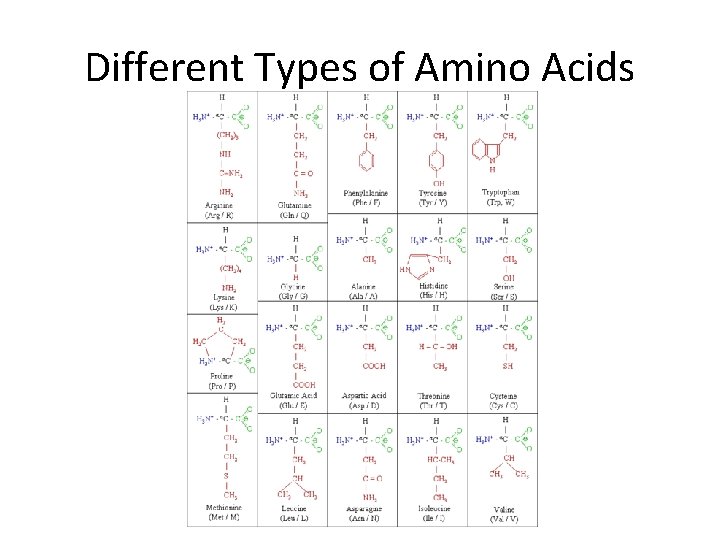

Different Types of Amino Acids

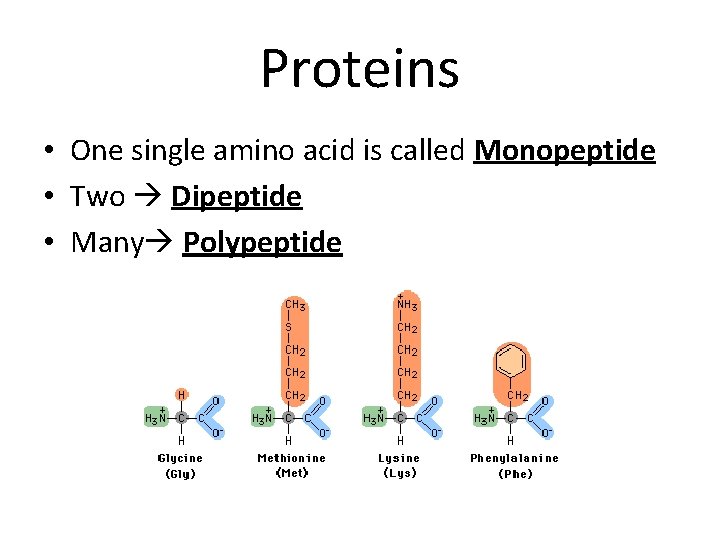

Proteins • One single amino acid is called Monopeptide • Two Dipeptide • Many Polypeptide

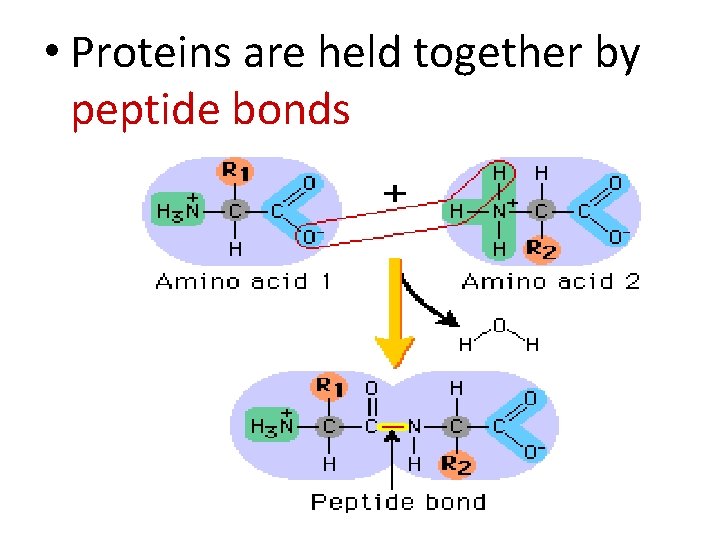

• Proteins are held together by peptide bonds

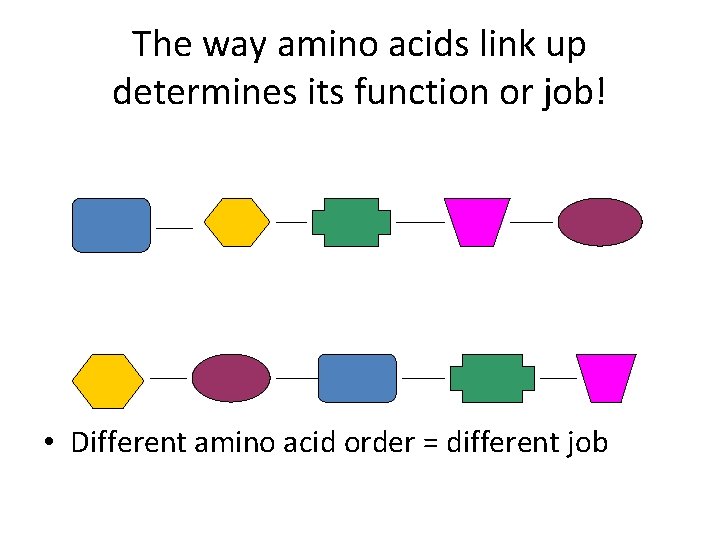

The way amino acids link up determines its function or job! • Different amino acid order = different job

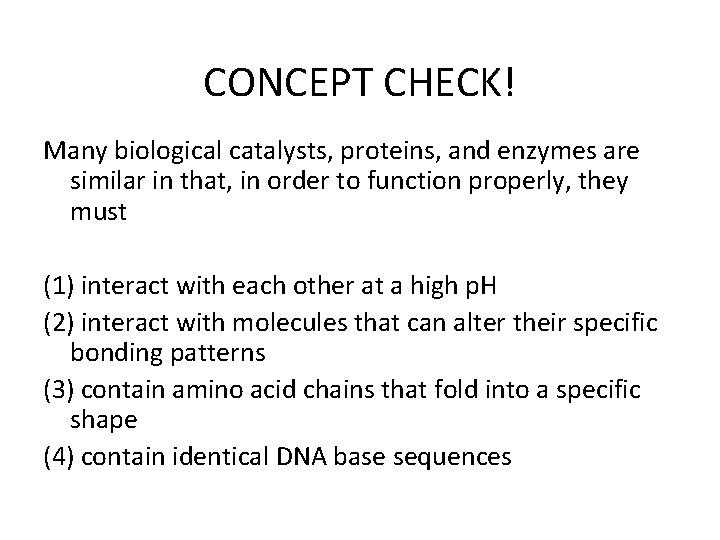

CONCEPT CHECK! Many biological catalysts, proteins, and enzymes are similar in that, in order to function properly, they must (1) interact with each other at a high p. H (2) interact with molecules that can alter their specific bonding patterns (3) contain amino acid chains that fold into a specific shape (4) contain identical DNA base sequences

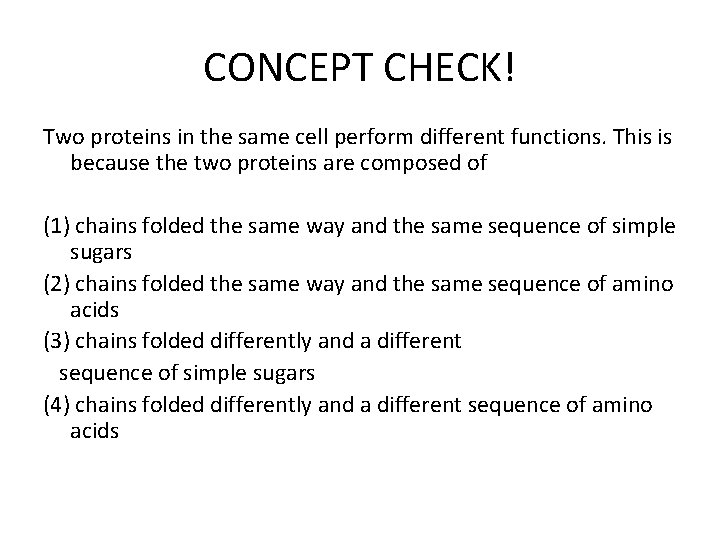

CONCEPT CHECK! Two proteins in the same cell perform different functions. This is because the two proteins are composed of (1) chains folded the same way and the same sequence of simple sugars (2) chains folded the same way and the same sequence of amino acids (3) chains folded differently and a different sequence of simple sugars (4) chains folded differently and a different sequence of amino acids

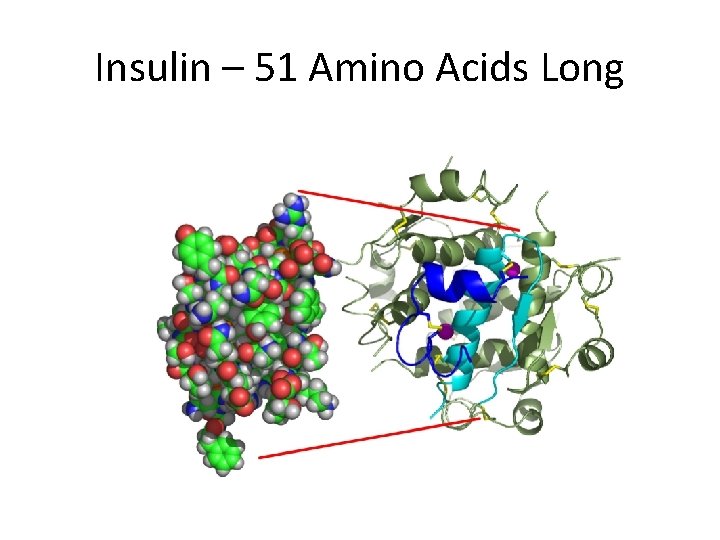

Insulin – 51 Amino Acids Long

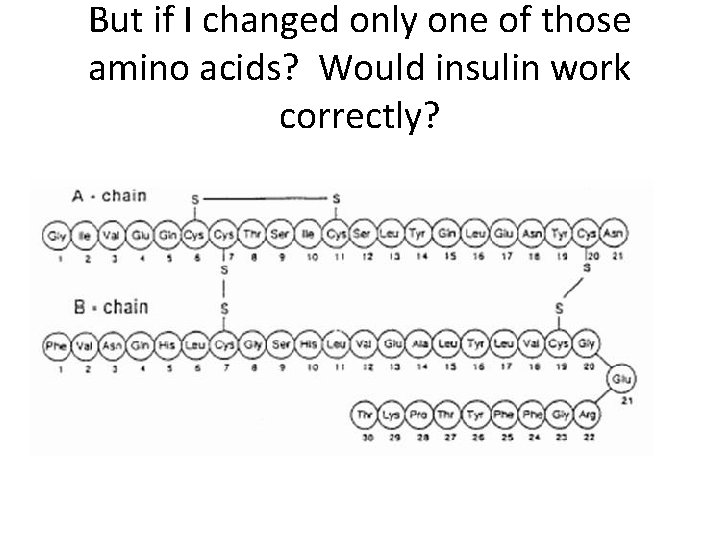

But if I changed only one of those amino acids? Would insulin work correctly?

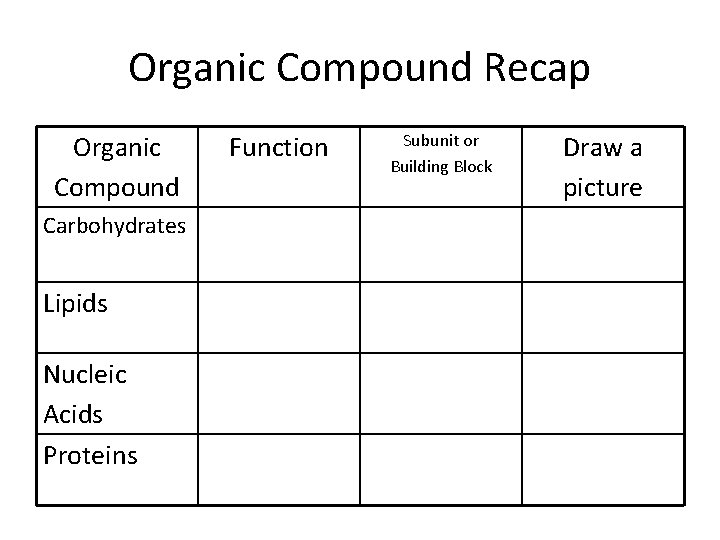

Organic Compound Recap Organic Compound Carbohydrates Lipids Nucleic Acids Proteins Function Subunit or Building Block Draw a picture

Enzymes ENZYMES ARE SUPER COOL!!!

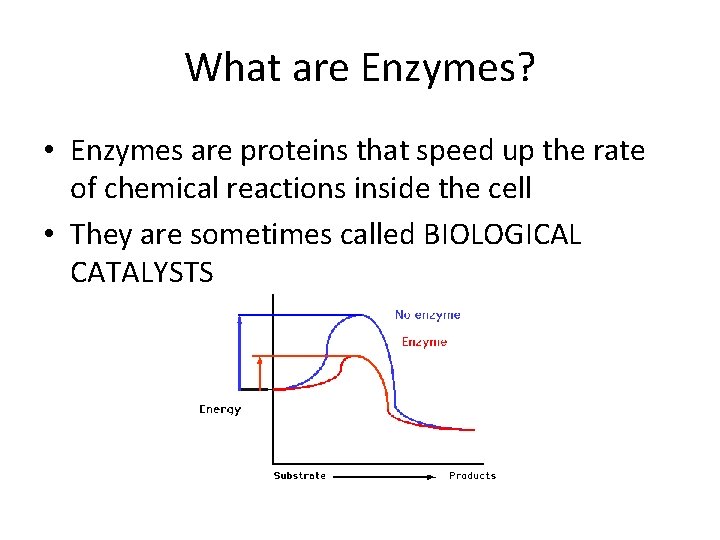

What are Enzymes? • Enzymes are proteins that speed up the rate of chemical reactions inside the cell • They are sometimes called BIOLOGICAL CATALYSTS

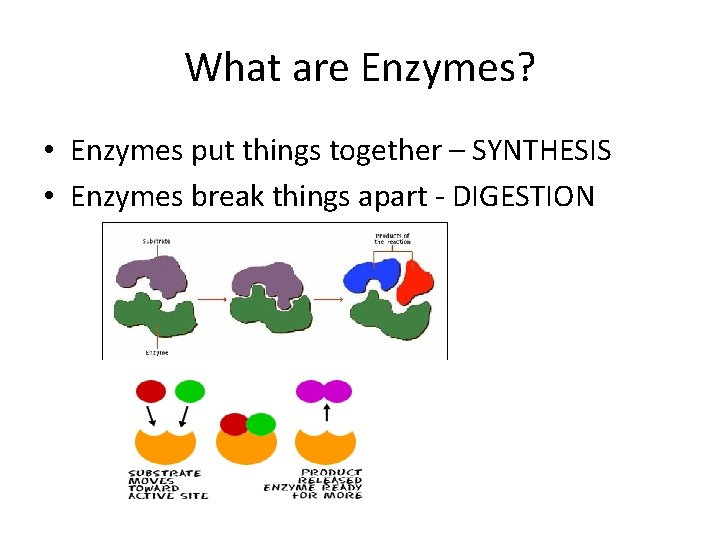

What are Enzymes? • Enzymes put things together – SYNTHESIS • Enzymes break things apart - DIGESTION

Enzymes and chemical reactions • All cells in particular ours, perform a ton of chemical reactions like CELLULAR RESPIRATION • CELLULAR RESPIRATION = ATP • NO ENZYMES = NO ENERGY = YOUR DEAD

WOW…ENZYMES SEEM KIND OF IMPORTANT…LET’S GO BACK A SEC!

Protein Structure • Proteins are made up of AMINO ACIDS

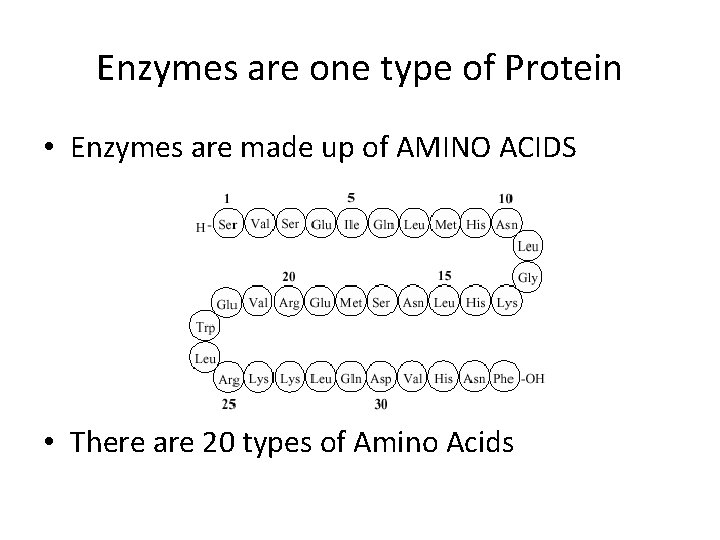

Enzymes are one type of Protein • Enzymes are made up of AMINO ACIDS • There are 20 types of Amino Acids

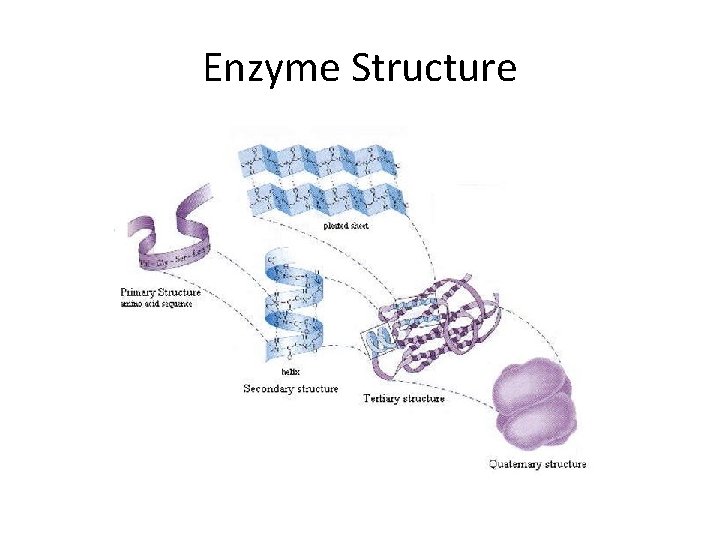

Enzyme Structure

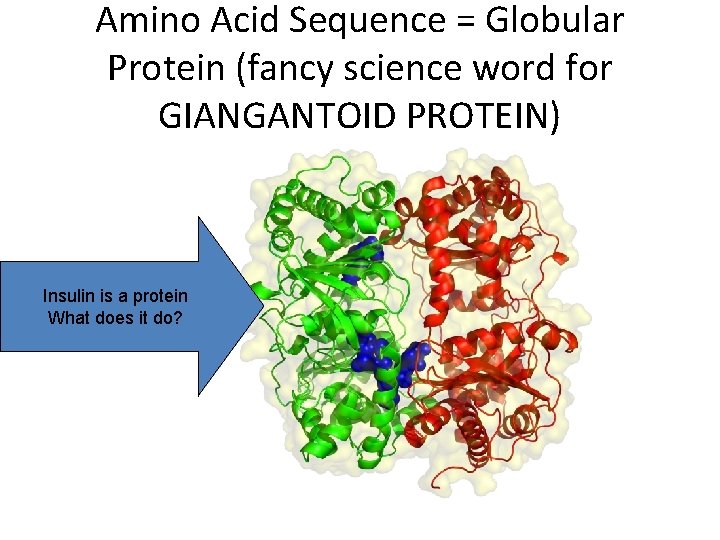

Amino Acid Sequence = Globular Protein (fancy science word for GIANGANTOID PROTEIN) Insulin is a protein What does it do?

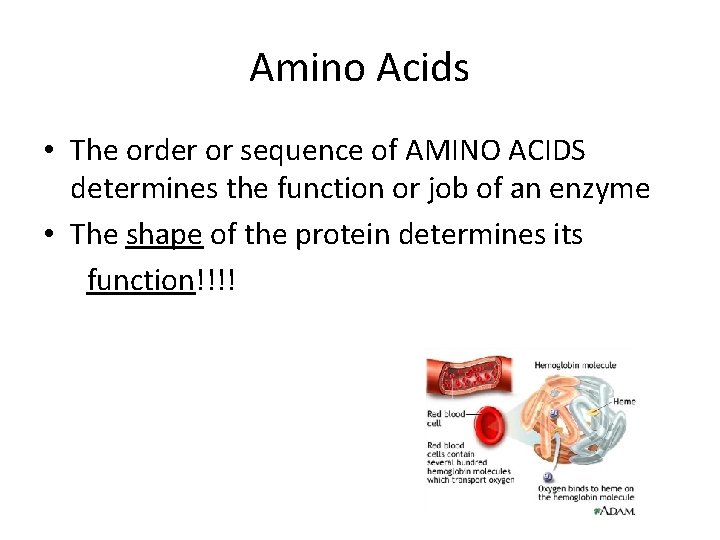

Amino Acids • The order or sequence of AMINO ACIDS determines the function or job of an enzyme • The shape of the protein determines its function!!!!

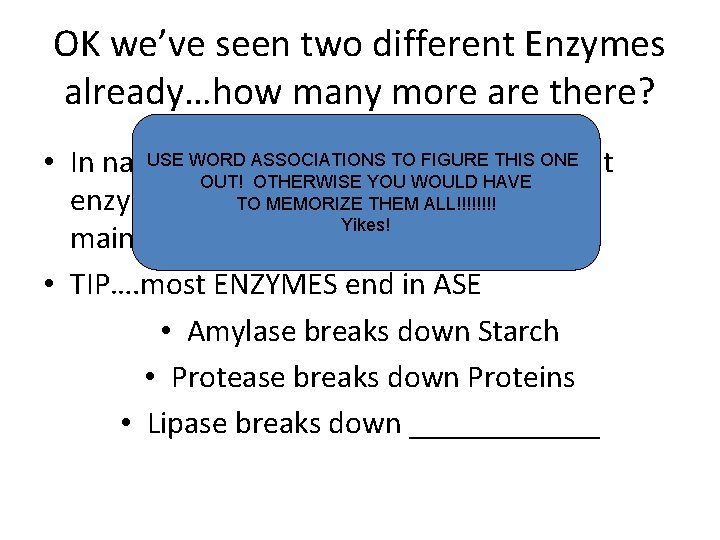

OK we’ve seen two different Enzymes already…how many more are there? USE WORD TO FIGURE ONE • In nature there. ASSOCIATIONS are thousands of THIS different OUT! OTHERWISE YOU WOULD HAVE TO MEMORIZE THEM an ALL!!!! enzymes present that help organism Yikes! maintain homeostasis • TIP…. most ENZYMES end in ASE • Amylase breaks down Starch • Protease breaks down Proteins • Lipase breaks down ______

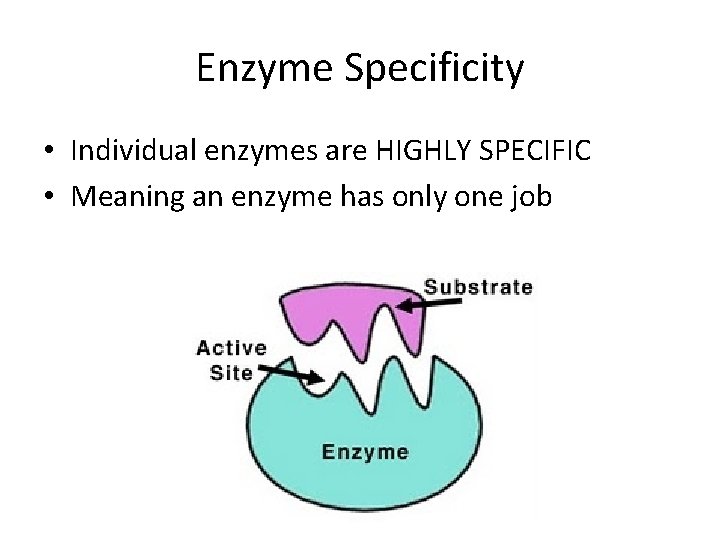

Enzyme Specificity • Individual enzymes are HIGHLY SPECIFIC • Meaning an enzyme has only one job

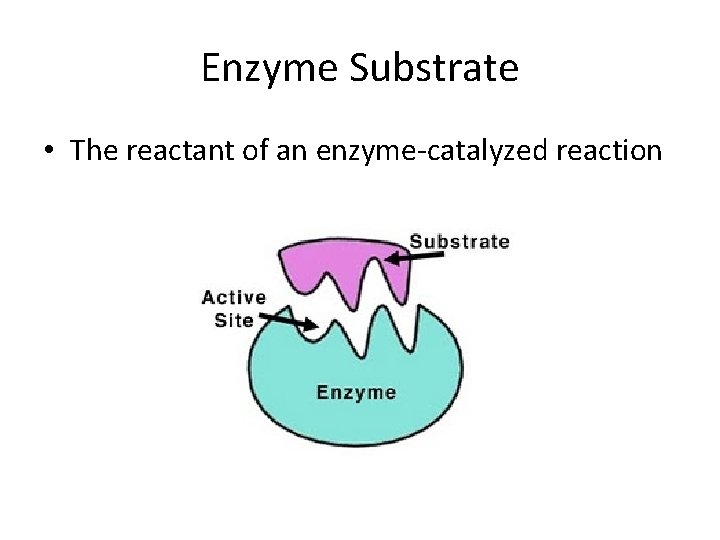

Enzyme Substrate • The reactant of an enzyme-catalyzed reaction

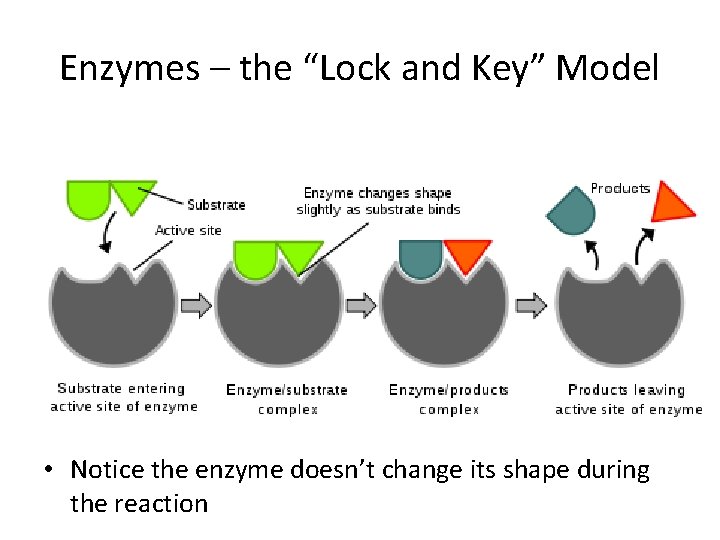

Enzymes – the “Lock and Key” Model • Notice the enzyme doesn’t change its shape during the reaction

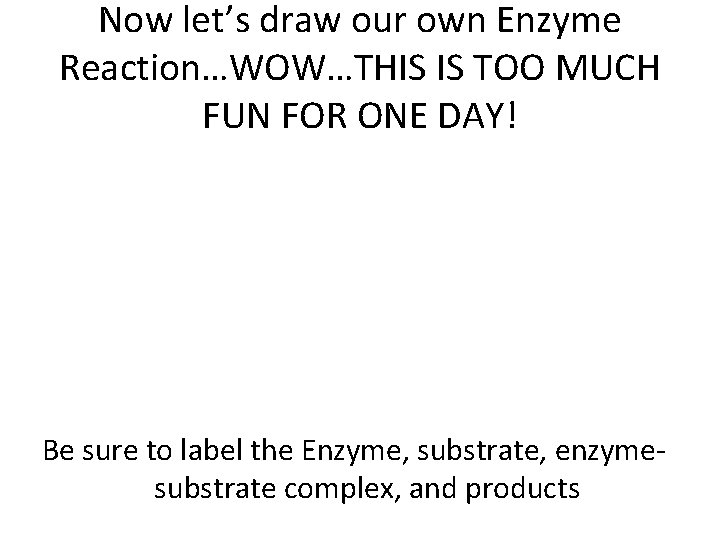

Now let’s draw our own Enzyme Reaction…WOW…THIS IS TOO MUCH FUN FOR ONE DAY! Be sure to label the Enzyme, substrate, enzymesubstrate complex, and products

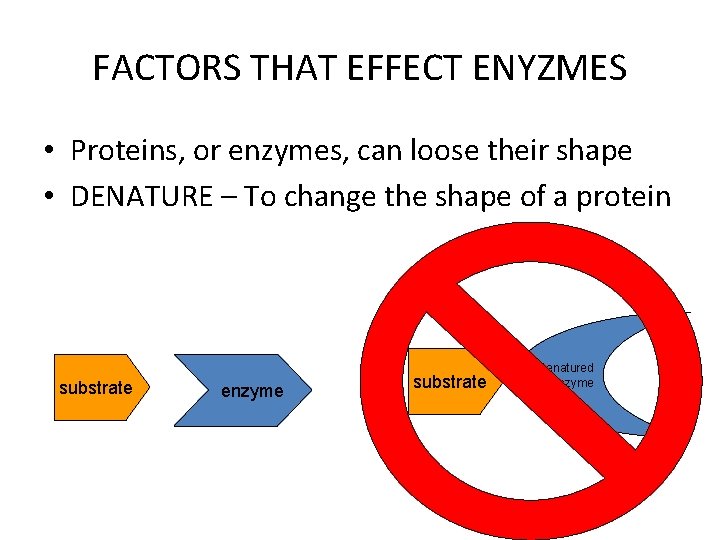

FACTORS THAT EFFECT ENYZMES • Proteins, or enzymes, can loose their shape • DENATURE – To change the shape of a protein substrate enzyme substrate Denatured enzyme

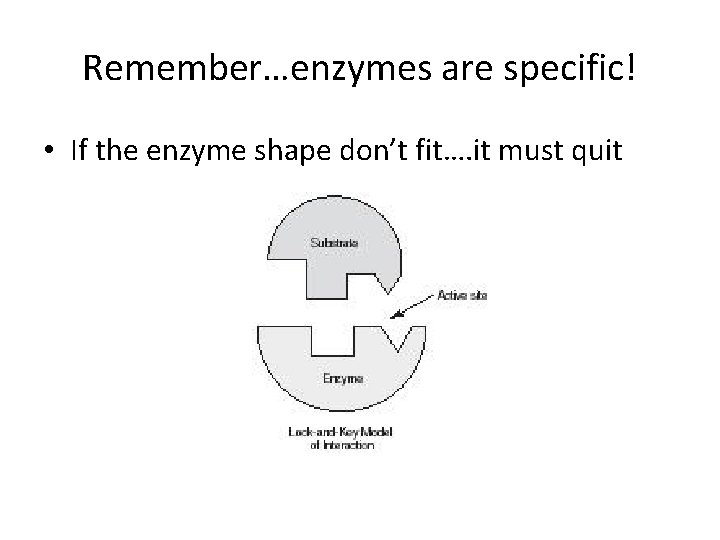

Remember…enzymes are specific! • If the enzyme shape don’t fit…. it must quit

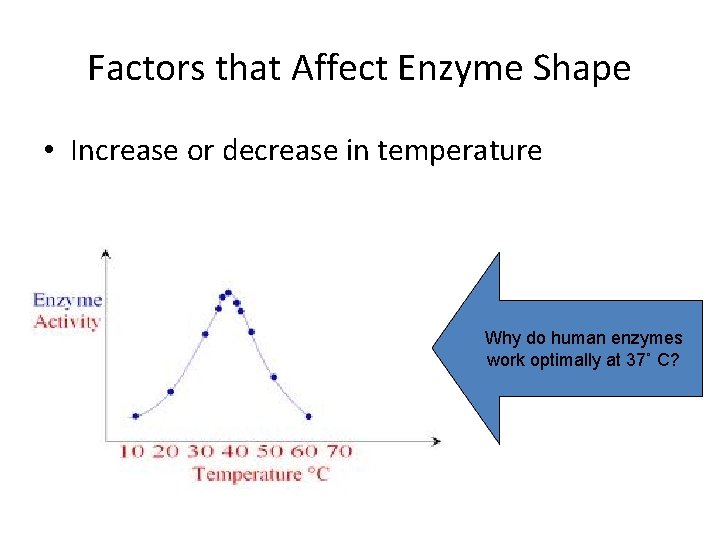

Factors that Affect Enzyme Shape • Increase or decrease in temperature Why do human enzymes work optimally at 37˚ C?

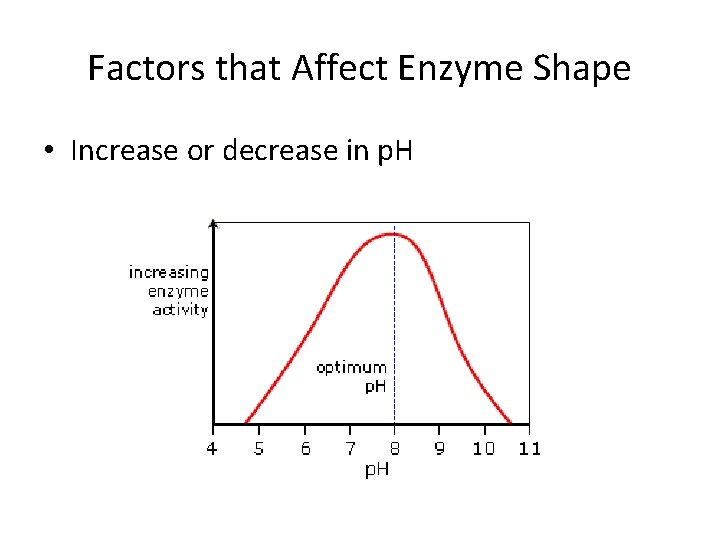

Factors that Affect Enzyme Shape • Increase or decrease in p. H

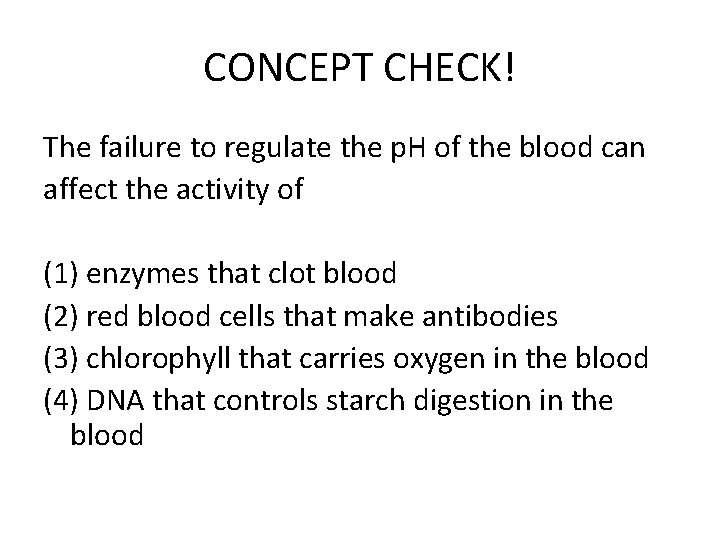

CONCEPT CHECK! The failure to regulate the p. H of the blood can affect the activity of (1) enzymes that clot blood (2) red blood cells that make antibodies (3) chlorophyll that carries oxygen in the blood (4) DNA that controls starch digestion in the blood

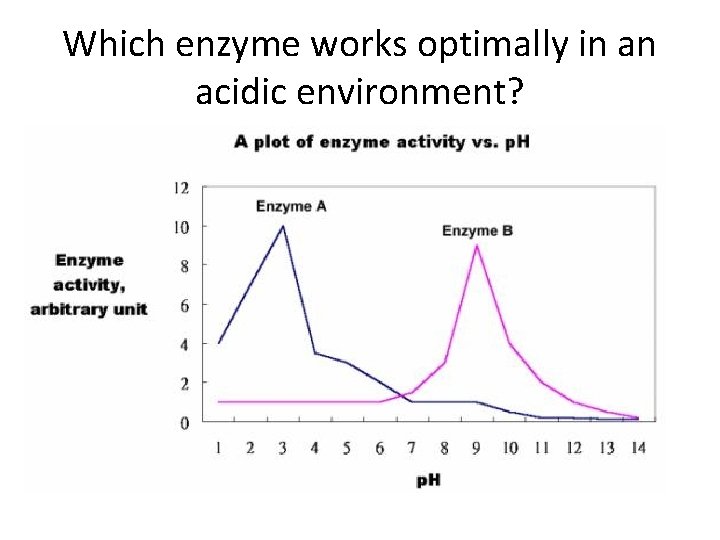

Which enzyme works optimally in an acidic environment?

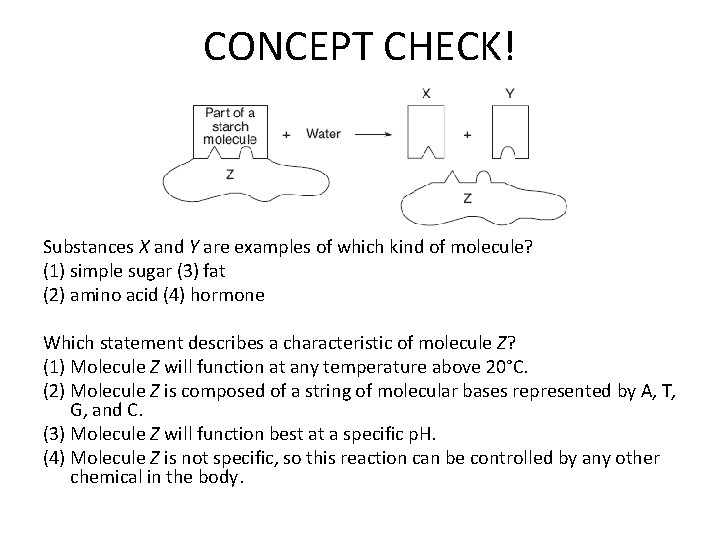

CONCEPT CHECK! Substances X and Y are examples of which kind of molecule? (1) simple sugar (3) fat (2) amino acid (4) hormone Which statement describes a characteristic of molecule Z? (1) Molecule Z will function at any temperature above 20°C. (2) Molecule Z is composed of a string of molecular bases represented by A, T, G, and C. (3) Molecule Z will function best at a specific p. H. (4) Molecule Z is not specific, so this reaction can be controlled by any other chemical in the body.

NOW YOU CAN CREATE YOUR OWN ENZYMES! NICE WORK!
