Bio. SAFE Stabilised Chlorine Dioxide Presented by Bio. SAFE TECHNOLOGIES P/L.

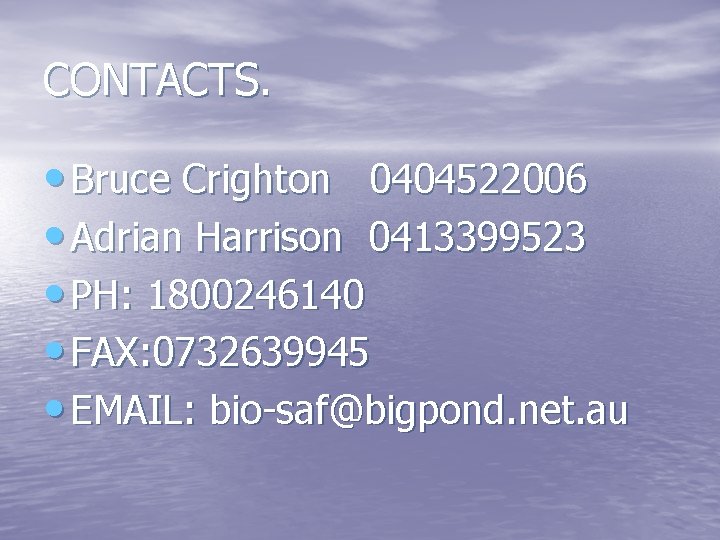

CONTACTS. • Bruce Crighton 0404522006 • Adrian Harrison 0413399523 • PH: 1800246140 • FAX: 0732639945 • EMAIL: bio-saf@bigpond. net. au

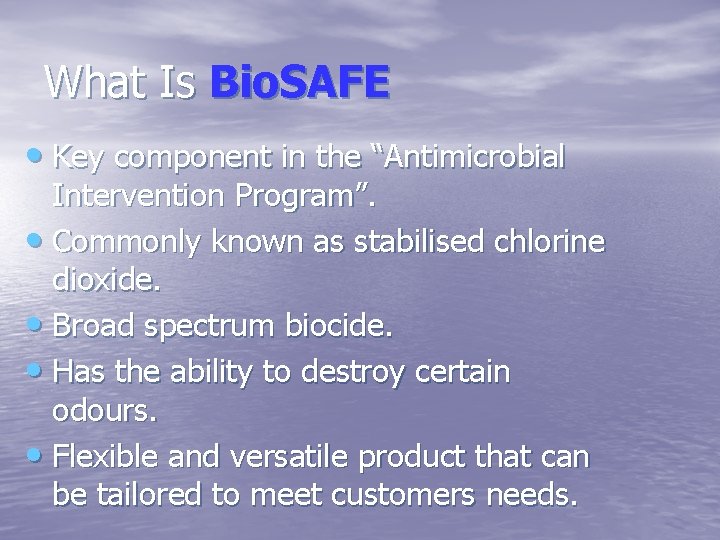

What Is Bio. SAFE • Key component in the “Antimicrobial Intervention Program”. • Commonly known as stabilised chlorine dioxide. • Broad spectrum biocide. • Has the ability to destroy certain odours. • Flexible and versatile product that can be tailored to meet customers needs.

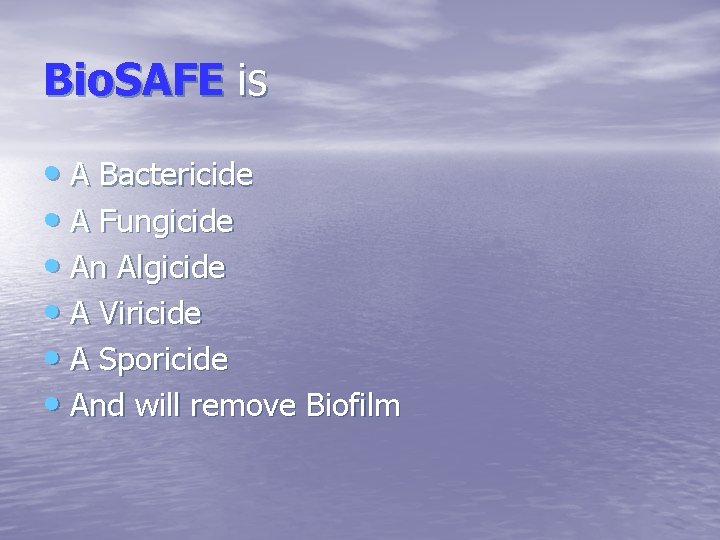

Bio. SAFE is • A Bactericide • A Fungicide • An Algicide • A Viricide • A Sporicide • And will remove Biofilm

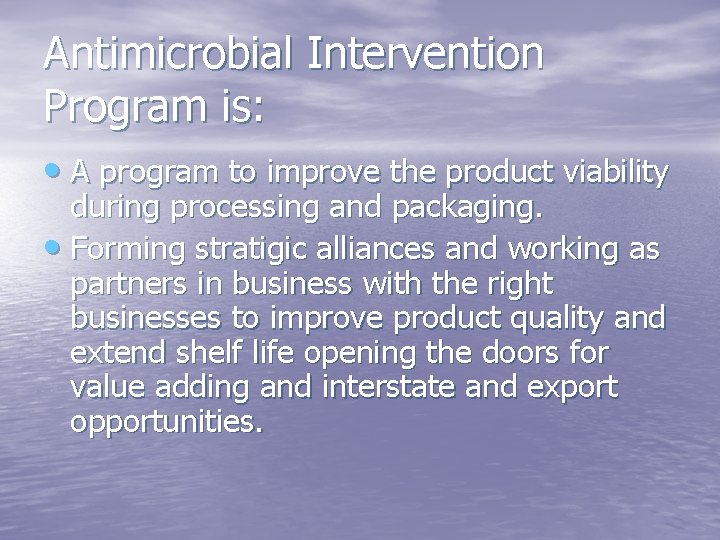

Antimicrobial Intervention Program is: • A program to improve the product viability during processing and packaging. • Forming stratigic alliances and working as partners in business with the right businesses to improve product quality and extend shelf life opening the doors for value adding and interstate and export opportunities.

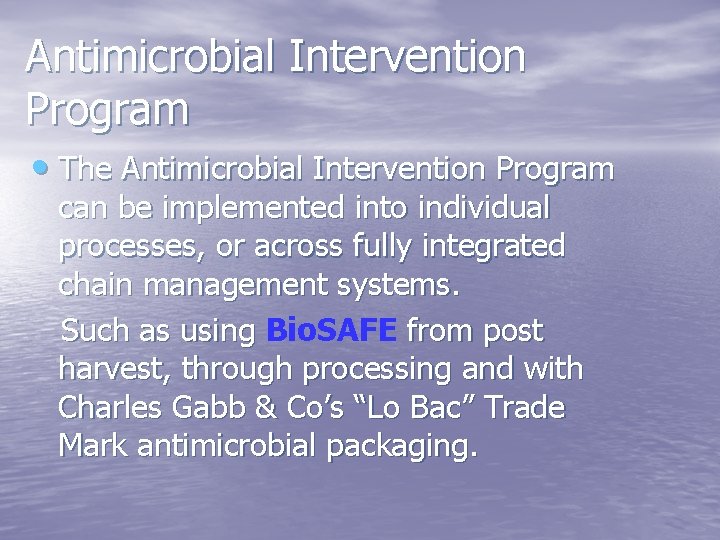

Antimicrobial Intervention Program • The Antimicrobial Intervention Program can be implemented into individual processes, or across fully integrated chain management systems. Such as using Bio. SAFE from post harvest, through processing and with Charles Gabb & Co’s “Lo Bac” Trade Mark antimicrobial packaging.

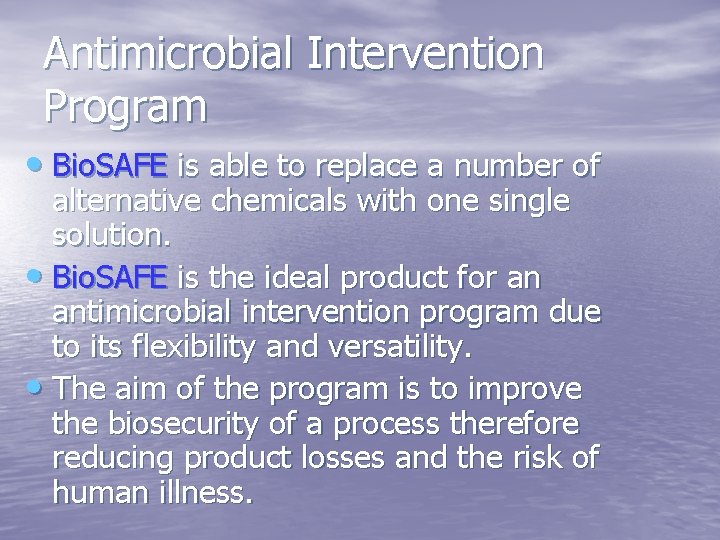

Antimicrobial Intervention Program • Bio. SAFE is able to replace a number of alternative chemicals with one single solution. • Bio. SAFE is the ideal product for an antimicrobial intervention program due to its flexibility and versatility. • The aim of the program is to improve the biosecurity of a process therefore reducing product losses and the risk of human illness.

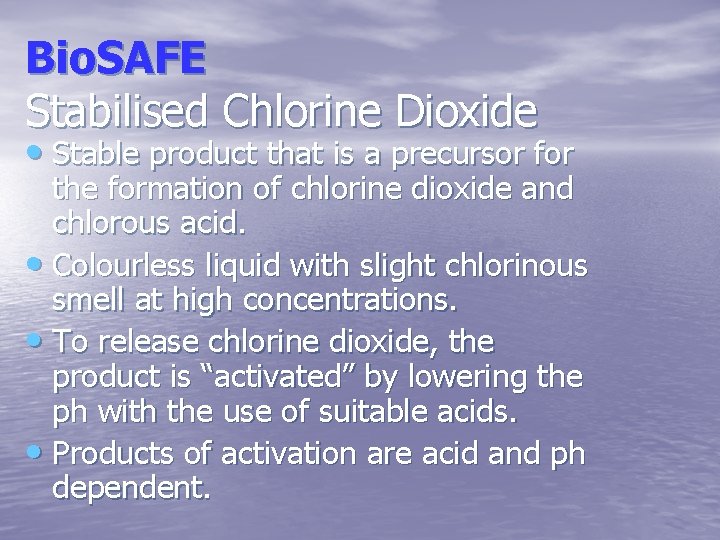

Bio. SAFE Stabilised Chlorine Dioxide • Stable product that is a precursor for the formation of chlorine dioxide and chlorous acid. • Colourless liquid with slight chlorinous smell at high concentrations. • To release chlorine dioxide, the product is “activated” by lowering the ph with the use of suitable acids. • Products of activation are acid and ph dependent.

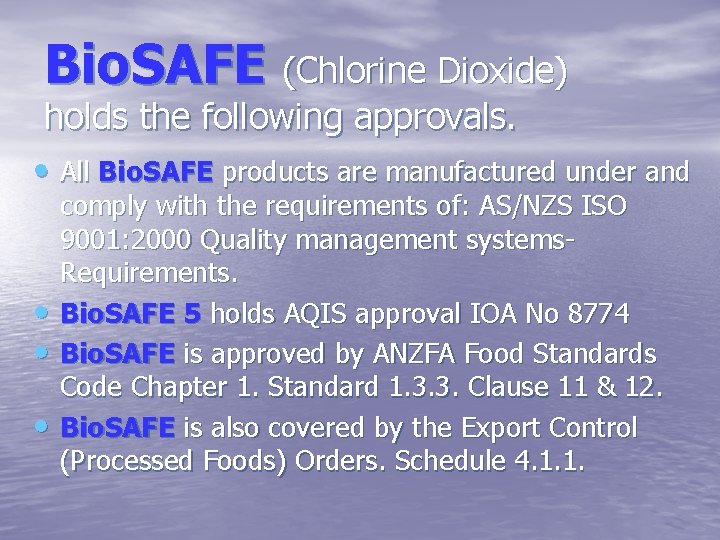

Bio. SAFE (Chlorine Dioxide) holds the following approvals. • All Bio. SAFE products are manufactured under and • • • comply with the requirements of: AS/NZS ISO 9001: 2000 Quality management systems. Requirements. Bio. SAFE 5 holds AQIS approval IOA No 8774 Bio. SAFE is approved by ANZFA Food Standards Code Chapter 1. Standard 1. 3. 3. Clause 11 & 12. Bio. SAFE is also covered by the Export Control (Processed Foods) Orders. Schedule 4. 1. 1.

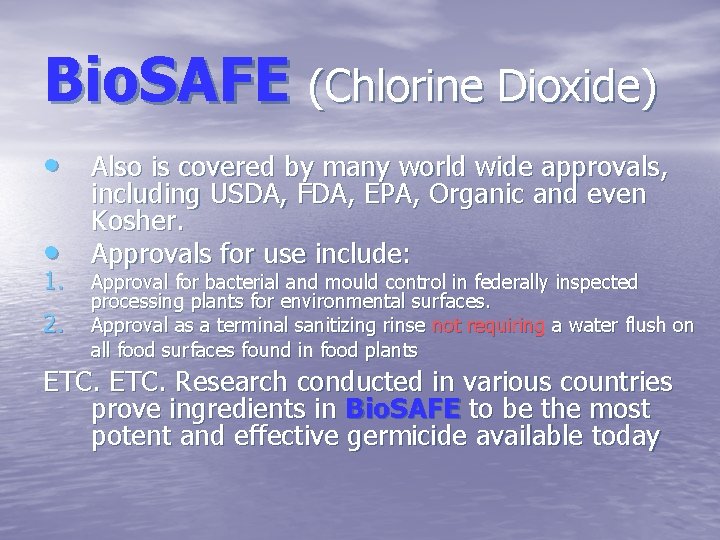

Bio. SAFE (Chlorine Dioxide) • Also is covered by many world wide approvals, • 1. 2. including USDA, FDA, EPA, Organic and even Kosher. Approvals for use include: Approval for bacterial and mould control in federally inspected processing plants for environmental surfaces. Approval as a terminal sanitizing rinse not requiring a water flush on all food surfaces found in food plants ETC. Research conducted in various countries prove ingredients in Bio. SAFE to be the most potent and effective germicide available today

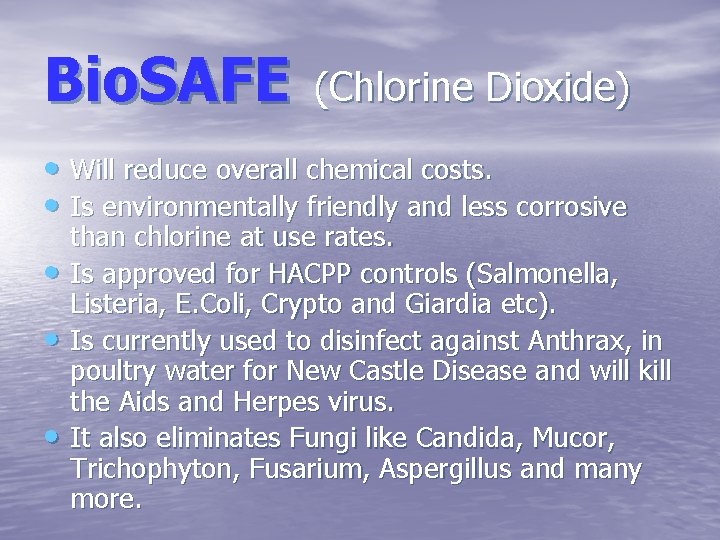

Bio. SAFE (Chlorine Dioxide) • Will reduce overall chemical costs. • Is environmentally friendly and less corrosive • • • than chlorine at use rates. Is approved for HACPP controls (Salmonella, Listeria, E. Coli, Crypto and Giardia etc). Is currently used to disinfect against Anthrax, in poultry water for New Castle Disease and will kill the Aids and Herpes virus. It also eliminates Fungi like Candida, Mucor, Trichophyton, Fusarium, Aspergillus and many more.

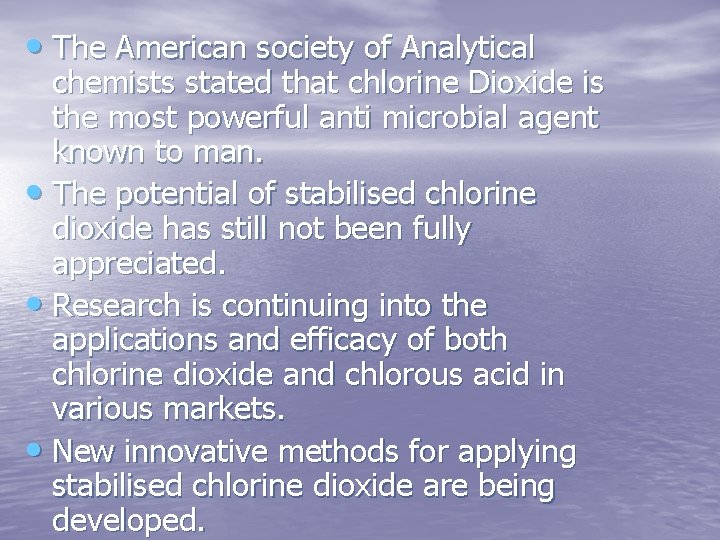

• The American society of Analytical chemists stated that chlorine Dioxide is the most powerful anti microbial agent known to man. • The potential of stabilised chlorine dioxide has still not been fully appreciated. • Research is continuing into the applications and efficacy of both chlorine dioxide and chlorous acid in various markets. • New innovative methods for applying stabilised chlorine dioxide are being developed.

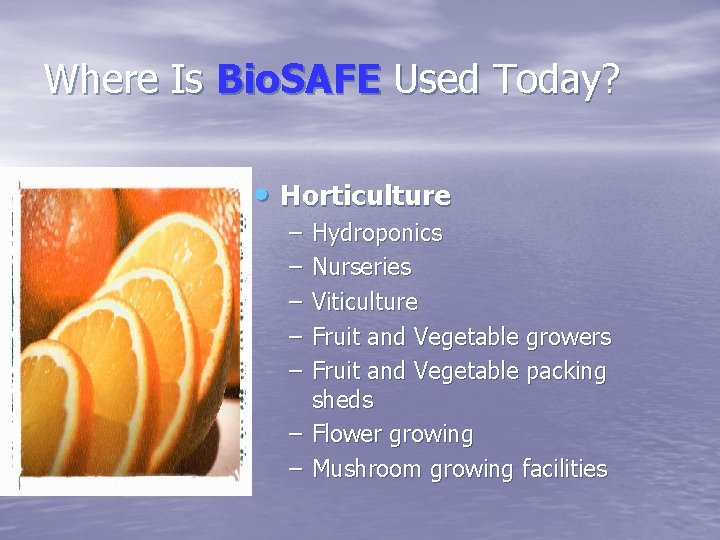

Where Is Bio. SAFE Used Today? • Horticulture – – – Hydroponics Nurseries Viticulture Fruit and Vegetable growers Fruit and Vegetable packing sheds – Flower growing – Mushroom growing facilities

• Agriculture – – – Poultry sheds Piggeries Pet industry Dairy farms Animal confinement areas

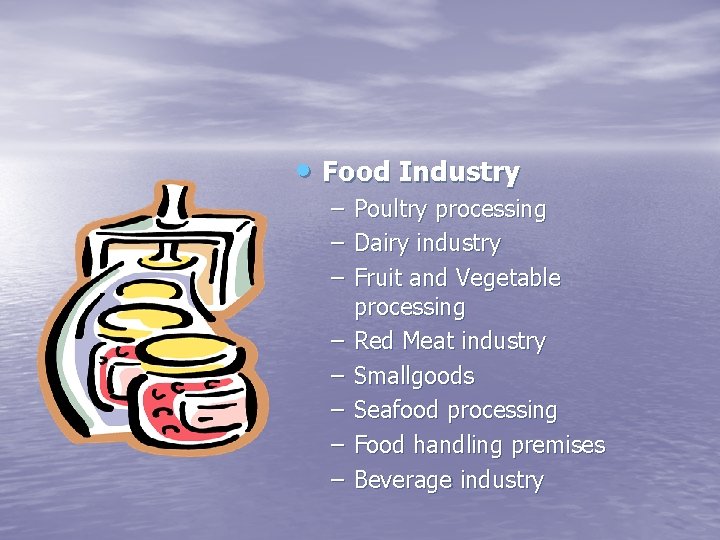

• Food Industry – – – – Poultry processing Dairy industry Fruit and Vegetable processing Red Meat industry Smallgoods Seafood processing Food handling premises Beverage industry

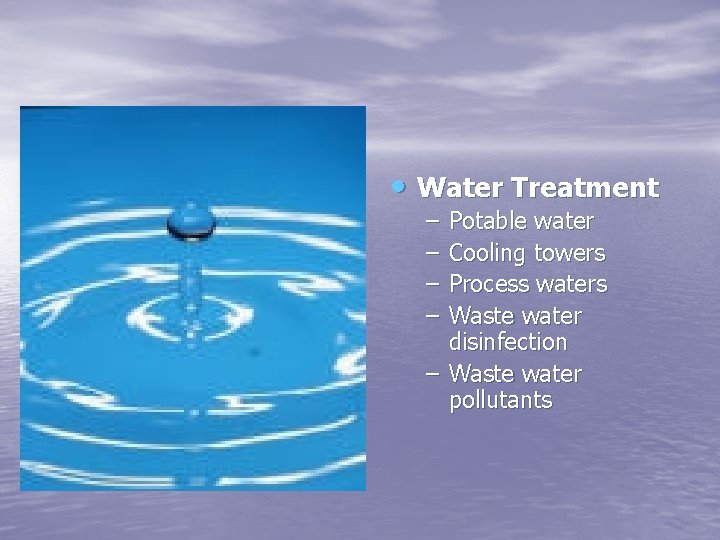

• Water Treatment – – Potable water Cooling towers Process waters Waste water disinfection – Waste water pollutants

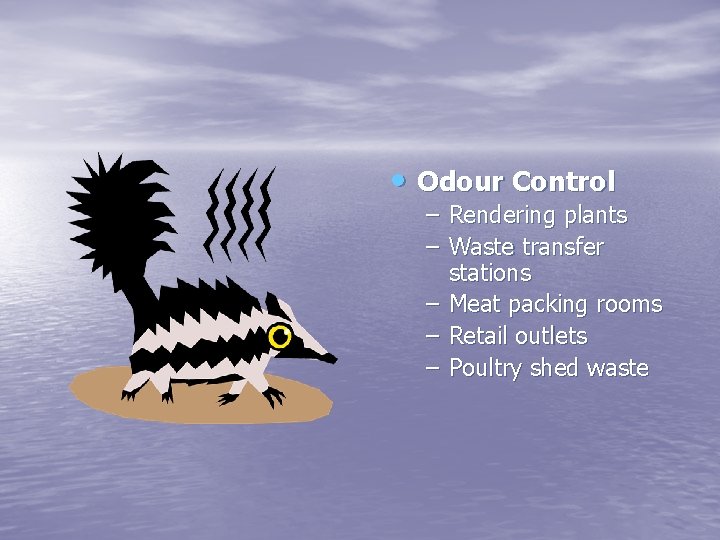

• Odour Control – Rendering plants – Waste transfer stations – Meat packing rooms – Retail outlets – Poultry shed waste

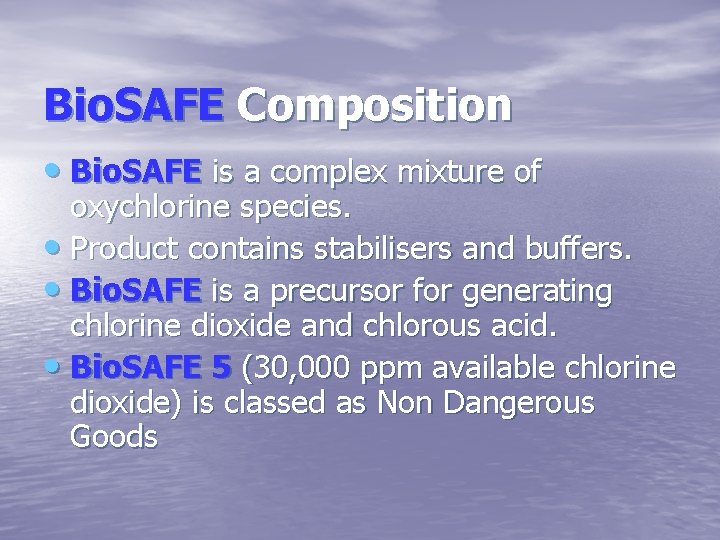

Bio. SAFE Composition • Bio. SAFE is a complex mixture of oxychlorine species. • Product contains stabilisers and buffers. • Bio. SAFE is a precursor for generating chlorine dioxide and chlorous acid. • Bio. SAFE 5 (30, 000 ppm available chlorine dioxide) is classed as Non Dangerous Goods

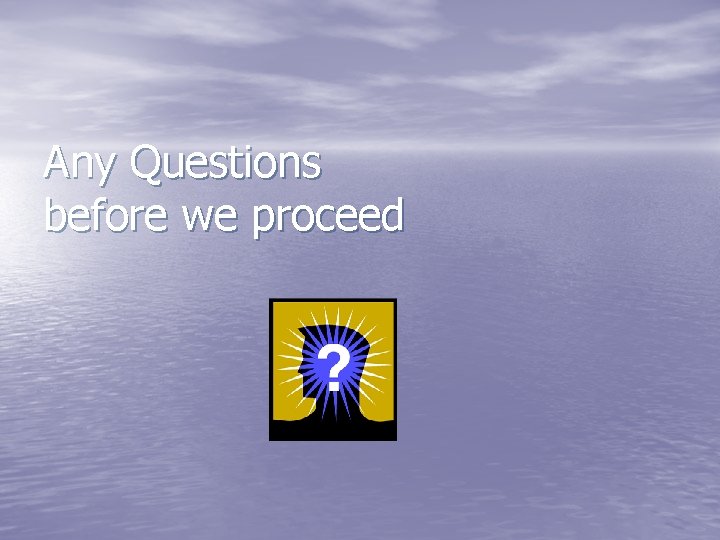

Any Questions before we proceed

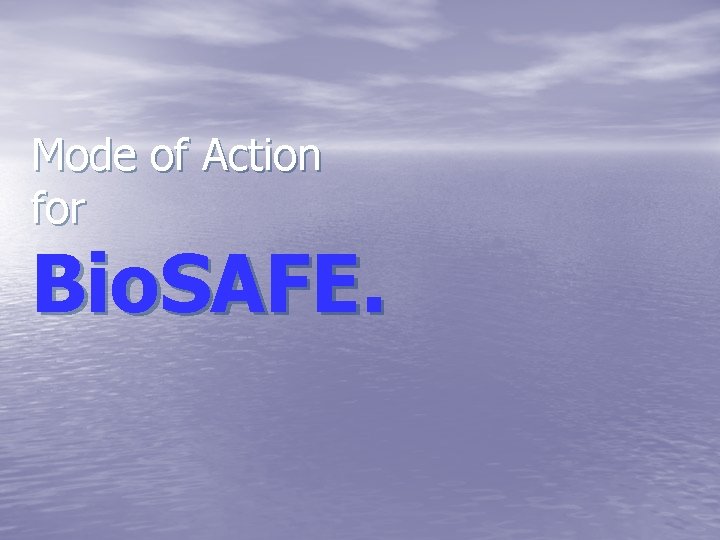

Mode of Action for Bio. SAFE.

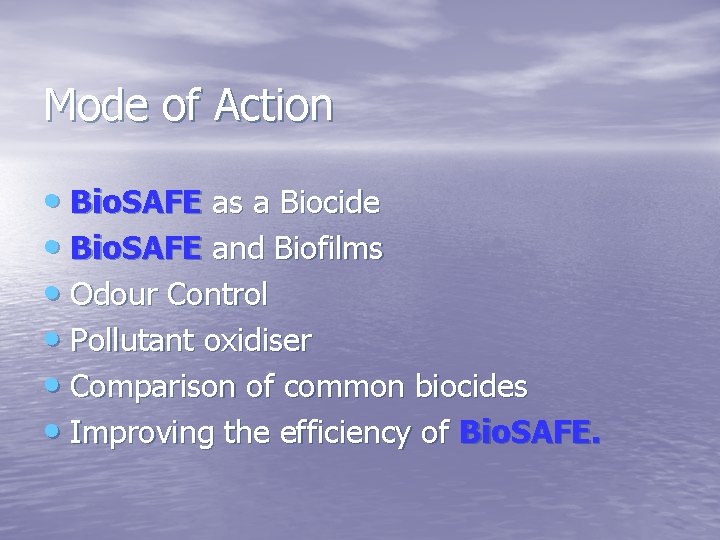

Mode of Action • Bio. SAFE as a Biocide • Bio. SAFE and Biofilms • Odour Control • Pollutant oxidiser • Comparison of common biocides • Improving the efficiency of Bio. SAFE.

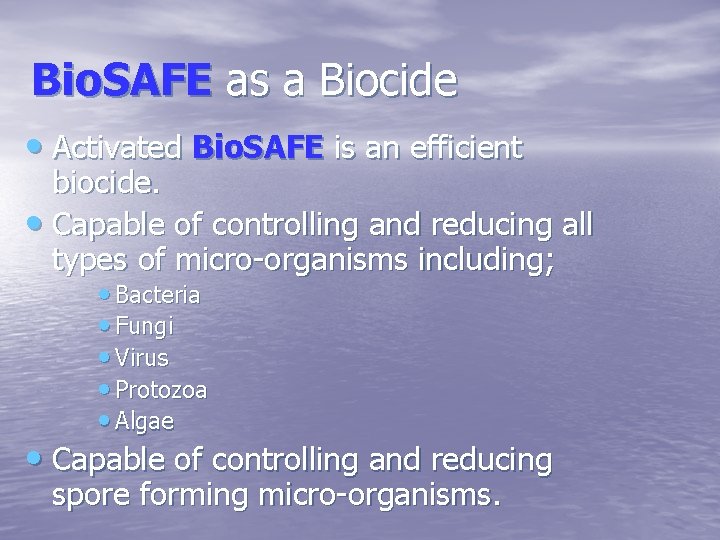

Bio. SAFE as a Biocide • Activated Bio. SAFE is an efficient biocide. • Capable of controlling and reducing all types of micro-organisms including; • Bacteria • Fungi • Virus • Protozoa • Algae • Capable of controlling and reducing spore forming micro-organisms.

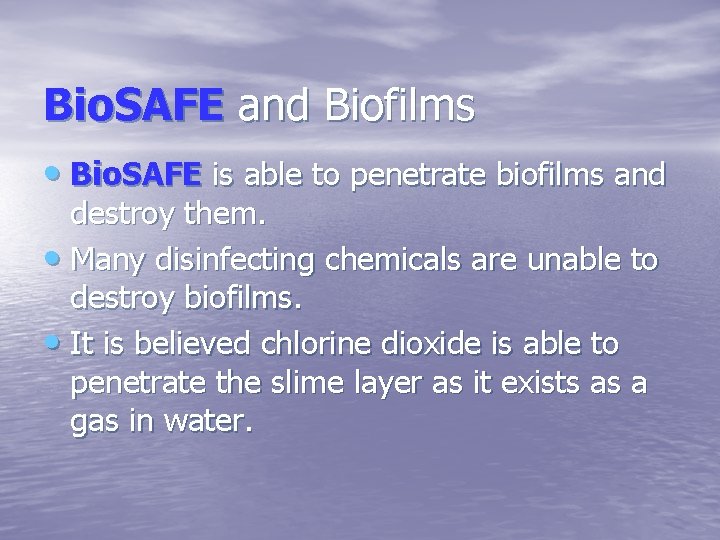

Bio. SAFE and Biofilms • Bio. SAFE is able to penetrate biofilms and destroy them. • Many disinfecting chemicals are unable to destroy biofilms. • It is believed chlorine dioxide is able to penetrate the slime layer as it exists as a gas in water.

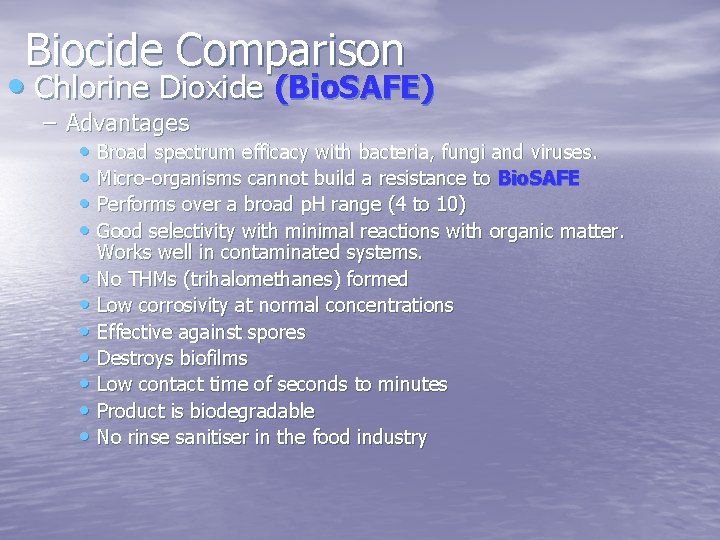

Biocide Comparison • Chlorine Dioxide (Bio. SAFE) – Advantages • Broad spectrum efficacy with bacteria, fungi and viruses. • Micro-organisms cannot build a resistance to Bio. SAFE • Performs over a broad p. H range (4 to 10) • Good selectivity with minimal reactions with organic matter. Works well in contaminated systems. • No THMs (trihalomethanes) formed • Low corrosivity at normal concentrations • Effective against spores • Destroys biofilms • Low contact time of seconds to minutes • Product is biodegradable • No rinse sanitiser in the food industry

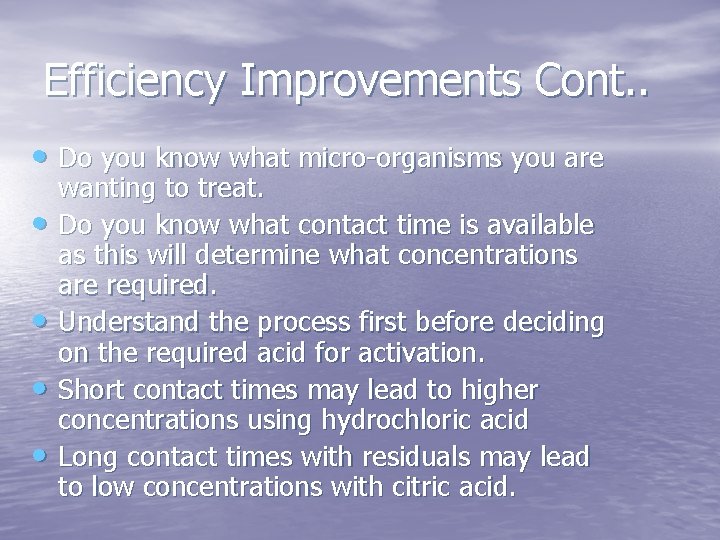

Efficiency Improvements Cont. . • Do you know what micro-organisms you are • • wanting to treat. Do you know what contact time is available as this will determine what concentrations are required. Understand the process first before deciding on the required acid for activation. Short contact times may lead to higher concentrations using hydrochloric acid Long contact times with residuals may lead to low concentrations with citric acid.

Questions

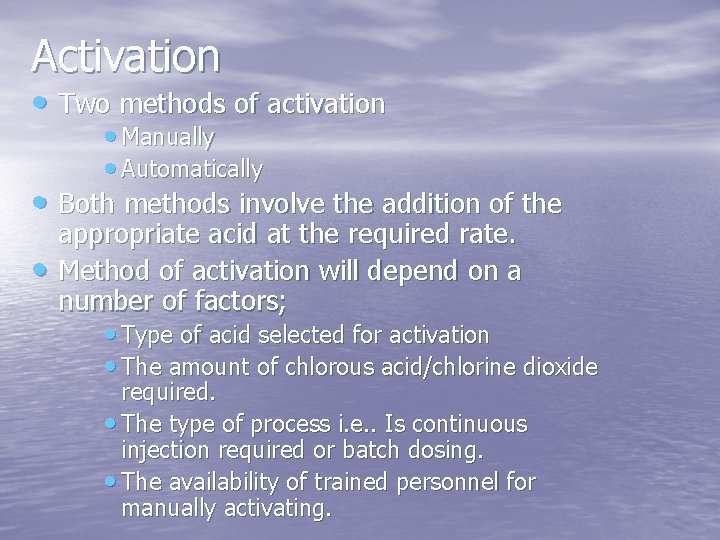

Activation • Two methods of activation • Manually • Automatically • Both methods involve the addition of the appropriate acid at the required rate. • Method of activation will depend on a number of factors; • Type of acid selected for activation • The amount of chlorous acid/chlorine dioxide required. • The type of process i. e. . Is continuous injection required or batch dosing. • The availability of trained personnel for manually activating.

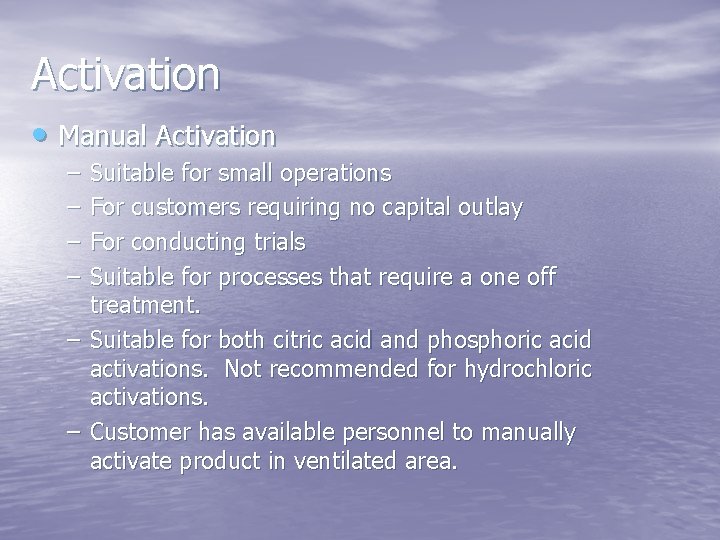

Activation • Manual Activation – – Suitable for small operations For customers requiring no capital outlay For conducting trials Suitable for processes that require a one off treatment. – Suitable for both citric acid and phosphoric acid activations. Not recommended for hydrochloric activations. – Customer has available personnel to manually activate product in ventilated area.

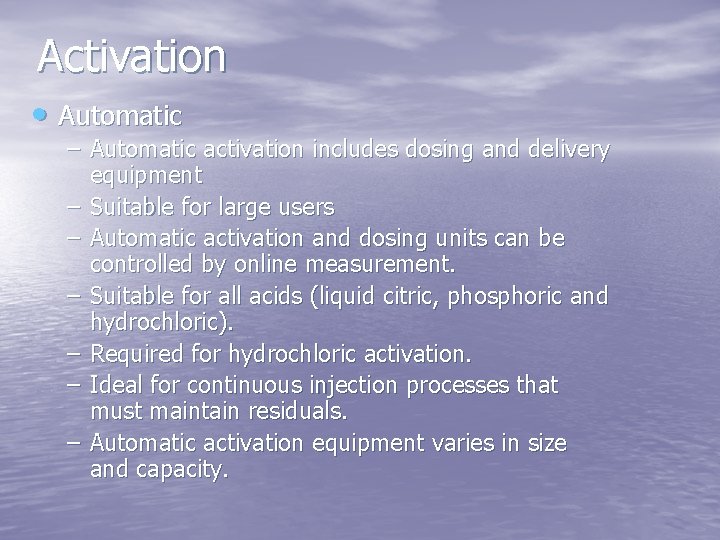

Activation • Automatic – Automatic activation includes dosing and delivery equipment – Suitable for large users – Automatic activation and dosing units can be controlled by online measurement. – Suitable for all acids (liquid citric, phosphoric and hydrochloric). – Required for hydrochloric activation. – Ideal for continuous injection processes that must maintain residuals. – Automatic activation equipment varies in size and capacity.

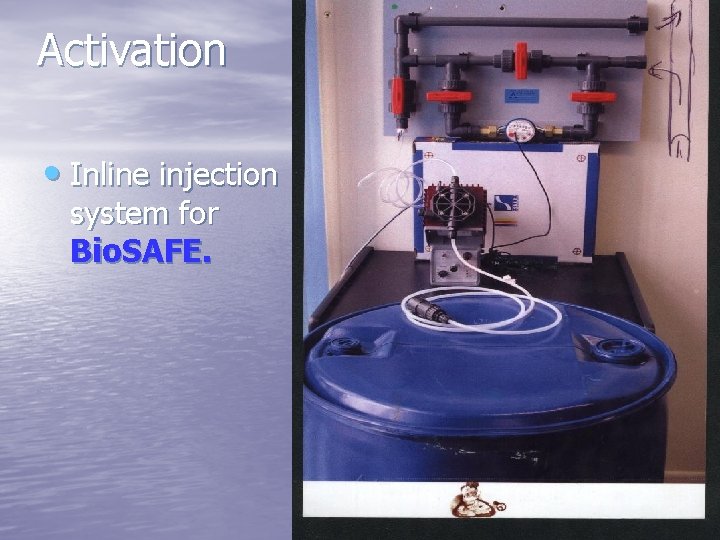

Activation • Inline injection system for Bio. SAFE.

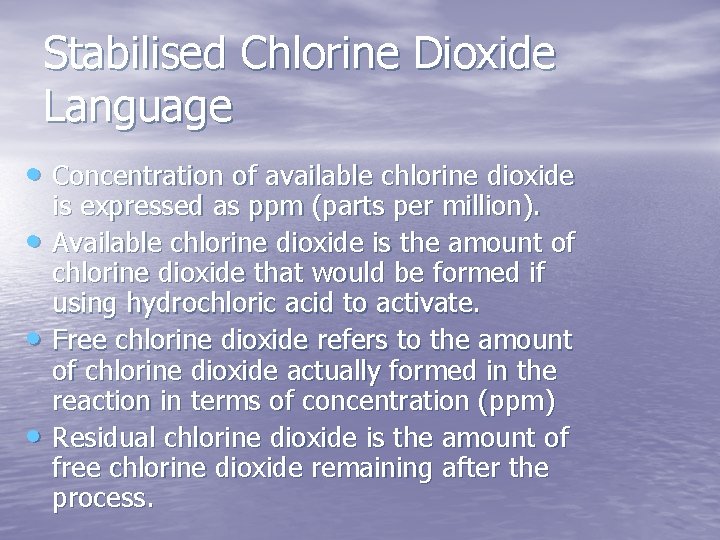

Stabilised Chlorine Dioxide Language • Concentration of available chlorine dioxide • • • is expressed as ppm (parts per million). Available chlorine dioxide is the amount of chlorine dioxide that would be formed if using hydrochloric acid to activate. Free chlorine dioxide refers to the amount of chlorine dioxide actually formed in the reaction in terms of concentration (ppm) Residual chlorine dioxide is the amount of free chlorine dioxide remaining after the process.

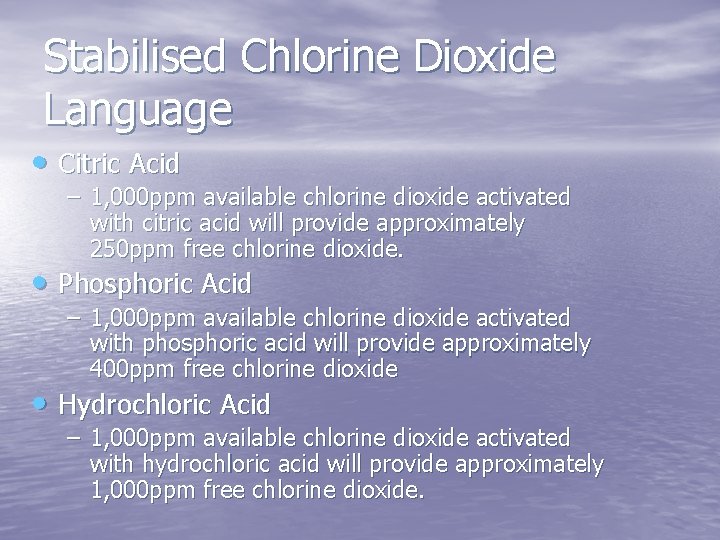

Stabilised Chlorine Dioxide Language • Citric Acid – 1, 000 ppm available chlorine dioxide activated with citric acid will provide approximately 250 ppm free chlorine dioxide. • Phosphoric Acid – 1, 000 ppm available chlorine dioxide activated with phosphoric acid will provide approximately 400 ppm free chlorine dioxide • Hydrochloric Acid – 1, 000 ppm available chlorine dioxide activated with hydrochloric acid will provide approximately 1, 000 ppm free chlorine dioxide.

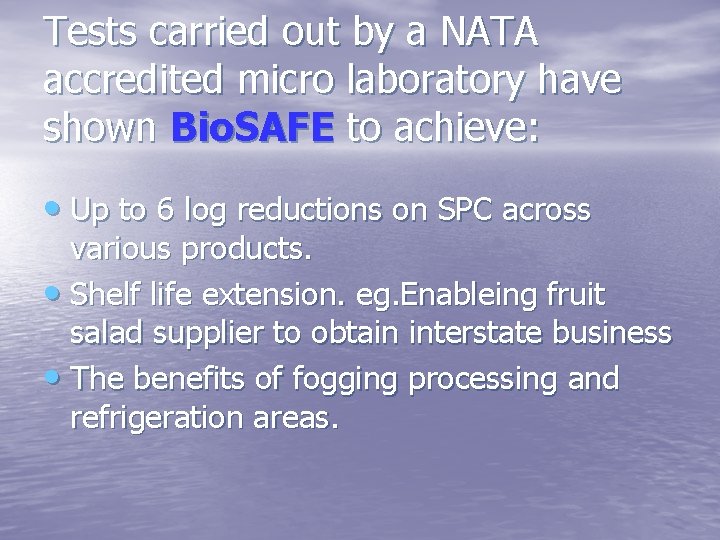

Tests carried out by a NATA accredited micro laboratory have shown Bio. SAFE to achieve: • Up to 6 log reductions on SPC across various products. • Shelf life extension. eg. Enableing fruit salad supplier to obtain interstate business • The benefits of fogging processing and refrigeration areas.

Bio. SAFE Technologies P/L Bruce Crighton 04045 22006 bruce@biosafetechnologies. com Adrian Harrison 04133 99523 adrian@biosafetechnologies. com

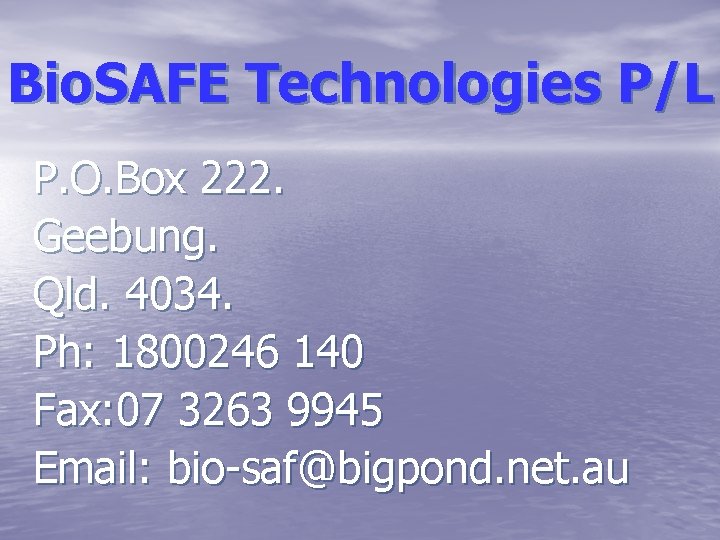

Bio. SAFE Technologies P/L P. O. Box 222. Geebung. Qld. 4034. Ph: 1800246 140 Fax: 07 3263 9945 Email: bio-saf@bigpond. net. au
