Bio Rad Sputter Coater Instructions for gold coating

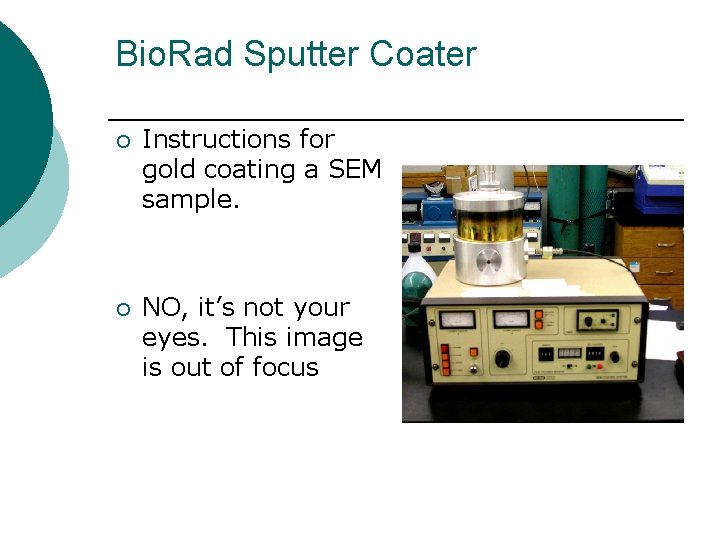

Bio. Rad Sputter Coater ¡ Instructions for gold coating a SEM sample. ¡ NO, it’s not your eyes. This image is out of focus

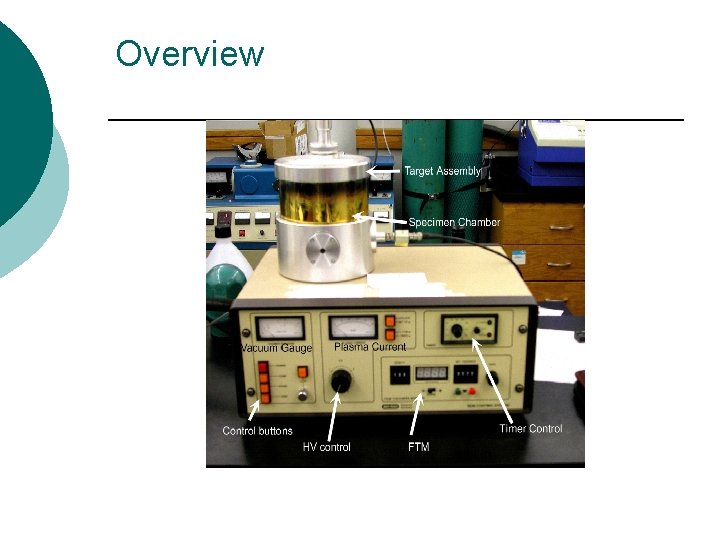

Overview

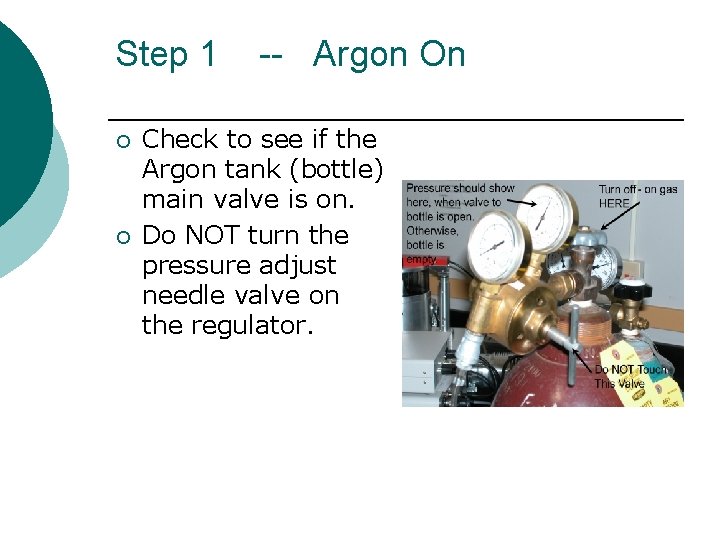

Step 1 ¡ ¡ -- Argon On Check to see if the Argon tank (bottle) main valve is on. Do NOT turn the pressure adjust needle valve on the regulator.

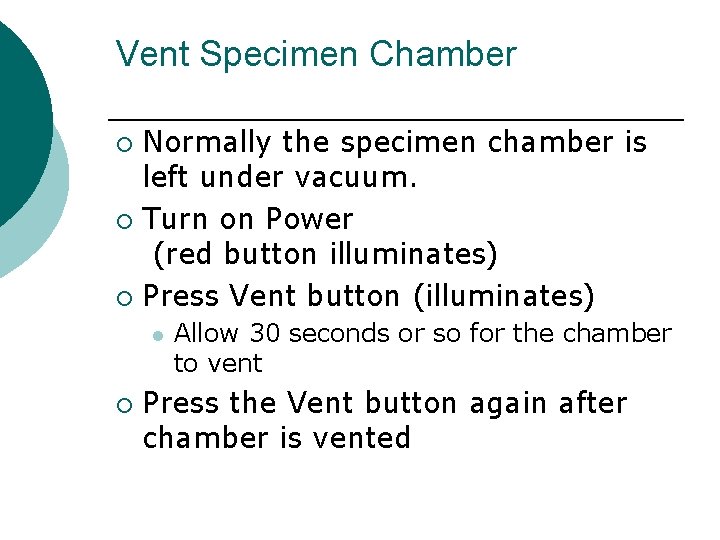

Vent Specimen Chamber Normally the specimen chamber is left under vacuum. ¡ Turn on Power (red button illuminates) ¡ Press Vent button (illuminates) ¡ l ¡ Allow 30 seconds or so for the chamber to vent Press the Vent button again after chamber is vented

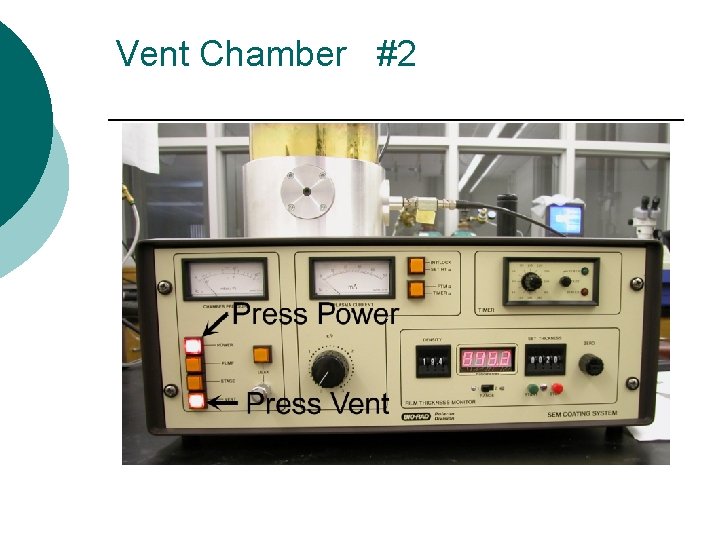

Vent Chamber #2

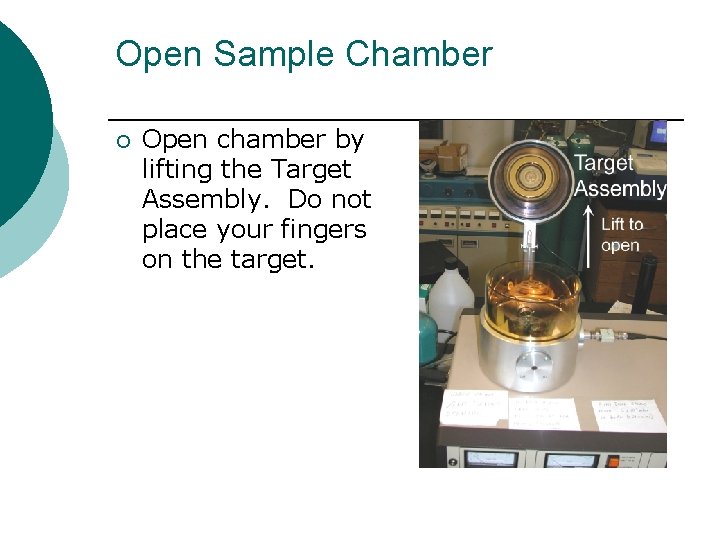

Open Sample Chamber ¡ Open chamber by lifting the Target Assembly. Do not place your fingers on the target.

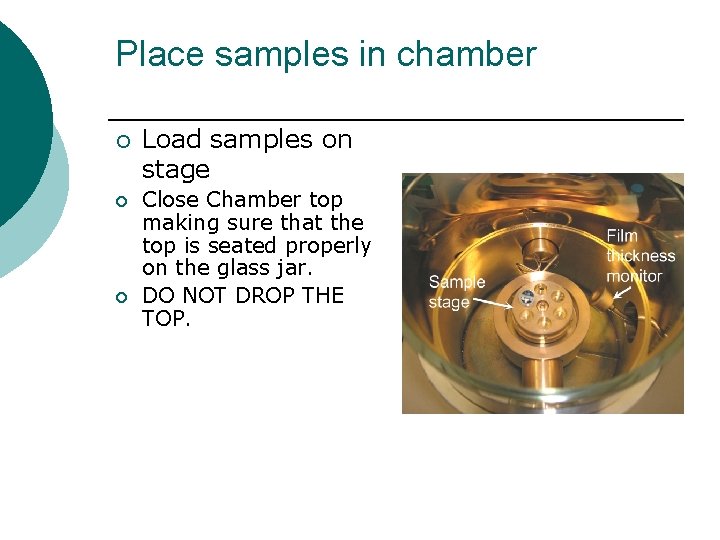

Place samples in chamber ¡ ¡ ¡ Load samples on stage Close Chamber top making sure that the top is seated properly on the glass jar. DO NOT DROP THE TOP.

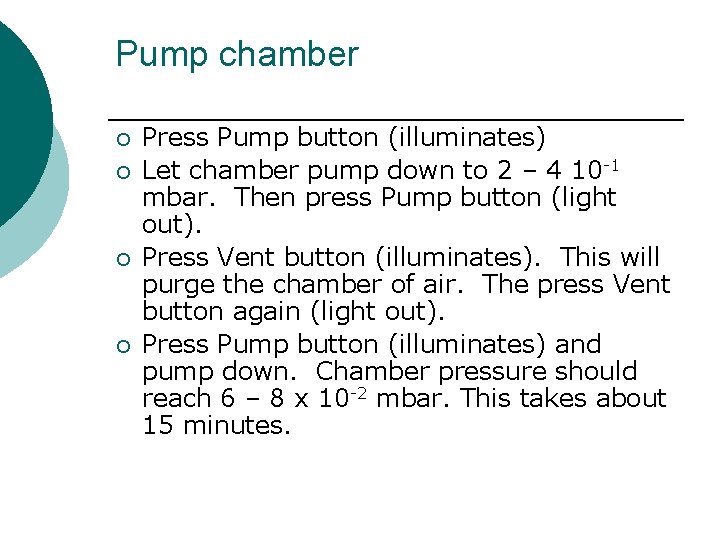

Pump chamber ¡ ¡ Press Pump button (illuminates) Let chamber pump down to 2 – 4 10 -1 mbar. Then press Pump button (light out). Press Vent button (illuminates). This will purge the chamber of air. The press Vent button again (light out). Press Pump button (illuminates) and pump down. Chamber pressure should reach 6 – 8 x 10 -2 mbar. This takes about 15 minutes.

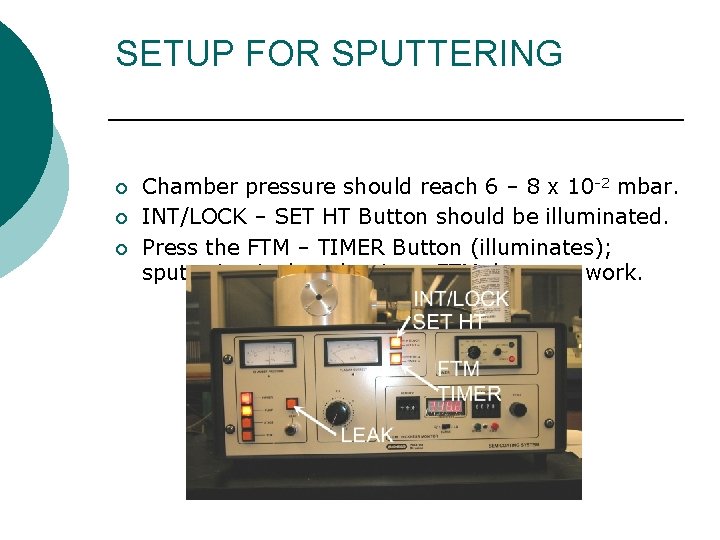

SETUP FOR SPUTTERING ¡ ¡ ¡ Chamber pressure should reach 6 – 8 x 10 -2 mbar. INT/LOCK – SET HT Button should be illuminated. Press the FTM – TIMER Button (illuminates); sputtering is done by time; FTM does not work.

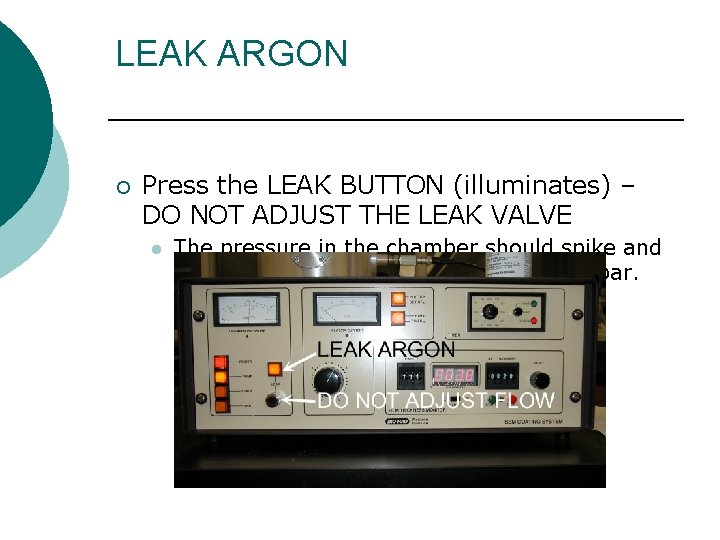

LEAK ARGON ¡ Press the LEAK BUTTON (illuminates) – DO NOT ADJUST THE LEAK VALVE l The pressure in the chamber should spike and then drop back down to about 8 10 -2 mbar.

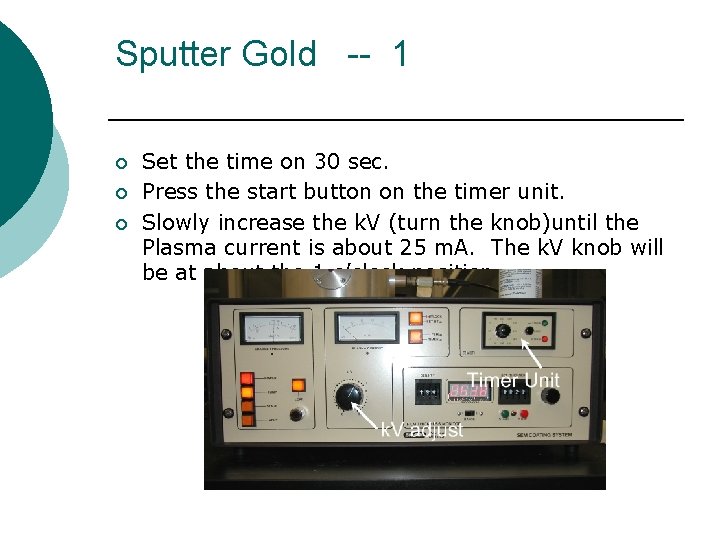

Sputter Gold -- 1 ¡ ¡ ¡ Set the time on 30 sec. Press the start button on the timer unit. Slowly increase the k. V (turn the knob)until the Plasma current is about 25 m. A. The k. V knob will be at about the 1 o’clock position.

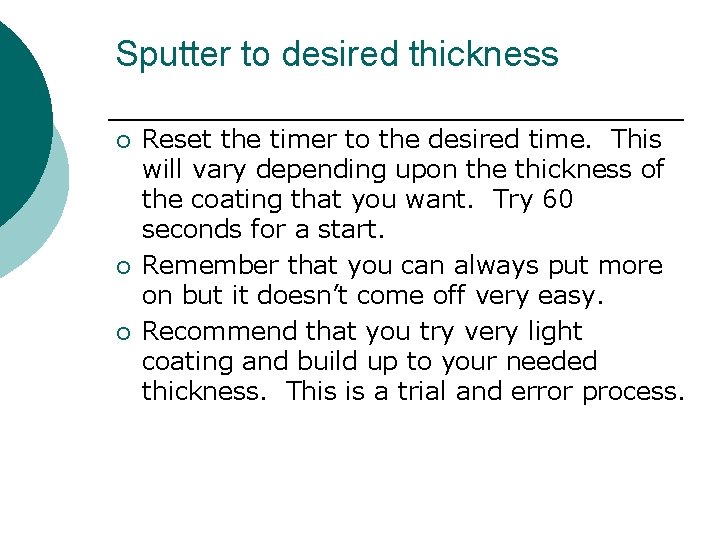

Sputter to desired thickness ¡ ¡ ¡ Reset the timer to the desired time. This will vary depending upon the thickness of the coating that you want. Try 60 seconds for a start. Remember that you can always put more on but it doesn’t come off very easy. Recommend that you try very light coating and build up to your needed thickness. This is a trial and error process.

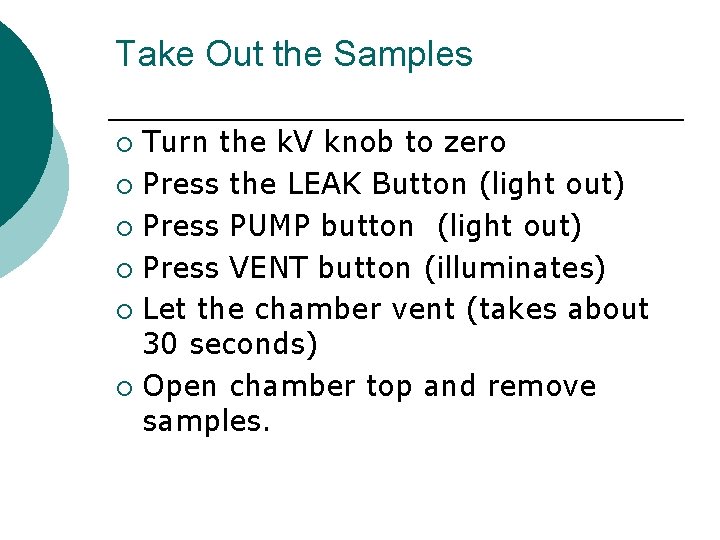

Take Out the Samples Turn the k. V knob to zero ¡ Press the LEAK Button (light out) ¡ Press PUMP button (light out) ¡ Press VENT button (illuminates) ¡ Let the chamber vent (takes about 30 seconds) ¡ Open chamber top and remove samples. ¡

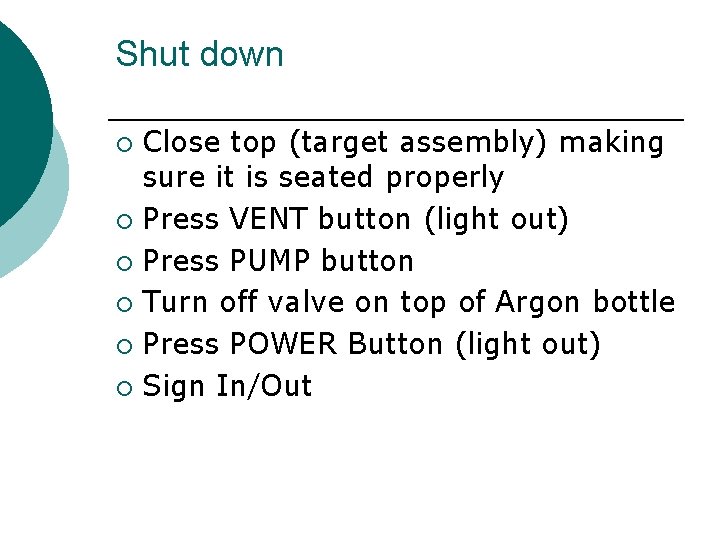

Shut down Close top (target assembly) making sure it is seated properly ¡ Press VENT button (light out) ¡ Press PUMP button ¡ Turn off valve on top of Argon bottle ¡ Press POWER Button (light out) ¡ Sign In/Out ¡
