Bio energy trials and silage maize trials Harvest
Bio energy trials and silage maize trials – Harvest with WINTERSTEIGER machines Christa Rechberger IAMFE Denmark, June 30 th – July 3 rd 2008 www. wintersteiger. com
Bio-energy crops • • silage maize topinambur silage grass miscanthus sunflower grass sorghum …. Folie / Page 2 SEEDMECH
Bio-energy crops • • silage maize topinambur silage grass miscanthus sunflower grass sorghum …. Folie / Page 3 SEEDMECH
Bio-energy crops Target: • High energy yields • Environmentally compatible production way § APPLICATIONS: § Use this crops in biogas plants § Use this crops directly e. g. pellets § For production of heat, electricity und fuels Folie / Page 4 SEEDMECH
Bio-energy crops IMPORTANCE: • Trend: Increasing land use for bio-energy crops • Alternative supply for fossil raw materials like oil and gas • Public targets for increasing the percentage of bio-energy crops like in Germany from about 5 to 15% • That means increasing number of bio-energy trials! Folie / Page 5 SEEDMECH
Harvest of bioenergy crops • CIBUS S • CIBUS F • CIBUS TRM Folie / Page 6 SEEDMECH
CIBUS - Features Field of application: CIBUS = forage (lat. ) § Powerful plot harvester for: - Folie / Page 7 grass clover other forage plants flowers silage maize SEEDMECH
CIBUS - Features Advantages: § Modular system: - Possibility to customize - Broad possible field of application § Compact dimensions: - High agility, simple transport § Quick, mix-free transport of harvested material § High user friendliness and drive comfort (handling adjusted to Classic und Delta) § Good overview over the workflow § Options: - Automatic weighing system - Automatic sampling system Folie / Page 8 SEEDMECH
CIBUS - Components Basic machine: § Cibus F - VW engine: - Deutz engine: 35 k. W/48 HP, 4 cylinder, diesel, 1900 ccm, water-cooled 56 k. W/76 HP, 4 cylinder, diesel, 2700 ccm, air-cooled § Cibus S - Deutz engine: 56 k. W/76 HP, 4 cylinder, diesel, 2700 ccm, air-cooled § Traction drive - Transmission system: - Steering: - Tires: (Standard) Folie / Page 9 hydrostatic, stepless from 0 – 16 km/h hydraulic Front: 11. 5/80 - 15. 3 Rear: 200/60 – 14. 5 SEEDMECH

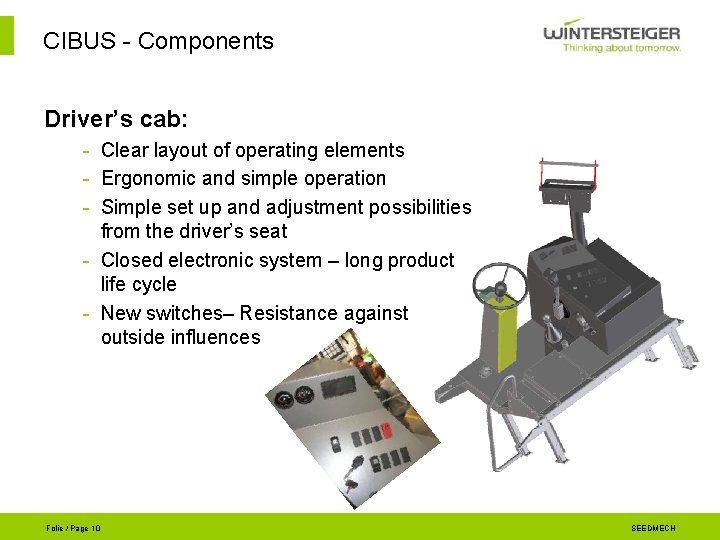

CIBUS - Components Driver’s cab: - Clear layout of operating elements - Ergonomic and simple operation - Simple set up and adjustment possibilities from the driver’s seat - Closed electronic system – long product life cycle - New switches– Resistance against outside influences Folie / Page 10 SEEDMECH

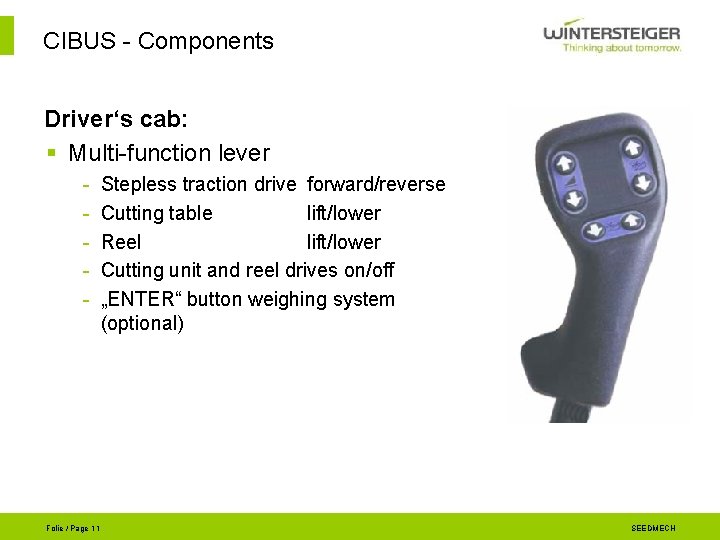

CIBUS - Components Driver‘s cab: § Multi-function lever - Folie / Page 11 Stepless traction drive forward/reverse Cutting table lift/lower Reel lift/lower Cutting unit and reel drives on/off „ENTER“ button weighing system (optional) SEEDMECH
CIBUS F - Components Harvesting attachments: § Cutting unit - Cutting width: 1, 25/ 1, 50 /2, 0 m - Cutting height: 30 – 600 mm - Conveyor: Cassette system Endless conveyor belt - Crop divider: optional Conveyor belt Closed crop divider Folie / Page 12 SEEDMECH
CIBUS F - Components Harvesting attachments: Advantages cutting device: - Lossless cut, also lodged crops - 2 rotary brushes (cutting width: 1, 5/2 m) allow for congestion free and even collection of harvested material - Wide guiding skids - Closed crop divider Folie / Page 13 Rotary brushes SEEDMECH

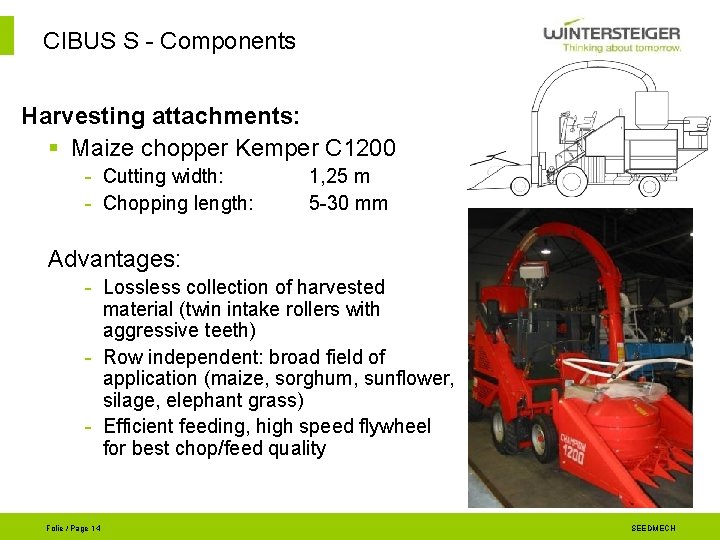

CIBUS S - Components Harvesting attachments: § Maize chopper Kemper C 1200 - Cutting width: - Chopping length: 1, 25 m 5 -30 mm Advantages: - Lossless collection of harvested material (twin intake rollers with aggressive teeth) - Row independent: broad field of application (maize, sorghum, sunflower, silage, elephant grass) - Efficient feeding, high speed flywheel for best chop/feed quality Folie / Page 14 SEEDMECH

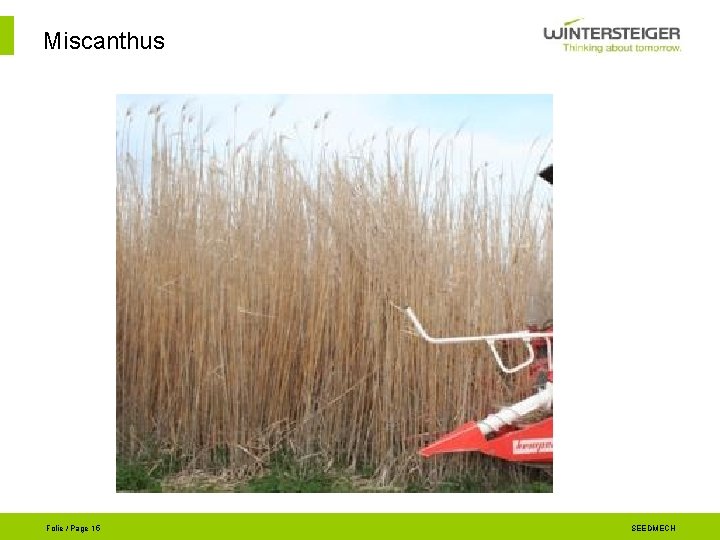

Miscanthus Folie / Page 15 SEEDMECH

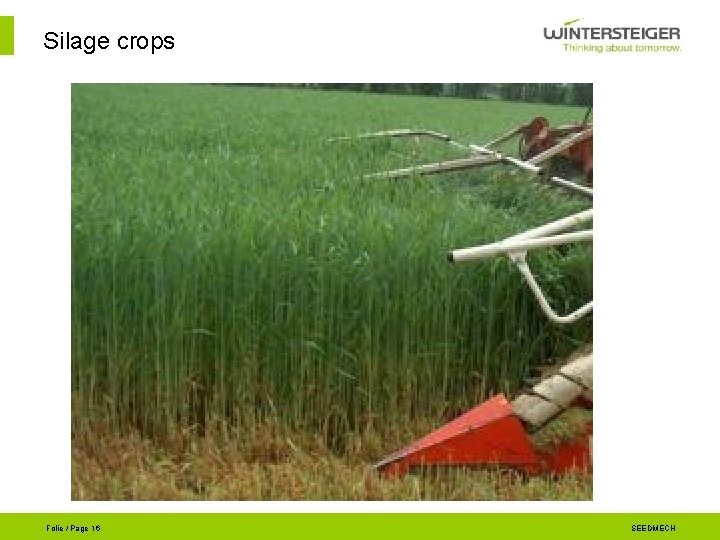

Silage crops Folie / Page 16 SEEDMECH
Silage crops Folie / Page 17 SEEDMECH
CIBUS weighing system DK 800 • Digital display • Print out Harvestmaster • Digital display • Print out • storing at handheld computer Folie / Page 18 SEEDMECH
CIBUS TRM Folie / Page 19 SEEDMECH
CIBUS TRM Folie / Page 20 SEEDMECH

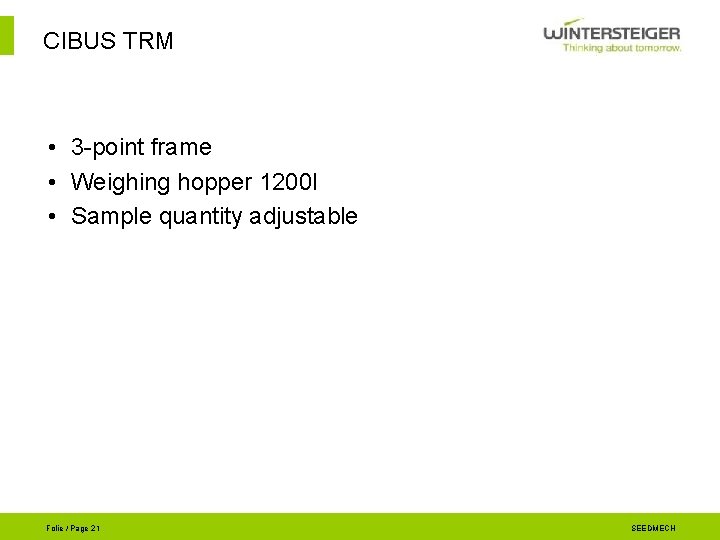

CIBUS TRM • 3 -point frame • Weighing hopper 1200 l • Sample quantity adjustable Folie / Page 21 SEEDMECH

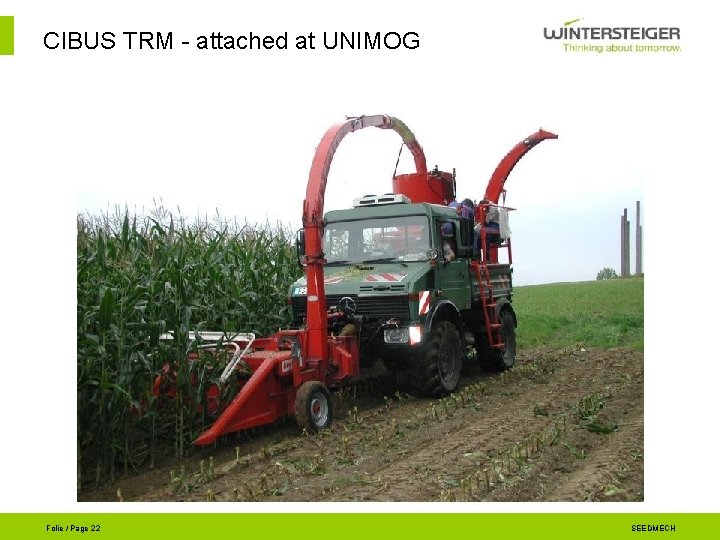

CIBUS TRM - attached at UNIMOG Folie / Page 22 SEEDMECH
CIBUS TRM – attached at UNIMOG Folie / Page 23 SEEDMECH
Thank you for your attention! www. wintersteiger. com
