Bio 241 AP Unit 1 Lab 3 Histology

Bio& 241 A&P Unit 1 / Lab 3

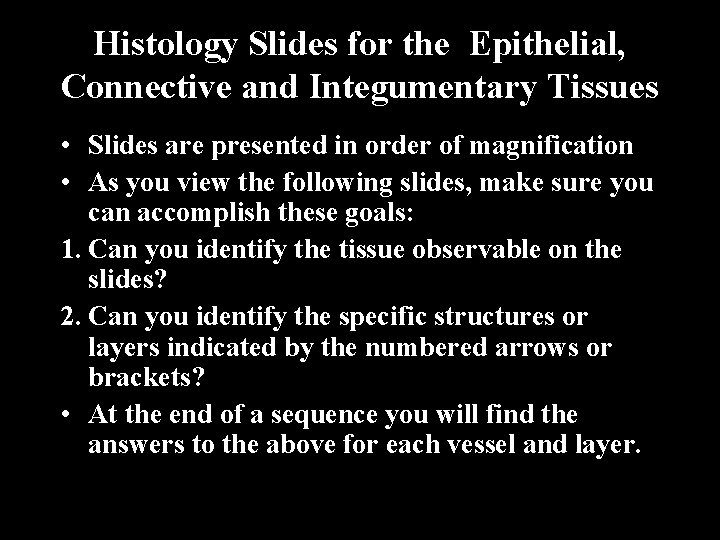

Histology Slides for the Epithelial, Connective and Integumentary Tissues • Slides are presented in order of magnification • As you view the following slides, make sure you can accomplish these goals: 1. Can you identify the tissue observable on the slides? 2. Can you identify the specific structures or layers indicated by the numbered arrows or brackets? • At the end of a sequence you will find the answers to the above for each vessel and layer.

Specific tissue? General tissue group? 400 X 2 1 3

Specific tissue? General tissue group? 400 X 4 1 2 3

Specific tissue? General tissue group? 400 X 5

Specific tissue? General tissue group? 400 X 6 4 4

Specific tissue? General tissue group? 100 X

Specific tissue? General tissue group? 400 X 4 2

Specific tissue? General tissue group? 100 X

Specific tissue? General tissue group? 400 X

Specific tissue? General tissue group? 100 X

Specific tissue? General tissue group? 7 8 400 X

Specific tissue? General tissue group? 100 X

Specific tissue? General tissue group? 400 X 8 7 2

Specific tissue? General tissue group? 9

Specific tissue? General tissue group? 7 8 1

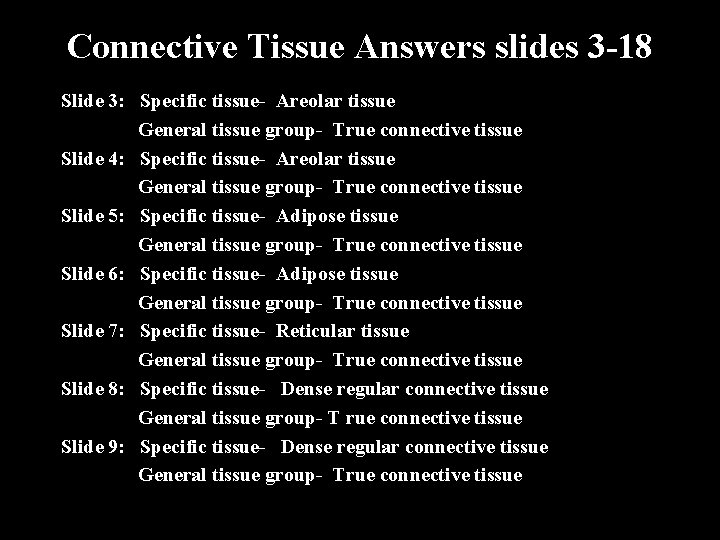

Connective Tissue Answers slides 3 -18 Slide 3: Specific tissue- Areolar tissue General tissue group- True connective tissue Slide 4: Specific tissue- Areolar tissue General tissue group- True connective tissue Slide 5: Specific tissue- Adipose tissue General tissue group- True connective tissue Slide 6: Specific tissue- Adipose tissue General tissue group- True connective tissue Slide 7: Specific tissue- Reticular tissue General tissue group- True connective tissue Slide 8: Specific tissue- Dense regular connective tissue General tissue group- T rue connective tissue Slide 9: Specific tissue- Dense regular connective tissue General tissue group- True connective tissue

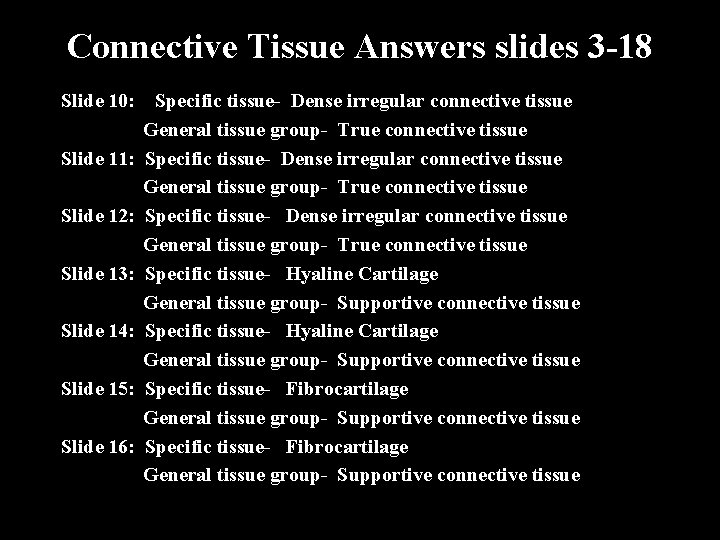

Connective Tissue Answers slides 3 -18 Slide 10: Slide 11: Slide 12: Slide 13: Slide 14: Slide 15: Slide 16: Specific tissue- Dense irregular connective tissue General tissue group- True connective tissue Specific tissue- Hyaline Cartilage General tissue group- Supportive connective tissue Specific tissue- Fibrocartilage General tissue group- Supportive connective tissue

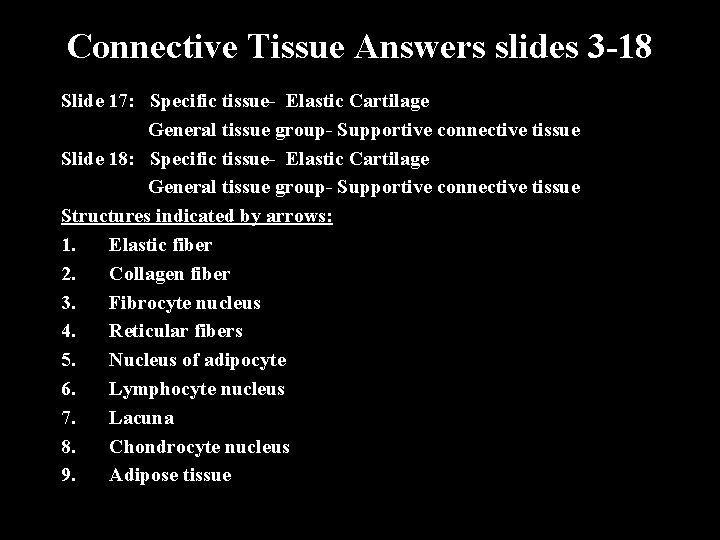

Connective Tissue Answers slides 3 -18 Slide 17: Specific tissue- Elastic Cartilage General tissue group- Supportive connective tissue Slide 18: Specific tissue- Elastic Cartilage General tissue group- Supportive connective tissue Structures indicated by arrows: 1. Elastic fiber 2. Collagen fiber 3. Fibrocyte nucleus 4. Reticular fibers 5. Nucleus of adipocyte 6. Lymphocyte nucleus 7. Lacuna 8. Chondrocyte nucleus 9. Adipose tissue

1 2 3

4 5 2 4

5 2 6 7

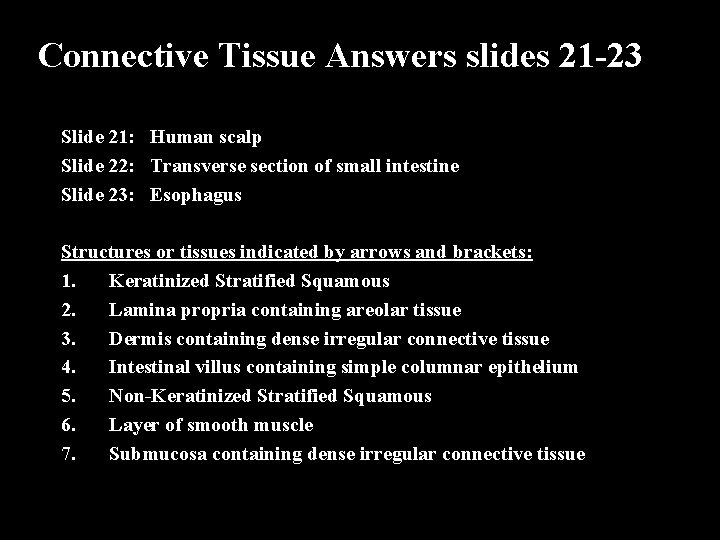

Connective Tissue Answers slides 21 -23 Slide 21: Human scalp Slide 22: Transverse section of small intestine Slide 23: Esophagus Structures or tissues indicated by arrows and brackets: 1. Keratinized Stratified Squamous 2. Lamina propria containing areolar tissue 3. Dermis containing dense irregular connective tissue 4. Intestinal villus containing simple columnar epithelium 5. Non-Keratinized Stratified Squamous 6. Layer of smooth muscle 7. Submucosa containing dense irregular connective tissue
