BIO 121 Molecular Cell Biology Lecture Section IV
BIO 121 – Molecular Cell Biology Lecture Section IV A. Cells in the Context of Tissue, Organ and Organismal Architecture B. Wound Healing

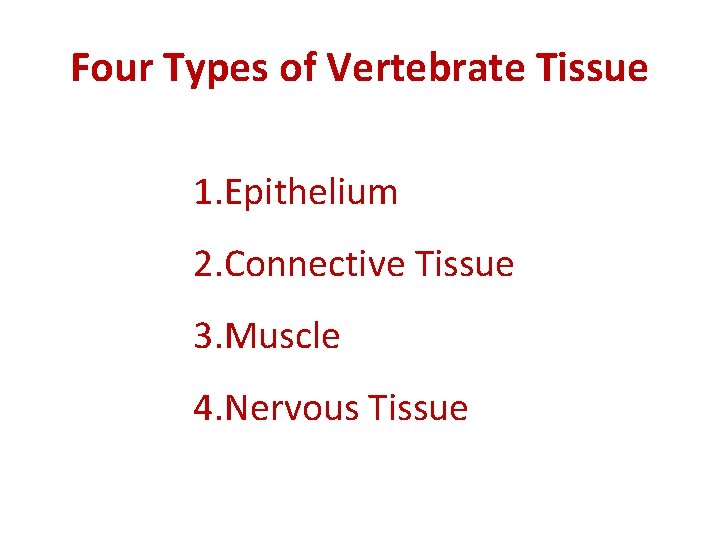

Four Types of Vertebrate Tissue 1. Epithelium 2. Connective Tissue 3. Muscle 4. Nervous Tissue

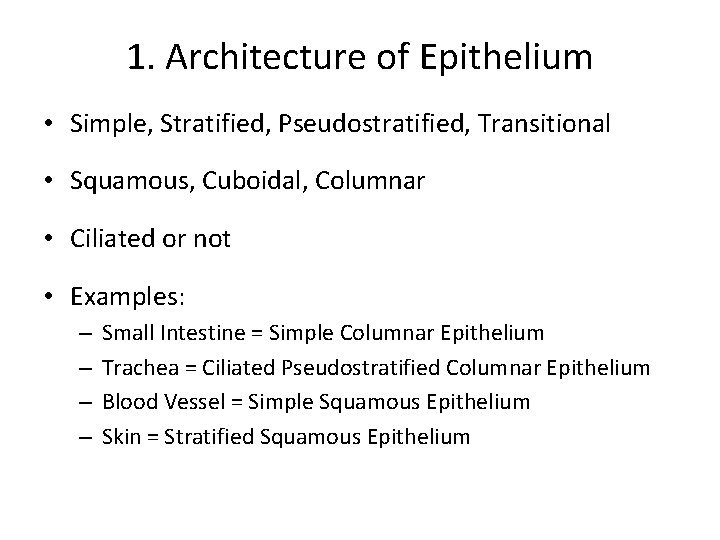

1. Architecture of Epithelium • Simple, Stratified, Pseudostratified, Transitional • Squamous, Cuboidal, Columnar • Ciliated or not • Examples: – – Small Intestine = Simple Columnar Epithelium Trachea = Ciliated Pseudostratified Columnar Epithelium Blood Vessel = Simple Squamous Epithelium Skin = Stratified Squamous Epithelium
Structure equals Function – Small Intestine: Simple Columnar Epithelium = absorption – Trachea: Ciliated Pseudostratified Columnar Epithelium = filtering debris – Blood Vessel: Simple Squamous Epithelium = gas exchange – Skin: Stratified Squamous Epithelium = protective physical barrier
Simple, Columnar Epithelium Function: 1. absorption of nutrients 2. enzymatic digestion at neutral p. H 3. multiple defensive mechanisms
4 Cell types in Small Intestine

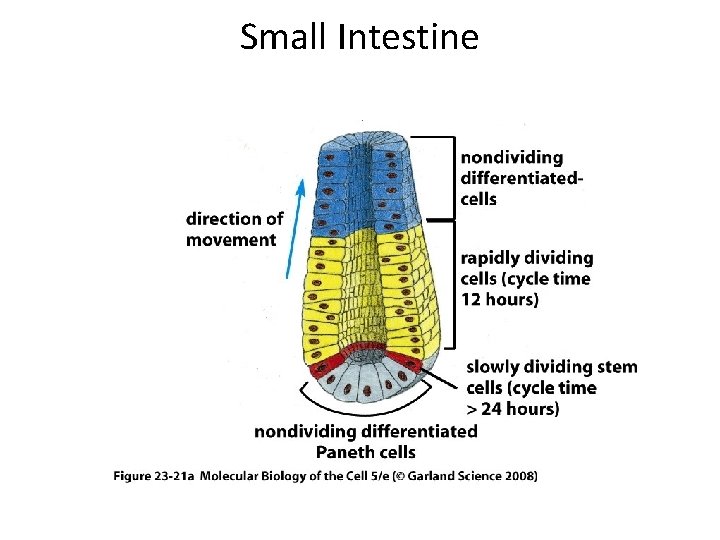

Small Intestine
Cellular Adhesion in Small Intestine Desmosomes Hemidesmosomes Adherens Junctions Occluding Junctions

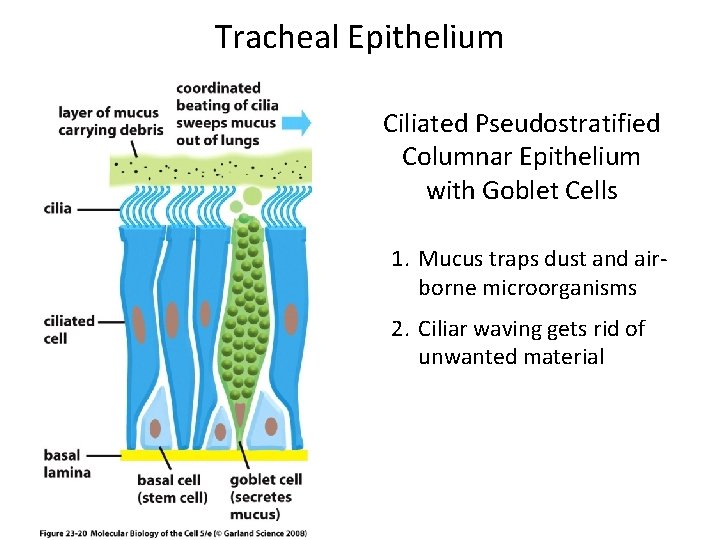

Tracheal Epithelium Ciliated Pseudostratified Columnar Epithelium with Goblet Cells 1. Mucus traps dust and airborne microorganisms 2. Ciliar waving gets rid of unwanted material
The Vasculature: Simple, Squamous Epithelium Gas Exchange Fluid Exchenge

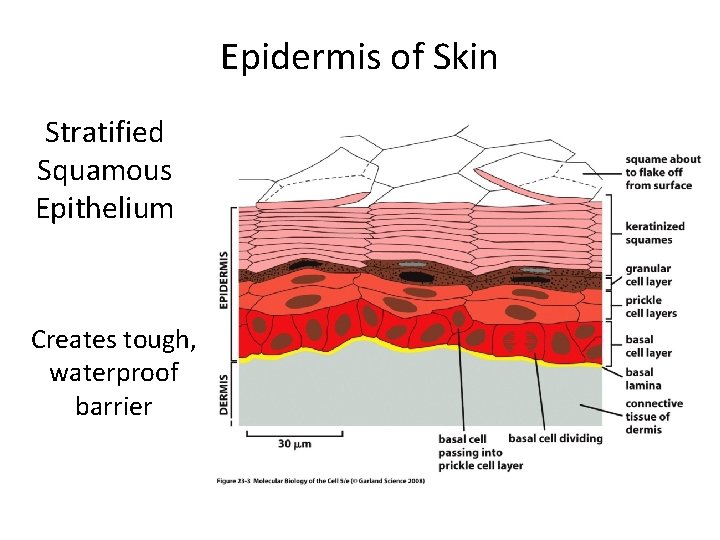

Epidermis of Skin Stratified Squamous Epithelium Creates tough, waterproof barrier
Differentiation and Direction of Movement in Epidermis Cornification is the overproduction of cytokeratins, ECM and the adhesions to a degree that stops cellular metabolism.
2. Mesenchymal Cell Types and Connective Tissues

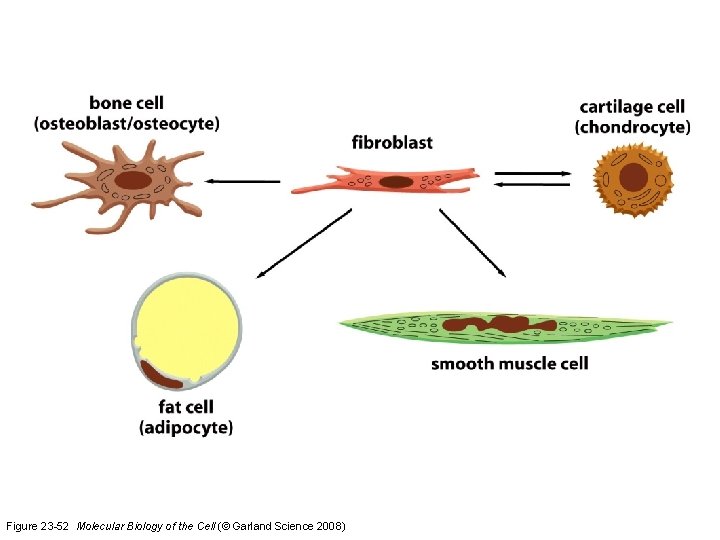

Figure 23 -52 Molecular Biology of the Cell (© Garland Science 2008)
The Fibroblast
Loose Connective Tissue Dense Regular CT Dense Irregular CT Elastic Connective Tissue

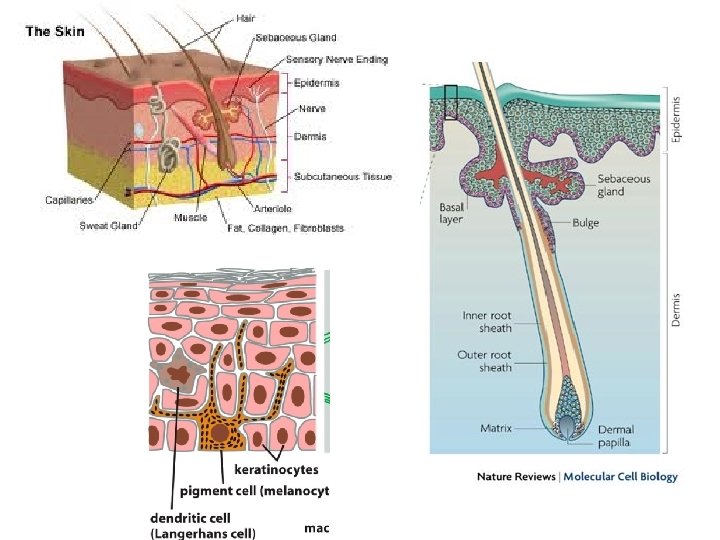

The dermis is as complex as the epidermis and contributes greatly to skin function
Cartilage and the Chondrocyte
Lacunar Structure of the Hyaline Cartilage Extremely low blood flow
Osteoblasts Lacunar structure of the long bones
Cortical Bone vs. Spongy Bone
Cell Types of the Bone Marrow of Long Bones has Stem Cells
Start out as cartilage models built by chondrocytes Chondrocytes hypertrophy, calcify and die Osteoblasts and osteoclasts finish up

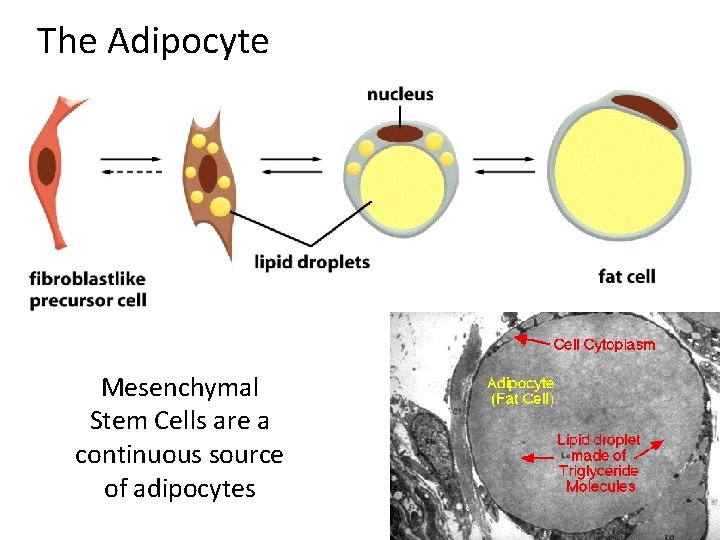

The Adipocyte Mesenchymal Stem Cells are a continuous source of adipocytes

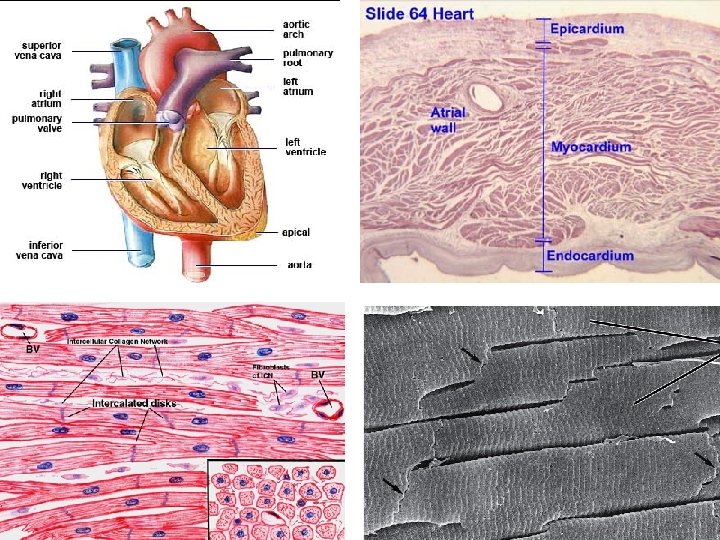

3. Contractile Tissue Figure 23 -47 a Molecular Biology of the Cell (© Garland Science 2008)
Arteries, veins Lymphatic vessels Gastrointestinal tract Respiratory tract Urinary bladder Reproductive tract Urinary tract Iris of the eye Erector pili of skin
4. Nervous Tissue
Nerve Bundles

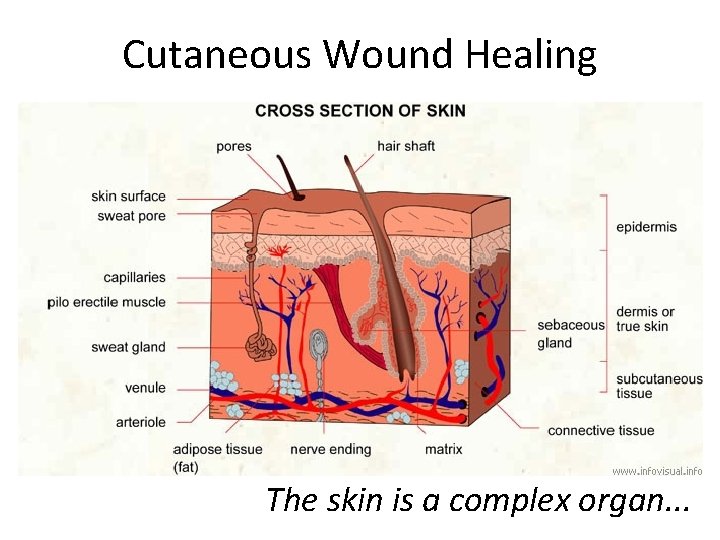

Cutaneous Wound Healing The skin is a complex organ. . .
Many cells and activities involved
Many cells and activities involved in Healing Clotting Scarring Re-establishing Function
• Four overlapping stages to wound healing – Hemostasis – Inflammation – Proliferation – Maturation
Blood flows into the exposed ECM of the injured tissue.
RBC and Platelets Trapped in Fibrin Clot
Clotting factor VII from the blood contacts tissue factor on cells in the damaged tissues to activate clotting
Platelet activation in the. clot makes them sticky and releases their signal storage vesicles © 2000 by Lippincott Williams & Wilkins Camacho A , Dimsdale J E Psychosom Med 2000; 62: 326 -336

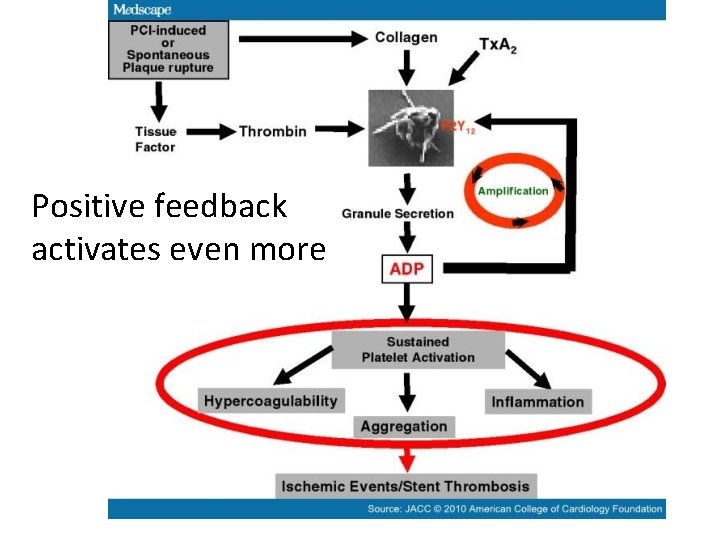

Positive feedback activates even more

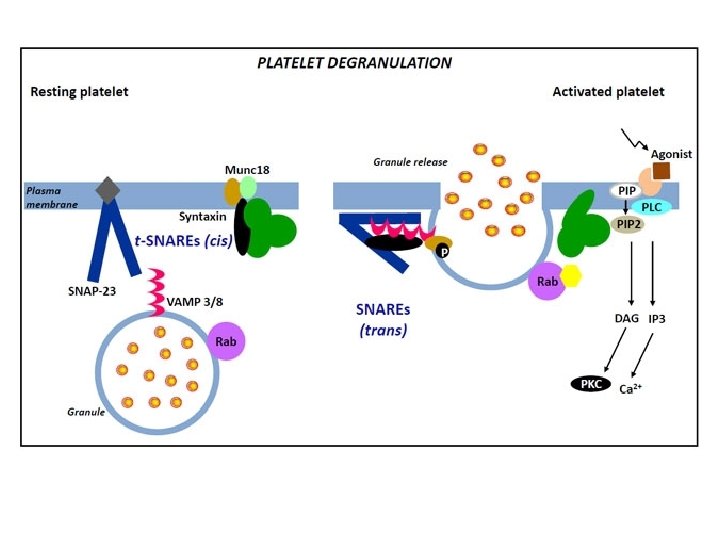

Platelet activation releases growth factors by regulated secretion

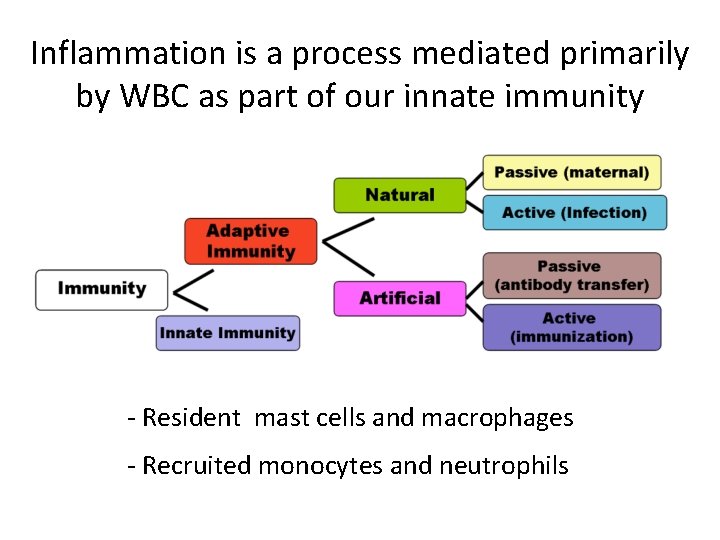

Inflammation is a process mediated primarily by WBC as part of our innate immunity - Resident mast cells and macrophages - Recruited monocytes and neutrophils

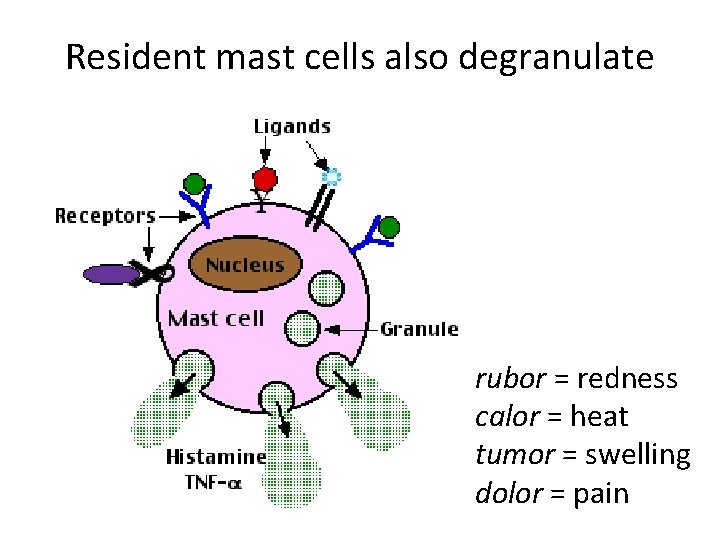

Resident mast cells also degranulate rubor = redness calor = heat tumor = swelling dolor = pain
Activated mast cell activities
Figure 1 Development and differentiation of macrophages. Rickard A J , Young M J J Mol Endocrinol 2009; 42: 449 -459 © 2011 Society for Endocrinology

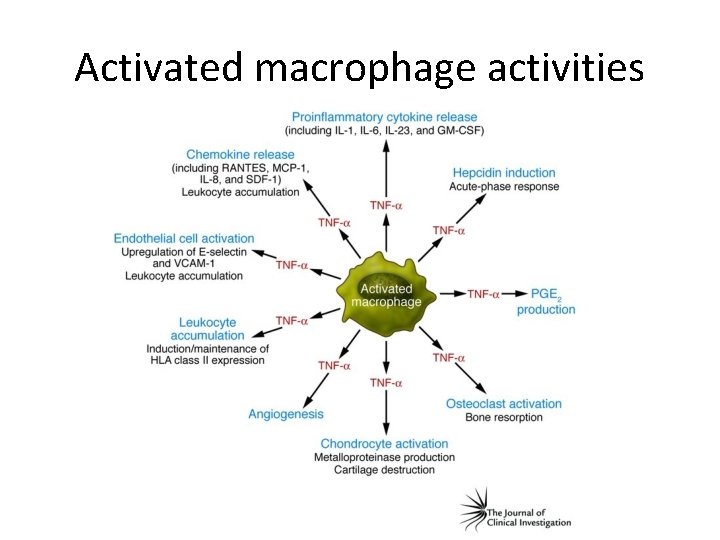

Activated macrophage activities
Neutrophil Diapedesis

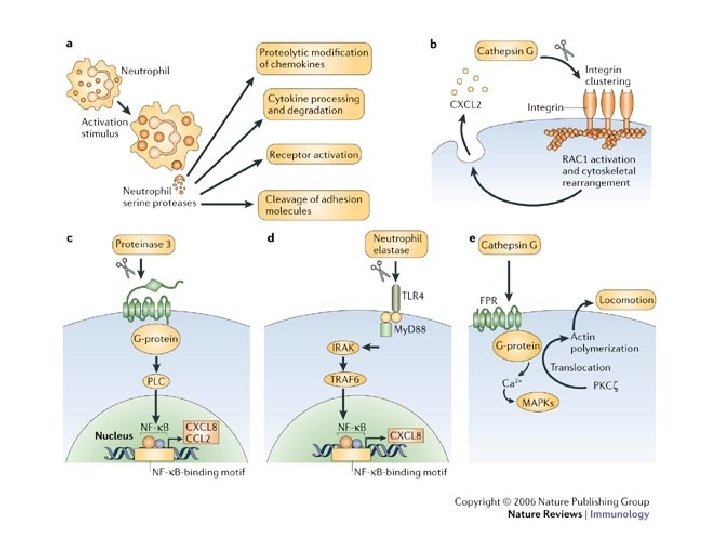

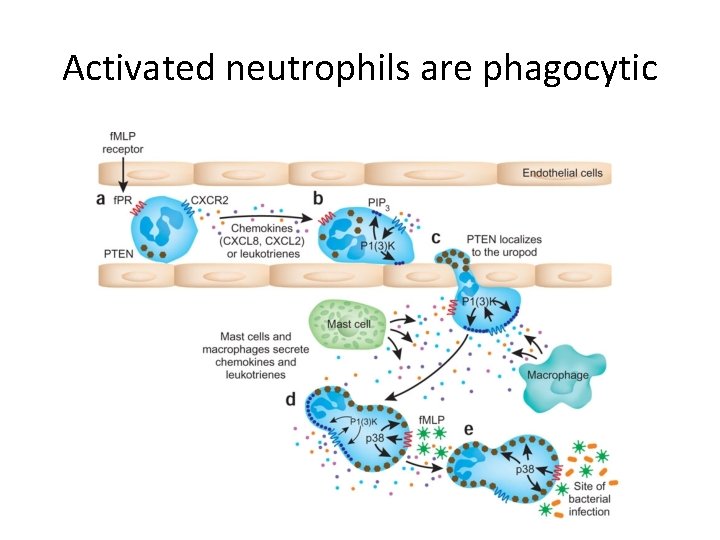

Activated neutrophils are phagocytic
Proliferation re-establishes tissue function • Reconnection of the dermal connective tissue • Integrity of the epidermal layers • Re-establishment of blood flow
Reconnection of the dermal CT
Cell Migration or “Crawling” • The Basic Mechanism – Triggered by signals from outside the cell – Actin-myosin based movement – Requires attachments to outside to pull against – Gotta’ drag all of the cell contents along for the ride

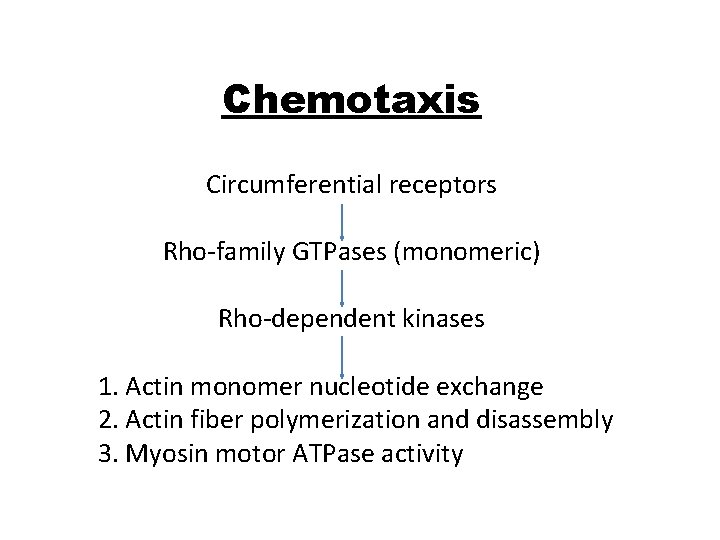

Chemotaxis Circumferential receptors Rho-family GTPases (monomeric) Rho-dependent kinases 1. Actin monomer nucleotide exchange 2. Actin fiber polymerization and disassembly 3. Myosin motor ATPase activity
Figure 17 -62 (part 1 of 3) Molecular Biology of the Cell (© Garland Science 2008)
Formation of the scar matrix 1. 2. 3. 4. glycosaminoglycans proteoglycans fibrous proteins elastic proteins
Re-establishment of the epidermal epithelium involves both mitosis and epithelial migration
Also must reform the basal lamina
Re-epithelialization below the scab scar Fi
Model depicting α 3β 1 -integrin-mediated functions of epidermis that contribute to wound healing. Mitchell K et al. J Cell Sci 2009; 122: 1778 -1787 © 2009 by The Company of Biologists Ltd
Figure 23 -34 Molecular Biology of the Cell (© Garland Science 2008)
Maturation Phase

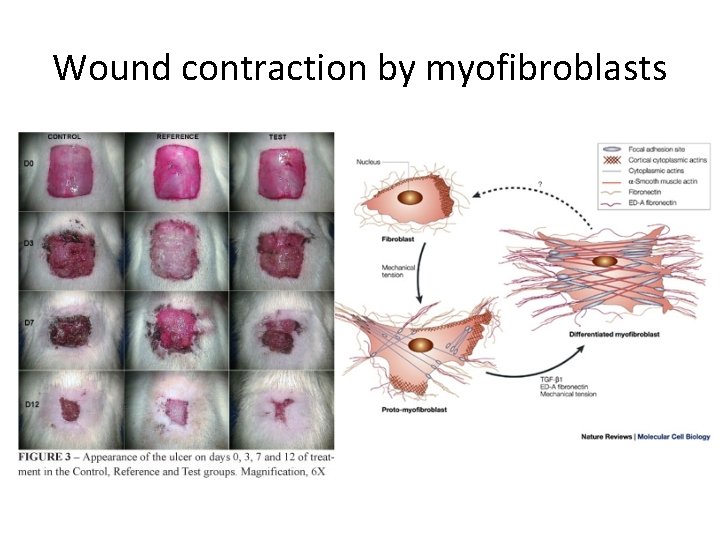

Wound contraction by myofibroblasts
Stitches Perform Wound Contracture
Collagen Remodeling
A scar never reaches the strength of undamaged tissue

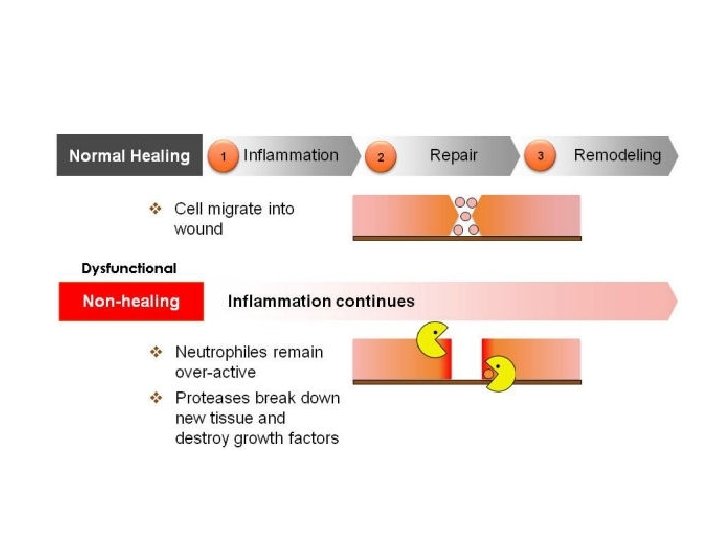

Healing Abnormalities • Failure to heal: Excessive Inflammation • Excessive scarring: Wound Fibrosis – Hypertrophic Scarring – Keloid Scarring
Biofilms May Block Healing
Hypertrophic scars result from failed fibroblast contracture Don’t extend beyond the original wound edge
Keloid scars result from excessive TGF-b receptors on fibroblasts Extend to fibroblasts outside the wound
People have exploited these conditions to create the ‘keloid tattoo’
