BIO 121 Molecular Cell Biology Lecture Section 1

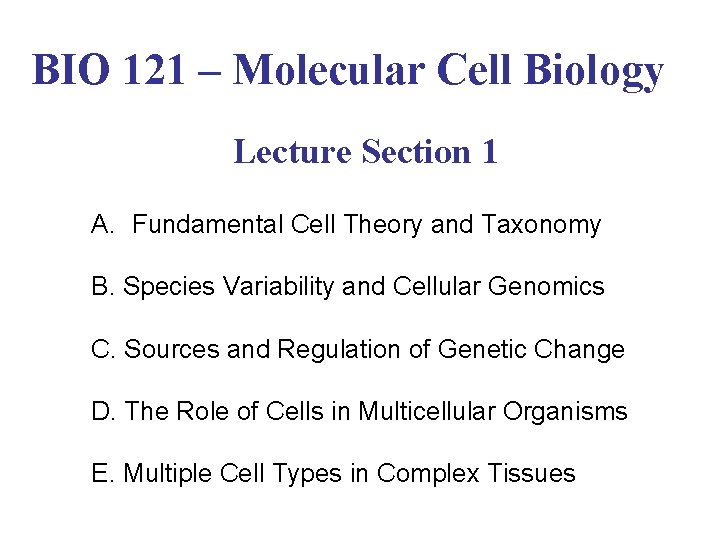

BIO 121 – Molecular Cell Biology Lecture Section 1 A. Fundamental Cell Theory and Taxonomy B. Species Variability and Cellular Genomics C. Sources and Regulation of Genetic Change D. The Role of Cells in Multicellular Organisms E. Multiple Cell Types in Complex Tissues

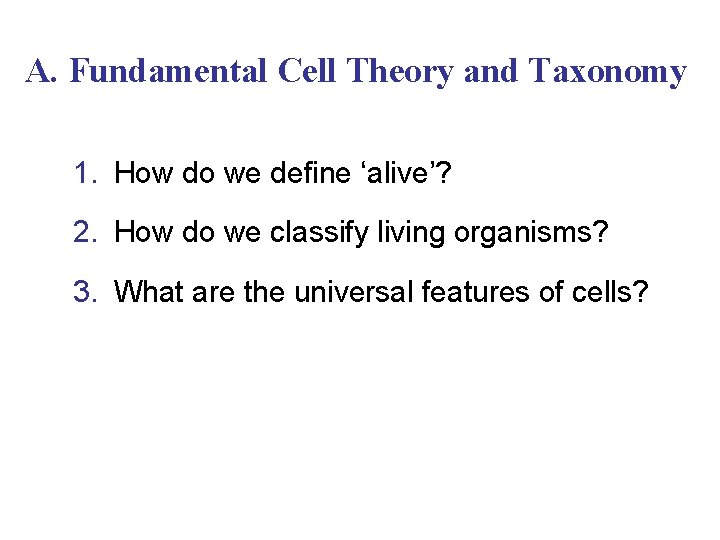

A. Fundamental Cell Theory and Taxonomy 1. How do we define ‘alive’? 2. How do we classify living organisms? 3. What are the universal features of cells?

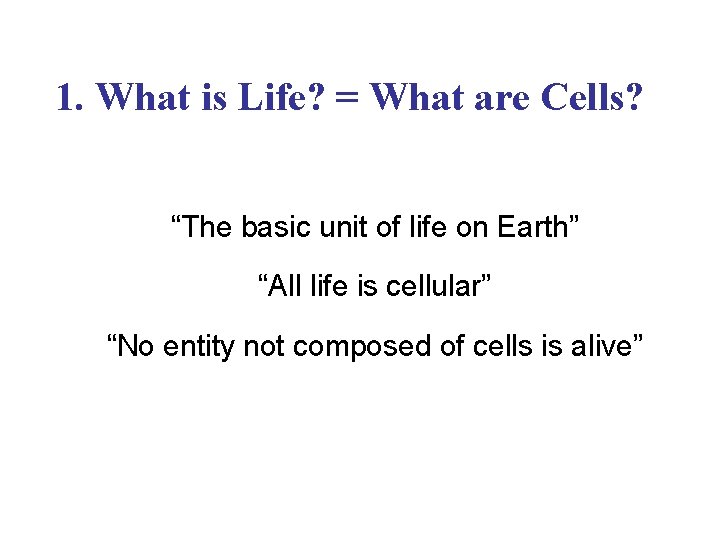

1. What is Life? = What are Cells? “The basic unit of life on Earth” “All life is cellular” “No entity not composed of cells is alive”

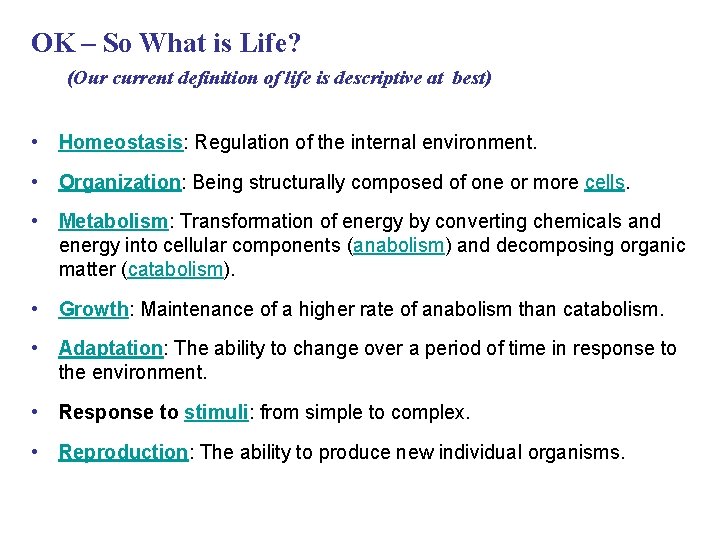

OK – So What is Life? (Our current definition of life is descriptive at best) • Homeostasis: Regulation of the internal environment. • Organization: Being structurally composed of one or more cells. • Metabolism: Transformation of energy by converting chemicals and energy into cellular components (anabolism) and decomposing organic matter (catabolism). • Growth: Maintenance of a higher rate of anabolism than catabolism. • Adaptation: The ability to change over a period of time in response to the environment. • Response to stimuli: from simple to complex. • Reproduction: The ability to produce new individual organisms.

Fig. 16 -3 Phage head Tail sheath Tail fiber Bacterial cell 100 nm DNA

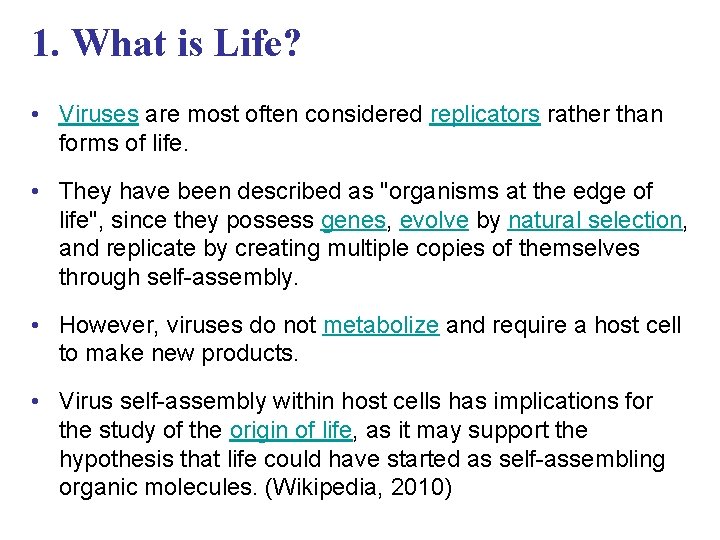

1. What is Life? • Viruses are most often considered replicators rather than forms of life. • They have been described as "organisms at the edge of life", since they possess genes, evolve by natural selection, and replicate by creating multiple copies of themselves through self-assembly. • However, viruses do not metabolize and require a host cell to make new products. • Virus self-assembly within host cells has implications for the study of the origin of life, as it may support the hypothesis that life could have started as self-assembling organic molecules. (Wikipedia, 2010)

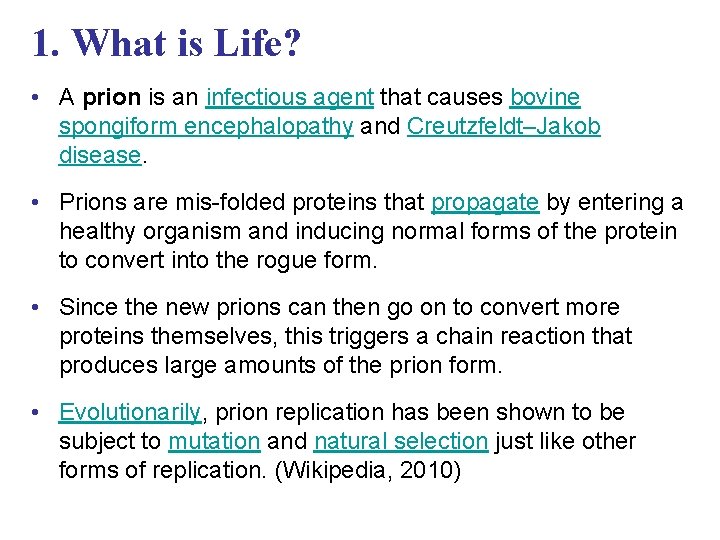

1. What is Life? • A prion is an infectious agent that causes bovine spongiform encephalopathy and Creutzfeldt–Jakob disease. • Prions are mis-folded proteins that propagate by entering a healthy organism and inducing normal forms of the protein to convert into the rogue form. • Since the new prions can then go on to convert more proteins themselves, this triggers a chain reaction that produces large amounts of the prion form. • Evolutionarily, prion replication has been shown to be subject to mutation and natural selection just like other forms of replication. (Wikipedia, 2010)

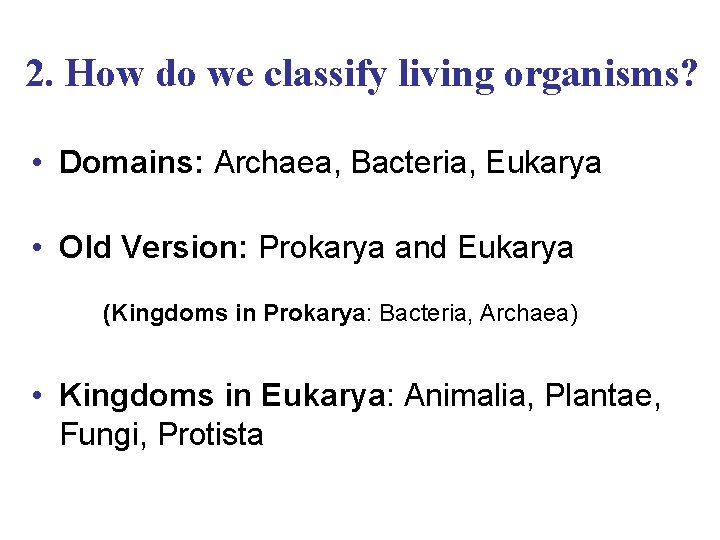

2. How do we classify living organisms? • Domains: Archaea, Bacteria, Eukarya • Old Version: Prokarya and Eukarya (Kingdoms in Prokarya: Bacteria, Archaea) • Kingdoms in Eukarya: Animalia, Plantae, Fungi, Protista

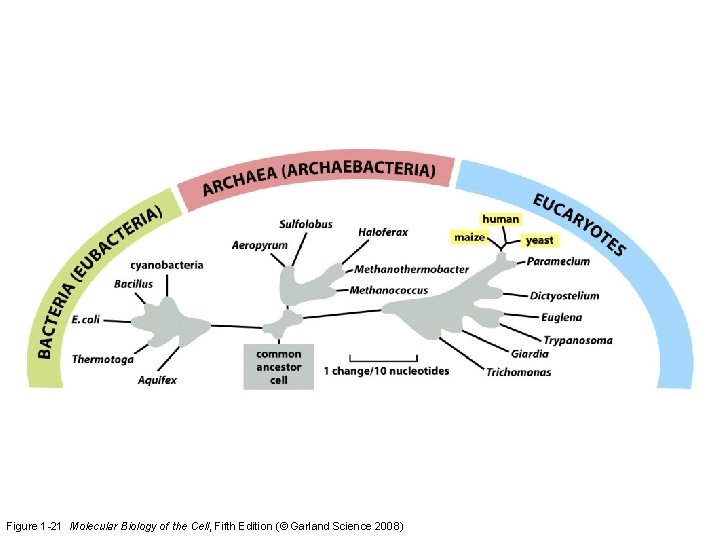

Figure 1 -21 Molecular Biology of the Cell, Fifth Edition (© Garland Science 2008)

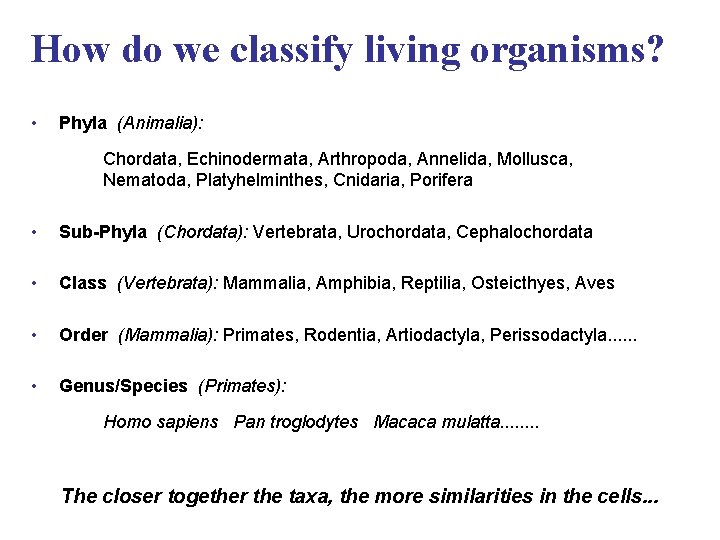

How do we classify living organisms? • Phyla (Animalia): Chordata, Echinodermata, Arthropoda, Annelida, Mollusca, Nematoda, Platyhelminthes, Cnidaria, Porifera • Sub-Phyla (Chordata): Vertebrata, Urochordata, Cephalochordata • Class (Vertebrata): Mammalia, Amphibia, Reptilia, Osteicthyes, Aves • Order (Mammalia): Primates, Rodentia, Artiodactyla, Perissodactyla. . . • Genus/Species (Primates): Homo sapiens Pan troglodytes Macaca mulatta. . . . The closer together the taxa, the more similarities in the cells. . .

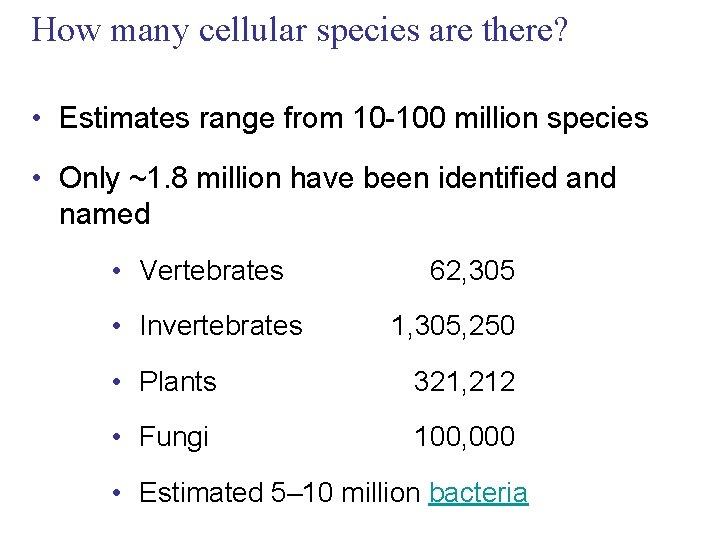

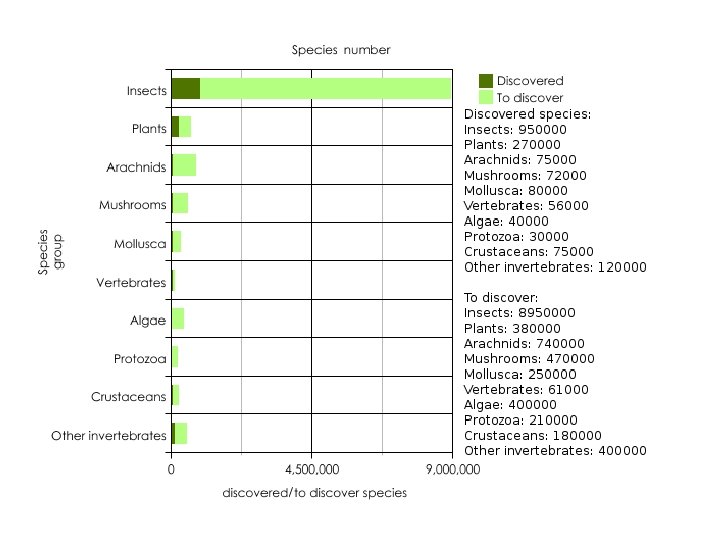

How many cellular species are there? • Estimates range from 10 -100 million species • Only ~1. 8 million have been identified and named • Vertebrates • Invertebrates 62, 305 1, 305, 250 • Plants 321, 212 • Fungi 100, 000 • Estimated 5– 10 million bacteria

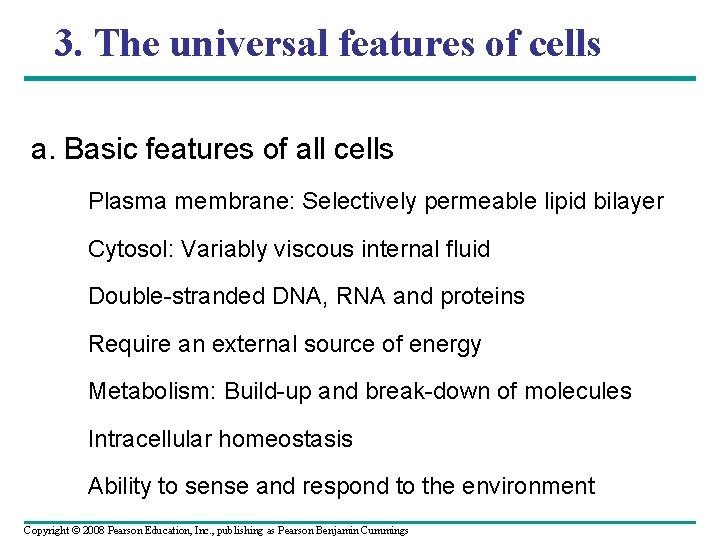

3. The universal features of cells a. Basic features of all cells Plasma membrane: Selectively permeable lipid bilayer Cytosol: Variably viscous internal fluid Double-stranded DNA, RNA and proteins Require an external source of energy Metabolism: Build-up and break-down of molecules Intracellular homeostasis Ability to sense and respond to the environment Copyright © 2008 Pearson Education, Inc. , publishing as Pearson Benjamin Cummings

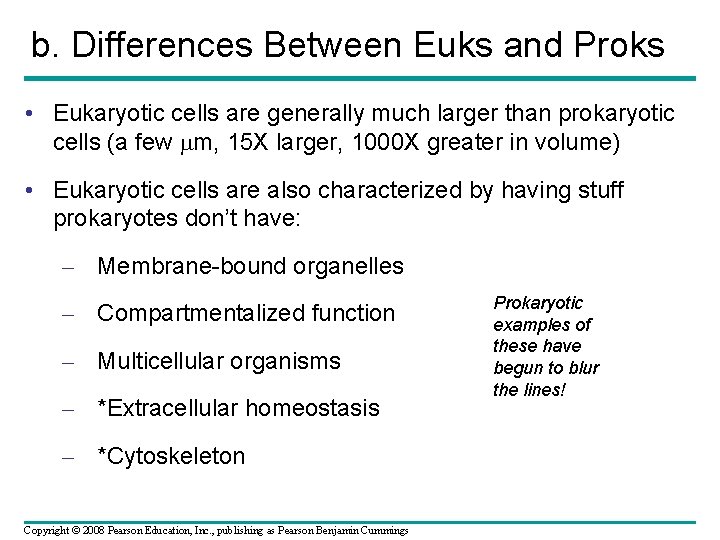

b. Differences Between Euks and Proks • Eukaryotic cells are generally much larger than prokaryotic cells (a few mm, 15 X larger, 1000 X greater in volume) • Eukaryotic cells are also characterized by having stuff prokaryotes don’t have: – Membrane-bound organelles – Compartmentalized function – Multicellular organisms – *Extracellular homeostasis – *Cytoskeleton Copyright © 2008 Pearson Education, Inc. , publishing as Pearson Benjamin Cummings Prokaryotic examples of these have begun to blur the lines!

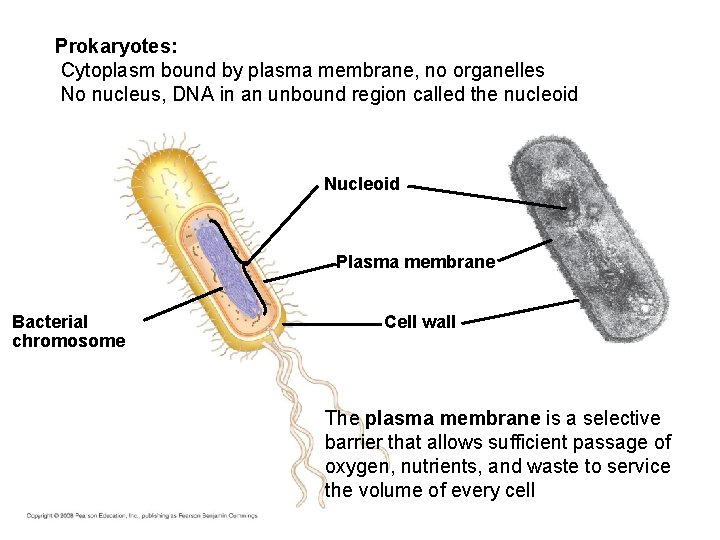

Prokaryotes: Cytoplasm bound by plasma membrane, no organelles No nucleus, DNA in an unbound region called the nucleoid Nucleoid Plasma membrane Bacterial chromosome Cell wall The plasma membrane is a selective barrier that allows sufficient passage of oxygen, nutrients, and waste to service the volume of every cell

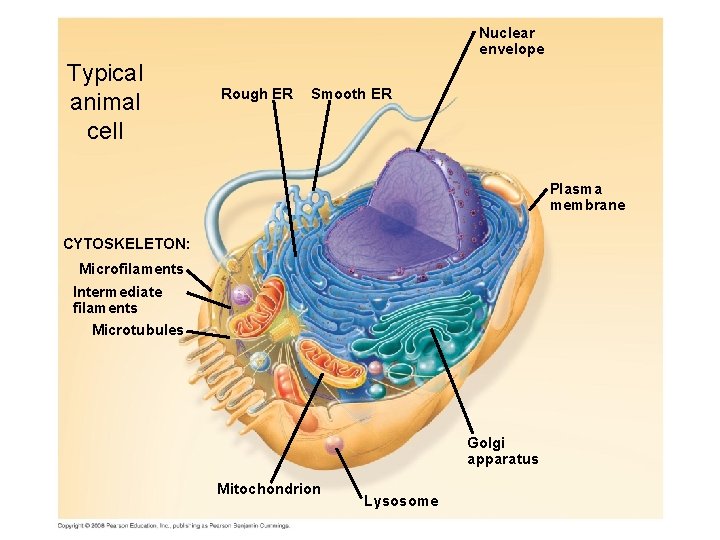

Nuclear envelope Typical animal cell Rough ER Smooth ER Plasma membrane CYTOSKELETON: Microfilaments Intermediate filaments Microtubules Golgi apparatus Mitochondrion Lysosome

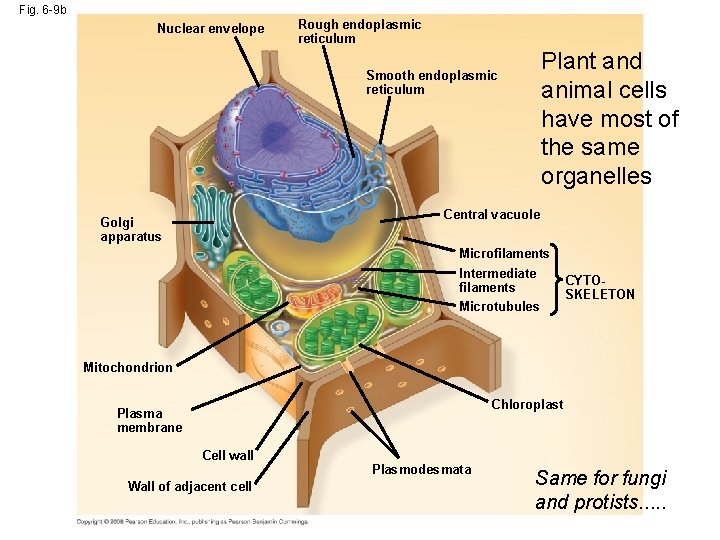

Fig. 6 -9 b Nuclear envelope Rough endoplasmic reticulum Plant and animal cells have most of the same organelles Smooth endoplasmic reticulum Central vacuole Golgi apparatus Microfilaments Intermediate filaments Microtubules CYTOSKELETON Mitochondrion Chloroplast Plasma membrane Cell wall Wall of adjacent cell Plasmodesmata Same for fungi and protists. . .

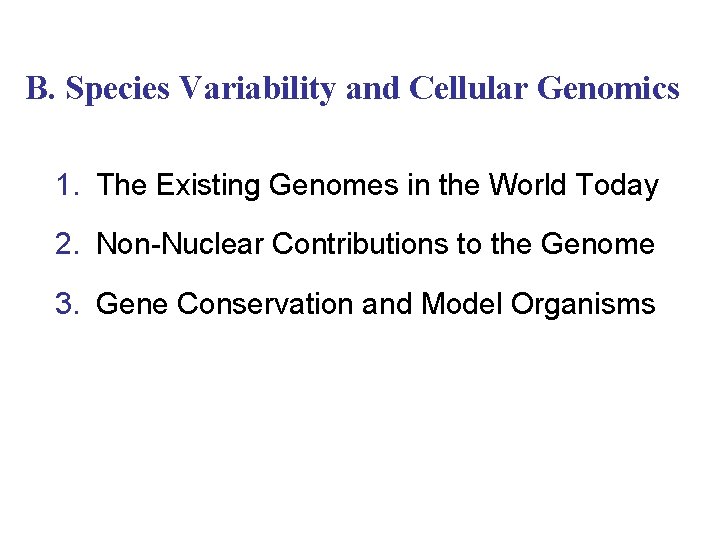

B. Species Variability and Cellular Genomics 1. The Existing Genomes in the World Today 2. Non-Nuclear Contributions to the Genome 3. Gene Conservation and Model Organisms

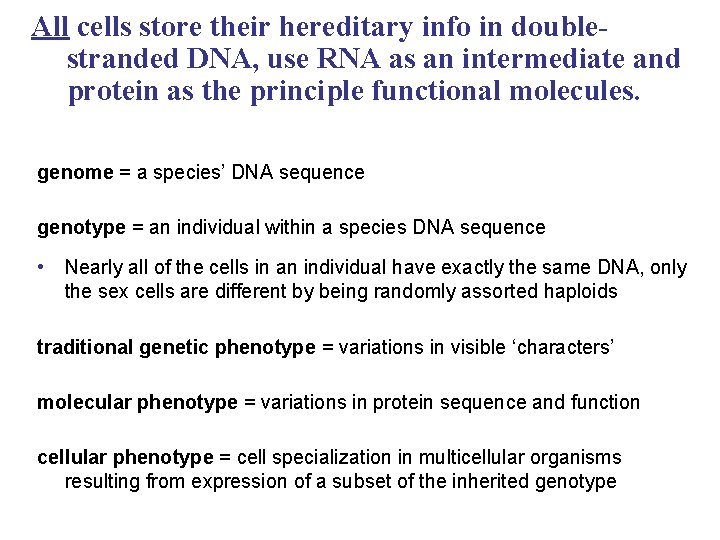

All cells store their hereditary info in doublestranded DNA, use RNA as an intermediate and protein as the principle functional molecules. genome = a species’ DNA sequence genotype = an individual within a species DNA sequence • Nearly all of the cells in an individual have exactly the same DNA, only the sex cells are different by being randomly assorted haploids traditional genetic phenotype = variations in visible ‘characters’ molecular phenotype = variations in protein sequence and function cellular phenotype = cell specialization in multicellular organisms resulting from expression of a subset of the inherited genotype

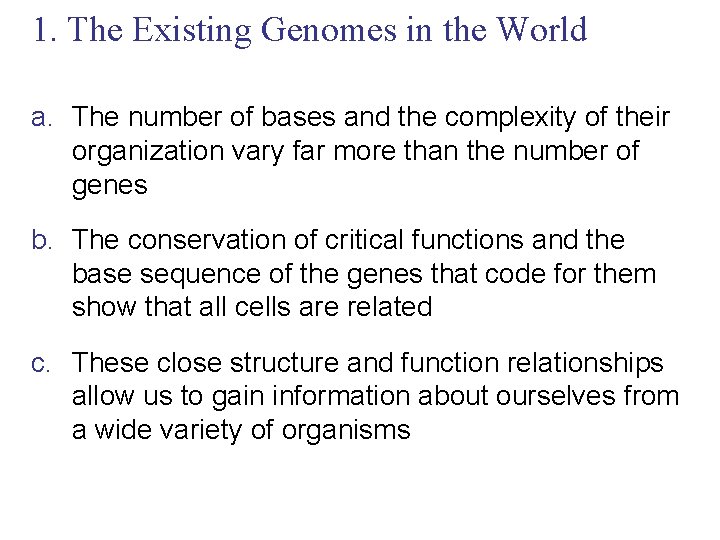

1. The Existing Genomes in the World a. The number of bases and the complexity of their organization vary far more than the number of genes b. The conservation of critical functions and the base sequence of the genes that code for them show that all cells are related c. These close structure and function relationships allow us to gain information about ourselves from a wide variety of organisms

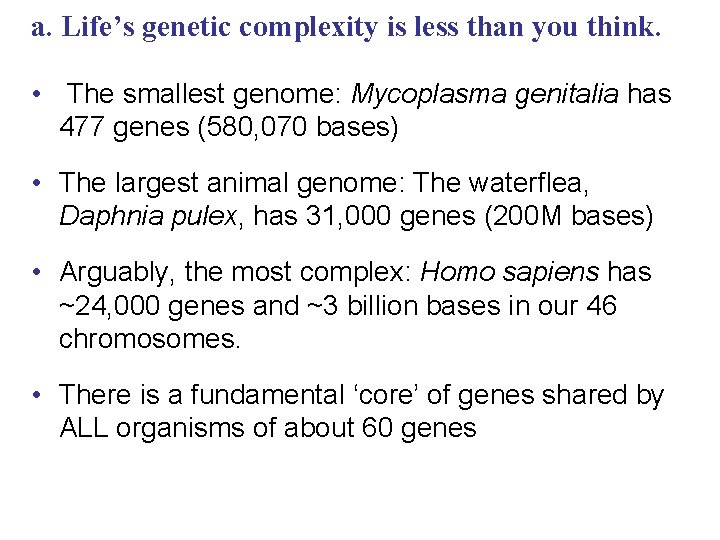

a. Life’s genetic complexity is less than you think. • The smallest genome: Mycoplasma genitalia has 477 genes (580, 070 bases) • The largest animal genome: The waterflea, Daphnia pulex, has 31, 000 genes (200 M bases) • Arguably, the most complex: Homo sapiens has ~24, 000 genes and ~3 billion bases in our 46 chromosomes. • There is a fundamental ‘core’ of genes shared by ALL organisms of about 60 genes

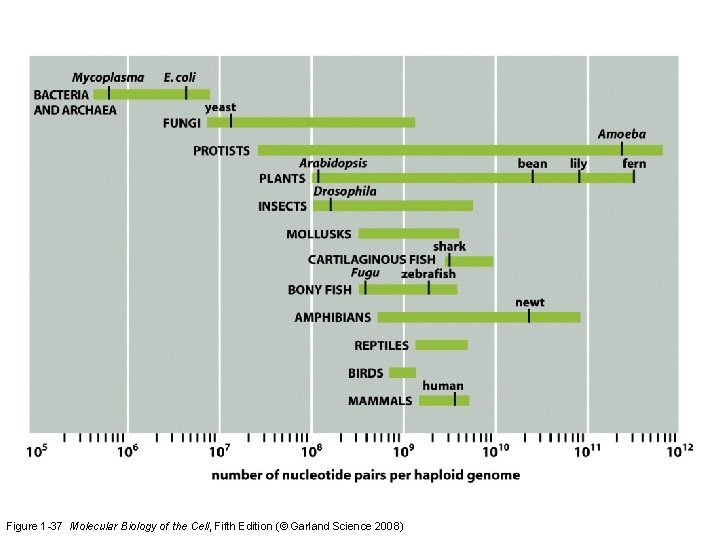

Figure 1 -37 Molecular Biology of the Cell, Fifth Edition (© Garland Science 2008)

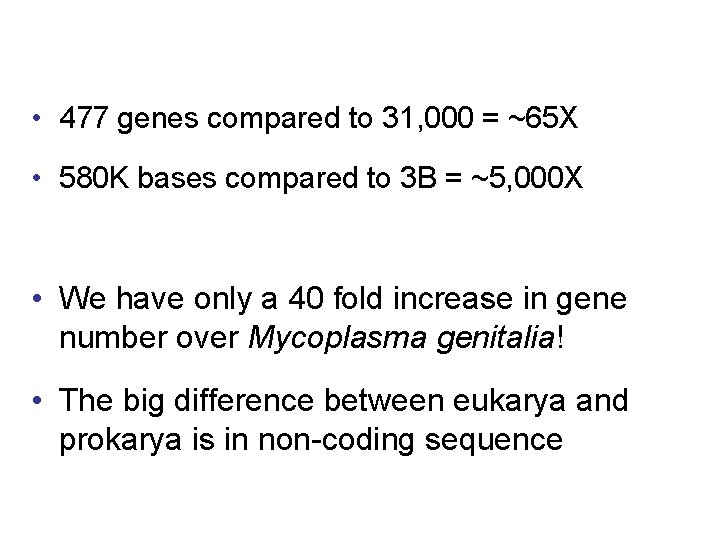

• 477 genes compared to 31, 000 = ~65 X • 580 K bases compared to 3 B = ~5, 000 X • We have only a 40 fold increase in gene number over Mycoplasma genitalia! • The big difference between eukarya and prokarya is in non-coding sequence

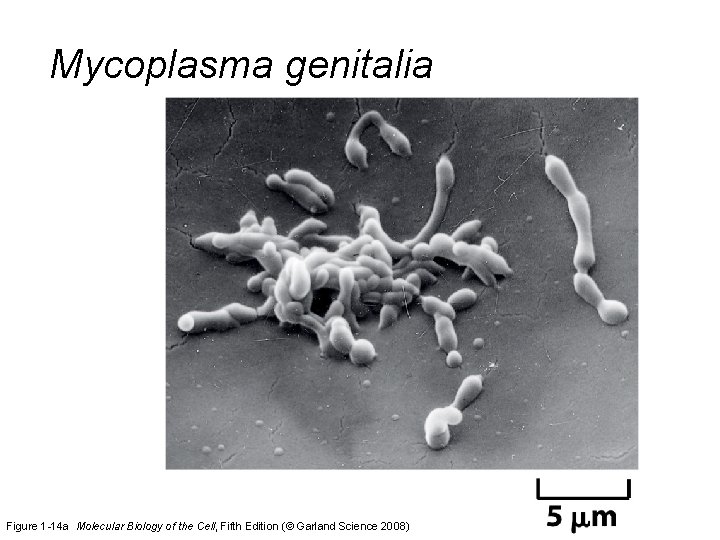

Mycoplasma genitalia Figure 1 -14 a Molecular Biology of the Cell, Fifth Edition (© Garland Science 2008)

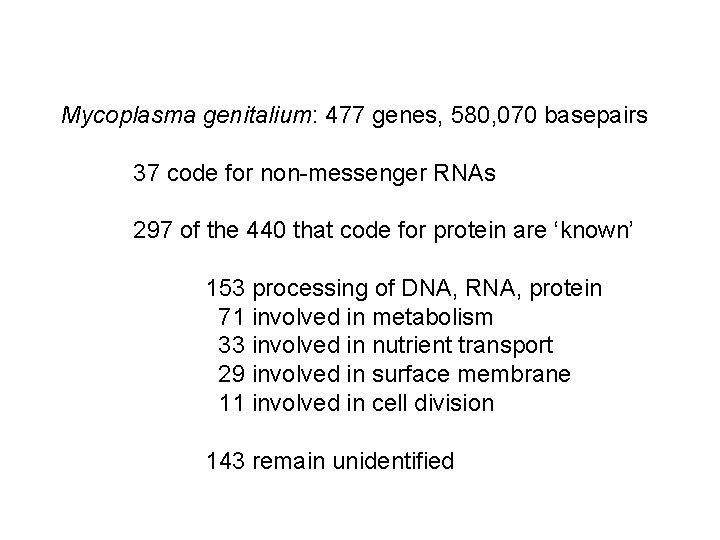

Mycoplasma genitalium: 477 genes, 580, 070 basepairs 37 code for non-messenger RNAs 297 of the 440 that code for protein are ‘known’ 153 processing of DNA, RNA, protein 71 involved in metabolism 33 involved in nutrient transport 29 involved in surface membrane 11 involved in cell division 143 remain unidentified

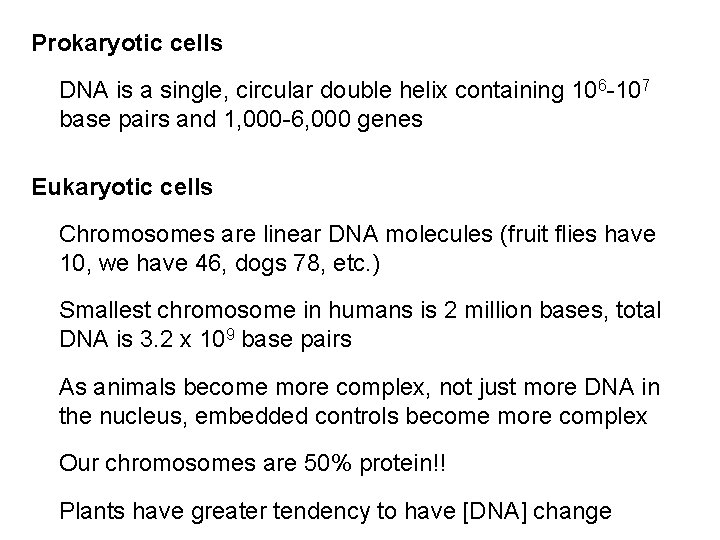

Prokaryotic cells DNA is a single, circular double helix containing 106 -107 base pairs and 1, 000 -6, 000 genes Eukaryotic cells Chromosomes are linear DNA molecules (fruit flies have 10, we have 46, dogs 78, etc. ) Smallest chromosome in humans is 2 million bases, total DNA is 3. 2 x 109 base pairs As animals become more complex, not just more DNA in the nucleus, embedded controls become more complex Our chromosomes are 50% protein!! Plants have greater tendency to have [DNA] change

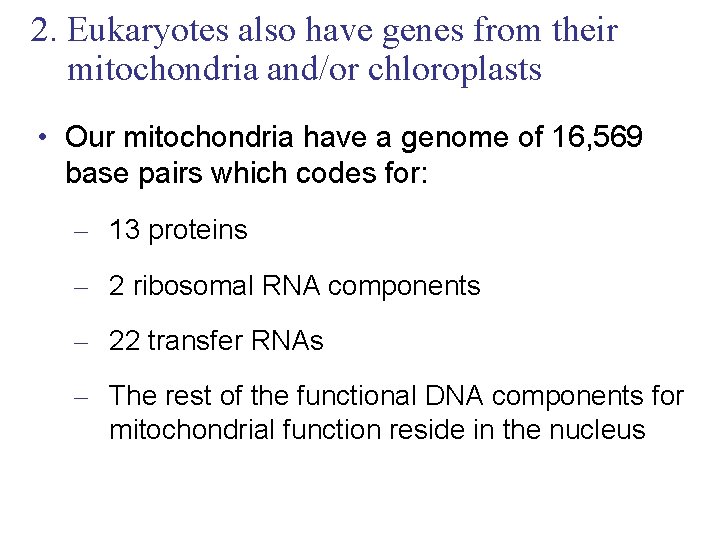

2. Eukaryotes also have genes from their mitochondria and/or chloroplasts • Our mitochondria have a genome of 16, 569 base pairs which codes for: – 13 proteins – 2 ribosomal RNA components – 22 transfer RNAs – The rest of the functional DNA components for mitochondrial function reside in the nucleus

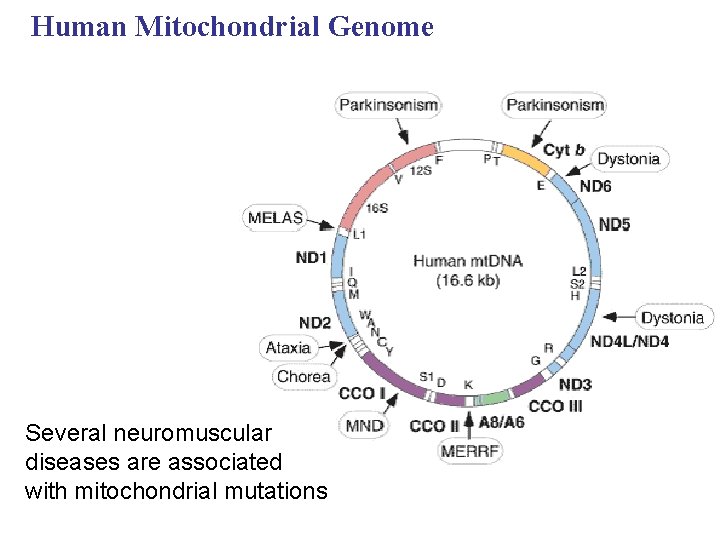

Human Mitochondrial Genome Several neuromuscular diseases are associated with mitochondrial mutations

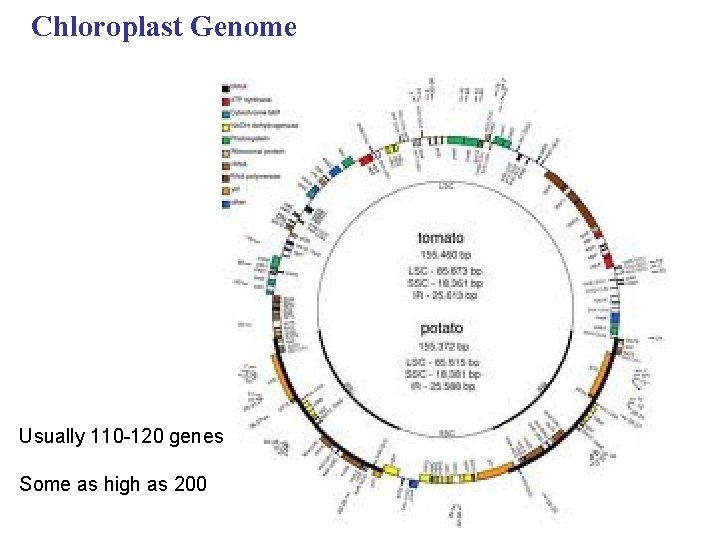

Chloroplast Genome Usually 110 -120 genes Some as high as 200

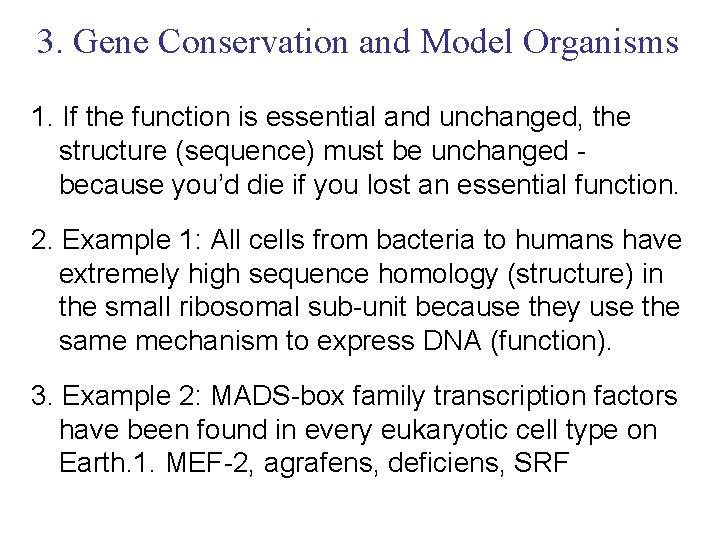

3. Gene Conservation and Model Organisms 1. If the function is essential and unchanged, the structure (sequence) must be unchanged because you’d die if you lost an essential function. 2. Example 1: All cells from bacteria to humans have extremely high sequence homology (structure) in the small ribosomal sub-unit because they use the same mechanism to express DNA (function). 3. Example 2: MADS-box family transcription factors have been found in every eukaryotic cell type on Earth. 1. MEF-2, agrafens, deficiens, SRF

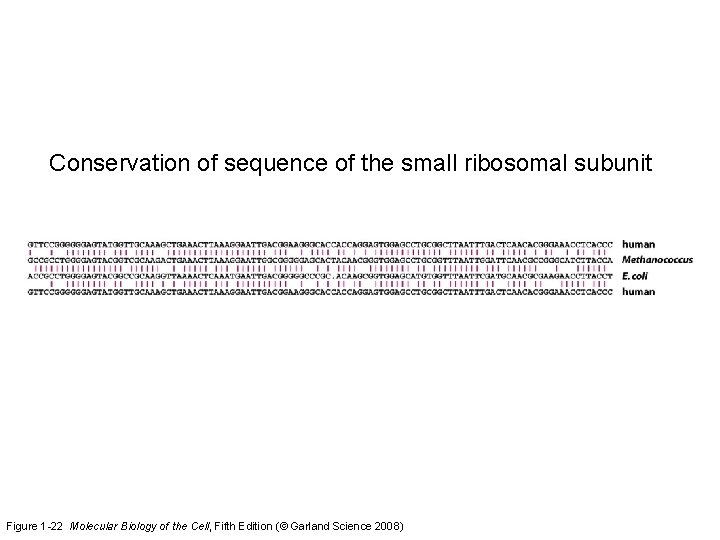

Conservation of sequence of the small ribosomal subunit Figure 1 -22 Molecular Biology of the Cell, Fifth Edition (© Garland Science 2008)

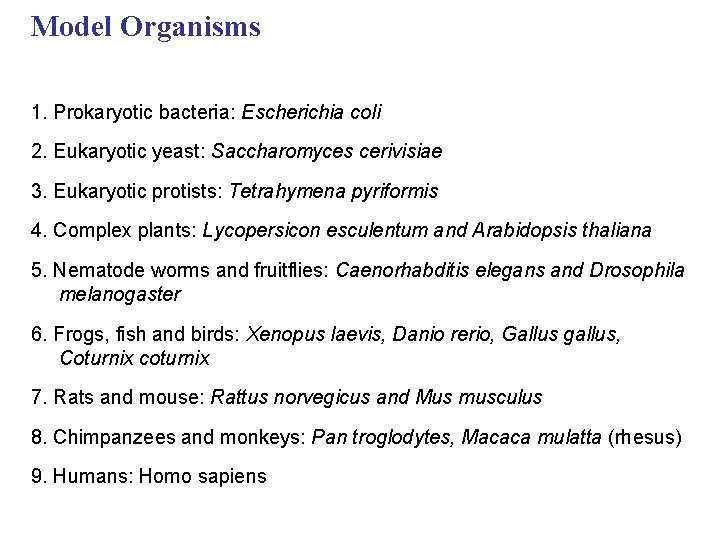

Model Organisms 1. Prokaryotic bacteria: Escherichia coli 2. Eukaryotic yeast: Saccharomyces cerivisiae 3. Eukaryotic protists: Tetrahymena pyriformis 4. Complex plants: Lycopersicon esculentum and Arabidopsis thaliana 5. Nematode worms and fruitflies: Caenorhabditis elegans and Drosophila melanogaster 6. Frogs, fish and birds: Xenopus laevis, Danio rerio, Gallus gallus, Coturnix coturnix 7. Rats and mouse: Rattus norvegicus and Mus musculus 8. Chimpanzees and monkeys: Pan troglodytes, Macaca mulatta (rhesus) 9. Humans: Homo sapiens

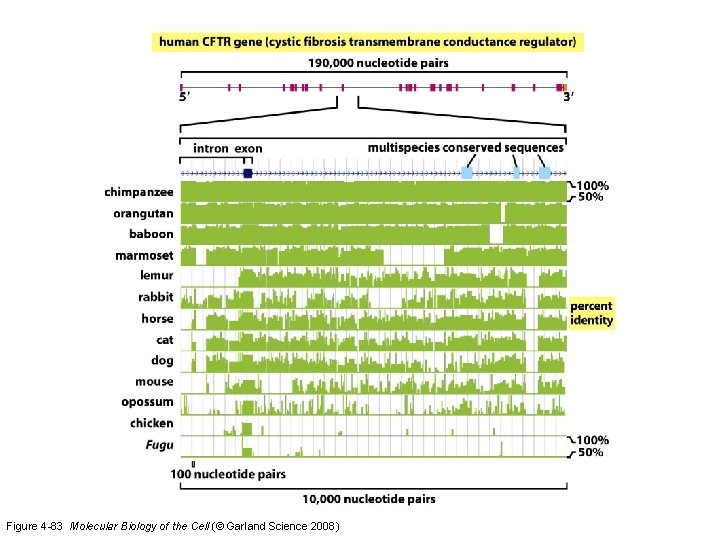

Figure 4 -83 Molecular Biology of the Cell (© Garland Science 2008)

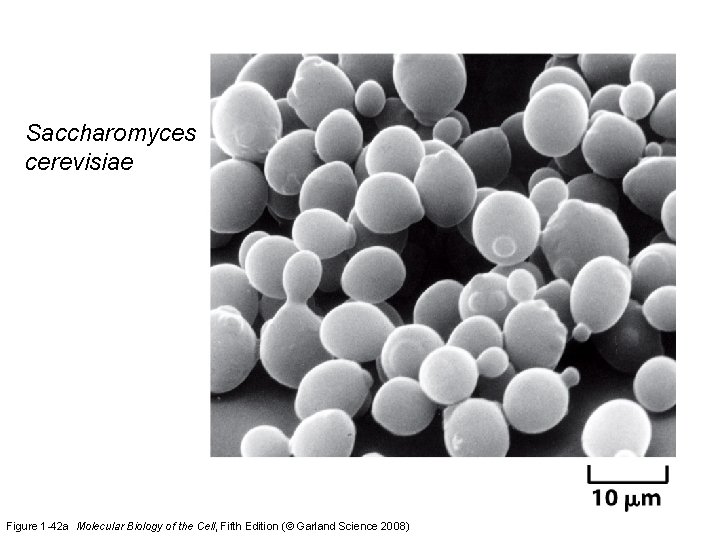

Saccharomyces cerevisiae Figure 1 -42 a Molecular Biology of the Cell, Fifth Edition (© Garland Science 2008)

Arabidopsis thaliana Figure 1 -46 Molecular Biology of the Cell, Fifth Edition (© Garland Science 2008)

Caenorhabditis elegans Figure 1 -47 Molecular Biology of the Cell, Fifth Edition (© Garland Science 2008)

Drosophila melanogaster Figure 1 -48 Molecular Biology of the Cell, Fifth Edition (© Garland Science 2008)

Xenopus tropicalis Xenopus laevis Figure 1 -50 Molecular Biology of the Cell, Fifth Edition (© Garland Science 2008)

Figure 1 -53 Molecular Biology of the Cell, Fifth Edition (© Garland Science 2008)

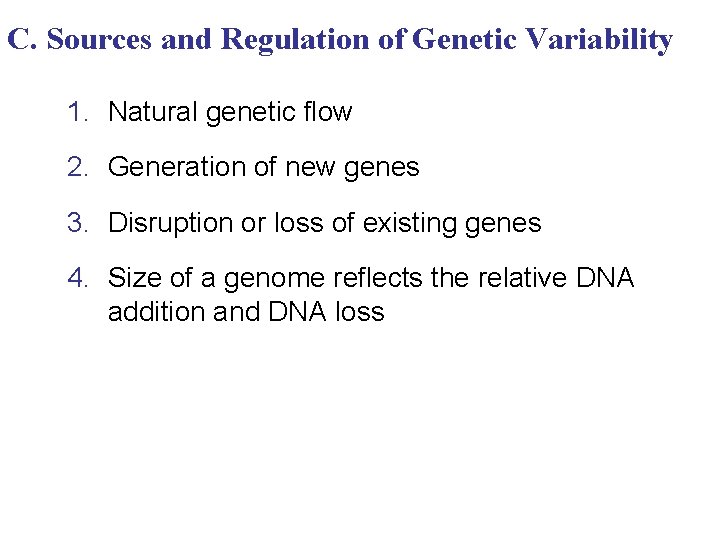

C. Sources and Regulation of Genetic Variability 1. Natural genetic flow 2. Generation of new genes 3. Disruption or loss of existing genes 4. Size of a genome reflects the relative DNA addition and DNA loss

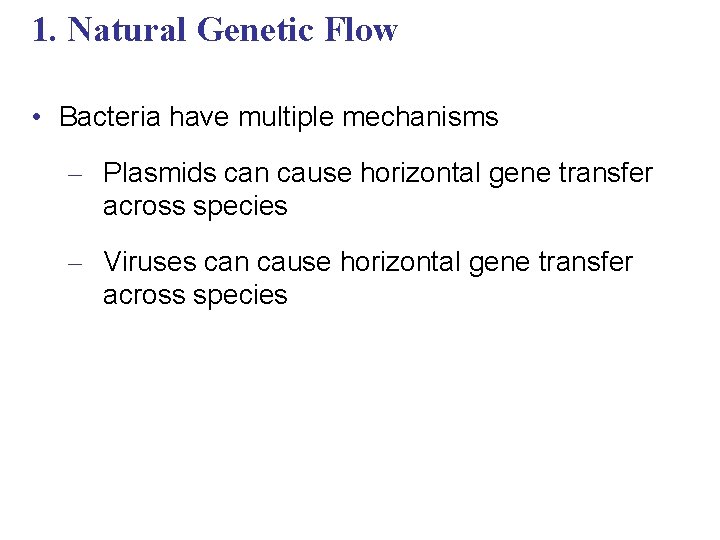

1. Natural Genetic Flow • Bacteria have multiple mechanisms – Plasmids can cause horizontal gene transfer across species – Viruses can cause horizontal gene transfer across species

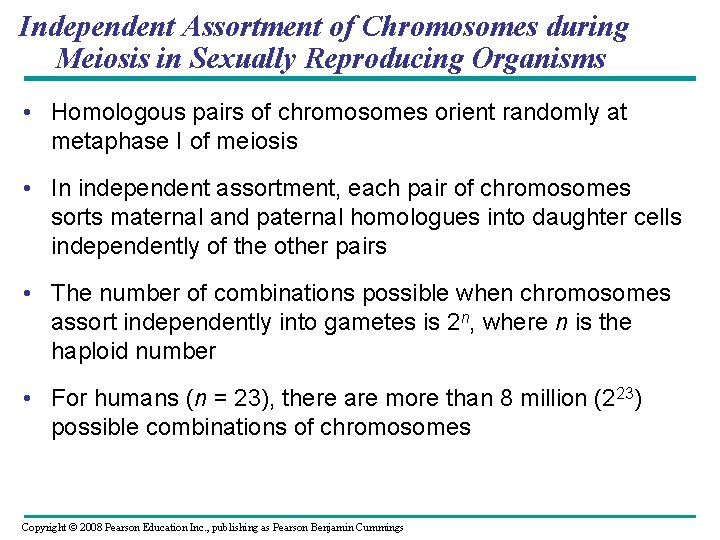

Independent Assortment of Chromosomes during Meiosis in Sexually Reproducing Organisms • Homologous pairs of chromosomes orient randomly at metaphase I of meiosis • In independent assortment, each pair of chromosomes sorts maternal and paternal homologues into daughter cells independently of the other pairs • The number of combinations possible when chromosomes assort independently into gametes is 2 n, where n is the haploid number • For humans (n = 23), there are more than 8 million (223) possible combinations of chromosomes Copyright © 2008 Pearson Education Inc. , publishing as Pearson Benjamin Cummings

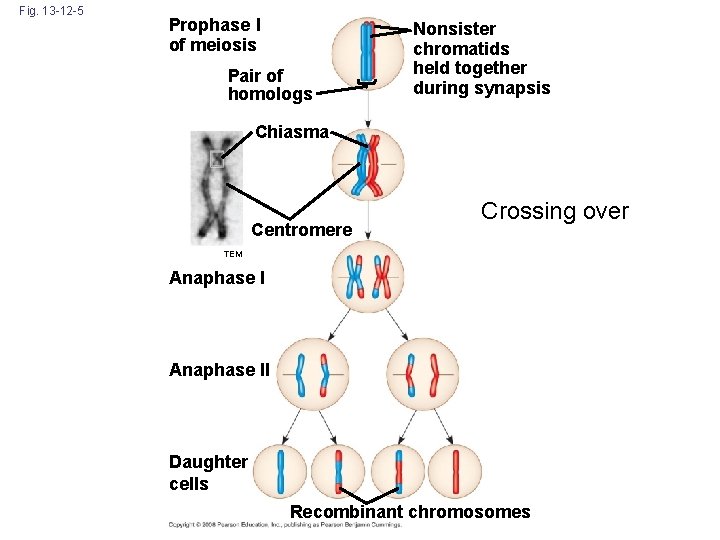

Fig. 13 -12 -5 Prophase I of meiosis Pair of homologs Nonsister chromatids held together during synapsis Chiasma Centromere Crossing over TEM Anaphase II Daughter cells Recombinant chromosomes

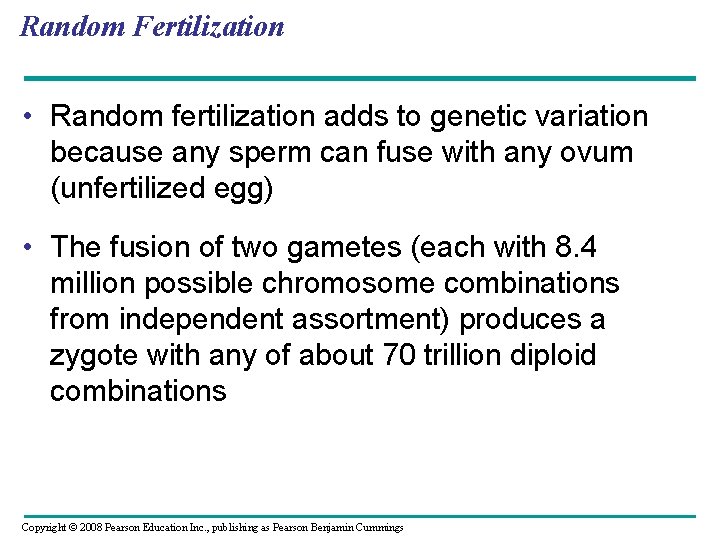

Random Fertilization • Random fertilization adds to genetic variation because any sperm can fuse with any ovum (unfertilized egg) • The fusion of two gametes (each with 8. 4 million possible chromosome combinations from independent assortment) produces a zygote with any of about 70 trillion diploid combinations Copyright © 2008 Pearson Education Inc. , publishing as Pearson Benjamin Cummings

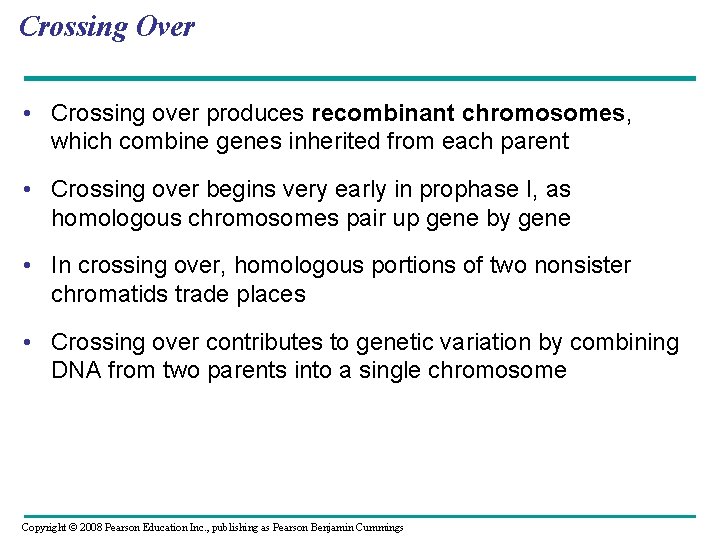

Crossing Over • Crossing over produces recombinant chromosomes, which combine genes inherited from each parent • Crossing over begins very early in prophase I, as homologous chromosomes pair up gene by gene • In crossing over, homologous portions of two nonsister chromatids trade places • Crossing over contributes to genetic variation by combining DNA from two parents into a single chromosome Copyright © 2008 Pearson Education Inc. , publishing as Pearson Benjamin Cummings

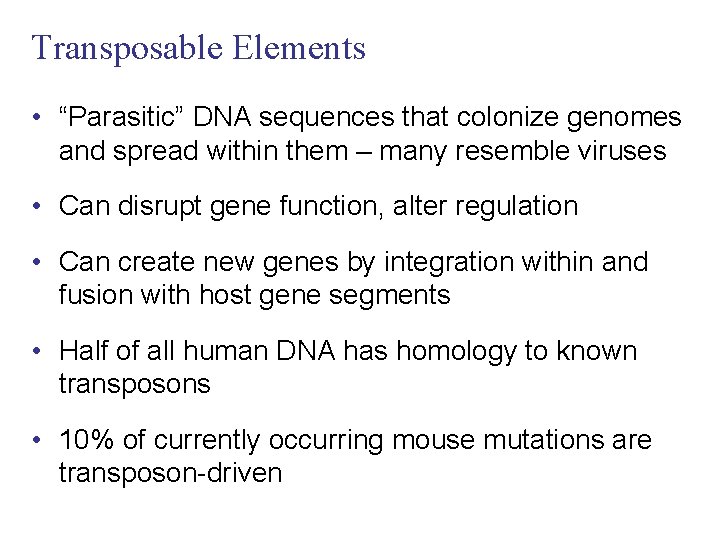

Transposable Elements • “Parasitic” DNA sequences that colonize genomes and spread within them – many resemble viruses • Can disrupt gene function, alter regulation • Can create new genes by integration within and fusion with host gene segments • Half of all human DNA has homology to known transposons • 10% of currently occurring mouse mutations are transposon-driven

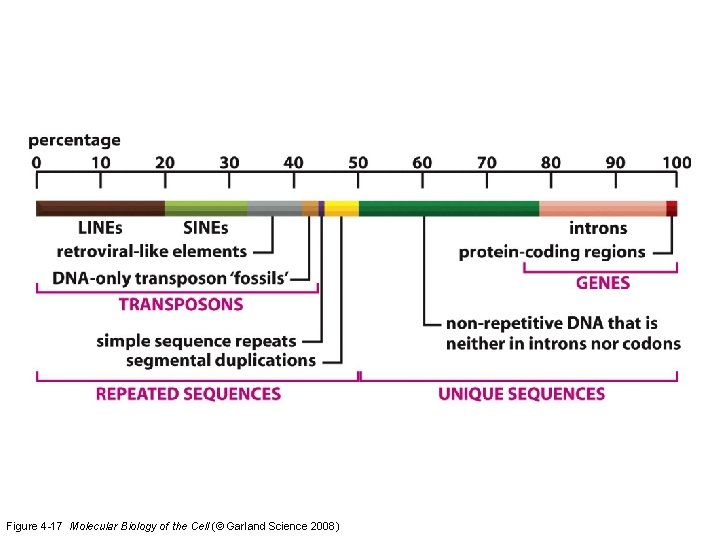

Figure 4 -17 Molecular Biology of the Cell (© Garland Science 2008)

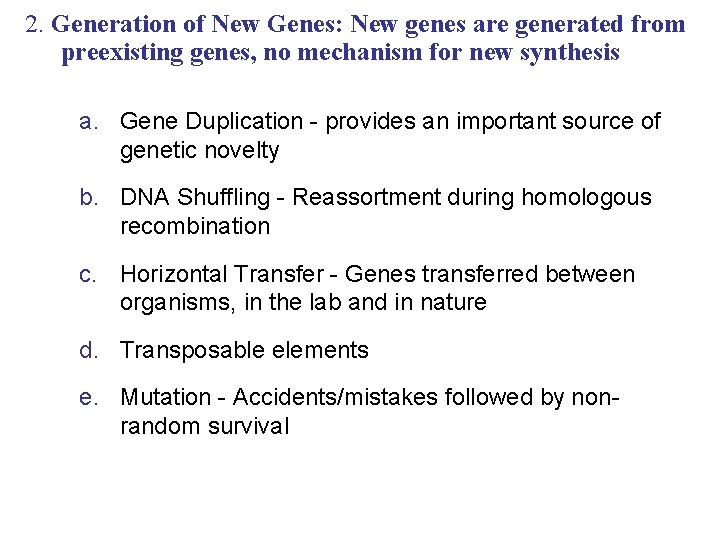

2. Generation of New Genes: New genes are generated from preexisting genes, no mechanism for new synthesis a. Gene Duplication - provides an important source of genetic novelty b. DNA Shuffling - Reassortment during homologous recombination c. Horizontal Transfer - Genes transferred between organisms, in the lab and in nature d. Transposable elements e. Mutation - Accidents/mistakes followed by nonrandom survival

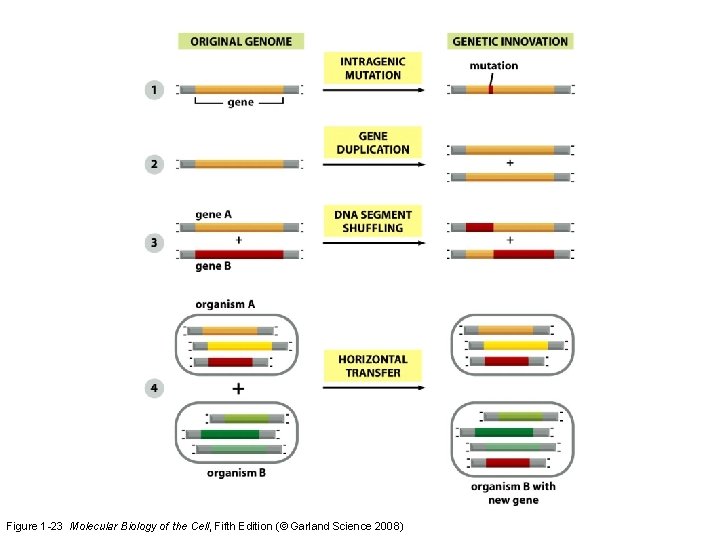

Figure 1 -23 Molecular Biology of the Cell, Fifth Edition (© Garland Science 2008)

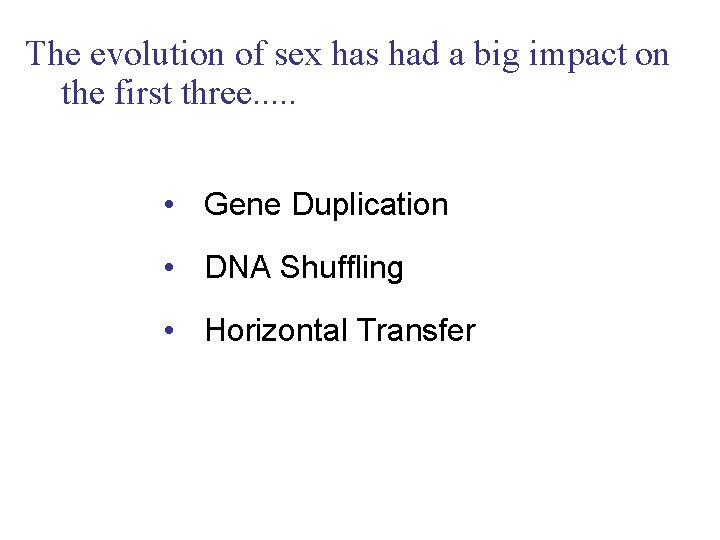

The evolution of sex has had a big impact on the first three. . . • Gene Duplication • DNA Shuffling • Horizontal Transfer

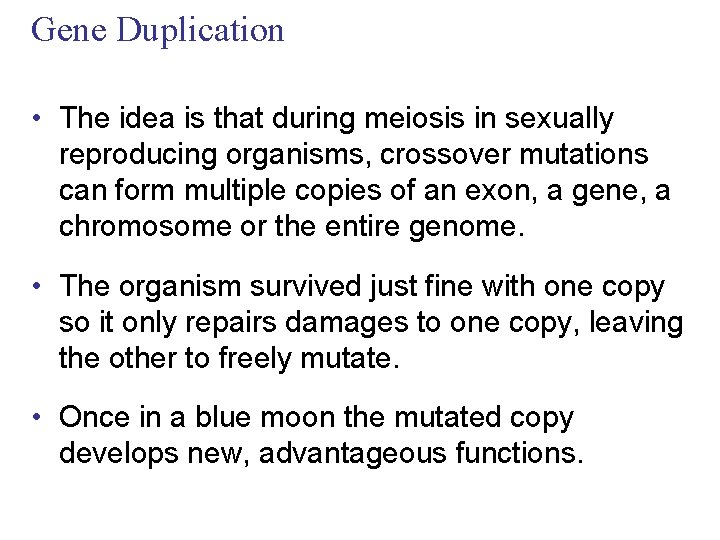

Gene Duplication • The idea is that during meiosis in sexually reproducing organisms, crossover mutations can form multiple copies of an exon, a gene, a chromosome or the entire genome. • The organism survived just fine with one copy so it only repairs damages to one copy, leaving the other to freely mutate. • Once in a blue moon the mutated copy develops new, advantageous functions.

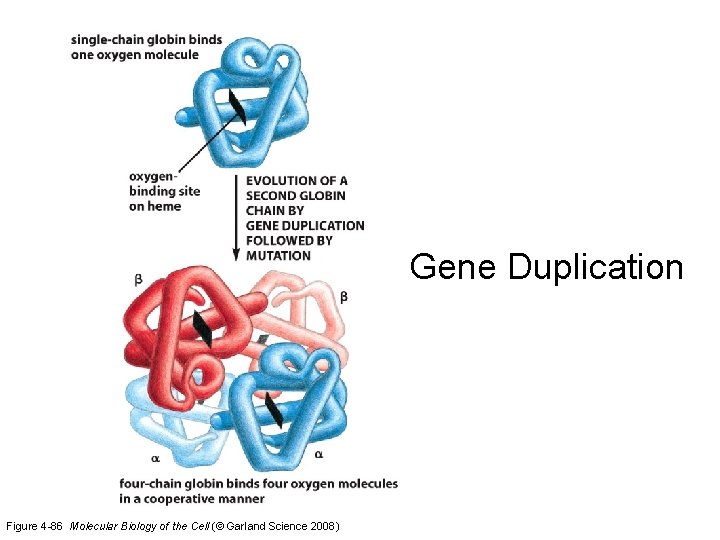

Gene Duplication Figure 4 -86 Molecular Biology of the Cell (© Garland Science 2008)

Xenopus tropicalis Xenopus laevis Figure 1 -50 Molecular Biology of the Cell, Fifth Edition (© Garland Science 2008) Whole genome duplication!

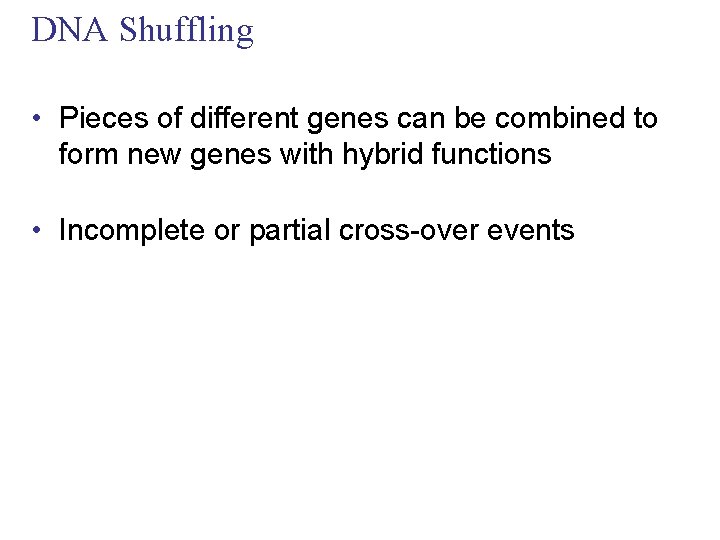

DNA Shuffling • Pieces of different genes can be combined to form new genes with hybrid functions • Incomplete or partial cross-over events

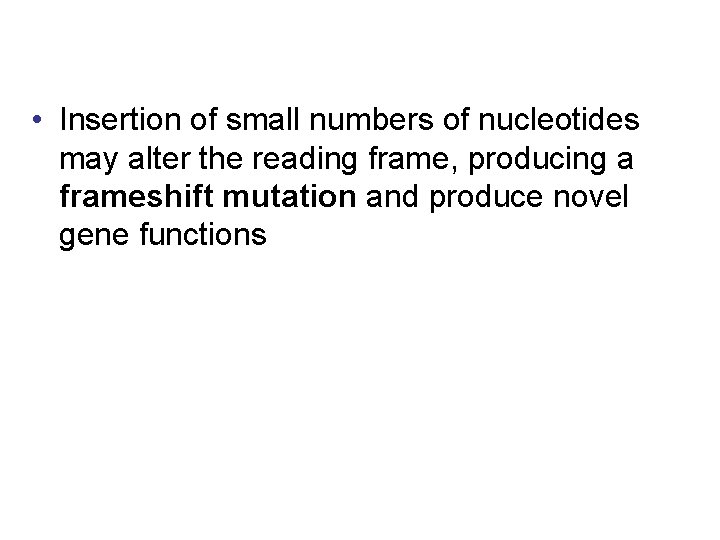

• Insertion of small numbers of nucleotides may alter the reading frame, producing a frameshift mutation and produce novel gene functions

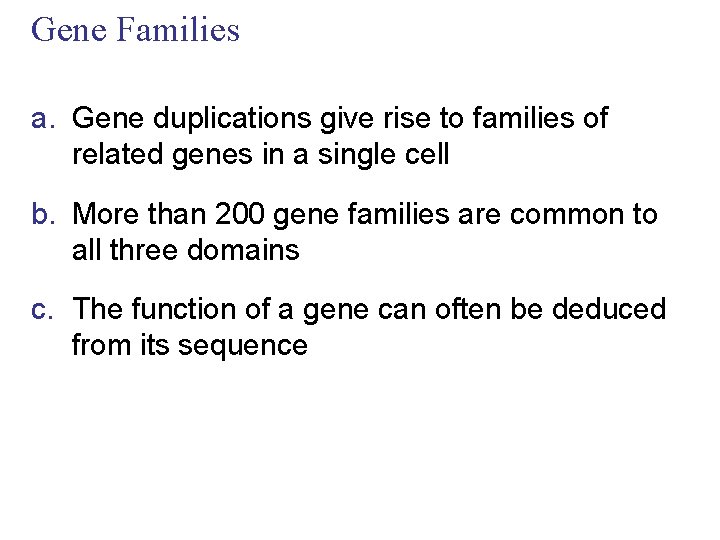

Gene Families a. Gene duplications give rise to families of related genes in a single cell b. More than 200 gene families are common to all three domains c. The function of a gene can often be deduced from its sequence

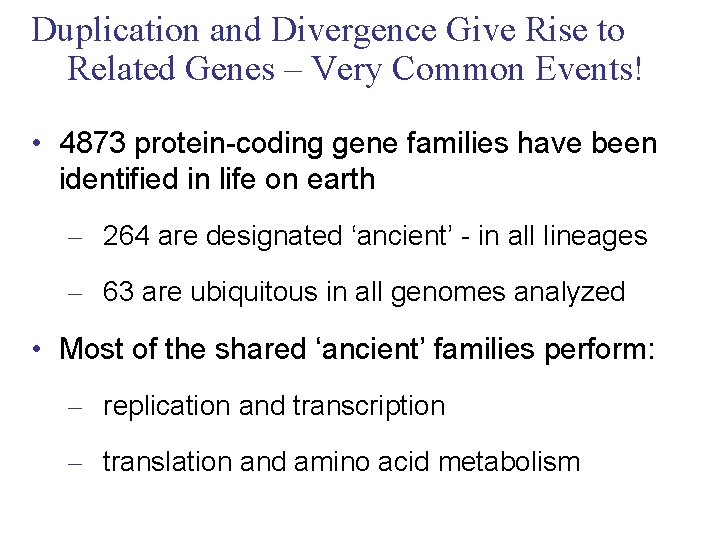

Duplication and Divergence Give Rise to Related Genes – Very Common Events! • 4873 protein-coding gene families have been identified in life on earth – 264 are designated ‘ancient’ - in all lineages – 63 are ubiquitous in all genomes analyzed • Most of the shared ‘ancient’ families perform: – replication and transcription – translation and amino acid metabolism

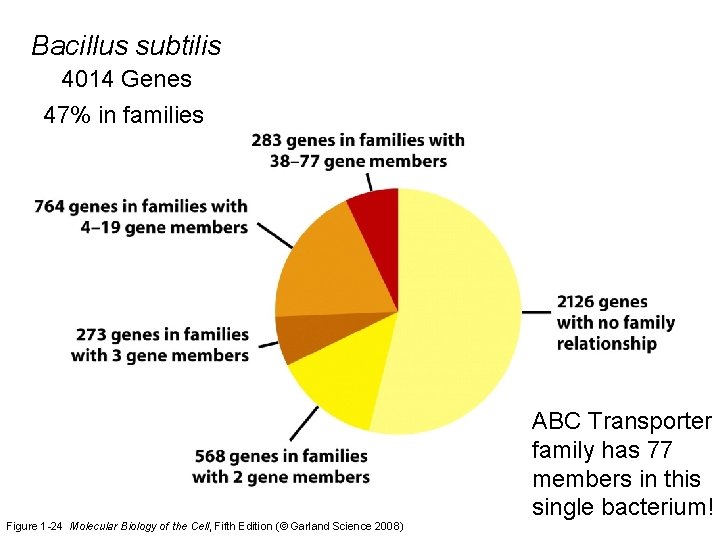

Bacillus subtilis 4014 Genes 47% in families Figure 1 -24 Molecular Biology of the Cell, Fifth Edition (© Garland Science 2008) ABC Transporter family has 77 members in this single bacterium!

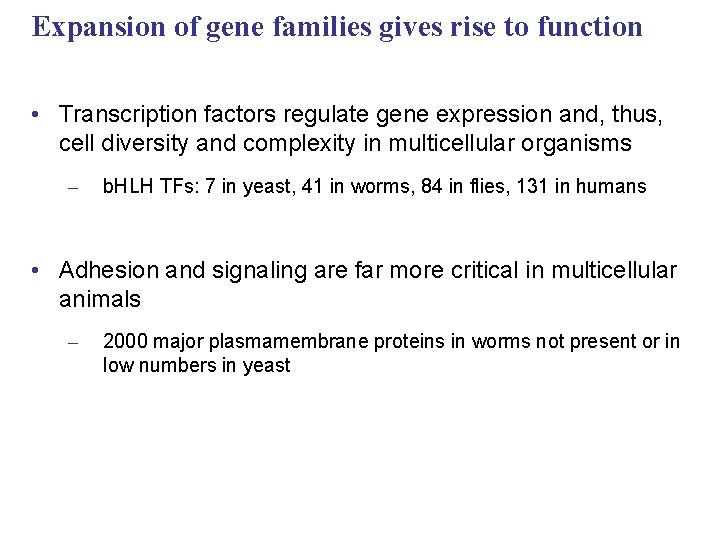

Expansion of gene families gives rise to function • Transcription factors regulate gene expression and, thus, cell diversity and complexity in multicellular organisms – b. HLH TFs: 7 in yeast, 41 in worms, 84 in flies, 131 in humans • Adhesion and signaling are far more critical in multicellular animals – 2000 major plasmamembrane proteins in worms not present or in low numbers in yeast

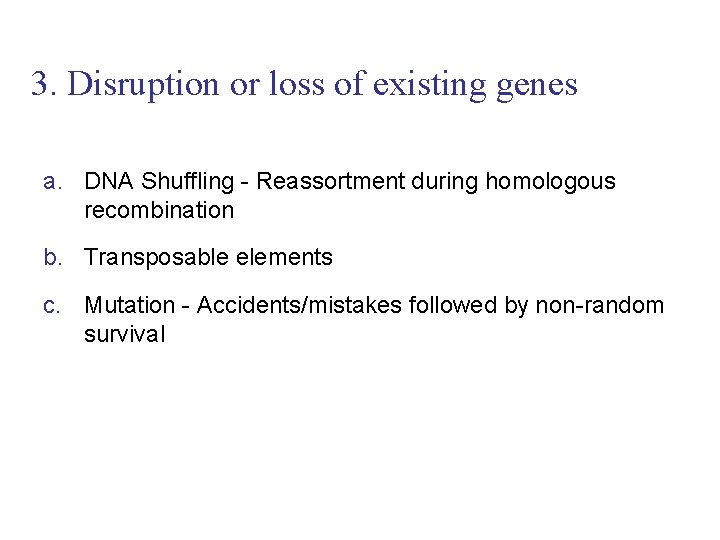

3. Disruption or loss of existing genes a. DNA Shuffling - Reassortment during homologous recombination b. Transposable elements c. Mutation - Accidents/mistakes followed by non-random survival

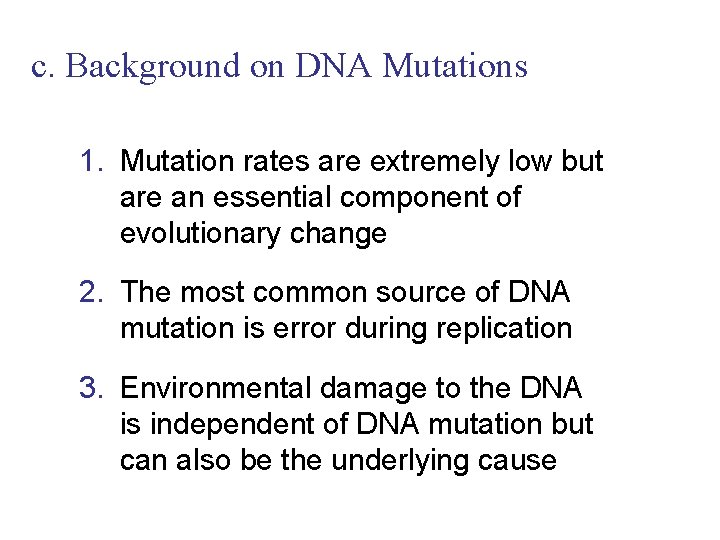

c. Background on DNA Mutations 1. Mutation rates are extremely low but are an essential component of evolutionary change 2. The most common source of DNA mutation is error during replication 3. Environmental damage to the DNA is independent of DNA mutation but can also be the underlying cause

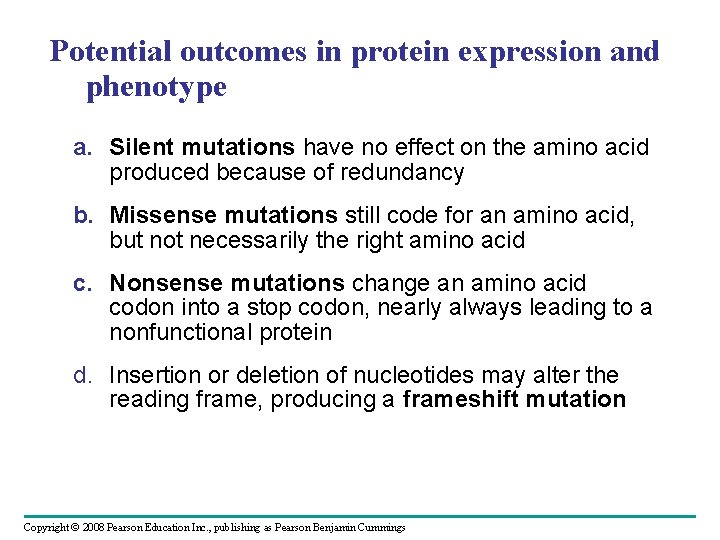

Potential outcomes in protein expression and phenotype a. Silent mutations have no effect on the amino acid produced because of redundancy b. Missense mutations still code for an amino acid, but not necessarily the right amino acid c. Nonsense mutations change an amino acid codon into a stop codon, nearly always leading to a nonfunctional protein d. Insertion or deletion of nucleotides may alter the reading frame, producing a frameshift mutation Copyright © 2008 Pearson Education Inc. , publishing as Pearson Benjamin Cummings

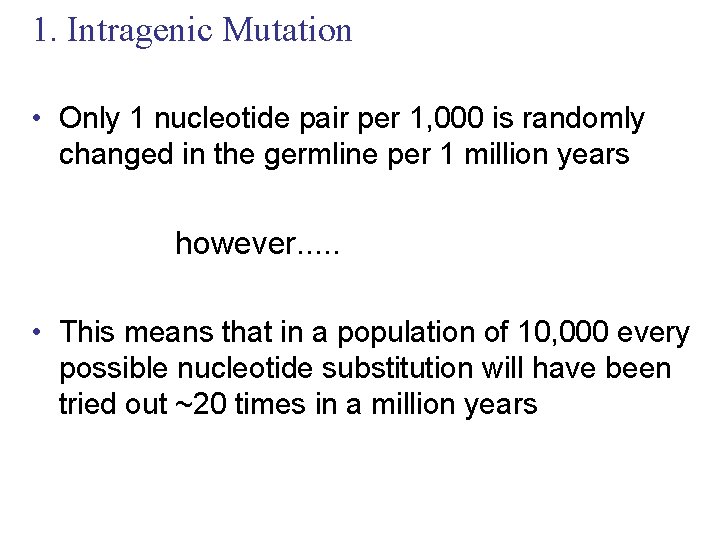

1. Intragenic Mutation • Only 1 nucleotide pair per 1, 000 is randomly changed in the germline per 1 million years however. . . • This means that in a population of 10, 000 every possible nucleotide substitution will have been tried out ~20 times in a million years

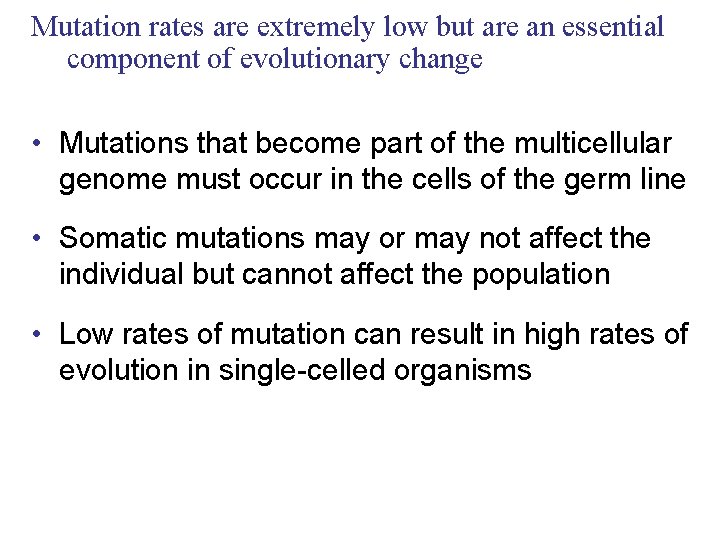

Mutation rates are extremely low but are an essential component of evolutionary change • Mutations that become part of the multicellular genome must occur in the cells of the germ line • Somatic mutations may or may not affect the individual but cannot affect the population • Low rates of mutation can result in high rates of evolution in single-celled organisms

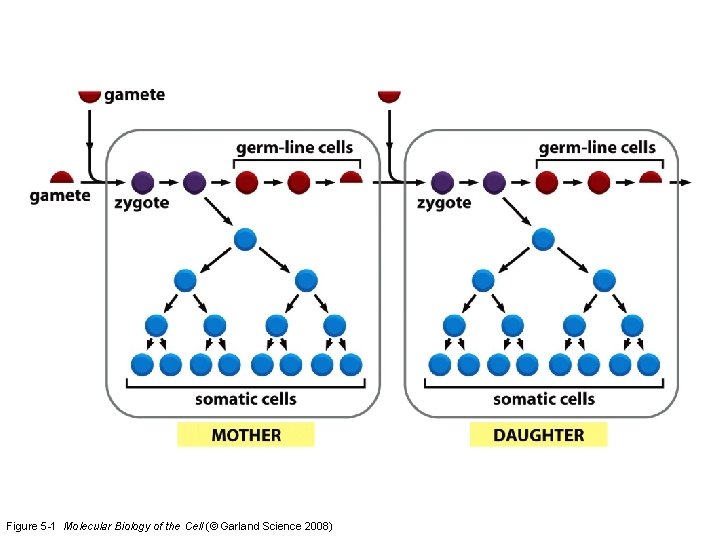

Figure 5 -1 Molecular Biology of the Cell (© Garland Science 2008)

2. The most common source of DNA mutation is error during replication • There is an average mistake of 1 base pair every 10, 000 • Due to proofreading and repair mechanisms this rate declines to 1 every 1, 000, 000 • Inherent in meiosis are assortment and crossover events that lead to highly significant changes in germ line DNA sequences

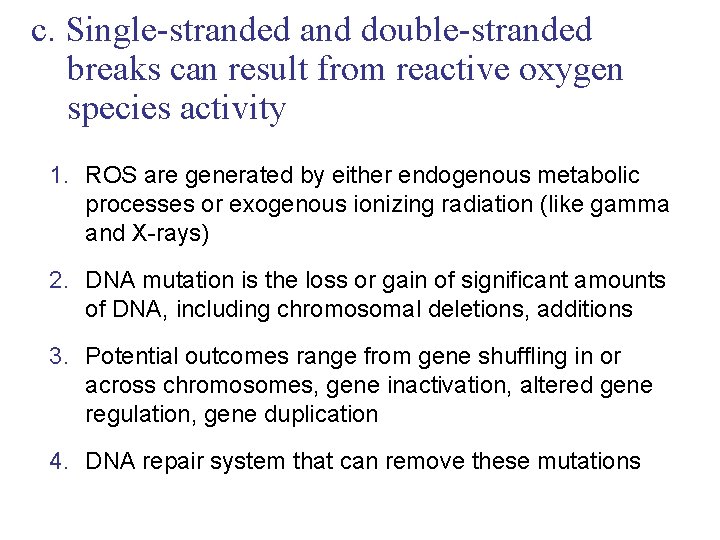

c. Single-stranded and double-stranded breaks can result from reactive oxygen species activity 1. ROS are generated by either endogenous metabolic processes or exogenous ionizing radiation (like gamma and X-rays) 2. DNA mutation is the loss or gain of significant amounts of DNA, including chromosomal deletions, additions 3. Potential outcomes range from gene shuffling in or across chromosomes, gene inactivation, altered gene regulation, gene duplication 4. DNA repair system that can remove these mutations

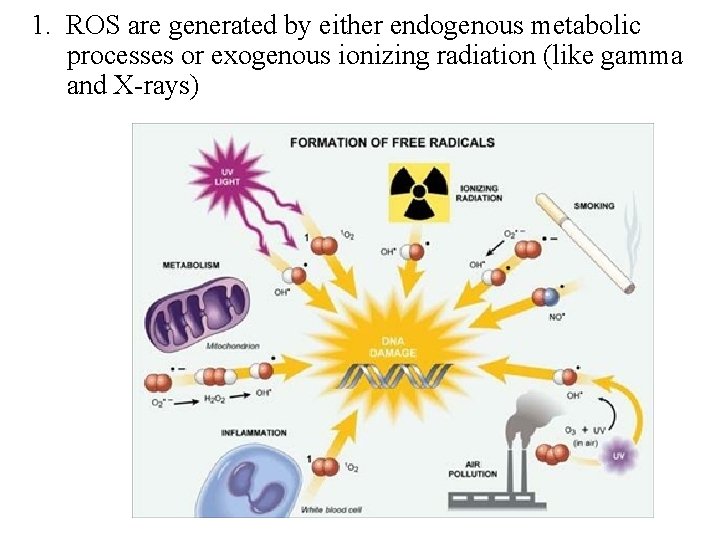

1. ROS are generated by either endogenous metabolic processes or exogenous ionizing radiation (like gamma and X-rays)

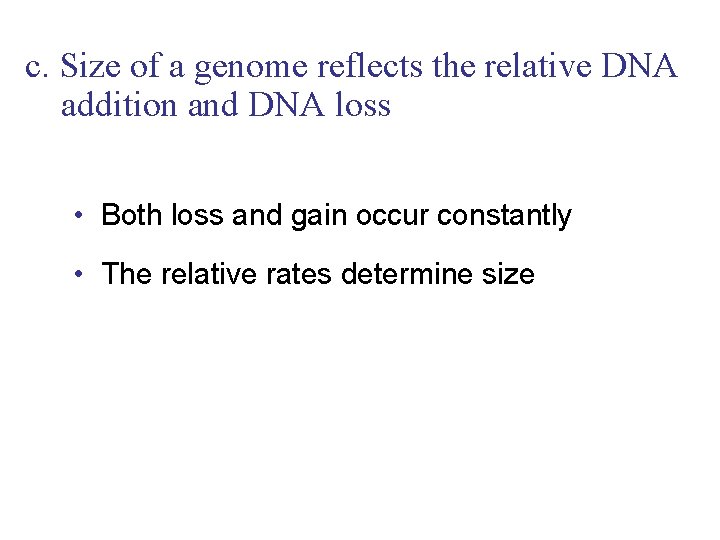

c. Size of a genome reflects the relative DNA addition and DNA loss • Both loss and gain occur constantly • The relative rates determine size

The Fugu – experienced a long period of low rates of DNA addition accompanied by normal rates of DNA loss Figure 4 -81 Molecular Biology of the Cell (© Garland Science 2008)

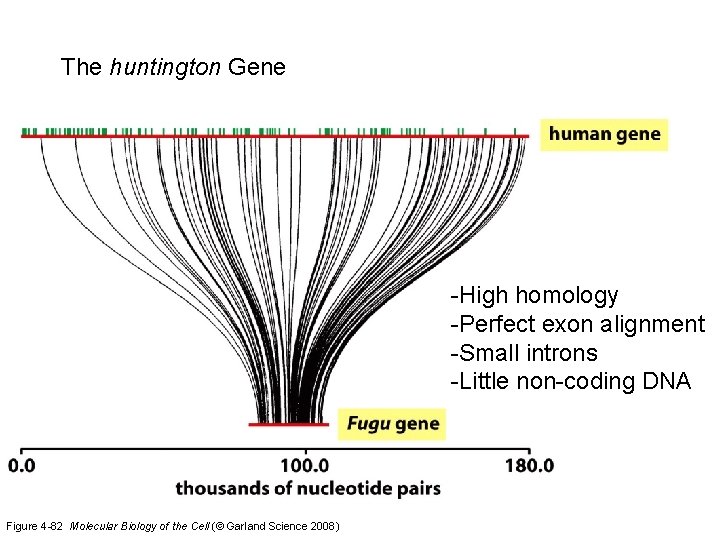

The huntington Gene -High homology -Perfect exon alignment -Small introns -Little non-coding DNA Figure 4 -82 Molecular Biology of the Cell (© Garland Science 2008)

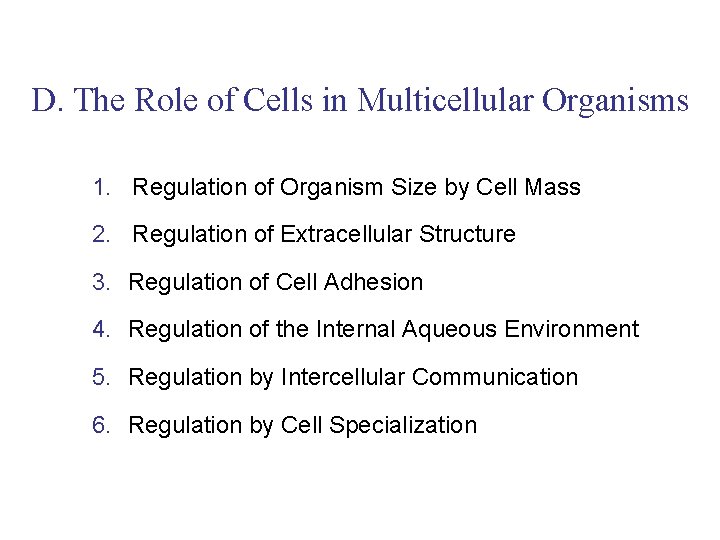

D. The Role of Cells in Multicellular Organisms 1. Regulation of Organism Size by Cell Mass 2. Regulation of Extracellular Structure 3. Regulation of Cell Adhesion 4. Regulation of the Internal Aqueous Environment 5. Regulation by Intercellular Communication 6. Regulation by Cell Specialization

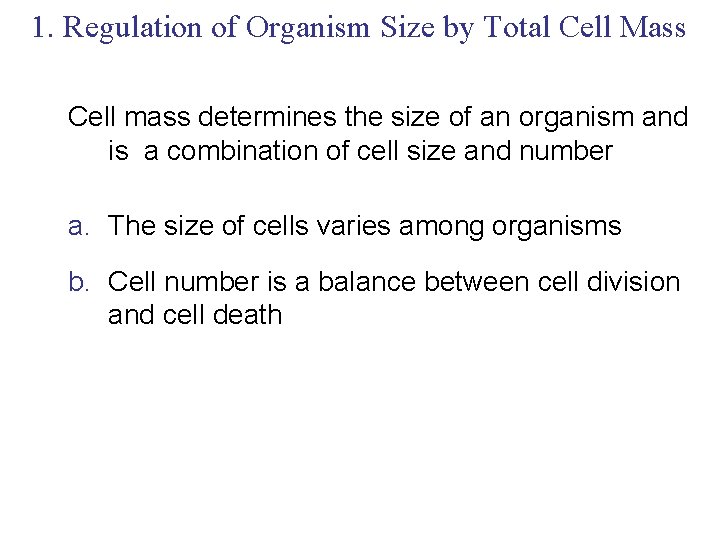

1. Regulation of Organism Size by Total Cell Mass Cell mass determines the size of an organism and is a combination of cell size and number a. The size of cells varies among organisms b. Cell number is a balance between cell division and cell death

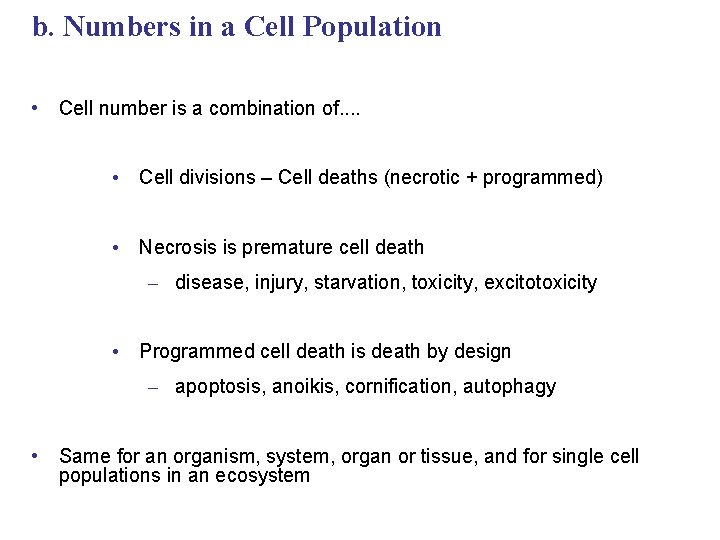

b. Numbers in a Cell Population • Cell number is a combination of. . • Cell divisions – Cell deaths (necrotic + programmed) • Necrosis is premature cell death – disease, injury, starvation, toxicity, excitotoxicity • Programmed cell death is death by design – apoptosis, anoikis, cornification, autophagy • Same for an organism, system, organ or tissue, and for single cell populations in an ecosystem

We’ve even learned to control it. . A mutation in a signal molecule that limits muscle cell division has been bred in. Figure 17 -69 Molecular Biology of the Cell (© Garland Science 2008)

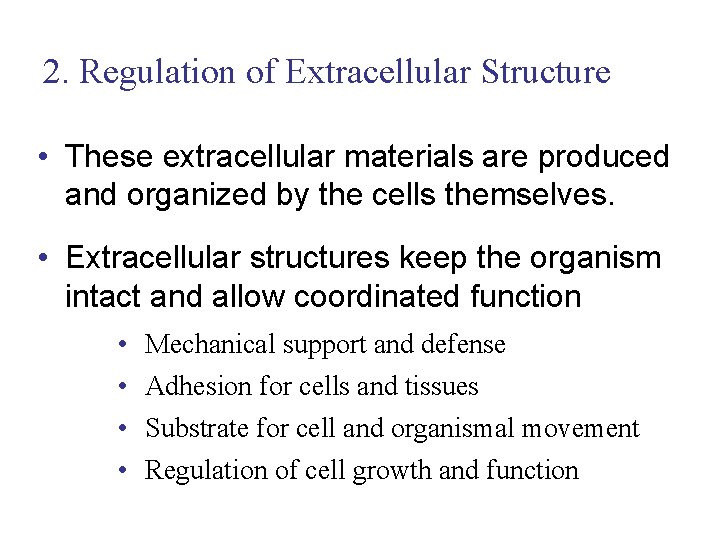

2. Regulation of Extracellular Structure • These extracellular materials are produced and organized by the cells themselves. • Extracellular structures keep the organism intact and allow coordinated function • • Mechanical support and defense Adhesion for cells and tissues Substrate for cell and organismal movement Regulation of cell growth and function

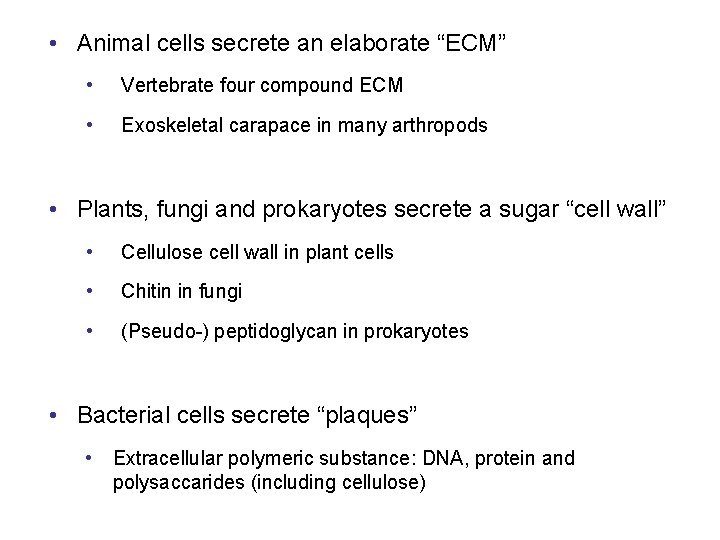

• Animal cells secrete an elaborate “ECM” • Vertebrate four compound ECM • Exoskeletal carapace in many arthropods • Plants, fungi and prokaryotes secrete a sugar “cell wall” • Cellulose cell wall in plant cells • Chitin in fungi • (Pseudo-) peptidoglycan in prokaryotes • Bacterial cells secrete “plaques” • Extracellular polymeric substance: DNA, protein and polysaccarides (including cellulose)

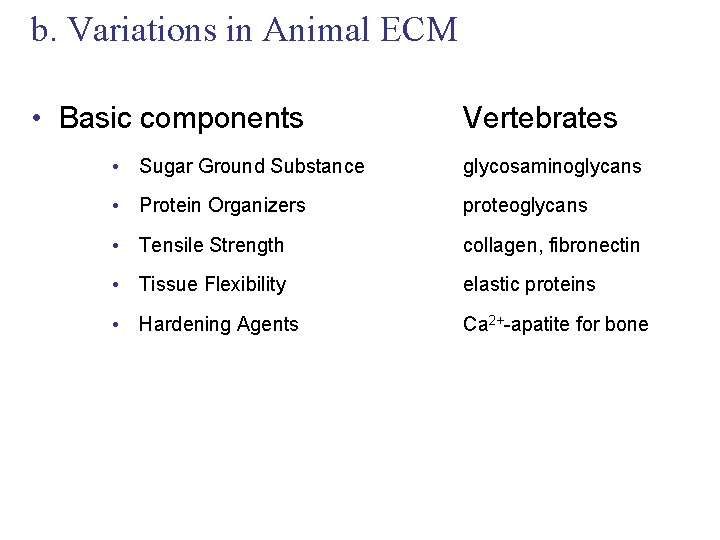

b. Variations in Animal ECM • Basic components Vertebrates • Sugar Ground Substance glycosaminoglycans • Protein Organizers proteoglycans • Tensile Strength collagen, fibronectin • Tissue Flexibility elastic proteins • Hardening Agents Ca 2+-apatite for bone

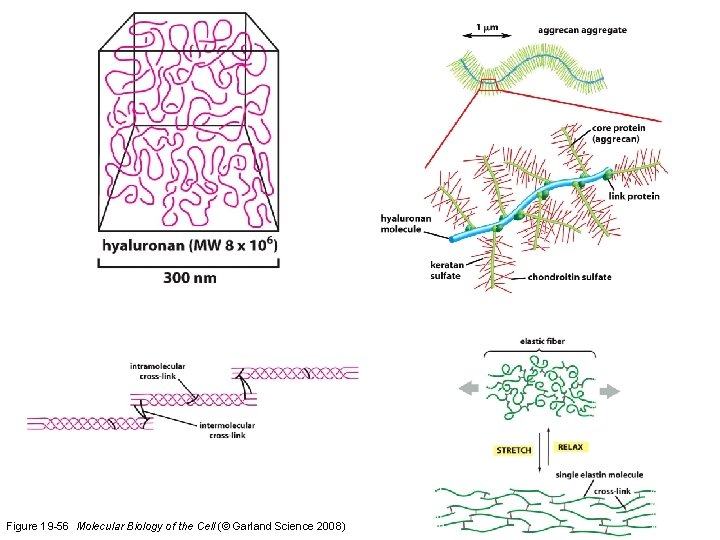

Figure 19 -56 Molecular Biology of the Cell (© Garland Science 2008)

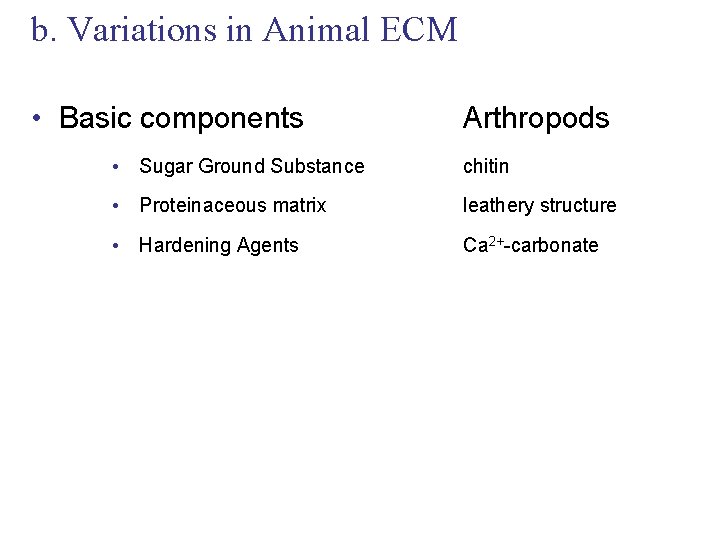

b. Variations in Animal ECM • Basic components Arthropods • Sugar Ground Substance chitin • Proteinaceous matrix leathery structure • Hardening Agents Ca 2+-carbonate

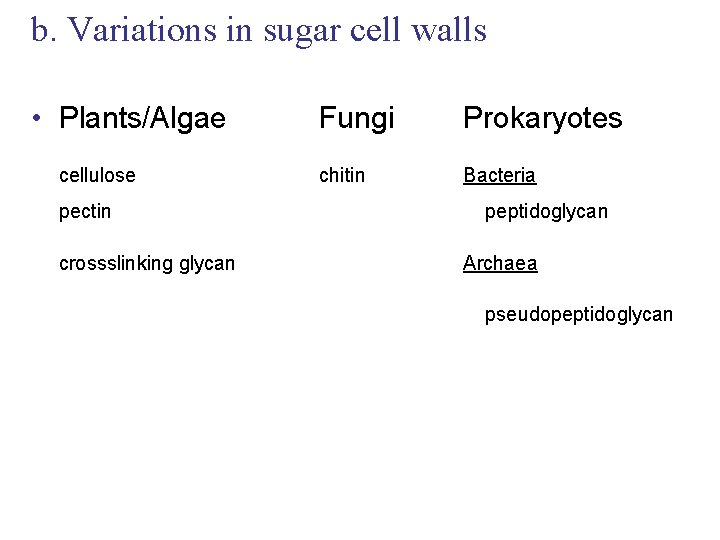

b. Variations in sugar cell walls • Plants/Algae cellulose pectin crossslinking glycan Fungi Prokaryotes chitin Bacteria peptidoglycan Archaea pseudopeptidoglycan

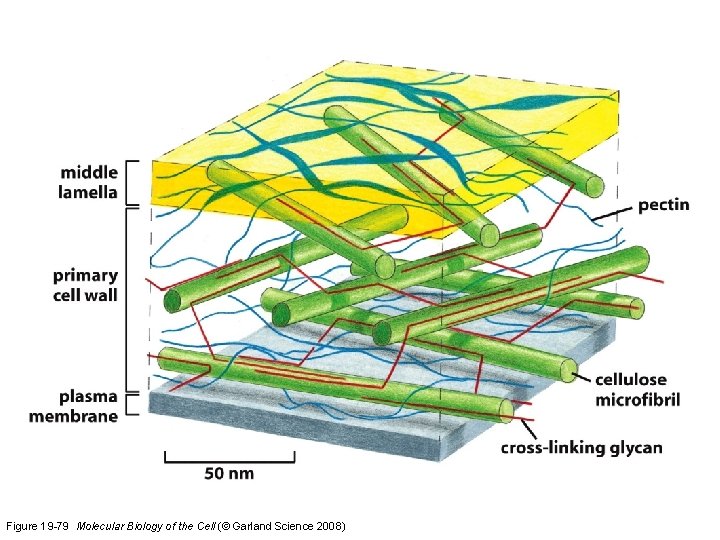

Figure 19 -79 Molecular Biology of the Cell (© Garland Science 2008)

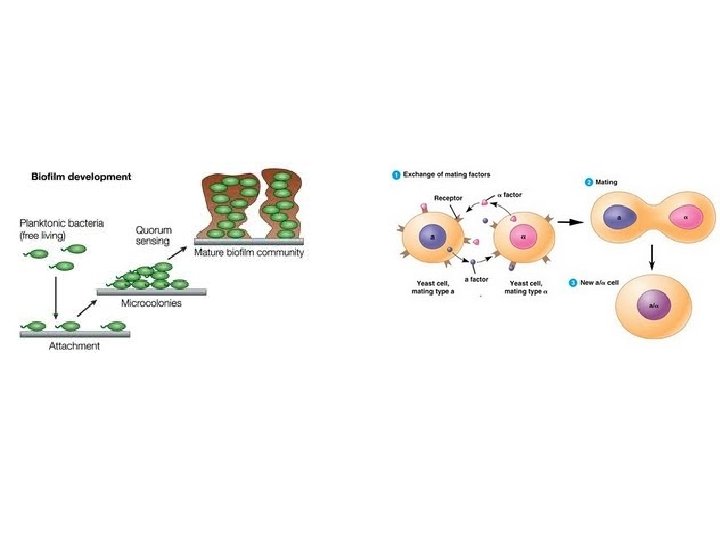

Bacterial Biofilms are ECM for Populations Cells become: -adherent -differentiated -cooperative Components: -DNA -proteins -polysaccharides (cellulose)

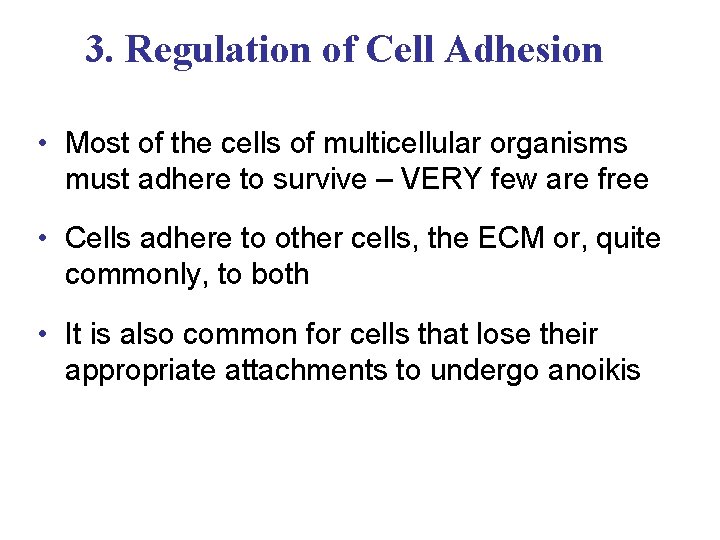

3. Regulation of Cell Adhesion • Most of the cells of multicellular organisms must adhere to survive – VERY few are free • Cells adhere to other cells, the ECM or, quite commonly, to both • It is also common for cells that lose their appropriate attachments to undergo anoikis

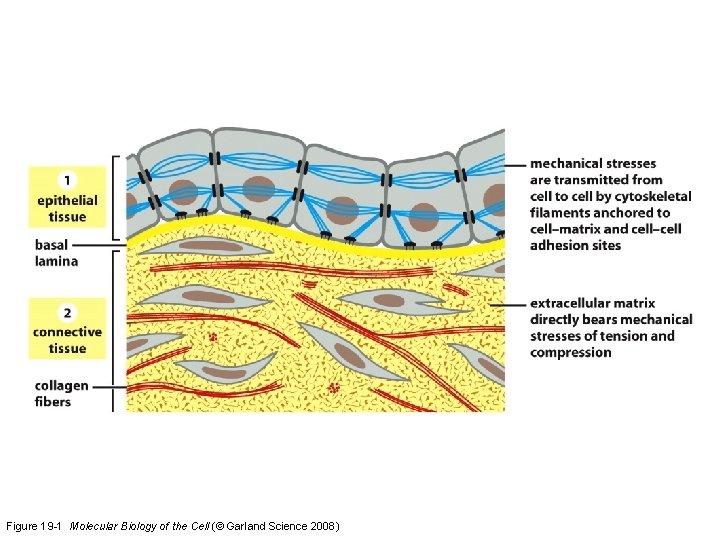

Figure 19 -1 Molecular Biology of the Cell (© Garland Science 2008)

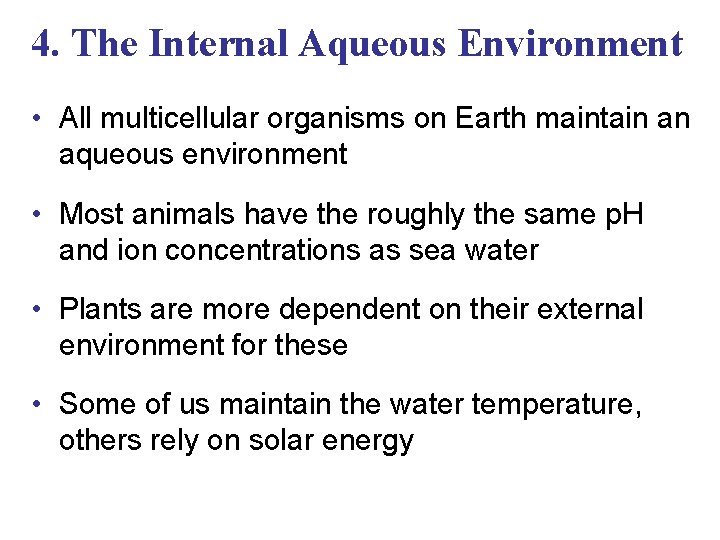

4. The Internal Aqueous Environment • All multicellular organisms on Earth maintain an aqueous environment • Most animals have the roughly the same p. H and ion concentrations as sea water • Plants are more dependent on their external environment for these • Some of us maintain the water temperature, others rely on solar energy

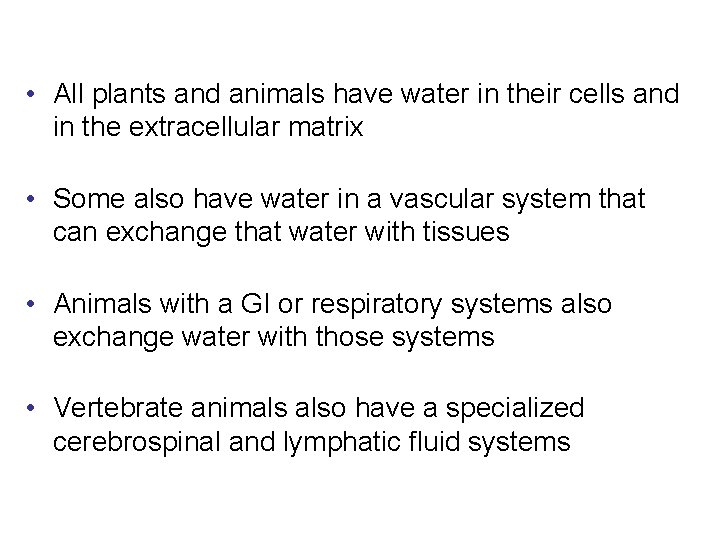

• All plants and animals have water in their cells and in the extracellular matrix • Some also have water in a vascular system that can exchange that water with tissues • Animals with a GI or respiratory systems also exchange water with those systems • Vertebrate animals also have a specialized cerebrospinal and lymphatic fluid systems

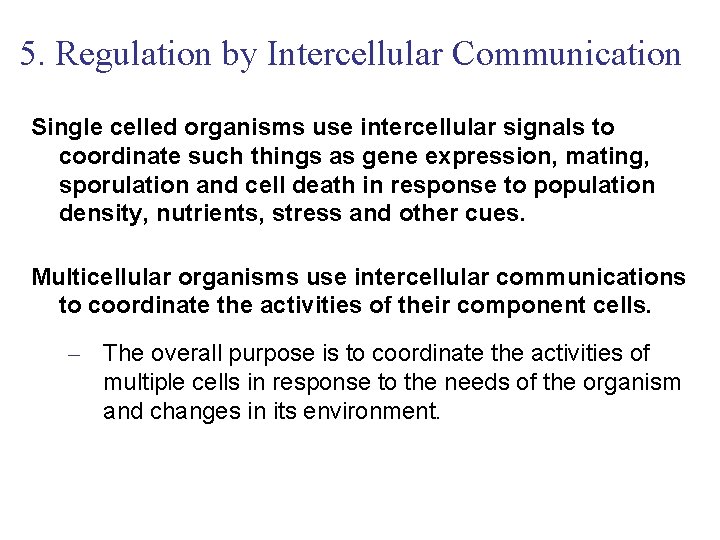

5. Regulation by Intercellular Communication Single celled organisms use intercellular signals to coordinate such things as gene expression, mating, sporulation and cell death in response to population density, nutrients, stress and other cues. Multicellular organisms use intercellular communications to coordinate the activities of their component cells. – The overall purpose is to coordinate the activities of multiple cells in response to the needs of the organism and changes in its environment.

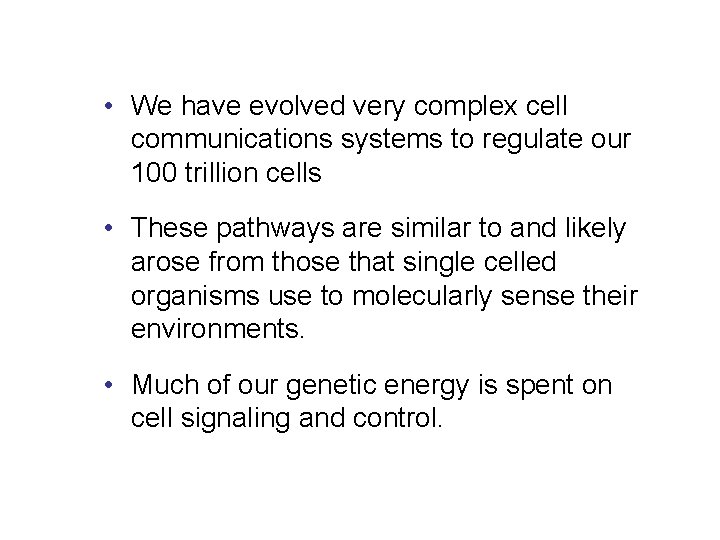

• We have evolved very complex cell communications systems to regulate our 100 trillion cells • These pathways are similar to and likely arose from those that single celled organisms use to molecularly sense their environments. • Much of our genetic energy is spent on cell signaling and control.

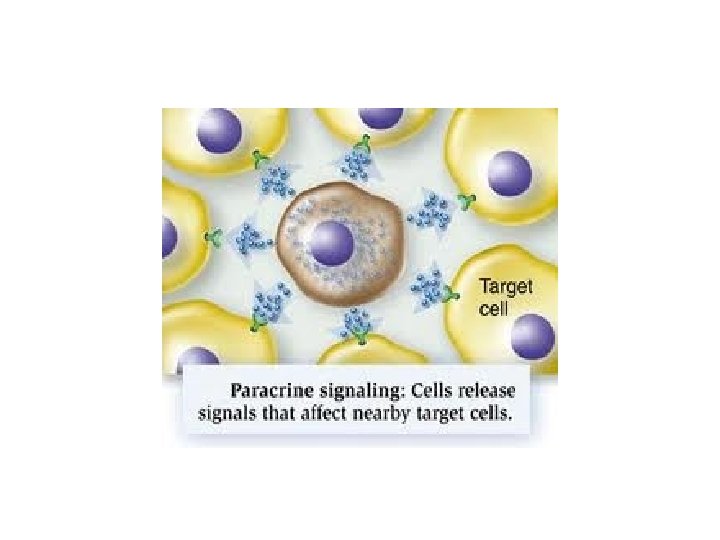

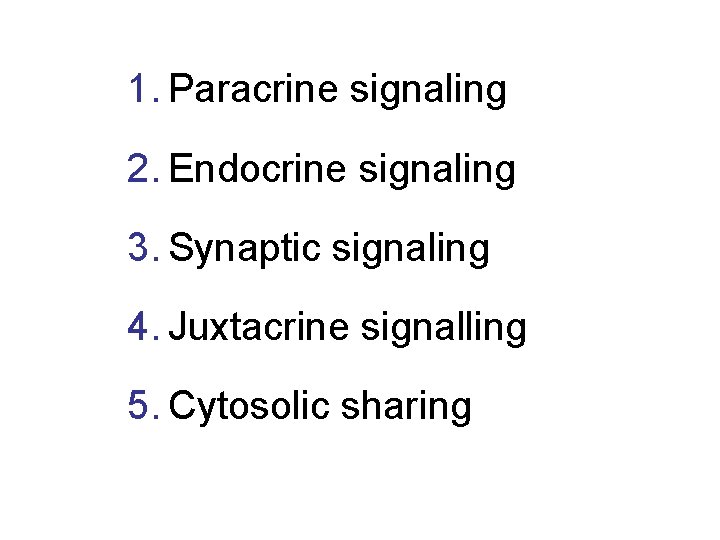

1. Paracrine signaling 2. Endocrine signaling 3. Synaptic signaling 4. Juxtacrine signalling 5. Cytosolic sharing

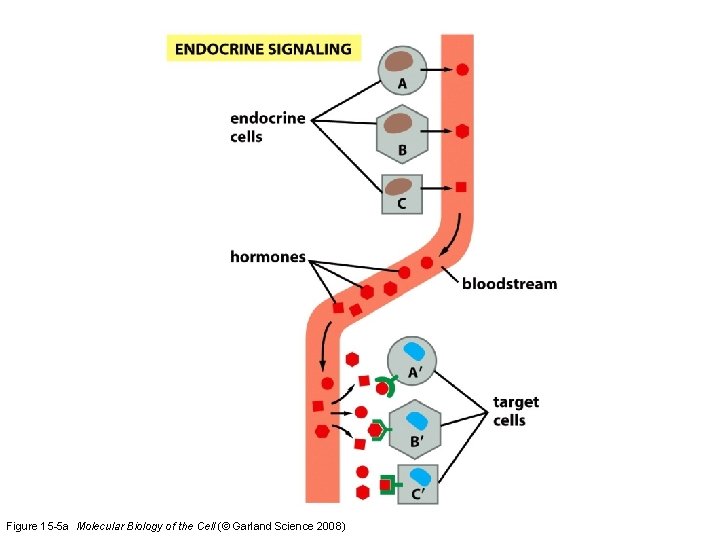

Figure 15 -5 a Molecular Biology of the Cell (© Garland Science 2008)

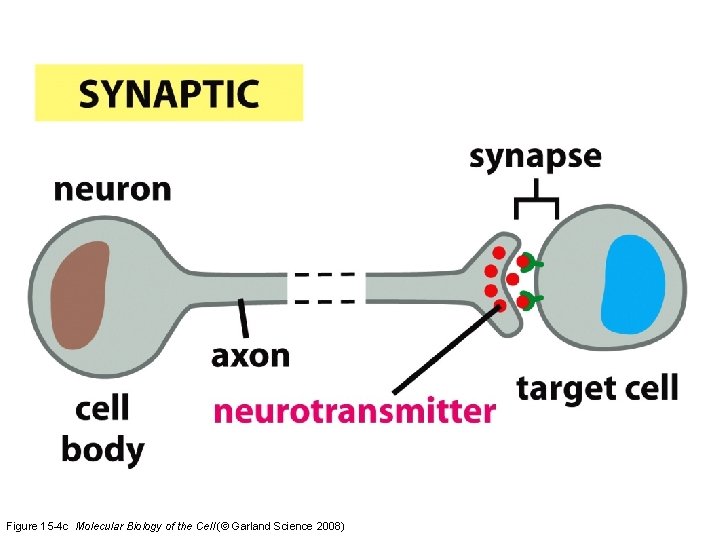

Figure 15 -4 c Molecular Biology of the Cell (© Garland Science 2008)

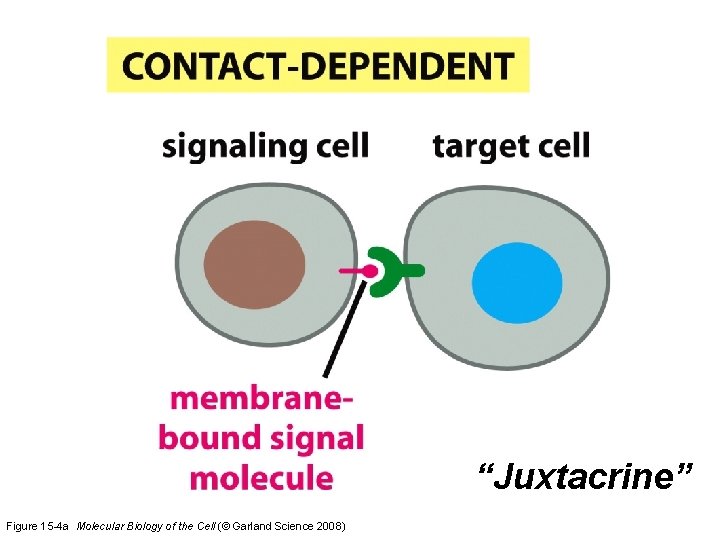

“Juxtacrine” Figure 15 -4 a Molecular Biology of the Cell (© Garland Science 2008)

Fig. 6 -31 Plasmodesmata in Plant Cells Cell walls Interior of cell 0. 5 µm Plasmodesmata Plasma membranes Gap Junctions in Animal Cells

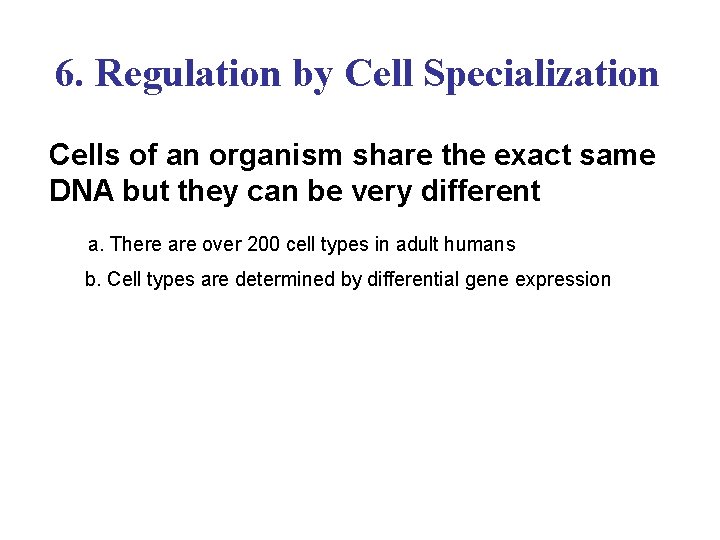

6. Regulation by Cell Specialization Cells of an organism share the exact same DNA but they can be very different a. There are over 200 cell types in adult humans b. Cell types are determined by differential gene expression

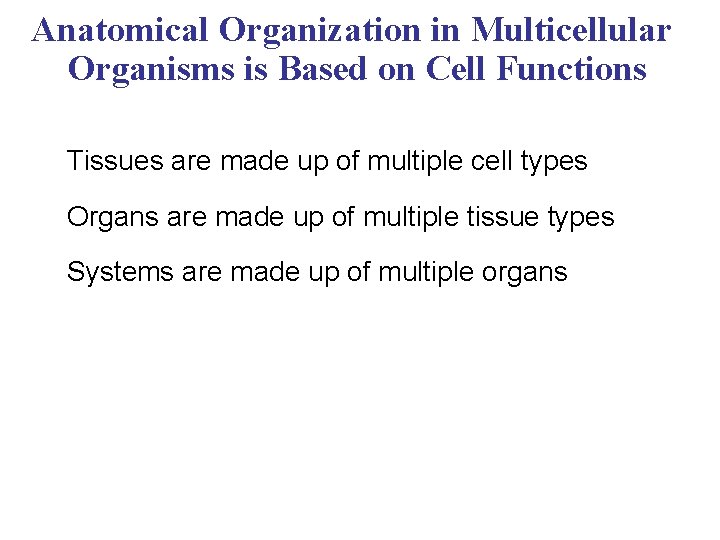

Anatomical Organization in Multicellular Organisms is Based on Cell Functions Tissues are made up of multiple cell types Organs are made up of multiple tissue types Systems are made up of multiple organs

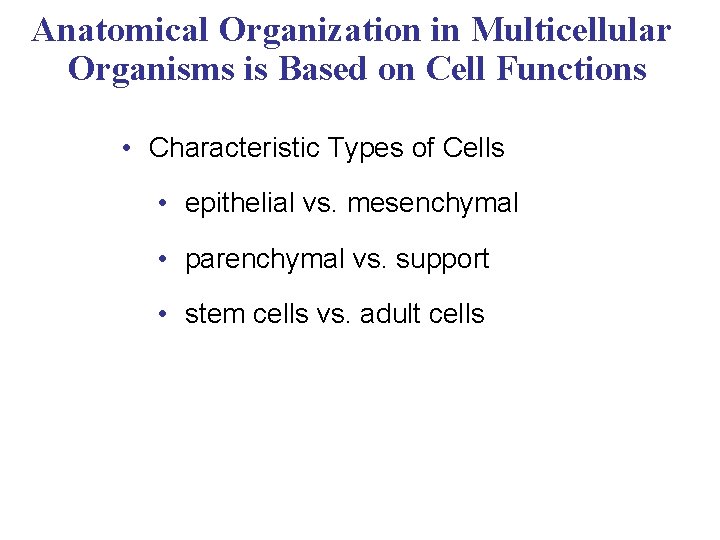

Anatomical Organization in Multicellular Organisms is Based on Cell Functions • Characteristic Types of Cells • epithelial vs. mesenchymal • parenchymal vs. support • stem cells vs. adult cells

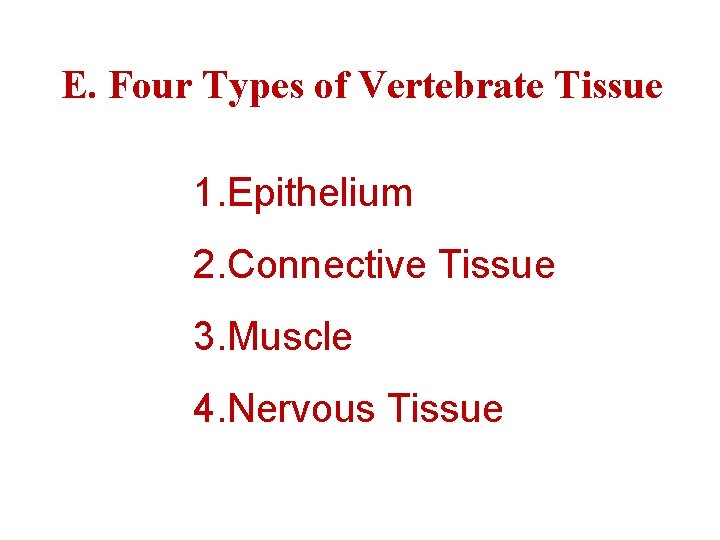

E. Four Types of Vertebrate Tissue 1. Epithelium 2. Connective Tissue 3. Muscle 4. Nervous Tissue

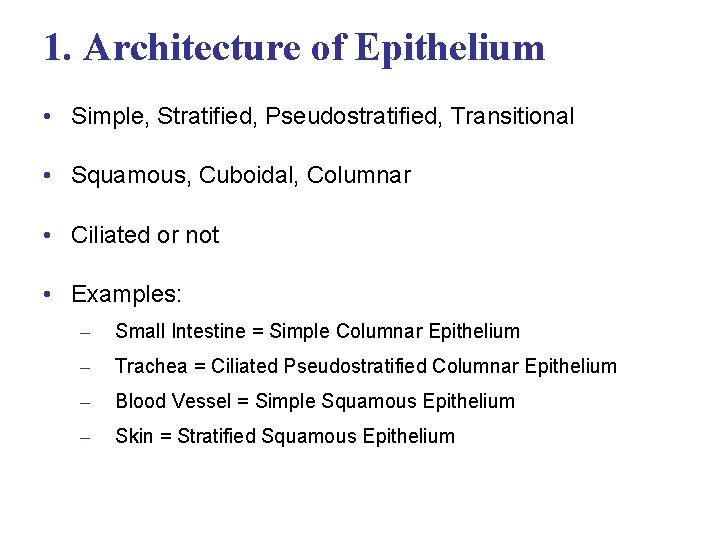

1. Architecture of Epithelium • Simple, Stratified, Pseudostratified, Transitional • Squamous, Cuboidal, Columnar • Ciliated or not • Examples: – Small Intestine = Simple Columnar Epithelium – Trachea = Ciliated Pseudostratified Columnar Epithelium – Blood Vessel = Simple Squamous Epithelium – Skin = Stratified Squamous Epithelium

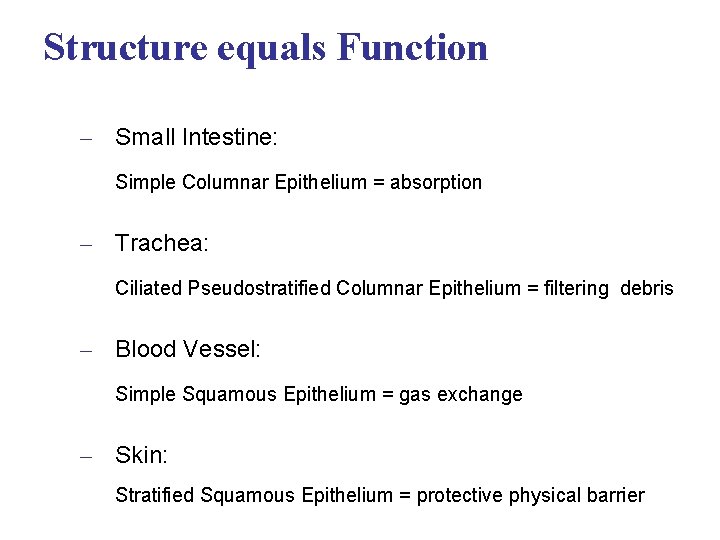

Structure equals Function – Small Intestine: Simple Columnar Epithelium = absorption – Trachea: Ciliated Pseudostratified Columnar Epithelium = filtering debris – Blood Vessel: Simple Squamous Epithelium = gas exchange – Skin: Stratified Squamous Epithelium = protective physical barrier

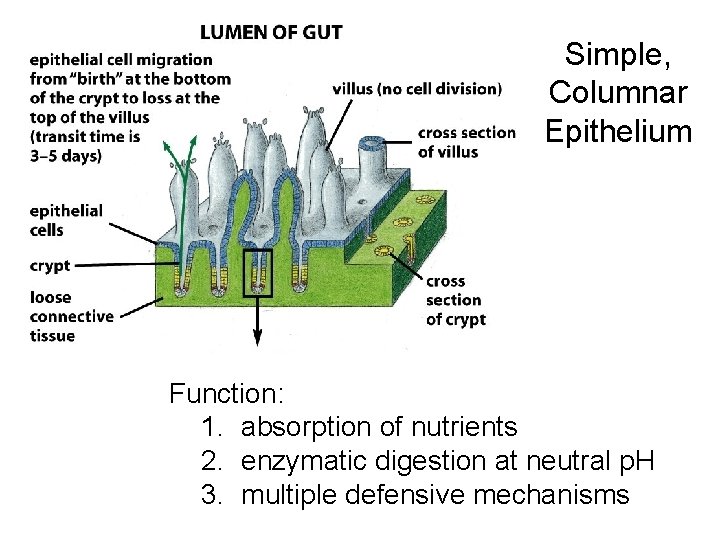

Simple, Columnar Epithelium Function: 1. absorption of nutrients 2. enzymatic digestion at neutral p. H 3. multiple defensive mechanisms

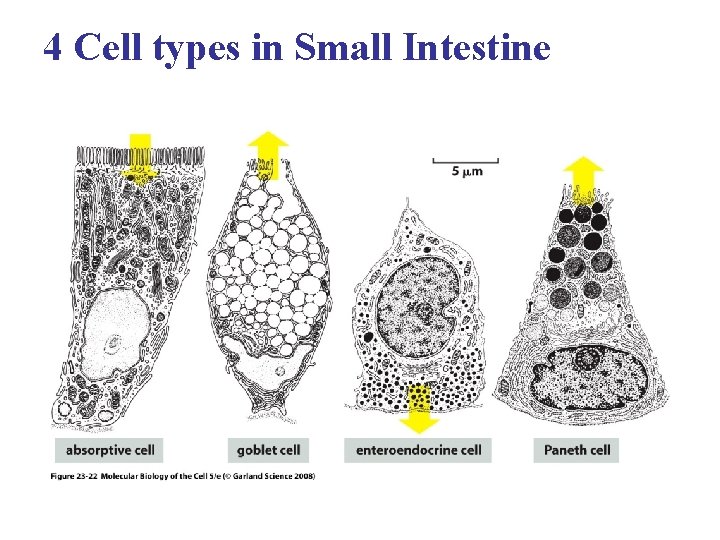

4 Cell types in Small Intestine

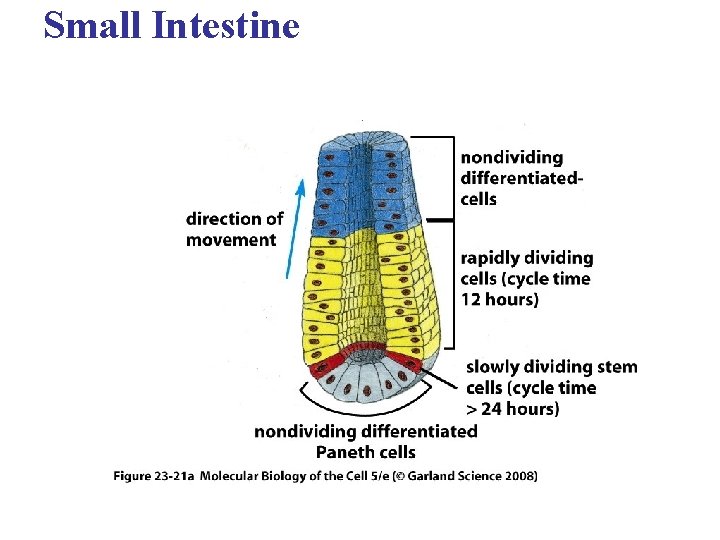

Small Intestine

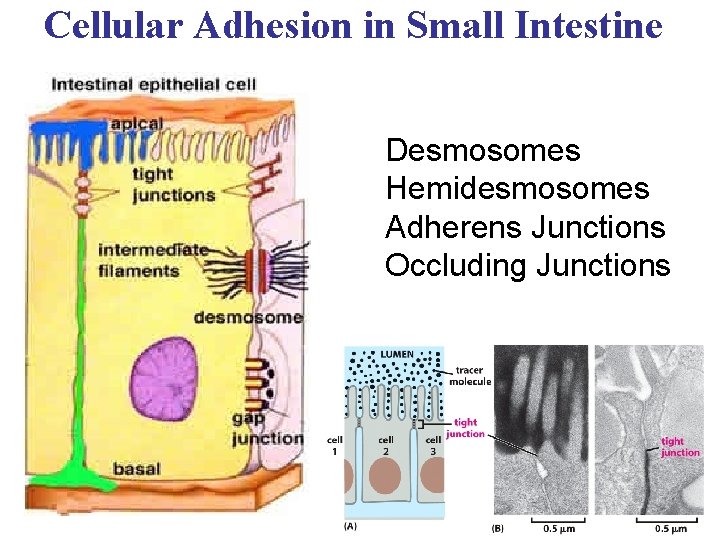

Cellular Adhesion in Small Intestine Desmosomes Hemidesmosomes Adherens Junctions Occluding Junctions

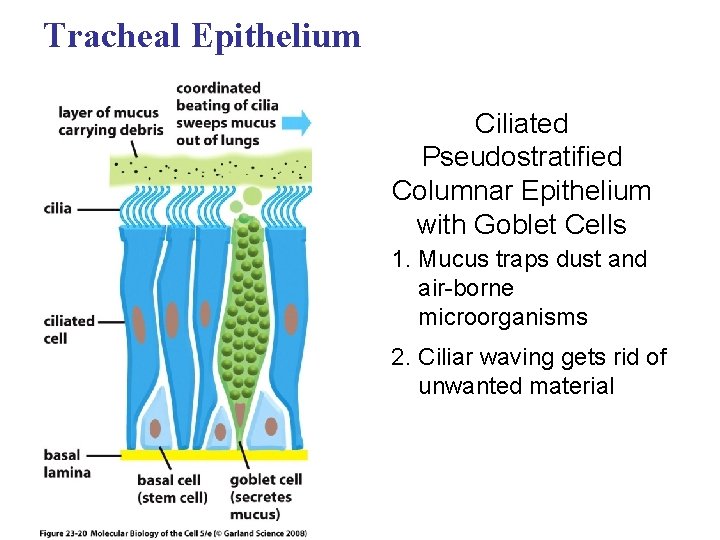

Tracheal Epithelium Ciliated Pseudostratified Columnar Epithelium with Goblet Cells 1. Mucus traps dust and air-borne microorganisms 2. Ciliar waving gets rid of unwanted material

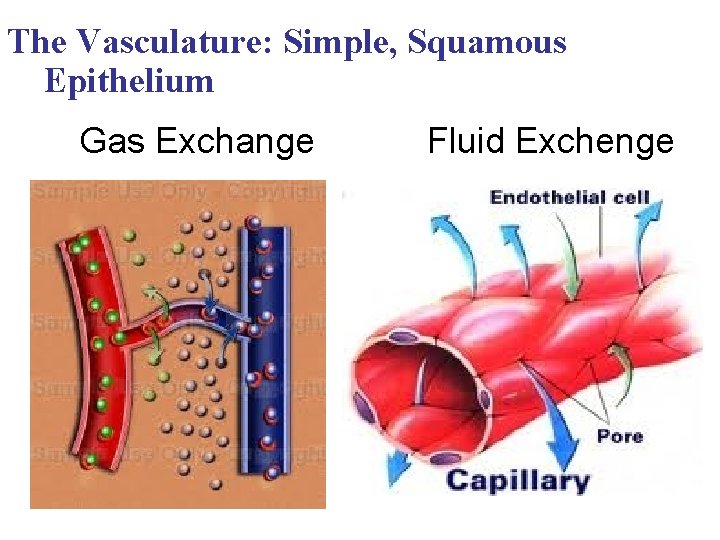

The Vasculature: Simple, Squamous Epithelium Gas Exchange Fluid Exchenge

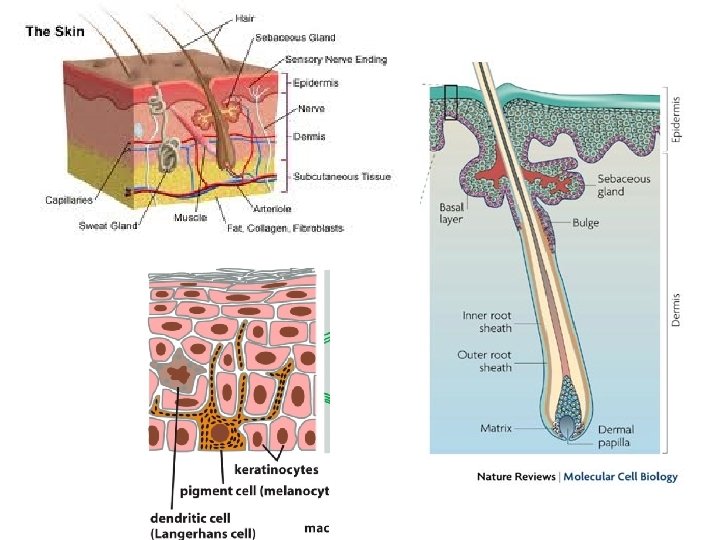

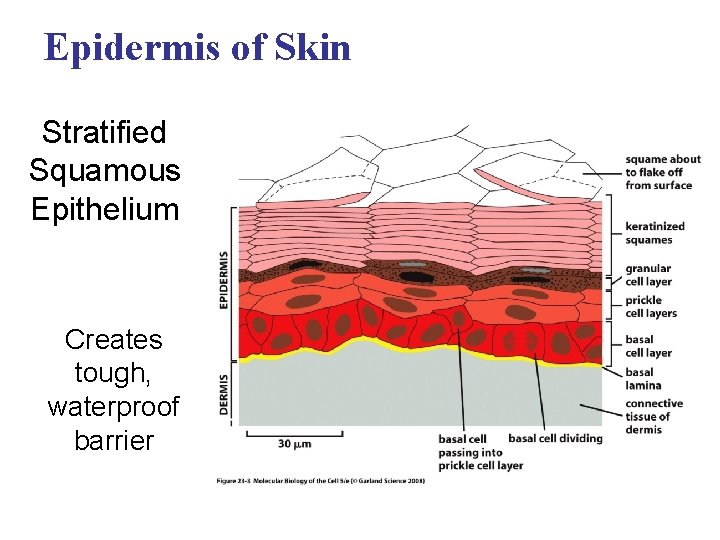

Epidermis of Skin Stratified Squamous Epithelium Creates tough, waterproof barrier

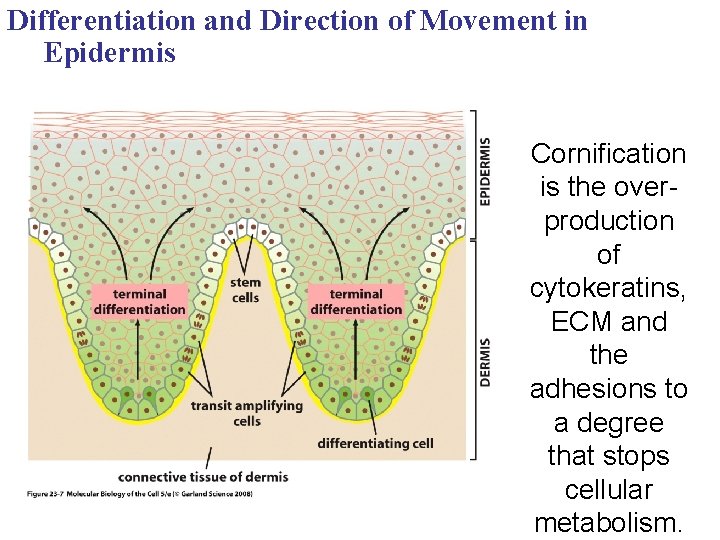

Differentiation and Direction of Movement in Epidermis Cornification is the overproduction of cytokeratins, ECM and the adhesions to a degree that stops cellular metabolism.

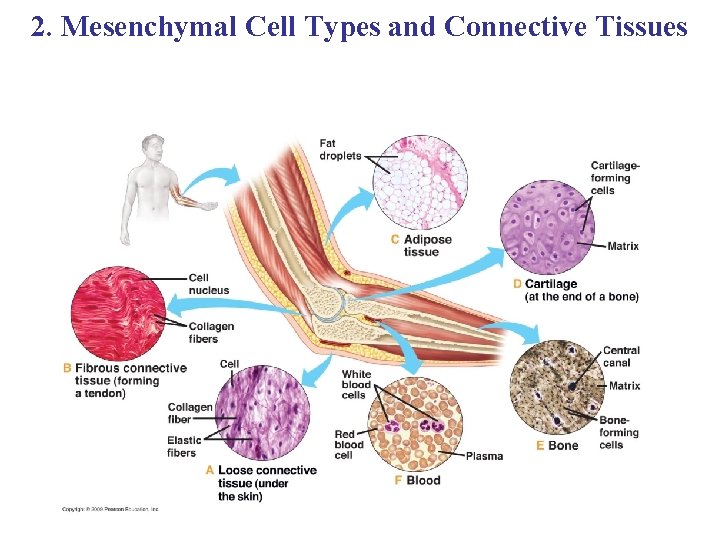

2. Mesenchymal Cell Types and Connective Tissues

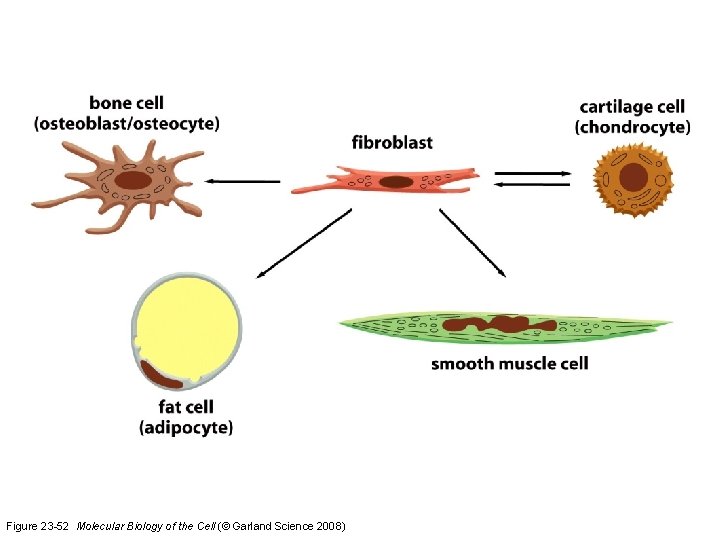

Figure 23 -52 Molecular Biology of the Cell (© Garland Science 2008)

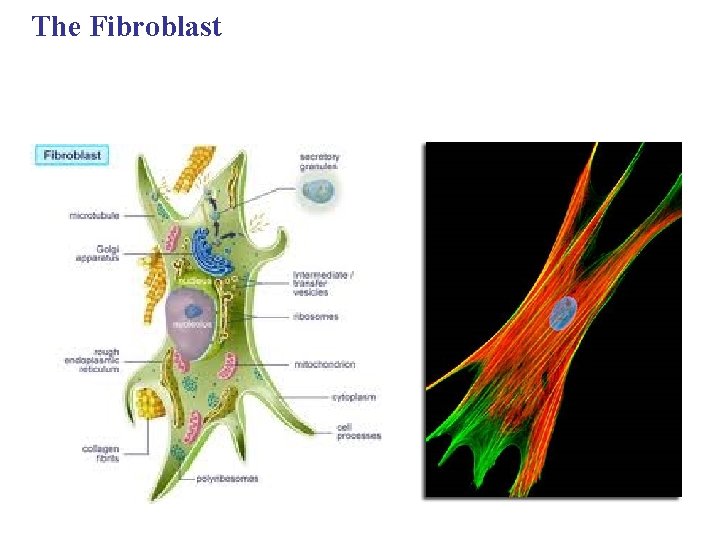

The Fibroblast

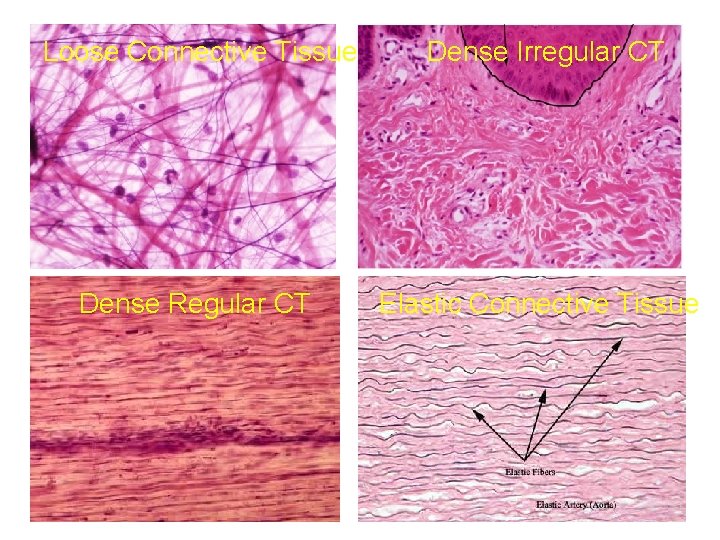

Loose Connective Tissue Dense Irregular CT Dense Regular CT Elastic Connective Tissue

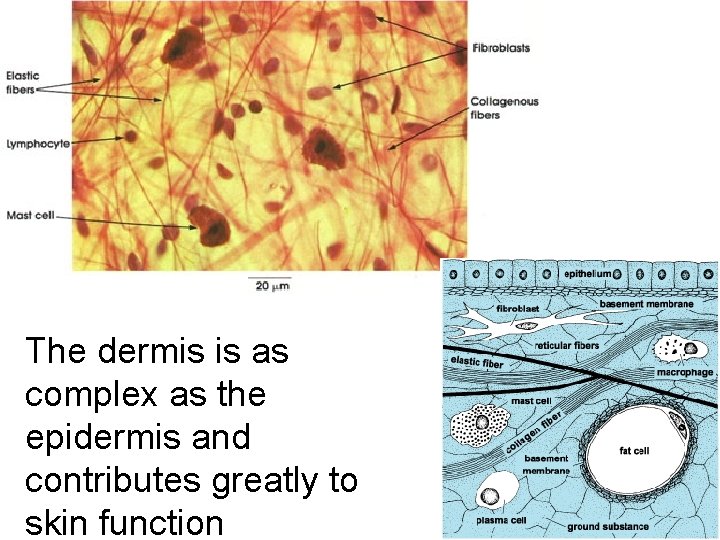

The dermis is as complex as the epidermis and contributes greatly to skin function

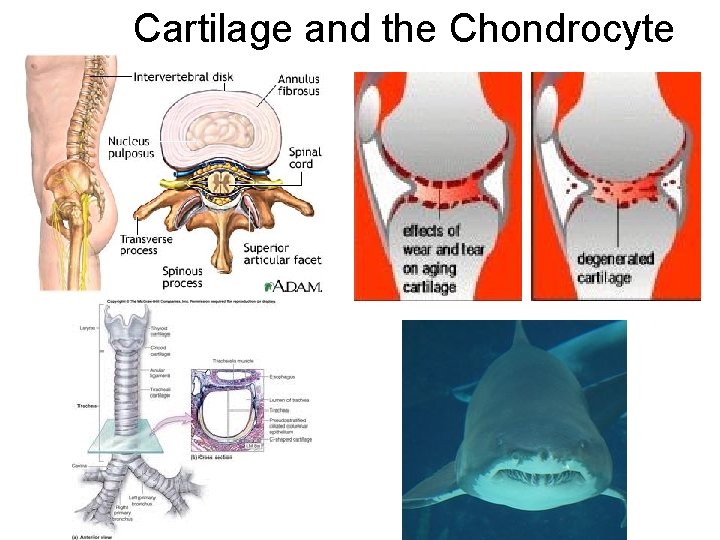

Cartilage and the Chondrocyte

Lacunar Structure of the Hyaline Cartilage Extremely low blood flow

Osteoblasts Lacunar structure of the long bone

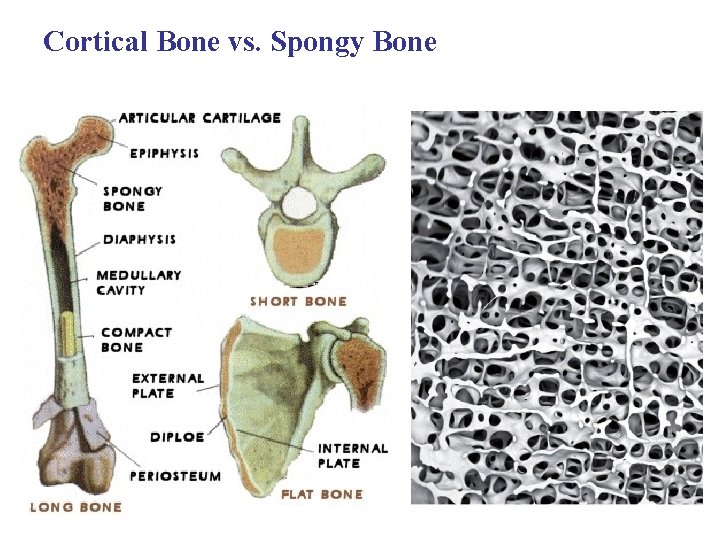

Cortical Bone vs. Spongy Bone

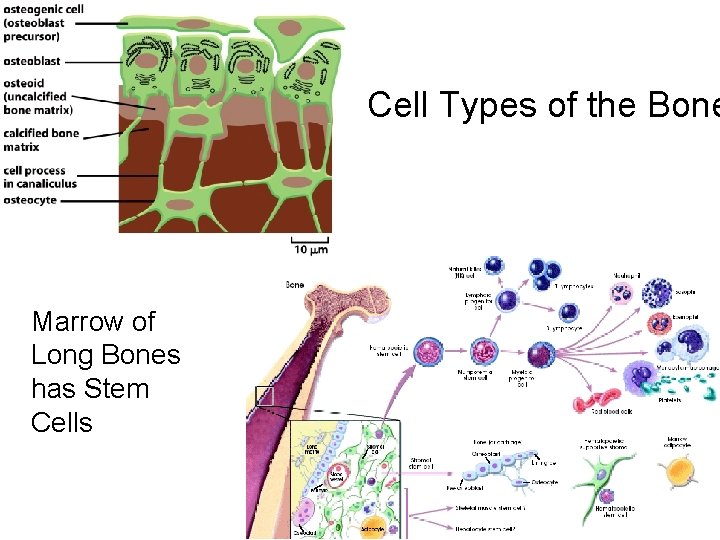

Cell Types of the Bone Marrow of Long Bones has Stem Cells

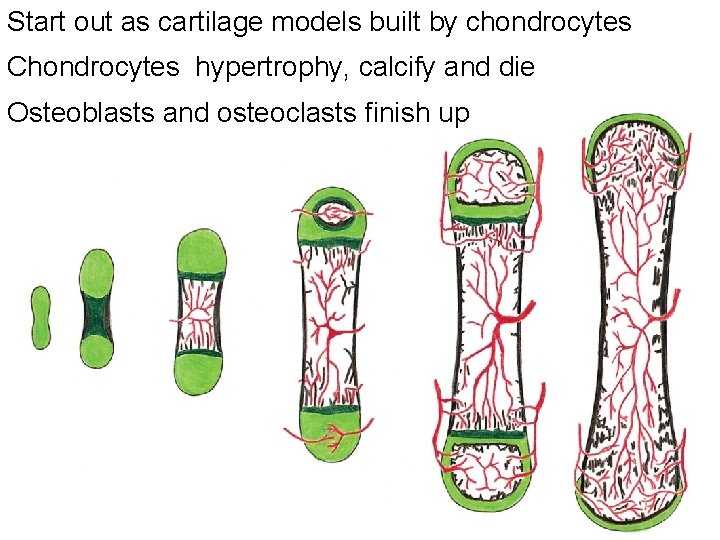

Start out as cartilage models built by chondrocytes Chondrocytes hypertrophy, calcify and die Osteoblasts and osteoclasts finish up

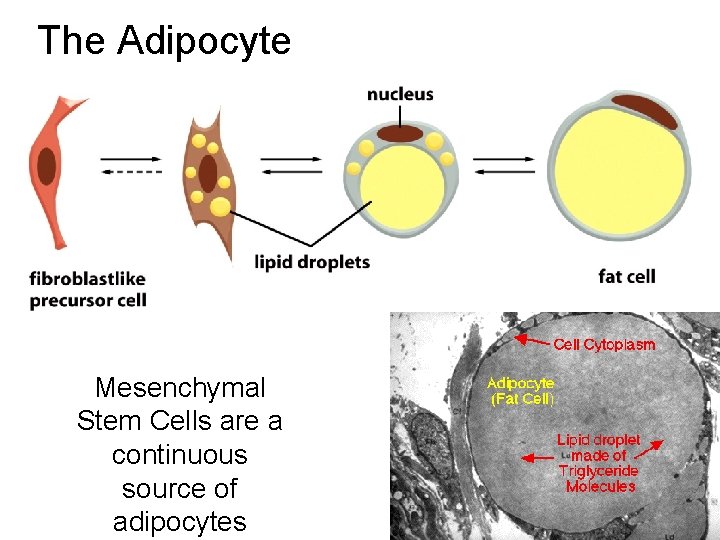

The Adipocyte Mesenchymal Stem Cells are a continuous source of adipocytes

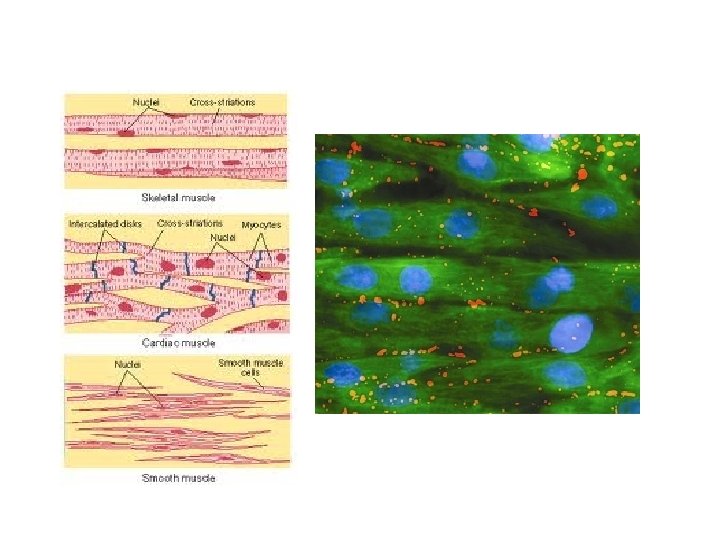

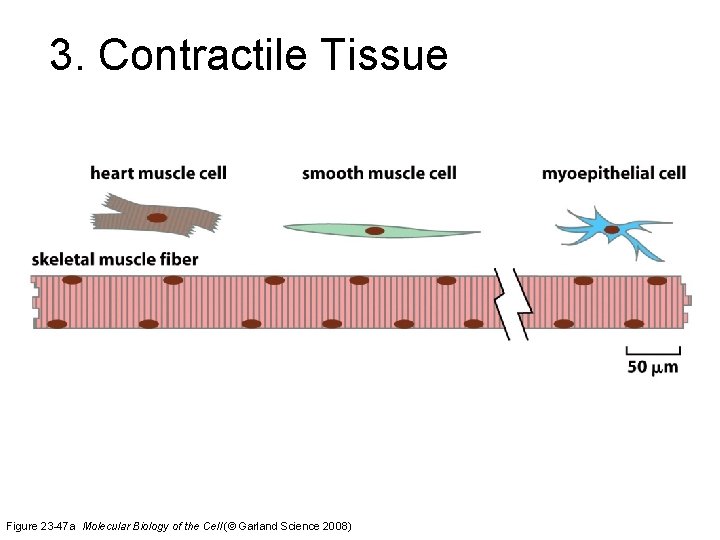

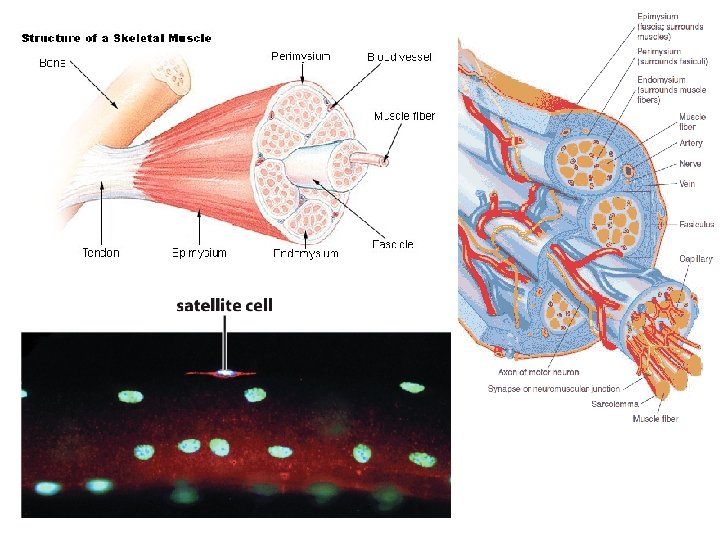

3. Contractile Tissue Figure 23 -47 a Molecular Biology of the Cell (© Garland Science 2008)

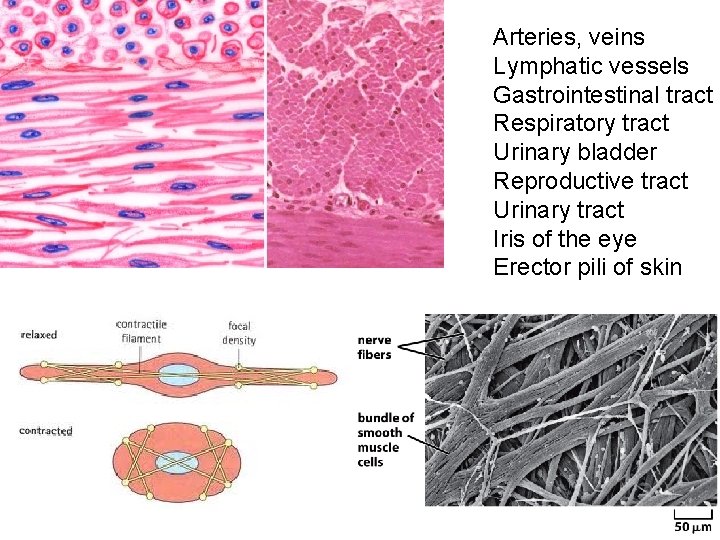

Arteries, veins Lymphatic vessels Gastrointestinal tract Respiratory tract Urinary bladder Reproductive tract Urinary tract Iris of the eye Erector pili of skin

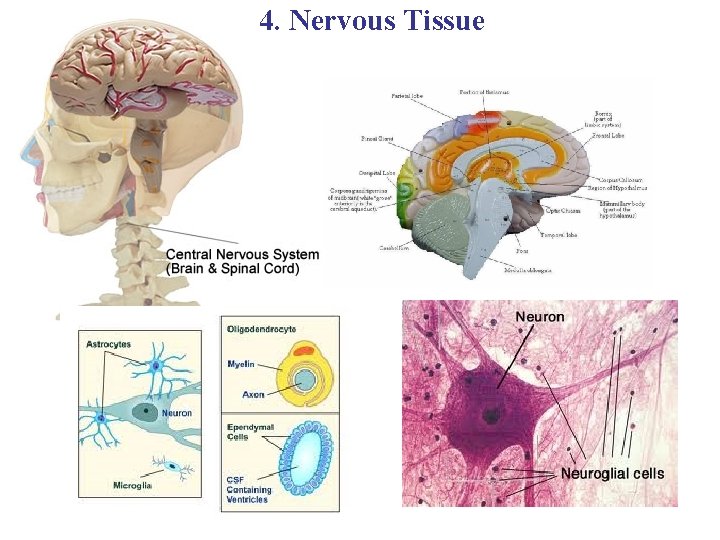

4. Nervous Tissue

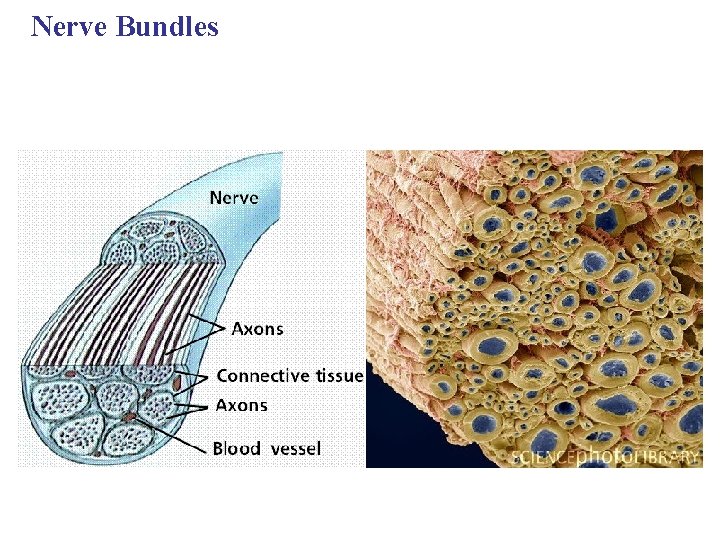

Nerve Bundles
