Binomial Trees Chapter 11 Options Futures and Other
Binomial Trees Chapter 11 Options, Futures, and Other Derivatives 6 th Edition, Copyright © John C. Hull 2005 11. 1
A Simple Binomial Model l l A stock price is currently $20 In three months it will be either $22 or $18 Stock Price = $22 Stock price = $20 Stock Price = $18 Options, Futures, and Other Derivatives 6 th Edition, Copyright © John C. Hull 2005 11. 2
A Call Option (Figure 11. 1, page 242) A 3 -month call option on the stock has a strike price of 21. Stock Price = $22 Option Price = $1 Stock price = $20 Option Price=? Stock Price = $18 Option Price = $0 Options, Futures, and Other Derivatives 6 th Edition, Copyright © John C. Hull 2005 11. 3

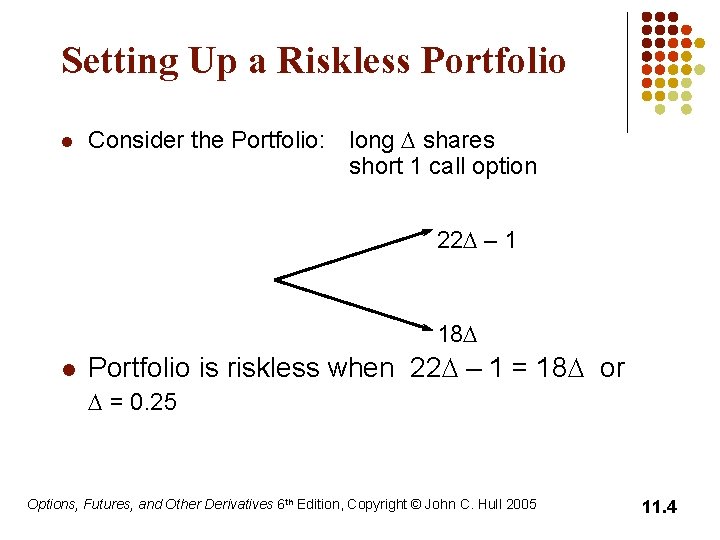

Setting Up a Riskless Portfolio l Consider the Portfolio: long D shares short 1 call option 22 D – 1 18 D l Portfolio is riskless when 22 D – 1 = 18 D or D = 0. 25 Options, Futures, and Other Derivatives 6 th Edition, Copyright © John C. Hull 2005 11. 4
Valuing the Portfolio (Risk-Free Rate is 12%) l l l The riskless portfolio is: long 0. 25 shares short 1 call option The value of the portfolio in 3 months is 22 ´ 0. 25 – 1 = 4. 50 The value of the portfolio today is 4. 5 e – 0. 12´ 0. 25 = 4. 3670 Options, Futures, and Other Derivatives 6 th Edition, Copyright © John C. Hull 2005 11. 5
Valuing the Option The portfolio that is long 0. 25 shares short 1 option is worth 4. 367 l The value of the shares is 5. 000 (= 0. 25 ´ 20 ) l The value of the option is therefore 0. 633 (= 5. 000 – 4. 367 ) l Options, Futures, and Other Derivatives 6 th Edition, Copyright © John C. Hull 2005 11. 6

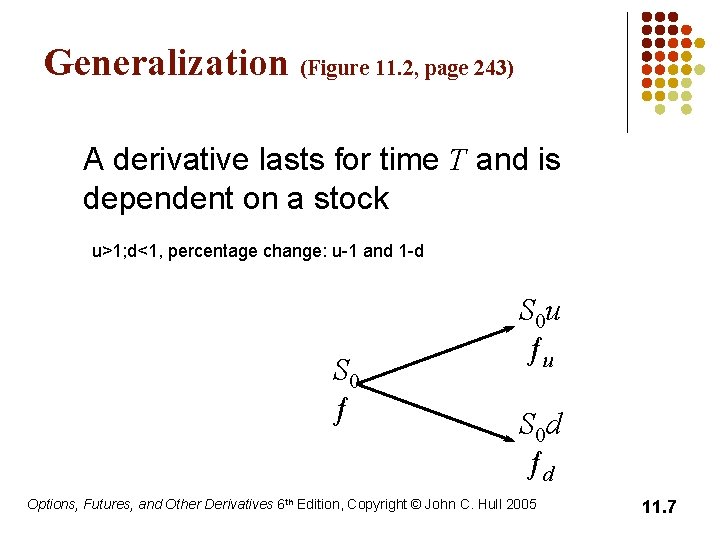

Generalization (Figure 11. 2, page 243) A derivative lasts for time T and is dependent on a stock u>1; d<1, percentage change: u-1 and 1 -d S 0 ƒ S 0 u ƒu S 0 d ƒd Options, Futures, and Other Derivatives 6 th Edition, Copyright © John C. Hull 2005 11. 7
Generalization (continued) l Consider the portfolio that is long D shares and short 1 derivative S 0 u. D – ƒu S 0 d. D – ƒd l The portfolio is riskless when S 0 u. D – ƒu = S 0 d. D – ƒd or Options, Futures, and Other Derivatives 6 th Edition, Copyright © John C. Hull 2005 11. 8

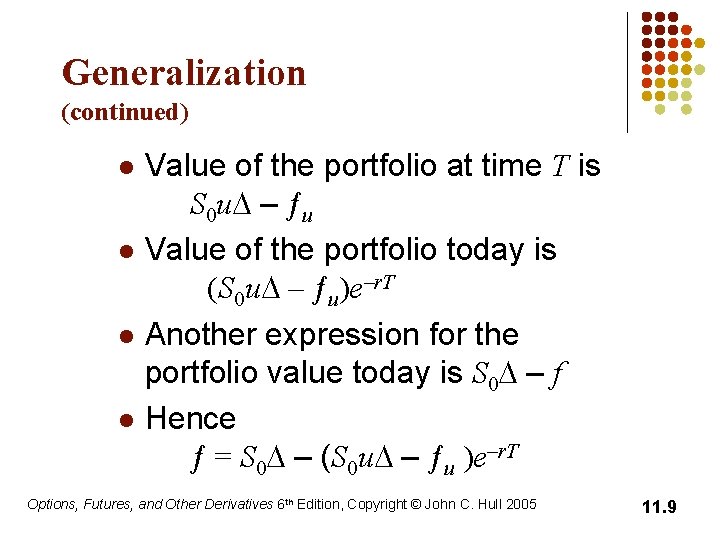

Generalization (continued) l l Value of the portfolio at time T is S 0 u. D – ƒu Value of the portfolio today is (S 0 u. D – ƒu)e–r. T Another expression for the portfolio value today is S 0 D – f Hence ƒ = S 0 D – (S 0 u. D – ƒu )e–r. T Options, Futures, and Other Derivatives 6 th Edition, Copyright © John C. Hull 2005 11. 9

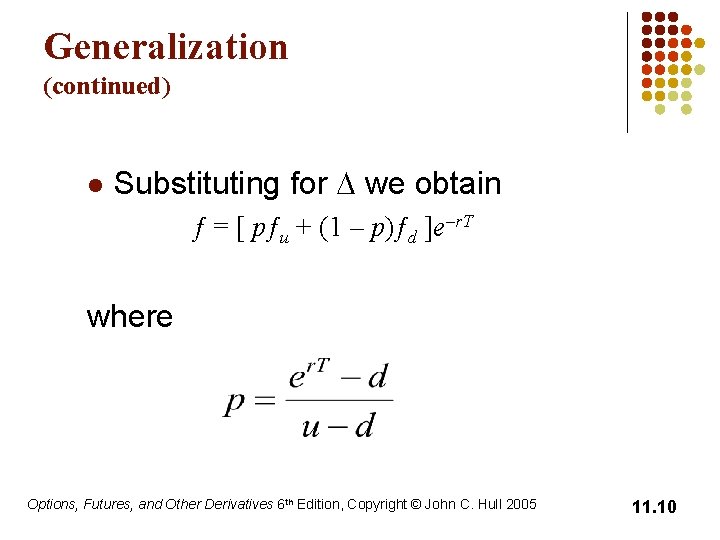

Generalization (continued) l Substituting for D we obtain ƒ = [ pƒu + (1 – p)ƒd ]e–r. T where Options, Futures, and Other Derivatives 6 th Edition, Copyright © John C. Hull 2005 11. 10
p as a Probability l l It is natural to interpret p and 1 -p as probabilities of up and down movements The value of a derivative is then its expected payoff in a risk-neutral world discounted at the risk-free rate S 0 ƒ (1 – p S 0 u ƒu p) S 0 d ƒd Options, Futures, and Other Derivatives 6 th Edition, Copyright © John C. Hull 2005 11. 11

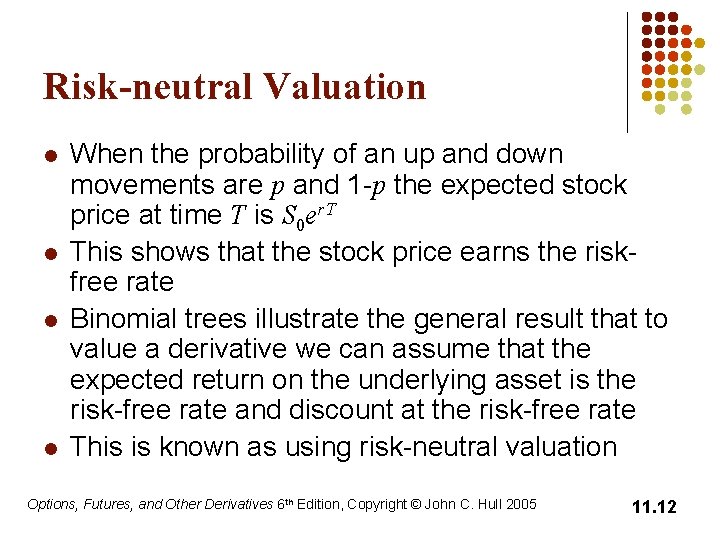

Risk-neutral Valuation l l When the probability of an up and down movements are p and 1 -p the expected stock price at time T is S 0 er. T This shows that the stock price earns the riskfree rate Binomial trees illustrate the general result that to value a derivative we can assume that the expected return on the underlying asset is the risk-free rate and discount at the risk-free rate This is known as using risk-neutral valuation Options, Futures, and Other Derivatives 6 th Edition, Copyright © John C. Hull 2005 11. 12
Original Example Revisited p S 0 ƒ l l (1 – p) S 0 u = 22 ƒu = 1 S 0 d = 18 ƒd = 0 Since p is the probability that gives a return on the stock equal to the risk-free rate. We can find it from 20 e 0. 12 ´ 0. 25 = 22 p + 18(1 – p ) which gives p = 0. 6523 Alternatively, we can use the formula Options, Futures, and Other Derivatives 6 th Edition, Copyright © John C. Hull 2005 11. 13
Valuing the Option Using Risk. Neutral Valuation S 0 ƒ 3 2 5 0. 6 0. 34 77 S 0 u = 22 ƒu = 1 S 0 d = 18 ƒd = 0 The value of the option is e– 0. 12´ 0. 25 (0. 6523´ 1 + 0. 3477´ 0) = 0. 633 Options, Futures, and Other Derivatives 6 th Edition, Copyright © John C. Hull 2005 11. 14
Irrelevance of Stock’s Expected Return l l When we are valuing an option in terms of the price of the underlying asset, the probability of up and down movements in the real world are irrelevant This is an example of a more general result stating that the expected return on the underlying asset in the real world is irrelevant Options, Futures, and Other Derivatives 6 th Edition, Copyright © John C. Hull 2005 11. 15
A Two-Step Example Figure 11. 3, page 246 24. 2 22 19. 8 20 18 l l 16. 2 Each time step is 3 months K=21, r=12% Options, Futures, and Other Derivatives 6 th Edition, Copyright © John C. Hull 2005 11. 16

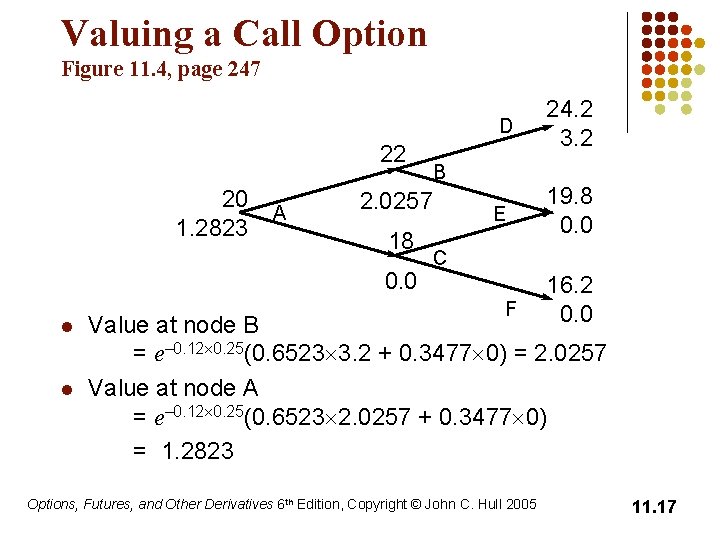

Valuing a Call Option Figure 11. 4, page 247 D 22 20 1. 2823 A 2. 0257 18 0. 0 l l B E 24. 2 3. 2 19. 8 0. 0 C F 16. 2 0. 0 Value at node B = e– 0. 12´ 0. 25(0. 6523´ 3. 2 + 0. 3477´ 0) = 2. 0257 Value at node A = e– 0. 12´ 0. 25(0. 6523´ 2. 0257 + 0. 3477´ 0) = 1. 2823 Options, Futures, and Other Derivatives 6 th Edition, Copyright © John C. Hull 2005 11. 17
A Put Option Example; K=52 Figure 11. 7, page 250 K = 52, time step = 1 yr r = 5% D 60 50 4. 1923 A B 1. 4147 40 72 0 48 4 E C 9. 4636 F Options, Futures, and Other Derivatives 6 th Edition, Copyright © John C. Hull 2005 32 20 11. 18
What Happens When an Option is American (Figure 11. 8, page 251) D 60 50 5. 0894 A B 1. 4147 40 72 0 48 4 E C 12. 0 Options, Futures, and Other Derivatives 6 th Edition, Copyright © John C. Hull 2005 F 32 20 11. 19
Delta l l Delta (D) is the ratio of the change in the price of a stock option to the change in the price of the underlying stock The value of D varies from node to node Options, Futures, and Other Derivatives 6 th Edition, Copyright © John C. Hull 2005 11. 20
Choosing u and d One way of matching the volatility is to set where s is the volatility and Dt is the length of the time step. This is the approach used by Cox, Ross, and Rubinstein Options, Futures, and Other Derivatives 6 th Edition, Copyright © John C. Hull 2005 11. 21
The Probability of an Up Move Options, Futures, and Other Derivatives 6 th Edition, Copyright © John C. Hull 2005 11. 22
