Binary Subtraction • • Review from CSE 171 Two’s Complement Negative Numbers Binary Adder-Subtractors 4 -bit Adder/Subtractor in VHDL

Half Subtractor A 0 B 0 D 0 0 0 1 1 0 1 0 1 1 0 C 1 0 0 A 0 B 0 D 0 C 1

Full Subtractor Ci Ai Bi Di Ci+1 0 0 1 1 0 1 0 1 0 1 0 0 1 1 0 1 Ai B i 00 Ci 11 1 01 10 1 1 1 Di Di = Ci $ (Ai $ Bi) Same as Si in full adder

Full Subtractor Ci Ai Bi Di Ci+1 0 0 1 1 0 1 0 1 0 1 0 0 1 1 0 1 Ai B i 00 Ci 11 10 1 01 1 Ci+1 = !Ai & Bi # Ci !Ai & !Bi # Ci & A i & B i

Full Subtractor Ci+1 = !Ai & Bi # Ci !Ai & !Bi # Ci & A i & B i Ci+1 = !Ai & Bi # Ci & (!Ai & !Bi # Ai & Bi) Ci+1 = !Ai & Bi # Ci & !(Ai $ Bi) Recall: Si = Ci $ (Ai $ Bi) Ci+1 = !Ai & Bi # Ci & !(Ai $ Bi)

Full Subtractor Si = Ci $ (Ai $ Bi) Ci+1 = !Ai & Bi # Ci & !(Ai $ Bi) half subtractor

Binary Subtraction • • Review from CSE 171 Two’s Complement Negative Numbers Binary Adder-Subtractors 4 -bit Adder/Subtractor in VHDL

Negative Numbers Subtract by adding 73 -35 38 10’s complement Ignore carry 73 +65 138

Negative Numbers 10’s complement: Subtract from 100 -35 65 Take 9’s complement and add 1 99 -35 64 +1 65

Negative Numbers 2’s complement: Subtract from 10000 01001101 10110011 Take 1’s complement and add 1 1111 -01001101 10110010 +1 10110011

Finding 2’s Complement remaining bits 0 1 1 0 0 0 1 0 1 0 0 0 2’s complement Copy all bits to first 1

Negative Number Take 2’s Complement 7510 = 4 B 16 = 01001011 -7510 = B 516 = 10110101 FF -4 B B 4 +1 B 5

Negative Number Take 2’s Complement 110 = 0116 = 00000001 -110 = FF 16 = 1111 12810 = 8016 = 10000000 -12810 = 8016 = 10000000

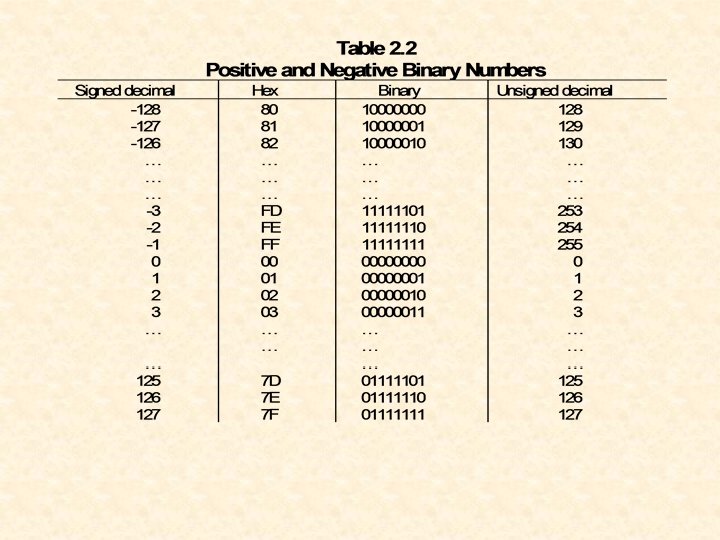

Signed Numbers 4 -bit: 8 H = -8 to 7 H = +7 1000 to 0111 8 -bit: 80 H = -128 to 7 F = +127 16 -bit: 8000 H = -32, 768 to 7 FFFH = +32, 767 32 -bit: 80000000 H = -2, 147, 483, 648 to 7 FFFFFFFH = +2, 147, 483, 647

Binary Subtraction • • Review from CSE 171 Two’s Complement Negative Numbers Binary Adder-Subtractors 4 -bit Adder/Subtractor in VHDL

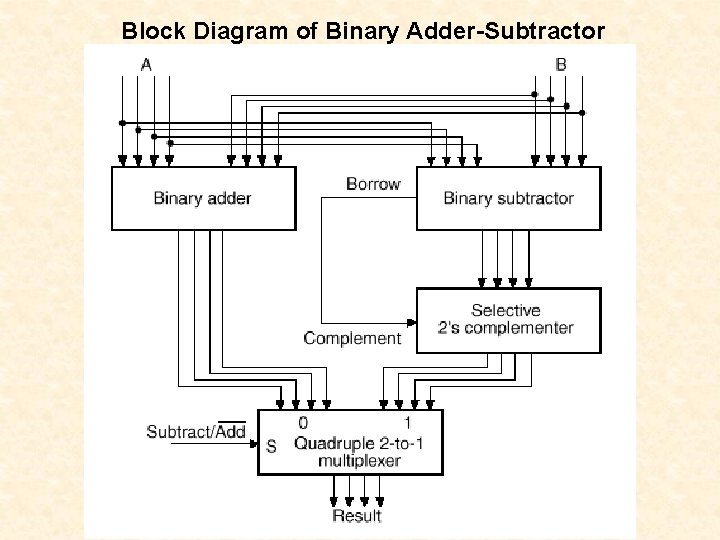

Block Diagram of Binary Adder-Subtractor

Adder/Subtractor A 0 B 0 S 0 C 1 Half adder E = 0: Half adder E = 1: Half subtractor A 0 B 0 D 0 C 1 Half subtractor

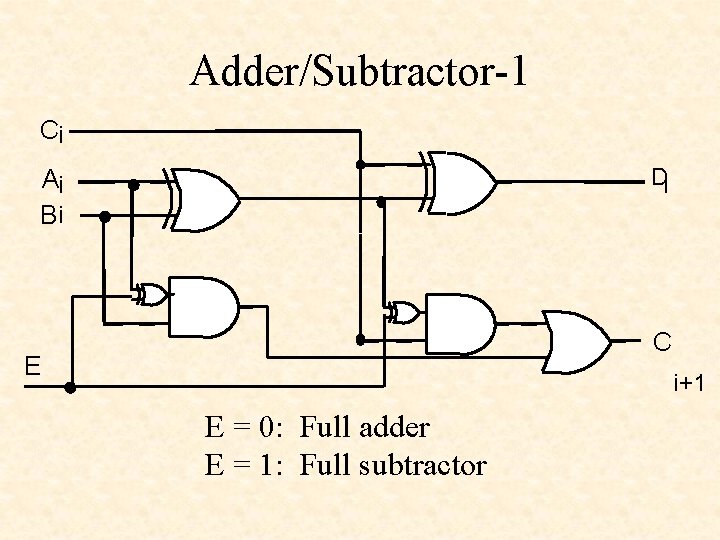

Adder/Subtractor-1 Ci Di Ai Bi C E i+1 E = 0: Full adder E = 1: Full subtractor

Full Adder Reordered Full Adder Full Subtractor Ci Ai Bi Si Ci+1 Ci Ai Bi Di Ci+1 0 0 1 1 1 1 0 0 0 0 1 1 0 1 0 1 0 1 1 0 0 0 1 1 1 0 1 0 0 1 1 0 0 1 0 NOT 0 0 1 1 0 1 0 1 0 1 0 0 1 1 0 1

Making a full adder from a full subtractor

Adder/Subtractor-2 E = 0: 4 -bit adder E = 1: 4 -bit subtractor

4 -bit Subtractor: E = 1 +1 Add A to !B (one’s complement) plus 1 That is, add A to two’s complement of B D=A-B

Adder- Subtractor Circuit

Binary Subtraction • • Review from CSE 171 Two’s Complement Negative Numbers Binary Adder-Subtractors 4 -bit Adder/Subtractor in VHDL

A 4 -Bit Adder-Subtractor

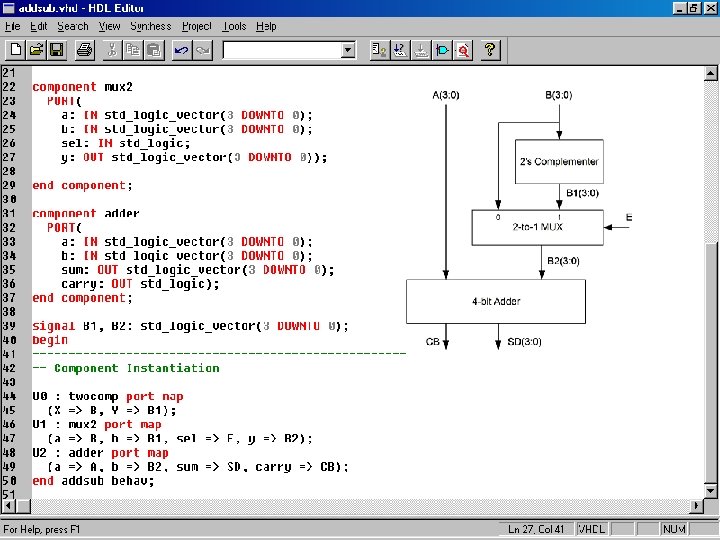

addsub 2. vhd SD(3: 0) a(3: 0) b(3: 0) addsub 2 CB E
