Binary Numbers Material on Data Representation can be

Binary Numbers Material on Data Representation can be found in Chapter 2 of Computer Architecture (Nicholas Carter) CSIT 301 (Blum) 1

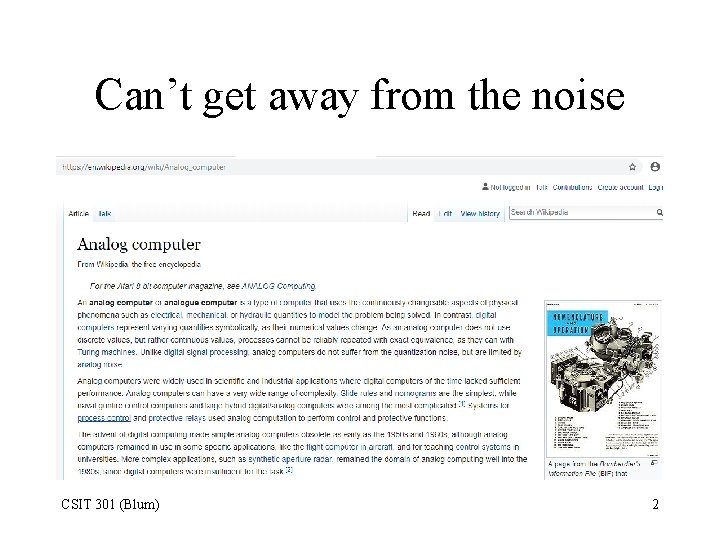

Can’t get away from the noise CSIT 301 (Blum) 2

Why Binary? • Maximal distinction among values minimal corruption from noise. • Imagine taking the same physical attribute of a circuit, e. g. a voltage lying between 0 and 5 volts, to represent a number. • The overall range can be divided into any number of regions. CSIT 301 (Blum) 3

Don’t sweat the small stuff • For decimal numbers, fluctuations must be less than 0. 25 volts. • For binary numbers, fluctuations must be less than 1. 25 volts Decimal CSIT 301 (Blum) Binary 0 volts 4

Range actually split in three High Forbidden range Low CSIT 301 (Blum) 5

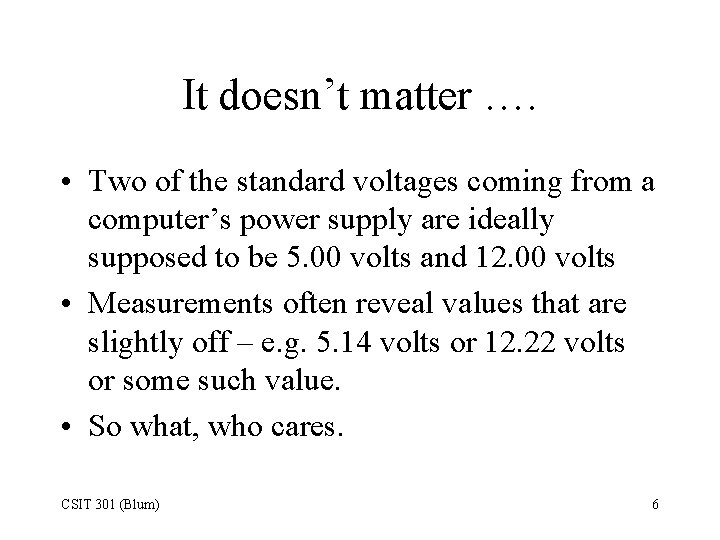

It doesn’t matter …. • Two of the standard voltages coming from a computer’s power supply are ideally supposed to be 5. 00 volts and 12. 00 volts • Measurements often reveal values that are slightly off – e. g. 5. 14 volts or 12. 22 volts or some such value. • So what, who cares. CSIT 301 (Blum) 6

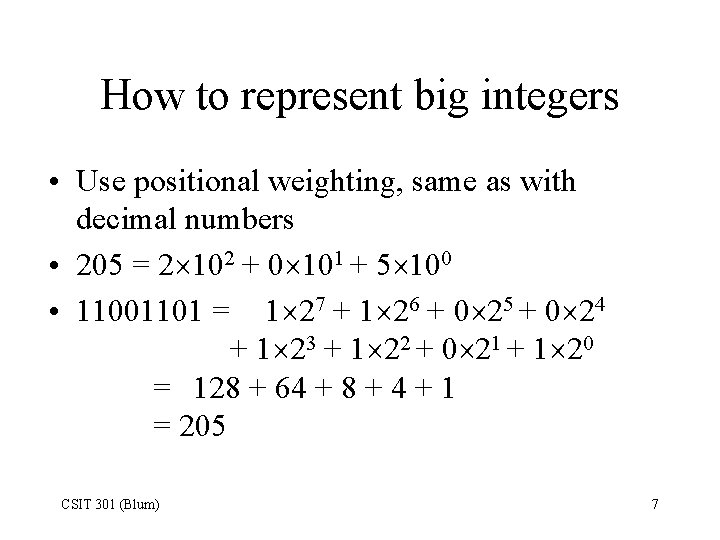

How to represent big integers • Use positional weighting, same as with decimal numbers • 205 = 2 102 + 0 101 + 5 100 • 11001101 = 1 27 + 1 26 + 0 25 + 0 24 + 1 23 + 1 22 + 0 21 + 1 20 = 128 + 64 + 8 + 4 + 1 = 205 CSIT 301 (Blum) 7

Converting 205 to Binary • 205/2 = 102 with a remainder of 1, place the 1 in the least significant digit position 1 • Repeat 102/2 = 51, remainder 0 0 CSIT 301 (Blum) 1 8

Iterate • 51/2 = 25, remainder 1 1 0 1 • 25/2 = 12, remainder 1 1 • 12/2 = 6, remainder 0 0 CSIT 301 (Blum) 1 9

Iterate • 6/2 = 3, remainder 0 0 0 1 1 1 0 1 • 3/2 = 1, remainder 1 1 0 0 • 1/2 = 0, remainder 1 1 CSIT 301 (Blum) 1 0 0 10

Recap 1 1 0 0 1 1 27 + 1 26 + 0 25 + 0 24 + 1 23 + 1 22 + 0 21 + 1 20 205 CSIT 301 (Blum) 11

Finite representation • Typically we just think computers do binary math. • But an important distinction between binary math in the abstract and what computers do is that computers are finite. • There are only so many flip-flops or logic gates in the computer. • When we declare a variable, we set aside a certain number of flip-flops (bits of memory) to hold the value of the variable. And this limits the values the variable can have. CSIT 301 (Blum) 12

Same number, different representation • • • 5 using 8 bits 0000 0101 5 using 16 bits 0000 0101 5 using 32 bits 0000 0000 0101 CSIT 301 (Blum) 13

Adding Binary Numbers • Same as decimal; if the sum of digits in a given position exceeds the base (10 for decimal, 2 for binary) then there is a carry into the next higher position + CSIT 301 (Blum) 1 3 3 7 9 5 4 14

Adding Binary Numbers 1 carries + CSIT 301 (Blum) 1 1 1 0 0 1 1 1 39 0 1 0 0 0 1 1 35 1 0 0 1 0 74 15

Uh oh, overflow • What if you use a byte (8 bits) to represent an integer 1 1 1 0 0 204 0 1 1 1 0 118 ? ? ? 1 0 170 • A byte may not be enough to represent the sum of two such numbers. CSIT 301 (Blum) 16

Biggest * unsigned integers 4 bit: 1111 15 = 24 - 1 8 bit: 1111 255 = 28 – 1 16 bit: 11111111 65535= 216 – 1 32 bit: 1111111111111111 4294967295= 232 – 1 • Etc. *If one uses all of the bits available to represent only positive counting numbers, one is said to be working with unsigned integers. • • CSIT 301 (Blum) 17

Bigger Numbers • High-level languages often offer a hierarchy of types that differ in the number of bits used. • You can represent larger numbers than allowed by the highest type in the hierarchy by using more words. • You just have to keep track of the overflows to know how the lower numbers (less significant words) are affecting the larger numbers (more significant words). CSIT 301 (Blum) 18

Negative numbers • Negative x is the number that when added to x gives zero 1 1 1 0 1 0 x 1 1 0 -x 0 0 0 0 • Ignoring overflow the two eight-bit numbers above add up to zero CSIT 301 (Blum) 19

Two’s Complement: a two-step procedure for finding -x from x 0 0 1 0 1 0 0 1 x • Step 1: exchange 1’s and 0’s 1 1 0 1 • Step 2: add 1 (to the lowest bit only) 1 CSIT 301 (Blum) 1 0 1 1 0 -x 20

Sign bit • With the two’s complement approach, all positive numbers start with a 0 in the leftmost, most-significant bit and all negative numbers start with 1. • So the first bit is called the sign bit. • But note you have to work harder than just strip away the first bit. • 10000001 IS NOT the 8 -bit version of – 1 CSIT 301 (Blum) 21

Add 1’s to the left to get the same negative number using more bits • • -5 using 8 bits 11111011 -5 using 16 bits 1111111011 -5 using 32 bits 111111111111111011 When the numbers represented are whole numbers (positive or negative), they are called just integers or signed. CSIT 301 (Blum) 22

3 -bit signed and unsigned 7 6 5 4 3 2 1 0 1 1 0 0 CSIT 301 (Blum) 1 1 0 0 1 0 1 0 3 2 1 0 -1 -2 -3 -4 0 0 1 1 1 0 0 1 0 1 0 Think of driving a brand new car in reverse. What would happen to the odometer? 23

Biggest signed integers 4 bit: 0111 7 = 23 - 1 8 bit: 01111111 127 = 27 – 1 16 bit: 011111111 32767= 215 – 1 32 bit: 01111111111111111 2147483647= 231 – 1 • Etc. • • CSIT 301 (Blum) 24

Most negative signed integers 4 bit: 1000 -8 = - 23 8 bit: 10000000 - 128 = - 27 16 bit: 100000000 -32768= - 215 32 bit: 10000000000000000 -2147483648= - 231 • Etc. • • CSIT 301 (Blum) 25

XKCD CSIT 301 (Blum) 26

Some Java numerical types CSIT 301 (Blum) 27

Riddle 1 • • • 1 0 1 1 0 Is it 214? Or is it – 42? Or is it Ö? Or is it …? It’s a matter of interpretation – How was it declared? CSIT 301 (Blum) 28

Hexadecimal Numbers • Even moderately sized decimal numbers end up as long strings in binary. • Hexadecimal numbers (base 16) are often used because the strings are shorter and the conversion to binary is easier. • There are 16 digits: 0 -9 and A-F. CSIT 301 (Blum) 29

Decimal Binary Hex • • 0 0000 0 1 0001 1 2 0010 2 3 0011 3 4 0100 4 5 0101 5 6 0110 6 7 0111 7 CSIT 301 (Blum) • • 8 1000 8 9 1001 9 10 1010 A 11 1011 B 12 1100 C 13 1101 D 14 1110 E 15 1111 F 30

Binary to Hex • Break a binary string into groups of four bits (nibbles). • Convert each nibble separately. 1 1 1 0 0 1 E CSIT 301 (Blum) C 9 31

Some Hex CSIT 301 (Blum) 32

Numbers from Logic • All of the numerical operations we have talked about are really just combinations of logical operations. • E. g. the adding operation is just a particular combination of logic operations • Possibilities for adding two bits – – 0+0=0 (with no carry) 0+1=1 (with no carry) 1+0=1 (with no carry) 1+1=0 (with a carry) CSIT 301 (Blum) 33

Addition Truth Table INPUT OUTPUT Sum Carry A XOR B A AND B A B 0 0 0 1 1 0 1 0 1 CSIT 301 (Blum) 34

Multiplication: Shift and add + CSIT 301 (Blum) 1 1 0 0 0 1 1 1 0 0 0 0 0 1 1 1 1 shift 0 1 1 35

Fractions • Similar to what we’re used to with decimal numbers 3. 14159 = 3 · 100 + 1 · 10 -1 + 4 · 10 -2 + 1 · 10 -3 + 5 · 10 -4 + 9 · 10 -5 11. 001001 = 1 · 21 + 1 · 20 + 0 · 2 -1 + 0 · 2 -2 + 1 · 2 -3 + 0 · 2 -4 + 0 · 2 -5 + 1 · 2 -6 (11. 001001 3. 140625) CSIT 301 (Blum) 36

Converting decimal to binary II • 98. 61 – Integer part • • 98 / 2 49 / 2 24 / 2 12 / 2 6/2 3/2 1/2 = 49 = 24 = 12 = 6 = 3 = 1 = 0 remainder remainder 0 1 0 0 0 1 1 – 1100010 CSIT 301 (Blum) 37

Converting decimal to binary III • 98. 61 – Fractional part • • • 0. 61 2 = 1. 22 0. 22 2 = 0. 44 2 = 0. 88 2 = 1. 76 0. 76 2 = 1. 52 0. 52 2 = 1. 04 –. 100111 CSIT 301 (Blum) 38

Another Example (Whole number part) • 123. 456 – Integer part • • 123 / 2 = 61 remainder 1 61 / 2 = 30 remainder 1 30 / 2 = 15 remainder 0 15 / 2 = 7 remainder 1 7 / 2 = 3 remainder 1 3 / 2 = 1 remainder 1 1 / 2 = 0 remainder 1 – 1111011 CSIT 301 (Blum) 39

Checking: Go to All Programs/Accessories/Calculator PHY 201 (Blum) 40

Put the calculator in Programmer view PHY 201 (Blum) 41

Enter number, put into binary mode PHY 201 (Blum) 42

Another Example (fractional part) • 123. 456 – Fractional part • • 0. 456 2 = 0. 912 2 = 1. 824 0. 824 2 = 1. 648 0. 648 2 = 1. 296 0. 296 2 = 0. 592 2 = 1. 184 0. 184 2 = 0. 368 … –. 0111010… CSIT 301 (Blum) 43

Convert to decimal mode, then PHY 201 (Blum) 44

Edit/Copy result. Switch to Scientific View. Edit/Paste PHY 201 (Blum) 45

Divide by 2 raised to the number of digits (in this case 7, including leading zero) 1 2 3 4 PHY 201 (Blum) 46

Finally hit the equal sign. In most cases it will not be exact PHY 201 (Blum) 47

Other way around • Multiply fraction by 2 raised to the desired number of digits in the fractional part. For example –. 456 27 = 58. 368 • Throw away the fractional part and represent the whole number – 58 111010 • But note that we specified 7 digits and the result above uses only 6. Therefore we need to put in the leading 0 – 0111010 CSIT 301 (Blum) 48

Fixed point • If one has a set number of bits reserved for representing the whole number part and another set number of bits reserved for representing the fractional part of a number, then one is said to be using fixed point representation. – The point dividing whole number from fraction has an unchanging (fixed) place in the number. CSIT 301 (Blum) 49

Limits of the fixed point approach • Suppose you use 4 bits for the whole number part and 4 bits for the fractional part (ignoring sign for now). • The largest number would be 1111 = 15. 9375 • The smallest, non-zero number would be 0000. 0001 =. 0625 CSIT 301 (Blum) 50

References • Computer Architecture, Nicholas Carter • Computer Systems: Organization and Architecture, John Carpinelli CSIT 301 (Blum) 51
