Binary Number System 20 21 22 23 24
Binary Number System 20 21 22 23 24 25 (1 or 0 / on or off / True or False / +5 V or 0 V) (Ex) 10진수에서 2진수로의 변환 1/2 1/4 1/8 1/16. . . … 각 자리수는 1/2, 1/4, 1/8, …에 대응 -4 -
숫자의 표현(정수 표현) 8 bit unsigned number: 27 26 25 24 23 22 21 20 표현 범위: 숫자(0~28 -1= 0~255) 8 bit signed number: MSB (Most Significant Bit: 부호 비트) (예) 1 0 0 0 0 : 가장 작은 음수 (-128) 0 1 1 1 1 : 가장 큰 양수 (+127) 표현 범위: 숫자(0~27 -1 = 0~127), 부호비트(음수 1, 양수 0) : -128 ~ +127 -27 26 25 24 23 22 21 20 -6 -

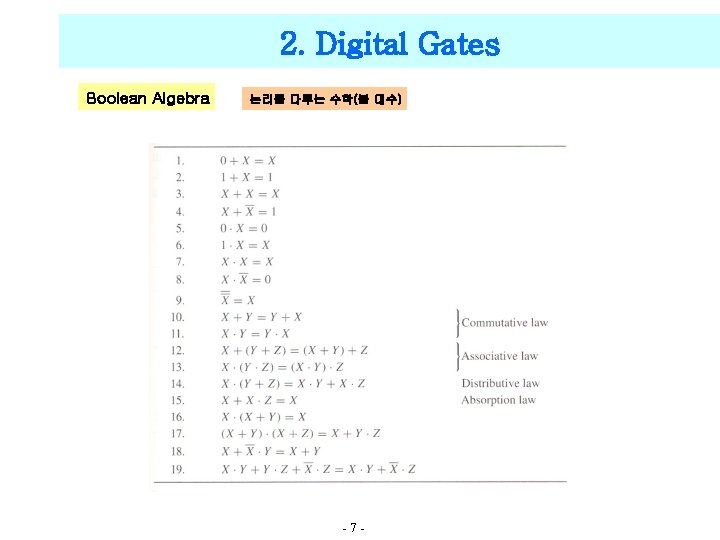

2. Digital Gates Boolean Algebra 논리를 다루는 수학(불 대수) <Rules of Boolean algebra> -7 -
디지털 게이트(gates) 입력 ● OR Gate (게이트의 내부) <Rules for logical addition> ● AND Gate <Rules for logical multiplication> -9 - 출력
● NOT Gate ● NAND Gate - 10 -

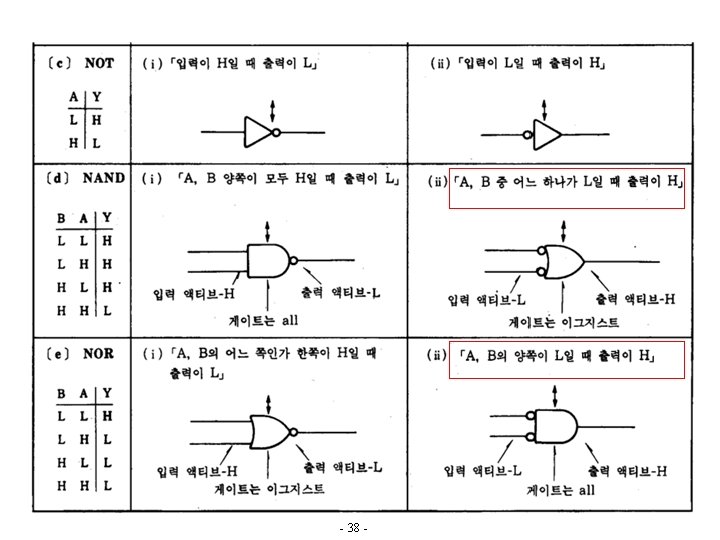

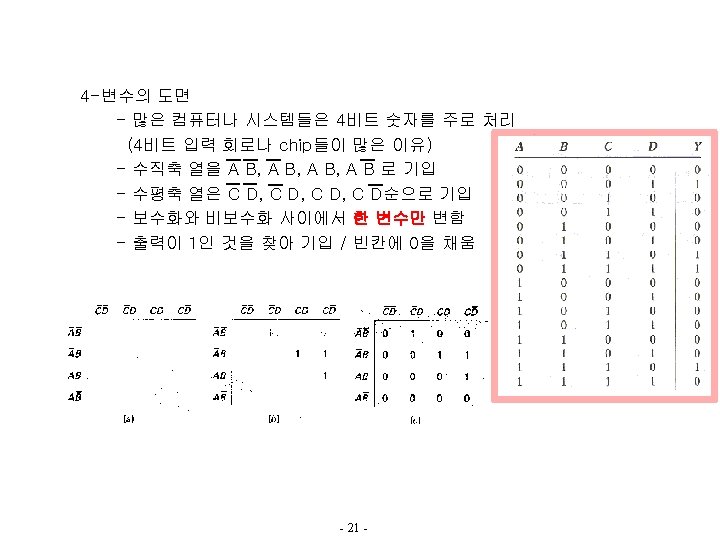

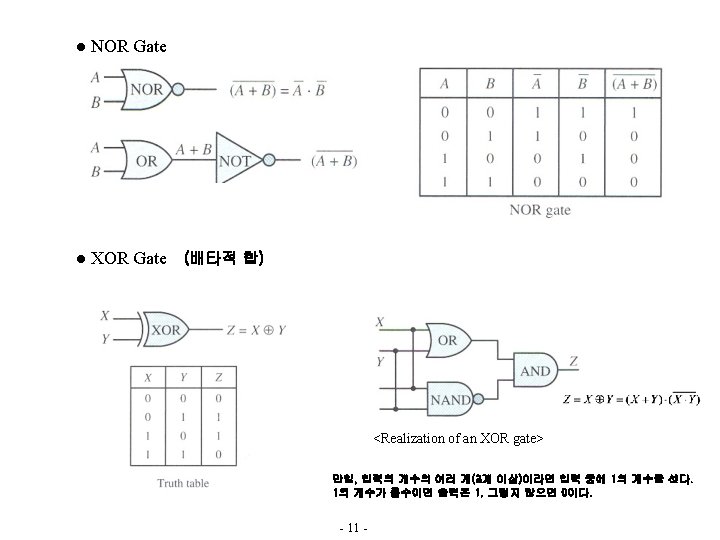

De. Morgan’s Theorem - 13 -

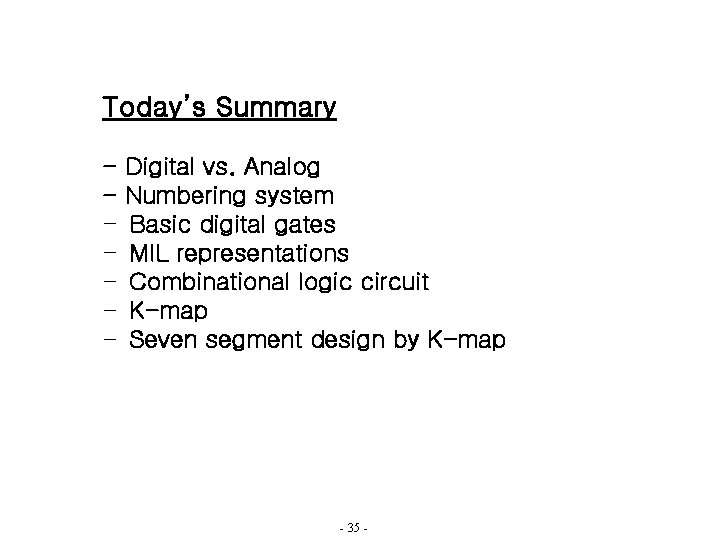

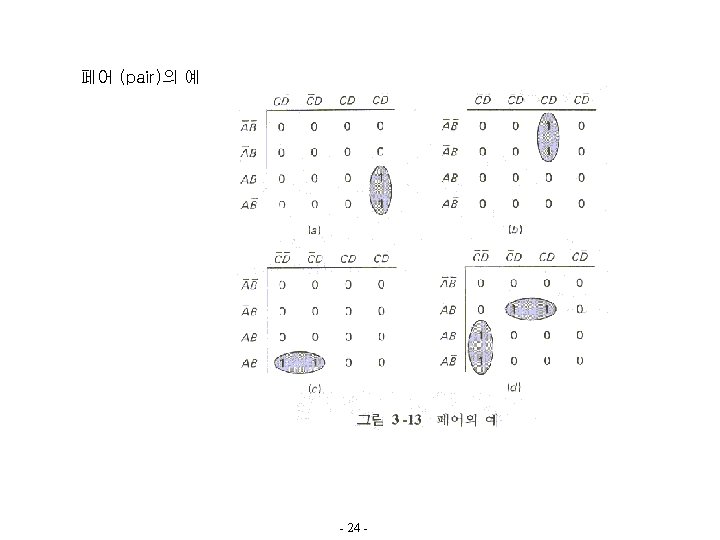

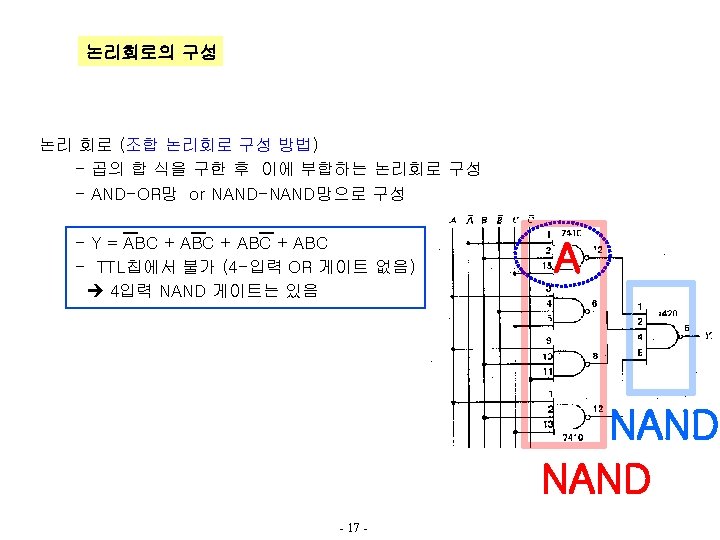

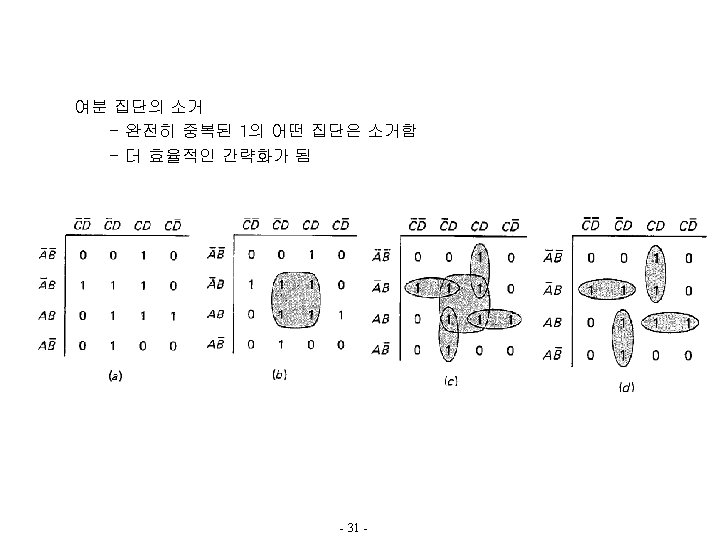

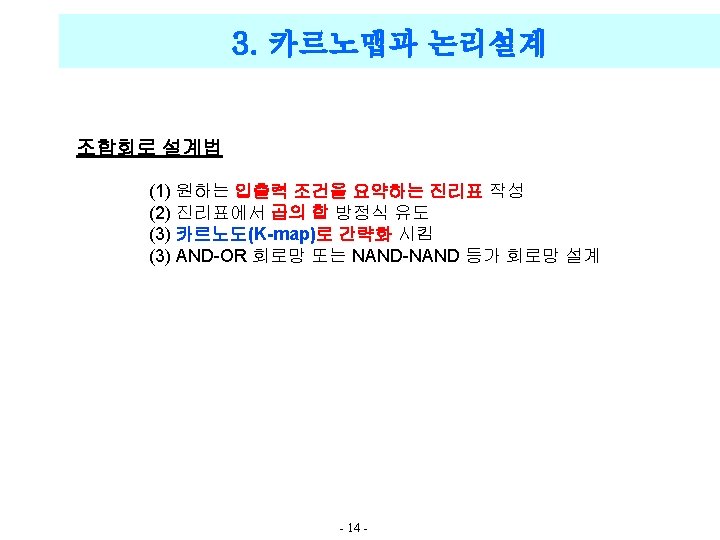

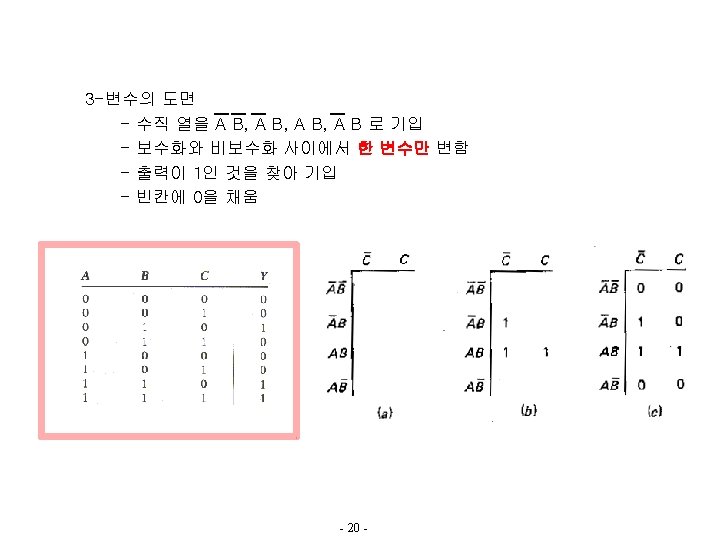

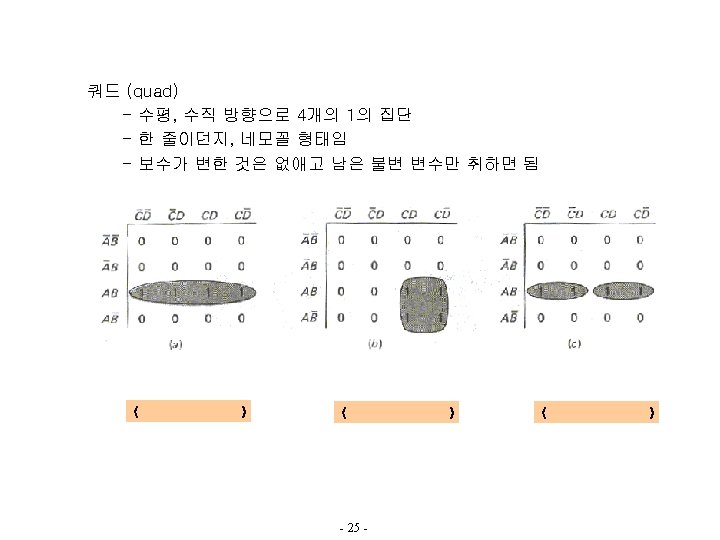

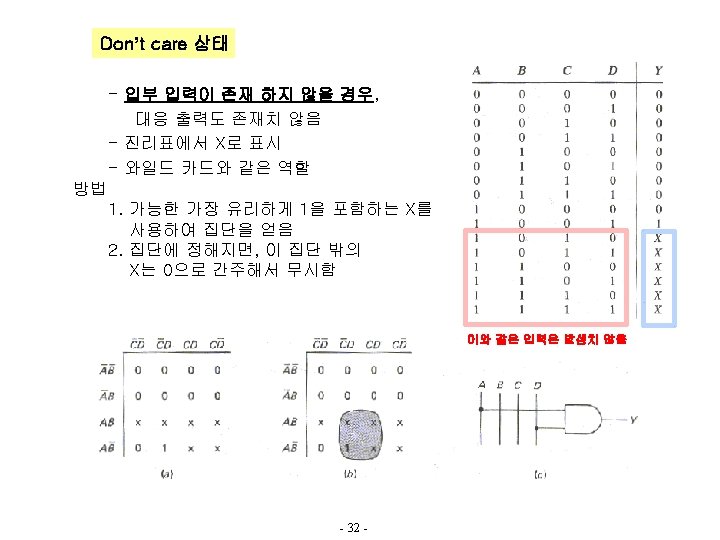

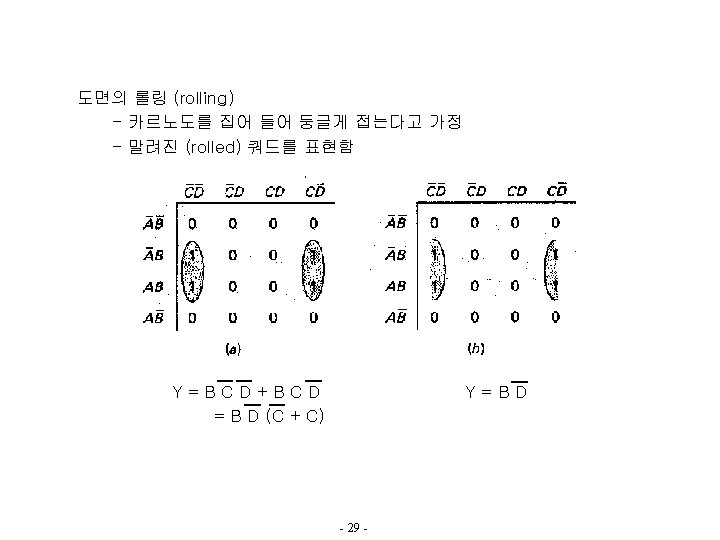

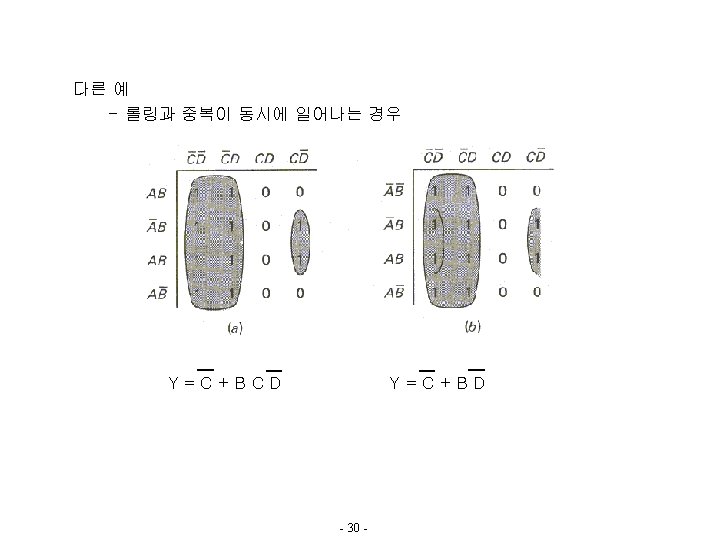

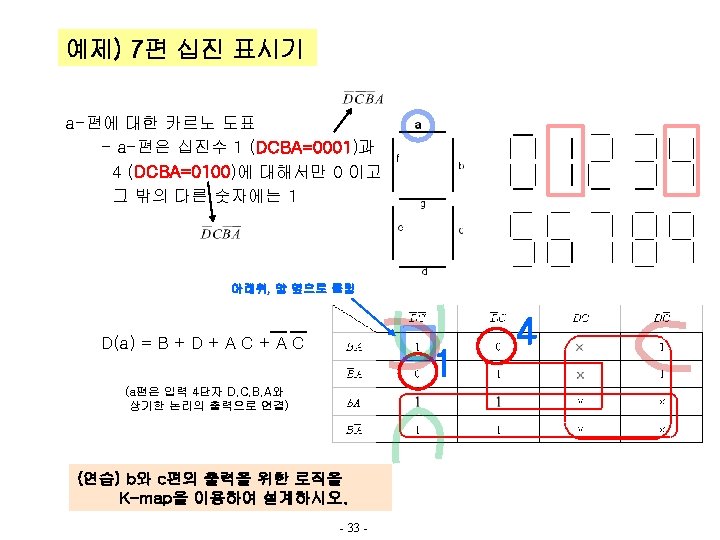

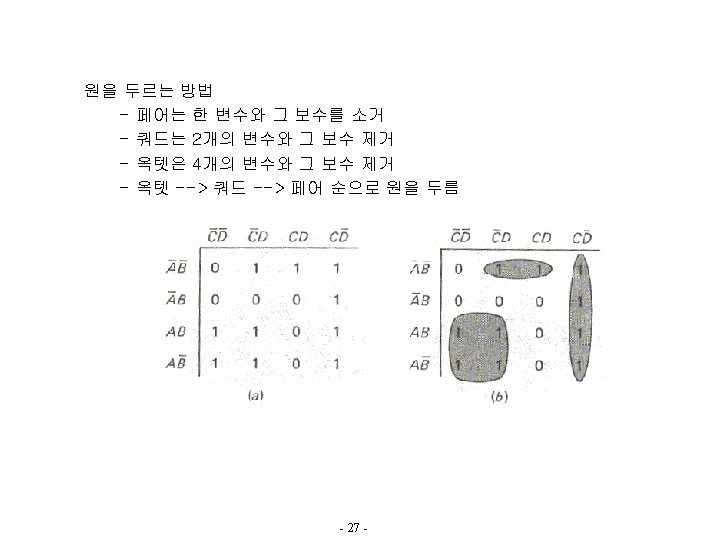

Today’s Summary - Digital vs. Analog Numbering system Basic digital gates MIL representations Combinational logic circuit K-map Seven segment design by K-map - 35 -

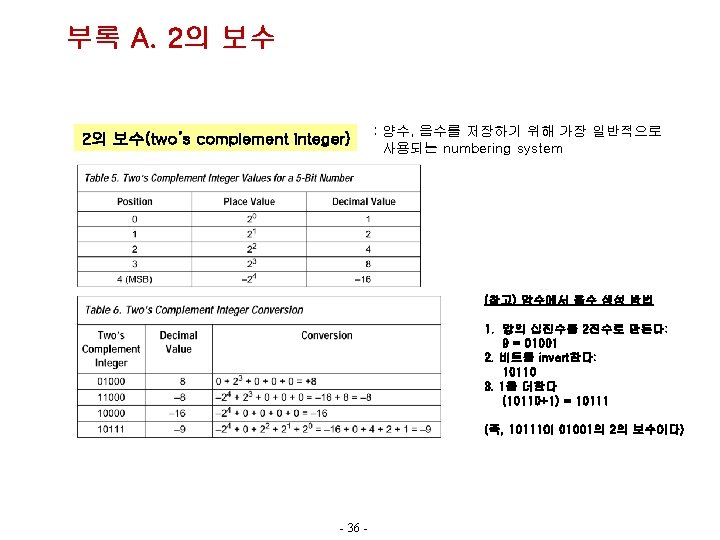

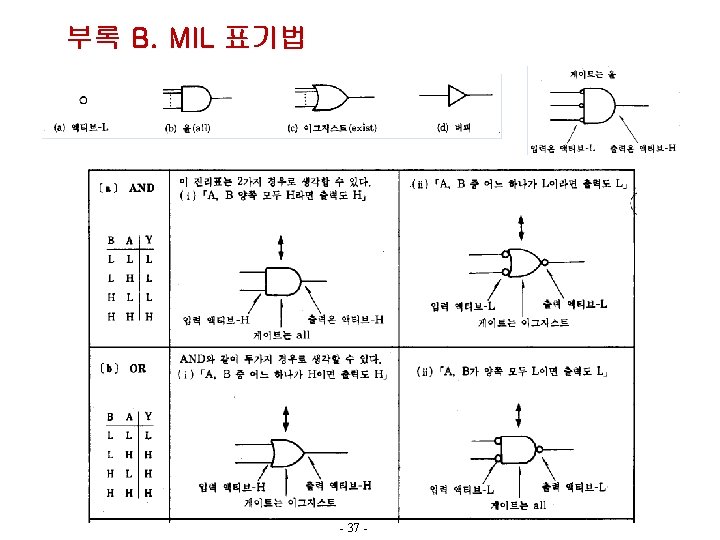

- Slides: 38
