Binary / Hex Binary and Hex The number systems of Computer Science CMSC 104

Binary / Hex Binary and Hex The number systems of Computer Science CMSC 104 Lecture 05 Rev 99/09/19 PCOLSEN 1

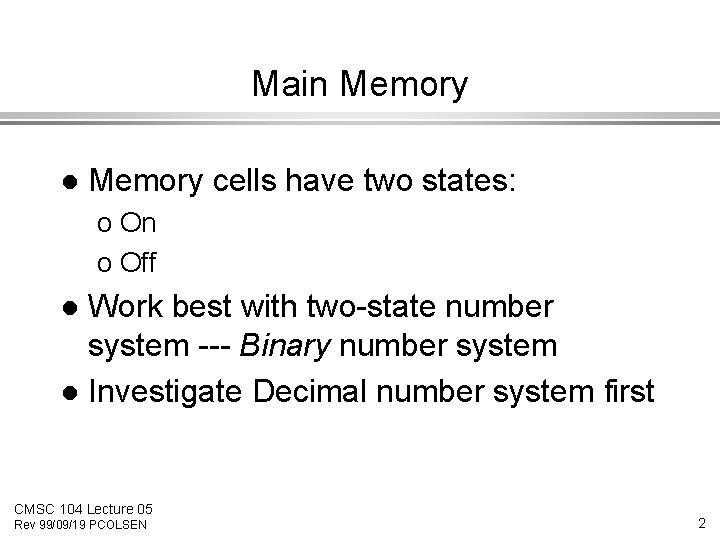

Main Memory l Memory cells have two states: o On o Off Work best

Main Memory l Memory cells have two states: o On o Off Work best with two-state number system --- Binary number system l Investigate Decimal number system first l CMSC 104 Lecture 05 Rev 99/09/19 PCOLSEN 2

The Decimal Numbering System The decimal number system is a positional number system: the

The Decimal Numbering System The decimal number system is a positional number system: the same digit will have different values in different positions. l Examples: 5 “five” = 5 * 1 l 50 500 CMSC 104 Lecture 05 Rev 99/09/19 PCOLSEN “fifty” = 5 * 10 “five-hundred” = 5*100 3

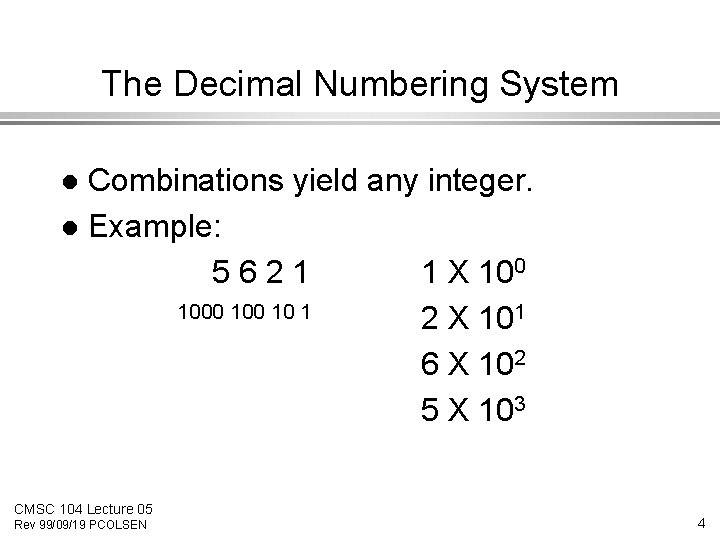

The Decimal Numbering System Combinations yield any integer. l Example: 5621 1 X 1000

The Decimal Numbering System Combinations yield any integer. l Example: 5621 1 X 1000 10 1 2 X 101 6 X 102 5 X 103 l CMSC 104 Lecture 05 Rev 99/09/19 PCOLSEN 4

What is the base ? The decimal numbering system is also known as base

What is the base ? The decimal numbering system is also known as base 10. The values of the positions are calculated by taking 10 to some power. l The common number system is a decimal or base 10 system because we use 10 digits: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9 l CMSC 104 Lecture 05 Rev 99/09/19 PCOLSEN 5

What is the base ? The binary numbering system is called binary because it

What is the base ? The binary numbering system is called binary because it uses base 2. The values of the positions are calculated by taking 2 to some power. l The Binary system uses just two digits: 0 and 1 l A memory cell has just two states… (Can you feel the tension building? ) l CMSC 104 Lecture 05 Rev 99/09/19 PCOLSEN 6

The Binary Numbering System is also a positional numbering system. l Instead of ten

The Binary Numbering System is also a positional numbering system. l Instead of ten digits, 0 - 9, the binary system uses only two digits, 0 and 1. l Example of a binary number & the values of the positions. 1 0 0 0 1 ( = 65) 2 6 2 5 2 4 23 2 2 21 2 0 l CMSC 104 Lecture 05 Rev 99/09/19 PCOLSEN 7

Computing the Decimal Values of Binary Numbers 1 0 0 0 1 2 6

Computing the Decimal Values of Binary Numbers 1 0 0 0 1 2 6 2 5 2 4 23 2 2 21 2 0 20 = 1 21 = 2 22 = 4 23 = 8 CMSC 104 Lecture 05 Rev 99/09/19 PCOLSEN 24 = 16 25 = 32 26 = 64 1 X 20 = 1 0 X 21 = 0 0 X 22 = 0 0 X 23 = 0 0 X 24 = 0 0 X 25 = 0 1 X 26 = 64 65 8

Converting Decimal to Binary First make a list of the values of 2 to

Converting Decimal to Binary First make a list of the values of 2 to the powers of 0 to 8, then use the subtraction method. 20 = 1, 21 = 2, 22 = 4, 23 = 8, 24 = 16, 25 = 32, 26 = 64, 27 = 128, 28 = 256 l Example: 42 42 10 2 - 32 - 8 - 2 1 0 1 0 5 24 23 22 21 20 CMSC 104 Lecture 2 05 l Rev 99/09/19 PCOLSEN 9

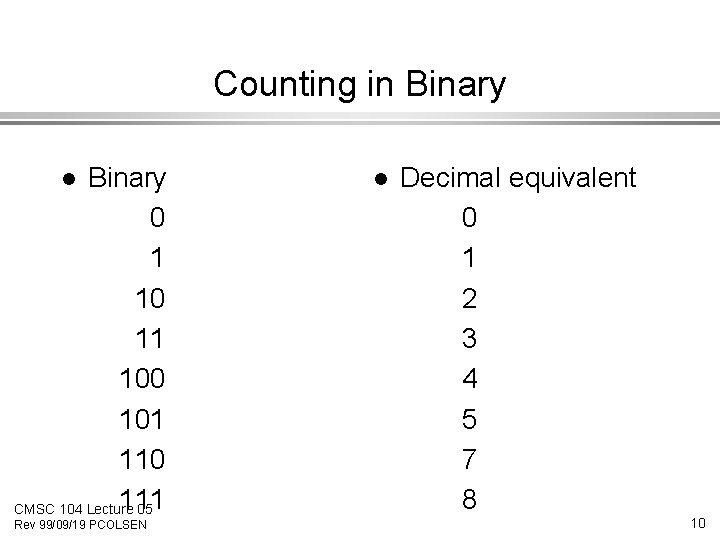

Counting in Binary 0 1 10 11 100 101 110 111 CMSC 104 Lecture

Counting in Binary 0 1 10 11 100 101 110 111 CMSC 104 Lecture 05 l Rev 99/09/19 PCOLSEN l Decimal equivalent 0 1 2 3 4 5 7 8 10

Addition of Binary Numbers l Examples: 1001 +0110 1111 CMSC 104 Lecture 05 Rev

Addition of Binary Numbers l Examples: 1001 +0110 1111 CMSC 104 Lecture 05 Rev 99/09/19 PCOLSEN 0001 +1001 1010 1100 +0101 1 0001 11

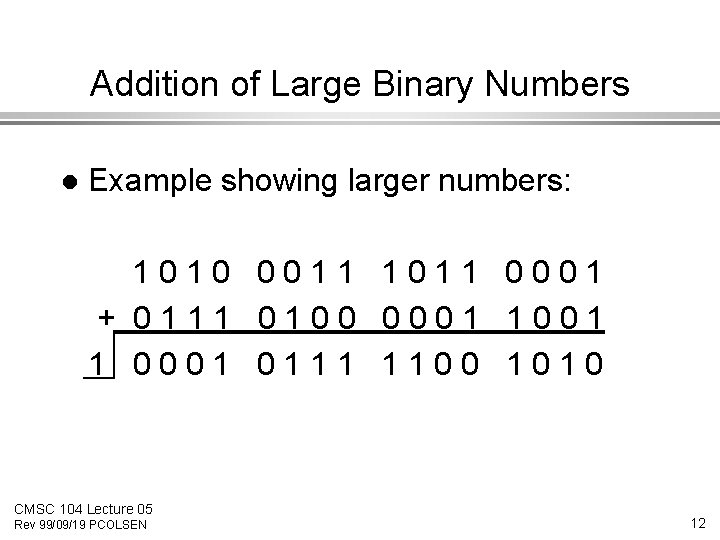

Addition of Large Binary Numbers l Example showing larger numbers: 1010 0011 1011 0001

Addition of Large Binary Numbers l Example showing larger numbers: 1010 0011 1011 0001 + 0111 0100 0001 1 0001 0111 1100 1010 CMSC 104 Lecture 05 Rev 99/09/19 PCOLSEN 12

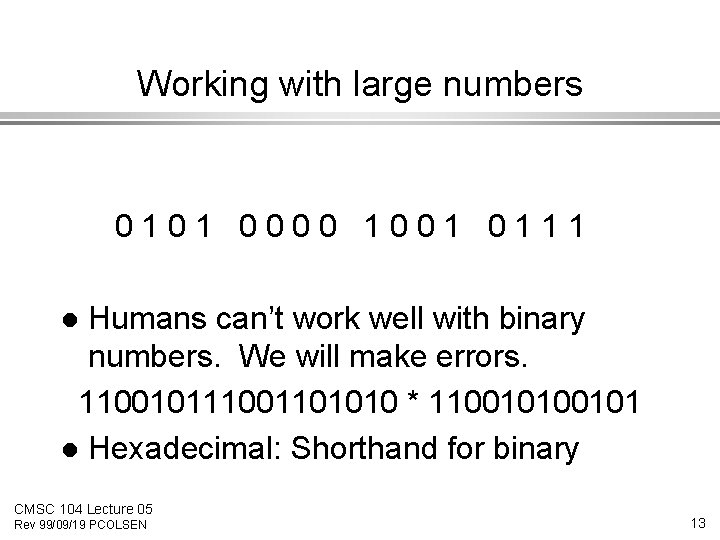

Working with large numbers 0101 0000 1001 0111 Humans can’t work well with binary

Working with large numbers 0101 0000 1001 0111 Humans can’t work well with binary numbers. We will make errors. 110010111001101010 * 1100101 l Hexadecimal: Shorthand for binary l CMSC 104 Lecture 05 Rev 99/09/19 PCOLSEN 13

Hexadecimal Binary 0 1 0 0 1 1 1 Hex 5 Written: 509716 CMSC

Hexadecimal Binary 0 1 0 0 1 1 1 Hex 5 Written: 509716 CMSC 104 Lecture 05 Rev 99/09/19 PCOLSEN 0 9 7 14

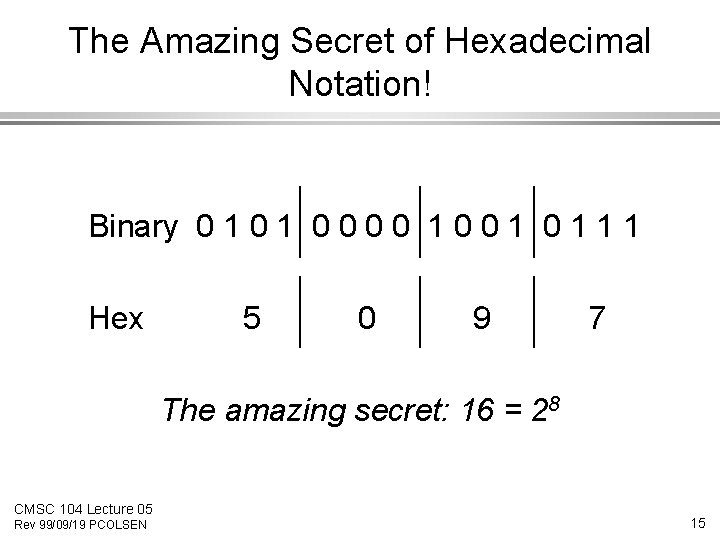

The Amazing Secret of Hexadecimal Notation! Binary 0 1 0 0 1 1 1

The Amazing Secret of Hexadecimal Notation! Binary 0 1 0 0 1 1 1 Hex 5 0 9 7 The amazing secret: 16 = 28 CMSC 104 Lecture 05 Rev 99/09/19 PCOLSEN 15

Hexadecimal Binary is base 2 two digits: 0, 1 l Decimal is base 10

Hexadecimal Binary is base 2 two digits: 0, 1 l Decimal is base 10 ten digits: 0, 1, 3, 4, 5, 6, 7, 8, 9. l Hexadecimal (hex) is base 16. How many digits do we need to express numbers in hex? 16: 0 1 2 3 4 5 6 7 8 9 A B C D E F l CMSC 104 Lecture 05 Rev 99/09/19 PCOLSEN 16

Counting in Hex Binary 0000 0001 0010 0011 0100 0101 0110 0111 CMSC 104

Counting in Hex Binary 0000 0001 0010 0011 0100 0101 0110 0111 CMSC 104 Lecture 05 Rev 99/09/19 PCOLSEN Hex 0 1 2 3 4 5 6 7 Binary 1000 1001 1010 1011 1100 1101 1110 1111 Hex 8 9 A B C D E F 17

Another Binary to Hex Conversion Binary 0 1 1 1 0 0 1 1

Another Binary to Hex Conversion Binary 0 1 1 1 0 0 1 1 1 Hex 7 C 3 F 7 C 3 F 16 CMSC 104 Lecture 05 Rev 99/09/19 PCOLSEN 18

Storing Negative Numbers in Binary Since we need to store negative numbers as well

Storing Negative Numbers in Binary Since we need to store negative numbers as well as positive numbers in binary, special variations on binary are used. l 2’s Complement notation is used for integers. l CMSC 104 Lecture 05 Rev 99/09/19 PCOLSEN 19

Building the 2’s Complement of a Binary Number Start with a binary number x

Building the 2’s Complement of a Binary Number Start with a binary number x = 1001 0101 l Replace 1 by 0, replace each 0 by 1 x 1 = 0110 1010 (“one’s complement”) l Add 1 to the least significant digit x 2 = 0110 1011 (“two’s complement”) l CMSC 104 Lecture 05 Rev 99/09/19 PCOLSEN 20

Why Two’s Complement? l Adding the two’s complement of a number is like subtracting

Why Two’s Complement? l Adding the two’s complement of a number is like subtracting the number x+x 2 = 1001 0101 + 0110 1011 1001 0110 1011 (1) 0000 where the leading 1 is in parentheses because it will be ignored. l Replaces Subtraction by Addition CMSC 104 Lecture 05 Rev 99/09/19 PCOLSEN 21

Review The decimal, binary, and hexadecimal number systems are positional systems l The decimal

Review The decimal, binary, and hexadecimal number systems are positional systems l The decimal number system has 10 digits, the binary system two, the hexadecimal system has 16 l The binary system is good system to use for two state memory devices. l CMSC 104 Lecture 05 Rev 99/09/19 PCOLSEN 22

Review The hexadecimal system (“hex”) needs 16 digits, so it uses 0 -9, A,

Review The hexadecimal system (“hex”) needs 16 digits, so it uses 0 -9, A, B, C, D, E, F l The hexadecimal system is a often a convenient shorthand for the binary system: 4 -bits to one hex digit l Negative numbers are stored using “two’s complement” which turns subtraction into addition. l CMSC 104 Lecture 05 Rev 99/09/19 PCOLSEN 23
