Billund Vand AS Utility company in Billund Municipality

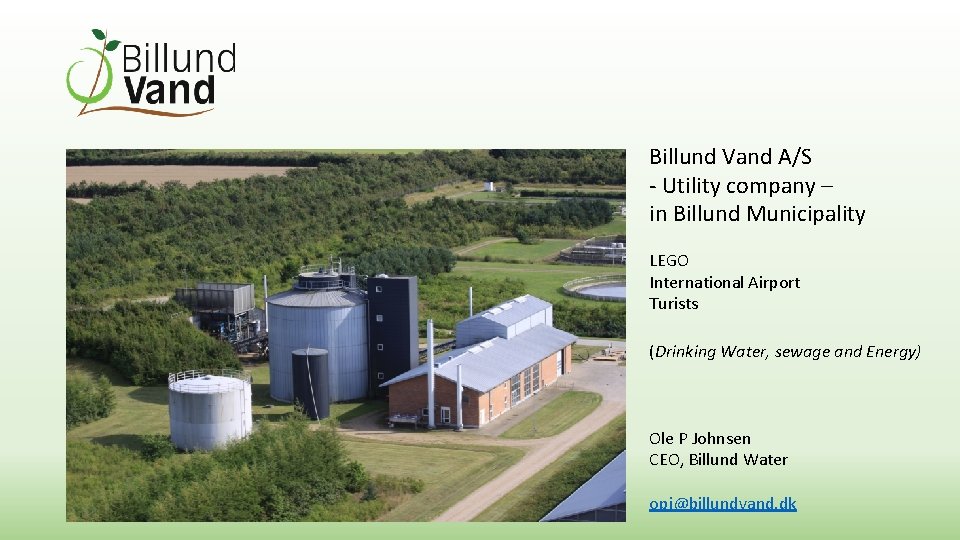

Billund Vand A/S - Utility company – in Billund Municipality LEGO International Airport Turists (Drinking Water, sewage and Energy) Ole P Johnsen CEO, Billund Water opj@billundvand. dk

Wastewater in Denmark Basic sewage treatment early 1900’ies and first mechanic sewage treatment plant built in 1948 First Danish Water Action Plan in 1987: regulation of nutrients from agriculture, national criteria for removal of nutrients at WWTP’s (first in Europe), restoration of rivers and lakes 5, 5 million inhabitants consume on average 106 liters of water per day at a price of 8, 5 € pr m 3, Water consumption in Denmark has decreased 15% over the last 10 years, while production has increased. 90% of Danish households are connected to one of the 674 WWTP’s.

Organisation, policy and regulation Ministry of Environment and Food of Denmark: Environmental policy and regulation, WFD implementation Ministry of Energy, Utilities and Climate: Regulation and policy related to supply of services: water, energy, waste Ministry of Business and Growth: Economic regulation of water utilities Separation of authority and operations Municipalities: Local water and environment authority, responsible for local water plans and compliance with legislation Water and sewage utilities: organised as private companies, larger owned by municipalities, responsible for water supply, sewage abstraction and treatment, storm water management and partly climate change adaptation

Why Billund Bio. Refinery – WWTP & Energy Household Waste and Industrial Waste available High Quality in sludge to use as fertilizer in agriculture Opportunity to double the biogas production Supported by the Danish Ministry of Environment – as the Danish“Light house projects” to demonstrate the Water Treatment for the future Water Quality optimization Biogas production Ressource recovery

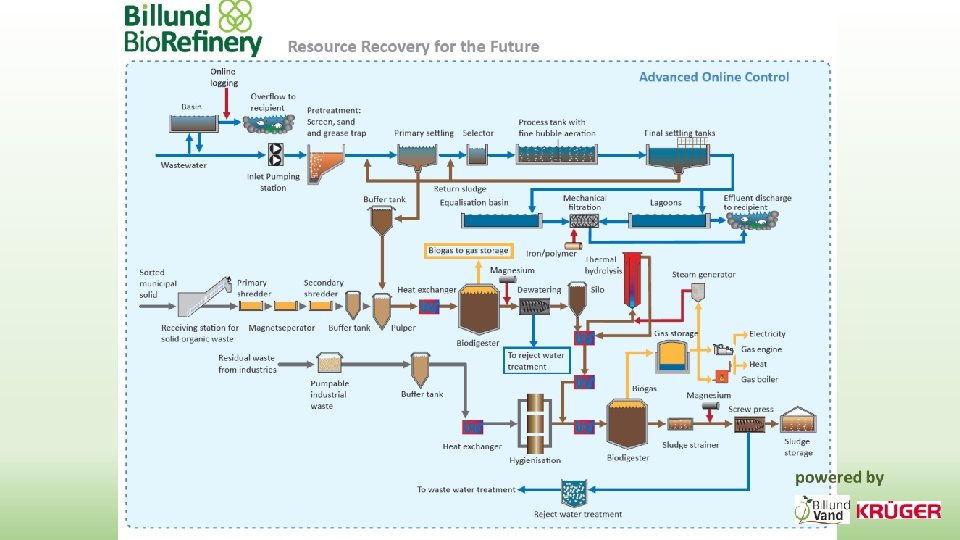

An unique solution…. IFAS anammox STAR control Improved Fertilizer Exelys DLD An existing WWTP with co-digestion New Technologies + Filtration for polishing effluent + cleaning stormflow Known technologies STAR control Anaerobic digestion Energyproduction Energy efficient aeration 8

Improved efficiency Improved quality Residues as input Increased capacity Valuable outputs + 110 % + 130 %

Improved energyefficiency with Billund Bio. Refinery + 160 % 01/11/2020 11

What have we achieved until now with Billund Bio. Refinery – WWTP & Energy ? Effective watertreatment below 2 mg/l N, below 1 mg/l P High demand from farmers who want to use sludge for organic fertilizer on their croops Production on 130 % mere energy than used Great interests from the Danish Environment minister Water Quality optimization Biogas production Ressource recovery

Thank you for your attention And we are open for visits and inspirations Best Regards Ole P Johnsen
